Here you will find all available parts and drawings of the 'Hikoki UC7SL'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

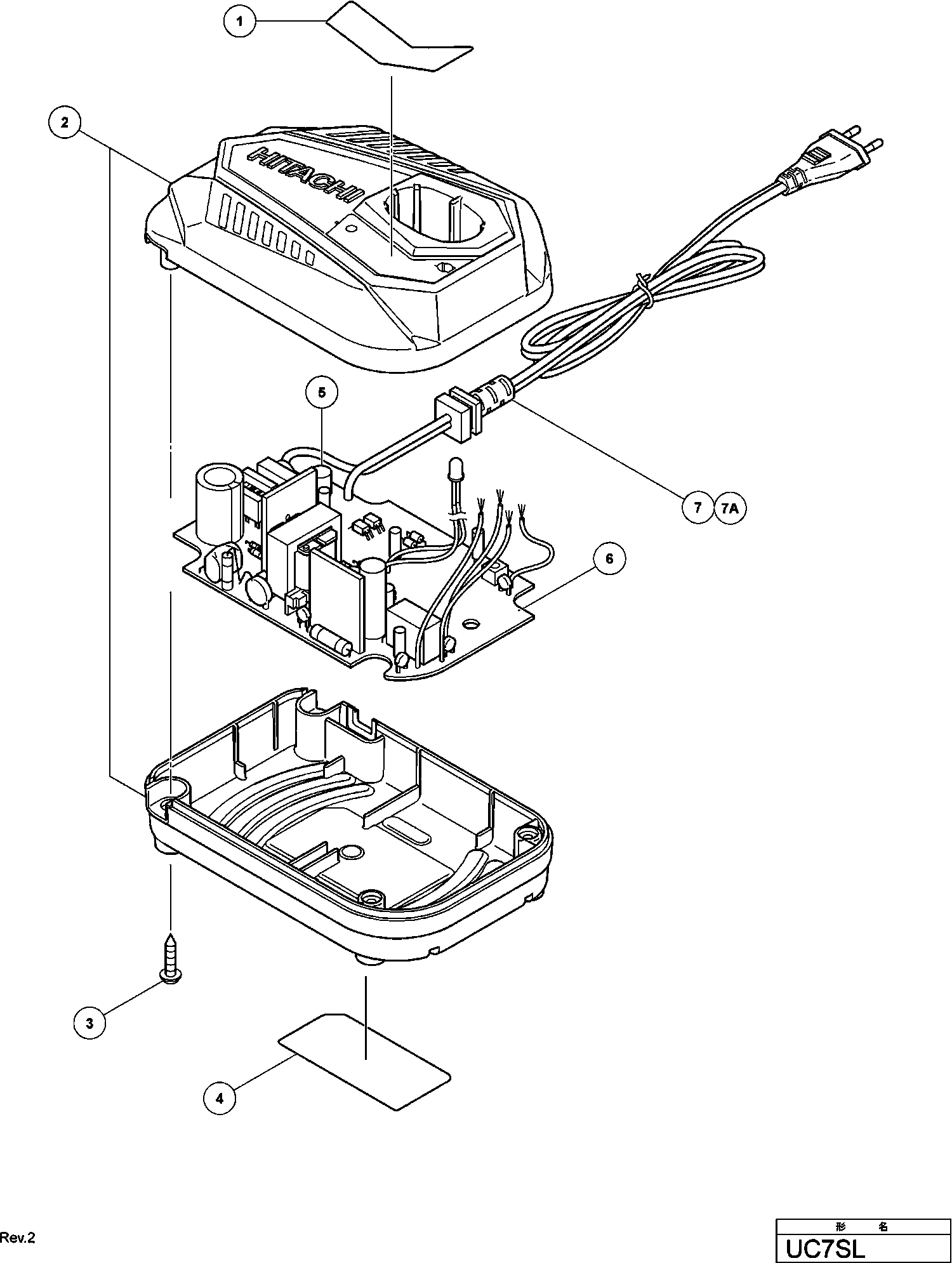

Technical drawing of model Hikoki UC7SL
Spare parts list of model Hikoki UC7SL
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| *1 | 335422 | |||
| Printed Circuit Board Ass'y 120v Includ.5 | ||||
| *6 | 335419 | 33.83 | 40.93 | |
| Cord For Rus | ||||
| *7 | 329602 | 6.75 | 8.17 | |
| No information available, not orderable | ||||
| 1 | 335422 | |||
| Case (a).(b) Set | ||||
| 2 | 335417 | 6.45 | 7.80 | |
| Case (a).(b) Set | ||||
| 2A | 335417 | 6.45 | 7.80 | |
| Tapping Screw (w/flange) D3x18 | ||||
| 3 | 326358 | 1.20 | 1.45 | |
| TP. TORX SCHROEF D3X18 | ||||
| 3A | 376623 | 1.00 | 1.21 | |
| Fuse (3.15a) | ||||
| 5 | 329857 | 1.80 | 2.18 | |
| Printed Circuit Board Ass'y 120v Includ.5 | ||||
| 6 | 335419 | 33.83 | 40.93 | |
| No information available, not orderable | ||||
| 6A | 380089 | |||
| No information available, not orderable | ||||
| 7 | 324743 | |||
| Cord For Europe | ||||
| 7A | 337635 | 3.00 | 3.63 | |
