Here you will find all available parts and drawings of the 'Hikoki UC36YSL'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

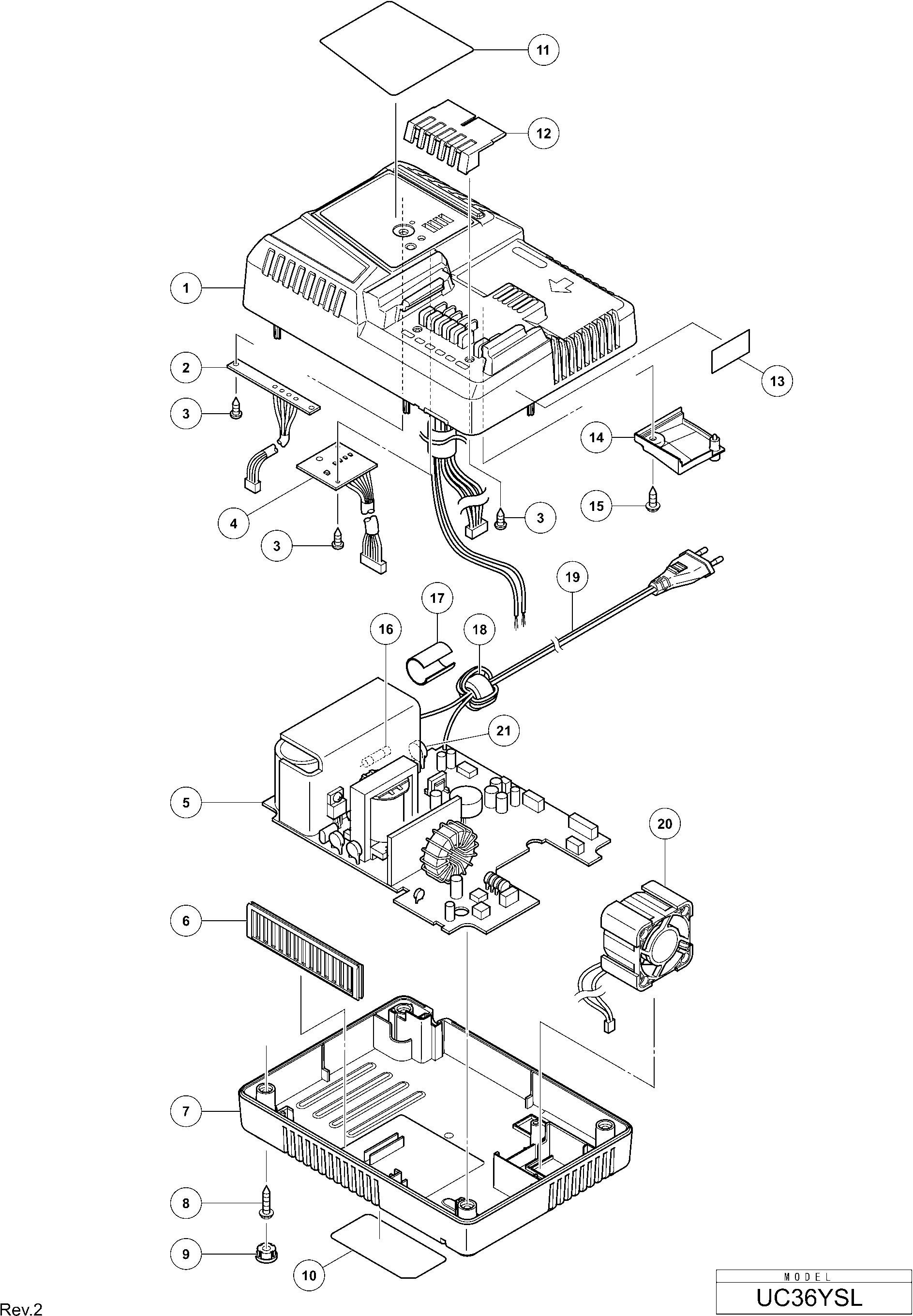

Technical drawing of model Hikoki UC36YSL
Spare parts list of model Hikoki UC36YSL
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| *19 | 500514Z | |||
| No information available, not orderable | ||||
| *21 | 370164 | |||
| No information available, not orderable | ||||
| *5 | 370110 | |||
| No information available, not orderable | ||||
| *5A | 382636 | |||
| Case (a) | ||||
| 1 | 370108 | 15.54 | 18.80 | |
| Led Pcb | ||||
| 2 | 339271 | 4.05 | 4.90 | |
| Tapping Screw (w/flange) D2x8 (black) | ||||
| 3 | 339341 | 1.04 | 1.26 | |
| Switch Pcb | ||||
| 4 | 370113 | 3.45 | 4.17 | |
| Printed Circuit Board Ass'y 220v-240v Includ.16 | ||||
| 5 | 370112 | 111.51 | 134.93 | |
| Filter | ||||
| 6 | 339273 | 1.50 | 1.82 | |
| Case (b) | ||||
| 7 | 370109 | 4.35 | 5.26 | |
| Tapping Screw (w/flange) D3x18 | ||||
| 8 | 326358 | 1.20 | 1.45 | |
| TP. TORX SCHROEF D3X18 | ||||
| 8A | 376623 | 1.00 | 1.21 | |
| Rubber (a) | ||||
| 9 | 338717 | 1.04 | 1.26 | |
| Brand Label | ||||
| 11 | 370118 | 1.04 | 1.26 | |
| Cover | ||||
| 12 | 338715 | 1.35 | 1.63 | |
| Air Duct | ||||
| 14 | 370114 | 1.04 | 1.26 | |
| Tp Tapping Screw D3x8 | ||||
| 15 | 327174 | 1.65 | 2.00 | |
| Fuse (10a/250v) | ||||
| 16 | 370116 | 1.80 | 2.18 | |
| No information available, not orderable | ||||
| 17 | 370117 | |||
| Ferrite Core Except For Sin,mal,uae | ||||
| 18 | 334379 | 4.65 | 5.63 | |
| Cord (euro) | ||||
| 19 | 500511Z | 5.10 | 6.17 | |
| Fan (1) | ||||
| 20 | 370115 | 10.20 | 12.34 | |
| No information available, not orderable | ||||
| 21 | 370164 | |||
