Here you will find all available parts and drawings of the 'Hikoki UC36YRL'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

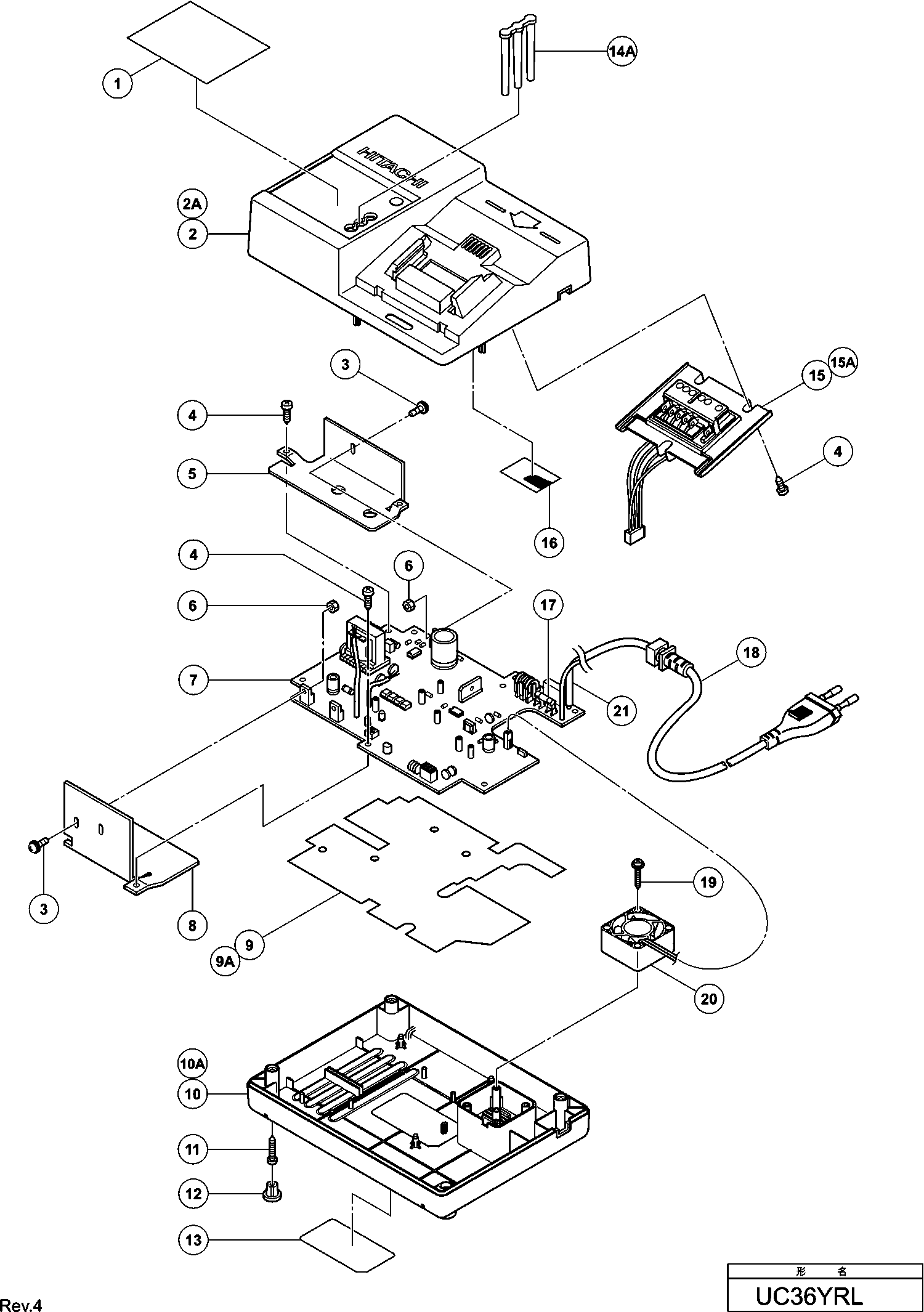

Technical drawing of model Hikoki UC36YRL
Spare parts list of model Hikoki UC36YRL
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Brand Label | ||||
| 1 | 328637 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 2 | 328630 | |||
| Case (a) Since 12.2012 | ||||
| 2A | 335801 | 7.95 | 9.62 | |
| Machine Screw (w/washers) M3x12 | ||||
| 3 | 993963 | 1.05 | 1.27 | |
| Tp Tapping Screw D3x8 | ||||
| 4 | 327174 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 5 | 328632 | |||
| Nut M3 (10 Pcs.) | ||||
| 6 | 949553 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 8 | 328633 | |||
| No information available, not orderable | ||||
| 9 | 328622 | |||
| Tapping Screw (w/flange) D3x18 | ||||
| 11 | 326358 | 1.20 | 1.45 | |
| Case Rubber | ||||
| 12 | 327173 | 1.65 | 2.00 | |
| Prism | ||||
| 14A | 337898 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 15 | 327176 | |||
| Terminal Holder Since 12.2012 | ||||
| 15A | 337903 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 16 | 328531 | |||
| Fuse (250v-3.15a) | ||||
| 17 | 328679 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 19 | 327175 | |||
| Fan | ||||
| 20 | 326809 | 12.45 | 15.06 | |
