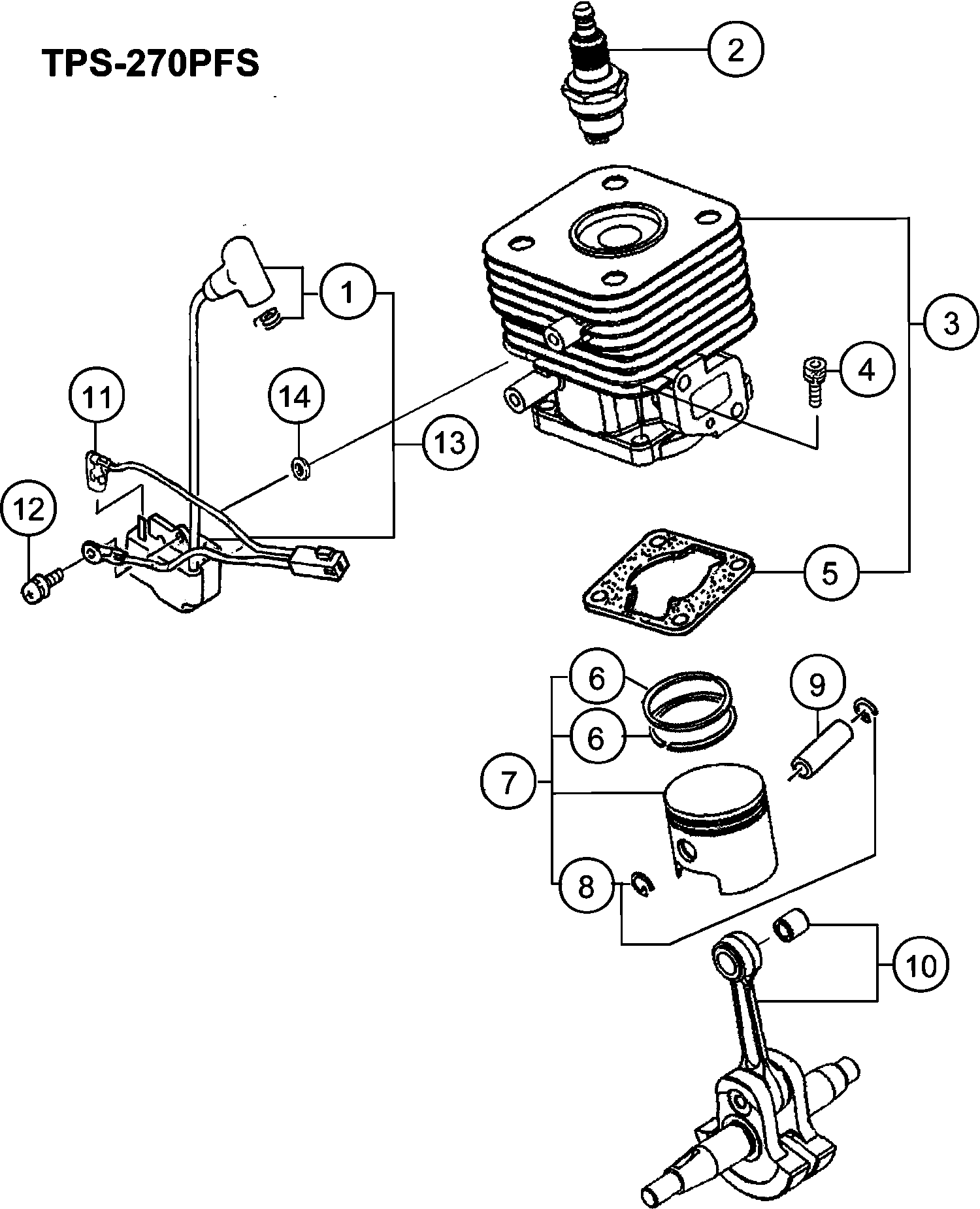

Technical drawing of model Hikoki TPS-270PFS

Spare parts list of model Hikoki TPS-270PFS

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Plug Cap
1 6684894 8.58 10.38
Spark Plug BMR6A
2 6699315 13.35 16.15
No information available, not orderable
3 6685495
Hex.hole Bolt M5x18/s
4 6684586 2.15 2.60
Cylinder Gasket
5 6684896 2.15 2.60
Piston Ring
6 6686121 4.45 5.38
Piston Set
7 6685902 20.11 24.34
Cir Clip
8 6684590 2.15 2.60
Piston Pin
9 6684591 4.29 5.19
Crank Shaft Comp.
10 6686219 72.30 87.48
Lead Wire Assembly (old 191-01680-90)
11 6687965 3.30 3.99
High Tension Screw 4x18ws Since H124041
12 6695407 1.15 1.39
Ignition Coil Ass'y Mb-65
13 6687688 42.20 51.06
Washer T1.6
14 6684600 2.15 2.60
Gear Shaft Shim 0.20
21 6684604 2.15 2.60
Gear Shaft Shim 0.30
21 6684605 2.15 2.60
Magneto Rotor Comp.
22 6687385 22.24 26.91
Hex. Nut M8
23 6684612 2.15 2.60
Bolt Washer M8
24 6684611 2.15 2.60
Crank Case Ass'y Since D038601
25 6684905 54.45 65.88
Oil Seal
26 6684607 4.29 5.19
Ball Bearing 6001 C3
27 6684608 3.80 4.60
Crank Case Gasket
28 6684904 2.15 2.60
Hex. Hole Bolt M5x16/s
29 6684903 2.15 2.60
Inlet Manifold Gasket
41 6689895 1.15 1.39
Insulator Set
42 6689972 6.28 7.59
Hex. Hole Bolt 5x25/ws
43 6684617 2.15 2.60
Carburetor Packing
44 6684616 2.15 2.60
Choke Plate 2.0
45 6691276 1.15 1.39
Cleaner Body Comp.
46 6690120 4.45 5.38
Cleaner Sponge
47 6690365 1.15 1.39
Cleaner Cover
48 6690402 10.23 12.37
Cover Fixing Bolt Comp.
49 6698730 3.15 3.81
Screw M5x55
50 6694914 1.15 1.39
S.washer 5
51 6684662 2.15 2.60
Small Washer 5
52 6684864 2.15 2.60
Carburetor Set Wyj-463 (old 455-0740a-90)
53 6690522 80.31 97.18
Choke Control Lever
54 6691239 1.15 1.39
Tank Wht
55 6691602 15.13 18.30
Collar C
56 6684623 2.15 2.60
Return Grommet Till 7.2014
57 6697846 1.04 1.26
Fuel Pipe 3x5x65
58 6684626 2.15 2.60
No information available, not orderable
59 6684620
Clip D6
60 6685198 1.15 1.39
Shield Tube 3x5x180
61 6684618 4.29 5.19
Hex.hole Bolt 5x20/ps
62 6684634 2.15 2.60
No information available, not orderable
63 6685049
Tap Screw 4x14 P
64 6695280 1.15 1.39
Ring
65 6685070 1.15 1.39
Stand
66 6694787 3.30 3.99
No information available, not orderable
67 6684625
Cylinder Cover (blk)
81 6685693 4.79 5.79
Hex. Hole Bolt 5x16/ps
82 6695504 1.15 1.39
Hex.hole Bolt 6x65 (old 990-51060-653)
83 6695067 1.15 1.39
Ring
84 6684639 2.15 2.60
Muffler Comp
85 6699282 47.04 56.92
No longer available, no replacement
86 6692888
Tail Pipe Set
87 6692715 3.30 3.99
Screw M4x8/ws
88 6684651 2.15 2.60
Spark Arrester
89 6692701 2.31 2.80
Muffler Protector Blk
90 6692818 13.04 15.78
Screw 4x18/ps Since H124041
91 6695375 1.15 1.39
Plug Cover
92 6688344 3.30 3.99
Ring
93 6684642 2.15 2.60
Clutch Shoe Comp.
94 6684643 11.55 13.98
Clutch Spring
95 6684644 2.15 2.60
Clutch Plate A 0.5
96 6684645 2.15 2.60
Step Bolt
97 6684646 2.15 2.60
Hex.hole Bolt 5x20/ps
98 6684634 2.15 2.60
Clutch Set Ass'y
99 6699640 12.88 15.58
Ring
100 6684648 2.15 2.60
Tapping Screw D4.5x16
101 6684636 2.15 2.60
Heat Shield
102 6687265 4.45 5.38
Starter Rope 3.5x860 For (s) Type Since 7.2012 Fo
103 6684674 4.29 5.19
Recoil Spring Till 7.2014
104 6684675 11.55 13.98
Starter Rope Reel For (s) Type Since 9.2013 For A
105A 6699997 8.41 10.18
Damper Spring For (s) Type Since 7.2012 For Aus
106 6684677 8.58 10.38
Cam Plate For (s) Type Since 9.2013 For Aus
107A 6699996 2.55 3.09
Set Screw (old 839-03045-20)
108 6684679 2.15 2.60
Starter Handle
109 6684680 2.15 2.60
Starter Pulley Ass'y For (s) Type Since 7.2012 Fo
110 6684681 13.20 15.97
Screw 4x18/ps Since H124041
111 6695375 1.15 1.39
D4e Retaining Ring (old 993-55040-001)
112 6685101 1.15 1.39
Starter Pawl Spring
113 6684684 4.29 5.19
Starter Pawl
114 6684685 4.29 5.19
Till 8.2013 For Aus
115 6699691 6.10 7.38
Recoil Starter Body Comp. For (s) Type Since 7.20
117 6684673 19.06 23.07
Pump Body Comp.
121 6684879 62.16 75.22
Priming Pump Comp.
122 6684687 16.34 19.77
Diaphragm Cover
123 6684688 8.58 10.38
Priming Body
124 6684689 6.44 7.79
Metering Diaphragm
125 6684690 18.00 21.78
Diaphragm Gasket
126 6684691 8.58 10.38
Pump Diaphragm
127 6684693 8.58 10.38
Pump Gasket
128 6684692 29.19 35.32
Main Jet #38.5 (old 599-200bw-38/6691874)
129 6696130 5.78 6.99
O-RING (old 550-25100-20)
130 6684695 4.29 5.19
Stop Ring
131 6684696 2.15 2.60
Swivel
132 6684697 6.44 7.79
Throttle Set Screw
133 6684870 2.15 2.60
Cable Adjuster Stay
134 6684873 6.44 7.79
Cleaner Packing
135 6684875 4.29 5.19
Set Screw
136 6684699 2.15 2.60
Thrust Washer
137 6684874 2.15 2.60
Inlet Screen
138 6684700 4.29 5.19
Clutch Drum Comp.
151 6688580 10.89 13.17
Stop Ring C-12 Outer
152 6684664 2.15 2.60
Cushion Rubber
153 6691823 3.30 3.99
Hex. Hole Bolt 5x16
154 6695046 1.15 1.39
Hex. Hole Bolt M5x25/s
155 6684709 2.15 2.60
Fan Housing
156 6686959 15.13 18.30
Pipe Holder, TPE
157 6689651 5.94 7.18
Washer M5 (black)
158 6684918 2.15 2.60
Ring
159 6689159 1.15 1.39
Metal Fitting
160 6689664 3.30 3.99
Drive Shaft 1829l
181 6689443 17.55 21.24
Main Pipe Comp
182 6699653 32.06 38.80
Bush Ass'y
183 6697839 4.29 5.19
Hex.nut 6
184 6684835 2.15 2.60
Loop Handle, 24 Dia.,black
185 6691046 5.78 6.99
Handle Bracket A
186 6691134 2.31 2.80
Handle Grip (old 503-3738e-20)
187 6691098 6.44 7.79
Bolt 6x43/p (black)
188 6684838 2.15 2.60
Tapping Screw 5x20
189 6695255 1.15 1.39
Ring
190 6689681 1.15 1.39
Hanger D24
191 6689277 3.30 3.99
Throttle Lever Ass'y 24
192 6693773 44.31 53.62
Throttle Wire Comp.
193 6693984 40.24 48.69
Throttle Wire 4t
194 6694026 14.68 17.76
Stop Switch Comp
195 6687463 9.74 11.78
Protection Tube 7x175
196 6687526 1.15 1.39
Safety Lever (old 253-38400-20)
197 6684721 6.44 7.79
Return Spring
198 6684722 2.15 2.60
Screw M5x20
199 6684803 2.15 2.60
No information available, not orderable
200 6684727
Screw M4x20 (black)
201 6684725 2.15 2.60
Throttle Lever
202 6684804 8.58 10.38
Oil Tank Cover
221 6686138 2.31 2.80
Collar 3 Since J093880
222 6699273 1.15 1.39
Oil Tank Packing Since J093880
223 6699567 2.15 2.60
O-ring P-5
224 6695661 1.15 1.39
Step Bolt A
225 6689757 4.45 5.38
Oil Pump Comp.
226 6686487 17.09 20.68
O-ring P-5
227 6695661 1.15 1.39
Oil Pump Spring
228 6690381 1.15 1.39
Oil Pump Piston Comp. (old 073-32304-81/6686607)
229 6686608 2.31 2.80
Tank Packing Ass'y Since J093880
230 6699566 2.31 2.80
Fuel Pipe 3x5x60
231 6692414 1.15 1.39
Small Screw 4x12ws (old 994-16040-126)
232 6695403 1.15 1.39
Ring
233 6684661 2.15 2.60
Oil Filter
234 6690917 1.15 1.39
Filter Assembly (old 486-32345-90)
235 6690913 2.31 2.80
Fuel Pipe 3x5x75
236 6692415 1.15 1.39
Oil Pump Adjuster (old 501-32304-21)
237 6691066 4.45 5.38
O-ring P-5
238 6695661 1.15 1.39
Stop Ring E-6
239 6695311 1.15 1.39
Oil Tank Cap Assembly (old 624-32304-92)
240 6692050 12.05 14.58
Banjo, Oil Pump
241 6686637 1.15 1.39
O-ring P-15
242 6698966 1.04 1.26
Push Nut
243 6695239 1.15 1.39
Ring
244 6695187 1.15 1.39
O-ring 1.4 (old 999-67001-413)
245 6695656 1.15 1.39
Hex. Hole Bolt 5x22/s
261 6695492 1.15 1.39
Hex. Hole Bolt 5x10
262 6695042 1.15 1.39
No information available, not orderable
263 6695458
Case
264 6685793 14.35 17.36
Gear Pinion Set Spare
265 6688836 36.15 43.74
Ball Bearing 609
266 6684734 8.58 10.38
Ball Bearing 609z St
267 6684735 8.58 10.38
Stop Ring C-9, Outer
268 6695281 1.15 1.39
Stop Ring C-24,inner
269 6684732 2.15 2.60
Ring
270 6693248 1.15 1.39
Ball Bearing 627 C3
271 6695568 5.61 6.79
Ball Bearing 638z
272 6697603 4.63 5.60
Stop Ring C-28,inner
273 6684741 2.15 2.60
Sprocket Comp.,3/8
274 6689117 36.15 43.74
Flange nut
275 6695170 1.15 1.39
Side Cover Comp.
276 6686038 5.11 6.19
Chain Bar Clamp Nut (old 121-32600-20)
277 6687105 1.15 1.39
Chain Bar Knock Pin (old 122-32344-21)
278 6687130 4.45 5.38
Guide Plate
279 6697596 3.30 3.99
Chain Bar Tightening Bolt
280 6686803 4.45 5.38
Chain Tensioner
281 6687063 4.45 5.38
Cam
282 6690428 1.15 1.39
Collar
283 6685962 3.30 3.99
Combi. Box Spanner 13x19 Minus
501 6693809 4.45 5.38
No information available, not orderable
502 6684766
Guide Bar Cover, 10
503 6694796 6.28 7.59
No information available, not orderable
504 6684813
No information available, not orderable
505 6692867
No information available, not orderable
506 6699679
No information available, not orderable
507 6686882
No information available, not orderable
601 6699682
