Here you will find all available parts and drawings of the 'Hikoki TPS-200'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

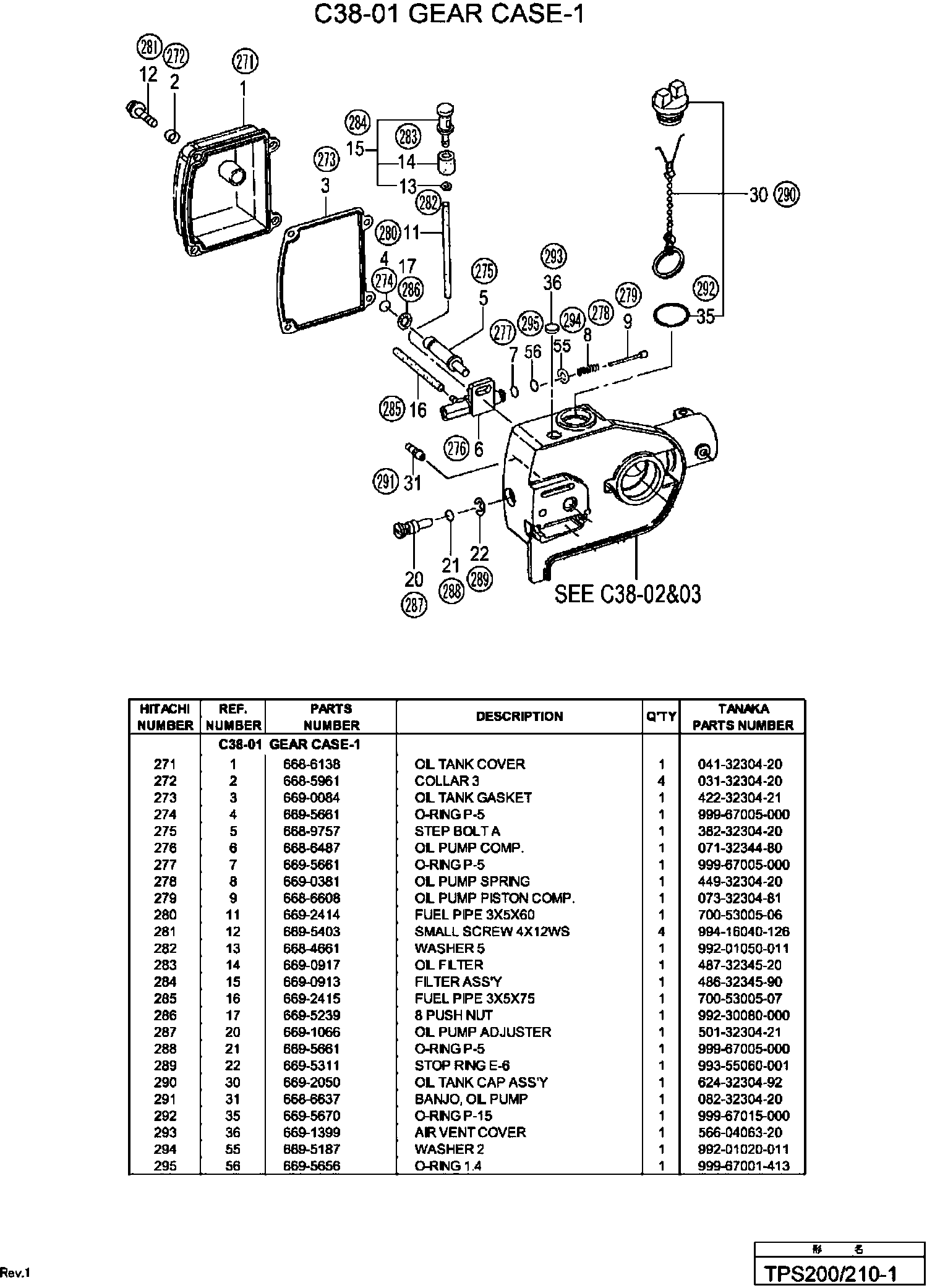

Technical drawing of model Hikoki TPS-200
Spare parts list of model Hikoki TPS-200
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Tank Packing Ass'y Since J093880 | ||||
| 270 | 6699566 | 2.31 | 2.80 | |
| Oil Tank Cover | ||||
| 271 | 6686138 | 2.31 | 2.80 | |
| Collar 3 (old 031-32304-20) | ||||
| 272 | 6685961 | 1.15 | 1.39 | |
| Collar 3 Since J093880 | ||||
| 272A | 6699273 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 273A | 6699567 | |||
| O-ring P-5 | ||||
| 274 | 6695661 | 1.15 | 1.39 | |
| Step Bolt A | ||||
| 275 | 6689757 | 4.45 | 5.38 | |
| Oil Pump Comp. | ||||
| 276 | 6686487 | 17.09 | 20.68 | |
| O-ring P-5 | ||||
| 277 | 6695661 | 1.15 | 1.39 | |
| Oil Pump Spring | ||||
| 278 | 6690381 | 1.15 | 1.39 | |
| Oil Pump Piston Comp. (old 073-32304-81/6686607) | ||||
| 279 | 6686608 | 2.31 | 2.80 | |
| Fuel Pipe 3x5x60 | ||||
| 280 | 6692414 | 1.15 | 1.39 | |
| Small Screw 4x12ws (old 994-16040-126) | ||||
| 281 | 6695403 | 1.15 | 1.39 | |
| Ring | ||||
| 282 | 6684661 | 2.15 | 2.60 | |
| Oil Filter | ||||
| 283 | 6690917 | 1.15 | 1.39 | |
| Filter Assembly (old 486-32345-90) | ||||
| 284 | 6690913 | 2.31 | 2.80 | |
| Fuel Pipe 3x5x75 | ||||
| 285 | 6692415 | 1.15 | 1.39 | |
| Push Nut | ||||
| 286 | 6695239 | 1.15 | 1.39 | |
| Oil Pump Adjuster (old 501-32304-21) | ||||
| 287 | 6691066 | 4.45 | 5.38 | |
| O-ring P-5 | ||||
| 288 | 6695661 | 1.15 | 1.39 | |
| Stop Ring E-6 | ||||
| 289 | 6695311 | 1.15 | 1.39 | |
| Oil Tank Cap Assembly (old 624-32304-92) | ||||
| 290 | 6692050 | 12.05 | 14.58 | |
| Banjo, Oil Pump | ||||
| 291 | 6686637 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 292 | 6695670 | |||
| Air Vent Cover | ||||
| 293 | 6691399 | 4.45 | 5.38 | |
| Ring | ||||
| 294 | 6695187 | 1.15 | 1.39 | |
| O-ring 1.4 (old 999-67001-413) | ||||
| 295 | 6695656 | 1.15 | 1.39 | |
| Hex. Hole Bolt 5x22/s | ||||
| 311 | 6695492 | 1.15 | 1.39 | |
| Hex. Hole Bolt 5x10 | ||||
| 312 | 6695042 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 313 | 6695458 | |||
| Case | ||||
| 314 | 6685793 | 14.35 | 17.36 | |
| No information available, not orderable | ||||
| 315 | 6688835 | |||
| Ball Bearing 609 | ||||
| 316 | 6684734 | 8.58 | 10.38 | |
| Ball Bearing 609z St | ||||
| 317 | 6684735 | 8.58 | 10.38 | |
| Stop Ring C-9, Outer | ||||
| 318 | 6695281 | 1.15 | 1.39 | |
| Stop Ring C-24,inner | ||||
| 319 | 6684732 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 320 | 6693248 | |||
| Ball Bearing #608 | ||||
| 321 | 6684738 | 8.58 | 10.38 | |
| Ball Bearing 638z | ||||
| 322 | 6697603 | 4.63 | 5.60 | |
| Stop Ring C-28,inner | ||||
| 323 | 6684741 | 2.15 | 2.60 | |
| Sprocket Comp.,3/8 | ||||
| 324 | 6689117 | 36.15 | 43.74 | |
| Flange nut | ||||
| 325 | 6695170 | 1.15 | 1.39 | |
| Side Cover Comp. | ||||
| 326 | 6686038 | 5.11 | 6.19 | |
| Chain Bar Clamp Nut (old 121-32600-20) | ||||
| 327 | 6687105 | 1.15 | 1.39 | |
| Chain Bar Knock Pin (old 122-32344-21) | ||||
| 328 | 6687130 | 4.45 | 5.38 | |
| Guide Plate (old 461-32304-20) | ||||
| 329 | 6690725 | 2.31 | 2.80 | |
| Guide bar tightening bolt (old 101-32304-20) | ||||
| 330 | 6686802 | 4.05 | 4.90 | |
| Chain Tensioner | ||||
| 331 | 6687063 | 4.45 | 5.38 | |
| No information available, not orderable | ||||
| 332A | 6699679 | |||
| No information available, not orderable | ||||
| 333 | 6686875 | |||
| No information available, not orderable | ||||
| 334 | 6695849 | |||
| Hex. Hole Bolt 5x22/s | ||||
| 351 | 6695492 | 1.15 | 1.39 | |
| Hex. Hole Bolt 5x10 | ||||
| 352 | 6695042 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 353 | 6695458 | |||
| Case | ||||
| 354 | 6685793 | 14.35 | 17.36 | |
| Gear Pinion Set Spare | ||||
| 355 | 6688836 | 36.15 | 43.74 | |
| Ball Bearing 609 | ||||
| 356 | 6684734 | 8.58 | 10.38 | |
| Ball Bearing 609z St | ||||
| 357 | 6684735 | 8.58 | 10.38 | |
| Stop Ring C-9, Outer | ||||
| 358 | 6695281 | 1.15 | 1.39 | |
| Stop Ring C-24,inner | ||||
| 359 | 6684732 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 360 | 6693248 | |||
| Ball Bearing 627 C3 | ||||
| 361 | 6695568 | 5.61 | 6.79 | |
| Ball Bearing 638z | ||||
| 362 | 6697603 | 4.63 | 5.60 | |
| Stop Ring C-28,inner | ||||
| 363 | 6684741 | 2.15 | 2.60 | |
| Sprocket Comp.,3/8 | ||||
| 364 | 6689117 | 36.15 | 43.74 | |
| Flange nut | ||||
| 365 | 6695170 | 1.15 | 1.39 | |
| Side Cover Comp. | ||||
| 366 | 6686038 | 5.11 | 6.19 | |
| Chain Bar Clamp Nut (old 121-32600-20) | ||||
| 367 | 6687105 | 1.15 | 1.39 | |
| Chain Bar Knock Pin (old 122-32344-21) | ||||
| 368 | 6687130 | 4.45 | 5.38 | |
| Guide Plate | ||||
| 369 | 6697596 | 3.30 | 3.99 | |
| Chain Bar Tightening Bolt | ||||
| 370 | 6686803 | 4.45 | 5.38 | |
| Chain Tensioner | ||||
| 371 | 6687063 | 4.45 | 5.38 | |
| Cam | ||||
| 372 | 6690428 | 1.15 | 1.39 | |
| Collar | ||||
| 373 | 6685962 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 374A | 6699679 | |||
| No information available, not orderable | ||||
| 375 | 6686875 | |||
| Drive Shaft Comp. | ||||
| 391 | 6689441 | 24.20 | 29.28 | |
| Drive Shaft Pipe Comp. | ||||
| 392 | 6689311 | 18.30 | 22.14 | |
| No information available, not orderable | ||||
| 393 | 6684831 | |||
| Hex. Hole Bolt M5x25/s | ||||
| 394 | 6684709 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 395 | 6691205 | |||
| Handle Knob | ||||
| 396 | 6684823 | 4.29 | 5.19 | |
| Joint Case | ||||
| 397 | 6688517 | 32.21 | 38.98 | |
| Lock Pin Comp. | ||||
| 398 | 6689601 | 7.93 | 9.59 | |
| Hex. Bolt 6x50 | ||||
| 399 | 6684824 | 2.15 | 2.60 | |
| Bolt 6x35 (old 990-21060-351) | ||||
| 399 | 6694992 | 1.15 | 1.39 | |
| Hex. Hole Bolt 5x10 | ||||
| 400 | 6695042 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 401 | 6685075 | |||
| Stop Ring C-10,outer | ||||
| 402 | 6684821 | 2.15 | 2.60 | |
| Ball Bearing 6900zz | ||||
| 403 | 6695578 | 7.59 | 9.18 | |
| Collar (b) | ||||
| 404 | 6689530 | 4.45 | 5.38 | |
| No information available, not orderable | ||||
| 405 | 6684642 | |||
| No information available, not orderable | ||||
| 406 | 6684792 | |||
| Cap Nut 6 | ||||
| 407 | 6684828 | 2.15 | 2.60 | |
| Combi. Box Spanner 13x19 Minus | ||||
| 501 | 6693809 | 4.45 | 5.38 | |
| Guide Bar Cover, 10 | ||||
| 503 | 6694796 | 6.28 | 7.59 | |
