Here you will find all available parts and drawings of the 'Hikoki THT2000'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

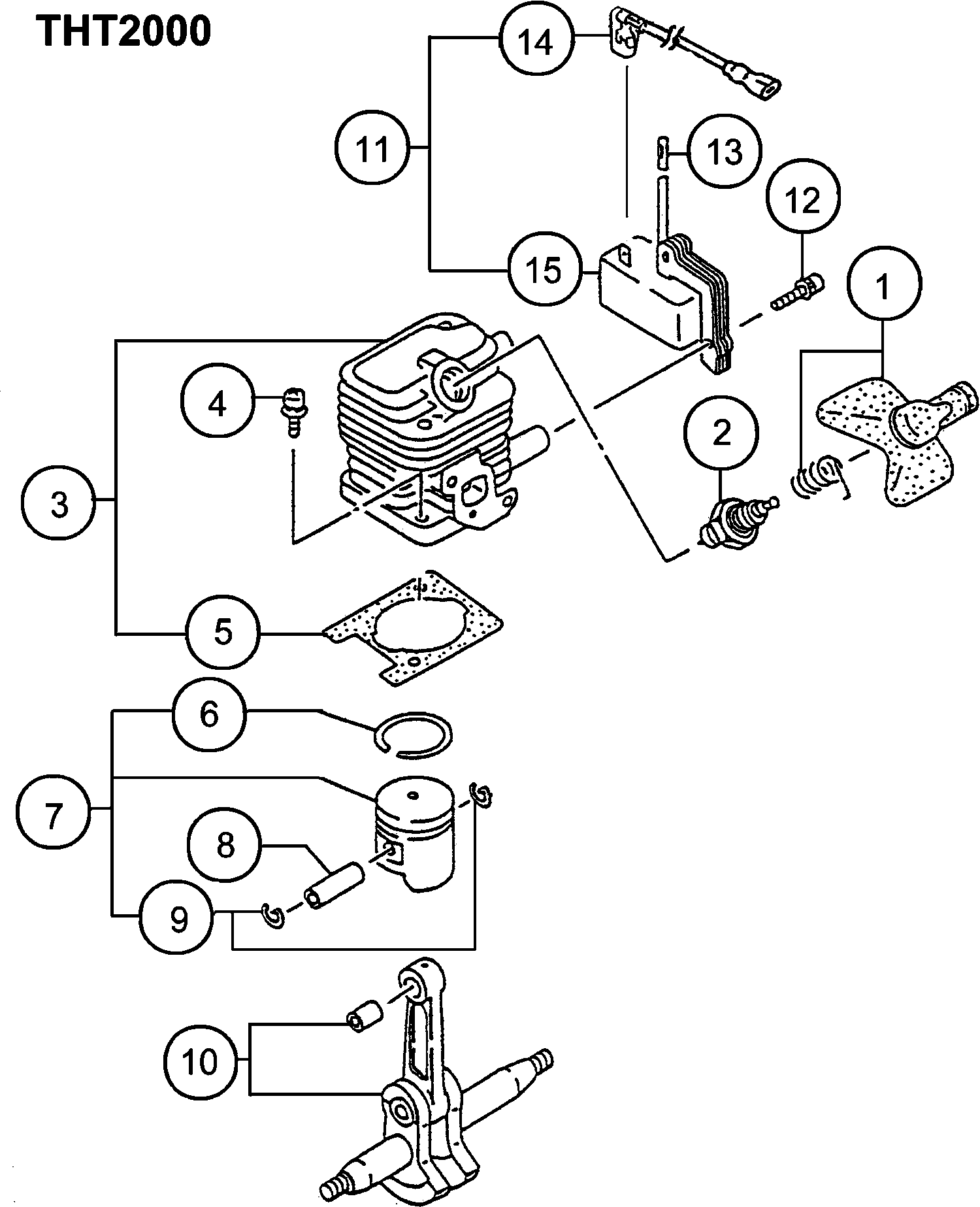

Technical drawing of model Hikoki THT2000
Spare parts list of model Hikoki THT2000
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Spark Plug Cap | ||||
| 1 | 6687476 | 4.45 | 5.38 | |
| Spark Plug Ass'y Bpm6a | ||||
| 2 | 6699317 | 6.76 | 8.18 | |
| Cylinder Ass'y | ||||
| 3 | 6685480 | 40.24 | 48.69 | |
| Hex.hole Bolt M5x18/s | ||||
| 4 | 6684586 | 2.15 | 2.60 | |
| Cylinder Gasket | ||||
| 5 | 6685744 | 1.15 | 1.39 | |
| Piston Ring | ||||
| 6 | 6686118 | 4.45 | 5.38 | |
| Piston Ass'y | ||||
| 7 | 6685869 | 15.58 | 18.85 | |
| Piston Pin | ||||
| 8 | 6696944 | 3.33 | 4.02 | |
| Cir Clip | ||||
| 9 | 6684590 | 2.15 | 2.60 | |
| Crank Shaft Comp | ||||
| 10 | 6686208 | 40.24 | 48.69 | |
| Ignition Coil Ass'y | ||||
| 11 | 6697150 | 26.78 | 32.40 | |
| Hex. Hole Bolt M4x18/ws Till H124040 | ||||
| 12 | 6684599 | 2.15 | 2.60 | |
| Insulator Tube 50l | ||||
| 13 | 6684597 | 2.15 | 2.60 | |
| No longer available, no replacement | ||||
| 14 | 6687918 | |||
| Ignition Coil Comp. | ||||
| 15 | 6695939 | 38.26 | 46.30 | |
| Crank Case Ass'y | ||||
| 21 | 6686574 | 42.20 | 51.06 | |
| Crank Case Gasket | ||||
| 22 | 6686720 | 1.15 | 1.39 | |
| Oil Seal | ||||
| 23 | 6684607 | 4.29 | 5.19 | |
| Ball Bearing 6001 C3 | ||||
| 24 | 6684608 | 3.80 | 4.60 | |
| Gear Shaft Shim 0.20 | ||||
| 25 | 6684604 | 2.15 | 2.60 | |
| Gear Shaft Shim 0.30 | ||||
| 25 | 6684605 | 2.15 | 2.60 | |
| Gear shaft shim 0.10 (old 330-00200-21) | ||||
| 25 | 6689177 | 1.15 | 1.39 | |
| Gear shaft shim 0.15 (old 330-00200-22) | ||||
| 25 | 6689178 | 1.15 | 1.39 | |
| Anti-vibe Rubber | ||||
| 26 | 6691822 | 1.15 | 1.39 | |
| Hex. Socket Hd. Bolt M5x30 S | ||||
| 27 | 6684786 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 28 | 6687396 | |||
| Hex. Nut M8 | ||||
| 31 | 6684612 | 2.15 | 2.60 | |
| Stud Bolt 6x22 | ||||
| 32 | 6686771 | 1.15 | 1.39 | |
| Intake Pipe Gasket | ||||
| 51 | 6689891 | 1.15 | 1.39 | |
| Carb. Insulator Set,spare | ||||
| 52 | 6689966 | 6.93 | 8.38 | |
| Hex. Hole Bolt M5x25ws | ||||
| 53 | 6695515 | 1.15 | 1.39 | |
| Carburetor Gasket (old 402-0602K-21/6689836) | ||||
| 54 | 6684615 | 2.15 | 2.60 | |
| Cleaner Body Comp. | ||||
| 55 | 6690091 | 5.78 | 6.99 | |
| Collar | ||||
| 56 | 6690801 | 2.31 | 2.80 | |
| Choke Plate,w/1.5mm Hole | ||||
| 57 | 6691267 | 4.45 | 5.38 | |
| Spacer | ||||
| 58 | 6684859 | 2.15 | 2.60 | |
| S.washer 5 | ||||
| 59 | 6684662 | 2.15 | 2.60 | |
| Screw 5x65 (old 990-11050-652) | ||||
| 60 | 6694918 | 1.15 | 1.39 | |
| Ring | ||||
| 61 | 6684661 | 2.15 | 2.60 | |
| No longer available, no replacement | ||||
| 62 | 6690350 | |||
| Air Cleaner Cap | ||||
| 63 | 6690142 | 4.95 | 5.99 | |
| Carburetor Set Wyl212 | ||||
| 64 | 6690495 | 62.31 | 75.40 | |
| Throttle Wire Fixing Plate | ||||
| 65 | 6684629 | 4.29 | 5.19 | |
| Carburetor Gasket | ||||
| 66 | 6689839 | 1.15 | 1.39 | |
| Cleaner Gasket | ||||
| 67 | 6690184 | 1.15 | 1.39 | |
| Shield Tube Ass'y (old 223-06500-90) | ||||
| 68 | 6685247 | 2.31 | 2.80 | |
| Clip D6 | ||||
| 69 | 6685198 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 70 | 6684620 | |||
| White Tank (old 591-51604-20/6691572) | ||||
| 71 | 6691647 | 9.74 | 11.78 | |
| Tank Cap D Ass'y,black | ||||
| 72 | 6691715 | 6.60 | 7.99 | |
| Collar 5.8 Till G103930 | ||||
| 73 | 6692244 | 1.15 | 1.39 | |
| Hex. Hole Bolt 5x18ps | ||||
| 74 | 6695505 | 1.15 | 1.39 | |
| Cable Adjuster | ||||
| 75 | 6684871 | 4.29 | 5.19 | |
| Lock Nut M6 | ||||
| 76 | 6684872 | 2.15 | 2.60 | |
| No longer available, no replacement | ||||
| 77 | 6691337 | |||
| Fuel Pipe 3x5x75 | ||||
| 78 | 6692357 | 1.15 | 1.39 | |
| Return Grommet Till 7.2014 | ||||
| 79 | 6697846 | 1.04 | 1.26 | |
| Muffler Protector | ||||
| 91 | 6692795 | 6.93 | 8.38 | |
| Muffler Gasket | ||||
| 92 | 6692744 | 1.15 | 1.39 | |
| Heat Shield | ||||
| 93 | 6687252 | 2.31 | 2.80 | |
| Muffler Set,spare | ||||
| 94 | 6692483 | 17.70 | 21.42 | |
| Ring | ||||
| 95 | 6684661 | 2.15 | 2.60 | |
| Hex. Socket Hd. Bolt M5x50 | ||||
| 96 | 6685114 | 1.15 | 1.39 | |
| Fan Housing | ||||
| 97 | 6687010 | 16.79 | 20.31 | |
| Recoil Spring Till 7.2014 | ||||
| 98 | 6684675 | 11.55 | 13.98 | |
| Starter Rope Reel | ||||
| 99 | 6693066 | 3.30 | 3.99 | |
| Set Screw Till 7.2014 | ||||
| 100 | 6693633 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 101 | 6693405 | |||
| Grommet | ||||
| 102 | 6688050 | 1.15 | 1.39 | |
| Rope Till 7.2014 | ||||
| 103 | 6693168 | 2.31 | 2.80 | |
| Starter Handle | ||||
| 104 | 6693237 | 1.15 | 1.39 | |
| Hex. Hole Bolt 4x15/ps | ||||
| 105 | 6684682 | 2.15 | 2.60 | |
| Muffler Special Gasket | ||||
| 106 | 6692886 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 107 | 6692657 | |||
| Ring | ||||
| 108 | 6685109 | 1.15 | 1.39 | |
| Clutch | ||||
| 109 | 6688494 | 9.74 | 11.78 | |
| Tapping Screw D4.5x16 | ||||
| 110 | 6684636 | 2.15 | 2.60 | |
| Bolt 4x12ps | ||||
| 111 | 6695441 | 1.15 | 1.39 | |
| Starter Pawl Spring | ||||
| 112 | 6684684 | 4.29 | 5.19 | |
| Starter Pawl (old 788-06500-20) | ||||
| 113 | 6693319 | 2.31 | 2.80 | |
| Pump Body Comp. | ||||
| 121 | 6691433 | 36.15 | 43.74 | |
| Priming Pump Comp. | ||||
| 122 | 6684687 | 16.34 | 19.77 | |
| Diaphragm Cover | ||||
| 123 | 6684688 | 8.58 | 10.38 | |
| Priming Body | ||||
| 124 | 6684689 | 6.44 | 7.79 | |
| Metering Diaphragm Comp. | ||||
| 125 | 6690830 | 11.88 | 14.37 | |
| Diaphragm Gasket | ||||
| 126 | 6684691 | 8.58 | 10.38 | |
| Main Jet #39 | ||||
| 127 | 6684878 | 4.45 | 5.38 | |
| Stop Ring | ||||
| 128 | 6684696 | 2.15 | 2.60 | |
| Swivel | ||||
| 129 | 6684697 | 6.44 | 7.79 | |
| Throttle Valve Till B023800 | ||||
| 130 | 6684883 | 18.75 | 22.69 | |
| O-RING (old 550-25100-20) | ||||
| 131 | 6684695 | 4.29 | 5.19 | |
| Pump Gasket (old 577-25100-20) | ||||
| 132 | 6691457 | 7.10 | 8.59 | |
| Pump Diaphragm | ||||
| 133 | 6684693 | 8.58 | 10.38 | |
| Throttle Set Screw | ||||
| 134 | 6684698 | 4.29 | 5.19 | |
| Set Screw | ||||
| 135 | 6684699 | 2.15 | 2.60 | |
| Inlet Screen | ||||
| 136 | 6684700 | 4.29 | 5.19 | |
| Handle A (old 050-33150-22) | ||||
| 191 | 6686270 | 9.08 | 10.98 | |
| Stop Switch Comp. | ||||
| 192 | 6687764 | 10.56 | 12.78 | |
| Button Stop | ||||
| 193 | 6688366 | 1.15 | 1.39 | |
| Screw 3x10 | ||||
| 194 | 6684913 | 2.15 | 2.60 | |
| Throttle Lever | ||||
| 195 | 6688226 | 2.31 | 2.80 | |
| Safety Lever | ||||
| 196 | 6688235 | 2.31 | 2.80 | |
| Throttle Lever Spring | ||||
| 197 | 6688243 | 2.31 | 2.80 | |
| Handle B | ||||
| 198 | 6686307 | 9.08 | 10.98 | |
| Cap | ||||
| 199 | 6693002 | 1.15 | 1.39 | |
| Tapping Screw 4x18 | ||||
| 200 | 6695263 | 1.05 | 1.27 | |
| Throttle Wire Comp. | ||||
| 201 | 6693917 | 3.30 | 3.99 | |
| Stop Button Mark | ||||
| 202 | 6694585 | 1.15 | 1.39 | |
| Hex. Hole Bolt 5x45 | ||||
| 203 | 6695055 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 204 | 6696987 | |||
| Hex. Hole Bolt 6x18/s | ||||
| 205 | 6695495 | 1.15 | 1.39 | |
| Small Washer 5 | ||||
| 206 | 6684864 | 2.15 | 2.60 | |
| Front Handle | ||||
| 207 | 6688096 | 7.75 | 9.38 | |
| Ring | ||||
| 208 | 6689680 | 1.15 | 1.39 | |
| Spring Washer 5 | ||||
| 209 | 6684834 | 2.15 | 2.60 | |
| Hex. Hole Bolt 5x40 | ||||
| 210 | 6695054 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 211 | 6687558 | |||
| Collar 5.8 Till G103930 | ||||
| 212 | 6692244 | 1.15 | 1.39 | |
| S.washer 5 | ||||
| 213 | 6684662 | 2.15 | 2.60 | |
| Ring | ||||
| 214 | 6684639 | 2.15 | 2.60 | |
| Gear Case Comp. | ||||
| 231 | 6688683 | 24.20 | 29.28 | |
| Stop Ring C-15, Outer | ||||
| 232 | 6695285 | 1.15 | 1.39 | |
| Ball Bearing #6002z | ||||
| 233 | 6695538 | 6.60 | 7.99 | |
| Ball Bearing #6002z | ||||
| 234 | 6695538 | 6.60 | 7.99 | |
| No longer available, no replacement | ||||
| 235 | 6688570 | |||
| Gear Shaft | ||||
| 236 | 6688960 | 2.31 | 2.80 | |
| Guide Plate | ||||
| 237 | 6686614 | 4.45 | 5.38 | |
| Gear 2 | ||||
| 238 | 6688979 | 26.16 | 31.66 | |
| Gear Case Gasket (old 303-33160-20) | ||||
| 239 | 6688909 | 1.15 | 1.39 | |
| Gear Case Cover | ||||
| 240 | 6692102 | 5.78 | 6.99 | |
| Cutter Guide 590 | ||||
| 241A | 6697700 | 11.23 | 13.58 | |
| Ring | ||||
| 242 | 6684639 | 2.15 | 2.60 | |
| Lock Nut 6 Ups-p | ||||
| 243 | 6695175 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 244 | 6697674 | |||
| Grease Stop | ||||
| 245 | 6686658 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 246 | 6687187 | |||
| Bolt | ||||
| 247 | 6687158 | 1.15 | 1.39 | |
| Flange nut | ||||
| 248 | 6695170 | 1.15 | 1.39 | |
| Hex. Hole Bolt 4x10s | ||||
| 249 | 6695484 | 1.15 | 1.39 | |
| COMPLETE GREASE NIPPLE (OLD 300-32250-80) | ||||
| 250 | 6688643 | 1.15 | 1.39 | |
| Hex. Hole Bolt 6x18/s | ||||
| 251 | 6695495 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 252 | 6687162 | |||
| Cutter A | ||||
| 253 | 6697675 | 33.58 | 40.63 | |
| Support Plate | ||||
| 254 | 6690761 | 3.30 | 3.99 | |
| Small Washer 5 | ||||
| 255 | 6684864 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 256 | 6696987 | |||
| Holding Plate | ||||
| 257 | 6686468 | 1.15 | 1.39 | |
| Cord Clamp Comp. | ||||
| 258 | 6688008 | 1.15 | 1.39 | |
| Cutter Cover Till D106450 | ||||
| 259 | 6687311 | 7.59 | 9.18 | |
| Spring Nut 6 | ||||
| 260 | 6695475 | 1.15 | 1.39 | |
| Combi. Box Spanner 10x19 ,plus | ||||
| 501 | 6685997 | 4.45 | 5.38 | |
| No information available, not orderable | ||||
| 502 | 6684813 | |||
