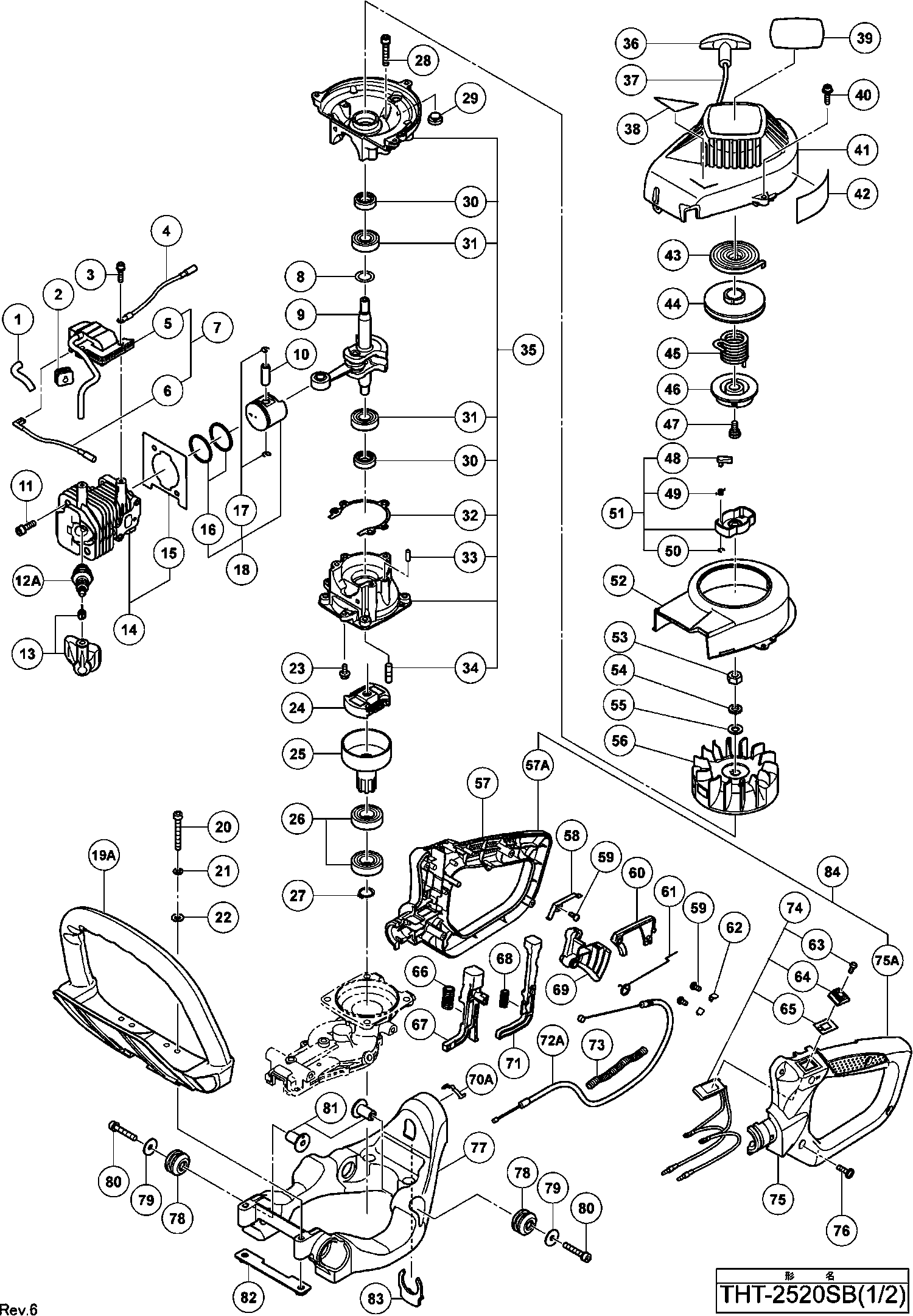

Technical drawing of model Hikoki THT-2520SB
Spare parts list of model Hikoki THT-2520SB
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Insulator Tube 50l | ||||
| 1 | 6684597 | 2.15 | 2.60 | |
| Grommet | ||||
| 2 | 6688050 | 1.15 | 1.39 | |
| Hex. Hole Bolt M4x18/ws Till H124040 | ||||
| 3 | 6684599 | 2.15 | 2.60 | |
| Cord (old 274-51705-80) | ||||
| 4 | 6688477 | 2.31 | 2.80 | |
| No longer available, no replacement | ||||
| 6 | 6687918 | |||
| Gear Shaft Shim 0.20 | ||||
| 8 | 6684604 | 2.15 | 2.60 | |
| Gear Shaft Shim 0.30 | ||||
| 8 | 6684605 | 2.15 | 2.60 | |
| Crank Shaft Comp. | ||||
| 9 | 6686205 | 72.30 | 87.48 | |
| Piston Pin | ||||
| 10 | 6684591 | 4.29 | 5.19 | |
| Hex.hole Bolt M5x18/s | ||||
| 11 | 6684586 | 2.15 | 2.60 | |
| Spark Plug Ass'y Bpmr6a | ||||
| 12A | 6699319 | 8.91 | 10.78 | |
| Spark Plug Cap | ||||
| 13 | 6687476 | 4.45 | 5.38 | |
| Cylinder Ass'y | ||||
| 14 | 6685481 | 44.31 | 53.62 | |
| Cylinder Gasket | ||||
| 15 | 6685744 | 1.15 | 1.39 | |
| Piston Ring | ||||
| 16 | 6684588 | 8.58 | 10.38 | |
| Piston Pin Circlip (old 039-01620-20) | ||||
| 17 | 6686028 | 1.15 | 1.39 | |
| Piston Ass'y | ||||
| 18 | 6685893 | 22.24 | 26.91 | |
| Handle | ||||
| 19A | 6699079 | 5.25 | 6.35 | |
| Hex. Hole Bolt 5x40 | ||||
| 20 | 6695054 | 1.15 | 1.39 | |
| Spring Washer 5 | ||||
| 21 | 6684834 | 2.15 | 2.60 | |
| Washer M5 (black) | ||||
| 22 | 6684918 | 2.15 | 2.60 | |
| Bolt 4x12ps | ||||
| 23 | 6695441 | 1.15 | 1.39 | |
| Clutch | ||||
| 24 | 6688494 | 9.74 | 11.78 | |
| No longer available, no replacement | ||||
| 25 | 6688570 | |||
| Ball Bearing #6002z | ||||
| 26 | 6695538 | 6.60 | 7.99 | |
| Stop Ring C-15, Outer | ||||
| 27 | 6695285 | 1.15 | 1.39 | |
| Hex. Socket Hd. Bolt M5x30 S | ||||
| 28 | 6684786 | 2.15 | 2.60 | |
| Anti-vibe Rubber | ||||
| 29 | 6691822 | 1.15 | 1.39 | |
| Oil Seal | ||||
| 30 | 6684607 | 4.29 | 5.19 | |
| Ball Bearing 6001 C3 | ||||
| 31 | 6684608 | 3.80 | 4.60 | |
| Crank Case Gasket | ||||
| 32 | 6686720 | 1.15 | 1.39 | |
| Knock Pin 4x12 (old 999-05041-203) | ||||
| 33 | 6695521 | 1.15 | 1.39 | |
| Stud Bolt 6x22 | ||||
| 34 | 6686771 | 1.15 | 1.39 | |
| Crank Case Ass'y | ||||
| 35 | 6686574 | 42.20 | 51.06 | |
| Starter Handle | ||||
| 36 | 6693237 | 1.15 | 1.39 | |
| Rope 3x890 | ||||
| 37 | 6693172 | 2.31 | 2.80 | |
| Hex.hole Bolt 4x18ps | ||||
| 40 | 6695502 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 41 | 6687014 | |||
| Recoil Spring Till 7.2014 | ||||
| 43 | 6684675 | 11.55 | 13.98 | |
| Starter Rope Reel | ||||
| 44 | 6693072 | 5.11 | 6.19 | |
| Damper Spring For (s) Type Since 7.2012 For Aus | ||||
| 45 | 6684677 | 8.58 | 10.38 | |
| Cam Plate | ||||
| 46 | 6684678 | 6.44 | 7.79 | |
| Set Screw (old 839-03045-20) | ||||
| 47 | 6684679 | 2.15 | 2.60 | |
| Starter Pawl | ||||
| 48 | 6684685 | 4.29 | 5.19 | |
| Starter Pawl Spring | ||||
| 49 | 6684684 | 4.29 | 5.19 | |
| D4e Retaining Ring (old 993-55040-001) | ||||
| 50 | 6685101 | 1.15 | 1.39 | |
| Starter Pulley Ass'y For (s) Type Since 7.2012 Fo | ||||
| 51 | 6684681 | 13.20 | 15.97 | |
| Deflector | ||||
| 52 | 6687209 | 6.44 | 7.79 | |
| Hex. Nut M8 | ||||
| 53 | 6684612 | 2.15 | 2.60 | |
| Ring | ||||
| 54 | 6684971 | 1.04 | 1.26 | |
| Bolt Washer M8 | ||||
| 55 | 6684611 | 2.15 | 2.60 | |
| Magneto Rotor Comp. | ||||
| 56 | 6687389 | 26.16 | 31.66 | |
| No information available, not orderable | ||||
| 57A | 6698868 | |||
| Earth Terminal | ||||
| 58 | 6696350 | 1.05 | 1.27 | |
| Tapping Screw D3x6 | ||||
| 59 | 696352 | 1.13 | 1.36 | |
| Trigger Lockout | ||||
| 60 | 6696344 | 1.05 | 1.27 | |
| Throttle Lever Spring | ||||
| 61 | 6696345 | 1.05 | 1.27 | |
| Tab Terminal | ||||
| 62 | 6696355 | 1.05 | 1.27 | |
| Screw 3x10 | ||||
| 63 | 6684913 | 2.15 | 2.60 | |
| Button Stop | ||||
| 64 | 6688366 | 1.15 | 1.39 | |
| Stop Button Mark | ||||
| 65 | 6694588 | 1.15 | 1.39 | |
| Spring (a) | ||||
| 66 | 6696348 | 1.05 | 1.27 | |
| Lock Lever | ||||
| 67 | 6696346 | 1.05 | 1.27 | |
| Spring (b) | ||||
| 68 | 6696349 | 1.05 | 1.27 | |
| Throttle Lever | ||||
| 69 | 6696343 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 70A | 6698784 | |||
| Release Lever | ||||
| 71 | 6696347 | 1.05 | 1.27 | |
| Throttle Wire Comp. | ||||
| 72A | 6698828 | 3.15 | 3.81 | |
| Protection Tube 150l | ||||
| 73 | 6687524 | 1.15 | 1.39 | |
| Stop Switch Ass'y (a) Includ.63-65 | ||||
| 74 | 6696354 | 14.19 | 17.17 | |
| Handle B | ||||
| 75A | 6698869 | 4.65 | 5.63 | |
| Tapping Screw (w/flange) D4x16 (black) | ||||
| 76 | 305812 | 1.04 | 1.26 | |
| Frame | ||||
| 77 | 6696363 | 8.85 | 10.71 | |
| Damper B | ||||
| 78 | 6688412 | 1.15 | 1.39 | |
| Ring | ||||
| 79 | 6689680 | 1.15 | 1.39 | |
| Hex. Socket Hd. Bolt M5x30 S | ||||
| 80 | 6684786 | 2.15 | 2.60 | |
| Damper Collar B | ||||
| 81 | 6688485 | 1.15 | 1.39 | |
| Handle Support Comp. | ||||
| 82 | 6686111 | 2.31 | 2.80 | |
| No longer available, no replacement | ||||
| 83 | 6696359 | |||
| No longer available, no replacement | ||||
| 84 | 6698870 | |||
| Tapping Screw D4.5x16 | ||||
| 91 | 6684636 | 2.15 | 2.60 | |
| Muffler Protector | ||||
| 92 | 6692799 | 5.61 | 6.79 | |
| Hex. Socket Hd. Bolt M5x50 | ||||
| 93 | 6685114 | 1.15 | 1.39 | |
| Ring | ||||
| 94 | 6684661 | 2.15 | 2.60 | |
| Muffler Ass'y | ||||
| 95 | 6692477 | 13.04 | 15.78 | |
| Heat Shield | ||||
| 96 | 6687252 | 2.31 | 2.80 | |
| Muffler Gasket | ||||
| 97 | 6692744 | 1.15 | 1.39 | |
| Intake Pipe Gasket | ||||
| 98 | 6689891 | 1.15 | 1.39 | |
| Carb. Insulator Set,spare | ||||
| 99 | 6689966 | 6.93 | 8.38 | |
| Hex. Hole Bolt M5x25ws | ||||
| 100 | 6695515 | 1.15 | 1.39 | |
| Carburetor Gasket | ||||
| 101 | 6689839 | 1.15 | 1.39 | |
| Carburetor Set, Wyl120 Since B028601 | ||||
| 102 | 6690487 | 72.30 | 87.48 | |
| No information available, not orderable | ||||
| 103 | 6684628 | |||
| No information available, not orderable | ||||
| 104 | 6695670 | |||
| Cleaner Body Comp. | ||||
| 105 | 6690119 | 4.45 | 5.38 | |
| Collar 7.5 | ||||
| 106 | 6690804 | 1.15 | 1.39 | |
| Choke Valve Since B028601 | ||||
| 107 | 6691274 | 2.31 | 2.80 | |
| No information available, not orderable | ||||
| 108 | 6684658 | |||
| Blow Over Check Board | ||||
| 109 | 6690843 | 1.15 | 1.39 | |
| S.washer 5 | ||||
| 110 | 6684662 | 2.15 | 2.60 | |
| Screw M5x60 | ||||
| 111 | 6684660 | 2.15 | 2.60 | |
| Cleaner Sponge | ||||
| 112 | 6690364 | 1.15 | 1.39 | |
| Cleaner Cover | ||||
| 113 | 6690417 | 5.94 | 7.18 | |
| Special Screw | ||||
| 114 | 6689737 | 1.15 | 1.39 | |
| Swivel | ||||
| 115 | 6684697 | 6.44 | 7.79 | |
| Stop Ring | ||||
| 116 | 6684696 | 2.15 | 2.60 | |
| O-RING (old 550-25100-20) | ||||
| 117 | 6684695 | 4.29 | 5.19 | |
| Main Jet #34.5 Since B028601 | ||||
| 118 | 6691888 | 6.28 | 7.59 | |
| Inlet Screen | ||||
| 119 | 6684700 | 4.29 | 5.19 | |
| Pump Body Comp. | ||||
| 120 | 6691430 | 36.15 | 43.74 | |
| Diaphragm Cover-metering | ||||
| 121 | 6685222 | 4.45 | 5.38 | |
| Set Screw | ||||
| 122 | 6691312 | 1.15 | 1.39 | |
| Throttle Set Screw | ||||
| 123 | 6684698 | 4.29 | 5.19 | |
| Throttle Valve Till B023800 | ||||
| 124 | 6684883 | 18.75 | 22.69 | |
| Pump Gasket (old 577-25100-20) | ||||
| 125 | 6691457 | 7.10 | 8.59 | |
| Pump Diaphragm | ||||
| 126 | 6684693 | 8.58 | 10.38 | |
| No longer available, no replacement | ||||
| 127 | 6685220 | |||
| No longer available, no replacement | ||||
| 128 | 6690827 | |||
| Priming Pump Comp. | ||||
| 129 | 6685139 | 5.94 | 7.18 | |
| Fuel Pipe 2.5x4x80 | ||||
| 130 | 6692347 | 1.15 | 1.39 | |
| Collar 5.8 Till G103930 | ||||
| 131 | 6692244 | 1.15 | 1.39 | |
| Hex. Hole Bolt 5x18ps | ||||
| 132 | 6695505 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 133 | 6696360 | |||
| Air Vent Assembly (old 564-06611-90) | ||||
| 134 | 6691389 | 10.23 | 12.37 | |
| Air Vent Valve Ass'y For Aus | ||||
| 136 | 6692171 | 4.95 | 5.99 | |
| Fuel Pipe 2.5x4x70 | ||||
| 137 | 6692346 | 1.15 | 1.39 | |
| Return Grommet Till 7.2014 | ||||
| 138A | 6697846 | 1.04 | 1.26 | |
| Clip,6.3 Dia. | ||||
| 139 | 6684619 | 2.15 | 2.60 | |
| No longer available, no replacement | ||||
| 140A | 6698874 | |||
| Fuel Pipe | ||||
| 141A | 6698715 | 9.75 | 11.80 | |
| No information available, not orderable | ||||
| 142 | 6684625 | |||
| Tank Cap D Ass'y, Black (old 595-06516-90 & 669171 | ||||
| 143 | 6691763 | 7.59 | 9.18 | |
| Guard Plate | ||||
| 144A | 6698894 | 1.20 | 1.45 | |
| U-nut M6 | ||||
| 145A | 6698946 | 2.10 | 2.54 | |
| Support Plate | ||||
| 148 | 6690762 | 3.30 | 3.99 | |
| Lock Nut 6 Ups-p | ||||
| 149 | 6695175 | 1.15 | 1.39 | |
| Ring | ||||
| 150 | 6684639 | 2.15 | 2.60 | |
| Gear Case Comp. | ||||
| 151 | 6688684 | 15.13 | 18.30 | |
| COMPLETE GREASE NIPPLE (OLD 300-32250-80) | ||||
| 152 | 6688643 | 1.15 | 1.39 | |
| Spring Nut 6 | ||||
| 153 | 6695475 | 1.15 | 1.39 | |
| Hex. Hole Bolt 6x18/s | ||||
| 154 | 6695495 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 155 | 6687144 | |||
| Guide Plate (old 075-33160-20) | ||||
| 156 | 6686612 | 1.15 | 1.39 | |
| Cam Rod | ||||
| 157 | 6686811 | 5.78 | 6.99 | |
| Gear 2 Comp. | ||||
| 159A | 6698773 | 18.84 | 22.79 | |
| Gear Case Gasket (old 303-33160-20) | ||||
| 160 | 6688909 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 161 | 6692101 | |||
| Ball Bearing 608 Zz C3 | ||||
| 162 | 6695547 | 3.30 | 3.99 | |
| Gear Case B Comp. Includ.162 | ||||
| 163 | 6695985 | 9.60 | 11.62 | |
| Hex. Socket Hd. Bolt (w/sp.washer) M4x12 | ||||
| 164 | 6684595 | 2.15 | 2.60 | |
| HEX. SOCKET FLAT HD. SCREW M6X25 | ||||
| 165A | 6698764 | 1.08 | 1.31 | |
| No longer available, no replacement | ||||
| 166 | 6686654 | |||
| No information available, not orderable | ||||
| 167A | 6698886 | |||
| Bolt (a) | ||||
| 168A | 6698887 | 3.15 | 3.81 | |
| Hex. Hole Bolt 4x10s | ||||
| 169 | 6695484 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 170 | 6698931 | |||
| Blade Ass'y Includ.144a,145a,165a,167a,168a | ||||
| 171 | 6698774 | 76.04 | 92.01 | |
| No information available, not orderable | ||||
| 501 | 6684813 | |||
| Combi. Box Spanner 10x19 ,plus | ||||
| 502 | 6685997 | 4.45 | 5.38 | |
| Guard Plate | ||||
| 601 | 6687275 | 2.31 | 2.80 | |
| Flange nut | ||||
| 602 | 6695170 | 1.15 | 1.39 | |
| Protection Plate | ||||
| 603 | 6687289 | 12.88 | 15.58 | |
| Cutter A (812l) | ||||
| 604 | 6687092 | 60.35 | 73.02 | |
| Hex. Hole Flush Bolt 6x25 | ||||
| 605 | 6695075 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 606 | 6687187 | |||
| Bolt | ||||
| 607 | 6687158 | 1.15 | 1.39 | |
