Here you will find all available parts and drawings of the 'Hikoki THT-2000SB'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

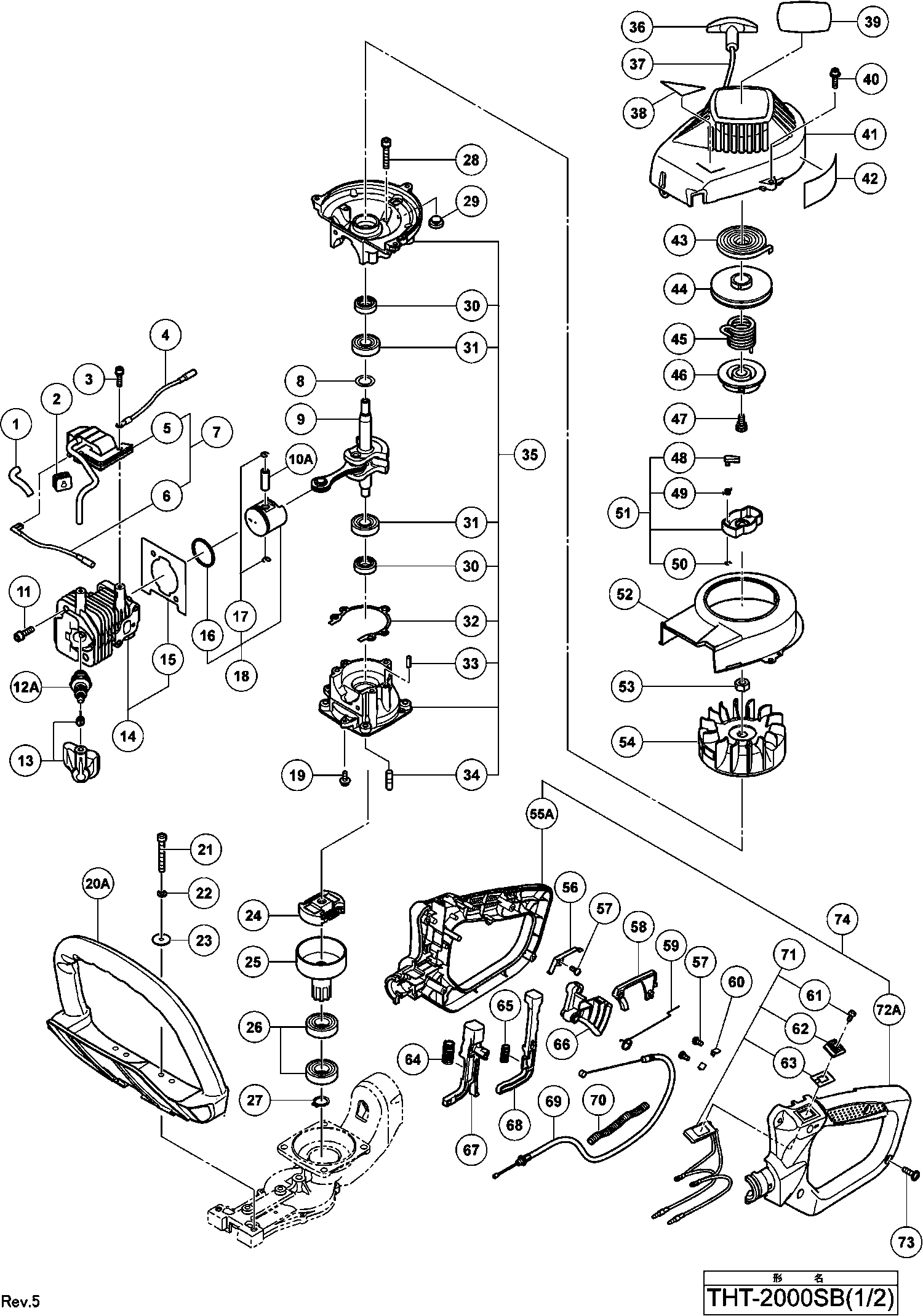

Technical drawing of model Hikoki THT-2000SB
Spare parts list of model Hikoki THT-2000SB
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Insulator Tube 50l | ||||
| 1 | 6684597 | 2.15 | 2.60 | |
| Grommet | ||||
| 2 | 6688050 | 1.15 | 1.39 | |
| Hex. Hole Bolt M4x18/ws Till H124040 | ||||
| 3 | 6684599 | 2.15 | 2.60 | |
| Cord (old 274-51705-80) | ||||
| 4 | 6688477 | 2.31 | 2.80 | |
| No longer available, no replacement | ||||
| 6 | 6687918 | |||
| Gear Shaft Shim 0.20 | ||||
| 8 | 6684604 | 2.15 | 2.60 | |
| Gear Shaft Shim 0.30 | ||||
| 8 | 6684605 | 2.15 | 2.60 | |
| Crank Shaft Comp | ||||
| 9 | 6686208 | 40.24 | 48.69 | |
| Piston Pin | ||||
| 10A | 6696944 | 3.33 | 4.02 | |
| Hex.hole Bolt M5x18/s | ||||
| 11 | 6684586 | 2.15 | 2.60 | |
| Spark Plug Ass'y Bpmr6a | ||||
| 12A | 6699319 | 8.91 | 10.78 | |
| Spark Plug Cap | ||||
| 13 | 6687476 | 4.45 | 5.38 | |
| Cylinder Ass'y | ||||
| 14 | 6685480 | 40.24 | 48.69 | |
| Cylinder Gasket | ||||
| 15 | 6685744 | 1.15 | 1.39 | |
| Piston Ring | ||||
| 16 | 6686118 | 4.45 | 5.38 | |
| Cir Clip | ||||
| 17 | 6684590 | 2.15 | 2.60 | |
| Piston Ass'y | ||||
| 18 | 6685869 | 15.58 | 18.85 | |
| Bolt 4x12ps | ||||
| 19 | 6695441 | 1.15 | 1.39 | |
| Handle | ||||
| 20A | 6699079 | 5.25 | 6.35 | |
| Hex. Hole Bolt 5x40 | ||||
| 21 | 6695054 | 1.15 | 1.39 | |
| Spring Washer 5 | ||||
| 22 | 6684834 | 2.15 | 2.60 | |
| Ring | ||||
| 23 | 6689680 | 1.15 | 1.39 | |
| Clutch | ||||
| 24 | 6688494 | 9.74 | 11.78 | |
| No longer available, no replacement | ||||
| 25 | 6688570 | |||
| Ball Bearing #6002z | ||||
| 26 | 6695538 | 6.60 | 7.99 | |
| Stop Ring C-15, Outer | ||||
| 27 | 6695285 | 1.15 | 1.39 | |
| Hex. Socket Hd. Bolt M5x30 S | ||||
| 28 | 6684786 | 2.15 | 2.60 | |
| Anti-vibe Rubber | ||||
| 29 | 6691822 | 1.15 | 1.39 | |
| Oil Seal | ||||
| 30 | 6684607 | 4.29 | 5.19 | |
| Ball Bearing 6001 C3 | ||||
| 31 | 6684608 | 3.80 | 4.60 | |
| Crank Case Gasket | ||||
| 32 | 6686720 | 1.15 | 1.39 | |
| Knock Pin 4x12 (old 999-05041-203) | ||||
| 33 | 6695521 | 1.15 | 1.39 | |
| Stud Bolt 6x22 | ||||
| 34 | 6686771 | 1.15 | 1.39 | |
| Crank Case Ass'y | ||||
| 35 | 6686574 | 42.20 | 51.06 | |
| Starter Handle | ||||
| 36 | 6693237 | 1.15 | 1.39 | |
| Rope 3x890 | ||||
| 37 | 6693172 | 2.31 | 2.80 | |
| Hex.hole Bolt 4x18ps | ||||
| 40 | 6695502 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 41 | 6687014 | |||
| Recoil Spring Till 7.2014 | ||||
| 43 | 6684675 | 11.55 | 13.98 | |
| Starter Rope Reel | ||||
| 44 | 6693072 | 5.11 | 6.19 | |
| Damper Spring For (s) Type Since 7.2012 For Aus | ||||
| 45 | 6684677 | 8.58 | 10.38 | |
| Cam Plate | ||||
| 46 | 6684678 | 6.44 | 7.79 | |
| Set Screw (old 839-03045-20) | ||||
| 47 | 6684679 | 2.15 | 2.60 | |
| Starter Pawl | ||||
| 48 | 6684685 | 4.29 | 5.19 | |
| Starter Pawl Spring | ||||
| 49 | 6684684 | 4.29 | 5.19 | |
| D4e Retaining Ring (old 993-55040-001) | ||||
| 50 | 6685101 | 1.15 | 1.39 | |
| Starter Pulley Ass'y For (s) Type Since 7.2012 Fo | ||||
| 51 | 6684681 | 13.20 | 15.97 | |
| Deflector | ||||
| 52 | 6687209 | 6.44 | 7.79 | |
| Hex. Nut M8 | ||||
| 53 | 6684612 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 54 | 6687396 | |||
| No information available, not orderable | ||||
| 55A | 6698868 | |||
| Earth Terminal | ||||
| 56 | 6696350 | 1.05 | 1.27 | |
| Tapping Screw D3x6 | ||||
| 57 | 696352 | 1.13 | 1.36 | |
| Trigger Lockout | ||||
| 58 | 6696344 | 1.05 | 1.27 | |
| Throttle Lever Spring | ||||
| 59 | 6696345 | 1.05 | 1.27 | |
| Tab Terminal | ||||
| 60 | 6696355 | 1.05 | 1.27 | |
| Screw 3x10 | ||||
| 61 | 6684913 | 2.15 | 2.60 | |
| Button Stop | ||||
| 62 | 6688366 | 1.15 | 1.39 | |
| Stop Button Mark | ||||
| 63 | 6694588 | 1.15 | 1.39 | |
| Spring (a) | ||||
| 64 | 6696348 | 1.05 | 1.27 | |
| Spring (b) | ||||
| 65 | 6696349 | 1.05 | 1.27 | |
| Throttle Lever | ||||
| 66 | 6696343 | 1.05 | 1.27 | |
| Lock Lever | ||||
| 67 | 6696346 | 1.05 | 1.27 | |
| Release Lever | ||||
| 68 | 6696347 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 69 | 6698827 | |||
| Protection Tube 130l | ||||
| 70 | 6687521 | 1.15 | 1.39 | |
| Stop Switch Ass'y (a) Includ.63-65 | ||||
| 71 | 6696354 | 14.19 | 17.17 | |
| Handle B | ||||
| 72A | 6698869 | 4.65 | 5.63 | |
| Tapping Screw (w/flange) D4x16 (black) | ||||
| 73 | 305812 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 74 | 6698870 | |||
| Tapping Screw D4.5x16 | ||||
| 91 | 6684636 | 2.15 | 2.60 | |
| Muffler Protector | ||||
| 92 | 6692795 | 6.93 | 8.38 | |
| Hex. Socket Hd. Bolt M5x50 | ||||
| 93 | 6685114 | 1.15 | 1.39 | |
| Ring | ||||
| 94 | 6684661 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 95 | 6692481 | |||
| Heat Shield | ||||
| 96 | 6687252 | 2.31 | 2.80 | |
| Muffler Gasket | ||||
| 97 | 6692744 | 1.15 | 1.39 | |
| Intake Pipe Gasket | ||||
| 98 | 6689891 | 1.15 | 1.39 | |
| Carb. Insulator Set,spare | ||||
| 99 | 6689966 | 6.93 | 8.38 | |
| Hex. Hole Bolt M5x25ws | ||||
| 100 | 6695515 | 1.15 | 1.39 | |
| Carburetor Gasket | ||||
| 101 | 6689839 | 1.15 | 1.39 | |
| Throttle Wire Fixing Plate | ||||
| 102 | 6684629 | 4.29 | 5.19 | |
| Carburetor Gasket (old 402-0602K-21/6689836) | ||||
| 103 | 6684615 | 2.15 | 2.60 | |
| Carburetor Set Wyl212 | ||||
| 104 | 6690495 | 62.31 | 75.40 | |
| Carburetor Set Wyl-46 Includ.103,116-131 For Aus | ||||
| 104 | 6690494 | 58.39 | 70.65 | |
| No information available, not orderable | ||||
| 105 | 6684628 | |||
| Cleaner Gasket | ||||
| 106 | 6690184 | 1.15 | 1.39 | |
| Cleaner Body Comp. | ||||
| 107 | 6690091 | 5.78 | 6.99 | |
| Collar | ||||
| 108 | 6690801 | 2.31 | 2.80 | |
| Choke Plate,w/1.5mm Hole | ||||
| 109 | 6691267 | 4.45 | 5.38 | |
| Spacer | ||||
| 110 | 6684859 | 2.15 | 2.60 | |
| Ring | ||||
| 111 | 6684661 | 2.15 | 2.60 | |
| S.washer 5 | ||||
| 112 | 6684662 | 2.15 | 2.60 | |
| Screw 5x65 (old 990-11050-652) | ||||
| 113 | 6694918 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 114 | 6690350 | |||
| Air Cleaner Cap | ||||
| 115 | 6690142 | 4.95 | 5.99 | |
| Swivel | ||||
| 116 | 6684697 | 6.44 | 7.79 | |
| Stop Ring | ||||
| 117 | 6684696 | 2.15 | 2.60 | |
| O-RING (old 550-25100-20) | ||||
| 118 | 6684695 | 4.29 | 5.19 | |
| Main Jet #39 | ||||
| 119 | 6684878 | 4.45 | 5.38 | |
| Inlet Screen | ||||
| 120 | 6684700 | 4.29 | 5.19 | |
| Pump Body Comp. | ||||
| 121 | 6691433 | 36.15 | 43.74 | |
| Priming Pump Comp. | ||||
| 122 | 6684687 | 16.34 | 19.77 | |
| Diaphragm Cover | ||||
| 123 | 6684688 | 8.58 | 10.38 | |
| Set Screw | ||||
| 124 | 6684699 | 2.15 | 2.60 | |
| Throttle Set Screw | ||||
| 125 | 6684698 | 4.29 | 5.19 | |
| Throttle Valve Till B023800 | ||||
| 126 | 6684883 | 18.75 | 22.69 | |
| Pump Gasket (old 577-25100-20) | ||||
| 127 | 6691457 | 7.10 | 8.59 | |
| Pump Diaphragm | ||||
| 128 | 6684693 | 8.58 | 10.38 | |
| Diaphragm Gasket | ||||
| 129 | 6684691 | 8.58 | 10.38 | |
| Metering Diaphragm Comp. | ||||
| 130 | 6690830 | 11.88 | 14.37 | |
| Priming Body | ||||
| 131 | 6684689 | 6.44 | 7.79 | |
| Tank | ||||
| 132 | 6696356 | 4.05 | 4.90 | |
| Tank | ||||
| 132 | 6696357 | 4.05 | 4.90 | |
| Air Vent Assembly (old 564-06611-90) | ||||
| 133 | 6691389 | 10.23 | 12.37 | |
| Air Vent Valve Ass'y For Aus | ||||
| 135 | 6692171 | 4.95 | 5.99 | |
| Collar 5.8 Till G103930 | ||||
| 136 | 6692244 | 1.15 | 1.39 | |
| Hex. Hole Bolt 5x18ps | ||||
| 137 | 6695505 | 1.15 | 1.39 | |
| Clip,6.3 Dia. | ||||
| 138 | 6684619 | 2.15 | 2.60 | |
| No longer available, no replacement | ||||
| 139A | 6698874 | |||
| Fuel Pipe | ||||
| 140A | 6698715 | 9.75 | 11.80 | |
| No information available, not orderable | ||||
| 141 | 6684625 | |||
| Tank Cap D Ass'y, Black (old 595-06516-90 & 669171 | ||||
| 142 | 6691763 | 7.59 | 9.18 | |
| No longer available, no replacement | ||||
| 143 | 6684626 | |||
| Return Grommet Till 7.2014 | ||||
| 144A | 6697846 | 1.04 | 1.26 | |
| COMPLETE GREASE NIPPLE (OLD 300-32250-80) | ||||
| 145 | 6688643 | 1.15 | 1.39 | |
| Nylon Nut M5 | ||||
| 146 | 305491 | 1.65 | 2.00 | |
| Small Washer 5 | ||||
| 147 | 6684864 | 2.15 | 2.60 | |
| NYLON NUT M6 | ||||
| 148A | 6698766 | 1.00 | 1.21 | |
| Support Plate | ||||
| 150A | 6698890 | 1.20 | 1.45 | |
| Cutter Cover Till D106450 | ||||
| 151 | 6687311 | 7.59 | 9.18 | |
| U-nut M6 | ||||
| 152A | 6698946 | 2.10 | 2.54 | |
| No information available, not orderable | ||||
| 153A | 6698784 | |||
| No longer available, no replacement | ||||
| 154A | 6699125 | |||
| Cord Clamp Comp. | ||||
| 155 | 6688008 | 1.15 | 1.39 | |
| Spring Nut 6 | ||||
| 156 | 6695475 | 1.15 | 1.39 | |
| Hex. Hole Bolt 6x18/s | ||||
| 157 | 6695495 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 158 | 6696359 | |||
| Guide Plate | ||||
| 161 | 6686614 | 4.45 | 5.38 | |
| Gear | ||||
| 163A | 6699038 | 15.54 | 18.80 | |
| Holding Plate | ||||
| 165 | 6686468 | 1.15 | 1.39 | |
| Gear Case Gasket (old 303-33160-20) | ||||
| 166 | 6688909 | 1.15 | 1.39 | |
| Gear Case Cover | ||||
| 167 | 6692102 | 5.78 | 6.99 | |
| Hex. Hole Bolt 4x10s | ||||
| 168 | 6695484 | 1.15 | 1.39 | |
| Grease Stop | ||||
| 169 | 6686658 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 170A | 6698886 | |||
| No information available, not orderable | ||||
| 171A | 6698888 | |||
| Bolt (a) | ||||
| 172A | 6698887 | 3.15 | 3.81 | |
| No longer available, no replacement | ||||
| 173 | 6698931 | |||
| Blade Ass'y (a) Includ.148a-150a,152a,170a-172a | ||||
| 174 | 6698747 | 51.29 | 62.06 | |
| No information available, not orderable | ||||
| 501 | 6684813 | |||
| Combi. Box Spanner 10x19 ,plus | ||||
| 502 | 6685997 | 4.45 | 5.38 | |
| Lock Nut 6 Ups-p | ||||
| 601 | 6695175 | 1.15 | 1.39 | |
| Ring | ||||
| 602 | 6684639 | 2.15 | 2.60 | |
| Support Plate | ||||
| 603 | 6690761 | 3.30 | 3.99 | |
| Flange nut | ||||
| 604 | 6695170 | 1.15 | 1.39 | |
| Cutter Guide 590 | ||||
| 605A | 6697700 | 11.23 | 13.58 | |
| No longer available, no replacement | ||||
| 608 | 6687187 | |||
| No longer available, no replacement | ||||
| 609 | 6687162 | |||
| Bolt | ||||
| 610 | 6687158 | 1.15 | 1.39 | |
