Here you will find all available parts and drawings of the 'Hikoki THB260PF'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

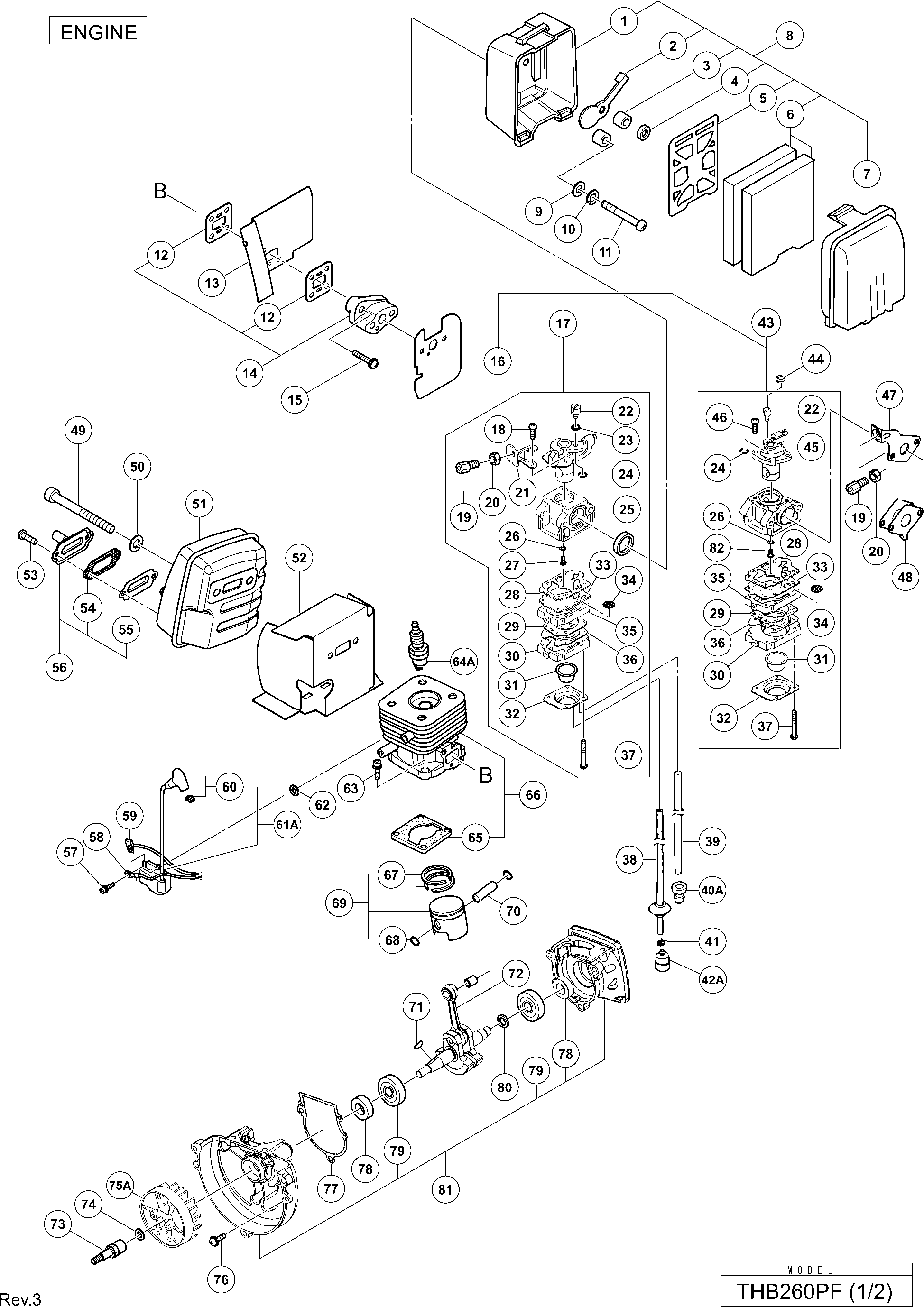

Technical drawing of model Hikoki THB260PF

Spare parts list of model Hikoki THB260PF

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Air Cleaner Body
1 6684856 14.85 17.97
Choke Valve
2 6684857 10.23 12.37
Collar
3 6684858 4.29 5.19
Spacer
4 6684859 2.15 2.60
Blow Over Check Board
5 6684860 4.29 5.19
No longer available, no replacement
6 6684861
Cleaner Cap
7 6684862 4.29 5.19
Air Cleaner Ass'y Includ.7,84
8 6684863 19.96 24.15
Small Washer 5
9 6684864 2.15 2.60
S.washer 5
10 6684662 2.15 2.60
Screw M5x60
11 6684660 2.15 2.60
No information available, not orderable
12 6684865
Partition Plate
13 6684866 4.29 5.19
Insulator Ass'y Includ.12
14 6684867 11.55 13.98
Hex. Hole Bolt 5x25/ws
15 6684617 2.15 2.60
Carburetor Gasket
16 6684868 3.90 4.72
Cable Adjuster
19 6684871 4.29 5.19
Lock Nut M6
20 6684872 2.15 2.60
Swivel
22 6684697 6.44 7.79
Stop Ring
24 6684696 2.15 2.60
O-RING (old 550-25100-20)
26 6684695 4.29 5.19
Pump Gasket
28 6684692 29.19 35.32
Diaphragm Gasket
29 6684691 8.58 10.38
Priming Body
31 6684689 6.44 7.79
Diaphragm Cover
32 6684688 8.58 10.38
Pump Diaphragm
33 6684693 8.58 10.38
Inlet Screen
34 6684700 4.29 5.19
Pump Body Comp.
35 6684879 62.16 75.22
Metering Diaphragm
36 6684690 18.00 21.78
Set Screw
37 6684699 2.15 2.60
Shield Tube 3x5x180
38 6684618 4.29 5.19
Fuel Pipe 3x5x85
39 6684880 2.15 2.60
Return Grommet Till 7.2014
40A 6697846 1.04 1.26
Clip,6.3 Dia.
41 6684619 2.15 2.60
No information available, not orderable
42A 6684620
Carburetor Set Wyl266 Includ.16,22,24,26,28,29,31
43 6684882 70.33 85.09
Carburetor Set Wyl260 Includ.16,22,24,26,28-37,45
43 6684881 66.40 80.34
Swivel Cap Since C026901
44 6691337 1.15 1.39
Throttle Valve Till B023800
45 6684883 18.75 22.69
Throttle Set Screw
46 6684698 4.29 5.19
No longer available, no replacement
47 6684884
No longer available, no replacement
48 6684885
Hex. Hole Bolt M6x55
49 6684638 2.15 2.60
Ring
50 6684639 2.15 2.60
Muffler Comp. For Asia,aus,nzl
51 6684887 16.94 20.49
Insulator
52 6684888 19.96 24.15
Screw M4x8/ws
53 6684651 2.15 2.60
Spark Arrester
54 6684889 4.29 5.19
Muffler Special Gasket
55 6684890 1.95 2.36
Tail Pipe Set Includ.54,55
56 6684891 8.58 10.38
Hex. Hole Bolt M4x18/ws Till H124040
57 6684599 2.15 2.60
No longer available, no replacement
58 6684892
Stop Cord 145l
59 6684893 2.15 2.60
Plug Cap
60 6684894 8.58 10.38
Ignition Coil Ass'y Includ.60
61A 6697896 18.43 22.29
Washer T1.6
62 6684600 2.15 2.60
Hex.hole Bolt M5x18/s
63 6684586 2.15 2.60
Spark Plug Ass'y Bmr7a
64A 6699316 8.91 10.78
Cylinder Gasket
65 6684896 2.15 2.60
Cylinder Ass'y Includ.65
66 6684897 77.74 94.06
Piston Ring
67 6684588 8.58 10.38
Cir Clip
68 6684590 2.15 2.60
Piston Ass'y Includ.67,68
69 6684898 34.19 41.37
Piston Pin
70 6684591 4.29 5.19
Woodruff Key 3x13x4.5 Till B023800
71 6684899 2.15 2.60
No information available, not orderable
72 6684900
Special Bolt
73 6695852 9.90 11.98
Bolt Washer M8
74 6684611 2.15 2.60
Magneto Rotor
75A 6600925 12.45 15.06
Hex. Hole Bolt M5x16/s
76 6684903 2.15 2.60
Crank Case Gasket
77 6684904 2.15 2.60
Oil Seal
78 6684607 4.29 5.19
Ball Bearing 6001 C3
79 6684608 3.80 4.60
Gear Shaft Shim 0.20
80 6684604 2.15 2.60
Gear Shaft Shim 0.30
80 6684605 2.15 2.60
Main Jet #39
82 6684878 4.45 5.38
Main Jet #37 For Asia
82 6684877 3.30 3.99
Cleaner Body Ass'y (old 423-06590-91) New
84 6697054 10.20 12.34
No information available, not orderable
88 66A0466
No information available, not orderable
89 66A0475
Fan-headed Pipe
121 6684906 18.75 22.69
Straight Pipe
122 6684907 15.58 18.85
Throttle Wire 245+93 For Asia,aus,nzl
123 6684909 3.30 3.99
Throttle Lever
124 6684910 2.15 2.60
Stop Switch Comp.
125 6684911 11.55 13.98
Protection Sheet
126 6684912 2.15 2.60
Screw 3x10
127 6684913 2.15 2.60
Stop Button (red)
128A 6698995 1.04 1.26
Stop Switch Mark
129 6684915 3.90 4.72
Muffler Protector
130 6684916 28.44 34.41
Tapping Screw (w/flange) D5x20 (black)
131 302089 1.05 1.27
Machine Screw (w/washers) M5x25
132 317751 2.70 3.27
Cruise Lever
133 6684917 2.15 2.60
Washer M5 (black)
134 6684918 2.15 2.60
Nylon Nut M5
135 305491 1.65 2.00
Pillar Terminal Till 10.1999 For Aus
136 938307 2.13 2.57
Support Handle
137 6684919 10.23 12.37
Tapping Screw (w/flange) D5x20 (black)
138 302089 1.05 1.27
Cover Setting Bolt
139 6684920 8.58 10.38
Guard Net
140 6684921 15.58 18.85
Micro Switch
141 6684922 13.70 16.58
Volute Case
142 6696390 51.84 62.72
Lock Nut M5 (10 Pcs.)
143 949566 1.04 1.26
No information available, not orderable
145 6684924
Fan (1)
146 6684925 14.19 17.17
Ring
147 6684926 1.95 2.36
Tapping Screw (w/flange) D5x20 (black)
149 302089 1.05 1.27
No information available, not orderable
150A 66A5660
Cover Spring Ass'y
151 6684928 20.73 25.08
Switch Cover
152 6684929 2.15 2.60
Spring
153 6684930 2.15 2.60
Pin
154 6684931 8.58 10.38
Tapping Screw (w/flange) D5x20 (black)
155 302089 1.05 1.27
U-nut M8
156 6684932 2.15 2.60
Shredder
157 6684933 9.30 11.25
Hex.hole Bolt M5x35
158 6684934 2.15 2.60
Spring Washer 5
159 6684834 2.15 2.60
Fan Housing
160 6696391 715.00 865.15
No longer available, no replacement
161A 6698402
Tank Cap Chain
162A 6698732 1.20 1.45
No information available, not orderable
164 6684936
Starter Pulley Till Eo99999
181 6684937 6.44 7.79
Recoil Starter Body Ass'y Includ.183-190 Till Eo9
182 6684938 23.45 28.37
Set Screw (old 839-03045-20)
183 6684679 2.15 2.60
Pulley Stay Till Eo99999
184 6684939 2.15 2.60
Swing Arm Till Eo99999
185 6684940 2.15 2.60
Starter Rope Reel Since En90001(till 10.2012 For
186 6684941 6.44 7.79
Recoil Spring Till Eo99999
187 6684942 9.40 11.37
Rope 3.0x800 Till Eo99999
188 6684943 4.29 5.19
Recoil Starter Body Comp. Since En90001(till 10.2
189 6684944 17.24 20.86
Starter Handle
190 6684680 2.15 2.60
Hex. Hole Bolt 4x15/ps
191 6684682 2.15 2.60
Starter Pulley Ass'y Till 7.2014
193A 6696471 5.10 6.17
Recoil Starter Body Ass'y Includ.60-63 Till 7.201
194 6696572 10.20 12.34
Set Screw Till 7.2014
195 6693633 1.15 1.39
Starter Rope Reel Since En90001(till 10.2012 For
196 6684941 6.44 7.79
Recoil Spring Till 7.2014
197 6684675 11.55 13.98
Recoil Starter Body Comp. Since En90001(till 10.2
198 6684944 17.24 20.86
Rope Till 7.2014
199 6693168 2.31 2.80
Starter Handle
200 6693227 3.30 3.99
Starter Pulley Ass'y For (s) Type Since 7.2012 Fo
201 6684681 13.20 15.97
Recoil Starter Ass'y Include.183,190,197,203a,204
202A 6692993 24.20 29.28
Cam Plate For (s) Type Since 9.2013 For Aus
203A 6699996 2.55 3.09
Damper Spring For (s) Type Since 7.2012 For Aus
204 6684677 8.58 10.38
Starter Rope Reel For (s) Type Since 9.2013 For A
205A 6699997 8.41 10.18
Recoil Starter Body Comp Since 11.2012 For Aus
206 6693041 8.85 10.71
Starter Rope 3.5x860 For (s) Type Since 7.2012 Fo
207 6684674 4.29 5.19
Till 8.2013 For Aus
209 6699691 6.10 7.38
Combi Box Spanner 13x19 Plus
501 6684979 4.29 5.19
