Here you will find all available parts and drawings of the 'Hikoki TED270RS'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

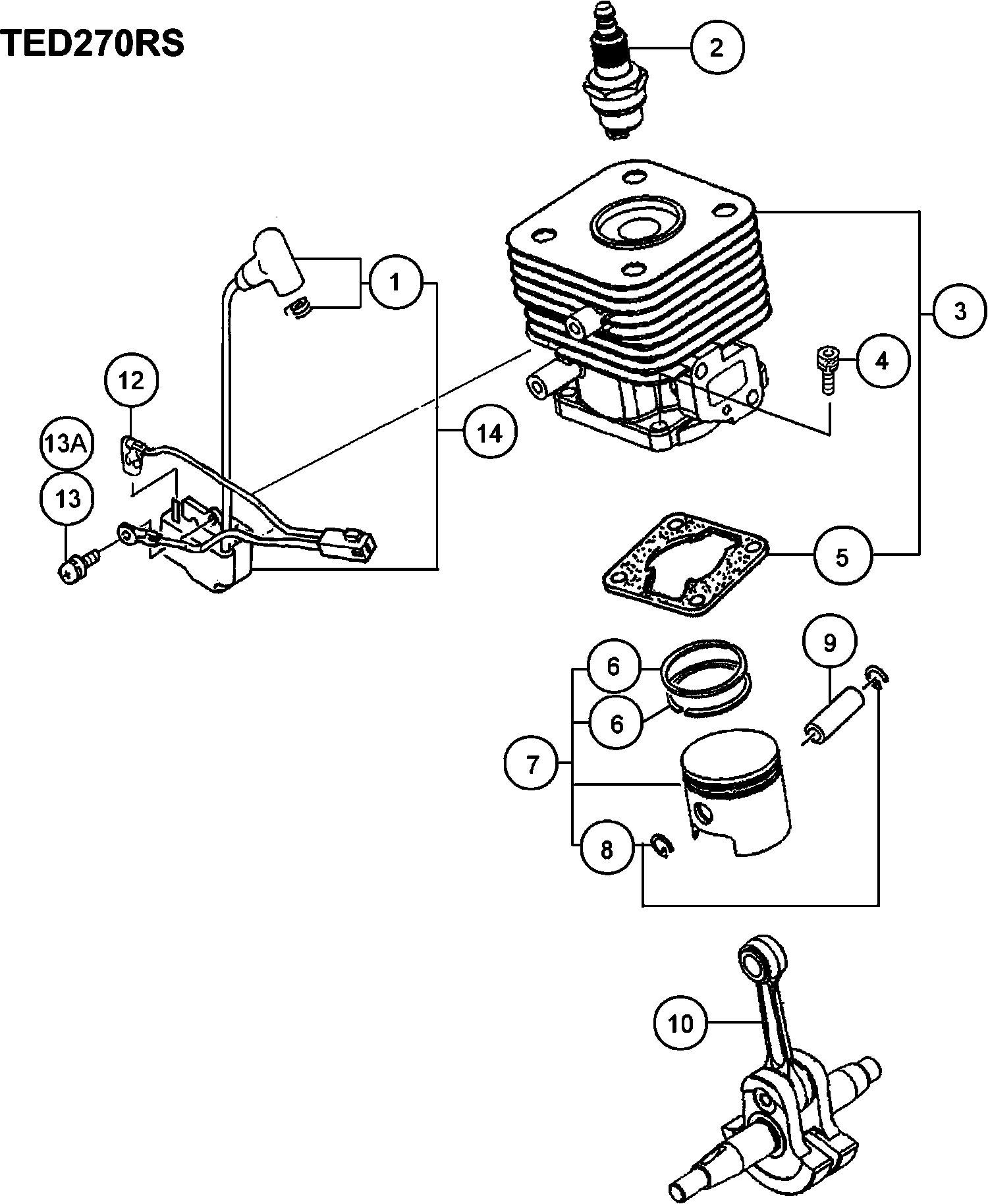

Technical drawing of model Hikoki TED270RS
Spare parts list of model Hikoki TED270RS
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Plug Cap | ||||
| 1 | 6684894 | 8.58 | 10.38 | |
| Spark Plug Ass'y Bpmr6a | ||||
| 2 | 6699319 | 8.91 | 10.78 | |
| No information available, not orderable | ||||
| 3 | 6685493 | |||
| Hex.hole Bolt M5x18/s | ||||
| 4 | 6684586 | 2.15 | 2.60 | |
| Cylinder Gasket T=1.0 | ||||
| 5 | 6685750 | 2.31 | 2.80 | |
| Piston Ring | ||||
| 6 | 6686121 | 4.45 | 5.38 | |
| Piston Set | ||||
| 7 | 6685902 | 20.11 | 24.34 | |
| Cir Clip | ||||
| 8 | 6684590 | 2.15 | 2.60 | |
| Piston Pin | ||||
| 9 | 6684591 | 4.29 | 5.19 | |
| No information available, not orderable | ||||
| 10 | 6686219 | |||
| Stop Cord B 190m | ||||
| 12 | 6687836 | 2.31 | 2.80 | |
| Hex. Hole Bolt M4x18/ws Till H124040 | ||||
| 13 | 6684599 | 2.15 | 2.60 | |
| High Tension Screw 4x18ws Since H124041 | ||||
| 13A | 6695407 | 1.15 | 1.39 | |
| Ignition Coil Ass'y | ||||
| 14 | 6687686 | 24.20 | 29.28 | |
| Gear Shaft Shim 0.20 | ||||
| 21 | 6684604 | 2.15 | 2.60 | |
| Gear Shaft Shim 0.30 | ||||
| 21 | 6684605 | 2.15 | 2.60 | |
| Magneto Rotor Comp. | ||||
| 22 | 6687384 | 16.19 | 19.59 | |
| Hex. Nut M8 | ||||
| 23 | 6684612 | 2.15 | 2.60 | |
| Bolt Washer M8 | ||||
| 24 | 6684611 | 2.15 | 2.60 | |
| Crank Case Ass'y Since D038601 | ||||
| 25 | 6684905 | 54.45 | 65.88 | |
| Oil Seal | ||||
| 26 | 6684607 | 4.29 | 5.19 | |
| Ball Bearing 6001 C3 | ||||
| 27 | 6684608 | 3.80 | 4.60 | |
| Crank Case Gasket | ||||
| 28 | 6684904 | 2.15 | 2.60 | |
| Hex. Hole Bolt M5x16/s | ||||
| 29 | 6684903 | 2.15 | 2.60 | |
| Inlet Manifold Gasket | ||||
| 41 | 6689895 | 1.15 | 1.39 | |
| Insulator Set | ||||
| 42 | 6689972 | 6.28 | 7.59 | |
| Hex. Hole Bolt M5x25ws | ||||
| 43 | 6695515 | 1.15 | 1.39 | |
| Carburetor Gasket (old 402-0602K-21/6689836) | ||||
| 44 | 6684615 | 2.15 | 2.60 | |
| Carburetor Set Wyj-431 Walbro (old 455-07355-90) | ||||
| 45 | 6690519 | 86.36 | 104.50 | |
| No longer available, no replacement | ||||
| 46 | 6690120 | |||
| Cleaner Sponge | ||||
| 47 | 6690365 | 1.15 | 1.39 | |
| Cleaner Cover | ||||
| 48 | 6690421 | 13.86 | 16.77 | |
| Cover Fixing Bolt Comp. | ||||
| 49 | 6698730 | 3.15 | 3.81 | |
| Screw 5x57/s | ||||
| 50 | 6695353 | 1.15 | 1.39 | |
| Small Washer 5 | ||||
| 51 | 6684864 | 2.15 | 2.60 | |
| Choke Lever 1.5 | ||||
| 52 | 6691281 | 1.15 | 1.39 | |
| Choke Control Lever | ||||
| 53 | 6691239 | 1.15 | 1.39 | |
| Tank Wht | ||||
| 54 | 6691602 | 15.13 | 18.30 | |
| Tank | ||||
| 54A | 6601167 | 8.91 | 10.78 | |
| Collar 5.8 Till G103930 | ||||
| 55 | 6692244 | 1.15 | 1.39 | |
| Return Grommet Till 7.2014 | ||||
| 56 | 6697846 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 56A | 6600358 | |||
| No longer available, no replacement | ||||
| 57 | 6684626 | |||
| No information available, not orderable | ||||
| 58 | 6684620 | |||
| Clip D6 | ||||
| 59 | 6685198 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 60 | 6684618 | |||
| Fuel Pipe | ||||
| 60A | 6601181 | 1.04 | 1.26 | |
| Ring | ||||
| 61 | 6689681 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 62 | 6685049 | |||
| No information available, not orderable | ||||
| 63 | 6684625 | |||
| Hex.hole Bolt 5x20/ps | ||||
| 64 | 6684634 | 2.15 | 2.60 | |
| Bolt (w/flange) L17.8 Since G103931 | ||||
| 64A | 6696574 | 1.05 | 1.27 | |
| Tap Screw 4x14 P | ||||
| 65 | 6695280 | 1.15 | 1.39 | |
| Ring | ||||
| 66 | 6685070 | 1.15 | 1.39 | |
| Hex. Hole Bolt 5x16/ps | ||||
| 67 | 6695504 | 1.15 | 1.39 | |
| Bolt (w/flange) L17.8 Since G103931 | ||||
| 67A | 6696574 | 1.05 | 1.27 | |
| Cylinder Cover | ||||
| 71 | 6685690 | 5.28 | 6.38 | |
| Hex. Hole Bolt 5x16/ps | ||||
| 72 | 6695504 | 1.15 | 1.39 | |
| Hex. Hole Bolt M6x55 | ||||
| 73 | 6684638 | 2.15 | 2.60 | |
| Ring | ||||
| 74 | 6684639 | 2.15 | 2.60 | |
| Muffler Set | ||||
| 75 | 6692501 | 14.85 | 17.97 | |
| Muffler Gasket | ||||
| 76 | 6692732 | 1.15 | 1.39 | |
| Muffler Protector Or | ||||
| 77 | 6692815 | 5.78 | 6.99 | |
| Hex. Hole Bolt 4x18ws Till H124040 | ||||
| 78 | 6695508 | 1.15 | 1.39 | |
| Screw 4x18/ps Since H124041 | ||||
| 78A | 6695375 | 1.15 | 1.39 | |
| Deflector | ||||
| 79 | 6687214 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 80 | 6684642 | |||
| No information available, not orderable | ||||
| 80A | 6697619 | |||
| Clutch Shoe Comp. | ||||
| 81 | 6684643 | 11.55 | 13.98 | |
| No information available, not orderable | ||||
| 81A | 6697656 | |||
| Clutch Spring | ||||
| 82 | 6684644 | 2.15 | 2.60 | |
| Clutch Spring Since J038101 | ||||
| 82A | 6697657 | 1.04 | 1.26 | |
| Clutch Plate A 0.5 | ||||
| 83 | 6684645 | 2.15 | 2.60 | |
| Clutch Plate (a) | ||||
| 83A | 6689528 | 1.15 | 1.39 | |
| Step Bolt | ||||
| 84 | 6684646 | 2.15 | 2.60 | |
| Step Bolt Till F113050 | ||||
| 84A | 6689627 | 1.15 | 1.39 | |
| Hex. Hole Bolt M5x18/ws | ||||
| 85 | 6684647 | 2.15 | 2.60 | |
| Ring | ||||
| 86 | 6684648 | 2.15 | 2.60 | |
| Clutch Set Since J038101 | ||||
| 87 | 6697655 | 6.76 | 8.18 | |
| Hex. Hole Bolt 4x15/ps | ||||
| 88 | 6684682 | 2.15 | 2.60 | |
| Heat Shield | ||||
| 89 | 6687264 | 3.30 | 3.99 | |
| Tapping Screw 4x14 | ||||
| 90 | 6684751 | 2.15 | 2.60 | |
| No longer available, no replacement | ||||
| 91 | 6687036 | |||
| Primary Cord Grommet | ||||
| 92 | 6688057 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 101A | 6699995 | |||
| No information available, not orderable | ||||
| 102 | 6684673 | |||
| Starter Rope 3.5x860 For (s) Type Since 7.2012 Fo | ||||
| 103 | 6684674 | 4.29 | 5.19 | |
| Recoil Spring Till 7.2014 | ||||
| 104 | 6684675 | 11.55 | 13.98 | |
| Starter Rope Reel For (s) Type Since 9.2013 For A | ||||
| 105A | 6699997 | 8.41 | 10.18 | |
| Damper Spring For (s) Type Since 7.2012 For Aus | ||||
| 106 | 6684677 | 8.58 | 10.38 | |
| Cam Plate For (s) Type Since 9.2013 For Aus | ||||
| 107A | 6699996 | 2.55 | 3.09 | |
| Set Screw (old 839-03045-20) | ||||
| 108 | 6684679 | 2.15 | 2.60 | |
| Starter Handle | ||||
| 109 | 6684680 | 2.15 | 2.60 | |
| Starter Pulley Ass'y For (s) Type Since 7.2012 Fo | ||||
| 110 | 6684681 | 13.20 | 15.97 | |
| D4e Retaining Ring (old 993-55040-001) | ||||
| 111 | 6685101 | 1.15 | 1.39 | |
| Starter Pawl Spring | ||||
| 112 | 6684684 | 4.29 | 5.19 | |
| Starter Pawl | ||||
| 113 | 6684685 | 4.29 | 5.19 | |
| Screw 4x18/ps Since H124041 | ||||
| 114 | 6695375 | 1.15 | 1.39 | |
| Till 8.2013 For Aus | ||||
| 115 | 6699691 | 6.10 | 7.38 | |
| Pump Body Comp. | ||||
| 121 | 6684879 | 62.16 | 75.22 | |
| Priming Pump Comp. | ||||
| 122 | 6684687 | 16.34 | 19.77 | |
| Diaphragm Cover | ||||
| 123 | 6684688 | 8.58 | 10.38 | |
| Priming Body | ||||
| 124 | 6684689 | 6.44 | 7.79 | |
| Metering Diaphragm Comp. | ||||
| 125 | 6690830 | 11.88 | 14.37 | |
| Diaphragm Gasket | ||||
| 126 | 6684691 | 8.58 | 10.38 | |
| Pump Diaphragm | ||||
| 127 | 6684693 | 8.58 | 10.38 | |
| Pump Gasket | ||||
| 128 | 6684692 | 29.19 | 35.32 | |
| Main Jet #43 | ||||
| 129 | 6691848 | 4.45 | 5.38 | |
| O-RING (old 550-25100-20) | ||||
| 130 | 6684695 | 4.29 | 5.19 | |
| Stop Ring | ||||
| 131 | 6684696 | 2.15 | 2.60 | |
| Swivel | ||||
| 132 | 6684697 | 6.44 | 7.79 | |
| Throttle Set Screw | ||||
| 133 | 6684870 | 2.15 | 2.60 | |
| Cable Adjuster Stay | ||||
| 134 | 6684873 | 6.44 | 7.79 | |
| Lock Nut M6 | ||||
| 135 | 6684872 | 2.15 | 2.60 | |
| Cable Adjuster | ||||
| 136 | 6684871 | 4.29 | 5.19 | |
| Cleaner Packing | ||||
| 137 | 6684875 | 4.29 | 5.19 | |
| Set Screw | ||||
| 138 | 6684699 | 2.15 | 2.60 | |
| Thrust Washer | ||||
| 139 | 6684874 | 2.15 | 2.60 | |
| Inlet Screen | ||||
| 140 | 6684700 | 4.29 | 5.19 | |
| No information available, not orderable | ||||
| 151 | 6685576 | |||
| No longer available, no replacement | ||||
| 152 | 6685593 | |||
| No longer available, no replacement | ||||
| 153 | 6686684 | |||
| Shift Guide Spring (old 106-32141-20) | ||||
| 154 | 6686837 | 1.15 | 1.39 | |
| Shift Lever (old 108-32141-20) | ||||
| 155 | 6686862 | 3.30 | 3.99 | |
| COMPLETE GREASE NIPPLE (OLD 300-32250-80) | ||||
| 156 | 6688643 | 1.15 | 1.39 | |
| Steel Ball | ||||
| 157 | 6692271 | 1.15 | 1.39 | |
| Hex. Hole Bolt 4x8 | ||||
| 158 | 6695034 | 1.15 | 1.39 | |
| Ring | ||||
| 159 | 6685070 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 161 | 6695591 | |||
| Gear 4 | ||||
| 162 | 6685788 | 50.21 | 60.76 | |
| Ball Bearing #7202b | ||||
| 163 | 6695587 | 14.21 | 17.20 | |
| Washaer C 5.0 | ||||
| 164 | 6686065 | 3.30 | 3.99 | |
| Ball Bearing #6202z | ||||
| 165 | 6695559 | 6.44 | 7.79 | |
| Ring | ||||
| 166 | 6695206 | 1.15 | 1.39 | |
| Stop Ring C-35, Inner | ||||
| 167 | 6695296 | 1.15 | 1.39 | |
| Wood-ruff Key 3x13x5 | ||||
| 168 | 6686455 | 1.15 | 1.39 | |
| Drive Shaft | ||||
| 169 | 6685824 | 104.51 | 126.46 | |
| Screw 5x18/s | ||||
| 170 | 6695339 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 171 | 6686378 | |||
| No information available, not orderable | ||||
| 172 | 6687314 | |||
| Stop Ring 20, Inner | ||||
| 173 | 6695316 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 174 | 6695522 | |||
| Washer Spring | ||||
| 175A | 942827 | 1.04 | 1.26 | |
| Ring | ||||
| 176 | 6687320 | 1.15 | 1.39 | |
| Idle Gear (old 059-32141-20) | ||||
| 177 | 6686373 | 64.28 | 77.77 | |
| No information available, not orderable | ||||
| 178 | 6695591 | |||
| No information available, not orderable | ||||
| 179 | 6686365 | |||
| No information available, not orderable | ||||
| 180 | 6686423 | |||
| Stop Ring C-24,inner | ||||
| 181 | 6684732 | 2.15 | 2.60 | |
| Ball Bearing 609z St | ||||
| 182 | 6684735 | 8.58 | 10.38 | |
| Ring | ||||
| 183 | 6687320 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 184 | 6686411 | |||
| No information available, not orderable | ||||
| 185 | 6695591 | |||
| Counter Shaft | ||||
| 186 | 6686427 | 52.34 | 63.33 | |
| Stop Ring C-13, Outer | ||||
| 187 | 6695283 | 1.15 | 1.39 | |
| Clutch Housing Comp. | ||||
| 201 | 6688199 | 12.38 | 14.97 | |
| Plus Bolt 6x30 | ||||
| 203 | 6695022 | 1.15 | 1.39 | |
| Ring | ||||
| 204 | 6695219 | 1.15 | 1.39 | |
| Handle Comp.a | ||||
| 205 | 6688369 | 36.15 | 43.74 | |
| Handle Grip A (old 165-33130-20/6691224) | ||||
| 206 | 6687624 | 5.78 | 6.99 | |
| Throttle Lever | ||||
| 207 | 6686799 | 2.31 | 2.80 | |
| Screw 5x25 (old 990-11050-251/6694895) | ||||
| 208 | 6694896 | 1.15 | 1.39 | |
| Nut M5 | ||||
| 209 | 6684965 | 1.04 | 1.26 | |
| Cord Clamp | ||||
| 210 | 6688015 | 1.15 | 1.39 | |
| Plus Bolt 6x16 | ||||
| 211 | 6695019 | 1.15 | 1.39 | |
| Ring | ||||
| 212 | 6695219 | 1.15 | 1.39 | |
| Handle Comp. B | ||||
| 213 | 6688372 | 13.20 | 15.97 | |
| No information available, not orderable | ||||
| 214 | 6686350 | |||
| Ring | ||||
| 215 | 6695225 | 1.15 | 1.39 | |
| Stop Switch Comp. | ||||
| 216 | 6687431 | 8.41 | 10.18 | |
| Stop Button Mark | ||||
| 217 | 6694589 | 2.31 | 2.80 | |
| Button Stop | ||||
| 218 | 6688366 | 1.15 | 1.39 | |
| Screw 3x10 | ||||
| 219 | 6684913 | 2.15 | 2.60 | |
| Throttle Wire 370+45.5 | ||||
| 220 | 6693987 | 4.79 | 5.79 | |
| No information available, not orderable | ||||
| 221 | 6687532 | |||
| Chuck Handle Holder | ||||
| 222 | 6687420 | 4.45 | 5.38 | |
| Handle Support Comp. | ||||
| 223 | 6688404 | 15.88 | 19.21 | |
| Ring | ||||
| 224 | 6695219 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 225 | 6684792 | |||
| Clutch Case Comp. | ||||
| 226 | 6687336 | 40.24 | 48.69 | |
| Screw 5x18/s | ||||
| 227 | 6695339 | 1.15 | 1.39 | |
| Combi Box Spanner 10x19 | ||||
| 501 | 6685999 | 5.11 | 6.19 | |
| No information available, not orderable | ||||
| 502 | 6686379 | |||
| No longer available, no replacement | ||||
| 503 | 6686780 | |||
| Name Plate Ted270rs | ||||
| 601 | 6694238 | 1.05 | 1.27 | |
