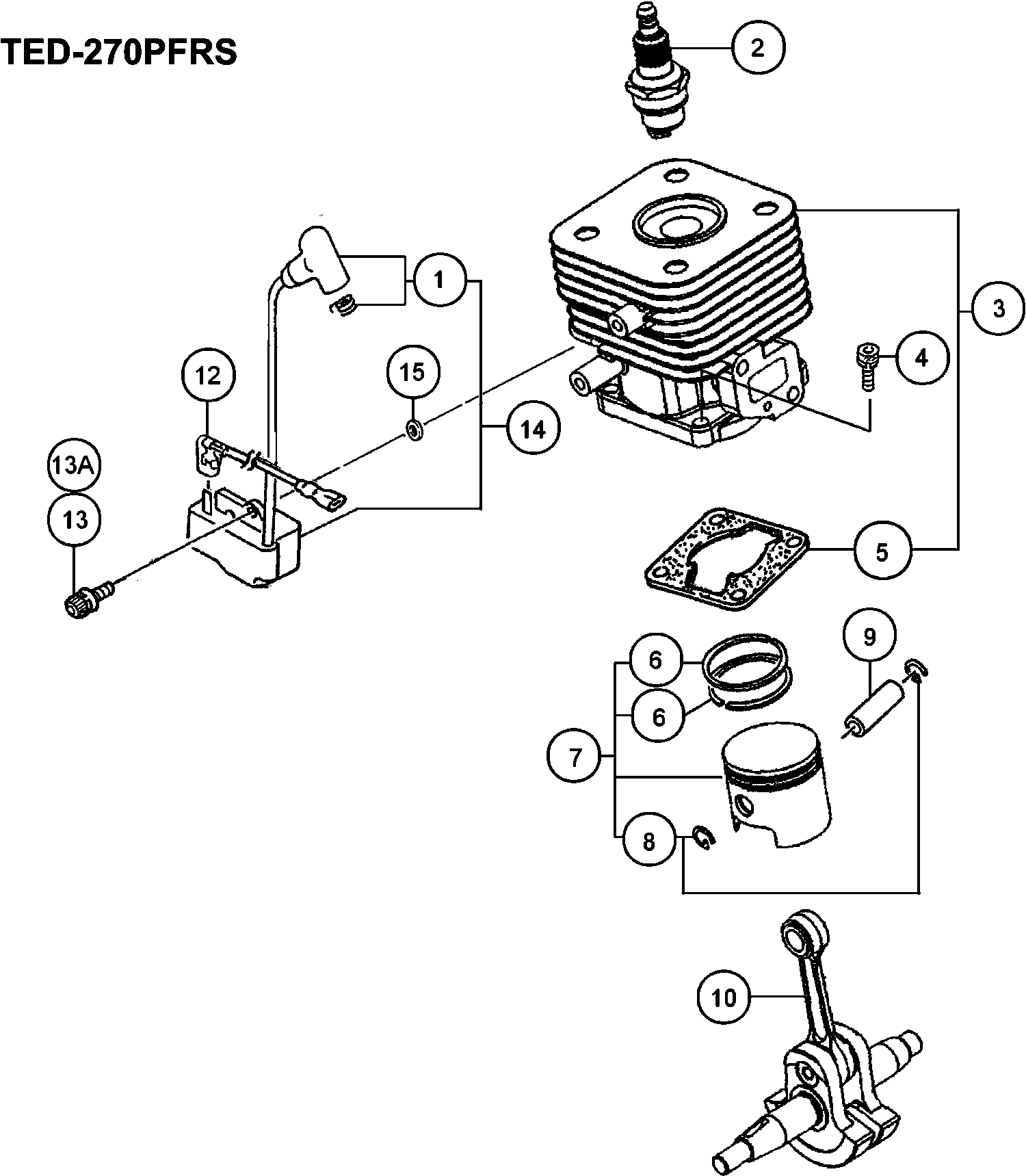

Technical drawing of model Hikoki TED-270PFRS
Spare parts list of model Hikoki TED-270PFRS
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Plug Cap | ||||
| 1 | 6684894 | 8.58 | 10.38 | |
| Spark Plug BMR6A | ||||
| 2 | 6699315 | 13.35 | 16.15 | |
| No information available, not orderable | ||||
| 3 | 6685495 | |||
| Hex.hole Bolt M5x18/s | ||||
| 4 | 6684586 | 2.15 | 2.60 | |
| Cylinder Gasket | ||||
| 5 | 6684896 | 2.15 | 2.60 | |
| Piston Ring | ||||
| 6 | 6686121 | 4.45 | 5.38 | |
| Piston Set | ||||
| 7 | 6685902 | 20.11 | 24.34 | |
| Cir Clip | ||||
| 8 | 6684590 | 2.15 | 2.60 | |
| Piston Pin | ||||
| 9 | 6684591 | 4.29 | 5.19 | |
| No information available, not orderable | ||||
| 10 | 6686219 | |||
| Stop Cord B 190m | ||||
| 12 | 6687836 | 2.31 | 2.80 | |
| Hex. Hole Bolt M4x18/ws Till H124040 | ||||
| 13 | 6684599 | 2.15 | 2.60 | |
| High Tension Screw 4x18ws Since H124041 | ||||
| 13A | 6695407 | 1.15 | 1.39 | |
| Ignition Coil Ass'y | ||||
| 14 | 6687689 | 42.20 | 51.06 | |
| Washer T1.6 | ||||
| 15 | 6684600 | 2.15 | 2.60 | |
| Gear Shaft Shim 0.20 | ||||
| 21 | 6684604 | 2.15 | 2.60 | |
| Gear Shaft Shim 0.30 | ||||
| 21 | 6684605 | 2.15 | 2.60 | |
| Magneto Rotor Comp. | ||||
| 22 | 6687385 | 22.24 | 26.91 | |
| Hex. Nut M8 | ||||
| 23 | 6684612 | 2.15 | 2.60 | |
| Bolt Washer M8 | ||||
| 24 | 6684611 | 2.15 | 2.60 | |
| Crank Case Ass'y Since D038601 | ||||
| 25 | 6684905 | 54.45 | 65.88 | |
| Oil Seal | ||||
| 26 | 6684607 | 4.29 | 5.19 | |
| Ball Bearing 6001 C3 | ||||
| 27 | 6684608 | 3.80 | 4.60 | |
| Crank Case Gasket | ||||
| 28 | 6684904 | 2.15 | 2.60 | |
| Hex. Hole Bolt M5x16/s | ||||
| 29 | 6684903 | 2.15 | 2.60 | |
| Inlet Manifold Gasket | ||||
| 41 | 6689895 | 1.15 | 1.39 | |
| Insulator Set | ||||
| 42 | 6689972 | 6.28 | 7.59 | |
| Hex. Hole Bolt 5x25/ws | ||||
| 43 | 6684617 | 2.15 | 2.60 | |
| Carburetor Packing | ||||
| 44 | 6684616 | 2.15 | 2.60 | |
| Carburetor Set Wyj-463 (old 455-0740a-90) | ||||
| 45 | 6690522 | 80.31 | 97.18 | |
| No longer available, no replacement | ||||
| 46 | 6690120 | |||
| Cleaner Sponge | ||||
| 47 | 6690365 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 48 | 6690402 | |||
| Cover Fixing Bolt Comp. | ||||
| 49 | 6698730 | 3.15 | 3.81 | |
| Screw M5x55 | ||||
| 50 | 6694914 | 1.15 | 1.39 | |
| Small Washer 5 | ||||
| 51 | 6684864 | 2.15 | 2.60 | |
| Choke Plate 2.0 | ||||
| 52 | 6691276 | 1.15 | 1.39 | |
| Choke Control Lever | ||||
| 53 | 6691239 | 1.15 | 1.39 | |
| Tank Wht | ||||
| 54 | 6691602 | 15.13 | 18.30 | |
| Tank | ||||
| 54A | 6601167 | 8.91 | 10.78 | |
| Collar 5.8 Till G103930 | ||||
| 55 | 6692244 | 1.15 | 1.39 | |
| Return Grommet Till 7.2014 | ||||
| 56 | 6697846 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 56A | 6600358 | |||
| No longer available, no replacement | ||||
| 57 | 6684626 | |||
| No information available, not orderable | ||||
| 58 | 6684620 | |||
| Clip D6 | ||||
| 59 | 6685198 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 60 | 6684618 | |||
| Fuel Pipe | ||||
| 60A | 6601181 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 62 | 6685049 | |||
| No information available, not orderable | ||||
| 63 | 6684625 | |||
| Hex. Hole Bolt 5x16/ps | ||||
| 64 | 6695504 | 1.15 | 1.39 | |
| Bolt (w/flange) L17.8 Since G103931 | ||||
| 64A | 6696574 | 1.05 | 1.27 | |
| Tap Screw 4x14 P | ||||
| 65 | 6695280 | 1.15 | 1.39 | |
| Ring | ||||
| 66 | 6685070 | 1.15 | 1.39 | |
| S.washer 5 | ||||
| 67 | 6684662 | 2.15 | 2.60 | |
| Cylinder Cover (blk) | ||||
| 71 | 6685693 | 4.79 | 5.79 | |
| Hex. Hole Bolt 5x16/ps | ||||
| 72 | 6695504 | 1.15 | 1.39 | |
| Hex.hole Bolt 6x65 (old 990-51060-653) | ||||
| 73 | 6695067 | 1.15 | 1.39 | |
| Ring | ||||
| 74 | 6684639 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 75 | 6699602 | |||
| Muffler Protector | ||||
| 77 | 6692817 | 20.11 | 24.34 | |
| Hex. Hole Bolt 4x18ws Till H124040 | ||||
| 78 | 6695508 | 1.15 | 1.39 | |
| Screw 4x18/ps Since H124041 | ||||
| 78A | 6695375 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 79 | 6687216 | |||
| No information available, not orderable | ||||
| 80 | 6684642 | |||
| No information available, not orderable | ||||
| 80A | 6697619 | |||
| Clutch Shoe Comp. | ||||
| 81 | 6684643 | 11.55 | 13.98 | |
| No information available, not orderable | ||||
| 81A | 6697656 | |||
| Clutch Spring | ||||
| 82 | 6684644 | 2.15 | 2.60 | |
| Clutch Spring Since J038101 | ||||
| 82A | 6697657 | 1.04 | 1.26 | |
| Clutch Plate A 0.5 | ||||
| 83 | 6684645 | 2.15 | 2.60 | |
| Clutch Plate (a) | ||||
| 83A | 6689528 | 1.15 | 1.39 | |
| Step Bolt | ||||
| 84 | 6684646 | 2.15 | 2.60 | |
| Step Bolt Till F113050 | ||||
| 84A | 6689627 | 1.15 | 1.39 | |
| Hex. Hole Bolt M5x18/ws | ||||
| 85 | 6684647 | 2.15 | 2.60 | |
| Ring | ||||
| 86 | 6684648 | 2.15 | 2.60 | |
| Clutch Set Since J038101 | ||||
| 87 | 6697655 | 6.76 | 8.18 | |
| Hex. Hole Bolt 4x15/ps | ||||
| 88 | 6684682 | 2.15 | 2.60 | |
| Heat Shield | ||||
| 89 | 6687265 | 4.45 | 5.38 | |
| Tapping Screw 4x14 | ||||
| 90 | 6684751 | 2.15 | 2.60 | |
| Fan Housing | ||||
| 91 | 6687037 | 19.81 | 23.97 | |
| Primary Cord Grommet | ||||
| 92 | 6688057 | 1.15 | 1.39 | |
| Muffler Special Gasket | ||||
| 93 | 6692886 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 94 | 6692716 | |||
| Screw M4x8/ws | ||||
| 95 | 6684651 | 2.15 | 2.60 | |
| Spark Arrester | ||||
| 96 | 6692702 | 2.31 | 2.80 | |
| No information available, not orderable | ||||
| 101A | 6699995 | |||
| No information available, not orderable | ||||
| 102 | 6684673 | |||
| Starter Rope 3.5x860 For (s) Type Since 7.2012 Fo | ||||
| 103 | 6684674 | 4.29 | 5.19 | |
| Recoil Spring Till 7.2014 | ||||
| 104 | 6684675 | 11.55 | 13.98 | |
| Starter Rope Reel For (s) Type Since 9.2013 For A | ||||
| 105A | 6699997 | 8.41 | 10.18 | |
| Damper Spring For (s) Type Since 7.2012 For Aus | ||||
| 106 | 6684677 | 8.58 | 10.38 | |
| Cam Plate For (s) Type Since 9.2013 For Aus | ||||
| 107A | 6699996 | 2.55 | 3.09 | |
| Set Screw (old 839-03045-20) | ||||
| 108 | 6684679 | 2.15 | 2.60 | |
| Starter Handle | ||||
| 109 | 6684680 | 2.15 | 2.60 | |
| Starter Pulley Ass'y For (s) Type Since 7.2012 Fo | ||||
| 110 | 6684681 | 13.20 | 15.97 | |
| D4e Retaining Ring (old 993-55040-001) | ||||
| 111 | 6685101 | 1.15 | 1.39 | |
| Starter Pawl Spring | ||||
| 112 | 6684684 | 4.29 | 5.19 | |
| Starter Pawl | ||||
| 113 | 6684685 | 4.29 | 5.19 | |
| Hex. Hole Bolt 4x18ws Till H124040 | ||||
| 114 | 6695508 | 1.15 | 1.39 | |
| Screw 4x18/ps Since H124041 | ||||
| 114A | 6695375 | 1.15 | 1.39 | |
| Till 8.2013 For Aus | ||||
| 115 | 6699691 | 6.10 | 7.38 | |
| Pump Body Comp. | ||||
| 121 | 6684879 | 62.16 | 75.22 | |
| Priming Pump Comp. | ||||
| 122 | 6684687 | 16.34 | 19.77 | |
| Diaphragm Cover | ||||
| 123 | 6684688 | 8.58 | 10.38 | |
| Priming Body | ||||
| 124 | 6684689 | 6.44 | 7.79 | |
| No longer available, no replacement | ||||
| 125 | 6684690 | |||
| Diaphragm Gasket | ||||
| 126 | 6684691 | 8.58 | 10.38 | |
| Pump Diaphragm | ||||
| 127 | 6684693 | 8.58 | 10.38 | |
| Pump Gasket | ||||
| 128 | 6684692 | 29.19 | 35.32 | |
| Main Jet #38.5 (old 599-200bw-38/6691874) | ||||
| 129 | 6696130 | 5.78 | 6.99 | |
| O-RING (old 550-25100-20) | ||||
| 130 | 6684695 | 4.29 | 5.19 | |
| Stop Ring | ||||
| 131 | 6684696 | 2.15 | 2.60 | |
| Swivel | ||||
| 132 | 6684697 | 6.44 | 7.79 | |
| Throttle Set Screw | ||||
| 133 | 6684870 | 2.15 | 2.60 | |
| Cable Adjuster Stay | ||||
| 134 | 6684873 | 6.44 | 7.79 | |
| Cleaner Packing | ||||
| 137 | 6684875 | 4.29 | 5.19 | |
| Set Screw | ||||
| 138 | 6684699 | 2.15 | 2.60 | |
| Thrust Washer | ||||
| 139 | 6684874 | 2.15 | 2.60 | |
| Inlet Screen | ||||
| 140 | 6684700 | 4.29 | 5.19 | |
| No information available, not orderable | ||||
| 151 | 6685576 | |||
| No longer available, no replacement | ||||
| 152 | 6685593 | |||
| No longer available, no replacement | ||||
| 153 | 6686684 | |||
| Shift Guide Spring (old 106-32141-20) | ||||
| 154 | 6686837 | 1.15 | 1.39 | |
| Shift Lever (old 108-32141-20) | ||||
| 155 | 6686862 | 3.30 | 3.99 | |
| COMPLETE GREASE NIPPLE (OLD 300-32250-80) | ||||
| 156 | 6688643 | 1.15 | 1.39 | |
| Steel Ball | ||||
| 157 | 6692271 | 1.15 | 1.39 | |
| Hex. Hole Bolt 4x8 | ||||
| 158 | 6695034 | 1.15 | 1.39 | |
| Ring | ||||
| 159 | 6685070 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 161 | 6695591 | |||
| Gear 4 | ||||
| 162 | 6685788 | 50.21 | 60.76 | |
| Ball Bearing #7202b | ||||
| 163 | 6695587 | 14.21 | 17.20 | |
| Washaer C 5.0 | ||||
| 164 | 6686065 | 3.30 | 3.99 | |
| Ball Bearing #6202z | ||||
| 165 | 6695559 | 6.44 | 7.79 | |
| Ring | ||||
| 166 | 6695206 | 1.15 | 1.39 | |
| Stop Ring C-35, Inner | ||||
| 167 | 6695296 | 1.15 | 1.39 | |
| Wood-ruff Key 3x13x5 | ||||
| 168 | 6686455 | 1.15 | 1.39 | |
| Drive Shaft | ||||
| 169 | 6685824 | 104.51 | 126.46 | |
| Screw 5x18/s | ||||
| 170 | 6695339 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 171 | 6686378 | |||
| No information available, not orderable | ||||
| 172 | 6687314 | |||
| Stop Ring 20, Inner | ||||
| 173 | 6695316 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 174 | 6695522 | |||
| Washer Spring | ||||
| 175A | 942827 | 1.04 | 1.26 | |
| Ring | ||||
| 176 | 6687320 | 1.15 | 1.39 | |
| Idle Gear (old 059-32141-20) | ||||
| 177 | 6686373 | 64.28 | 77.77 | |
| No information available, not orderable | ||||
| 178 | 6695591 | |||
| No information available, not orderable | ||||
| 179 | 6686365 | |||
| No information available, not orderable | ||||
| 180 | 6686423 | |||
| Stop Ring C-24,inner | ||||
| 181 | 6684732 | 2.15 | 2.60 | |
| Ball Bearing 609z St | ||||
| 182 | 6684735 | 8.58 | 10.38 | |
| Ring | ||||
| 183 | 6687320 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 184 | 6686411 | |||
| No information available, not orderable | ||||
| 185 | 6695591 | |||
| Counter Shaft | ||||
| 186 | 6686427 | 52.34 | 63.33 | |
| Stop Ring C-13, Outer | ||||
| 187 | 6695283 | 1.15 | 1.39 | |
| Clutch Housing Comp. | ||||
| 201 | 6688199 | 12.38 | 14.97 | |
| Plus Bolt 6x30 | ||||
| 203 | 6695022 | 1.15 | 1.39 | |
| Ring | ||||
| 204 | 6695219 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 205 | 6688370 | |||
| Handle Grip A (old 165-33130-20/6691224) | ||||
| 206 | 6687624 | 5.78 | 6.99 | |
| Throttle Lever | ||||
| 207 | 6686401 | 1.15 | 1.39 | |
| Tap Screw 4x14 P | ||||
| 208 | 6695280 | 1.15 | 1.39 | |
| Screw 4x6 | ||||
| 209 | 6694860 | 1.15 | 1.39 | |
| Cord Clamp | ||||
| 210 | 6688015 | 1.15 | 1.39 | |
| Plus Bolt 6x16 | ||||
| 211 | 6695019 | 1.15 | 1.39 | |
| Ring | ||||
| 212 | 6695219 | 1.15 | 1.39 | |
| Handle Comp. B | ||||
| 213 | 6688372 | 13.20 | 15.97 | |
| No information available, not orderable | ||||
| 214 | 6686350 | |||
| Ring | ||||
| 215 | 6695225 | 1.15 | 1.39 | |
| Stop Switch Comp. (old 170-71020-80) | ||||
| 216 | 6687776 | 8.58 | 10.38 | |
| Stop Button Mark | ||||
| 217 | 6694588 | 1.15 | 1.39 | |
| Button Stop | ||||
| 218 | 6688366 | 1.15 | 1.39 | |
| Screw 3x10 | ||||
| 219 | 6684913 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 220 | 6693988 | |||
| Protection Tube 345l | ||||
| 221 | 6687535 | 1.15 | 1.39 | |
| Chuck Handle Holder | ||||
| 222 | 6687420 | 4.45 | 5.38 | |
| Handle Support Comp. | ||||
| 223 | 6688404 | 15.88 | 19.21 | |
| Ring | ||||
| 224 | 6695219 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 225 | 6684792 | |||
| Clutch Case Comp. | ||||
| 226 | 6687336 | 40.24 | 48.69 | |
| Screw 5x18/s | ||||
| 227 | 6695339 | 1.15 | 1.39 | |
| Throttle Body B (Old 884-71020-20) | ||||
| 228 | 6693818 | 3.30 | 3.99 | |
| Throttle Body A | ||||
| 229 | 6693795 | 3.30 | 3.99 | |
| Throttle Lever Spring | ||||
| 230 | 6686421 | 1.15 | 1.39 | |
| Combi Box Spanner 10x19 | ||||
| 501 | 6685999 | 5.11 | 6.19 | |
| No information available, not orderable | ||||
| 502 | 6686379 | |||
| No longer available, no replacement | ||||
| 503 | 6686780 | |||
| Handle Adaptor | ||||
| 504 | 6686620 | 13.53 | 16.37 | |
| Name Plate Ted270pfrs | ||||
| 601 | 6694242 | 2.10 | 2.54 | |
