Here you will find all available parts and drawings of the 'Hikoki TED-270PFR'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

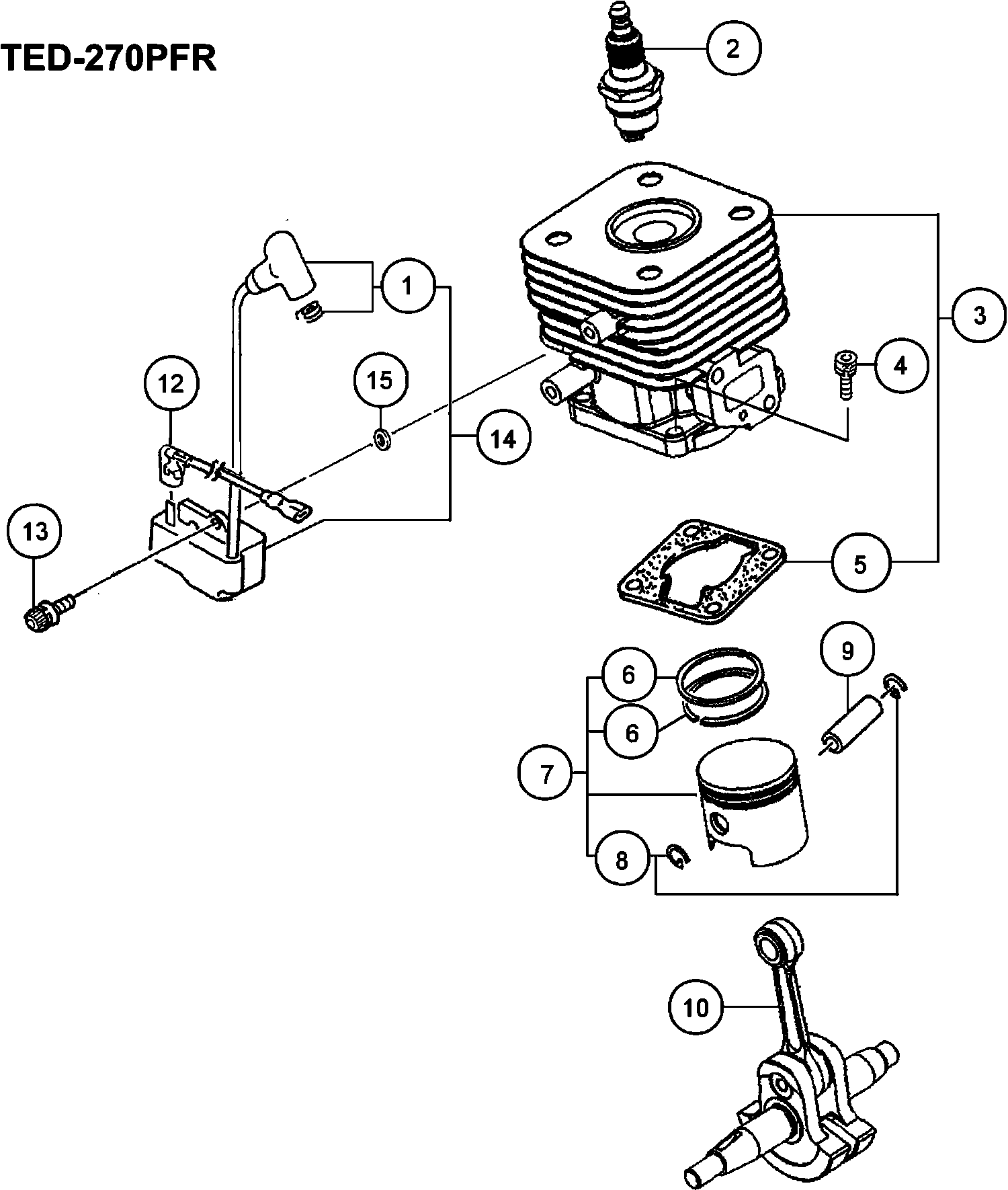

Technical drawing of model Hikoki TED-270PFR
Spare parts list of model Hikoki TED-270PFR
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Plug Cap | ||||
| 1 | 6684894 | 8.58 | 10.38 | |
| Spark Plug Ass'y Cj8 | ||||
| 2 | 6699324 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 3 | 6685495 | |||
| Hex.hole Bolt M5x18/s | ||||
| 4 | 6684586 | 2.15 | 2.60 | |
| Cylinder Gasket | ||||
| 5 | 6684896 | 2.15 | 2.60 | |
| Piston Ring | ||||
| 6 | 6686121 | 4.45 | 5.38 | |
| Piston Set | ||||
| 7 | 6685902 | 20.11 | 24.34 | |
| Cir Clip | ||||
| 8 | 6684590 | 2.15 | 2.60 | |
| Piston Pin | ||||
| 9 | 6684591 | 4.29 | 5.19 | |
| No information available, not orderable | ||||
| 10 | 6686219 | |||
| Stop Cord B 190m | ||||
| 12 | 6687836 | 2.31 | 2.80 | |
| High Tension Screw 4x18ws Since H124041 | ||||
| 13 | 6695407 | 1.15 | 1.39 | |
| Ignition Coil Ass'y | ||||
| 14 | 6687689 | 42.20 | 51.06 | |
| Washer T1.6 | ||||
| 15 | 6684600 | 2.15 | 2.60 | |
| Gear Shaft Shim 0.20 | ||||
| 21 | 6684604 | 2.15 | 2.60 | |
| Gear Shaft Shim 0.30 | ||||
| 21 | 6684605 | 2.15 | 2.60 | |
| Magneto Rotor Comp. | ||||
| 22 | 6687385 | 22.24 | 26.91 | |
| Hex. Nut M8 | ||||
| 23 | 6684612 | 2.15 | 2.60 | |
| Bolt Washer M8 | ||||
| 24 | 6684611 | 2.15 | 2.60 | |
| Crank Case Ass'y Since D038601 | ||||
| 25 | 6684905 | 54.45 | 65.88 | |
| Oil Seal | ||||
| 26 | 6684607 | 4.29 | 5.19 | |
| Ball Bearing 6001 C3 | ||||
| 27 | 6684608 | 3.80 | 4.60 | |
| Crank Case Gasket | ||||
| 28 | 6684904 | 2.15 | 2.60 | |
| Hex. Hole Bolt M5x16/s | ||||
| 29 | 6684903 | 2.15 | 2.60 | |
| Inlet Manifold Gasket | ||||
| 41 | 6689895 | 1.15 | 1.39 | |
| Insulator Set | ||||
| 42 | 6689972 | 6.28 | 7.59 | |
| Hex. Hole Bolt 5x25/ws | ||||
| 43 | 6684617 | 2.15 | 2.60 | |
| Carburetor Packing | ||||
| 44 | 6684616 | 2.15 | 2.60 | |
| Carburetor Set Wyj-463 (old 455-0740a-90) | ||||
| 45 | 6690522 | 80.31 | 97.18 | |
| No longer available, no replacement | ||||
| 46 | 6690120 | |||
| Cleaner Sponge | ||||
| 47 | 6690365 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 48 | 6690402 | |||
| Cover Fixing Bolt Comp. | ||||
| 49 | 6698730 | 3.15 | 3.81 | |
| Screw M5x55 | ||||
| 50 | 6694914 | 1.15 | 1.39 | |
| Small Washer 5 | ||||
| 51 | 6684864 | 2.15 | 2.60 | |
| Choke Plate 2.0 | ||||
| 52 | 6691276 | 1.15 | 1.39 | |
| Choke Control Lever | ||||
| 53 | 6691239 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 54A | 6697951 | |||
| Collar 5.8 Till G103930 | ||||
| 55 | 6692244 | 1.15 | 1.39 | |
| Return Grommet Till 7.2014 | ||||
| 56 | 6697846 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 57 | 6684626 | |||
| No information available, not orderable | ||||
| 58 | 6684620 | |||
| Clip D6 | ||||
| 59 | 6685198 | 1.15 | 1.39 | |
| SHIELD TUBE SET | ||||
| 60 | 6698970 | 10.68 | 12.92 | |
| Ring | ||||
| 61 | 6689681 | 1.15 | 1.39 | |
| Tank Cap D Ass'y Since K032881 | ||||
| 62 | 6691748 | 7.59 | 9.18 | |
| Hex. Hole Bolt 5x20ps Till J019590 | ||||
| 63 | 6695506 | 1.15 | 1.39 | |
| Hex. Hole Bolt 5x16/ps | ||||
| 64 | 6695504 | 1.15 | 1.39 | |
| Bolt (w/flange) L17.8 Since G103931 | ||||
| 64A | 6696574 | 1.05 | 1.27 | |
| Tap Screw 4x14 P | ||||
| 65 | 6695280 | 1.15 | 1.39 | |
| Ring | ||||
| 66 | 6685070 | 1.15 | 1.39 | |
| S.washer 5 | ||||
| 67 | 6684662 | 2.15 | 2.60 | |
| Cylinder Cover (blk) | ||||
| 71 | 6685693 | 4.79 | 5.79 | |
| Hex. Hole Bolt 5x16/ps | ||||
| 72 | 6695504 | 1.15 | 1.39 | |
| Hex.hole Bolt 6x65 (old 990-51060-653) | ||||
| 73 | 6695067 | 1.15 | 1.39 | |
| Ring | ||||
| 74 | 6684639 | 2.15 | 2.60 | |
| Muffler Comp. (old 706-0740a-80) | ||||
| 75 | 6692575 | 54.30 | 65.70 | |
| Muffler Protector | ||||
| 77 | 6692817 | 20.11 | 24.34 | |
| No information available, not orderable | ||||
| 79 | 6687216 | |||
| No information available, not orderable | ||||
| 80 | 6684642 | |||
| No information available, not orderable | ||||
| 80A | 6697619 | |||
| Clutch Shoe Comp. | ||||
| 81 | 6684643 | 11.55 | 13.98 | |
| No information available, not orderable | ||||
| 81A | 6697656 | |||
| Clutch Spring | ||||
| 82 | 6684644 | 2.15 | 2.60 | |
| Clutch Spring Since J038101 | ||||
| 82A | 6697657 | 1.04 | 1.26 | |
| Clutch Plate A 0.5 | ||||
| 83 | 6684645 | 2.15 | 2.60 | |
| Clutch Plate (a) | ||||
| 83A | 6689528 | 1.15 | 1.39 | |
| Step Bolt | ||||
| 84 | 6684646 | 2.15 | 2.60 | |
| Step Bolt Till F113050 | ||||
| 84A | 6689627 | 1.15 | 1.39 | |
| Hex. Hole Bolt M5x18/ws | ||||
| 85 | 6684647 | 2.15 | 2.60 | |
| Ring | ||||
| 86 | 6684648 | 2.15 | 2.60 | |
| Clutch Set Since J038101 | ||||
| 87 | 6697655 | 6.76 | 8.18 | |
| Hex. Hole Bolt 4x15/ps | ||||
| 88 | 6684682 | 2.15 | 2.60 | |
| Heat Shield | ||||
| 89 | 6687265 | 4.45 | 5.38 | |
| Tapping Screw 4x14 | ||||
| 90 | 6684751 | 2.15 | 2.60 | |
| Fan Housing | ||||
| 91 | 6687037 | 19.81 | 23.97 | |
| Primary Cord Grommet | ||||
| 92 | 6688057 | 1.15 | 1.39 | |
| Muffler Special Gasket | ||||
| 93 | 6692886 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 94 | 6692716 | |||
| Screw M4x8/ws | ||||
| 95 | 6684651 | 2.15 | 2.60 | |
| Spark Arrester | ||||
| 96 | 6692702 | 2.31 | 2.80 | |
| Recoil Starter Body Ass'y Includ.183-190 Till Eo9 | ||||
| 101 | 6684938 | 23.45 | 28.37 | |
| Recoil Starter Body Comp. Since En90001(till 10.2 | ||||
| 102 | 6684944 | 17.24 | 20.86 | |
| Starter Rope Reel Since En90001(till 10.2012 For | ||||
| 103 | 6684941 | 6.44 | 7.79 | |
| Recoil Spring Till Eo99999 | ||||
| 104 | 6684942 | 9.40 | 11.37 | |
| Swing Arm Till Eo99999 | ||||
| 105 | 6684940 | 2.15 | 2.60 | |
| Set Screw (old 839-03045-20) | ||||
| 106 | 6684679 | 2.15 | 2.60 | |
| Pulley Stay Till Eo99999 | ||||
| 107 | 6684939 | 2.15 | 2.60 | |
| Rope 3.0x800 Till Eo99999 | ||||
| 108 | 6684943 | 4.29 | 5.19 | |
| Starter Handle | ||||
| 109 | 6684680 | 2.15 | 2.60 | |
| No longer available, no replacement | ||||
| 110 | 6685000 | |||
| Starter Pulley Till Eo99999 | ||||
| 111 | 6684937 | 6.44 | 7.79 | |
| Hex. Hole Bolt 4x18ws Till H124040 | ||||
| 112 | 6695508 | 1.15 | 1.39 | |
| Pump Body Comp. | ||||
| 121 | 6684879 | 62.16 | 75.22 | |
| Priming Pump Comp. | ||||
| 122 | 6684687 | 16.34 | 19.77 | |
| Diaphragm Cover | ||||
| 123 | 6684688 | 8.58 | 10.38 | |
| Priming Body | ||||
| 124 | 6684689 | 6.44 | 7.79 | |
| No longer available, no replacement | ||||
| 125 | 6684690 | |||
| Diaphragm Gasket | ||||
| 126 | 6684691 | 8.58 | 10.38 | |
| Pump Diaphragm | ||||
| 127 | 6684693 | 8.58 | 10.38 | |
| Pump Gasket | ||||
| 128 | 6684692 | 29.19 | 35.32 | |
| Main Jet #38.5 (old 599-200bw-38/6691874) | ||||
| 129 | 6696130 | 5.78 | 6.99 | |
| O-RING (old 550-25100-20) | ||||
| 130 | 6684695 | 4.29 | 5.19 | |
| Stop Ring | ||||
| 131 | 6684696 | 2.15 | 2.60 | |
| Swivel | ||||
| 132 | 6684697 | 6.44 | 7.79 | |
| Throttle Set Screw | ||||
| 133 | 6684870 | 2.15 | 2.60 | |
| Cable Adjuster Stay | ||||
| 134 | 6684873 | 6.44 | 7.79 | |
| Cleaner Packing | ||||
| 137 | 6684875 | 4.29 | 5.19 | |
| Set Screw | ||||
| 138 | 6684699 | 2.15 | 2.60 | |
| Thrust Washer | ||||
| 139 | 6684874 | 2.15 | 2.60 | |
| Inlet Screen | ||||
| 140 | 6684700 | 4.29 | 5.19 | |
| No information available, not orderable | ||||
| 151 | 6685576 | |||
| No longer available, no replacement | ||||
| 152 | 6685593 | |||
| No longer available, no replacement | ||||
| 153 | 6686684 | |||
| Shift Guide Spring (old 106-32141-20) | ||||
| 154 | 6686837 | 1.15 | 1.39 | |
| Shift Lever (old 108-32141-20) | ||||
| 155 | 6686862 | 3.30 | 3.99 | |
| COMPLETE GREASE NIPPLE (OLD 300-32250-80) | ||||
| 156 | 6688643 | 1.15 | 1.39 | |
| Steel Ball | ||||
| 157 | 6692271 | 1.15 | 1.39 | |
| Hex. Hole Bolt 4x8 | ||||
| 158 | 6695034 | 1.15 | 1.39 | |
| Ring | ||||
| 159 | 6685070 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 161 | 6695591 | |||
| Gear 4 | ||||
| 162 | 6685788 | 50.21 | 60.76 | |
| Ball Bearing #7202b | ||||
| 163 | 6695587 | 14.21 | 17.20 | |
| Washaer C 5.0 | ||||
| 164 | 6686065 | 3.30 | 3.99 | |
| Ball Bearing #6202z | ||||
| 165 | 6695559 | 6.44 | 7.79 | |
| Ring | ||||
| 166 | 6695206 | 1.15 | 1.39 | |
| Stop Ring C-35, Inner | ||||
| 167 | 6695296 | 1.15 | 1.39 | |
| Wood-ruff Key 3x13x5 | ||||
| 168 | 6686455 | 1.15 | 1.39 | |
| Drive Shaft | ||||
| 169 | 6685824 | 104.51 | 126.46 | |
| Screw 5x18/s | ||||
| 170 | 6695339 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 171 | 6686378 | |||
| No information available, not orderable | ||||
| 172 | 6687314 | |||
| Stop Ring 20, Inner | ||||
| 173 | 6695316 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 174 | 6695522 | |||
| Washer Spring | ||||
| 175A | 942827 | 1.04 | 1.26 | |
| Ring | ||||
| 176 | 6687320 | 1.15 | 1.39 | |
| Idle Gear (old 059-32141-20) | ||||
| 177 | 6686373 | 64.28 | 77.77 | |
| No information available, not orderable | ||||
| 178 | 6695591 | |||
| No information available, not orderable | ||||
| 179 | 6686365 | |||
| No information available, not orderable | ||||
| 180 | 6686423 | |||
| Stop Ring C-24,inner | ||||
| 181 | 6684732 | 2.15 | 2.60 | |
| Ball Bearing 609z St | ||||
| 182 | 6684735 | 8.58 | 10.38 | |
| Ring | ||||
| 183 | 6687320 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 184 | 6686411 | |||
| No information available, not orderable | ||||
| 185 | 6695591 | |||
| Counter Shaft | ||||
| 186 | 6686427 | 52.34 | 63.33 | |
| Stop Ring C-13, Outer | ||||
| 187 | 6695283 | 1.15 | 1.39 | |
| Clutch Housing Comp. | ||||
| 201 | 6688199 | 12.38 | 14.97 | |
| Plus Bolt 6x30 | ||||
| 203 | 6695022 | 1.15 | 1.39 | |
| Ring | ||||
| 204 | 6695219 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 205 | 6688370 | |||
| Handle Grip A (old 165-33130-20/6691224) | ||||
| 206 | 6687624 | 5.78 | 6.99 | |
| Throttle Lever | ||||
| 207 | 6686401 | 1.15 | 1.39 | |
| Tap Screw 4x14 P | ||||
| 208 | 6695280 | 1.15 | 1.39 | |
| Screw 4x6 | ||||
| 209 | 6694860 | 1.15 | 1.39 | |
| Cord Clamp | ||||
| 210 | 6688015 | 1.15 | 1.39 | |
| Plus Bolt 6x16 | ||||
| 211 | 6695019 | 1.15 | 1.39 | |
| Ring | ||||
| 212 | 6695219 | 1.15 | 1.39 | |
| Handle Comp. B | ||||
| 213 | 6688372 | 13.20 | 15.97 | |
| No information available, not orderable | ||||
| 214 | 6686350 | |||
| Ring | ||||
| 215 | 6695225 | 1.15 | 1.39 | |
| Stop Switch Comp. (old 170-71020-80) | ||||
| 216 | 6687776 | 8.58 | 10.38 | |
| Stop Button Mark | ||||
| 217 | 6694588 | 1.15 | 1.39 | |
| Button Stop | ||||
| 218 | 6688366 | 1.15 | 1.39 | |
| Screw 3x10 | ||||
| 219 | 6684913 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 220 | 6693988 | |||
| Protection Tube 345l | ||||
| 221 | 6687535 | 1.15 | 1.39 | |
| Chuck Handle Holder | ||||
| 222 | 6687420 | 4.45 | 5.38 | |
| Handle Support Comp. | ||||
| 223 | 6688404 | 15.88 | 19.21 | |
| Ring | ||||
| 224 | 6695219 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 225 | 6684792 | |||
| Clutch Case Comp. | ||||
| 226 | 6687336 | 40.24 | 48.69 | |
| Screw 5x18/s | ||||
| 227 | 6695339 | 1.15 | 1.39 | |
| Throttle Body B (Old 884-71020-20) | ||||
| 228 | 6693818 | 3.30 | 3.99 | |
| Throttle Body A | ||||
| 229 | 6693795 | 3.30 | 3.99 | |
| Throttle Lever Spring | ||||
| 230 | 6686421 | 1.15 | 1.39 | |
| Combi Box Spanner 10x19 | ||||
| 501 | 6685999 | 5.11 | 6.19 | |
| Chuck Handle Set (old 059-32120-91) | ||||
| 503 | 6686372 | 44.31 | 53.62 | |
| Drill Chuck Ass'y | ||||
| 504 | 6686377 | 80.31 | 97.18 | |
| Chuck Handle Comp. | ||||
| 505 | 6686410 | 4.45 | 5.38 | |
| Handle Adaptor | ||||
| 506 | 6686620 | 13.53 | 16.37 | |
