Here you will find all available parts and drawings of the 'Hikoki TED-270PFDH'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

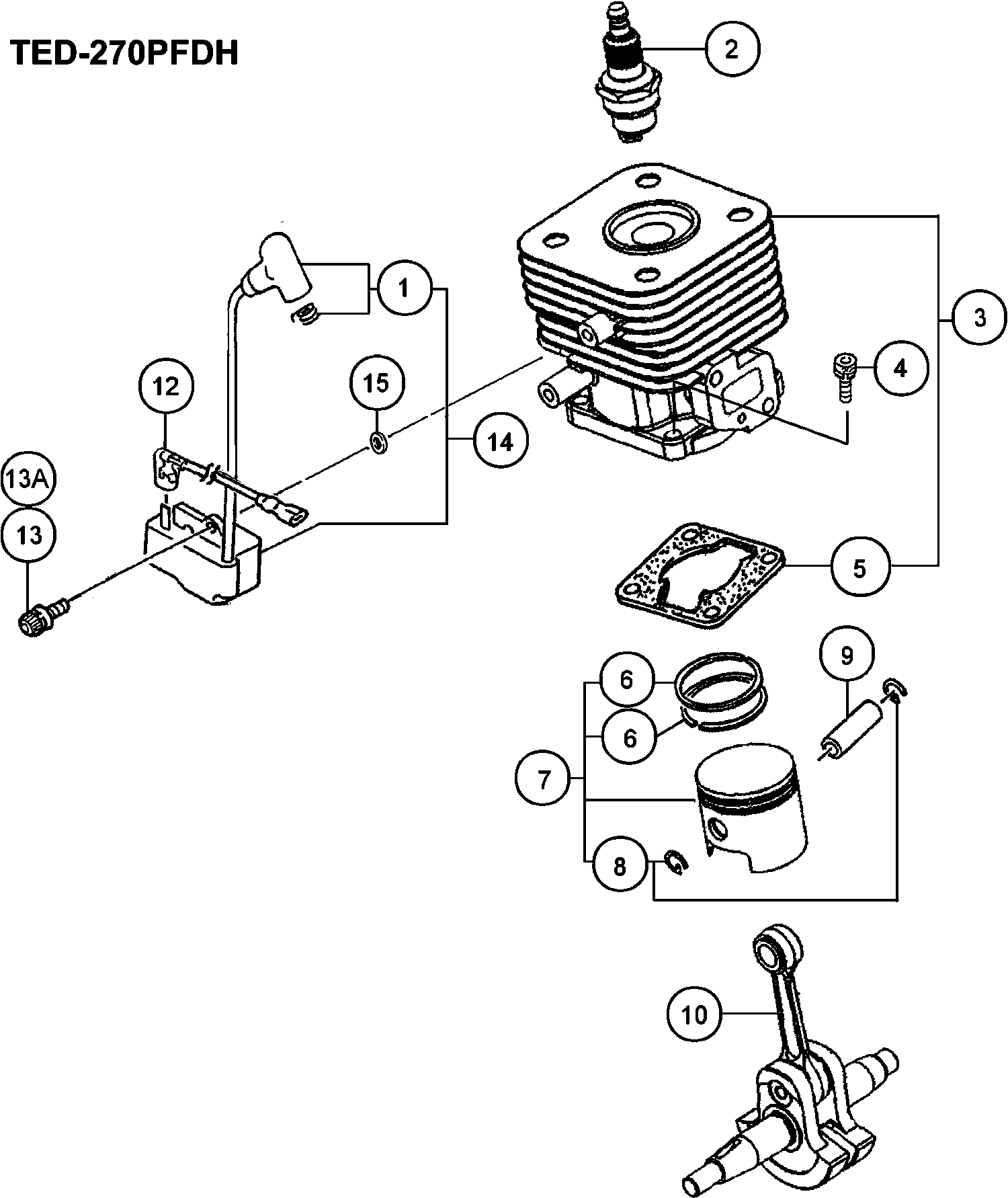

Technical drawing of model Hikoki TED-270PFDH

Spare parts list of model Hikoki TED-270PFDH

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Plug Cap
1 6684894 8.58 10.38
Spark Plug Ass'y Cj8
2 6699324 3.30 3.99
No information available, not orderable
3 6685495
Hex.hole Bolt M5x18/s
4 6684586 2.15 2.60
Cylinder Gasket
5 6684896 2.15 2.60
Piston Ring
6 6686121 4.45 5.38
Piston Set
7 6685902 20.11 24.34
Cir Clip
8 6684590 2.15 2.60
Piston Pin
9 6684591 4.29 5.19
Crank Shaft Comp.
10 6686219 72.30 87.48
Stop Cord B 190m
12 6687836 2.31 2.80
Hex. Hole Bolt M4x18/ws Till H124040
13 6684599 2.15 2.60
High Tension Screw 4x18ws Since H124041
13A 6695407 1.15 1.39
Ignition Coil Ass'y
14 6687689 42.20 51.06
Washer T1.6
15 6684600 2.15 2.60
Gear Shaft Shim 0.20
21 6684604 2.15 2.60
Gear Shaft Shim 0.30
21 6684605 2.15 2.60
Magneto Rotor Comp.
22 6687385 22.24 26.91
Hex. Nut M8
23 6684612 2.15 2.60
Bolt Washer M8
24 6684611 2.15 2.60
Crank Case Ass'y Since D038601
25 6684905 54.45 65.88
Oil Seal
26 6684607 4.29 5.19
Ball Bearing 6001 C3
27 6684608 3.80 4.60
Crank Case Gasket
28 6684904 2.15 2.60
Hex. Hole Bolt M5x16/s
29 6684903 2.15 2.60
Inlet Manifold Gasket
41 6689895 1.15 1.39
Insulator Set
42 6689972 6.28 7.59
Hex. Hole Bolt 5x25/ws
43 6684617 2.15 2.60
Carburetor Packing
44 6684616 2.15 2.60
Carburetor Set Wyj-463 (old 455-0740a-90)
45 6690522 80.31 97.18
Cleaner Body Comp.
46 6690120 4.45 5.38
Cleaner Sponge
47 6690365 1.15 1.39
Cleaner Cover
48 6690402 10.23 12.37
Cover Fixing Bolt Comp.
49 6698730 3.15 3.81
Screw M5x55
50 6694914 1.15 1.39
Small Washer 5
51 6684864 2.15 2.60
Choke Plate 2.0
52 6691276 1.15 1.39
Choke Control Lever
53 6691239 1.15 1.39
Tank Wht
54 6691602 15.13 18.30
Tank
54A 6697951 21.63 26.17
Collar 5.8 Till G103930
55 6692244 1.15 1.39
Return Grommet Till 7.2014
56 6697846 1.04 1.26
Fuel Pipe 3x5x65
57 6684626 2.15 2.60
No information available, not orderable
58 6684620
Clip D6
59 6685198 1.15 1.39
No information available, not orderable
60 6698970
Ring
61 6689681 1.15 1.39
Tank Cap D Ass'y Since K032881
62 6691748 7.59 9.18
Hex. Hole Bolt 5x20ps Till J019590
63 6695506 1.15 1.39
Hex. Hole Bolt 5x16/ps
64 6695504 1.15 1.39
Bolt (w/flange) L17.8 Since G103931
64A 6696574 1.05 1.27
Tap Screw 4x14 P
65 6695280 1.15 1.39
Ring
66 6685070 1.15 1.39
S.washer 5
67 6684662 2.15 2.60
Cylinder Cover (blk)
71 6685693 4.79 5.79
Hex. Hole Bolt 5x16/ps
72 6695504 1.15 1.39
Hex.hole Bolt 6x65 (old 990-51060-653)
73 6695067 1.15 1.39
Ring
74 6684639 2.15 2.60
Muffler Comp. (old 706-0740a-80)
75 6692575 54.30 65.70
Muffler Protector
77 6692817 20.11 24.34
Hex. Hole Bolt 4x18ws Till H124040
78 6695508 1.15 1.39
Deflector Black
79 6687217 3.30 3.99
Ring
80 6684642 2.15 2.60
No information available, not orderable
80A 6697619
Clutch Shoe Comp.
81 6684643 11.55 13.98
No information available, not orderable
81A 6697656
Clutch Spring
82 6684644 2.15 2.60
Clutch Spring Since J038101
82A 6697657 1.04 1.26
Clutch Plate A 0.5
83 6684645 2.15 2.60
Clutch Plate (a)
83A 6689528 1.15 1.39
Step Bolt
84 6684646 2.15 2.60
Step Bolt Till F113050
84A 6689627 1.15 1.39
Hex. Hole Bolt M5x18/ws
85 6684647 2.15 2.60
Ring
86 6684648 2.15 2.60
Clutch Set Since J038101
87 6697655 6.76 8.18
Hex. Hole Bolt 4x15/ps
88 6684682 2.15 2.60
Heat Shield
89 6687265 4.45 5.38
Tapping Screw 4x14
90 6684751 2.15 2.60
Fan Housing
91 6687039 18.75 22.69
Primary Cord Grommet
92 6688057 1.15 1.39
Muffler Special Gasket
93 6692886 1.15 1.39
Tail Pipe Set
94 6692716 4.79 5.79
Screw M4x8/ws
95 6684651 2.15 2.60
Spark Arrester
96 6692702 2.31 2.80
Recoil Starter Body Ass'y Includ.183-190 Till Eo9
101 6684938 23.45 28.37
Recoil Starter Body Comp. Since En90001(till 10.2
102 6684944 17.24 20.86
Starter Rope Reel Since En90001(till 10.2012 For
103 6684941 6.44 7.79
Recoil Spring Till Eo99999
104 6684942 9.40 11.37
Swing Arm Till Eo99999
105 6684940 2.15 2.60
Set Screw (old 839-03045-20)
106 6684679 2.15 2.60
Pulley Stay Till Eo99999
107 6684939 2.15 2.60
Rope 3.0x800 Till Eo99999
108 6684943 4.29 5.19
Starter Handle
109 6684680 2.15 2.60
No longer available, no replacement
110 6685000
Starter Pulley Till Eo99999
111 6684937 6.44 7.79
Hex. Hole Bolt 4x18ws Till H124040
112 6695508 1.15 1.39
Clutch Set Since J038101
115 6697655 6.76 8.18
Pump Body Comp.
121 6684879 62.16 75.22
Priming Pump Comp.
122 6684687 16.34 19.77
Diaphragm Cover
123 6684688 8.58 10.38
Priming Body
124 6684689 6.44 7.79
Metering Diaphragm
125 6684690 18.00 21.78
Diaphragm Gasket
126 6684691 8.58 10.38
Pump Diaphragm
127 6684693 8.58 10.38
Pump Gasket
128 6684692 29.19 35.32
Main Jet #38.5 (old 599-200bw-38/6691874)
129 6696130 5.78 6.99
O-RING (old 550-25100-20)
130 6684695 4.29 5.19
Stop Ring
131 6684696 2.15 2.60
Swivel
132 6684697 6.44 7.79
Throttle Set Screw
133 6684870 2.15 2.60
Cable Adjuster Stay
134 6684873 6.44 7.79
Cleaner Packing
137 6684875 4.29 5.19
Set Screw
138 6684699 2.15 2.60
Thrust Washer
139 6684874 2.15 2.60
Inlet Screen
140 6684700 4.29 5.19
Complete Gear Case A (old 002-32182-80)
151 6685578 28.14 34.05
No longer available, no replacement
152 6685593
Clutch Housing Comp.
153 6688210 19.51 23.61
Gear 2
154 6685656 28.44 34.41
No information available, not orderable
155 6685702
Wood-ruff Key 3x10x3.7
156 6686454 1.15 1.39
Ball Bearing #6001z
157 6695532 6.60 7.99
No information available, not orderable
158 6695534
Stop Ring C 11,outer
159 6695282 1.15 1.39
Gear 4
160 6685788 50.21 60.76
Ball Bearing #7202b
161 6695587 14.21 17.20
Washaer C 5.0
162 6686065 3.30 3.99
Ball Bearing #6202z
163 6695559 6.44 7.79
Ring
164 6695206 1.15 1.39
Stop Ring C-35, Inner
165 6695296 1.15 1.39
Wood-ruff Key 3x13x5
166 6686455 1.15 1.39
Drive Shaft
167 6685824 104.51 126.46
Screw 5x18/s
168 6695339 1.15 1.39
Stop Ring C-13, Outer
169 6695283 1.15 1.39
Lock Lever Comp.
170 6689992 8.41 10.18
Lock Lever Spring
171 6689998 4.45 5.38
Ring
172 6687942 1.15 1.39
Ring
173 6685103 1.15 1.39
Step Bolt
174 6693366 1.15 1.39
Ring
175 6695219 1.15 1.39
No information available, not orderable
176 6684792
COMPLETE GREASE NIPPLE (OLD 300-32250-80)
178 6688643 1.15 1.39
Throttle Body A
201 6693795 3.30 3.99
Throttle Body B (Old 884-71020-20)
202 6693818 3.30 3.99
Throttle Lever Dh
203 6686402 3.30 3.99
Throttle Lever Spring
204 6686421 1.15 1.39
Tap Screw 4x14 P
205 6695280 1.15 1.39
Screw 4x6
206 6694860 1.15 1.39
Protection Tube 7x530l
207 6687537 1.15 1.39
Handle Ass'y
208 6697263 148.83 180.08
Ring
209 6684639 2.15 2.60
Ring
210 6695219 1.15 1.39
Plus Bolt 6x12 (old 990-23060-121) New
211 6695015 1.15 1.39
Ring
212 6695198 1.15 1.39
Ring
213 6695225 1.15 1.39
Bolt 10x20 (old 990-21100-201) New
214 6695005 1.15 1.39
Throttle Wire 585+32
215 6693989 6.93 8.38
Stop Switch Comp. (old 170-71026-80)
216 6687777 8.25 9.98
Cord Clamp
217 6688015 1.15 1.39
Button Stop
218 6688366 1.15 1.39
Stop Button Mark
219 6694588 1.15 1.39
Screw 3x10
220 6684913 2.15 2.60
No information available, not orderable
501 6693647
Combi Box Spanner 10x19
502 6685999 5.11 6.19
Spanner 17x19
503 6686251 4.35 5.26
Name Plate Ted-270pfdh
601 6694240 2.31 2.80
