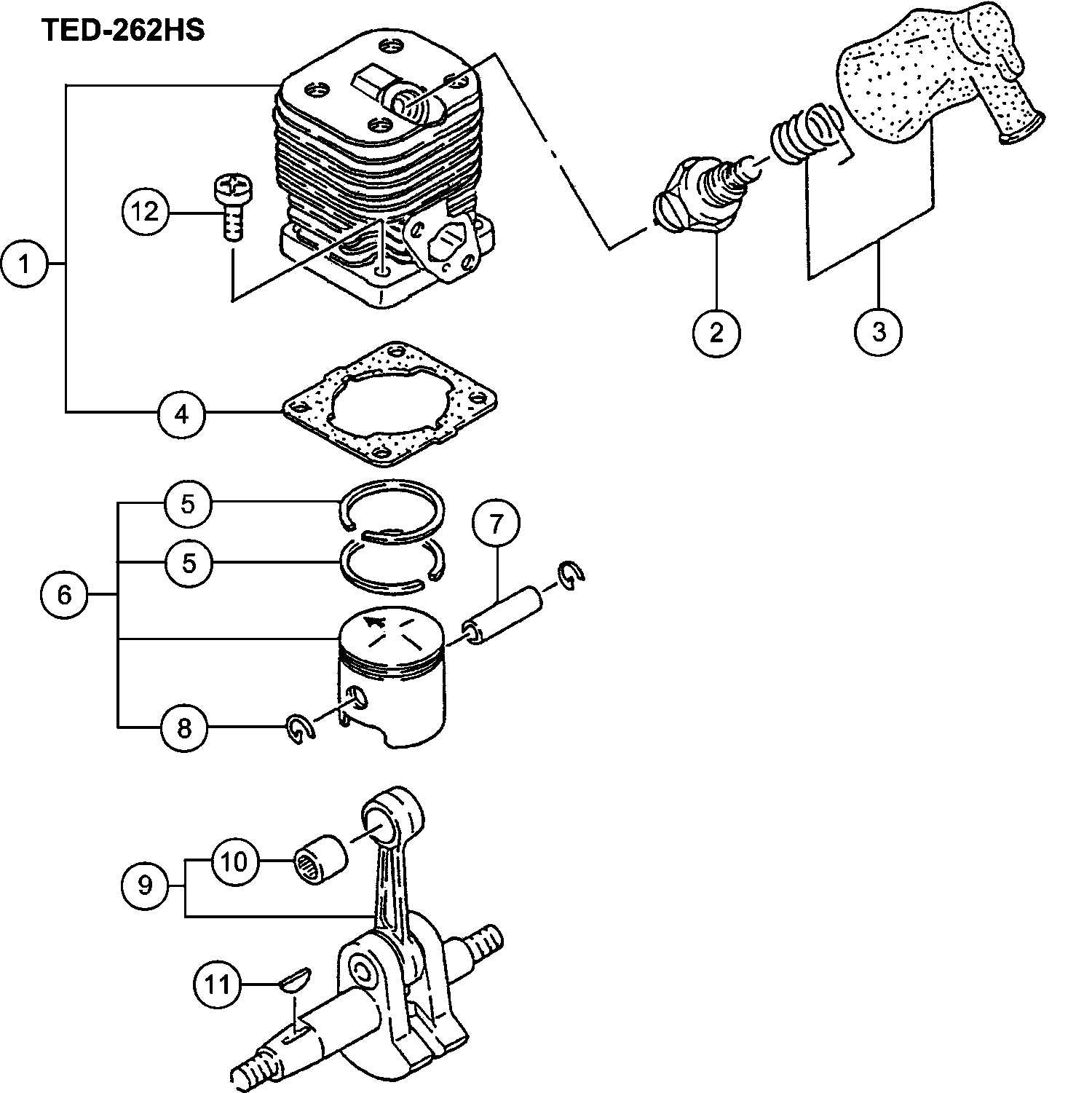

Technical drawing of model Hikoki TED-262HS
Spare parts list of model Hikoki TED-262HS
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Cylinder Set | ||||
| 1 | 6685453 | 50.21 | 60.76 | |
| Spark Plug Ass'y Bm6a | ||||
| 2 | 6699313 | 6.76 | 8.18 | |
| Spark Plug Cap Ass'y Till G165840 | ||||
| 3 | 6687468 | 2.31 | 2.80 | |
| Cylinder Gasket | ||||
| 4 | 6685720 | 1.15 | 1.39 | |
| Piston Ring | ||||
| 5 | 6684588 | 8.58 | 10.38 | |
| Piston Set (old 030-01620-90) | ||||
| 6 | 6685876 | 24.20 | 29.28 | |
| Piston Pin | ||||
| 7 | 6686016 | 2.31 | 2.80 | |
| Circlip | ||||
| 8 | 6685078 | 1.15 | 1.39 | |
| Crank Shaft Comp. | ||||
| 9 | 6686165 | 56.26 | 68.08 | |
| Needle Bearing Ktv91313 2x7.8 | ||||
| 10 | 6695595 | 5.11 | 6.19 | |
| Woodruff Key 3x13x4.5 Till B023800 | ||||
| 11 | 6684899 | 2.15 | 2.60 | |
| Hex. Hole Bolt M5x16/s | ||||
| 12 | 6684903 | 2.15 | 2.60 | |
| Crank Shaft Shim 0.10 | ||||
| 21 | 6686470 | 1.15 | 1.39 | |
| Crank Shaft Shim 0.20 | ||||
| 21 | 6686472 | 1.15 | 1.39 | |
| Crank Shaft Shim 0.30 | ||||
| 21 | 6686473 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 22 | 6697745 | |||
| Ball Bearing 6001 C3 | ||||
| 23 | 6684608 | 3.80 | 4.60 | |
| Oil Seal | ||||
| 24 | 6695637 | 3.30 | 3.99 | |
| Oil Seal | ||||
| 25 | 6684607 | 4.29 | 5.19 | |
| Crank Case Gasket | ||||
| 26 | 6686687 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 27 | 6686514 | |||
| Ring | ||||
| 28 | 6689645 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 29 | 6693393 | |||
| Magneto Rotor Comp. | ||||
| 30 | 6687409 | 24.20 | 29.28 | |
| Ignition Coil Comp. | ||||
| 31 | 6687622 | 6.28 | 7.59 | |
| No information available, not orderable | ||||
| 32 | 6687661 | |||
| Hex. Nut M8 | ||||
| 33 | 6684612 | 2.15 | 2.60 | |
| Ring | ||||
| 34 | 6695184 | 1.15 | 1.39 | |
| Hex. Nut M8 | ||||
| 35 | 6684612 | 2.15 | 2.60 | |
| Hex. Socket Hd. Bolt M5x30 S | ||||
| 36 | 6684786 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 37 | 6695337 | |||
| High Tension Screw 4x18ws Since H124041 | ||||
| 38 | 6695407 | 1.15 | 1.39 | |
| Rubber Cap | ||||
| 40 | 6684602 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 41 | 6687886 | |||
| Tank Bracket (old 653-01620-20) | ||||
| 51 | 6692204 | 2.31 | 2.80 | |
| Fuel Tank Cushion Rubber | ||||
| 52 | 6692227 | 1.15 | 1.39 | |
| Carburetor Gasket (old 402-0602K-21/6689836) | ||||
| 55 | 6684615 | 2.15 | 2.60 | |
| Carburetor Set Wyj197 Till Z315900 | ||||
| 56 | 6690455 | 78.35 | 94.80 | |
| Shield Tube Ass'y (old 223-06500-90) | ||||
| 57 | 6685247 | 2.31 | 2.80 | |
| No information available, not orderable | ||||
| 58 | 6692279 | |||
| Clip,6.3 Dia. | ||||
| 59 | 6684619 | 2.15 | 2.60 | |
| No longer available, no replacement | ||||
| 60 | 6691768 | |||
| Tank Cap D Ass'y Since K032881 | ||||
| 60A | 6691748 | 7.59 | 9.18 | |
| Fuel Tank Till Z315900 | ||||
| 61 | 6691500 | 9.58 | 11.59 | |
| Tank Till C275400 | ||||
| 61A | 6691504 | 11.23 | 13.58 | |
| Tank Comp. White Since C275401 | ||||
| 61B | 6691501 | 10.20 | 12.34 | |
| Screw 4x18/ps Since H124041 | ||||
| 62 | 6695375 | 1.15 | 1.39 | |
| Plus Screw 5x60ws Till Z315900 | ||||
| 63 | 6695431 | 1.15 | 1.39 | |
| Fuel Pipe 3x5x75 | ||||
| 64 | 6692357 | 1.15 | 1.39 | |
| Return Grommet Till 7.2014 | ||||
| 65 | 6697846 | 1.04 | 1.26 | |
| Screw 4x14/ps | ||||
| 66 | 6695372 | 1.15 | 1.39 | |
| Screw 5x24ws | ||||
| 67 | 6695423 | 1.15 | 1.39 | |
| Air Vent Assembly (old 564-06611-90) | ||||
| 68 | 6691389 | 10.23 | 12.37 | |
| Air Vent Valve Ass'y For Aus | ||||
| 70 | 6692171 | 4.95 | 5.99 | |
| No information available, not orderable | ||||
| 81 | 6692770 | |||
| Primary Cord Grommet | ||||
| 82 | 6688051 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 83 | 6684642 | |||
| Clutch Shoe Comp. | ||||
| 84 | 6684643 | 11.55 | 13.98 | |
| Clutch Spring | ||||
| 85 | 6684644 | 2.15 | 2.60 | |
| Ring | ||||
| 86 | 6689637 | 1.15 | 1.39 | |
| Step Bolt | ||||
| 87 | 6684646 | 2.15 | 2.60 | |
| Fan Housing | ||||
| 88 | 6686939 | 13.91 | 16.83 | |
| Heat Shield | ||||
| 89 | 6687234 | 4.45 | 5.38 | |
| Muffler Gasket | ||||
| 90 | 6692731 | 1.15 | 1.39 | |
| Muffler Coupling Gasket | ||||
| 92 | 6692832 | 2.31 | 2.80 | |
| No longer available, no replacement | ||||
| 93 | 6692622 | |||
| Screw 5x12/ps Till C034950 | ||||
| 95 | 6695383 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 95A | 6695415 | |||
| Screw 5x16/ps | ||||
| 96 | 6695386 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 97 | 6695317 | |||
| Hex. Hole Bolt 5x45 | ||||
| 98 | 6695055 | 1.15 | 1.39 | |
| Washer M5 (black) | ||||
| 99 | 6684918 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 100 | 6695337 | |||
| Screw 5x10/p | ||||
| 101 | 6695319 | 1.15 | 1.39 | |
| Air Cleaner Assembly (old 410-01600-90) | ||||
| 121 | 6690025 | 10.23 | 12.37 | |
| Air Cleaner Cap | ||||
| 122 | 6690142 | 4.95 | 5.99 | |
| No longer available, no replacement | ||||
| 123 | 6690350 | |||
| Spacer | ||||
| 124 | 6684859 | 2.15 | 2.60 | |
| Collar | ||||
| 125 | 6690801 | 2.31 | 2.80 | |
| Choke Plate,w/1.5mm Hole | ||||
| 126 | 6691267 | 4.45 | 5.38 | |
| Cleaner Body Comp. | ||||
| 127 | 6690091 | 5.78 | 6.99 | |
| No information available, not orderable | ||||
| 141 | 6692962 | |||
| Starter Handle | ||||
| 142 | 6693224 | 2.31 | 2.80 | |
| No information available, not orderable | ||||
| 143 | 6693019 | |||
| Recoil Spring | ||||
| 144 | 6693129 | 6.28 | 7.59 | |
| Starter Rope (old 783-00940-20) | ||||
| 145 | 6693152 | 3.30 | 3.99 | |
| Starter Pulley (old 774-01630-21) | ||||
| 146 | 6693058 | 3.30 | 3.99 | |
| Starter Pawl | ||||
| 147 | 6693303 | 3.30 | 3.99 | |
| Ring | ||||
| 148 | 6693420 | 1.15 | 1.39 | |
| Friction Plate | ||||
| 149 | 6693623 | 2.31 | 2.80 | |
| Starter Pawl Shim | ||||
| 150 | 6693564 | 1.15 | 1.39 | |
| Set Bolt | ||||
| 151 | 6693635 | 2.31 | 2.80 | |
| Throttle Set Screw | ||||
| 161 | 6684870 | 2.15 | 2.60 | |
| Cable Adjuster Stay | ||||
| 162 | 6684873 | 6.44 | 7.79 | |
| Swivel | ||||
| 163 | 6684697 | 6.44 | 7.79 | |
| Stop Ring | ||||
| 164 | 6684696 | 2.15 | 2.60 | |
| O-RING (old 550-25100-20) | ||||
| 165 | 6684695 | 4.29 | 5.19 | |
| Main Jet #37.5 Till Z315900 | ||||
| 166 | 6691882 | 5.94 | 7.18 | |
| Pump Gasket (old 577-25100-20) | ||||
| 167 | 6691457 | 7.10 | 8.59 | |
| Pump Diaphragm | ||||
| 168 | 6684693 | 8.58 | 10.38 | |
| Inlet Screen | ||||
| 169 | 6684700 | 4.29 | 5.19 | |
| Pump Body Comp. Till U100576 | ||||
| 170 | 6691432 | 34.19 | 41.37 | |
| Diaphragm Gasket Till U100576 | ||||
| 171 | 6690837 | 2.31 | 2.80 | |
| No longer available, no replacement | ||||
| 172 | 6690827 | |||
| Diaphragm Cover-metering | ||||
| 173 | 6685222 | 4.45 | 5.38 | |
| Set Screw | ||||
| 174 | 6691312 | 1.15 | 1.39 | |
| Cable Adjuster | ||||
| 175 | 6684871 | 4.29 | 5.19 | |
| Lock Nut M6 | ||||
| 176 | 6684872 | 2.15 | 2.60 | |
| Cleaner Packing | ||||
| 177 | 6684875 | 4.29 | 5.19 | |
| Thrust Washer | ||||
| 178 | 6684874 | 2.15 | 2.60 | |
| Throttle Set Screw | ||||
| 181 | 6684870 | 2.15 | 2.60 | |
| Cable Adjuster Stay | ||||
| 182 | 6684873 | 6.44 | 7.79 | |
| Swivel | ||||
| 183 | 6684697 | 6.44 | 7.79 | |
| Stop Ring | ||||
| 184 | 6684696 | 2.15 | 2.60 | |
| O-RING (old 550-25100-20) | ||||
| 185 | 6684695 | 4.29 | 5.19 | |
| Main Jet #37 For Asia | ||||
| 186 | 6684877 | 3.30 | 3.99 | |
| Pump Gasket (old 577-25100-20) | ||||
| 187 | 6691457 | 7.10 | 8.59 | |
| Pump Diaphragm | ||||
| 188 | 6684693 | 8.58 | 10.38 | |
| Inlet Screen | ||||
| 189 | 6684700 | 4.29 | 5.19 | |
| Pump Body Comp. | ||||
| 190 | 6684879 | 62.16 | 75.22 | |
| Diaphragm Gasket | ||||
| 191 | 6684691 | 8.58 | 10.38 | |
| Metering Diaphragm Comp. | ||||
| 192 | 6690830 | 11.88 | 14.37 | |
| Diaphragm Cover | ||||
| 193 | 6684688 | 8.58 | 10.38 | |
| Set Screw | ||||
| 194 | 6684699 | 2.15 | 2.60 | |
| Cable Adjuster | ||||
| 195 | 6684871 | 4.29 | 5.19 | |
| Lock Nut M6 | ||||
| 196 | 6684872 | 2.15 | 2.60 | |
| Cleaner Packing | ||||
| 197 | 6684875 | 4.29 | 5.19 | |
| Priming Pump Comp. | ||||
| 198 | 6684687 | 16.34 | 19.77 | |
| Priming Body | ||||
| 199 | 6684689 | 6.44 | 7.79 | |
| Thrust Washer | ||||
| 200 | 6684874 | 2.15 | 2.60 | |
| Complete Gear Case A (old 002-32182-80) | ||||
| 211 | 6685578 | 28.14 | 34.05 | |
| No longer available, no replacement | ||||
| 212 | 6685593 | |||
| Clutch Housing Comp. | ||||
| 213 | 6688198 | 16.34 | 19.77 | |
| Ball Bearing #6001z | ||||
| 214 | 6695532 | 6.60 | 7.99 | |
| Ball Bearing 6001 C3 | ||||
| 215 | 6684608 | 3.80 | 4.60 | |
| Stop Ring C-12 Outer | ||||
| 216 | 6684664 | 2.15 | 2.60 | |
| Ball Bearing #7202b | ||||
| 217 | 6695587 | 14.21 | 17.20 | |
| Washaer C 5.0 | ||||
| 218 | 6686065 | 3.30 | 3.99 | |
| Ball Bearing #6202z | ||||
| 219 | 6695559 | 6.44 | 7.79 | |
| Stop Ring C-35, Inner | ||||
| 220 | 6695296 | 1.15 | 1.39 | |
| Wood-ruff Key 3x13x5 | ||||
| 221 | 6686455 | 1.15 | 1.39 | |
| Plus Bolt 6x30 | ||||
| 222 | 6695022 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 223 | 6684792 | |||
| Ring | ||||
| 224 | 6695219 | 1.15 | 1.39 | |
| Screw 5x18/s | ||||
| 225 | 6695339 | 1.15 | 1.39 | |
| Ring | ||||
| 226 | 6695206 | 1.15 | 1.39 | |
| COMPLETE GREASE NIPPLE (OLD 300-32250-80) | ||||
| 227 | 6688643 | 1.15 | 1.39 | |
| Stop Ring C-13, Outer | ||||
| 228 | 6695283 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 229 | 6685786 | |||
| Drive Shaft | ||||
| 230 | 6685824 | 104.51 | 126.46 | |
| Gear 2 | ||||
| 231 | 6685655 | 30.25 | 36.60 | |
| Gear 3 | ||||
| 232 | 6685703 | 94.38 | 114.19 | |
| Wood-ruff Key 3x10x3.7 | ||||
| 233 | 6686454 | 1.15 | 1.39 | |
| Handle Comp.a | ||||
| 251 | 6688369 | 36.15 | 43.74 | |
| Handle Grip A (old 165-33130-20/6691224) | ||||
| 252 | 6687624 | 5.78 | 6.99 | |
| Throttle Lever | ||||
| 253 | 6686799 | 2.31 | 2.80 | |
| Screw 5x25 (old 990-11050-251/6694895) | ||||
| 254 | 6694896 | 1.15 | 1.39 | |
| Nut M5 | ||||
| 255 | 6684965 | 1.04 | 1.26 | |
| Cord Clamp | ||||
| 256 | 6688015 | 1.15 | 1.39 | |
| Plus Bolt 6x16 | ||||
| 257 | 6695019 | 1.15 | 1.39 | |
| Ring | ||||
| 258 | 6695219 | 1.15 | 1.39 | |
| Handle Comp. B | ||||
| 259 | 6688373 | 17.55 | 21.24 | |
| Ring | ||||
| 260 | 6695225 | 1.15 | 1.39 | |
| Stop Switch Comp. | ||||
| 261 | 6687431 | 8.41 | 10.18 | |
| No information available, not orderable | ||||
| 262 | 6687574 | |||
| Chuck Handle Holder | ||||
| 263 | 6687420 | 4.45 | 5.38 | |
| Button Stop | ||||
| 264 | 6688366 | 1.15 | 1.39 | |
| Screw 3x10 | ||||
| 265 | 6684913 | 2.15 | 2.60 | |
| Stop Button Mark | ||||
| 266 | 6694589 | 2.31 | 2.80 | |
| Throttle Wire Comp. | ||||
| 267 | 6693862 | 4.45 | 5.38 | |
| Handle Support Comp. | ||||
| 268 | 6688402 | 8.58 | 10.38 | |
| Combi Box Spanner 13x19 Plus | ||||
| 501 | 6684979 | 4.29 | 5.19 | |
