Here you will find all available parts and drawings of the 'Hikoki TED-250DLS'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

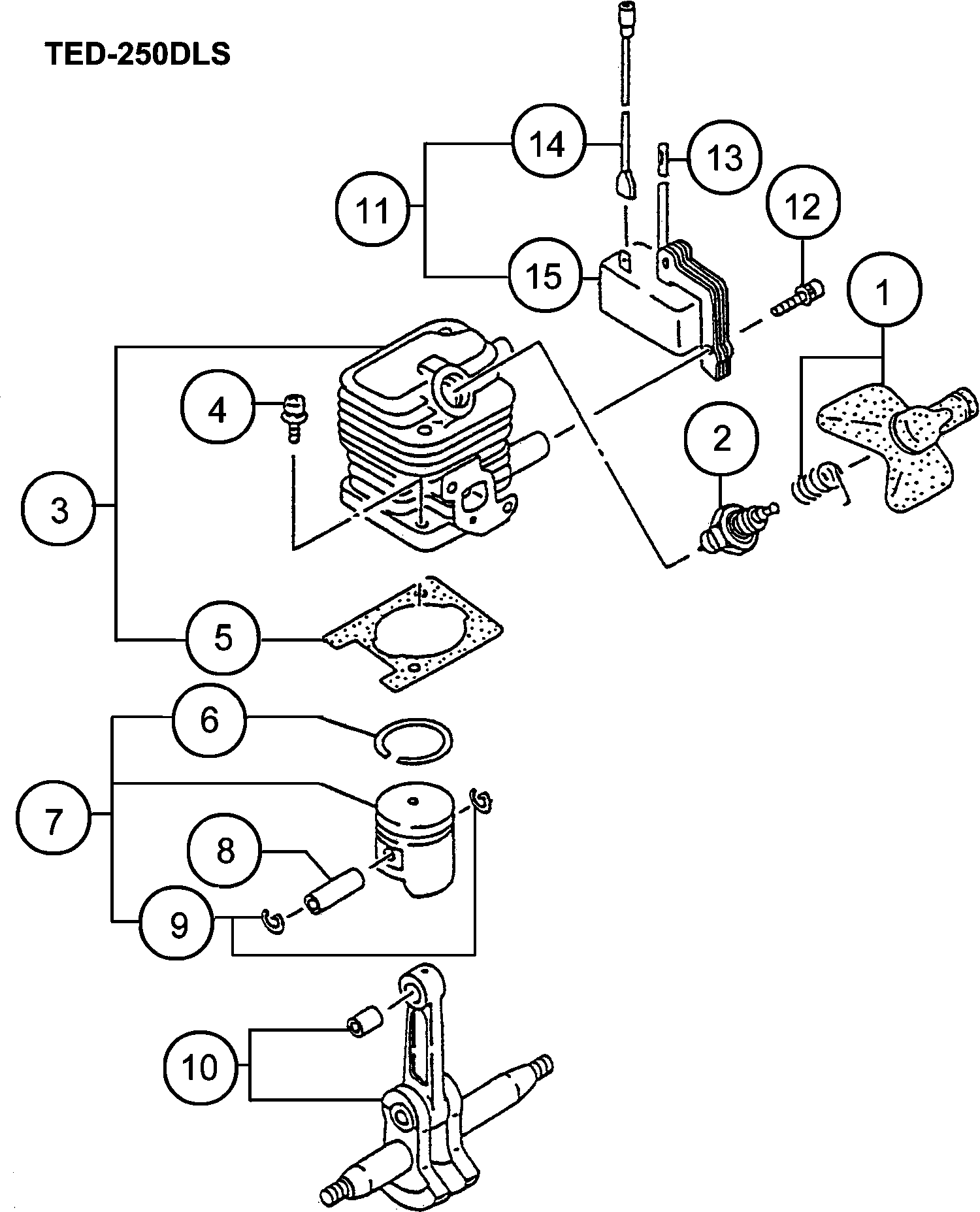

Technical drawing of model Hikoki TED-250DLS
Spare parts list of model Hikoki TED-250DLS
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Spark Plug Cap | ||||
| 1 | 6687476 | 4.45 | 5.38 | |
| Spark Plug Ass'y Rcj8y | ||||
| 2 | 6699328 | 3.30 | 3.99 | |
| Cylinder Ass'y | ||||
| 3 | 6685481 | 44.31 | 53.62 | |
| Hex.hole Bolt M5x18/s | ||||
| 4 | 6684586 | 2.15 | 2.60 | |
| Cylinder Gasket | ||||
| 5 | 6685744 | 1.15 | 1.39 | |
| Piston Ring | ||||
| 6 | 6684588 | 8.58 | 10.38 | |
| Piston Ass'y | ||||
| 7 | 6685893 | 22.24 | 26.91 | |
| Piston Pin | ||||
| 8 | 6684591 | 4.29 | 5.19 | |
| Piston Pin Circlip (old 039-01620-20) | ||||
| 9 | 6686028 | 1.15 | 1.39 | |
| Crank Shaft Comp. | ||||
| 10 | 6686205 | 72.30 | 87.48 | |
| Ignition Coil Ass'y | ||||
| 11 | 6695927 | 34.19 | 41.37 | |
| Hex. Hole Bolt M4x18/ws Till H124040 | ||||
| 12 | 6684599 | 2.15 | 2.60 | |
| Insulator Tube 50l | ||||
| 13 | 6684597 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 14 | 6687866 | |||
| Ignition Coil Comp. | ||||
| 15 | 6695939 | 38.26 | 46.30 | |
| Crank Case Gasket | ||||
| 22 | 6686720 | 1.15 | 1.39 | |
| Oil Seal | ||||
| 23 | 6684607 | 4.29 | 5.19 | |
| Ball Bearing 6001 C3 | ||||
| 24 | 6684608 | 3.80 | 4.60 | |
| Gear Shaft Shim 0.20 | ||||
| 25 | 6684604 | 2.15 | 2.60 | |
| Gear Shaft Shim 0.30 | ||||
| 25 | 6684605 | 2.15 | 2.60 | |
| Gear shaft shim 0.10 (old 330-00200-21) | ||||
| 25 | 6689177 | 1.15 | 1.39 | |
| Gear shaft shim 0.15 (old 330-00200-22) | ||||
| 25 | 6689178 | 1.15 | 1.39 | |
| Anti-vibe Rubber | ||||
| 26 | 6691822 | 1.15 | 1.39 | |
| Hex. Socket Hd. Bolt M5x30 S | ||||
| 27 | 6684786 | 2.15 | 2.60 | |
| Magneto Rotor Comp. | ||||
| 28 | 6687389 | 26.16 | 31.66 | |
| Bolt Washer M8 | ||||
| 29 | 6684611 | 2.15 | 2.60 | |
| Ring | ||||
| 30 | 6684971 | 1.04 | 1.26 | |
| Hex. Nut M8 | ||||
| 31 | 6684612 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 32 | 6686778 | |||
| Intake Pipe Gasket | ||||
| 41 | 6689891 | 1.15 | 1.39 | |
| Carb. Insulator Set,spare | ||||
| 42 | 6689966 | 6.93 | 8.38 | |
| Hex. Hole Bolt M5x25ws | ||||
| 43 | 6695515 | 1.15 | 1.39 | |
| Carburetor Gasket | ||||
| 44 | 6689839 | 1.15 | 1.39 | |
| O-ring P-15 | ||||
| 45 | 6698966 | 1.04 | 1.26 | |
| Cleaner Body Comp. | ||||
| 46 | 6690119 | 4.45 | 5.38 | |
| Collar 7.5 | ||||
| 47 | 6690804 | 1.15 | 1.39 | |
| Choke Valve Till B028600 | ||||
| 48 | 6691272 | 2.31 | 2.80 | |
| No information available, not orderable | ||||
| 49 | 6684658 | |||
| Blow Over Check Board | ||||
| 50 | 6690843 | 1.15 | 1.39 | |
| S.washer 5 | ||||
| 51 | 6684662 | 2.15 | 2.60 | |
| Screw M5x60 | ||||
| 52 | 6684660 | 2.15 | 2.60 | |
| Cleaner Sponge | ||||
| 53 | 6690364 | 1.15 | 1.39 | |
| Cleaner Cover | ||||
| 54 | 6690417 | 5.94 | 7.18 | |
| Special Screw | ||||
| 55 | 6689737 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 56 | 6690482 | |||
| Carburetor Set Wyl219 Since B001001 | ||||
| 56A | 6690493 | 60.35 | 73.02 | |
| Shield Tube Ass'y (old 223-06500-90) | ||||
| 57 | 6685247 | 2.31 | 2.80 | |
| Clip,6.3 Dia. | ||||
| 58 | 6684619 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 59 | 6684620 | |||
| No information available, not orderable | ||||
| 60 | 6691582 | |||
| Collar 5.8 Till G103930 | ||||
| 61 | 6692244 | 1.15 | 1.39 | |
| Hex. Hole Bolt 5x18ps | ||||
| 62 | 6695505 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 63 | 6691337 | |||
| Tank Cap D Ass'y, Black (old 595-06516-90 & 669171 | ||||
| 64 | 6691763 | 7.59 | 9.18 | |
| Priming Pump Comp. | ||||
| 65 | 6685139 | 5.94 | 7.18 | |
| Fuel Pipe 2.5x4x80 | ||||
| 66 | 6692347 | 1.15 | 1.39 | |
| Fuel Pipe 2.5x4x70 | ||||
| 67 | 6692346 | 1.15 | 1.39 | |
| Return Grommet Till 7.2014 | ||||
| 68 | 6697846 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 69 | 6684625 | |||
| Muffler Protector | ||||
| 81 | 6692799 | 5.61 | 6.79 | |
| Muffler Gasket | ||||
| 82 | 6692744 | 1.15 | 1.39 | |
| Heat Shield | ||||
| 83 | 6687252 | 2.31 | 2.80 | |
| No information available, not orderable | ||||
| 84 | 6692480 | |||
| Ring | ||||
| 85 | 6684661 | 2.15 | 2.60 | |
| Hex. Socket Hd. Bolt M5x50 | ||||
| 86 | 6685114 | 1.15 | 1.39 | |
| Grommet | ||||
| 87 | 6688050 | 1.15 | 1.39 | |
| Hex.hole Bolt 4x18ps | ||||
| 88 | 6695502 | 1.15 | 1.39 | |
| Clutch | ||||
| 89 | 6688494 | 9.74 | 11.78 | |
| Tapping Screw D4.5x16 | ||||
| 90 | 6684636 | 2.15 | 2.60 | |
| Bolt 4x12ps | ||||
| 91 | 6695441 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 92 | 6687014 | |||
| Starter Rope Reel | ||||
| 93 | 6693072 | 5.11 | 6.19 | |
| Cam Plate | ||||
| 94 | 6684678 | 6.44 | 7.79 | |
| Damper Spring For (s) Type Since 7.2012 For Aus | ||||
| 95 | 6684677 | 8.58 | 10.38 | |
| Recoil Spring Till 7.2014 | ||||
| 96 | 6684675 | 11.55 | 13.98 | |
| Set Screw (old 839-03045-20) | ||||
| 97 | 6684679 | 2.15 | 2.60 | |
| Rope 3x890 | ||||
| 98 | 6693172 | 2.31 | 2.80 | |
| Starter Handle | ||||
| 99 | 6693237 | 1.15 | 1.39 | |
| Starter Pulley Ass'y For (s) Type Since 7.2012 Fo | ||||
| 100 | 6684681 | 13.20 | 15.97 | |
| Deflector | ||||
| 101 | 6687209 | 6.44 | 7.79 | |
| Starter Pawl | ||||
| 102 | 6684685 | 4.29 | 5.19 | |
| Starter Pawl Spring | ||||
| 103 | 6684684 | 4.29 | 5.19 | |
| Stop Ring E-5 Since C237092 | ||||
| 104 | 6684683 | 2.15 | 2.60 | |
| Throttle Set Screw | ||||
| 111 | 6684698 | 4.29 | 5.19 | |
| Swivel | ||||
| 112 | 6684697 | 6.44 | 7.79 | |
| Stop Ring | ||||
| 113 | 6684696 | 2.15 | 2.60 | |
| O-RING (old 550-25100-20) | ||||
| 114 | 6684695 | 4.29 | 5.19 | |
| Main Jet #40 Till B023800 | ||||
| 115 | 6691845 | 4.45 | 5.38 | |
| No information available, not orderable | ||||
| 115A | 6691872 | |||
| Pump Gasket (old 577-25100-20) | ||||
| 116 | 6691457 | 7.10 | 8.59 | |
| Pump Diaphragm | ||||
| 117 | 6684693 | 8.58 | 10.38 | |
| Inlet Screen | ||||
| 118 | 6684700 | 4.29 | 5.19 | |
| Pump Body Comp. | ||||
| 119 | 6691430 | 36.15 | 43.74 | |
| No longer available, no replacement | ||||
| 120 | 6685220 | |||
| Metering Diaphragm Comp. | ||||
| 121 | 6690830 | 11.88 | 14.37 | |
| Diaphragm Cover-metering | ||||
| 122 | 6685222 | 4.45 | 5.38 | |
| Set Screw | ||||
| 123 | 6691312 | 1.15 | 1.39 | |
| Throttle Valve Till B023800 | ||||
| 124 | 6684883 | 18.75 | 22.69 | |
| Complete Gear Case A (old 002-32182-80) | ||||
| 151 | 6685578 | 28.14 | 34.05 | |
| No longer available, no replacement | ||||
| 152 | 6685593 | |||
| Clutch Housing Comp. Till C239300 | ||||
| 153 | 6688201 | 17.09 | 20.68 | |
| Gear 2 | ||||
| 154 | 6685655 | 30.25 | 36.60 | |
| Gear 2 | ||||
| 154A | 6685656 | 28.44 | 34.41 | |
| No information available, not orderable | ||||
| 155A | 6685702 | |||
| Wood-ruff Key 3x10x3.7 | ||||
| 156 | 6686454 | 1.15 | 1.39 | |
| Ball Bearing #6001z | ||||
| 157 | 6695532 | 6.60 | 7.99 | |
| Ball Bearing 6001 C3 | ||||
| 158 | 6684608 | 3.80 | 4.60 | |
| No information available, not orderable | ||||
| 158A | 6695534 | |||
| Stop Ring C-12 Outer | ||||
| 159 | 6684664 | 2.15 | 2.60 | |
| Stop Ring C 11,outer | ||||
| 159A | 6695282 | 1.15 | 1.39 | |
| Gear 4 Till C070050 | ||||
| 160 | 6685787 | 22.24 | 26.91 | |
| Gear 4 | ||||
| 160A | 6685788 | 50.21 | 60.76 | |
| Ball Bearing #7202b | ||||
| 161 | 6695587 | 14.21 | 17.20 | |
| Washaer C 5.0 | ||||
| 162 | 6686065 | 3.30 | 3.99 | |
| Ball Bearing #6202z | ||||
| 163 | 6695559 | 6.44 | 7.79 | |
| Ring | ||||
| 164 | 6695206 | 1.15 | 1.39 | |
| Stop Ring C-35, Inner | ||||
| 165 | 6695296 | 1.15 | 1.39 | |
| Wood-ruff Key 3x13x5 | ||||
| 166 | 6686455 | 1.15 | 1.39 | |
| Drive Shaft | ||||
| 167 | 6685824 | 104.51 | 126.46 | |
| Screw 5x18/s | ||||
| 168 | 6695339 | 1.15 | 1.39 | |
| Stop Ring C-13, Outer | ||||
| 169 | 6695283 | 1.15 | 1.39 | |
| Lock Lever Spring | ||||
| 171 | 6689998 | 4.45 | 5.38 | |
| Ring | ||||
| 172 | 6687942 | 1.15 | 1.39 | |
| Ring | ||||
| 173 | 6685103 | 1.15 | 1.39 | |
| Step Bolt | ||||
| 174 | 6693366 | 1.15 | 1.39 | |
| COMPLETE GREASE NIPPLE (OLD 300-32250-80) | ||||
| 175 | 6688643 | 1.15 | 1.39 | |
| Ring | ||||
| 176 | 6695219 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 177 | 6684792 | |||
| No information available, not orderable | ||||
| 191 | 6687577 | |||
| Handle Comp. | ||||
| 192 | 6686247 | 138.55 | 167.65 | |
| Ring | ||||
| 193 | 6684639 | 2.15 | 2.60 | |
| Ring | ||||
| 194 | 6695219 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 195 | 6695015 | |||
| Ring | ||||
| 196 | 6695198 | 1.15 | 1.39 | |
| Ring | ||||
| 197 | 6695225 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 198 | 6695005 | |||
| Throttle Lever Ass'y | ||||
| 199 | 6686800 | 9.40 | 11.37 | |
| No information available, not orderable | ||||
| 200 | 6693916 | |||
| No information available, not orderable | ||||
| 201 | 6687759 | |||
| Cord Clamp Comp. | ||||
| 202 | 6688008 | 1.15 | 1.39 | |
| Stop Button Bracket | ||||
| 203 | 6692138 | 3.30 | 3.99 | |
| Button Stop | ||||
| 204 | 6688366 | 1.15 | 1.39 | |
| Stop Button Mark | ||||
| 205 | 6694589 | 2.31 | 2.80 | |
| Screw 3x10 | ||||
| 206 | 6684913 | 2.15 | 2.60 | |
| Cord Clamp | ||||
| 207 | 6688015 | 1.15 | 1.39 | |
| Cord, B130m | ||||
| 208 | 6688461 | 1.15 | 1.39 | |
| Spanner 17x19 | ||||
| 501 | 6686251 | 4.35 | 5.26 | |
| No information available, not orderable | ||||
| 502 | 6684764 | |||
| No information available, not orderable | ||||
| 503 | 6693647 | |||
