Here you will find all available parts and drawings of the 'Hikoki TEA500'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

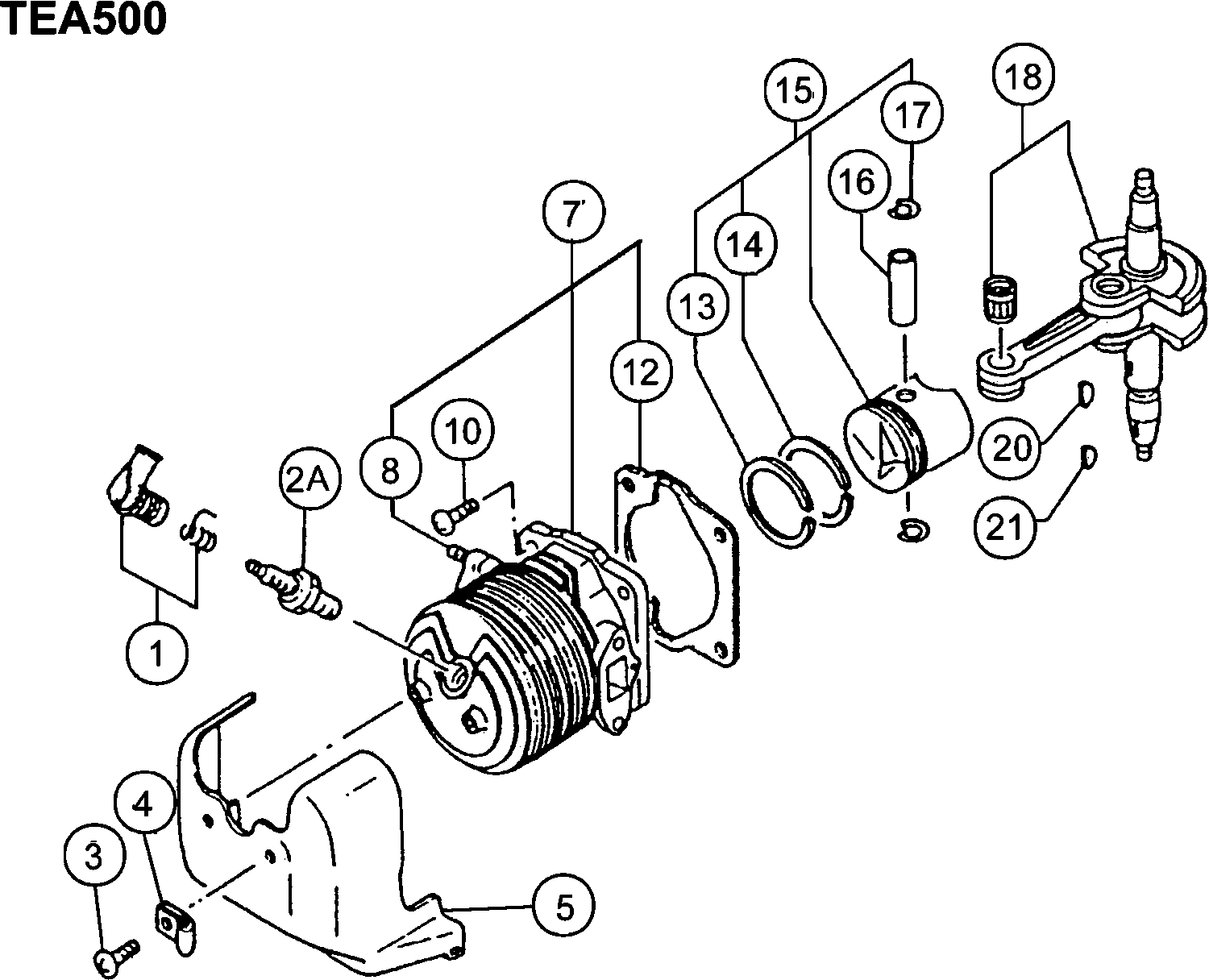

Technical drawing of model Hikoki TEA500
Spare parts list of model Hikoki TEA500
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Spark Plug Cap Ass'y Till G165840 | ||||
| 1 | 6687468 | 2.31 | 2.80 | |
| Spark Plug BMR6A | ||||
| 2A | 6699315 | 13.35 | 16.15 | |
| Screw 5x10/p | ||||
| 3 | 6695319 | 1.15 | 1.39 | |
| Cord Clamp L | ||||
| 4 | 6688009 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 5 | 6685695 | |||
| Cylinder Set | ||||
| 7 | 6685498 | 96.35 | 116.58 | |
| Stud Bolt 6x22 | ||||
| 8 | 6686771 | 1.15 | 1.39 | |
| Hex. Hole Bolt 6x18/s | ||||
| 10 | 6695495 | 1.15 | 1.39 | |
| Cylinder Gasket | ||||
| 12 | 6685752 | 1.15 | 1.39 | |
| Piston Ring | ||||
| 13 | 6686051 | 7.10 | 8.59 | |
| Piston Ring | ||||
| 14 | 6686133 | 4.45 | 5.38 | |
| No information available, not orderable | ||||
| 15 | 6685904 | |||
| Piston Pin 10x35 | ||||
| 16 | 6686019 | 2.31 | 2.80 | |
| Piston Pin Circlip (old 039-02000-20) | ||||
| 17 | 6686029 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 18 | 6686224 | |||
| Woodruff Key 3x13x4.5 Till B023800 | ||||
| 20 | 6684899 | 2.15 | 2.60 | |
| Wood-ruff Key 3x13x5 | ||||
| 21 | 6686457 | 1.15 | 1.39 | |
| Crank Shaft Shim 0.20 | ||||
| 41 | 6686472 | 1.15 | 1.39 | |
| Crank Shaft Shim 0.30 | ||||
| 41 | 6686473 | 1.15 | 1.39 | |
| Small Nut 10 | ||||
| 42 | 6695139 | 1.05 | 1.27 | |
| Ring | ||||
| 43 | 6684820 | 2.15 | 2.60 | |
| Starter Pulley (old 798-10205-20) | ||||
| 44 | 6693409 | 6.93 | 8.38 | |
| Crank Case Ass'y | ||||
| 47 | 6686595 | 66.40 | 80.34 | |
| Crank Case Gasket | ||||
| 49 | 6686727 | 1.15 | 1.39 | |
| Oil Seal | ||||
| 50 | 6695641 | 2.31 | 2.80 | |
| No information available, not orderable | ||||
| 51 | 6695557 | |||
| No information available, not orderable | ||||
| 52 | 6695562 | |||
| Oil Seal | ||||
| 53 | 6695648 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 54 | 6695499 | |||
| Drain Gasket | ||||
| 55 | 6692685 | 1.15 | 1.39 | |
| Screw 6x10 | ||||
| 56 | 6694926 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 57 | 6689682 | |||
| Governor Shaft Arm | ||||
| 59 | 6689679 | 2.31 | 2.80 | |
| Screw 3x6 | ||||
| 60 | 6694855 | 1.15 | 1.39 | |
| Oil partition (old 329-10250-21 & 6689174) | ||||
| 61 | 6689175 | 1.15 | 1.39 | |
| Screw 4x8 Till Z063200 | ||||
| 62 | 6694861 | 1.15 | 1.39 | |
| Governor Ass'y | ||||
| 63 | 6687057 | 22.24 | 26.91 | |
| Governor Plate (old 388-10250-21) | ||||
| 65 | 6689780 | 2.31 | 2.80 | |
| Governor Sleeve (old 389-10250-21) | ||||
| 67 | 6689782 | 10.23 | 12.37 | |
| Stop Ring C-15, Outer | ||||
| 68 | 6695285 | 1.15 | 1.39 | |
| Governor Cover Gasket | ||||
| 81 | 6689775 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 82 | 6689771 | |||
| Oil Seal | ||||
| 83 | 6695637 | 3.30 | 3.99 | |
| Screw 4x10 | ||||
| 84 | 6694863 | 1.15 | 1.39 | |
| Magneto Rotor Comp | ||||
| 85 | 6699709 | 45.23 | 54.72 | |
| Ring | ||||
| 86 | 6695198 | 1.15 | 1.39 | |
| Nut 10 (l.h. Thread) | ||||
| 87 | 6695134 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 89 | 6695410 | |||
| Ignition coil (old 167-21954-90) | ||||
| 93 | 6695943 | 44.31 | 53.62 | |
| Fan Housing | ||||
| 95 | 6687046 | 26.16 | 31.66 | |
| No information available, not orderable | ||||
| 96 | 6688040 | |||
| Cord Clamp Comp. | ||||
| 97 | 6688004 | 1.15 | 1.39 | |
| Screw 6x25/s | ||||
| 98 | 6695363 | 1.15 | 1.39 | |
| Stud Bolt 6x36 | ||||
| 103 | 6686772 | 1.15 | 1.39 | |
| Stop Cord Comp. (old 178-0136m-80) | ||||
| 104 | 6687826 | 2.31 | 2.80 | |
| Cord B135m Since F061751 | ||||
| 104A | 6696371 | 3.30 | 3.99 | |
| Inlet Manifold Gasket | ||||
| 121 | 6689899 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 122 | 6689980 | |||
| Carburetor Gasket | ||||
| 123 | 6689826 | 1.15 | 1.39 | |
| Screw 5x24ws | ||||
| 124 | 6695423 | 1.15 | 1.39 | |
| Choke Lever (old 495-04200-20) | ||||
| 125 | 6691004 | 1.15 | 1.39 | |
| Cleaner Body Blk (old 423-1024a-20/6690128) | ||||
| 126 | 6696027 | 3.30 | 3.99 | |
| Collar 5.8 Till G103930 | ||||
| 127 | 6692244 | 1.15 | 1.39 | |
| Screw 5x55s | ||||
| 128 | 6695352 | 1.15 | 1.39 | |
| Small Washer 5 | ||||
| 130 | 6684864 | 2.15 | 2.60 | |
| Sponge | ||||
| 131 | 6690366 | 2.31 | 2.80 | |
| Cleaner Cap | ||||
| 132 | 6690158 | 3.30 | 3.99 | |
| Throttle Rod | ||||
| 134 | 6690964 | 1.15 | 1.39 | |
| Governor Rod Spring | ||||
| 135 | 6689714 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 136 | 6689719 | |||
| No information available, not orderable | ||||
| 137 | 6689687 | |||
| Ring | ||||
| 138 | 6695219 | 1.15 | 1.39 | |
| Lock Nut M6 | ||||
| 139 | 6684872 | 2.15 | 2.60 | |
| Screw 4x8/ps | ||||
| 140 | 6695368 | 1.15 | 1.39 | |
| Governor Spring | ||||
| 141 | 6689697 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 142 | 6693590 | |||
| Screw 5x10 Ws | ||||
| 143 | 6695413 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 144 | 6694056 | |||
| Throttle Shaft Guide | ||||
| 145 | 6694037 | 3.30 | 3.99 | |
| Step Bolt Till F113050 | ||||
| 146 | 6689627 | 1.15 | 1.39 | |
| Wire Clamp (old 903-10244-20) | ||||
| 147 | 6694057 | 1.15 | 1.39 | |
| Screw 5x10 Ws | ||||
| 148 | 6695413 | 1.15 | 1.39 | |
| U-nut 6 | ||||
| 149 | 6695159 | 1.15 | 1.39 | |
| Carburetor Ass'y, Hda-43a Till B001000 For Europe | ||||
| 150 | 6690590 | 106.48 | 128.83 | |
| Carburetor Set Hda178 Since B001001 For Europe | ||||
| 150A | 6690523 | 58.39 | 70.65 | |
| Screw 6x8/s | ||||
| 161 | 6695356 | 1.15 | 1.39 | |
| Ring | ||||
| 162 | 6684639 | 2.15 | 2.60 | |
| Muffler Protector | ||||
| 163 | 6692820 | 32.21 | 38.98 | |
| Muffler Stay | ||||
| 164 | 6692706 | 2.31 | 2.80 | |
| Screw 6x12/ps | ||||
| 165 | 6695399 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 167 | 6684792 | |||
| Ring | ||||
| 168 | 6695219 | 1.15 | 1.39 | |
| Muffler Gasket 1.5t | ||||
| 169 | 6692746 | 1.15 | 1.39 | |
| Screw 5x18/ps | ||||
| 170 | 6695388 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 171 | 6691926 | |||
| Tank Till Tl025381 For Europe | ||||
| 173 | 6601173 | 11.55 | 13.98 | |
| Tank | ||||
| 173A | 6601177 | 8.58 | 10.38 | |
| No information available, not orderable | ||||
| 174 | 6684620 | |||
| Cushion Rubber | ||||
| 183 | 6692232 | 2.31 | 2.80 | |
| No information available, not orderable | ||||
| 184 | 6691985 | |||
| Screw 6x12/ps | ||||
| 185 | 6695399 | 1.15 | 1.39 | |
| Tank Cap D Ass'y Black | ||||
| 186A | 6691740 | 7.59 | 9.18 | |
| No information available, not orderable | ||||
| 187 | 6684625 | |||
| Ring | ||||
| 188 | 6689645 | 1.15 | 1.39 | |
| Clutch Arm Comp. | ||||
| 189 | 6688617 | 8.25 | 9.98 | |
| Ring | ||||
| 190 | 6689638 | 1.15 | 1.39 | |
| Clutch Step Bolt | ||||
| 191 | 6689633 | 2.31 | 2.80 | |
| Clutch Spring | ||||
| 192 | 6689434 | 1.15 | 1.39 | |
| Shield Tube Ass'y Since Tl025382 For Europe | ||||
| 194 | 6601178 | 3.14 | 3.80 | |
| No information available, not orderable | ||||
| 197 | 6692580 | |||
| Clutch Set Ass'y | ||||
| 198 | 6601109 | 21.18 | 25.62 | |
| Recoil Starter Body Ass'y | ||||
| 211 | 6692995 | 30.25 | 36.60 | |
| Recoil Starter Body | ||||
| 212 | 6693044 | 16.19 | 19.59 | |
| Recoil Spring | ||||
| 213 | 6693123 | 14.53 | 17.58 | |
| Starter Rope Reel Comp. | ||||
| 214 | 6693085 | 8.58 | 10.38 | |
| Starter Rope | ||||
| 215 | 6693176 | 4.45 | 5.38 | |
| Starter Pawl | ||||
| 216 | 6693322 | 3.30 | 3.99 | |
| Friction Spring | ||||
| 217 | 6693617 | 2.31 | 2.80 | |
| Friction Plate | ||||
| 218 | 6693630 | 5.94 | 7.18 | |
| Bolt 6x12 (old 990-21060-121) | ||||
| 219 | 6694982 | 1.15 | 1.39 | |
| Starter Handle | ||||
| 220 | 6693610 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 221 | 6693383 | |||
| Starter Handle | ||||
| 222 | 6693241 | 3.30 | 3.99 | |
| Rope Guide | ||||
| 223 | 6693140 | 3.30 | 3.99 | |
| Screw | ||||
| 281 | 6685210 | 1.15 | 1.39 | |
| Pump Body | ||||
| 282 | 6691420 | 8.25 | 9.98 | |
| Pump Gasket (old 577-25012-20) | ||||
| 283 | 6691455 | 2.31 | 2.80 | |
| Pump Diaphragm | ||||
| 284 | 6691446 | 5.28 | 6.38 | |
| Inlet Screen | ||||
| 285 | 6684700 | 4.29 | 5.19 | |
| Idle Adjust Screw | ||||
| 286 | 6690736 | 3.30 | 3.99 | |
| Idle Adjust Spring | ||||
| 287 | 6690766 | 2.31 | 2.80 | |
| Control Lever | ||||
| 289 | 6690819 | 4.45 | 5.38 | |
| Hinge Pin | ||||
| 290 | 6685219 | 1.15 | 1.39 | |
| Hinge Pin Set Screw | ||||
| 291 | 6685218 | 2.31 | 2.80 | |
| Needle Valve | ||||
| 292 | 6685215 | 5.28 | 6.38 | |
| Diaphragm Gasket | ||||
| 293 | 6690838 | 2.31 | 2.80 | |
| Metering Diaphragm Comp. | ||||
| 294 | 6690828 | 11.88 | 14.37 | |
| Diaphragm Cover | ||||
| 295 | 6690858 | 6.93 | 8.38 | |
| Set Screw | ||||
| 296 | 6685223 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 297 | 6690715 | |||
| High/low Adjust Spring (old 623-25032-20) | ||||
| 298 | 6692048 | 2.31 | 2.80 | |
| No longer available, no replacement | ||||
| 299 | 6690692 | |||
| No information available, not orderable | ||||
| 300 | 6690867 | |||
| Valve Spring | ||||
| 300A | 6690873 | 4.45 | 5.38 | |
| Clutch Shaft Comp. | ||||
| 311 | 6685911 | 36.15 | 43.74 | |
| Woodruff Key 3x13x4.5 Till B023800 | ||||
| 312 | 6684899 | 2.15 | 2.60 | |
| Gear Case C | ||||
| 313 | 6685596 | 34.19 | 41.37 | |
| Spring Nut 6 | ||||
| 314 | 6695475 | 1.15 | 1.39 | |
| Stop Ring inside C-32 old part no. 993-51032-00 | ||||
| 315 | 6695295 | 1.15 | 1.39 | |
| Ball Bearing #6002z | ||||
| 316 | 6695538 | 6.60 | 7.99 | |
| Stop Ring C-15, Outer | ||||
| 317 | 6695285 | 1.15 | 1.39 | |
| Gear Case A Comp. | ||||
| 318 | 6696365 | 194.81 | 235.72 | |
| Ring | ||||
| 319 | 6695219 | 1.15 | 1.39 | |
| Hex. Hole Bolt 6x18 | ||||
| 320 | 6695059 | 1.15 | 1.39 | |
| COMPLETE GREASE NIPPLE (OLD 300-32250-80) | ||||
| 321 | 6688643 | 1.15 | 1.39 | |
| Lock Comp. | ||||
| 322 | 6689987 | 17.40 | 21.05 | |
| Lock Pin Spring | ||||
| 323 | 6689905 | 2.31 | 2.80 | |
| Ring | ||||
| 324 | 6692944 | 1.15 | 1.39 | |
| O-ring P-7 | ||||
| 325 | 6695665 | 1.15 | 1.39 | |
| Screw 5x16/ws | ||||
| 326 | 6695417 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 327 | 6685606 | |||
| Stop Ring C-10,outer | ||||
| 328 | 6684821 | 2.15 | 2.60 | |
| Stop Ring C-22, Outer | ||||
| 329 | 6695288 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 330 | 6685789 | |||
| No information available, not orderable | ||||
| 331 | 6695557 | |||
| Gear 2 | ||||
| 332 | 6685658 | 64.28 | 77.77 | |
| No information available, not orderable | ||||
| 333 | 6685704 | |||
| Wood-ruff Key 4x16x5 | ||||
| 334 | 6686460 | 1.15 | 1.39 | |
| Ball Bearing #6200 | ||||
| 335 | 6695551 | 5.94 | 7.18 | |
| Gear Case B | ||||
| 336 | 6685594 | 50.21 | 60.76 | |
| Ring | ||||
| 337 | 6695219 | 1.15 | 1.39 | |
| Plus Bolt 6x22 | ||||
| 338 | 6695021 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 339 | 6695523 | |||
| Bearing Stopper | ||||
| 340 | 6686066 | 7.59 | 9.18 | |
| Ball Bearing #6205z | ||||
| 341 | 6695565 | 9.40 | 11.37 | |
| No information available, not orderable | ||||
| 342 | 6695208 | |||
| Stop Ring C-52, Inner | ||||
| 343 | 6695300 | 2.31 | 2.80 | |
| Pin | ||||
| 345 | 6693554 | 5.11 | 6.19 | |
| Snap Pin 8 | ||||
| 346 | 6693558 | 1.15 | 1.39 | |
| Drive Shaft Till J033370 For Europe | ||||
| 347 | 6685825 | 46.29 | 56.01 | |
| No information available, not orderable | ||||
| 347A | 6685826 | |||
| No information available, not orderable | ||||
| 361 | 6688342 | |||
| Handle Grip | ||||
| 362 | 6686351 | 6.60 | 7.99 | |
| No information available, not orderable | ||||
| 364 | 6696373 | |||
| No information available, not orderable | ||||
| 365 | 6695132 | |||
| No information available, not orderable | ||||
| 366A | 6699394 | |||
| Throttle Wire Comp. | ||||
| 367 | 6693930 | 14.68 | 17.76 | |
| Stop Cord Comp. | ||||
| 368 | 6687880 | 4.45 | 5.38 | |
| Bolt 6x35 (old 990-21060-351) | ||||
| 369 | 6694992 | 1.15 | 1.39 | |
| Ring | ||||
| 370 | 6684639 | 2.15 | 2.60 | |
| Throttle Lever Comp. | ||||
| 371 | 6686801 | 15.58 | 18.85 | |
| U-nut 6 | ||||
| 372 | 6695159 | 1.15 | 1.39 | |
| Push Pin Comp. | ||||
| 373 | 6686434 | 2.31 | 2.80 | |
| Stop Switch Bracket | ||||
| 374 | 6696370 | 6.44 | 7.79 | |
| Stop Switch Ass'y | ||||
| 375A | 6601374 | 11.71 | 14.17 | |
| Switch Name Plate | ||||
| 376 | 6687949 | 1.15 | 1.39 | |
| Anti-vibe Rubber | ||||
| 377 | 6691822 | 1.15 | 1.39 | |
| Cord Clamp | ||||
| 378 | 6688022 | 1.15 | 1.39 | |
| Protection Tube 13x680l (old 164-13068-00) | ||||
| 380 | 6687616 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 381 | 6687614 | |||
| Combi Box Spanner 10/19mm | ||||
| 501 | 6685257 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 502 | 6693479 | |||
| Plus Driver 4 Till K022330 | ||||
| 503 | 6693665 | 3.00 | 3.63 | |
| Spanner 13x17 | ||||
| 504 | 6693498 | 4.45 | 5.38 | |
| Name Plate Tea-500 (old 906-32251-21) New | ||||
| 601 | 6694259 | 1.15 | 1.39 | |
