Here you will find all available parts and drawings of the 'Hikoki TCS40EA'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

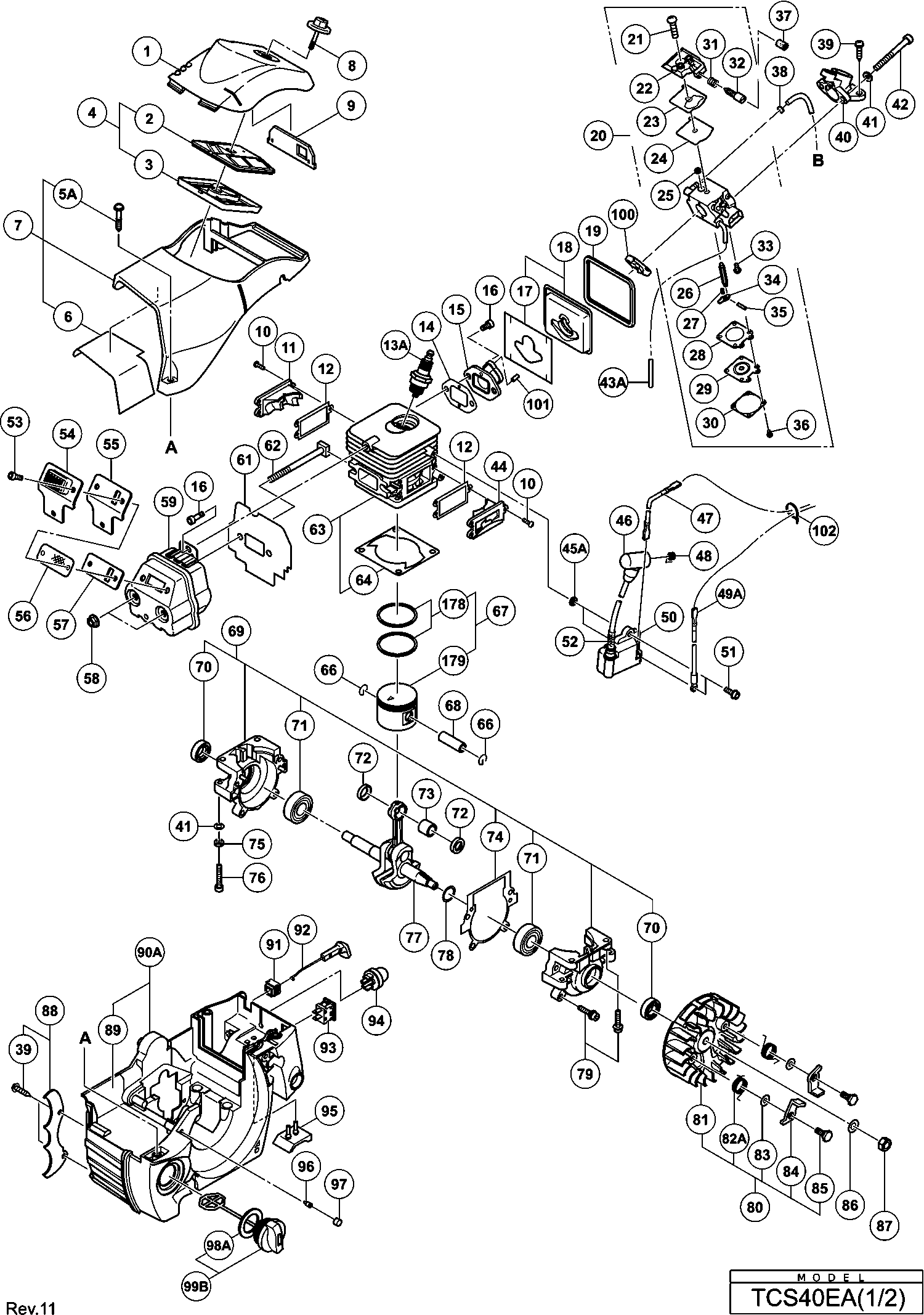

Technical drawing of model Hikoki TCS40EA
Spare parts list of model Hikoki TCS40EA
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| *501 | 6685439 | |||
| Cleaner Cover | ||||
| 1 | 6698424 | 4.20 | 5.08 | |
| Cleaner Element (b) | ||||
| 2 | 6696908 | 3.15 | 3.81 | |
| Cleaner Element (a) | ||||
| 3 | 6696907 | 2.10 | 2.54 | |
| Cleaner Element | ||||
| 4 | 6696891 | 7.95 | 9.62 | |
| Cover Set Bolt (b) | ||||
| 5A | 6699946 | 1.04 | 1.26 | |
| Aluminum Tape (A) | ||||
| 6 | 6698520 | 2.10 | 2.54 | |
| No information available, not orderable | ||||
| 7 | 6698462 | |||
| No longer available, no replacement | ||||
| 8 | 6698425 | |||
| Shutter Plate | ||||
| 9 | 6696904 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 10 | 6696835 | |||
| Scavenging Cover(b) | ||||
| 11 | 6698407 | 3.15 | 3.81 | |
| Cover Packing | ||||
| 12 | 6696852 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 13A | 6699320 | |||
| Gasket | ||||
| 14 | 6696895 | 1.05 | 1.27 | |
| Intake (OLD 6698419) | ||||
| 15A | 6601577 | 3.00 | 3.63 | |
| Hex. Socket Hd. Bolt M5x12 (precoat) | ||||
| 16 | 6696836 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 17 | 6698524 | |||
| Carburetor Insulator Ass'y Includ.17 | ||||
| 18 | 6698461 | 4.20 | 5.08 | |
| Carb. Insulator Rubber | ||||
| 19 | 6696896 | 1.05 | 1.27 | |
| Carburetor Ass'y Includ.21-36 | ||||
| 20 | 6698433 | 104.50 | 126.44 | |
| Screw | ||||
| 21 | 6685210 | 1.15 | 1.39 | |
| Pump Gasket | ||||
| 23 | 6685212 | 2.31 | 2.80 | |
| Pump Diaphragm | ||||
| 24 | 6685213 | 4.45 | 5.38 | |
| Inlet Screen | ||||
| 25 | 6684700 | 4.29 | 5.19 | |
| Needle Valve | ||||
| 26 | 6685215 | 5.28 | 6.38 | |
| Valve Spring | ||||
| 27 | 6690873 | 4.45 | 5.38 | |
| No longer available, no replacement | ||||
| 28 | 6685220 | |||
| No longer available, no replacement | ||||
| 29 | 6684690 | |||
| Diaphragm Cover-metering | ||||
| 30 | 6685222 | 4.45 | 5.38 | |
| Idle Adjust Spring | ||||
| 31 | 6690766 | 2.31 | 2.80 | |
| Idle Adjust Screw | ||||
| 32 | 6685298 | 2.31 | 2.80 | |
| Hinge Pin Set Screw | ||||
| 33 | 6685218 | 2.31 | 2.80 | |
| Control Lever | ||||
| 34 | 6685217 | 3.30 | 3.99 | |
| Hinge Pin | ||||
| 35 | 6685219 | 1.15 | 1.39 | |
| Set Screw | ||||
| 36 | 6685223 | 1.15 | 1.39 | |
| Idle Sponge | ||||
| 37 | 6685224 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 38 | 6685311 | |||
| Tapping Screw (w/flange) D5x20 (black) | ||||
| 39 | 302089 | 1.05 | 1.27 | |
| Cleaner Support | ||||
| 40 | 6698427 | 1.05 | 1.27 | |
| Ring | ||||
| 41 | 6685408 | 1.05 | 1.27 | |
| Hex. Socket Hd. Bolt M5x45 | ||||
| 42 | 6696317 | 1.20 | 1.45 | |
| Fuel Pipe | ||||
| 43A | 6698721 | 9.75 | 11.80 | |
| Scavenging Cover (a) | ||||
| 44 | 6698406 | 3.15 | 3.81 | |
| No longer available, no replacement | ||||
| 45A | 6698700 | |||
| No information available, not orderable | ||||
| 46 | 6698435 | |||
| Cord (c) | ||||
| 47 | 6696840 | 2.10 | 2.54 | |
| No information available, not orderable | ||||
| 48 | 6698436 | |||
| Cord (b) | ||||
| 49A | 6698974 | 1.20 | 1.45 | |
| No longer available, no replacement | ||||
| 50 | 6696841 | |||
| Hex. Socket Hd. Bolt (w/flange) M4x18 | ||||
| 51 | 6696326 | 1.20 | 1.45 | |
| Cord Insulation Tube | ||||
| 52 | 6698457 | 1.05 | 1.27 | |
| Hex. Socket Hd. Bolt M4x10 (10 Pcs.) Till 12.2017 | ||||
| 53 | 949812 | 2.40 | 2.90 | |
| Muffler Protector Till 12.2017 | ||||
| 54 | 6698458 | 1.05 | 1.27 | |
| Muffler Protector Packing Till 12.2017 | ||||
| 55 | 6698459 | 1.05 | 1.27 | |
| Muffler Gauze Till 12.2017 | ||||
| 56 | 6696874 | 1.05 | 1.27 | |
| Exhaust Plate Till 12.2017 | ||||
| 57 | 6698460 | 1.05 | 1.27 | |
| Flange Nut M6 | ||||
| 58 | 329934 | 1.73 | 2.09 | |
| Muffler | ||||
| 59 | 6698410 | 30.53 | 36.94 | |
| Muffler Packing Till 8.2019 (since 9.2017 Except | ||||
| 61 | 6698412 | 4.20 | 5.08 | |
| Square Head Bolt M6 Till 12.2017 | ||||
| 62 | 6698437 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 63 | 6698430 | |||
| Cylinder Packing | ||||
| 64 | 6696864 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 66 | 6696854 | |||
| Piston | ||||
| 67 | 6698526 | 30.45 | 36.84 | |
| Piston Pin | ||||
| 68 | 6696855 | 2.10 | 2.54 | |
| Crank Case Set Includ.70,71,74 | ||||
| 69 | 6698441 | 34.18 | 41.35 | |
| Oil Seal | ||||
| 70 | 6684607 | 4.29 | 5.19 | |
| Ball Bearing (1) | ||||
| 71 | 6685328 | 3.00 | 3.63 | |
| Piston Pin Collar | ||||
| 72 | 6696856 | 2.10 | 2.54 | |
| Needle-roller Bearing | ||||
| 73 | 6698445 | 5.10 | 6.17 | |
| Crank Case Packing | ||||
| 74 | 6696863 | 1.05 | 1.27 | |
| Spring Washer M5 (10 pieces) | ||||
| 75 | 949454 | 1.04 | 1.26 | |
| Seal Lock Hex. Socket Hd. Bolt M5 | ||||
| 76 | 6685412 | 1.05 | 1.27 | |
| Crank Shaft | ||||
| 77 | 6696853 | 45.65 | 55.24 | |
| Shim T0.2 | ||||
| 78 | 6696865 | 1.05 | 1.27 | |
| Shim T0.3 | ||||
| 78 | 6696866 | 1.05 | 1.27 | |
| Shim T0.4 | ||||
| 78 | 6696867 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 79 | 305583 | |||
| Magneto Sub Ass'y Includ.81-85 | ||||
| 80 | 6698414 | 19.11 | 23.13 | |
| Magneto Rotor | ||||
| 81 | 6698415 | 15.68 | 18.97 | |
| Starter Pawl Spring (b) | ||||
| 82A | 6699405 | 1.05 | 1.27 | |
| Washer 0.8 | ||||
| 83 | 6696857 | 1.05 | 1.27 | |
| Starter Pawl | ||||
| 84 | 6696877 | 2.10 | 2.54 | |
| Bolt | ||||
| 85 | 6696878 | 1.05 | 1.27 | |
| Bolt Washer D7 | ||||
| 86 | 6696880 | 1.05 | 1.27 | |
| Nut | ||||
| 87 | 6696879 | 1.05 | 1.27 | |
| Spike | ||||
| 88 | 6696329 | 10.20 | 12.34 | |
| Aluminum Tape | ||||
| 89 | 6698523 | 2.10 | 2.54 | |
| Motor Housing | ||||
| 90A | 6699012 | 22.55 | 27.29 | |
| Choke Rod Rubber | ||||
| 91 | 6685369 | 1.05 | 1.27 | |
| Choke Button | ||||
| 92 | 6698463 | 1.05 | 1.27 | |
| No longer available, no replacement | ||||
| 93A | 6601275 | |||
| Priming Pump Comp. | ||||
| 94 | 6685139 | 5.94 | 7.18 | |
| No information available, not orderable | ||||
| 95 | 6696870 | |||
| Air Vent Valve (b) | ||||
| 96 | 6685370 | 2.10 | 2.54 | |
| No information available, not orderable | ||||
| 97 | 6685371 | |||
| Tank Cap Packing | ||||
| 98A | 6685179 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 99A | 6698854 | |||
| Fuel Tank Cap Ass'y (black) Includ.159 | ||||
| 99B | 6698358 | 4.20 | 5.08 | |
| Inlet Manifold Spacer Includ.98a Till 8.2012 | ||||
| 100 | 6685202 | 3.30 | 3.99 | |
| Pulse Guide 2.5x3.5x12 | ||||
| 101A | 6699673 | 1.04 | 1.26 | |
| WIRE BAND | ||||
| 102 | 6696839 | 1.08 | 1.31 | |
| Spring Holder | ||||
| 113 | 6698409 | 2.10 | 2.54 | |
| Flanged Tapping Screw D6 | ||||
| 114 | 6696872 | 1.05 | 1.27 | |
| Antivibration Spring | ||||
| 115 | 6698408 | 2.10 | 2.54 | |
| Front Damper | ||||
| 116 | 6696873 | 1.05 | 1.27 | |
| Pump Filter | ||||
| 117A | 6600351 | 2.70 | 3.27 | |
| Return Grommet Till 7.2014 | ||||
| 118A | 6697846 | 1.04 | 1.26 | |
| Fuel Pipe L70 | ||||
| 119A | 6699014 | 1.65 | 2.00 | |
| Inner Cap Ass'y | ||||
| 120A | 6685351 | 4.50 | 5.44 | |
| No longer available, no replacement | ||||
| 123A | 6698931 | |||
| Fuel Pipe | ||||
| 124A | 6698718 | 9.75 | 11.80 | |
| Tapping Screw (w/flange) D4x16 (black) | ||||
| 125 | 305812 | 1.04 | 1.26 | |
| Rear Handle Grip | ||||
| 126A | 6698805 | 1.05 | 1.27 | |
| Trigger Lockout (vermilion) | ||||
| 127 | 6685350 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 128A | 6600341 | |||
| Spring Pin 5x25 | ||||
| 129 | 6685282 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 130A | 6698990 | |||
| Spring Holder | ||||
| 131 | 6698429 | 2.10 | 2.54 | |
| Hex. Socket Hd. Bolt (w/flange) M6x20 | ||||
| 132 | 881722 | 1.80 | 2.18 | |
| Antivibration Spring | ||||
| 133 | 6698428 | 2.10 | 2.54 | |
| Tapping Screw (w/flange) D5x25 (black) | ||||
| 134 | 305558 | 1.04 | 1.26 | |
| Brake Link Cover | ||||
| 135 | 6698527 | 1.05 | 1.27 | |
| Brake Link | ||||
| 136 | 6685388 | 4.05 | 4.90 | |
| Retaining Ring (e-type) For D6 Shaft | ||||
| 137 | 955479 | 1.05 | 1.27 | |
| Brake Spring | ||||
| 138 | 6696900 | 2.10 | 2.54 | |
| Needle Roller D3 | ||||
| 139 | 6685391 | 1.05 | 1.27 | |
| Brake Band | ||||
| 140 | 6698528 | 1.05 | 1.27 | |
| No longer available, no replacement | ||||
| 142A | 6698989 | |||
| Oil Pump Cover | ||||
| 143 | 6696893 | 2.10 | 2.54 | |
| Oil Pipe | ||||
| 144 | 6696892 | 1.05 | 1.27 | |
| Oil Pump | ||||
| 145 | 6696887 | 24.68 | 29.86 | |
| Brake Lever Spring | ||||
| 146 | 6685374 | 1.05 | 1.27 | |
| Brake Handle | ||||
| 148 | 6685373 | 5.85 | 7.08 | |
| Chain Bar Clamp Nut | ||||
| 150 | 6685416 | 1.05 | 1.27 | |
| Side Case Sub Ass'y (vermilion) | ||||
| 151B | 6699721 | 10.20 | 12.34 | |
| No information available, not orderable | ||||
| 152 | 6687335 | |||
| No information available, not orderable | ||||
| 153A | 6685393 | |||
| No longer available, no replacement | ||||
| 153B | 6698986 | |||
| Guide Plate (b) | ||||
| 154 | 6696902 | 2.10 | 2.54 | |
| Tapping Screw D3x8 | ||||
| 155 | 6685415 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 156 | 6696915 | |||
| No information available, not orderable | ||||
| 157 | 6698423 | |||
| Clutch | ||||
| 158 | 6696883 | 14.10 | 17.06 | |
| No longer available, no replacement | ||||
| 159 | 6696882 | |||
| Clutch Housing | ||||
| 160 | 6696881 | 12.45 | 15.06 | |
| Needle-roller Bearing | ||||
| 161 | 6696884 | 5.10 | 6.17 | |
| Worm | ||||
| 162 | 6696886 | 7.28 | 8.80 | |
| Ring | ||||
| 163 | 6696885 | 1.05 | 1.27 | |
| Machine Screw M4x16 (10 Pcs.) | ||||
| 164 | 949219 | 1.20 | 1.45 | |
| Guide Plate (a) | ||||
| 165 | 6696898 | 2.10 | 2.54 | |
| Oil Grommet (a) | ||||
| 166 | 6696868 | 1.05 | 1.27 | |
| Fuel Pipe | ||||
| 167A | 6698719 | 9.75 | 11.80 | |
| Ring | ||||
| 168 | 6685407 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 169 | 6698455 | |||
| Oil Filter Body | ||||
| 170 | 6698536 | 2.25 | 2.72 | |
| Flanged Tapping Screw D5x15 | ||||
| 171 | 6698456 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 172 | 6696894 | |||
| Air Deflector | ||||
| 173 | 6696906 | 2.10 | 2.54 | |
| No longer available, no replacement | ||||
| 174A | 6699497 | |||
| Throttle Ass'y Includ.126a | ||||
| 176 | 6698825 | 3.15 | 3.81 | |
| Set Screw Since 4.2015 | ||||
| 180 | 6699476 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 181 | 6699478 | |||
| Damper Spring Since 4.2015 | ||||
| 182 | 6699479 | 1.65 | 2.00 | |
| Reel Since Tl041791 | ||||
| 183 | 6699485 | 2.40 | 2.90 | |
| No longer available, no replacement | ||||
| 184 | 6699480 | |||
| Starter Rope | ||||
| 185 | 6699469 | 1.04 | 1.26 | |
| Rope Stopper | ||||
| 186 | 6699465 | 1.04 | 1.26 | |
| Starter Knob | ||||
| 187 | 6699467 | 1.95 | 2.36 | |
| No longer available, no replacement | ||||
| 188 | 6699473 | |||
| Fan Case | ||||
| 189 | 6699498 | 9.45 | 11.43 | |
| No information available, not orderable | ||||
| 191 | 6601575 | |||
| No information available, not orderable | ||||
| 501 | 6696910 | |||
| No information available, not orderable | ||||
| 502 | 6685402 | |||
