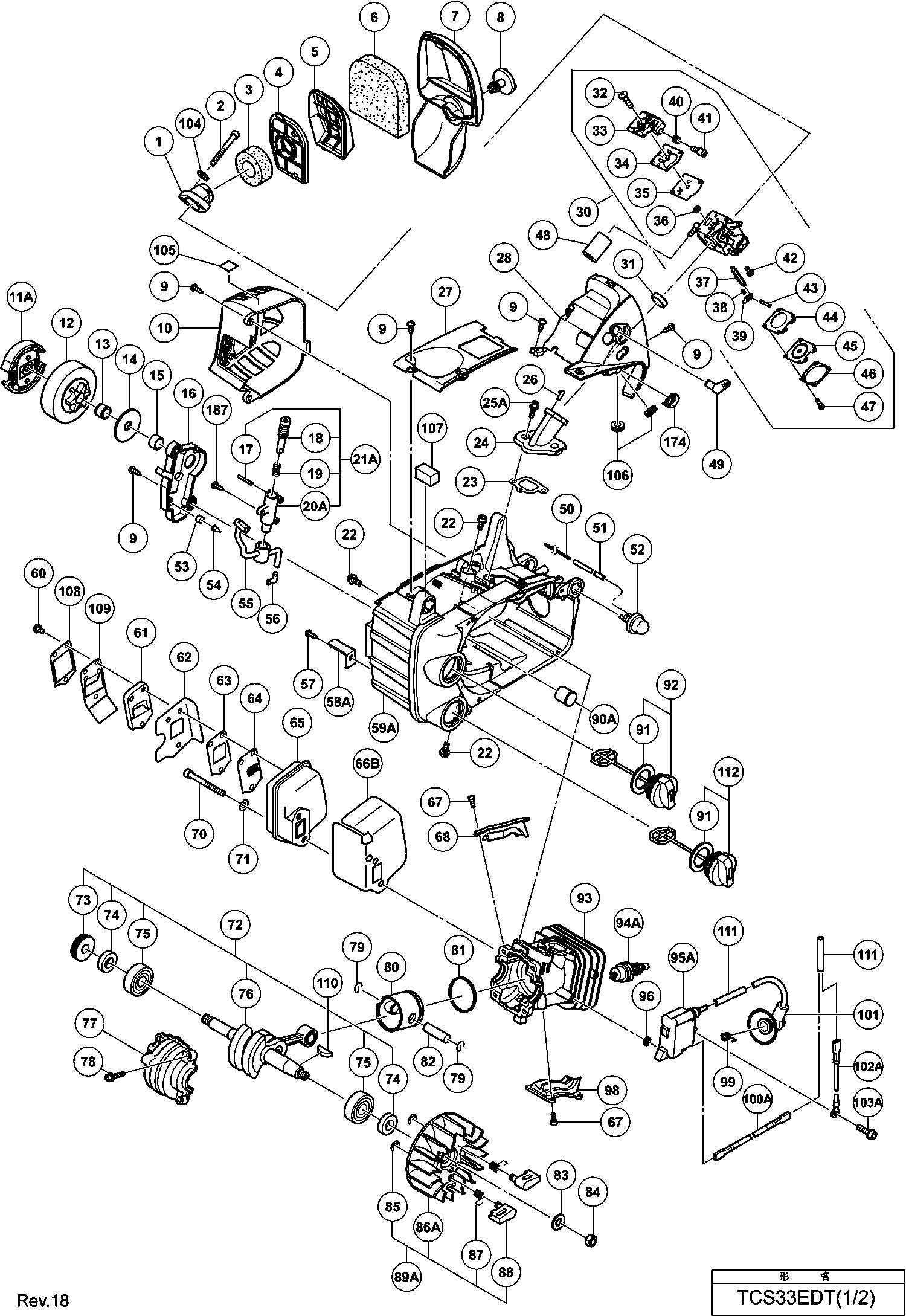

Technical drawing of model Hikoki TCS33EDT
Spare parts list of model Hikoki TCS33EDT
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| *148A | 6697854 | |||
| No information available, not orderable | ||||
| *501 | 6685439 | |||
| Air Cleaner Base | ||||
| 1 | 6685225 | 1.15 | 1.39 | |
| Hex. Socket Hd. Bolt M5x45 (10 Pcs.) | ||||
| 2 | 949824 | 3.90 | 4.72 | |
| No information available, not orderable | ||||
| 3 | 6685229 | |||
| Cleaner Element | ||||
| 4 | 6685230 | 3.30 | 3.99 | |
| Cleaner Element | ||||
| 5 | 6685231 | 3.30 | 3.99 | |
| Cleaner Sponge (a) | ||||
| 6 | 6696825 | 1.20 | 1.45 | |
| Cleaner Cover | ||||
| 7 | 6696785 | 4.20 | 5.08 | |
| Cleaner Knob | ||||
| 8 | 6696786 | 1.20 | 1.45 | |
| Tapping Screw (w/flange) D4x16 (black) | ||||
| 9 | 305812 | 1.04 | 1.26 | |
| Muffler Cover Till 8.2017 (since 9.2017 Except Fo | ||||
| 10 | 6696821 | 7.95 | 9.62 | |
| No information available, not orderable | ||||
| 11A | 6600316 | |||
| Clutch Housing | ||||
| 12 | 6698856 | 14.25 | 17.24 | |
| Needle-roller Bearing | ||||
| 13 | 6685361 | 4.05 | 4.90 | |
| Ring | ||||
| 14 | 6685414 | 1.05 | 1.27 | |
| No longer available, no replacement | ||||
| 15 | 6685360 | |||
| Oil Pump Cover | ||||
| 16A | 6699610 | 2.80 | 3.39 | |
| Needle Roller | ||||
| 17 | 6685356 | 1.05 | 1.27 | |
| Pump Gear | ||||
| 18 | 6685354 | 2.10 | 2.54 | |
| Pump Gear Spring | ||||
| 19 | 6685355 | 1.05 | 1.27 | |
| Pump Case | ||||
| 20A | 6699119 | 7.50 | 9.08 | |
| Pump Ass'y Includ.17-20 | ||||
| 21A | 6699120 | 9.30 | 11.25 | |
| Seal Lock Bolt M5x15 | ||||
| 22 | 6685136 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 23 | 6698849 | |||
| Intake | ||||
| 24 | 6696794 | 4.20 | 5.08 | |
| Hex. Socket Bolt M4 | ||||
| 25A | 6698792 | 1.20 | 1.45 | |
| Pulse Guide | ||||
| 26 | 6685203 | 1.15 | 1.39 | |
| Engine Case Cover | ||||
| 27 | 6696812 | 3.15 | 3.81 | |
| Cleaner Body | ||||
| 28 | 6696792 | 4.65 | 5.63 | |
| Carburetor Ass'y Includ.32-47 | ||||
| 30 | 6696795 | 83.60 | 101.16 | |
| Inlet Spacer | ||||
| 31 | 6698857 | 1.20 | 1.45 | |
| Screw | ||||
| 32 | 6685210 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 33 | 6685211 | |||
| Pump Gasket | ||||
| 34 | 6685212 | 2.31 | 2.80 | |
| Pump Diaphragm | ||||
| 35 | 6685213 | 4.45 | 5.38 | |
| Inlet Screen | ||||
| 36 | 6684700 | 4.29 | 5.19 | |
| Needle Valve | ||||
| 37 | 6685215 | 5.28 | 6.38 | |
| Valve Spring | ||||
| 38 | 6685216 | 2.31 | 2.80 | |
| Control Lever | ||||
| 39 | 6685217 | 3.30 | 3.99 | |
| Idle Adjust Spring | ||||
| 40 | 6685297 | 2.31 | 2.80 | |
| Idle Adjust Screw | ||||
| 41 | 6685298 | 2.31 | 2.80 | |
| Hinge Pin Set Screw | ||||
| 42 | 6685218 | 2.31 | 2.80 | |
| Hinge Pin | ||||
| 43 | 6685219 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 44 | 6685220 | |||
| No longer available, no replacement | ||||
| 45 | 6684690 | |||
| Diaphragm Cover-metering | ||||
| 46 | 6685222 | 4.45 | 5.38 | |
| Set Screw | ||||
| 47 | 6685223 | 1.15 | 1.39 | |
| Idol Sponge | ||||
| 48 | 6696793 | 1.20 | 1.45 | |
| Choke Lever | ||||
| 49 | 6685206 | 1.15 | 1.39 | |
| Protective Coil | ||||
| 50 | 6698699 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 51 | 6698850 | |||
| Priming Pump Comp. | ||||
| 52 | 6685139 | 5.94 | 7.18 | |
| No information available, not orderable | ||||
| 53 | 6685371 | |||
| Air Vent Valve (b) | ||||
| 54 | 6685370 | 2.10 | 2.54 | |
| Oil Pipe | ||||
| 55 | 6696811 | 2.10 | 2.54 | |
| Pipe Joint | ||||
| 56 | 6685358 | 1.05 | 1.27 | |
| Flanged Tapping Screw D5x15 | ||||
| 57 | 6698456 | 1.05 | 1.27 | |
| Chain Catcher | ||||
| 58A | 6699950 | 1.04 | 1.26 | |
| Motor Housing | ||||
| 59A | 6696807 | 34.24 | 41.43 | |
| Machine Screw (w/washers) M4x12 (black) Till 8.20 | ||||
| 60 | 935196 | 1.04 | 1.26 | |
| Exhaust Pipe Till 8.2019 (since 9.2017 Except For | ||||
| 61 | 6696816 | 1.20 | 1.45 | |
| Muffler Special Packing Till 8.2019 (since 9.2017 | ||||
| 62 | 6696818 | 1.20 | 1.45 | |
| Gauze Fixing Plate Till 8.2019 (since 9.2017 Exce | ||||
| 63 | 6696817 | 1.20 | 1.45 | |
| Muffler Gauze Till 8.2019 (since 9.2017 Except Fo | ||||
| 64 | 6696815 | 1.20 | 1.45 | |
| Muffler | ||||
| 65 | 6696814 | 8.40 | 10.16 | |
| No information available, not orderable | ||||
| 66B | 6600445 | |||
| Hex. Socket Hd. Bolt M4x10 (10 Pcs.) Till 12.2017 | ||||
| 67 | 949812 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 68 | 6696766 | |||
| No information available, not orderable | ||||
| 70 | 6696819 | |||
| Bolt Washer M6 (10 Pcs.) | ||||
| 71 | 949432 | 1.05 | 1.27 | |
| Crank Worm Ass'y Includ.73-76 | ||||
| 72 | 6698853 | 66.55 | 80.53 | |
| Worm | ||||
| 73 | 6685330 | 4.50 | 5.44 | |
| Oil Seal | ||||
| 74 | 6685329 | 2.10 | 2.54 | |
| Ball Bearing (1) | ||||
| 75 | 6685328 | 3.00 | 3.63 | |
| No information available, not orderable | ||||
| 76 | 6696762 | |||
| Crank Case | ||||
| 77 | 6696767 | 5.70 | 6.90 | |
| No information available, not orderable | ||||
| 78 | 6698386 | |||
| Circlip | ||||
| 79 | 6685326 | 1.05 | 1.27 | |
| Piston | ||||
| 80 | 6698806 | 13.36 | 16.17 | |
| No longer available, no replacement | ||||
| 81 | 6685331 | |||
| Piston Pin | ||||
| 82 | 6696764 | 1.20 | 1.45 | |
| Ring | ||||
| 83 | 6685103 | 1.15 | 1.39 | |
| Flywheel Nut | ||||
| 84 | 6685104 | 1.15 | 1.39 | |
| Retaining Ring D4 | ||||
| 85 | 6685336 | 1.05 | 1.27 | |
| Magneto Rotor Comp. | ||||
| 86A | 6600053 | 8.85 | 10.71 | |
| Spring | ||||
| 87 | 6685335 | 1.05 | 1.27 | |
| Starter Pawl | ||||
| 88 | 6685334 | 1.05 | 1.27 | |
| Magneto Sub Ass'y Includ.85-88 | ||||
| 89A | 6600090 | 36.71 | 44.42 | |
| Inner Cap Ass'y | ||||
| 90A | 6685351 | 4.50 | 5.44 | |
| Tank Cap Packing | ||||
| 91 | 6685179 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 92 | 6698854 | |||
| Cylinder | ||||
| 93A | 6601440 | 44.55 | 53.91 | |
| No information available, not orderable | ||||
| 94A | 6699320 | |||
| Ignition Coil Comp. | ||||
| 95A | 6699999 | 38.64 | 46.75 | |
| No longer available, no replacement | ||||
| 96 | 6698700 | |||
| No information available, not orderable | ||||
| 98 | 6696765 | |||
| Metal Fitting Of Plug Cap (a) | ||||
| 99 | 6696772 | 1.20 | 1.45 | |
| Cord (a) | ||||
| 100A | 6696787 | 1.20 | 1.45 | |
| SPARK PLUG CAP | ||||
| 101 | 6696771 | 1.98 | 2.40 | |
| Cord (b) | ||||
| 102A | 6696791 | 1.20 | 1.45 | |
| Hex. Socket Hd. Bolt (w/flange) M4x18 | ||||
| 103A | 6696326 | 1.20 | 1.45 | |
| Ring | ||||
| 104 | 6685226 | 1.15 | 1.39 | |
| Caution Label (hot) | ||||
| 105 | 6698864 | 1.20 | 1.45 | |
| Grommet | ||||
| 106 | 6698787 | 1.80 | 2.18 | |
| Protection Sheet | ||||
| 107 | 6698860 | 1.20 | 1.45 | |
| Packing Plate Till 8.2019 (since 9.2017 Except Fo | ||||
| 108 | 6698861 | 1.20 | 1.45 | |
| Muffler Special Packing (s) Till 8.2019 (since 9. | ||||
| 109 | 6698862 | 1.20 | 1.45 | |
| Woodruff Key 3x13x4.5 Till B023800 | ||||
| 110 | 6684899 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 111 | 6698863 | |||
| Fuel Tank Cap Ass'y (black) Includ.159 | ||||
| 112 | 6698358 | 4.20 | 5.08 | |
| Ignition Coil Ass'y Includ.95a,99,101,111 | ||||
| 113 | 6601441 | 32.59 | 39.43 | |
| Tapping Screw (w/flange) D5x40 | ||||
| 121A | 6699403 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 122 | 6698858 | |||
| Collar 28.2 | ||||
| 123 | 6696800 | 2.10 | 2.54 | |
| Damper | ||||
| 124 | 6696775 | 1.20 | 1.45 | |
| Rear Handle | ||||
| 125 | 6696774 | 4.65 | 5.63 | |
| Switch Lock | ||||
| 126A | 6685244 | 1.15 | 1.39 | |
| Throttle Wire Comp. | ||||
| 127 | 6696797 | 2.10 | 2.54 | |
| No information available, not orderable | ||||
| 128 | 6696940 | |||
| No longer available, no replacement | ||||
| 128A | 6601275 | |||
| NUT M6 | ||||
| 129 | 6698449 | 1.00 | 1.21 | |
| Throttle Lever Spring | ||||
| 130 | 6698691 | 1.20 | 1.45 | |
| Throttle Lever | ||||
| 131 | 6685242 | 1.15 | 1.39 | |
| Spring Holder | ||||
| 132 | 6698409 | 2.10 | 2.54 | |
| Damper Set Bolt | ||||
| 133 | 6698859 | 1.20 | 1.45 | |
| Antivibration Spring | ||||
| 134 | 6698428 | 2.10 | 2.54 | |
| Flange Nut M8 | ||||
| 136 | 6698581 | 1.20 | 1.45 | |
| Side Case (vermilion) | ||||
| 137A | 6696776 | 10.65 | 12.89 | |
| Brake Support Plate | ||||
| 138 | 6696782 | 4.20 | 5.08 | |
| Brake Lever Spring | ||||
| 139 | 6696783 | 1.20 | 1.45 | |
| Brake Link | ||||
| 140 | 6685388 | 4.05 | 4.90 | |
| No information available, not orderable | ||||
| 141 | 6685140 | |||
| Needle Roller D3 | ||||
| 142 | 6685391 | 1.05 | 1.27 | |
| Brake Spring | ||||
| 143 | 6685389 | 1.05 | 1.27 | |
| No longer available, no replacement | ||||
| 144A | 6698986 | |||
| Guide Plate (b) | ||||
| 145 | 6696784 | 2.10 | 2.54 | |
| Tapping Screw D3x6 | ||||
| 146 | 696352 | 1.13 | 1.36 | |
| Screw | ||||
| 147 | 958715 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 148A | 6697854 | |||
| No information available, not orderable | ||||
| 149 | 6696994 | |||
| Fuel Pipe | ||||
| 150 | 6698715 | 9.75 | 11.80 | |
| Spike Set | ||||
| 151 | 6696827 | 2.10 | 2.54 | |
| Fuel Pipe (fkm) L240 | ||||
| 152 | 6698851 | 11.55 | 13.98 | |
| Fuel Pipe (fkm) L260 | ||||
| 154 | 6698852 | 12.05 | 14.58 | |
| Fuel Grommet (old 701-72930-20) | ||||
| 155 | 6696167 | 1.15 | 1.39 | |
| Rear Handle (a) | ||||
| 156 | 6696773 | 4.20 | 5.08 | |
| No information available, not orderable | ||||
| 157A | 6600026 | |||
| No longer available, no replacement | ||||
| 158A | 6696798 | |||
| Brake Handle | ||||
| 159 | 6698866 | 6.60 | 7.99 | |
| Brake Link Cover | ||||
| 161 | 6696779 | 1.20 | 1.45 | |
| Pump Filter | ||||
| 162A | 6600351 | 2.70 | 3.27 | |
| No information available, not orderable | ||||
| 163 | 6685311 | |||
| Oil Filter Body | ||||
| 164 | 6685310 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 165 | 6696804 | |||
| Ring | ||||
| 166 | 6685407 | 1.05 | 1.27 | |
| Air Deflector | ||||
| 167 | 6696790 | 2.10 | 2.54 | |
| Recoil Starter (s) (vermilion) Includ.179,183,184 | ||||
| 168B | 6699417 | 17.46 | 21.13 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 169 | 302086 | 1.05 | 1.27 | |
| Tanaka Label New | ||||
| 170 | 6696339 | 1.20 | 1.45 | |
| Cord Insulation Tube | ||||
| 171 | 6698457 | 1.05 | 1.27 | |
| SPRING COVER | ||||
| 172 | 6698865 | 1.08 | 1.31 | |
| Fuel Grommet (a) | ||||
| 173 | 6685308 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 174 | 6699404 | |||
| Set Screw Till 3.2015 | ||||
| 175 | 6699475 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 176 | 6699483 | |||
| No longer available, no replacement | ||||
| 177 | 6699480 | |||
| Set Screw Since 4.2015 | ||||
| 178 | 6699476 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 179 | 6699478 | |||
| Damper Spring Since 4.2015 | ||||
| 180 | 6699479 | 1.65 | 2.00 | |
| Reel Since 4.2015 | ||||
| 181 | 6699484 | 2.40 | 2.90 | |
| Starter Rope | ||||
| 182 | 6699469 | 1.04 | 1.26 | |
| Rope Stopper | ||||
| 183 | 6699465 | 1.04 | 1.26 | |
| Starter Knob | ||||
| 184 | 6699467 | 1.95 | 2.36 | |
| No longer available, no replacement | ||||
| 185 | 6699473 | |||
| Fan Housing | ||||
| 186 | 6699490 | 10.35 | 12.52 | |
| Tapping Screw (w/flange) D4 | ||||
| 187 | 6699947 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 501 | 6685439 | |||
| No information available, not orderable | ||||
| 502 | 6698582 | |||
