Here you will find all available parts and drawings of the 'Hikoki TCS33ED'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

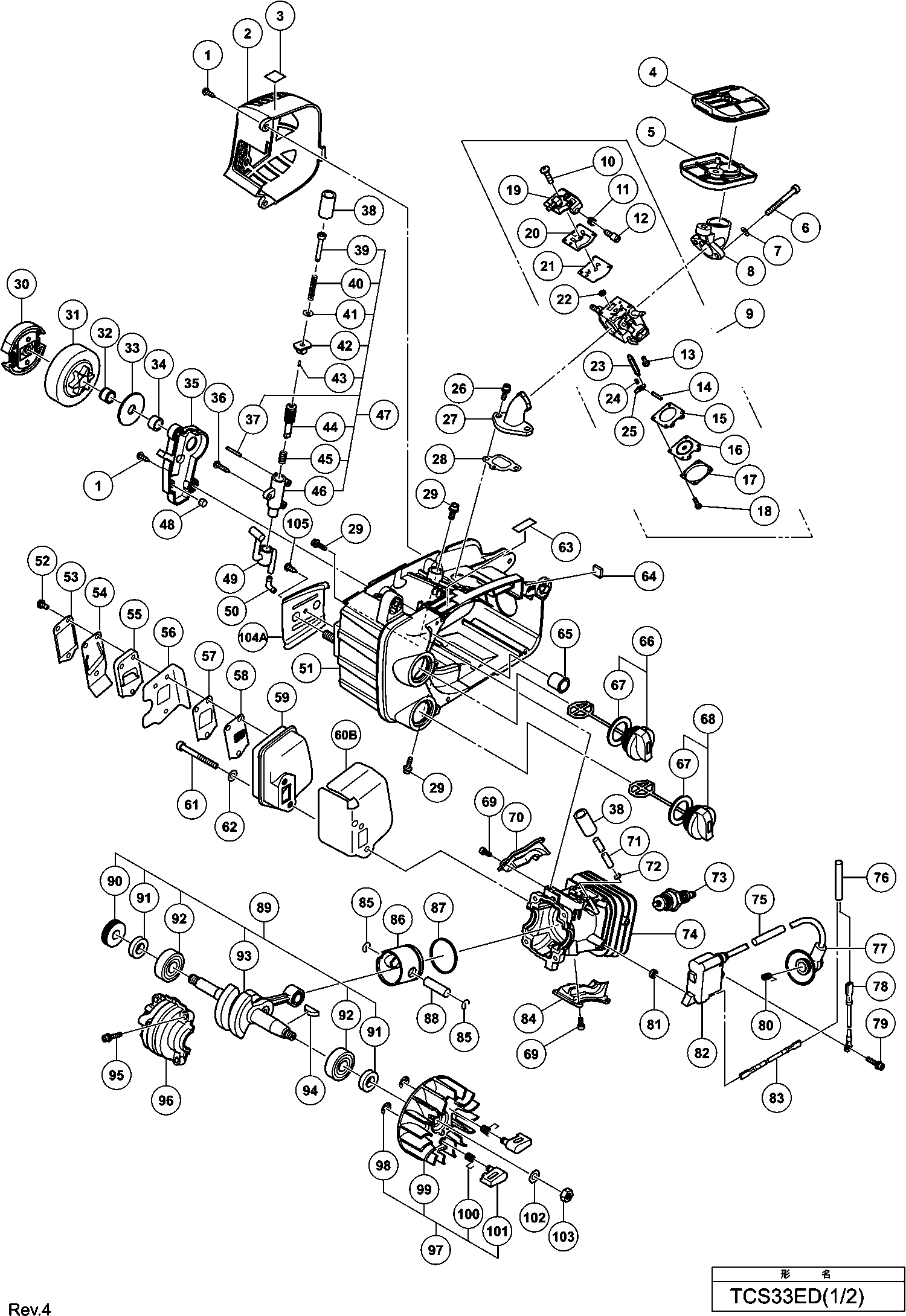

Technical drawing of model Hikoki TCS33ED
Spare parts list of model Hikoki TCS33ED
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| *131 | 6697889 | |||
| No information available, not orderable | ||||
| *501 | 6685440 | |||
| Tapping Screw (w/flange) D4x16 (black) | ||||
| 1 | 305812 | 1.04 | 1.26 | |
| Muffler Cover Till 8.2017 (since 9.2017 Except Fo | ||||
| 2 | 6696821 | 7.95 | 9.62 | |
| Caution Label (hot) | ||||
| 3 | 6698864 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 4 | 6699969 | |||
| Cleaner Element (a) | ||||
| 5 | 6699968 | 3.30 | 3.99 | |
| Hex. Socket Hd. Bolt M5x45 (10 Pcs.) | ||||
| 6 | 949824 | 3.90 | 4.72 | |
| Ring | ||||
| 7 | 6685408 | 1.05 | 1.27 | |
| Cleaner Support | ||||
| 8 | 6699966 | 1.04 | 1.26 | |
| Carburetor Ass'y Includ.10-25 | ||||
| 9 | 6699976 | 49.23 | 59.56 | |
| Screw | ||||
| 10 | 6685210 | 1.15 | 1.39 | |
| Idle Adjust Spring | ||||
| 11 | 6685297 | 2.31 | 2.80 | |
| Idle Adjust Screw | ||||
| 12 | 6685298 | 2.31 | 2.80 | |
| Hinge Pin Set Screw | ||||
| 13 | 6685218 | 2.31 | 2.80 | |
| Hinge Pin | ||||
| 14 | 6685219 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 15 | 6685220 | |||
| No longer available, no replacement | ||||
| 16 | 6684690 | |||
| Diaphragm Cover-metering | ||||
| 17 | 6685222 | 4.45 | 5.38 | |
| Set Screw | ||||
| 18 | 6685223 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 19 | 6600091 | |||
| Pump Gasket | ||||
| 20 | 6685212 | 2.31 | 2.80 | |
| Pump Diaphragm | ||||
| 21 | 6685213 | 4.45 | 5.38 | |
| Inlet Screen | ||||
| 22 | 6684700 | 4.29 | 5.19 | |
| Needle Valve | ||||
| 23 | 6685215 | 5.28 | 6.38 | |
| Valve Spring | ||||
| 24 | 6685216 | 2.31 | 2.80 | |
| Control Lever | ||||
| 25 | 6685217 | 3.30 | 3.99 | |
| Hex. Socket Bolt M4 | ||||
| 26 | 6698792 | 1.20 | 1.45 | |
| Intake | ||||
| 27 | 6699951 | 4.65 | 5.63 | |
| Gasket | ||||
| 28 | 6699952 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 29 | 6699044 | |||
| No information available, not orderable | ||||
| 30 | 6600316 | |||
| Clutch Housing Comp. | ||||
| 31 | 6685144 | 14.53 | 17.58 | |
| Needle-roller Bearing | ||||
| 32 | 6685361 | 4.05 | 4.90 | |
| Ring | ||||
| 33 | 6685414 | 1.05 | 1.27 | |
| No longer available, no replacement | ||||
| 34 | 6685360 | |||
| Oil Pump Cover | ||||
| 35 | 6699610 | 2.80 | 3.39 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 36 | 302086 | 1.05 | 1.27 | |
| Needle Roller | ||||
| 37 | 6685356 | 1.05 | 1.27 | |
| Idol Sponge | ||||
| 38 | 6696793 | 1.20 | 1.45 | |
| Oil Pump Adjuster (ed) | ||||
| 39 | 6699960 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 40 | 6699961 | |||
| Bolt Washer M4 (black) For 220v-240v | ||||
| 41 | 323210 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 42 | 6699959 | |||
| No information available, not orderable | ||||
| 43 | 6600046 | |||
| Pump Gear (ed) | ||||
| 44 | 6699957 | 1.95 | 2.36 | |
| Pump Gear Spring (ed) | ||||
| 45 | 6699958 | 1.04 | 1.26 | |
| Pump Case | ||||
| 46 | 6699119 | 7.50 | 9.08 | |
| Pump Ass'y Includ.37,39-46 | ||||
| 47 | 6600085 | 15.54 | 18.80 | |
| No information available, not orderable | ||||
| 48 | 6685371 | |||
| Oil Pipe | ||||
| 49 | 6696811 | 2.10 | 2.54 | |
| Pipe Joint | ||||
| 50 | 6685358 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 51 | 6600084 | |||
| No information available, not orderable | ||||
| 52 | 6600048 | |||
| Packing Plate Till 8.2019 (since 9.2017 Except Fo | ||||
| 53 | 6698861 | 1.20 | 1.45 | |
| Muffler Special Packing (s) Till 8.2019 (since 9. | ||||
| 54 | 6698862 | 1.20 | 1.45 | |
| Exhaust Pipe Till 8.2019 (since 9.2017 Except For | ||||
| 55 | 6696816 | 1.20 | 1.45 | |
| Muffler Special Packing Till 8.2019 (since 9.2017 | ||||
| 56 | 6696818 | 1.20 | 1.45 | |
| Gauze Fixing Plate Till 8.2019 (since 9.2017 Exce | ||||
| 57 | 6696817 | 1.20 | 1.45 | |
| Muffler Gauze Till 8.2019 (since 9.2017 Except Fo | ||||
| 58 | 6696815 | 1.20 | 1.45 | |
| Muffler | ||||
| 59 | 6600050 | 4.65 | 5.63 | |
| No information available, not orderable | ||||
| 60B | 6600445 | |||
| No information available, not orderable | ||||
| 61 | 6696819 | |||
| Bolt Washer M6 (10 Pcs.) | ||||
| 62 | 949432 | 1.05 | 1.27 | |
| Tank Mark Label (25:1) For Asia,tpe,kor | ||||
| 63 | 6698922 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 64 | 6600047 | |||
| Inner Cap Ass'y | ||||
| 65 | 6685351 | 4.50 | 5.44 | |
| No information available, not orderable | ||||
| 66 | 6698854 | |||
| Tank Cap Packing | ||||
| 67 | 6685179 | 1.15 | 1.39 | |
| Fuel Tank Cap Ass'y (black) Includ.159 | ||||
| 68 | 6698358 | 4.20 | 5.08 | |
| Hex. Socket Hd. Bolt M4x10 (10 Pcs.) Till 12.2017 | ||||
| 69 | 949812 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 70 | 6696766 | |||
| Fuel Pipe (fkm) 3x6x80 | ||||
| 71 | 6698907 | 7.95 | 9.62 | |
| No information available, not orderable | ||||
| 72 | 6685311 | |||
| No information available, not orderable | ||||
| 73 | 6699320 | |||
| Cylinder | ||||
| 74 | 6600083 | 54.59 | 66.05 | |
| Cord Insulation Tube L100 | ||||
| 75 | 6600051 | 1.04 | 1.26 | |
| Cord Insulation Tube L60 | ||||
| 76 | 6699175 | 1.20 | 1.45 | |
| SPARK PLUG CAP | ||||
| 77 | 6696771 | 1.98 | 2.40 | |
| Cord | ||||
| 78 | 6600052 | 1.04 | 1.26 | |
| Hex. Socket Hd. Bolt (w/flange) M4x18 | ||||
| 79 | 6696326 | 1.20 | 1.45 | |
| Metal Fitting Of Plug Cap (a) | ||||
| 80 | 6696772 | 1.20 | 1.45 | |
| No longer available, no replacement | ||||
| 81 | 6698700 | |||
| Ignition Coil Comp. | ||||
| 82 | 6699977 | 26.26 | 31.78 | |
| Cord (a) | ||||
| 83 | 6699948 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 84 | 6696765 | |||
| Circlip | ||||
| 85 | 6685326 | 1.05 | 1.27 | |
| Piston | ||||
| 86 | 6698806 | 13.36 | 16.17 | |
| No longer available, no replacement | ||||
| 87 | 6685331 | |||
| Piston Pin | ||||
| 88 | 6696764 | 1.20 | 1.45 | |
| Crank Worm Ass'y Includ.73-76 | ||||
| 89 | 6698853 | 66.55 | 80.53 | |
| Worm | ||||
| 90 | 6685330 | 4.50 | 5.44 | |
| Oil Seal | ||||
| 91 | 6685329 | 2.10 | 2.54 | |
| Ball Bearing (1) | ||||
| 92 | 6685328 | 3.00 | 3.63 | |
| No information available, not orderable | ||||
| 93 | 6696762 | |||
| Woodruff Key 3x13x4.5 Till B023800 | ||||
| 94 | 6684899 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 95 | 6698386 | |||
| Crank Case | ||||
| 96 | 6696767 | 5.70 | 6.90 | |
| Magneto Sub Ass'y Includ.85-88 | ||||
| 97 | 6600090 | 36.71 | 44.42 | |
| Retaining Ring D4 | ||||
| 98 | 6685336 | 1.05 | 1.27 | |
| Magneto Rotor Comp. | ||||
| 99 | 6600053 | 8.85 | 10.71 | |
| Spring | ||||
| 100 | 6685335 | 1.05 | 1.27 | |
| Starter Pawl | ||||
| 101 | 6685334 | 1.05 | 1.27 | |
| Bolt Washer D7 | ||||
| 102 | 6696880 | 1.05 | 1.27 | |
| Nut | ||||
| 103 | 6696879 | 1.05 | 1.27 | |
| Guide Plate (c) | ||||
| 104A | 6600346 | 1.65 | 2.00 | |
| Screw | ||||
| 105 | 958715 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 121 | 6600086 | |||
| Brake Support Plate | ||||
| 122 | 6696782 | 4.20 | 5.08 | |
| Brake Lever Spring | ||||
| 123 | 6696783 | 1.20 | 1.45 | |
| Brake Handle | ||||
| 124 | 6699972 | 5.10 | 6.17 | |
| No information available, not orderable | ||||
| 125 | 6600080 | |||
| Brake Link Cover | ||||
| 126 | 6696779 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 127 | 6600076 | |||
| Chain Bar Clamp Nut | ||||
| 128 | 6685416 | 1.05 | 1.27 | |
| No longer available, no replacement | ||||
| 129 | 6698986 | |||
| Guide Plate (b) | ||||
| 130 | 6696784 | 2.10 | 2.54 | |
| No information available, not orderable | ||||
| 131 | 6697889 | |||
| No information available, not orderable | ||||
| 132 | 6696995 | |||
| Screw | ||||
| 133 | 958715 | 1.04 | 1.26 | |
| Tapping Screw D3x6 | ||||
| 134 | 696352 | 1.13 | 1.36 | |
| No information available, not orderable | ||||
| 135 | 6600054 | |||
| Brake Link | ||||
| 136 | 6685388 | 4.05 | 4.90 | |
| No information available, not orderable | ||||
| 137 | 6685140 | |||
| Needle Roller D3 | ||||
| 138 | 6685391 | 1.05 | 1.27 | |
| Tapping Screw (w/flange) D4x16 (black) | ||||
| 139 | 305812 | 1.04 | 1.26 | |
| Cleaner Cover | ||||
| 140 | 6699970 | 2.70 | 3.27 | |
| Cleaner Knob | ||||
| 141 | 6699971 | 1.04 | 1.26 | |
| Rear Handle Grip | ||||
| 142 | 6699965 | 1.65 | 2.00 | |
| Trigger Lockout (vermilion) | ||||
| 143 | 6685350 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 144A | 6600341 | |||
| Spring Pin 5x25 | ||||
| 145 | 6685282 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 146A | 6601275 | |||
| No information available, not orderable | ||||
| 147 | 6600082 | |||
| Damper (a) | ||||
| 148 | 6696327 | 4.20 | 5.08 | |
| Spacer bushing | ||||
| 149 | 696314 | 3.45 | 4.17 | |
| Damper Set Bolt | ||||
| 150 | 6685413 | 1.05 | 1.27 | |
| Choke Lever | ||||
| 151 | 6685206 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 152 | 6699964 | |||
| Grommet | ||||
| 153 | 6698787 | 1.80 | 2.18 | |
| Throttle Lever (vermilion) | ||||
| 154 | 6698916 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 155 | 6699974 | |||
| Grommet | ||||
| 156 | 6698787 | 1.80 | 2.18 | |
| Spring Holder | ||||
| 157 | 6698409 | 2.10 | 2.54 | |
| No information available, not orderable | ||||
| 158 | 6699962 | |||
| Antivibration Spring | ||||
| 159 | 6698428 | 2.10 | 2.54 | |
| Fuel Grommet (old 701-72930-20) | ||||
| 160 | 6696167 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 161 | 6699975 | |||
| No information available, not orderable | ||||
| 162 | 6600055 | |||
| Flange Nut M6 | ||||
| 163 | 329934 | 1.73 | 2.09 | |
| No information available, not orderable | ||||
| 164 | 6699963 | |||
| Idle Sponge | ||||
| 165 | 6600056 | 1.05 | 1.27 | |
| Fuel Pipe 2.5x4x90 | ||||
| 166 | 6685267 | 1.15 | 1.39 | |
| Priming Pump Comp. | ||||
| 167 | 6685139 | 5.94 | 7.18 | |
| No information available, not orderable | ||||
| 168 | 6600047 | |||
| Fuel Grommet (a) | ||||
| 169 | 6685308 | 1.05 | 1.27 | |
| Air Vent Valve (b) | ||||
| 170 | 6685370 | 2.10 | 2.54 | |
| Flanged Tapping Screw D5x15 | ||||
| 171 | 6698456 | 1.05 | 1.27 | |
| Spike | ||||
| 172 | 6699973 | 1.80 | 2.18 | |
| Flanged Tapping Screw D5x15 | ||||
| 173 | 6698456 | 1.05 | 1.27 | |
| Chain Catcher | ||||
| 174 | 6699950 | 1.04 | 1.26 | |
| Pump Filter | ||||
| 175A | 6600351 | 2.70 | 3.27 | |
| No information available, not orderable | ||||
| 176 | 6685311 | |||
| Oil Filter Body | ||||
| 177 | 6685310 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 178 | 6696804 | |||
| Ring | ||||
| 179 | 6685407 | 1.05 | 1.27 | |
| Fuel Pipe | ||||
| 180 | 6698715 | 9.75 | 11.80 | |
| Starter Handle Ass'y Includ.184-186 | ||||
| 181 | 6600061 | 2.55 | 3.09 | |
| Rope Stopper | ||||
| 182 | 6699465 | 1.04 | 1.26 | |
| Starter Knob | ||||
| 183 | 6699467 | 1.95 | 2.36 | |
| No information available, not orderable | ||||
| 184 | 6600060 | |||
| No information available, not orderable | ||||
| 185 | 6600068 | |||
| No information available, not orderable | ||||
| 186 | 6600089 | |||
| Set Screw (ns) | ||||
| 187 | 6600062 | 1.04 | 1.26 | |
| Cam Plate (ns) | ||||
| 188 | 6600064 | 1.95 | 2.36 | |
| Reel (ns) | ||||
| 189 | 6600065 | 12.15 | 14.70 | |
| Spiral Spring (ns) | ||||
| 190 | 6600063 | 5.85 | 7.08 | |
| Tapping Screw (w/flange) D5x25 (black) | ||||
| 191 | 305558 | 1.04 | 1.26 | |
| Ring | ||||
| 192 | 6685408 | 1.05 | 1.27 | |
| Front Handle | ||||
| 193 | 6699967 | 6.30 | 7.62 | |
| SPRING COVER | ||||
| 194 | 6698865 | 1.08 | 1.31 | |
| Damper Set Bolt | ||||
| 195 | 6698859 | 1.20 | 1.45 | |
| RECOIL STARTER ASS'Y (NS) NEW SEP | ||||
| 196 | 6699955 | 21.45 | 25.95 | |
| No information available, not orderable | ||||
| 501 | 6685440 | |||
| No information available, not orderable | ||||
| 502 | 6685402 | |||
