Here you will find all available parts and drawings of the 'Hikoki TCS33EB'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

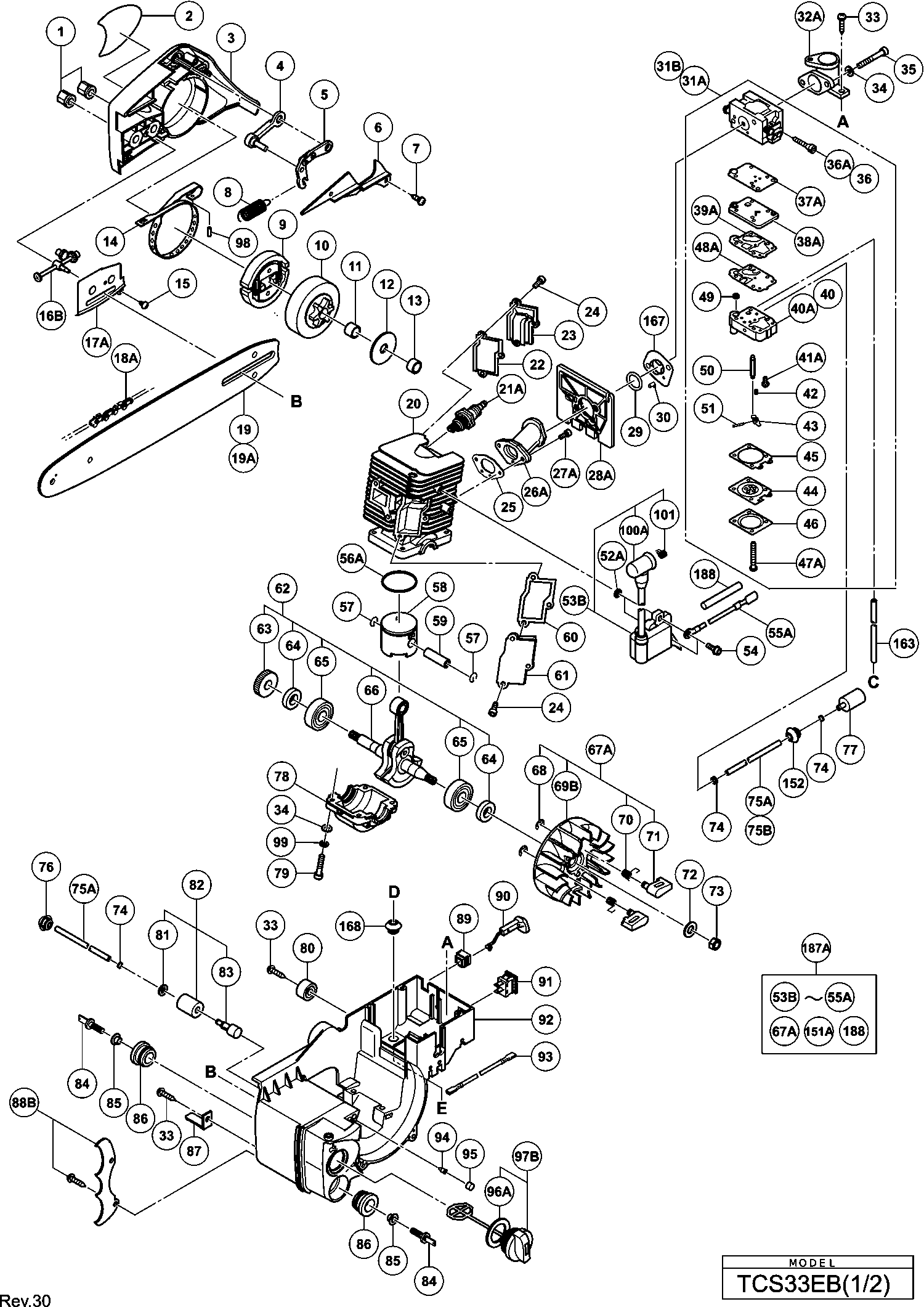

Technical drawing of model Hikoki TCS33EB
Spare parts list of model Hikoki TCS33EB
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| *18A | 6697889 | |||
| Spark Plug Ass'y Bpm6a | ||||
| *21A | 6699317 | 6.76 | 8.18 | |
| No information available, not orderable | ||||
| *501 | 6685440 | |||
| Chain Bar Clamp Nut | ||||
| 1 | 6685416 | 1.05 | 1.27 | |
| Name Plate For Kor | ||||
| 2 | 6696332 | 1.20 | 1.45 | |
| Side Cover Sub | ||||
| 3 | 6685406 | 8.85 | 10.71 | |
| BRAKE SUPPORT ASSEMBLY | ||||
| 4 | 6685387 | 4.05 | 4.90 | |
| Brake Link | ||||
| 5 | 6685388 | 4.05 | 4.90 | |
| Brake Link Cover | ||||
| 6 | 6685392 | 1.05 | 1.27 | |
| Tapping Screw (w/flange) D4x16 (black) | ||||
| 7 | 305812 | 1.04 | 1.26 | |
| Brake Spring | ||||
| 8 | 6685389 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 9 | 6685362 | |||
| Clutch Housing | ||||
| 10 | 6685403 | 10.20 | 12.34 | |
| Needle-roller Bearing | ||||
| 11 | 6685361 | 4.05 | 4.90 | |
| Ring | ||||
| 12 | 6685414 | 1.05 | 1.27 | |
| No longer available, no replacement | ||||
| 13 | 6685360 | |||
| Brake Band | ||||
| 14 | 6685390 | 4.05 | 4.90 | |
| Tapping Screw D3x8 | ||||
| 15 | 6685415 | 1.05 | 1.27 | |
| No longer available, no replacement | ||||
| 16B | 6698986 | |||
| Guide plate | ||||
| 17A | 6685394 | 2.10 | 2.54 | |
| No information available, not orderable | ||||
| 18A | 6697889 | |||
| No information available, not orderable | ||||
| 19 | 6685395 | |||
| No information available, not orderable | ||||
| 19A | 6696994 | |||
| Cylinder | ||||
| 20 | 6685405 | 56.65 | 68.55 | |
| Spark Plug Ass'y Bpmr6a | ||||
| 21A | 6699319 | 8.91 | 10.78 | |
| Spark Plug Ass'y Bpm6a | ||||
| 21A | 6699317 | 6.76 | 8.18 | |
| Gasket | ||||
| 25 | 6685318 | 1.05 | 1.27 | |
| Intake (a) | ||||
| 26A | 6698897 | 6.90 | 8.35 | |
| Seal Lock Hex. Socket Hd. Bolt M4x10 | ||||
| 27A | 6696860 | 1.05 | 1.27 | |
| Carburetor Insulator (a) | ||||
| 28A | 6698898 | 2.10 | 2.54 | |
| O-ring | ||||
| 29 | 6696316 | 1.20 | 1.45 | |
| Pulse Guide | ||||
| 30 | 6685321 | 1.05 | 1.27 | |
| Carburetor (c) Wlb-3 Includ.36a-39a,40a-51 (till | ||||
| 31A | 6685437 | 96.94 | 117.29 | |
| Carburetor Ass'y (e) Wlb-5a Includ.36-51 Since 5. | ||||
| 31B | 6698683 | 96.94 | 117.29 | |
| Cleaner Support | ||||
| 32A | 6696843 | 4.20 | 5.08 | |
| Tapping Screw (w/flange) D5x20 (black) | ||||
| 33 | 302089 | 1.05 | 1.27 | |
| Ring | ||||
| 34 | 6685408 | 1.05 | 1.27 | |
| Hex. Socket Hd. Bolt M5x45 | ||||
| 35 | 6696317 | 1.20 | 1.45 | |
| Idle Adjusting Screw For Wlb-5a | ||||
| 36 | 6699731 | 3.80 | 4.60 | |
| Idle Adjusting Screw Foer Wlb-1a And Wlb-3 | ||||
| 36A | 6696318 | 14.85 | 17.97 | |
| Passage Gasket | ||||
| 37A | 6696319 | 5.11 | 6.19 | |
| Passage Plate | ||||
| 38A | 6696320 | 22.99 | 27.81 | |
| Pump Gasket | ||||
| 39A | 6684692 | 29.19 | 35.32 | |
| No information available, not orderable | ||||
| 40 | 6699645 | |||
| Pump Body For Wlb-1a And Wlb-3 | ||||
| 40A | 6696322 | 27.23 | 32.94 | |
| No longer available, no replacement | ||||
| 41A | 6691305 | |||
| Metering Lever Spring | ||||
| 42 | 6696323 | 4.63 | 5.60 | |
| Control Lever | ||||
| 43 | 6685217 | 3.30 | 3.99 | |
| No longer available, no replacement | ||||
| 44 | 6684690 | |||
| No longer available, no replacement | ||||
| 45 | 6685220 | |||
| Diaphragm Cover-metering | ||||
| 46 | 6685222 | 4.45 | 5.38 | |
| Set Screw | ||||
| 47A | 6684699 | 2.15 | 2.60 | |
| Pump Diaphragm | ||||
| 48A | 6684693 | 8.58 | 10.38 | |
| Inlet Screen | ||||
| 49 | 6684700 | 4.29 | 5.19 | |
| Needle Valve | ||||
| 50 | 6685215 | 5.28 | 6.38 | |
| Hinge Pin | ||||
| 51 | 6685219 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 52A | 6698700 | |||
| No longer available, no replacement | ||||
| 53B | 6699989 | |||
| Hex. Socket Hd. Bolt (w/flange) M4x18 | ||||
| 54 | 6696326 | 1.20 | 1.45 | |
| Cord Since 11.2013 | ||||
| 55A | 6699991 | 1.05 | 1.27 | |
| No longer available, no replacement | ||||
| 56A | 6685331 | |||
| Circlip | ||||
| 57 | 6685326 | 1.05 | 1.27 | |
| Piston | ||||
| 58 | 6685325 | 7.65 | 9.26 | |
| Piston Pin | ||||
| 59 | 6685327 | 1.05 | 1.27 | |
| Crank Worm Ass'y Includ.63-66 | ||||
| 62 | 6685396 | 76.73 | 92.84 | |
| Worm | ||||
| 63 | 6685330 | 4.50 | 5.44 | |
| Oil Seal | ||||
| 64 | 6685329 | 2.10 | 2.54 | |
| Ball Bearing (1) | ||||
| 65 | 6685328 | 3.00 | 3.63 | |
| Crank Shaft | ||||
| 66 | 6685324 | 43.86 | 53.07 | |
| No longer available, no replacement | ||||
| 67A | 6699993 | |||
| Retaining Ring D4 | ||||
| 68 | 6685336 | 1.05 | 1.27 | |
| No longer available, no replacement | ||||
| 69B | 6699990 | |||
| Spring | ||||
| 70 | 6685335 | 1.05 | 1.27 | |
| Starter Pawl | ||||
| 71 | 6685334 | 1.05 | 1.27 | |
| Ring | ||||
| 72 | 6685410 | 1.05 | 1.27 | |
| Nut | ||||
| 73 | 6685337 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 74 | 6685311 | |||
| Fuel Pipe | ||||
| 75A | 6698715 | 9.75 | 11.80 | |
| Fuel Grommet (a) | ||||
| 76 | 6685308 | 1.05 | 1.27 | |
| Pump Filter | ||||
| 77A | 6600351 | 2.70 | 3.27 | |
| Crank Case | ||||
| 78 | 6685339 | 4.50 | 5.44 | |
| Seal Lock Hex. Socket Hd. Bolt M5 | ||||
| 79 | 6685412 | 1.05 | 1.27 | |
| Damper (b) | ||||
| 80 | 6685313 | 2.10 | 2.54 | |
| Ring | ||||
| 81 | 6685407 | 1.05 | 1.27 | |
| Oil Filter Body Ass'y | ||||
| 82 | 6685249 | 2.31 | 2.80 | |
| Oil Filter Body | ||||
| 83 | 6685310 | 1.05 | 1.27 | |
| Damper Set Bolt | ||||
| 84 | 6685413 | 1.05 | 1.27 | |
| Spacer bushing | ||||
| 85 | 696314 | 3.45 | 4.17 | |
| Damper (a) | ||||
| 86 | 6696327 | 4.20 | 5.08 | |
| Chain Catcher | ||||
| 87 | 6685363 | 1.05 | 1.27 | |
| Spike | ||||
| 88B | 6696329 | 10.20 | 12.34 | |
| Choke Rod Rubber | ||||
| 89 | 6685369 | 1.05 | 1.27 | |
| Choke Button | ||||
| 90 | 6685368 | 1.05 | 1.27 | |
| No longer available, no replacement | ||||
| 91A | 6601275 | |||
| Motor Housing | ||||
| 92 | 6685307 | 27.50 | 33.28 | |
| Cord (a) | ||||
| 93 | 6685365 | 1.05 | 1.27 | |
| Air Vent Valve (b) | ||||
| 94 | 6685370 | 2.10 | 2.54 | |
| No information available, not orderable | ||||
| 95 | 6685371 | |||
| Tank Cap Packing | ||||
| 96A | 6685179 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 97A | 6698854 | |||
| Fuel Tank Cap Ass'y (black) Includ.159 | ||||
| 97B | 6698358 | 4.20 | 5.08 | |
| Needle Roller D3 | ||||
| 98 | 6685391 | 1.05 | 1.27 | |
| Spring Washer M5 (10 pieces) | ||||
| 99 | 949454 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 100B | 6601421 | |||
| No information available, not orderable | ||||
| 101 | 6699186 | |||
| Seal Lock Hex. Socket Hd. Bolt M5x16 Since 8.2013 | ||||
| 121A | 6699415 | 1.80 | 2.18 | |
| Exhaust Pipe (b) Since 7.2013 Till 4.2017 For Eur | ||||
| 122B | 6699412 | 1.04 | 1.26 | |
| Gauze Fixing Plate (b) Since 7.2013 Till 4.2017 F | ||||
| 123B | 6699414 | 1.04 | 1.26 | |
| Muffler Gauze (b) Since 7.2013 Till 4.2017 For Eu | ||||
| 124A | 6699413 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 125A | 6699411 | |||
| Muffler Packing | ||||
| 126 | 6685346 | 2.10 | 2.54 | |
| Cleaner Cover | ||||
| 127 | 6685382 | 2.10 | 2.54 | |
| Cleaner Knob | ||||
| 128A | 6696849 | 1.20 | 1.45 | |
| Throttle Rod | ||||
| 129A | 6696846 | 2.10 | 2.54 | |
| Rear Handle Grip | ||||
| 130A | 6698805 | 1.05 | 1.27 | |
| Trigger Lockout (vermilion) | ||||
| 131 | 6685350 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 132A | 6600341 | |||
| Spring Pin 5x25 | ||||
| 133 | 6685282 | 1.15 | 1.39 | |
| Regulator | ||||
| 134 | 6685348 | 1.05 | 1.27 | |
| Inner Cap Ass'y | ||||
| 135A | 6685351 | 4.50 | 5.44 | |
| Front Handle | ||||
| 137A | 6698997 | 9.15 | 11.07 | |
| Cleaner Element | ||||
| 138 | 6685378 | 8.10 | 9.80 | |
| Shutter Plate | ||||
| 139 | 6685381 | 1.05 | 1.27 | |
| Caution Label (d) For Aus | ||||
| 141 | 6696335 | 2.10 | 2.54 | |
| Caution Label (e) | ||||
| 141 | 6696336 | 2.10 | 2.54 | |
| Brake Handle | ||||
| 142 | 6685373 | 5.85 | 7.08 | |
| Brake Lever Spring | ||||
| 143 | 6685374 | 1.05 | 1.27 | |
| Needle Roller | ||||
| 144 | 6685356 | 1.05 | 1.27 | |
| Pump Case | ||||
| 145A | 6699118 | 7.50 | 9.08 | |
| Pump Gear Spring | ||||
| 146 | 6685355 | 1.05 | 1.27 | |
| Pump Gear | ||||
| 147 | 6685354 | 2.10 | 2.54 | |
| No longer available, no replacement | ||||
| 148 | 6685357 | |||
| Pump Cover | ||||
| 149 | 6685359 | 1.05 | 1.27 | |
| Pipe Joint | ||||
| 150 | 6685358 | 1.05 | 1.27 | |
| Air Deflector Since 11.2013 | ||||
| 151A | 6600345 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 152 | 6698931 | |||
| Recoil Starter Includ.173-175,180-182,184 | ||||
| 160B | 6696847 | 20.90 | 25.29 | |
| No information available, not orderable | ||||
| 160C | 6698684 | |||
| Tanaka Label New | ||||
| 161 | 6696339 | 1.20 | 1.45 | |
| Tapping Screw (w/flange) D5x25 (black) | ||||
| 162 | 305558 | 1.04 | 1.26 | |
| INTAKE SPACER | ||||
| 167 | 6698847 | 9.90 | 11.98 | |
| Tank Mark Label (25:1) For Asia,tpe,kor | ||||
| 171 | 6698922 | 1.20 | 1.45 | |
| Set Screw Till 3.2015 | ||||
| 173 | 6699475 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 174 | 6699481 | |||
| No longer available, no replacement | ||||
| 175 | 6699480 | |||
| Set Screw Since 4.2015 | ||||
| 176 | 6699476 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 177 | 6699478 | |||
| Damper Spring Since 4.2015 | ||||
| 178 | 6699479 | 1.65 | 2.00 | |
| Reel Since Tl041791 | ||||
| 179 | 6699485 | 2.40 | 2.90 | |
| Starter Rope | ||||
| 180 | 6699468 | 1.04 | 1.26 | |
| Starter Rope | ||||
| 180 | 6699469 | 1.04 | 1.26 | |
| Rope Stopper | ||||
| 181 | 6699465 | 1.04 | 1.26 | |
| Starter Knob | ||||
| 182 | 6699467 | 1.95 | 2.36 | |
| Starter Handle Ass'y Includ.180-182 | ||||
| 183 | 6699471 | 3.15 | 3.81 | |
| Fan Case | ||||
| 184 | 6699486 | 7.80 | 9.44 | |
| Fan Case | ||||
| 184A | 6699494 | 11.10 | 13.43 | |
| Hex. Socket Hd. Bolt (w/flange) M4x10 Since 7.201 | ||||
| 185 | 329983 | 1.65 | 2.00 | |
| Muffler Set (repair) Includ.121a,122b,123b,124a,1 | ||||
| 186 | 6699408 | 11.40 | 13.79 | |
| Muffler Set (repair) Includ.125a,121a Till 7.2013 | ||||
| 186 | 6699407 | 9.30 | 11.25 | |
| Exhaust (c) Ass'y Includ.121a,122c,123c,124b,125b | ||||
| 186A | 6601475 | 33.41 | 40.43 | |
| No information available, not orderable | ||||
| 187A | 6600344 | |||
| No information available, not orderable | ||||
| 188 | 6600343 | |||
| No information available, not orderable | ||||
| 501 | 6685440 | |||
| No information available, not orderable | ||||
| 502 | 6685402 | |||
| No information available, not orderable | ||||
| 601 | 6696995 | |||
| No information available, not orderable | ||||
| 601A | 6696994 | |||
| Spike | ||||
| 602 | 6696329 | 10.20 | 12.34 | |
