Here you will find all available parts and drawings of the 'Hikoki TCS27EPA'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

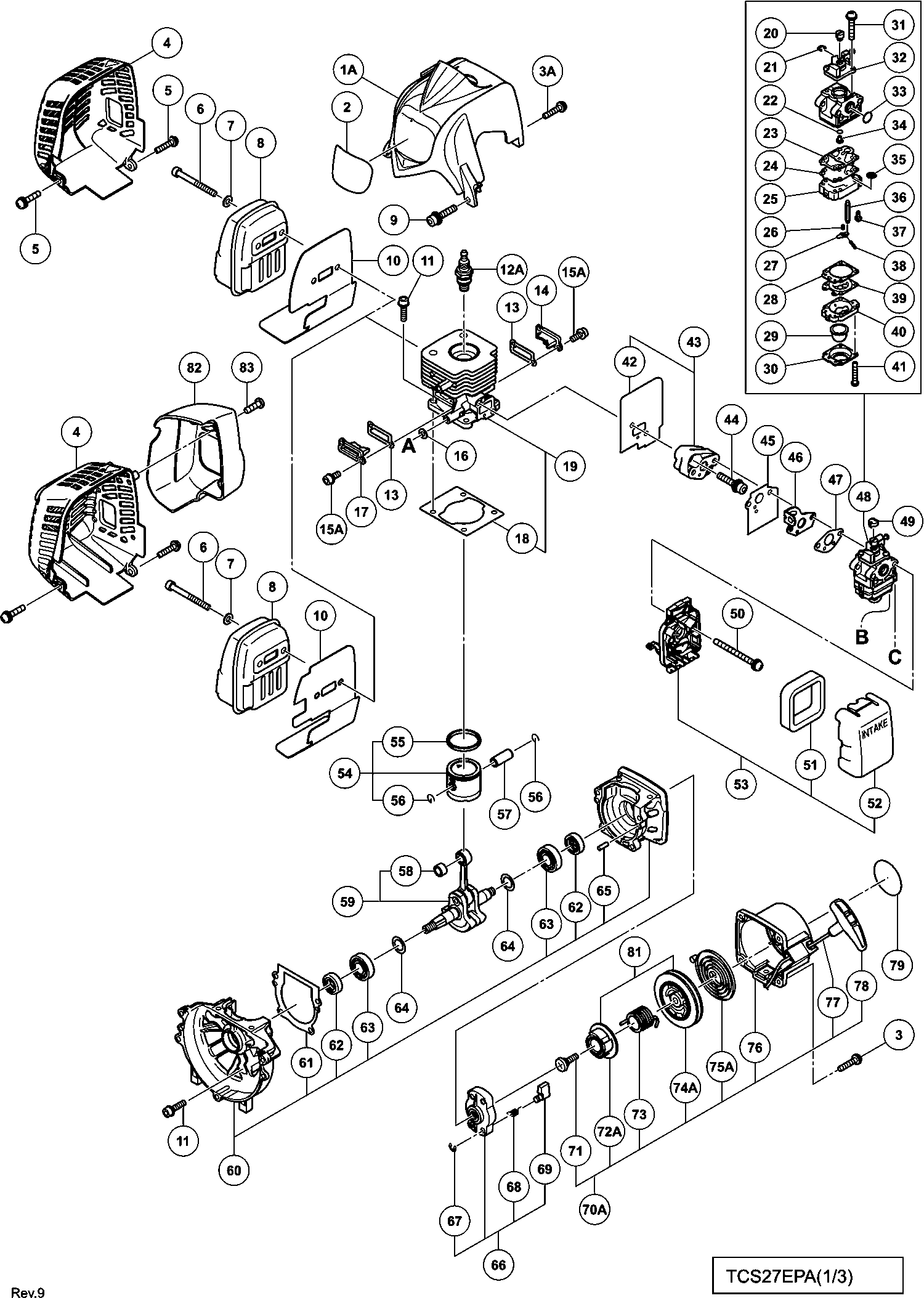

Technical drawing of model Hikoki TCS27EPA
Spare parts list of model Hikoki TCS27EPA
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Cylinder Cover | ||||
| 1A | 6697921 | 6.10 | 7.38 | |
| Tanaka Label New | ||||
| 2 | 6696339 | 1.20 | 1.45 | |
| M4 Screw (black) | ||||
| 3A | 6699780 | 1.04 | 1.26 | |
| Muffler Cover Since 11.2013 | ||||
| 4 | 6600336 | 6.45 | 7.80 | |
| Muffler Cover | ||||
| 4 | 6698493 | 4.20 | 5.08 | |
| Screw 5x16/ps | ||||
| 5 | 6695386 | 1.15 | 1.39 | |
| Hex. Hole Bolt M6x55 | ||||
| 6 | 6684638 | 2.15 | 2.60 | |
| Hex.hole Bolt 6x65 (old 990-51060-653) | ||||
| 6 | 6695067 | 1.15 | 1.39 | |
| Ring | ||||
| 7 | 6684639 | 2.15 | 2.60 | |
| Muffler | ||||
| 8 | 6698477 | 11.85 | 14.34 | |
| Muffler (b) For Europe | ||||
| 8 | 6600461 | 7.50 | 9.08 | |
| Seal Lock Hex. Socket Hd. Bolt M5x30 | ||||
| 9 | 6698950 | 1.20 | 1.45 | |
| Heat Protection Panel Since 11.2013 | ||||
| 10 | 6600324 | 1.35 | 1.63 | |
| Hex. Hole Bolt 5x20s | ||||
| 11 | 6695491 | 1.15 | 1.39 | |
| Spark Plug Ass'y Bmr7a | ||||
| 12A | 6699316 | 8.91 | 10.78 | |
| Spark Plug Ass'y Cj6 Except For Aus,nzl | ||||
| 12A | 6699322 | 2.48 | 2.99 | |
| Cover Packing | ||||
| 13 | 6697684 | 1.04 | 1.26 | |
| Scavenging Cover (a) | ||||
| 14 | 6698484 | 2.10 | 2.54 | |
| Hex. Socket Hd. Bolt (w/sp.washer) M4x12 | ||||
| 15A | 6684595 | 2.15 | 2.60 | |
| Washer T1.6 | ||||
| 16 | 6684600 | 2.15 | 2.60 | |
| Scavenging Cover (b) | ||||
| 17 | 6698485 | 2.10 | 2.54 | |
| Cylinder Gasket | ||||
| 18 | 6697681 | 1.04 | 1.26 | |
| Cylinder Set Pn Includ.18 | ||||
| 19 | 6697679 | 33.58 | 40.63 | |
| Swivel | ||||
| 20 | 6684697 | 6.44 | 7.79 | |
| Stop Ring | ||||
| 21 | 6684696 | 2.15 | 2.60 | |
| O-RING (old 550-25100-20) | ||||
| 22 | 6684695 | 4.29 | 5.19 | |
| Pump Gasket | ||||
| 23 | 6684692 | 29.19 | 35.32 | |
| Pump Diaphragm | ||||
| 24 | 6684693 | 8.58 | 10.38 | |
| No information available, not orderable | ||||
| 25 | 6699942 | |||
| Metering Lever Spring | ||||
| 26 | 6696323 | 4.63 | 5.60 | |
| Control Lever | ||||
| 27 | 6685217 | 3.30 | 3.99 | |
| Diaphragm Gasket | ||||
| 28 | 6684691 | 8.58 | 10.38 | |
| Priming Body | ||||
| 29 | 6684689 | 6.44 | 7.79 | |
| Diaphragm Cover | ||||
| 30 | 6684688 | 8.58 | 10.38 | |
| Throttle Set Screw | ||||
| 31 | 6684698 | 4.29 | 5.19 | |
| Throttle Valve Till B023800 | ||||
| 32 | 6684883 | 18.75 | 22.69 | |
| No information available, not orderable | ||||
| 33 | 6695670 | |||
| No information available, not orderable | ||||
| 34 | 6699943 | |||
| Inlet Screen | ||||
| 35 | 6684700 | 4.29 | 5.19 | |
| Needle Valve | ||||
| 36 | 6685215 | 5.28 | 6.38 | |
| No longer available, no replacement | ||||
| 37 | 6691305 | |||
| Hinge Pin | ||||
| 38 | 6685219 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 39 | 6684690 | |||
| Priming Pump Comp. | ||||
| 40 | 6684687 | 16.34 | 19.77 | |
| Set Screw | ||||
| 41 | 6684699 | 2.15 | 2.60 | |
| Intake Packing | ||||
| 42 | 6697691 | 1.04 | 1.26 | |
| Carburetor Insulator Set Pn Includ.42 | ||||
| 43 | 6698954 | 4.45 | 5.38 | |
| Seal Lock Hex. Socket Bolt (w/washers)m5 | ||||
| 44 | 6698844 | 1.20 | 1.45 | |
| Carburetor Packing | ||||
| 45 | 6684616 | 2.15 | 2.60 | |
| Throttle Wire Fixing Plate | ||||
| 46 | 6684629 | 4.29 | 5.19 | |
| Carburetor Gasket (old 402-0602K-21/6689836) | ||||
| 47 | 6684615 | 2.15 | 2.60 | |
| Carburetor Ass'y Includ.20-41 | ||||
| 48 | 6698960 | 40.24 | 48.69 | |
| No information available, not orderable | ||||
| 49 | 6684628 | |||
| Plus Screw 5x60ws Till Z315900 | ||||
| 50 | 6695431 | 1.15 | 1.39 | |
| Cleaner Element | ||||
| 51 | 6690347 | 4.45 | 5.38 | |
| Air Cleaner Cap | ||||
| 52 | 6690139 | 4.45 | 5.38 | |
| Air Filter | ||||
| 53 | 6698961 | 5.45 | 6.59 | |
| Piston Set Pn Includ.56,57 | ||||
| 54 | 6697683 | 11.05 | 13.37 | |
| Piston Ring | ||||
| 55 | 6686121 | 4.45 | 5.38 | |
| Cir Clip | ||||
| 56 | 6684590 | 2.15 | 2.60 | |
| Piston Pin | ||||
| 57 | 6684591 | 4.29 | 5.19 | |
| Needle Bearing Hk0810b | ||||
| 58 | 6695590 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 59 | 6698969 | |||
| No information available, not orderable | ||||
| 60 | 6697687 | |||
| Crank Case Packing | ||||
| 61 | 6697688 | 1.04 | 1.26 | |
| Oil Seal | ||||
| 62 | 6684607 | 4.29 | 5.19 | |
| Ball Bearing 6001 C3 | ||||
| 63 | 6684608 | 3.80 | 4.60 | |
| Crank Shaft Washer | ||||
| 64 | 6697685 | 1.04 | 1.26 | |
| Knock Pin 4x12 (old 999-05041-203) | ||||
| 65 | 6695521 | 1.15 | 1.39 | |
| Starter Pulley Ass'y For (s) Type Since 7.2012 Fo | ||||
| 66 | 6684681 | 13.20 | 15.97 | |
| D4e Retaining Ring (old 993-55040-001) | ||||
| 67 | 6685101 | 1.15 | 1.39 | |
| Starter Pawl Spring | ||||
| 68 | 6684684 | 4.29 | 5.19 | |
| Starter Pawl | ||||
| 69 | 6684685 | 4.29 | 5.19 | |
| No information available, not orderable | ||||
| 70A | 6699995 | |||
| Set Screw (old 839-03045-20) | ||||
| 71 | 6684679 | 2.15 | 2.60 | |
| Cam Plate For (s) Type Since 9.2013 For Aus | ||||
| 72A | 6699996 | 2.55 | 3.09 | |
| Damper Spring For (s) Type Since 7.2012 For Aus | ||||
| 73 | 6684677 | 8.58 | 10.38 | |
| Starter Rope Reel For (s) Type Since 9.2013 For A | ||||
| 74A | 6699997 | 8.41 | 10.18 | |
| Recoil Spring Till 7.2014 | ||||
| 75A | 6684675 | 11.55 | 13.98 | |
| No information available, not orderable | ||||
| 76 | 6684673 | |||
| Starter Handle | ||||
| 78 | 6684680 | 2.15 | 2.60 | |
| Till 8.2013 For Aus | ||||
| 81 | 6699691 | 6.10 | 7.38 | |
| Muffler Rear Cover Since 11.2013 | ||||
| 82 | 6600335 | 8.55 | 10.35 | |
| Tapping Screw D4 Since 11.2013 | ||||
| 83 | 6600332 | 1.04 | 1.26 | |
| Tapping Screw D4 | ||||
| 101 | 6697190 | 1.04 | 1.26 | |
| Handle (b) | ||||
| 102 | 6696487 | 3.45 | 4.17 | |
| Lock Lever | ||||
| 103 | 6696490 | 1.04 | 1.26 | |
| Lever (1) | ||||
| 104 | 6696488 | 1.04 | 1.26 | |
| Spring | ||||
| 105 | 6698819 | 1.04 | 1.26 | |
| STOP SWITCH (OLD 170-04063-80) | ||||
| 106 | 6685239 | 3.30 | 3.99 | |
| Stop Switch Cord | ||||
| 107 | 6698820 | 2.80 | 3.39 | |
| Protection Tube | ||||
| 108 | 6698822 | 1.04 | 1.26 | |
| Throttle Wire | ||||
| 109 | 6698821 | 4.13 | 4.99 | |
| No information available, not orderable | ||||
| 110 | 6696486 | |||
| Hex.hole Bolt M5x12/s | ||||
| 111 | 6684667 | 2.15 | 2.60 | |
| Hex. Hole Bolt M5x25/s | ||||
| 112 | 6684709 | 2.15 | 2.60 | |
| Anti-vibe Rubber (a) | ||||
| 113 | 6684666 | 4.29 | 5.19 | |
| Pipe Holder (a) | ||||
| 114 | 6698643 | 2.10 | 2.54 | |
| Pipe Holder (b) | ||||
| 115 | 6698644 | 2.10 | 2.54 | |
| Anti-vibe Rubber (b) | ||||
| 116 | 6684665 | 4.29 | 5.19 | |
| Stop Ring C-12 Outer | ||||
| 117 | 6684664 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 118A | 6697922 | |||
| Clutch Drum Comp. | ||||
| 119 | 6684663 | 19.06 | 23.07 | |
| Step Bolt Till F113050 | ||||
| 120 | 6689627 | 1.15 | 1.39 | |
| Ring | ||||
| 121 | 6684648 | 2.15 | 2.60 | |
| Clutch Plate (a) | ||||
| 122 | 6689528 | 1.15 | 1.39 | |
| Clutch Set Since J038101 | ||||
| 123 | 6697655 | 6.76 | 8.18 | |
| No information available, not orderable | ||||
| 124 | 6697619 | |||
| Hex. Nut M8 | ||||
| 125 | 6684612 | 2.15 | 2.60 | |
| Bolt Washer M8 | ||||
| 126 | 6684611 | 2.15 | 2.60 | |
| Hex. Hole Bolt 4x18ws Till H124040 | ||||
| 127 | 6695508 | 1.15 | 1.39 | |
| Ignition Coil Comp. | ||||
| 128 | 6698492 | 22.83 | 27.62 | |
| No information available, not orderable | ||||
| 130 | 6699940 | |||
| No information available, not orderable | ||||
| 131 | 6699939 | |||
| No information available, not orderable | ||||
| 132 | 6699938 | |||
| No information available, not orderable | ||||
| 133 | 6696833 | |||
| Cord | ||||
| 134 | 6698964 | 1.98 | 2.39 | |
| No information available, not orderable | ||||
| 135 | 6697690 | |||
| Magneto Rotor Comp. | ||||
| 136 | 6698396 | 8.70 | 10.53 | |
| No longer available, no replacement | ||||
| 137 | 6684618 | |||
| No longer available, no replacement | ||||
| 138 | 6684880 | |||
| No longer available, no replacement | ||||
| 139A | 6698402 | |||
| No information available, not orderable | ||||
| 140 | 6684625 | |||
| Return Grommet Till 7.2014 | ||||
| 141A | 6697846 | 1.04 | 1.26 | |
| Spacer (1) | ||||
| 142 | 6698496 | 1.05 | 1.27 | |
| Tank | ||||
| 143A | 6600317 | 7.95 | 9.62 | |
| Stand | ||||
| 144 | 6694787 | 3.30 | 3.99 | |
| Flange Bolt | ||||
| 145 | 6696557 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 146 | 6684620 | |||
| Clip,6.3 Dia. | ||||
| 147 | 6684619 | 2.15 | 2.60 | |
| Bolt (w/flange) L27.8 | ||||
| 148 | 6698991 | 1.20 | 1.45 | |
| Anti-vibration Loop Handle Assembly (old 500-37286 | ||||
| 161 | 6696088 | 14.35 | 17.36 | |
| Handle Grip (old 503-3738e-20) | ||||
| 162 | 6691098 | 6.44 | 7.79 | |
| Hex.nut 6 | ||||
| 163 | 6684835 | 2.15 | 2.60 | |
| Ring | ||||
| 164 | 6689681 | 1.15 | 1.39 | |
| Tapping Screw 5x20 | ||||
| 165 | 6695255 | 1.15 | 1.39 | |
| Cap (a) | ||||
| 166 | 6698515 | 2.10 | 2.54 | |
| Level Mark | ||||
| 167 | 6684851 | 2.15 | 2.60 | |
| Level Mark | ||||
| 169 | 6684852 | 2.15 | 2.60 | |
| Main Pipe Comp. | ||||
| 170A | 6699654 | 48.25 | 58.38 | |
| Drive Shaft 1829l | ||||
| 171 | 6689443 | 17.55 | 21.24 | |
| Hanger D24 | ||||
| 172 | 6689277 | 3.30 | 3.99 | |
| Handle Bracket A | ||||
| 173 | 6691134 | 2.31 | 2.80 | |
| Bolt 6x43/p (black) | ||||
| 174 | 6684838 | 2.15 | 2.60 | |
| Oil Adjustment Mark | ||||
| 175 | 6694578 | 1.15 | 1.39 | |
| Oil Tank Cover | ||||
| 176 | 6686138 | 2.31 | 2.80 | |
| No longer available, no replacement | ||||
| 177 | 6699567 | |||
| O-ring P-5 | ||||
| 178 | 6695661 | 1.15 | 1.39 | |
| Push Nut | ||||
| 179 | 6695239 | 1.15 | 1.39 | |
| Step Bolt A | ||||
| 180 | 6689757 | 4.45 | 5.38 | |
| Oil Pump Comp. | ||||
| 181 | 6686487 | 17.09 | 20.68 | |
| No information available, not orderable | ||||
| 182 | 6698965 | |||
| O-ring 1.4 (old 999-67001-413) | ||||
| 183 | 6695656 | 1.15 | 1.39 | |
| Ring | ||||
| 184 | 6695187 | 1.15 | 1.39 | |
| Oil Pump Spring | ||||
| 185 | 6690381 | 1.15 | 1.39 | |
| Oil Pump Piston Comp. (old 073-32304-81/6686607) | ||||
| 186 | 6686608 | 2.31 | 2.80 | |
| O-ring P-15 | ||||
| 187 | 6698966 | 1.04 | 1.26 | |
| Oil Tank Cap Assembly (old 624-32304-92) | ||||
| 188 | 6692050 | 12.05 | 14.58 | |
| No information available, not orderable | ||||
| 189 | 6695458 | |||
| Hex. Hole Bolt 5x22/s | ||||
| 190 | 6695492 | 1.15 | 1.39 | |
| Pinion (1) | ||||
| 192 | 6698967 | 14.19 | 17.17 | |
| Ball Bearing 609 | ||||
| 193 | 6684734 | 8.58 | 10.38 | |
| Ball Bearing 609z St | ||||
| 194 | 6684735 | 8.58 | 10.38 | |
| Stop Ring C-9, Outer | ||||
| 195 | 6695281 | 1.15 | 1.39 | |
| Stop Ring C-24,inner | ||||
| 196 | 6684732 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 197 | 6693248 | |||
| Hex. Hole Bolt 5x10 | ||||
| 198 | 6695042 | 1.15 | 1.39 | |
| Ball Bearing 627 C3 | ||||
| 199 | 6695568 | 5.61 | 6.79 | |
| Cam | ||||
| 200 | 6690428 | 1.15 | 1.39 | |
| Gear (1) | ||||
| 201 | 6698968 | 18.45 | 22.32 | |
| Ball Bearing 638z | ||||
| 202 | 6697603 | 4.63 | 5.60 | |
| Stop Ring C-28,inner | ||||
| 203 | 6684741 | 2.15 | 2.60 | |
| Collar | ||||
| 204 | 6685962 | 3.30 | 3.99 | |
| Sprocket Comp.,3/8 | ||||
| 205 | 6689117 | 36.15 | 43.74 | |
| Flange nut | ||||
| 206 | 6695170 | 1.15 | 1.39 | |
| Side Cover Comp. | ||||
| 207 | 6686038 | 5.11 | 6.19 | |
| Small Screw 4x12ws (old 994-16040-126) | ||||
| 209 | 6695403 | 1.15 | 1.39 | |
| Filter Assembly (old 486-32345-90) | ||||
| 211 | 6690913 | 2.31 | 2.80 | |
| Oil Filter | ||||
| 212 | 6690917 | 1.15 | 1.39 | |
| Ring | ||||
| 213 | 6684661 | 2.15 | 2.60 | |
| Fuel Pipe 3x5x60 | ||||
| 214 | 6692414 | 1.15 | 1.39 | |
| Fuel Pipe 3x5x75 | ||||
| 215 | 6692415 | 1.15 | 1.39 | |
| Banjo, Oil Pump | ||||
| 216 | 6686637 | 1.15 | 1.39 | |
| Oil Pump Adjuster (old 501-32304-21) | ||||
| 217 | 6691066 | 4.45 | 5.38 | |
| Stop Ring E-6 | ||||
| 218 | 6695311 | 1.15 | 1.39 | |
| Oil Mark | ||||
| 219 | 6694576 | 1.15 | 1.39 | |
| Case | ||||
| 220 | 6685793 | 14.35 | 17.36 | |
| Chain Tensioner | ||||
| 221 | 6687063 | 4.45 | 5.38 | |
| Chain Bar Tightening Bolt | ||||
| 222 | 6686803 | 4.45 | 5.38 | |
| Guide Plate | ||||
| 223 | 6697596 | 3.30 | 3.99 | |
| Chain Bar Knock Pin (old 122-32344-21) | ||||
| 224 | 6687130 | 4.45 | 5.38 | |
| No information available, not orderable | ||||
| 225A | 6699679 | |||
| No information available, not orderable | ||||
| 226 | 6686875 | |||
| Chain Bar Clamp Nut (old 121-32600-20) | ||||
| 227 | 6687105 | 1.15 | 1.39 | |
| Combi. Box Spanner 13x19 Minus | ||||
| 501 | 6693809 | 4.45 | 5.38 | |
| No information available, not orderable | ||||
| 502 | 6684766 | |||
| No information available, not orderable | ||||
| 503 | 6684813 | |||
| Guide Bar Cover, 10 | ||||
| 504 | 6694796 | 6.28 | 7.59 | |
| No information available, not orderable | ||||
| 505 | 6692867 | |||
