Here you will find all available parts and drawings of the 'Hikoki TCS-2800S'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

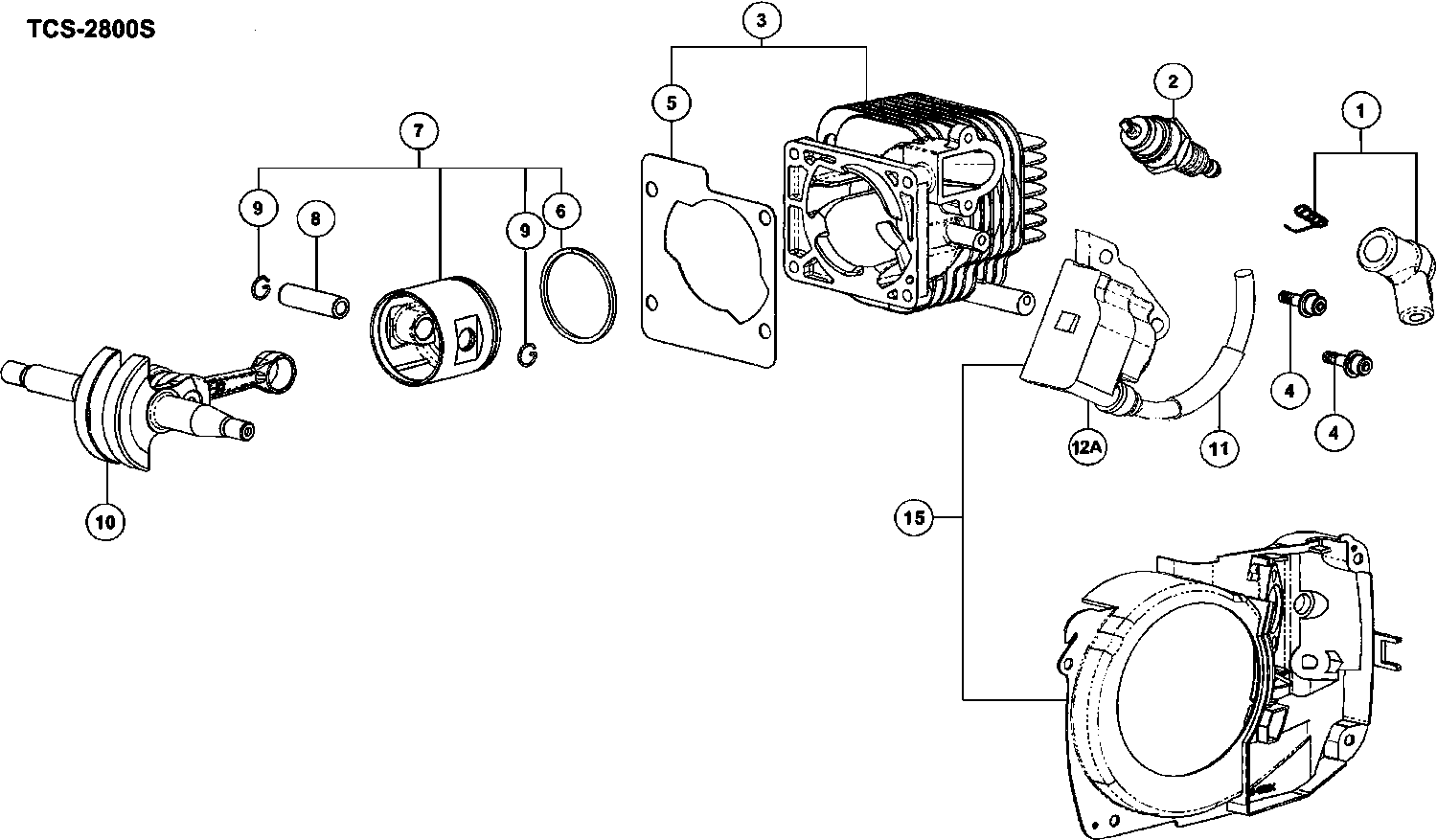

Technical drawing of model Hikoki TCS-2800S

Spare parts list of model Hikoki TCS-2800S

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Spark Plug Cap Ass'y Till G165840
1 6687468 2.31 2.80
Spark Plug Ass'y Cj8y
2 6699325 3.30 3.99
Cylinder Set
3 6685461 50.21 60.76
Hex. Hole Bolt 4x15/ps
4 6684682 2.15 2.60
Cylinder Gasket
5 6685726 1.15 1.39
Piston Ring
6 6686119 4.45 5.38
Piston Set
7 6685881 20.11 24.34
Piston Pin
8 6684591 4.29 5.19
Cir Clip
9 6684590 2.15 2.60
Crank Shaft Comp.
10 6686173 54.30 65.70
Cord Insulator Tube Till G086250
11 6692900 1.15 1.39
Ignition Coil Ass'y Since Tl076511
12A 6601174 25.41 30.75
Ignition Coil Set Pn Till Tl076510
15 6601179 46.29 56.01
Shim S T0.2 (old 071-04063-23)
20 6685098 1.15 1.39
Shim S T0.3 (old 071-04063-24)
20 6685099 1.15 1.39
Shim 0.1
20 6686474 1.15 1.39
Shim 0.4
20 6686475 1.15 1.39
Flywheel Nut
21 6685104 1.15 1.39
Ring
22 6685103 1.15 1.39
Magneto Rotor Set
23 6687378 24.20 29.28
Starter Pawl
24 6693305 1.15 1.39
Starter Pawl Spring
25 6685105 1.15 1.39
D4e Retaining Ring (old 993-55040-001)
26 6685101 1.15 1.39
Clip 4.5
27 6692304 1.15 1.39
Fuel Pipe 2.5x4.5x175
28 6692412 2.31 2.80
Insulator Tube 50l
29 6684597 2.15 2.60
Hex. Hole Bolt 5x16
30 6695046 1.15 1.39
Hex. Hole Bolt 5x16
30A 6695046 1.15 1.39
Ring
31 6685226 1.15 1.39
Hex. Hole Bolt 5x30 Since E092691
32 6695052 1.15 1.39
Flunge Nut 5 Since C026901 Till F024130
33 6695169 1.15 1.39
Crank Case Assy
34 6686526 60.35 73.02
Oil Seal
35 6684607 4.29 5.19
Crank Case Gasket
36 6686703 1.15 1.39
Ball Bearing 6001 C3
37 6684608 3.80 4.60
No information available, not orderable
38 6685095
Hex.hole Bolt 5x22/ws
39 6695514 1.15 1.39
Air Deflector
50 6687328 7.26 8.79
Pipe Holding Grommet (old 581-72000-20)
51 6691466 1.15 1.39
Inlet Manifold Gasket
52 6689872 1.15 1.39
Inletmanifold Spacer
53 6689819 1.15 1.39
No longer available, no replacement
54 6689788
Carb. Fixing Plate
55 6689997 2.31 2.80
No information available, not orderable
56 6690811
Choke Rod Holding Rubber
57 6692587 1.15 1.39
Choke Buttom Comp.
58 6692515 3.30 3.99
Carub. Support Plate
59 6690679 2.31 2.80
Adjuster Cap
60 6687960 2.31 2.80
Idle Grommet
61 6687980 1.15 1.39
U-nut 5
62 6695157 1.15 1.39
Hex. Hole Bolt 4x10s
63 6695484 1.15 1.39
Small Washer 5
64 6684864 2.15 2.60
Screw 5x45
65 6694908 1.15 1.39
Shield Tube Ass'y (old 223-06500-90)
70 6685247 2.31 2.80
Clip D6
71 6685198 1.15 1.39
Ring
72 6684661 2.15 2.60
Oil Filter
73 6690919 1.15 1.39
Oil Filter Body Ass'y
74 6685249 2.31 2.80
No information available, not orderable
75 6685246
Pump Fixing Plate (old 638-72000-20)
76 6692126 1.15 1.39
Priming Pump Comp.
77 6685139 5.94 7.18
Fuel Pipe
78 6692413 2.95 3.57
Fuil Pipe 2.5x4.5x140
79 6692350 1.15 1.39
Fuel Grommet
80 6692422 1.15 1.39
Pump Filter Body
81 6685199 4.45 5.38
No information available, not orderable
82 6691286
Stop Switch Comp.
83 6687504 7.59 9.18
Tank Cap Ass'y
84 6685180 3.30 3.99
Tank Cap Packing
85 6685179 1.15 1.39
Seal Lock Bolt M5x15
86 6685136 1.15 1.39
Engine Case Ass'y
87 6691368 26.16 31.66
Air Vent Valve (b)
88 6685173 2.31 2.80
Air Vent Ass'y
89 6692086 8.58 10.38
Engine Case Cover (old 563-72000-20) New Oct
90 6691380 1.15 1.39
Oil Tank Cap Ass'y
91 6697756 3.80 4.60
OIL TANK CAP PACKING (OLD 6685177)
92 6697888 1.04 1.26
Recoil Starter Assembly (old 756-01761-90)
100 6692912 26.16 31.66
Set Screw (old 839-03045-20)
101 6684679 2.15 2.60
Damper Spring Since H081351
102 6685183 4.45 5.38
Starter Pulley (Old 774-01761-20)
103 6685184 4.95 5.99
Rope Since H081351
104 6685186 2.31 2.80
Spring Case Assembly (Old 778-01761-90)
105 6685185 9.24 11.18
Starter Handle
106 6685188 2.31 2.80
Fan Housing
107 6686953 22.24 26.91
Tapping Screw D4.5x20 Till C026900
108 6685191 1.15 1.39
Cam Plate (old 759-01761-20)
109 6692936 3.30 3.99
Plate
110 6685189 1.15 1.39
Cleaner Element
111 6690065 2.31 2.80
Cleaner Cover
112 6686315 3.30 3.99
Cleaner Knob
113 6685228 2.31 2.80
Carburetor Ass'y
120 6690654 100.43 121.51
Inlet Screen
121 6684700 4.29 5.19
Pump Cover
122 6691438 13.20 15.97
Screw
123 6685210 1.15 1.39
Pump Gasket
124 6685212 2.31 2.80
Pump Diaphragm
125 6685213 4.45 5.38
Control Lever
126 6685217 3.30 3.99
Hinge Pin Set Screw
127 6685218 2.31 2.80
Valve Spring
128 6690873 4.45 5.38
Hinge Pin
129 6685219 1.15 1.39
Diaphragm Cover-metering
130 6685222 4.45 5.38
Metering Diaphragm Comp. Till B027700
131 6690827 11.71 14.17
No longer available, no replacement
132 6685220
Needle Valve
133 6685215 5.28 6.38
Idle Adjust Spring
134 6690766 2.31 2.80
Idle Adjust Screw
135 6690736 3.30 3.99
Set Screw
136 6685223 1.15 1.39
Low Adjust Screw
137 6690724 5.85 7.08
High/low Adjust Spring (old 623-25032-20)
138 6692048 2.31 2.80
High Adjust Screw
139 6690694 5.25 6.35
High Adjustment Spring
140 6690897 3.30 3.99
Tapping Screw D4.5x14
150 6685152 1.15 1.39
Oil Pump Cover
151 6686765 2.31 2.80
Oil Pipe (a)
152 6685150 2.31 2.80
Screw Gear
153 6685151 9.24 11.18
Air Vent Sponge
154 6691401 1.15 1.39
Oil Pump Case Ass'y
155 6685135 19.06 23.07
Pump Gear Comp.
156 6685132 11.71 14.17
Pump Gear Spring
157 6685131 1.15 1.39
Oil Pump Adjust Cap
158 6685130 1.15 1.39
Oil Pump Case Comp.
159 6685134 13.20 15.97
Adjuster Spring
160 6685129 1.15 1.39
Ring
161 6685070 1.15 1.39
Oil Pump Adjuster
162 6685128 1.15 1.39
Machine Screw M3x8
163 6685133 1.15 1.39
Muffler Set
164 6692450 18.60 22.51
Oil Adjust Grommet
165 6690959 1.15 1.39
Ring
166 6685149 1.15 1.39
Muffler Gasket
167 6692734 1.15 1.39
Hex. Hole Bolt 5x40
168 6695054 1.15 1.39
Ring
169 6684661 2.15 2.60
Fuel Pipe Till G086250
170 6685154 1.15 1.39
Chain Catcher
171 6685155 1.15 1.39
Muffler Cover
172 6692753 4.95 5.99
Tapping Screw D4.5x14
173 6685152 1.15 1.39
Tapping Screw D5x14 Since C026901 Till F024130
174 6685275 1.15 1.39
Guide Plate A
175 6696077 3.30 3.99
Tapping Screw D4x10
176 6685161 1.15 1.39
Nut Till Z063200
200 6685166 2.31 2.80
Clutch Comp.
201 6688560 14.38 17.39
Needle Bearing
202 6685143 4.45 5.38
Clutch Housing Comp.
203 6689037 15.88 19.21
Ring
204 6689635 3.30 3.99
No longer available, no replacement
205 6689641
Tapping Screw D4x10
206 6685161 1.15 1.39
Side Case Comp.
207 6686113 9.90 11.98
Guide Plate B
208 6690765 2.31 2.80
Tention Adjust Bolt Comp.
209 6687074 7.10 8.59
Gear (a)
210 6685168 2.31 2.80
Side Case Ass'y
211 6686114 17.33 20.96
Crank Shaft Collar 6 (old 511-72000-20)
212 6691198 2.31 2.80
Tapping Screw 5x35
250 6695107 1.15 1.39
Cleaner Fixing Collar
251 6690805 1.15 1.39
Tapping Screw 5x40
252 6695108 1.15 1.39
Damper Collar A
253 6688480 1.15 1.39
Damper A (old 219-32750-20)
254 6688117 1.15 1.39
Tapping Screw D5x14 Since C026901 Till F024130
255 6685275 1.15 1.39
Tapping Screw D5x16
256 6685074 1.15 1.39
Rear Handle B
257 6685653 4.45 5.38
Trigger Lockout Vermilion
258 6688363 1.15 1.39
Throttle Lever
259 6686395 2.31 2.80
Throttle Lever Spring
260 6686416 2.31 2.80
Rear Handle A (old 010-72000-20)
261 6685628 4.45 5.38
Tapping Screw D4x15
262 6685148 1.15 1.39
Front Handle
263 6688088 6.60 7.99
No information available, not orderable
264 6693875
Damper Comp.
265 6688262 4.45 5.38
Hand Guard (Old 805-72000-20) New
266 6693467 4.45 5.38
Hand Guard Shaft
267 6693446 1.15 1.39
Hand Guard Spring
268 6693449 1.05 1.27
Ring
269 6695194 1.15 1.39
D4e Retaining Ring (old 993-55040-001)
270 6685101 1.15 1.39
Combi Box Spanner 10/19mm
501 6685257 3.30 3.99
Guide Bar Cover, 10
502 6694796 6.28 7.59
No information available, not orderable
504A 6685401
No information available, not orderable
505 6697852
No information available, not orderable
506 6685159
No information available, not orderable
508 6697853
No information available, not orderable
509 6686878
No information available, not orderable
510 6685160
No information available, not orderable
511 6697854
No information available, not orderable
512 6697889
No information available, not orderable
513 6686854
Chain Cover 14"
514 6685256 6.44 7.79
