Here you will find all available parts and drawings of the 'Hikoki TCP-210'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

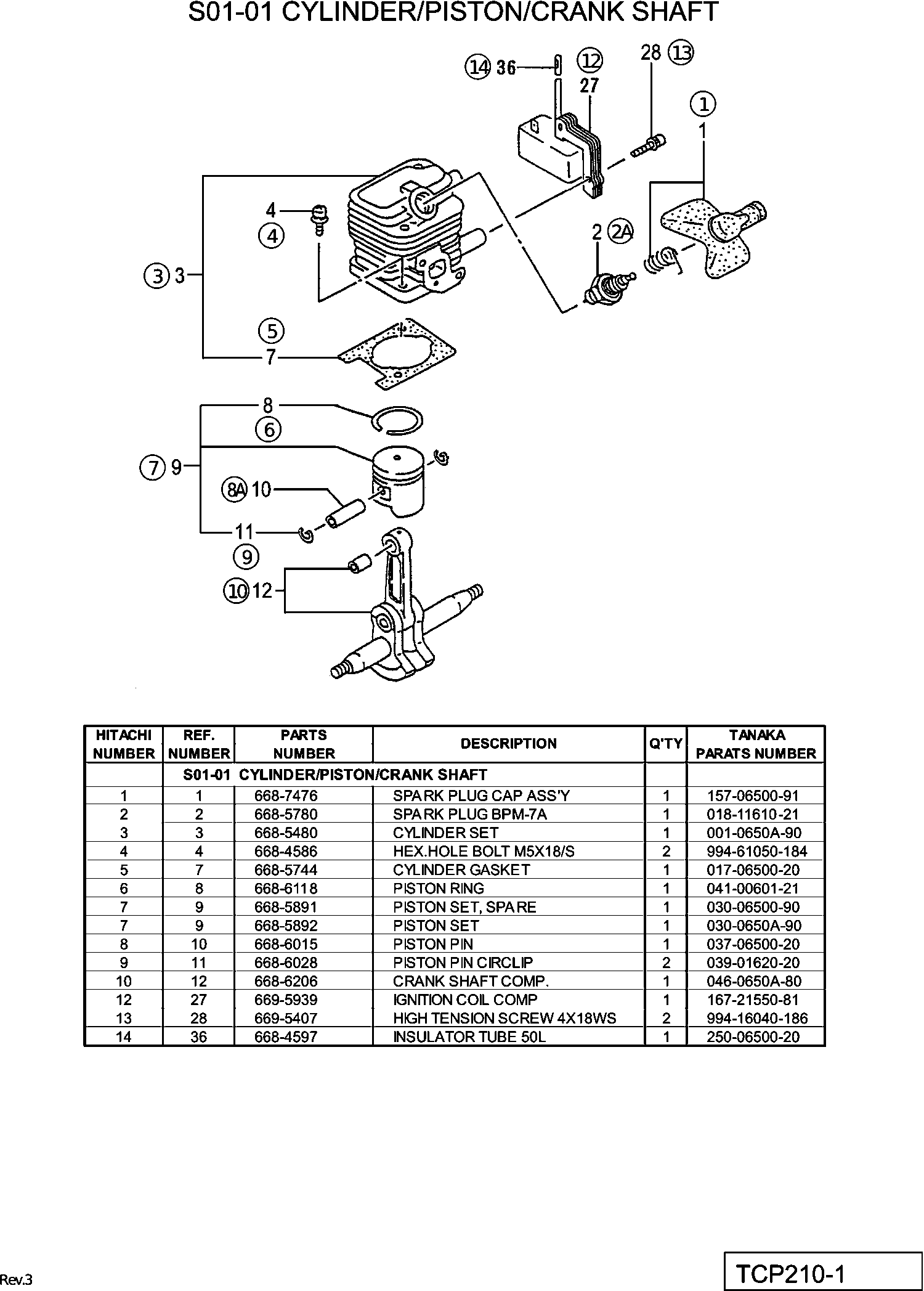

Technical drawing of model Hikoki TCP-210
Spare parts list of model Hikoki TCP-210
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Spark Plug Cap | ||||
| 1 | 6687476 | 4.45 | 5.38 | |
| Spark Plug Ass'y Bpm7a For South America | ||||
| 2A | 6699318 | 6.76 | 8.18 | |
| Cylinder Ass'y | ||||
| 3 | 6685480 | 40.24 | 48.69 | |
| Hex.hole Bolt M5x18/s | ||||
| 4 | 6684586 | 2.15 | 2.60 | |
| Cylinder Gasket | ||||
| 5 | 6685744 | 1.15 | 1.39 | |
| Piston Ring | ||||
| 6 | 6686118 | 4.45 | 5.38 | |
| Piston Set Includ.16,17 | ||||
| 7 | 6685892 | 20.11 | 24.34 | |
| Piston Pin | ||||
| 8A | 6696944 | 3.33 | 4.02 | |
| Piston Pin Circlip (old 039-01620-20) | ||||
| 9 | 6686028 | 1.15 | 1.39 | |
| Crank Shaft Comp. | ||||
| 10 | 6686206 | 80.31 | 97.18 | |
| Ignition Coil Comp. | ||||
| 12 | 6695939 | 38.26 | 46.30 | |
| High Tension Screw 4x18ws Since H124041 | ||||
| 13 | 6695407 | 1.15 | 1.39 | |
| Insulator Tube 50l | ||||
| 14 | 6684597 | 2.15 | 2.60 | |
| Crank Case Ass'y | ||||
| 31 | 6686576 | 40.24 | 48.69 | |
| Crank Case Gasket | ||||
| 32 | 6686720 | 1.15 | 1.39 | |
| Oil Seal | ||||
| 33 | 6684607 | 4.29 | 5.19 | |
| No information available, not orderable | ||||
| 34 | 6695535 | |||
| Gear Shaft Shim 0.20 | ||||
| 35 | 6684604 | 2.15 | 2.60 | |
| Gear Shaft Shim 0.30 | ||||
| 35 | 6684605 | 2.15 | 2.60 | |
| Gear shaft shim 0.10 (old 330-00200-21) | ||||
| 35 | 6689177 | 1.15 | 1.39 | |
| Gear shaft shim 0.15 (old 330-00200-22) | ||||
| 35 | 6689178 | 1.15 | 1.39 | |
| Anti-vibe Rubber | ||||
| 36 | 6691822 | 1.15 | 1.39 | |
| Hex. Socket Hd. Bolt M5x30 S | ||||
| 37 | 6684786 | 2.15 | 2.60 | |
| Magneto Rotor Comp. | ||||
| 38 | 6687389 | 26.16 | 31.66 | |
| Bolt Washer M8 | ||||
| 39 | 6684611 | 2.15 | 2.60 | |
| Ring | ||||
| 40 | 6684971 | 1.04 | 1.26 | |
| Hex. Nut M8 | ||||
| 41 | 6684612 | 2.15 | 2.60 | |
| Intake Pipe Gasket | ||||
| 61 | 6689891 | 1.15 | 1.39 | |
| Carb. Insulator Set,spare | ||||
| 62 | 6689966 | 6.93 | 8.38 | |
| Machine Screw (w/washers) M5x25 | ||||
| 63 | 317751 | 2.70 | 3.27 | |
| Carburetor Gasket | ||||
| 64 | 6689839 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 65 | 6695670 | |||
| Cleaner Body Comp. | ||||
| 66 | 6690119 | 4.45 | 5.38 | |
| Collar 7.5 | ||||
| 67 | 6690804 | 1.15 | 1.39 | |
| Choke Valve Till B028600 | ||||
| 68 | 6691272 | 2.31 | 2.80 | |
| No information available, not orderable | ||||
| 69 | 6684658 | |||
| Blow Over Check Board | ||||
| 70 | 6690843 | 1.15 | 1.39 | |
| S.washer 5 | ||||
| 71 | 6684662 | 2.15 | 2.60 | |
| Screw M5x60 | ||||
| 72 | 6684660 | 2.15 | 2.60 | |
| Cleaner Sponge | ||||
| 73 | 6690364 | 1.15 | 1.39 | |
| Cleaner Cover | ||||
| 74 | 6690415 | 5.28 | 6.38 | |
| Special Screw | ||||
| 75 | 6689737 | 1.15 | 1.39 | |
| Carburetor Set Wyl81 Since B033801 | ||||
| 76 | 6690483 | 54.30 | 65.70 | |
| Fuel Pipe 3x5x135 Till R078200 | ||||
| 77 | 6692417 | 1.15 | 1.39 | |
| Shield Tube Ass'y (old 223-06500-90) | ||||
| 78 | 6685247 | 2.31 | 2.80 | |
| Clip,6.3 Dia. | ||||
| 79 | 6684619 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 80 | 6684620 | |||
| Fuel Tank Since V169301 | ||||
| 82 | 6691567 | 10.23 | 12.37 | |
| No longer available, no replacement | ||||
| 83 | 6691768 | |||
| Collar 5.8 Till G103930 | ||||
| 84 | 6692244 | 1.15 | 1.39 | |
| Hex. Hole Bolt 5x18ps | ||||
| 85 | 6695505 | 1.15 | 1.39 | |
| Air Vent Assembly (old 564-06611-90) | ||||
| 86 | 6691389 | 10.23 | 12.37 | |
| Air Vent Valve Ass'y For Aus | ||||
| 88 | 6692171 | 4.95 | 5.99 | |
| No information available, not orderable | ||||
| 89 | 6692279 | |||
| No information available, not orderable | ||||
| 90 | 6684628 | |||
| No information available, not orderable | ||||
| 91 | 6684625 | |||
| Muffler Protector | ||||
| 101 | 6692796 | 6.28 | 7.59 | |
| Muffler Gasket | ||||
| 102 | 6692744 | 1.15 | 1.39 | |
| Heat Shield | ||||
| 103 | 6687252 | 2.31 | 2.80 | |
| No longer available, no replacement | ||||
| 104 | 6692571 | |||
| Ring | ||||
| 105 | 6684661 | 2.15 | 2.60 | |
| Hex. Socket Hd. Bolt M5x50 | ||||
| 106 | 6685114 | 1.15 | 1.39 | |
| Muffler Special Gasket (old 751-04200-20) | ||||
| 107 | 6692883 | 1.15 | 1.39 | |
| Tail Pipe Comp. | ||||
| 108 | 6692661 | 8.91 | 10.78 | |
| Ring | ||||
| 109 | 6685109 | 1.15 | 1.39 | |
| Tapping Screw D4.5x16 | ||||
| 110 | 6684636 | 2.15 | 2.60 | |
| Bolt 4x12ps | ||||
| 111 | 6695441 | 1.15 | 1.39 | |
| Fan Housing | ||||
| 131 | 6687012 | 16.79 | 20.31 | |
| Recoil Spring Till 7.2014 | ||||
| 132 | 6684675 | 11.55 | 13.98 | |
| Starter Rope Reel | ||||
| 133 | 6693066 | 3.30 | 3.99 | |
| Ring | ||||
| 134 | 6693422 | 1.15 | 1.39 | |
| Set Screw Till 7.2014 | ||||
| 135 | 6693633 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 136 | 6693405 | |||
| Grommet | ||||
| 137 | 6688050 | 1.15 | 1.39 | |
| Rope Till 7.2014 | ||||
| 138 | 6693168 | 2.31 | 2.80 | |
| Starter Handle | ||||
| 139 | 6693237 | 1.15 | 1.39 | |
| Screw 4x16/ps | ||||
| 140 | 6695374 | 1.15 | 1.39 | |
| Starter Pawl Spring | ||||
| 141 | 6684684 | 4.29 | 5.19 | |
| Starter Pawl (old 788-06500-20) | ||||
| 142 | 6693319 | 2.31 | 2.80 | |
| Throttle Set Screw | ||||
| 162 | 6684698 | 4.29 | 5.19 | |
| Swivel | ||||
| 163 | 6684697 | 6.44 | 7.79 | |
| Stop Ring | ||||
| 164 | 6684696 | 2.15 | 2.60 | |
| Throttle Valve Complete (old 488-25146-80) | ||||
| 165 | 6690935 | 20.11 | 24.34 | |
| O-RING (old 550-25100-20) | ||||
| 166 | 6684695 | 4.29 | 5.19 | |
| Main Jet #41.5 Till U100576 For Europe | ||||
| 167 | 6691885 | 5.11 | 6.19 | |
| Main Jet #40 Till B023800 | ||||
| 167 | 6691845 | 4.45 | 5.38 | |
| Pump Gasket (old 577-25100-20) | ||||
| 168 | 6691457 | 7.10 | 8.59 | |
| Pump Diaphragm | ||||
| 169 | 6684693 | 8.58 | 10.38 | |
| Pump Plate | ||||
| 170 | 6691242 | 2.31 | 2.80 | |
| Circuit Plate | ||||
| 171 | 6691234 | 3.30 | 3.99 | |
| Inlet Screen | ||||
| 172 | 6684700 | 4.29 | 5.19 | |
| Pump Body Comp. Till U100576 | ||||
| 173 | 6691432 | 34.19 | 41.37 | |
| No longer available, no replacement | ||||
| 174 | 6685220 | |||
| No longer available, no replacement | ||||
| 175 | 6690827 | |||
| Diaphragm Cover-metering | ||||
| 176 | 6685222 | 4.45 | 5.38 | |
| Set Screw | ||||
| 177 | 6691312 | 1.15 | 1.39 | |
| End-plate | ||||
| 191 | 6688639 | 34.19 | 41.37 | |
| Handle A | ||||
| 193 | 6686732 | 19.36 | 23.43 | |
| Hex. Hole Bolt 5x25 | ||||
| 194 | 6695051 | 1.15 | 1.39 | |
| Ring | ||||
| 195 | 6689684 | 2.31 | 2.80 | |
| Flange nut | ||||
| 196 | 6695171 | 1.15 | 1.39 | |
| Coupling Flange (old 333-0650a-20) New | ||||
| 197 | 6689247 | 5.78 | 6.99 | |
| No information available, not orderable | ||||
| 198 | 6695358 | |||
| Throttle Wire Comp. | ||||
| 199 | 6693909 | 4.45 | 5.38 | |
| Throttle Lever, 16 Dia. | ||||
| 200 | 6693683 | 5.11 | 6.19 | |
| End Plate A | ||||
| 221 | 6688640 | 34.19 | 41.37 | |
| O-ring G140 | ||||
| 222 | 6695688 | 4.45 | 5.38 | |
| Handle A | ||||
| 223 | 6686732 | 19.36 | 23.43 | |
| No information available, not orderable | ||||
| 224 | 6694976 | |||
| Ring | ||||
| 225 | 6689684 | 2.31 | 2.80 | |
| Flange nut | ||||
| 226 | 6695171 | 1.15 | 1.39 | |
| Coupling Flange (old 333-0650a-20) New | ||||
| 227 | 6689247 | 5.78 | 6.99 | |
| No information available, not orderable | ||||
| 228 | 6695337 | |||
| Throttle Wire Comp. | ||||
| 229 | 6693909 | 4.45 | 5.38 | |
| Throttle Lever, 16 Dia. | ||||
| 230 | 6693683 | 5.11 | 6.19 | |
| No information available, not orderable | ||||
| 251 | 6689179 | |||
| Volute Chamber Gasket A | ||||
| 256 | 6689039 | 4.95 | 5.99 | |
| Tapping Bolt 8x40p | ||||
| 260 | 6695517 | 3.00 | 3.63 | |
| No information available, not orderable | ||||
| 261 | 6695440 | |||
| Impeller Shaft Shim A 0.3 | ||||
| 265 | 6685978 | 2.31 | 2.80 | |
| Casing A | ||||
| 281 | 6689180 | 56.26 | 68.08 | |
| Volute Chamber A | ||||
| 282 | 6689002 | 24.20 | 29.28 | |
| Impeller A (old 031-31249-20) | ||||
| 283 | 6685958 | 24.20 | 29.28 | |
| No information available, not orderable | ||||
| 284 | 6689132 | |||
| No information available, not orderable | ||||
| 285 | 6687496 | |||
| Volute Chamber Gasket A | ||||
| 286 | 6689039 | 4.95 | 5.99 | |
| Suction Plate Packing (old 350-31249-80) | ||||
| 287 | 6689535 | 11.55 | 13.98 | |
| Priming Plug Ass'y | ||||
| 288 | 6689660 | 13.36 | 16.17 | |
| Flange Bolt 8x35 | ||||
| 290 | 6695480 | 1.15 | 1.39 | |
| Flange Bolt 6x16 | ||||
| 291 | 6695477 | 1.15 | 1.39 | |
| Water Coupling Ass'y A | ||||
| 292 | 6686258 | 14.06 | 17.02 | |
| Coupling Packing | ||||
| 293 | 6686340 | 3.30 | 3.99 | |
| Impeller Shaft Shim A 0.3 | ||||
| 294 | 6685978 | 2.31 | 2.80 | |
| Foundation A (old 080-31249-20) | ||||
| 311 | 6686629 | 28.14 | 34.05 | |
| No longer available, no replacement | ||||
| 312 | 6689059 | |||
| Tapping Screw 5x14 Till Y081575 | ||||
| 313 | 6695260 | 2.31 | 2.80 | |
| Tapping Screw 5x14 | ||||
| 313 | 6695251 | 1.15 | 1.39 | |
| Wire Band 33 | ||||
| 314 | 6687218 | 1.15 | 1.39 | |
| Filter Comp. A | ||||
| 315A | 6686782 | 7.59 | 9.18 | |
| No information available, not orderable | ||||
| 316 | 6687937 | |||
| Combi Box Spanner 13x19 Plus | ||||
| 317 | 6684979 | 4.29 | 5.19 | |
