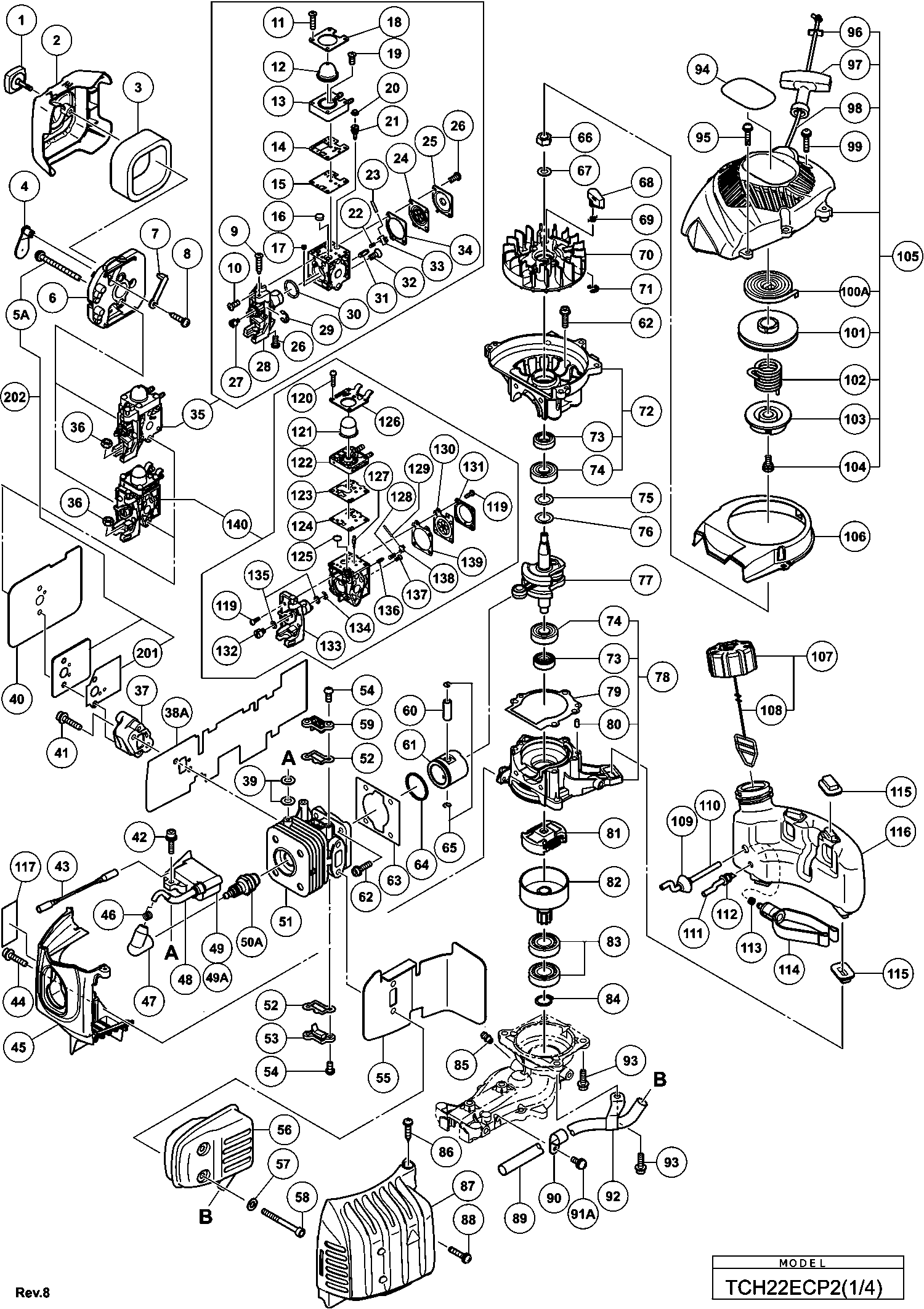

Technical drawing of model Hikoki TCH22ECP2
Spare parts list of model Hikoki TCH22ECP2
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| *110 | 6698873 | |||
| Tank | ||||
| *116 | 6698613 | 5.70 | 6.90 | |
| NYLON NUT M6 | ||||
| *163 | 6698766 | 1.00 | 1.21 | |
| Ring | ||||
| *164 | 6684639 | 2.15 | 2.60 | |
| U-nut M5 For 780mm Silver Color Blade | ||||
| *165 | 6699108 | 1.65 | 2.00 | |
| Flange nut | ||||
| *165A | 6695170 | 1.15 | 1.39 | |
| For Silver Color Blade | ||||
| *174A | 6600410 | 77.00 | 93.17 | |
| Washer M7 For 780mm Silver Color Blade | ||||
| *179 | 6699111 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| *179A | 6687187 | |||
| Shoulder Button Bolt M5x25 For 780mm Silver Color | ||||
| *180 | 6699109 | 1.65 | 2.00 | |
| Bolt | ||||
| *180A | 6687158 | 1.15 | 1.39 | |
| Blade Guide (620mm) For Silver Color Blade | ||||
| *196 | 6600012 | 9.45 | 11.43 | |
| Hedge Trimmer Blade (d) 780mm Since 11.2014 For S | ||||
| *197 | 6600016 | 22.83 | 27.62 | |
| Hedge Trimmer Blade (c) 620mm Since 11.2014 For S | ||||
| *197 | 6600014 | 22.83 | 27.62 | |
| Blade Liner For 780mm | ||||
| *198 | 6600361 | 5.10 | 6.17 | |
| Blade Liner | ||||
| *198 | 6600360 | 4.35 | 5.26 | |
| Washer (b) | ||||
| *199 | 6699112 | 1.04 | 1.26 | |
| Cover Fixing Bolt Comp. | ||||
| 1 | 6698730 | 3.15 | 3.81 | |
| No longer available, no replacement | ||||
| 2 | 6698609 | |||
| Cleaner Sponge | ||||
| 3 | 6690365 | 1.15 | 1.39 | |
| Choke Valve | ||||
| 4 | 6698608 | 1.20 | 1.45 | |
| Machine Screw (w/washers) M5x65 (black) | ||||
| 5A | 312440 | 1.05 | 1.27 | |
| Cleaner Body | ||||
| 6 | 6698606 | 2.10 | 2.54 | |
| Choke Handle | ||||
| 7 | 6698607 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 8 | 309470 | |||
| No information available, not orderable | ||||
| 9 | 6699087 | |||
| Set Screw (b) Till 9.2015 For Europe,(till 7.2016 | ||||
| 10 | 6699088 | 1.04 | 1.26 | |
| Set Screw (d) Till 9.2015 For Europe,(till 7.2016 | ||||
| 11 | 6699100 | 1.05 | 1.27 | |
| No longer available, no replacement | ||||
| 12 | 6699098 | |||
| Primer Base Till 9.2015 For Europe,(till 7.2016 F | ||||
| 13 | 6699097 | 28.19 | 34.11 | |
| Pump Gasket Till 9.2015 For Europe,(till 7.2016 F | ||||
| 14 | 6699096 | 4.35 | 5.26 | |
| No information available, not orderable | ||||
| 15 | 6699095 | |||
| Strainer Till 9.2015 For Europe,(till 7.2016 For | ||||
| 16 | 6699080 | 1.50 | 1.82 | |
| Guide Pin Roller Till 9.2015 For Europe,(till 7.2 | ||||
| 17 | 6699103 | 2.55 | 3.09 | |
| No information available, not orderable | ||||
| 18 | 6699099 | |||
| No information available, not orderable | ||||
| 19 | 6699101 | |||
| Ball Plug Retainer Till 9.2015 For Europe,(till 7 | ||||
| 20 | 6699104 | 2.55 | 3.09 | |
| No information available, not orderable | ||||
| 21 | 6699105 | |||
| Metering Lever Spring Till 9.2015 For Europe,(til | ||||
| 22 | 6699083 | 1.50 | 1.82 | |
| Pin | ||||
| 23 | 6699082 | 1.05 | 1.27 | |
| Metering Diaphragm Till 9.2015 For Europe,(till 7 | ||||
| 24 | 6699091 | 8.70 | 10.53 | |
| Metering Cover Till 9.2015 For Europe,(till 7.201 | ||||
| 25 | 6699093 | 6.15 | 7.44 | |
| Set Screw (c) | ||||
| 26 | 6699094 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 27 | 6699089 | |||
| Rotor Cover Till 9.2015 For Europe,(till 7.2016 F | ||||
| 28 | 6699086 | 42.08 | 50.91 | |
| Retaining Ring (e-type) For D2.5 Shaft Till 9.201 | ||||
| 29 | 6699090 | 1.04 | 1.26 | |
| O-ring | ||||
| 30 | 6699102 | 5.25 | 6.35 | |
| Inlet Needle Valve | ||||
| 31 | 6699081 | 7.05 | 8.53 | |
| Set Screw (a) Till 9.2015 For Europe,(till 7.2016 | ||||
| 32 | 6699085 | 1.04 | 1.26 | |
| Metering Lever | ||||
| 33 | 6699084 | 1.65 | 2.00 | |
| Metering Gasket Till 9.2015 For Europe,(till 7.20 | ||||
| 34 | 6699092 | 4.35 | 5.26 | |
| No information available, not orderable | ||||
| 35 | 6699078 | |||
| Lock Nut M6 (10 Pcs.) | ||||
| 36 | 949567 | 1.05 | 1.27 | |
| Carburetor Insulator | ||||
| 37 | 6698387 | 3.15 | 3.81 | |
| Intake Paking (a) | ||||
| 38A | 6600456 | 1.65 | 2.00 | |
| No longer available, no replacement | ||||
| 39 | 6698700 | |||
| Carburetor Packing | ||||
| 40 | 6698816 | 1.80 | 2.18 | |
| Seal Lock Hex. Socket Bolt (w/washers)m5 | ||||
| 41 | 6698844 | 1.20 | 1.45 | |
| Hex. Socket Hd. Bolt (w/washers) M4x18 | ||||
| 42 | 6698388 | 1.05 | 1.27 | |
| Cord | ||||
| 43 | 6699060 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 44 | 6698879 | |||
| Cylinder Cover | ||||
| 45 | 6698871 | 4.20 | 5.08 | |
| METAL FITTING OF PLUG CAP (OLD 6698547) | ||||
| 46 | 6699180 | 1.00 | 1.21 | |
| Plug Cap | ||||
| 47 | 6698548 | 2.10 | 2.54 | |
| Cord Insulation Tube L60 | ||||
| 48 | 6699175 | 1.20 | 1.45 | |
| No longer available, no replacement | ||||
| 49 | 6698602 | |||
| Ignition Coil | ||||
| 49A | 6600890 | 30.80 | 37.27 | |
| Spark Plug Ass'y Bmr7a | ||||
| 50A | 6699316 | 8.91 | 10.78 | |
| Spark Plug Ass'y Cj6 Except For Aus,nzl | ||||
| 50A | 6699322 | 2.48 | 2.99 | |
| Spark Plug Ass'y Bmr7a | ||||
| 50B | 6699316 | 8.91 | 10.78 | |
| No longer available, no replacement | ||||
| 51 | 6698597 | |||
| Cover Packing | ||||
| 52 | 6696534 | 1.05 | 1.27 | |
| Intake Cover (a) | ||||
| 53 | 6696535 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 54 | 6696835 | |||
| Heat Protection Panel | ||||
| 55 | 6698617 | 2.10 | 2.54 | |
| No information available, not orderable | ||||
| 56 | 6698631 | |||
| Bolt Washer M6 (10 Pcs.) | ||||
| 57 | 949432 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 58 | 6696819 | |||
| Intake Cover (b) | ||||
| 59 | 6696536 | 1.05 | 1.27 | |
| Piston Pin | ||||
| 60 | 6696944 | 3.33 | 4.02 | |
| Piston | ||||
| 61 | 6696531 | 6.88 | 8.32 | |
| No information available, not orderable | ||||
| 62 | 6698386 | |||
| Cylinder Packing | ||||
| 63 | 6696530 | 1.05 | 1.27 | |
| Piston Ring | ||||
| 64 | 6696532 | 2.10 | 2.54 | |
| Cir Clip | ||||
| 65 | 6684590 | 2.15 | 2.60 | |
| Nut | ||||
| 66 | 6696879 | 1.05 | 1.27 | |
| Bolt Washer D7 | ||||
| 67 | 6696880 | 1.05 | 1.27 | |
| Starter Pawl | ||||
| 68 | 6698603 | 1.20 | 1.45 | |
| Spring | ||||
| 69 | 6685335 | 1.05 | 1.27 | |
| Magneto Rotor | ||||
| 70 | 6698601 | 13.80 | 16.70 | |
| Retaining Ring D4 | ||||
| 71 | 6685336 | 1.05 | 1.27 | |
| Crank Case (b) Ass'y Includ.73,74 | ||||
| 72 | 6698872 | 16.09 | 19.47 | |
| Oil Seal | ||||
| 73 | 6684607 | 4.29 | 5.19 | |
| Ball Bearing 6001 C3 | ||||
| 74 | 6684608 | 3.80 | 4.60 | |
| No information available, not orderable | ||||
| 75 | 6696946 | |||
| Shim T0.3 | ||||
| 76 | 6696945 | 1.68 | 2.03 | |
| Crank Shaft | ||||
| 77 | 6699043 | 31.76 | 38.43 | |
| Crank Case (a) Ass'y Includ.73,74,80 | ||||
| 78 | 6698729 | 18.84 | 22.79 | |
| Crank Case Packing | ||||
| 79 | 6696539 | 1.05 | 1.27 | |
| Knock Pin 4x12 | ||||
| 80 | 6696947 | 1.05 | 1.27 | |
| Clutch (b) | ||||
| 81 | 6699173 | 7.50 | 9.08 | |
| Clutch Drum | ||||
| 82 | 6699040 | 9.60 | 11.62 | |
| Ball Bearing 6002zc3 | ||||
| 83 | 6698740 | 4.20 | 5.08 | |
| Retaining Ring For D15 Shaft (10 Pcs.) | ||||
| 84 | 939544 | 2.13 | 2.57 | |
| COMPLETE GREASE NIPPLE (OLD 300-32250-80) | ||||
| 85 | 6688643 | 1.15 | 1.39 | |
| Tapping Screw (w/flange) D5x20 (black) | ||||
| 86 | 302089 | 1.05 | 1.27 | |
| Muffler Protector | ||||
| 87 | 6698876 | 16.78 | 20.30 | |
| No information available, not orderable | ||||
| 88 | 887021 | |||
| No information available, not orderable | ||||
| 89 | 6698782 | |||
| Fixation Plate (a) | ||||
| 90 | 6698634 | 2.10 | 2.54 | |
| Machine Screw (w/washers) M4x12 (black) Till 8.20 | ||||
| 91A | 935196 | 1.04 | 1.26 | |
| Fixation Plate (b) | ||||
| 92 | 6699073 | 1.04 | 1.26 | |
| Hex. Hole Bolt 6x18/s | ||||
| 93 | 6695495 | 1.15 | 1.39 | |
| Tapping Screw D4.5x16 | ||||
| 95 | 6698878 | 1.20 | 1.45 | |
| Plate | ||||
| 96 | 6685189 | 1.15 | 1.39 | |
| Starter Handle | ||||
| 97 | 6693227 | 3.30 | 3.99 | |
| Rope Till 7.2014 | ||||
| 98 | 6693168 | 2.31 | 2.80 | |
| No information available, not orderable | ||||
| 99 | 6698988 | |||
| Recoil Spring Till 7.2014 | ||||
| 100A | 6684675 | 11.55 | 13.98 | |
| Starter Rope Reel | ||||
| 101 | 6693072 | 5.11 | 6.19 | |
| Damper Spring Since H081351 | ||||
| 102 | 6685183 | 4.45 | 5.38 | |
| Cam Plate (Old 759-0174M-20) | ||||
| 103 | 6685182 | 3.30 | 3.99 | |
| Set Screw (old 839-03045-20) | ||||
| 104 | 6684679 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 105 | 6698622 | |||
| Air Deflector | ||||
| 106 | 6698624 | 1.20 | 1.45 | |
| No longer available, no replacement | ||||
| 107 | 6698402 | |||
| Tank Cap Chain | ||||
| 108 | 6698732 | 1.20 | 1.45 | |
| No longer available, no replacement | ||||
| 109 | 6698931 | |||
| No longer available, no replacement | ||||
| 110 | 6698873 | |||
| No information available, not orderable | ||||
| 111 | 6698875 | |||
| No longer available, no replacement | ||||
| 111A | 6601399 | |||
| Return Grommet Till 7.2014 | ||||
| 112A | 6697846 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 113 | 6696949 | |||
| No longer available, no replacement | ||||
| 114 | 6698874 | |||
| Cushion Rubber | ||||
| 115 | 6698615 | 2.10 | 2.54 | |
| Tank | ||||
| 116 | 6698613 | 5.70 | 6.90 | |
| No information available, not orderable | ||||
| 119 | 6600883 | |||
| Screw (c) Since 10.2015 For Europe,(since 8.2016 | ||||
| 120 | 6600884 | 2.85 | 3.45 | |
| No information available, not orderable | ||||
| 121 | 6600889 | |||
| Pump Body Since 10.2015 For Europe,(since 8.2016 | ||||
| 122 | 6600876 | 7.95 | 9.62 | |
| Pump Packing Since 10.2015 For Europe,(since 8.20 | ||||
| 123 | 6600879 | 5.40 | 6.53 | |
| Pump Diaphragm Since 10.2015 For Europe,(since 8. | ||||
| 124 | 6600880 | 3.15 | 3.81 | |
| Inlet Screen | ||||
| 125 | 6684700 | 4.29 | 5.19 | |
| Pump Cover Since 10.2015 For Europe,(since 8.2016 | ||||
| 126 | 6600877 | 5.55 | 6.72 | |
| High Speed Needle Since 10.2015 For Europe,(since | ||||
| 127 | 6600887 | 14.03 | 16.97 | |
| Metering Lever Spring Since 10.2015 For Europe,(s | ||||
| 128 | 6600885 | 2.85 | 3.45 | |
| Hinge Pin | ||||
| 129 | 6685219 | 1.15 | 1.39 | |
| Metering Diaphragm Since 10.2015 For Europe,(sinc | ||||
| 130 | 6600881 | 15.26 | 18.47 | |
| Diaphragm Cover-metering | ||||
| 131 | 6685222 | 4.45 | 5.38 | |
| Swivel | ||||
| 132 | 6684697 | 6.44 | 7.79 | |
| Throttle Valve Since 10.2015 For Europe,(since 8. | ||||
| 133 | 6600878 | 28.33 | 34.27 | |
| Stop Ring | ||||
| 134 | 6684696 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 135 | 6600886 | |||
| Needle Valve | ||||
| 136 | 6685215 | 5.28 | 6.38 | |
| No information available, not orderable | ||||
| 137 | 6600882 | |||
| Metering Lever Since 10.2015 For Europe,(since 8. | ||||
| 138 | 6600888 | 4.20 | 5.08 | |
| No longer available, no replacement | ||||
| 139 | 6685220 | |||
| Carburetor Ass'y Wyga-1 Includ.119-139 Since 10.2 | ||||
| 140 | 6600875 | 35.20 | 42.59 | |
| Hex. Socket Hd. Bolt (w/flange) M6x32 | ||||
| 141 | 6698814 | 1.20 | 1.45 | |
| Front Handle | ||||
| 142 | 6698776 | 7.35 | 8.89 | |
| No information available, not orderable | ||||
| 144 | 6698777 | |||
| Damper | ||||
| 146 | 6698778 | 1.20 | 1.45 | |
| Handle A | ||||
| 147 | 6698880 | 8.10 | 9.80 | |
| Flexible Grommet | ||||
| 148 | 6698945 | 13.80 | 16.70 | |
| Spring (a) | ||||
| 149 | 6696348 | 1.05 | 1.27 | |
| Lock Lever | ||||
| 150 | 6699055 | 1.04 | 1.26 | |
| Throttle Lever | ||||
| 151 | 6699053 | 1.04 | 1.26 | |
| Trigger Lockout | ||||
| 152 | 6696344 | 1.05 | 1.27 | |
| Throttle Lever Spring | ||||
| 153 | 6696345 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 154 | 6696940 | |||
| No longer available, no replacement | ||||
| 154A | 6601275 | |||
| Handle B | ||||
| 155 | 6699051 | 3.60 | 4.36 | |
| Tapping Screw (w/flange) D4x16 (black) | ||||
| 156 | 305812 | 1.04 | 1.26 | |
| Throttle Wire Comp. | ||||
| 157 | 6698627 | 2.10 | 2.54 | |
| Protection Tube | ||||
| 158 | 6698738 | 1.20 | 1.45 | |
| Stop Switch Cord | ||||
| 159 | 6699058 | 1.04 | 1.26 | |
| Stop Switch Cord (b) | ||||
| 160 | 6699059 | 1.20 | 1.45 | |
| Hex. Socket Hd. Bolt (w/flange) M6x22 | ||||
| 161 | 6698815 | 1.20 | 1.45 | |
| No longer available, no replacement | ||||
| 162 | 6696359 | |||
| NYLON NUT M6 | ||||
| 163 | 6698766 | 1.00 | 1.21 | |
| Ring | ||||
| 164 | 6684639 | 2.15 | 2.60 | |
| U-nut M5 For 780mm Silver Color Blade | ||||
| 165 | 6699108 | 1.65 | 2.00 | |
| Flange nut | ||||
| 165A | 6695170 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 169A | 6699064 | |||
| Support Plate For Black Color Blade | ||||
| 169B | 6600892 | 1.43 | 1.72 | |
| Bolt Washer M6 (10 Pcs.) | ||||
| 170 | 949432 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 171 | 6698779 | |||
| Hex. Socket Hd. Bolt (w/flange) M5x10 | ||||
| 172 | 6698781 | 1.20 | 1.45 | |
| Antivibration Spring Replace The 4 Pcs. At Once U | ||||
| 173A | 6600480 | 2.70 | 3.27 | |
| For Silver Color Blade | ||||
| 174A | 6600410 | 77.00 | 93.17 | |
| Till 10.2014 For Silver Color Blade | ||||
| 174B | 6600453 | 77.00 | 93.17 | |
| No information available, not orderable | ||||
| 174C | 6600894 | |||
| Hex. Socket Hd. Bolt (w/flange) M5x8 | ||||
| 175 | 6699065 | 1.04 | 1.26 | |
| Guard Plate For Silver Color Blade | ||||
| 176 | 6699062 | 1.04 | 1.26 | |
| Guard Plate | ||||
| 176A | 6687275 | 2.31 | 2.80 | |
| Hex. Socket Hd. Bolt (w/button) M6x25 For Silver | ||||
| 177 | 6699113 | 1.65 | 2.00 | |
| Hex. Hole Flush Bolt 6x25 | ||||
| 177A | 6695075 | 1.15 | 1.39 | |
| Washer (a) | ||||
| 178 | 6699114 | 1.04 | 1.26 | |
| Washer M7 For 780mm Silver Color Blade | ||||
| 179 | 6699111 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 179A | 6687187 | |||
| Shoulder Button Bolt M5x25 For 780mm Silver Color | ||||
| 180 | 6699109 | 1.65 | 2.00 | |
| Bolt | ||||
| 180A | 6687158 | 1.15 | 1.39 | |
| Shoulder Button Bolt M5x31 | ||||
| 181 | 6699179 | 2.10 | 2.54 | |
| Blade Case (for 620mm) | ||||
| 182 | 6698948 | 4.20 | 5.08 | |
| Blade Case (for 780mm) | ||||
| 182 | 6698785 | 4.20 | 5.08 | |
| No longer available, no replacement | ||||
| 183 | 6699074 | |||
| No information available, not orderable | ||||
| 184 | 6698772 | |||
| Hex. Socket Hd. Bolt (w/button) M6x25 For Silver | ||||
| 185 | 6699113 | 1.65 | 2.00 | |
| Hex. Hole Flush Bolt 6x25 | ||||
| 185A | 6695075 | 1.15 | 1.39 | |
| Guide Plate (b) | ||||
| 186A | 6600418 | 1.20 | 1.45 | |
| Cam Rod | ||||
| 187 | 6698987 | 2.10 | 2.54 | |
| Gear | ||||
| 188 | 6699066 | 17.05 | 20.63 | |
| Felt Packing (b) | ||||
| 189 | 6699068 | 1.04 | 1.26 | |
| Felt Packing (c) | ||||
| 190 | 6699067 | 1.04 | 1.26 | |
| Gear Case Packing | ||||
| 191 | 6699042 | 1.04 | 1.26 | |
| Gear Case (b) Ass'y Includ.184 | ||||
| 192 | 6699071 | 10.50 | 12.70 | |
| Hex. Socket Hd. Bolt (w/sp.washer) M5x14 | ||||
| 193 | 6699069 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 195 | 6600013 | |||
| Protection Plate | ||||
| 195A | 6601209 | 13.86 | 16.77 | |
| Protection Plate For 780mm Black Color Blade | ||||
| 195A | 6601210 | 13.86 | 16.77 | |
| Blade Guide (620mm) For Silver Color Blade | ||||
| 196 | 6600012 | 9.45 | 11.43 | |
| Cutter Guide 734l M6 | ||||
| 196A | 6687147 | 26.16 | 31.66 | |
| Hedge Trimmer Blade (d) 780mm Since 11.2014 For S | ||||
| 197 | 6600016 | 22.83 | 27.62 | |
| Hedge Trimmer Blade (c) 620mm Since 11.2014 For S | ||||
| 197 | 6600014 | 22.83 | 27.62 | |
| No information available, not orderable | ||||
| 197A | 6600454 | |||
| Cutter A (812l) | ||||
| 197B | 6687092 | 60.35 | 73.02 | |
| Blade Liner For 780mm | ||||
| 198 | 6600361 | 5.10 | 6.17 | |
| Blade Liner | ||||
| 198 | 6600360 | 4.35 | 5.26 | |
| Washer (b) | ||||
| 199 | 6699112 | 1.04 | 1.26 | |
| Guide plate | ||||
| 200 | 6600362 | 2.10 | 2.54 | |
| Carburetor Packing | ||||
| 201 | 6698405 | 2.10 | 2.54 | |
| Carburetor Heat Panel Ass'y Includ.5a,201 | ||||
| 202 | 6600891 | 3.15 | 3.81 | |
| Spacer (1) | ||||
| 203 | 6600895 | 1.05 | 1.27 | |
| No longer available, no replacement | ||||
| 208 | 6600358 | |||
| No information available, not orderable | ||||
| 501 | 6698756 | |||
| Bottom Cover Set Includ.141,161,602,603,605-607 | ||||
| 601 | 6600487 | 17.05 | 20.63 | |
| No information available, not orderable | ||||
| 602 | 6600481 | |||
| No information available, not orderable | ||||
| 603 | 6600482 | |||
| No information available, not orderable | ||||
| 604 | 6600483 | |||
| No information available, not orderable | ||||
| 605 | 6600484 | |||
| No information available, not orderable | ||||
| 606 | 6600485 | |||
| No information available, not orderable | ||||
| 607 | 6600486 | |||
| Grease For Impact Wrench (100g) | ||||
| 608 | 971042 | 17.60 | 21.30 | |
