Here you will find all available parts and drawings of the 'Hikoki TCH22EA2'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

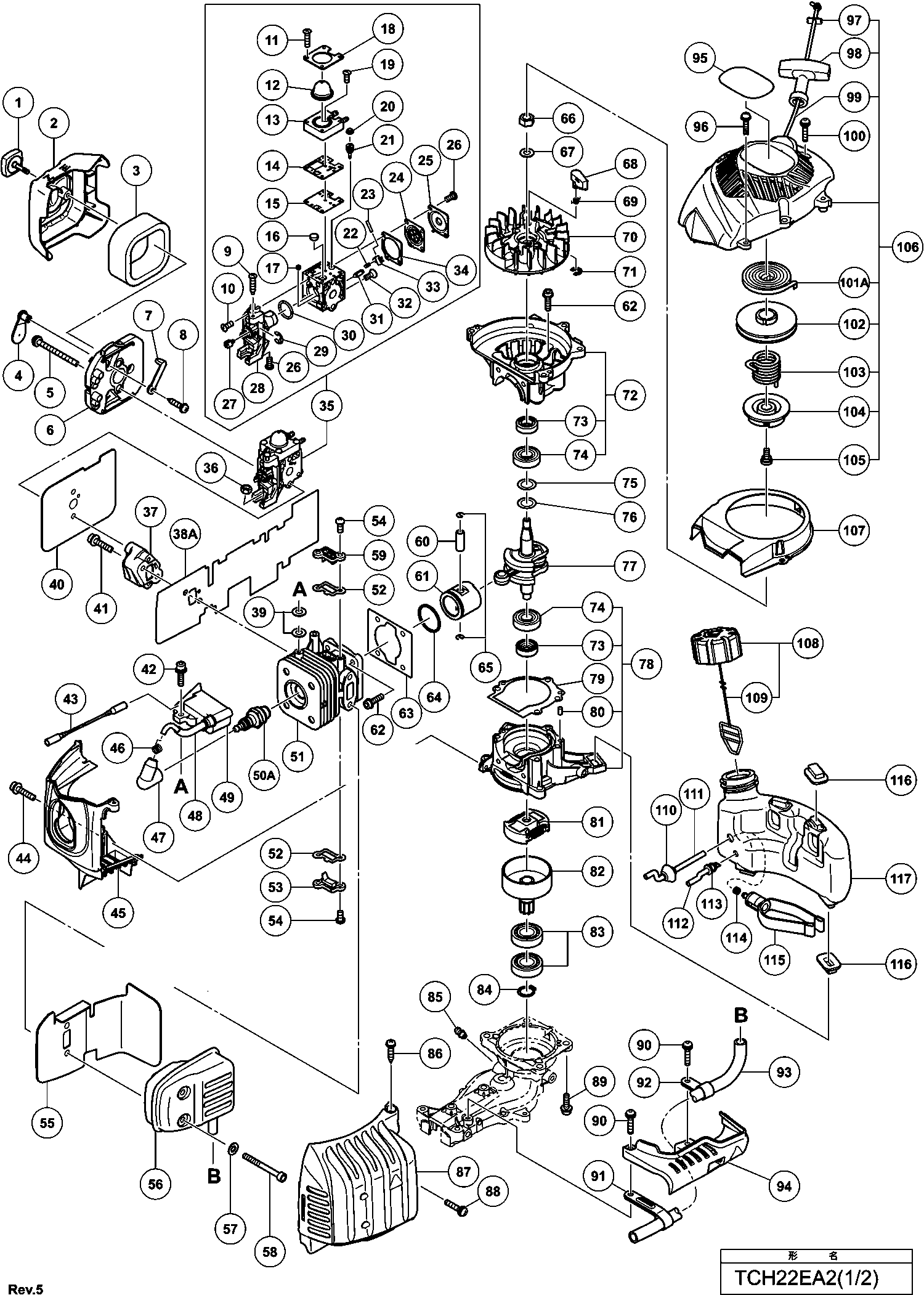

Technical drawing of model Hikoki TCH22EA2
Spare parts list of model Hikoki TCH22EA2
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Cover Fixing Bolt Comp. | ||||
| 1 | 6698730 | 3.15 | 3.81 | |
| No longer available, no replacement | ||||
| 2 | 6698609 | |||
| Cleaner Sponge | ||||
| 3 | 6690365 | 1.15 | 1.39 | |
| Choke Valve | ||||
| 4 | 6698608 | 1.20 | 1.45 | |
| Machine Screw with Washers M5x60 (Black) | ||||
| 5 | 307224 | 1.05 | 1.27 | |
| Machine Screw (w/washers) M5x65 (black) | ||||
| 5A | 312440 | 1.05 | 1.27 | |
| Cleaner Body | ||||
| 6 | 6698606 | 2.10 | 2.54 | |
| Choke Handle | ||||
| 7 | 6698607 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 8 | 309470 | |||
| No information available, not orderable | ||||
| 9 | 6699087 | |||
| Set Screw (b) Till 9.2015 For Europe,(till 7.2016 | ||||
| 10 | 6699088 | 1.04 | 1.26 | |
| Set Screw (d) Till 9.2015 For Europe,(till 7.2016 | ||||
| 11 | 6699100 | 1.05 | 1.27 | |
| No longer available, no replacement | ||||
| 12 | 6699098 | |||
| Primer Base Till 9.2015 For Europe,(till 7.2016 F | ||||
| 13 | 6699097 | 28.19 | 34.11 | |
| Pump Gasket Till 9.2015 For Europe,(till 7.2016 F | ||||
| 14 | 6699096 | 4.35 | 5.26 | |
| No information available, not orderable | ||||
| 15 | 6699095 | |||
| Strainer Till 9.2015 For Europe,(till 7.2016 For | ||||
| 16 | 6699080 | 1.50 | 1.82 | |
| Guide Pin Roller Till 9.2015 For Europe,(till 7.2 | ||||
| 17 | 6699103 | 2.55 | 3.09 | |
| No information available, not orderable | ||||
| 18 | 6699099 | |||
| No information available, not orderable | ||||
| 19 | 6699101 | |||
| Ball Plug Retainer Till 9.2015 For Europe,(till 7 | ||||
| 20 | 6699104 | 2.55 | 3.09 | |
| No information available, not orderable | ||||
| 21 | 6699105 | |||
| Metering Lever Spring Till 9.2015 For Europe,(til | ||||
| 22 | 6699083 | 1.50 | 1.82 | |
| Pin | ||||
| 23 | 6699082 | 1.05 | 1.27 | |
| Metering Diaphragm Till 9.2015 For Europe,(till 7 | ||||
| 24 | 6699091 | 8.70 | 10.53 | |
| Metering Cover Till 9.2015 For Europe,(till 7.201 | ||||
| 25 | 6699093 | 6.15 | 7.44 | |
| Set Screw (c) | ||||
| 26 | 6699094 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 27 | 6699089 | |||
| Rotor Cover Till 9.2015 For Europe,(till 7.2016 F | ||||
| 28 | 6699086 | 42.08 | 50.91 | |
| Retaining Ring (e-type) For D2.5 Shaft Till 9.201 | ||||
| 29 | 6699090 | 1.04 | 1.26 | |
| O-ring | ||||
| 30 | 6699102 | 5.25 | 6.35 | |
| Inlet Needle Valve | ||||
| 31 | 6699081 | 7.05 | 8.53 | |
| Set Screw (a) Till 9.2015 For Europe,(till 7.2016 | ||||
| 32 | 6699085 | 1.04 | 1.26 | |
| Metering Lever | ||||
| 33 | 6699084 | 1.65 | 2.00 | |
| Metering Gasket Till 9.2015 For Europe,(till 7.20 | ||||
| 34 | 6699092 | 4.35 | 5.26 | |
| No information available, not orderable | ||||
| 35 | 6699078 | |||
| Lock Nut M6 (10 Pcs.) | ||||
| 36 | 949567 | 1.05 | 1.27 | |
| Carburetor Insulator | ||||
| 37 | 6698387 | 3.15 | 3.81 | |
| Intake Paking (a) | ||||
| 38A | 6600456 | 1.65 | 2.00 | |
| No longer available, no replacement | ||||
| 39 | 6698700 | |||
| Carburetor Packing | ||||
| 40 | 6698816 | 1.80 | 2.18 | |
| Seal Lock Hex. Socket Bolt (w/washers)m5 | ||||
| 41 | 6698844 | 1.20 | 1.45 | |
| Hex. Socket Hd. Bolt (w/washers) M4x18 | ||||
| 42 | 6698388 | 1.05 | 1.27 | |
| Cord | ||||
| 43 | 6699060 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 44 | 6698879 | |||
| Cylinder Cover | ||||
| 45 | 6698871 | 4.20 | 5.08 | |
| METAL FITTING OF PLUG CAP (OLD 6698547) | ||||
| 46 | 6699180 | 1.00 | 1.21 | |
| Plug Cap | ||||
| 47 | 6698548 | 2.10 | 2.54 | |
| Cord Insulation Tube L60 | ||||
| 48 | 6699175 | 1.20 | 1.45 | |
| No longer available, no replacement | ||||
| 49 | 6698602 | |||
| Spark Plug Ass'y Bmr7a | ||||
| 50A | 6699316 | 8.91 | 10.78 | |
| Spark Plug Ass'y Cj6 Except For Aus,nzl | ||||
| 50A | 6699322 | 2.48 | 2.99 | |
| Spark Plug Ass'y Bmr7a | ||||
| 50B | 6699316 | 8.91 | 10.78 | |
| No longer available, no replacement | ||||
| 51 | 6698597 | |||
| Cover Packing | ||||
| 52 | 6696534 | 1.05 | 1.27 | |
| Intake Cover (a) | ||||
| 53 | 6696535 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 54 | 6696835 | |||
| Heat Protection Panel | ||||
| 55 | 6698617 | 2.10 | 2.54 | |
| Muffler | ||||
| 56 | 6698734 | 7.35 | 8.89 | |
| Bolt Washer M6 (10 Pcs.) | ||||
| 57 | 949432 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 58 | 6696819 | |||
| Intake Cover (b) | ||||
| 59 | 6696536 | 1.05 | 1.27 | |
| Piston Pin | ||||
| 60 | 6696944 | 3.33 | 4.02 | |
| Piston | ||||
| 61 | 6696531 | 6.88 | 8.32 | |
| No information available, not orderable | ||||
| 62 | 6698386 | |||
| Cylinder Packing | ||||
| 63 | 6696530 | 1.05 | 1.27 | |
| Piston Ring | ||||
| 64 | 6696532 | 2.10 | 2.54 | |
| Cir Clip | ||||
| 65 | 6684590 | 2.15 | 2.60 | |
| Nut | ||||
| 66 | 6696879 | 1.05 | 1.27 | |
| Bolt Washer D7 | ||||
| 67 | 6696880 | 1.05 | 1.27 | |
| Starter Pawl | ||||
| 68 | 6698603 | 1.20 | 1.45 | |
| Spring | ||||
| 69 | 6685335 | 1.05 | 1.27 | |
| Magneto Rotor | ||||
| 70 | 6698601 | 13.80 | 16.70 | |
| Retaining Ring D4 | ||||
| 71 | 6685336 | 1.05 | 1.27 | |
| Crank Case (b) Ass'y Includ.73,74 | ||||
| 72 | 6698872 | 16.09 | 19.47 | |
| Oil Seal | ||||
| 73 | 6684607 | 4.29 | 5.19 | |
| Ball Bearing 6001 C3 | ||||
| 74 | 6684608 | 3.80 | 4.60 | |
| No information available, not orderable | ||||
| 75 | 6696946 | |||
| Shim T0.3 | ||||
| 76 | 6696945 | 1.68 | 2.03 | |
| Crank Shaft | ||||
| 77 | 6699043 | 31.76 | 38.43 | |
| Crank Case (a) Ass'y Includ.73,74,80 | ||||
| 78 | 6698729 | 18.84 | 22.79 | |
| Crank Case Packing | ||||
| 79 | 6696539 | 1.05 | 1.27 | |
| Knock Pin 4x12 | ||||
| 80 | 6696947 | 1.05 | 1.27 | |
| Clutch (b) | ||||
| 81 | 6699173 | 7.50 | 9.08 | |
| Clutch Drum | ||||
| 82 | 6699040 | 9.60 | 11.62 | |
| Ball Bearing 6002zc3 | ||||
| 83 | 6698740 | 4.20 | 5.08 | |
| Retaining Ring For D15 Shaft (10 Pcs.) | ||||
| 84 | 939544 | 2.13 | 2.57 | |
| COMPLETE GREASE NIPPLE (OLD 300-32250-80) | ||||
| 85 | 6688643 | 1.15 | 1.39 | |
| Tapping Screw (w/flange) D5x20 (black) | ||||
| 86 | 302089 | 1.05 | 1.27 | |
| Muffler Protector | ||||
| 87 | 6699174 | 5.70 | 6.90 | |
| No information available, not orderable | ||||
| 88 | 887021 | |||
| Hex. Hole Bolt 6x18/s | ||||
| 89 | 6695495 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 90 | 6698988 | |||
| No information available, not orderable | ||||
| 91 | 6699047 | |||
| Fixation Plate (b) | ||||
| 92 | 6699048 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 93 | 6699052 | |||
| No longer available, no replacement | ||||
| 94 | 6699037 | |||
| Tapping Screw D4.5x16 | ||||
| 96 | 6698878 | 1.20 | 1.45 | |
| Plate | ||||
| 97 | 6685189 | 1.15 | 1.39 | |
| Starter Handle | ||||
| 98 | 6693227 | 3.30 | 3.99 | |
| Rope Till 7.2014 | ||||
| 99 | 6693168 | 2.31 | 2.80 | |
| No information available, not orderable | ||||
| 100 | 6698988 | |||
| Recoil Spring Till 7.2014 | ||||
| 101A | 6684675 | 11.55 | 13.98 | |
| Starter Rope Reel | ||||
| 102 | 6693072 | 5.11 | 6.19 | |
| Damper Spring Since H081351 | ||||
| 103 | 6685183 | 4.45 | 5.38 | |
| Cam Plate (Old 759-0174M-20) | ||||
| 104 | 6685182 | 3.30 | 3.99 | |
| Set Screw (old 839-03045-20) | ||||
| 105 | 6684679 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 106 | 6698622 | |||
| Air Deflector | ||||
| 107 | 6698624 | 1.20 | 1.45 | |
| No longer available, no replacement | ||||
| 108 | 6698402 | |||
| Tank Cap Chain | ||||
| 109 | 6698732 | 1.20 | 1.45 | |
| No longer available, no replacement | ||||
| 110 | 6698931 | |||
| No longer available, no replacement | ||||
| 111 | 6698873 | |||
| No information available, not orderable | ||||
| 112 | 6698875 | |||
| No longer available, no replacement | ||||
| 112A | 6601399 | |||
| Return Grommet Till 7.2014 | ||||
| 113A | 6697846 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 114 | 6696949 | |||
| No longer available, no replacement | ||||
| 115 | 6698874 | |||
| Cushion Rubber | ||||
| 116 | 6698615 | 2.10 | 2.54 | |
| Tank | ||||
| 117 | 6698613 | 5.70 | 6.90 | |
| No longer available, no replacement | ||||
| 139 | 6685220 | |||
| Carburetor Ass'y Wyga-1 Includ.119-139 Since 10.2 | ||||
| 140 | 6600875 | 35.20 | 42.59 | |
| Handle | ||||
| 142 | 6699079 | 5.25 | 6.35 | |
| Seal Lock Hex. Socket Hd. Bolt M5x40 | ||||
| 143 | 6698885 | 1.80 | 2.18 | |
| Spring Washer M5 | ||||
| 144 | 6698884 | 1.80 | 2.18 | |
| Brake Axis Washer | ||||
| 145 | 6698749 | 1.20 | 1.45 | |
| Handle A | ||||
| 146 | 6698880 | 8.10 | 9.80 | |
| Spring (a) | ||||
| 148 | 6696348 | 1.05 | 1.27 | |
| Lock Lever | ||||
| 149 | 6699055 | 1.04 | 1.26 | |
| Throttle Lever | ||||
| 150 | 6699053 | 1.04 | 1.26 | |
| Trigger Lockout | ||||
| 151 | 6696344 | 1.05 | 1.27 | |
| Throttle Lever Spring | ||||
| 152 | 6696345 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 153 | 6696940 | |||
| No longer available, no replacement | ||||
| 153A | 6601275 | |||
| Handle B | ||||
| 154 | 6699051 | 3.60 | 4.36 | |
| Tapping Screw (w/flange) D4x16 (black) | ||||
| 155 | 305812 | 1.04 | 1.26 | |
| Throttle Wire Comp. | ||||
| 156 | 6698627 | 2.10 | 2.54 | |
| Protection Tube | ||||
| 157 | 6698738 | 1.20 | 1.45 | |
| Stop Switch Cord | ||||
| 158 | 6699058 | 1.04 | 1.26 | |
| Stop Switch Cord (b) | ||||
| 159 | 6699059 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 160 | 6699049 | |||
| Nylon Nut M5 | ||||
| 161 | 305491 | 1.65 | 2.00 | |
| Small Washer 5 | ||||
| 162 | 6684864 | 2.15 | 2.60 | |
| CARRIER | ||||
| 163 | 6699045 | 1.95 | 2.36 | |
| Hex. Socket Hd. Bolt (w/button) M5x25 | ||||
| 164 | 6699110 | 1.65 | 2.00 | |
| U-nut M5 For 780mm Silver Color Blade | ||||
| 165 | 6699108 | 1.65 | 2.00 | |
| Washer (b) | ||||
| 166 | 6699112 | 1.04 | 1.26 | |
| Washer M7 For 780mm Silver Color Blade | ||||
| 167 | 6699111 | 1.04 | 1.26 | |
| Shoulder Button Bolt M5x25 For 780mm Silver Color | ||||
| 168 | 6699109 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 169B | 6600455 | |||
| Blade Case (a) | ||||
| 170 | 6698731 | 4.20 | 5.08 | |
| Handle Bracket | ||||
| 171 | 6699041 | 1.50 | 1.82 | |
| No longer available, no replacement | ||||
| 172 | 6696359 | |||
| Ring | ||||
| 173 | 6685407 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 174 | 6699044 | |||
| Gear Case (a) | ||||
| 175 | 6699057 | 36.58 | 44.26 | |
| Guide Plate (c) | ||||
| 176 | 6699035 | 1.04 | 1.26 | |
| Gear | ||||
| 177 | 6699038 | 15.54 | 18.80 | |
| Guide Plate (a) | ||||
| 178 | 6699034 | 1.04 | 1.26 | |
| Felt Packing (A) | ||||
| 179 | 6699046 | 1.04 | 1.26 | |
| Gear Case Packing | ||||
| 180 | 6699042 | 1.04 | 1.26 | |
| Gear Case Cover | ||||
| 181 | 6699050 | 3.15 | 3.81 | |
| No information available, not orderable | ||||
| 182 | 6699176 | |||
| No information available, not orderable | ||||
| 183 | 6600009 | |||
| No information available, not orderable | ||||
| 184 | 6600010 | |||
| No information available, not orderable | ||||
| 185 | 6600011 | |||
| Blade Liner | ||||
| 186 | 6600359 | 3.75 | 4.54 | |
| Support Plate | ||||
| 187 | 6600417 | 1.04 | 1.26 | |
| Carburetor Packing | ||||
| 202 | 6698405 | 2.10 | 2.54 | |
| No longer available, no replacement | ||||
| 208 | 6600358 | |||
| No information available, not orderable | ||||
| 501 | 6698756 | |||
| Grease For Impact Wrench (100g) | ||||
| 601 | 971042 | 17.60 | 21.30 | |
