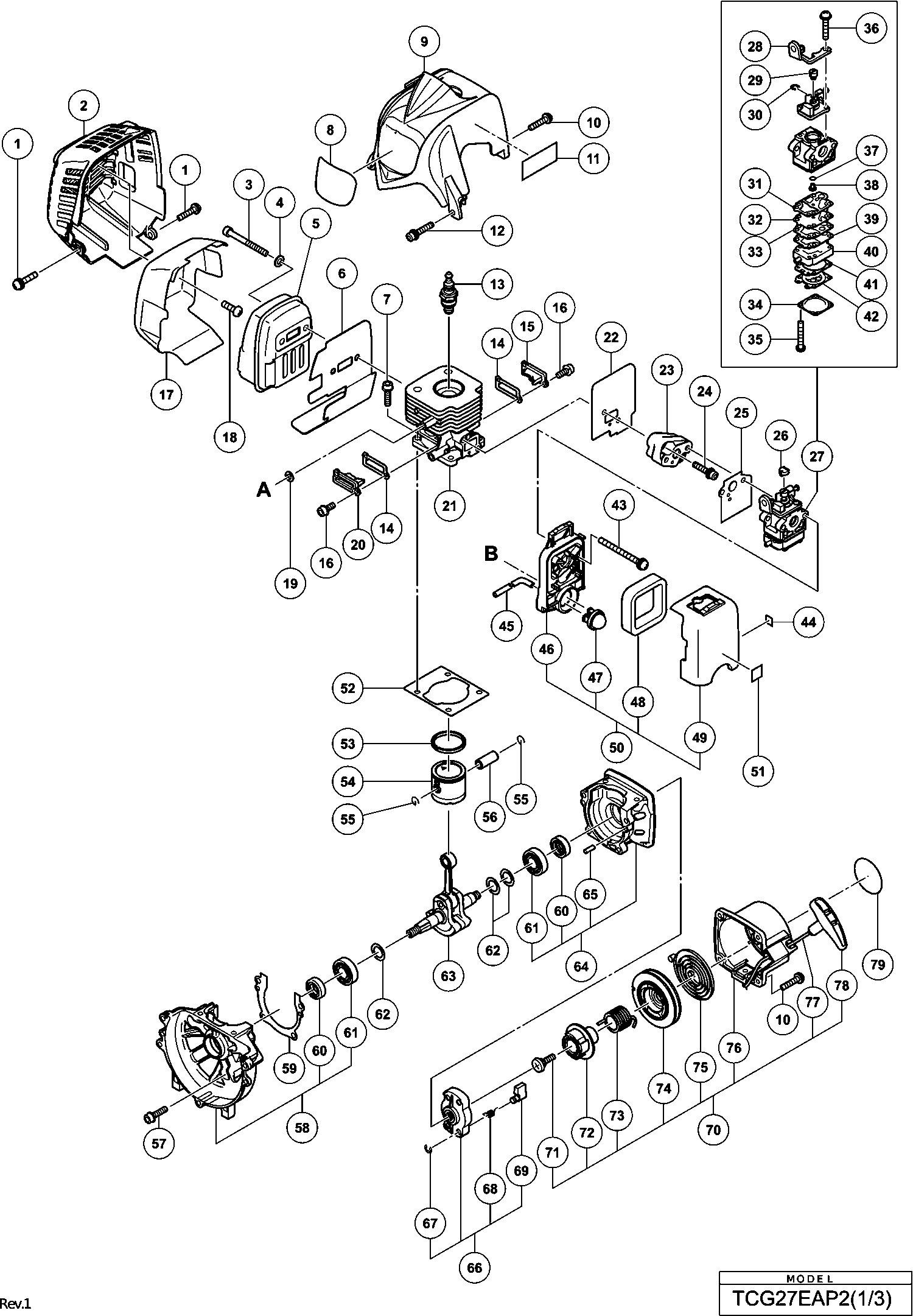

Technical drawing of model Hikoki TCG27EAP2
Spare parts list of model Hikoki TCG27EAP2
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No longer available, no replacement | ||||
| *125 | 6600358 | |||
| Fuel Pipe | ||||
| *126 | 6698716 | 3.45 | 4.17 | |
| Spark Plug Ass'y Bmr7a | ||||
| *13 | 6699316 | 8.91 | 10.78 | |
| HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | ||||
| *167 | 6684714 | 2.15 | 2.60 | |
| Gear Cover | ||||
| *168 | 6699402 | 50.33 | 60.89 | |
| Reel | ||||
| *191 | 6698796 | 2.40 | 2.90 | |
| Return Spring | ||||
| *192 | 6698797 | 1.05 | 1.27 | |
| Button (1) | ||||
| *193 | 6698798 | 1.20 | 1.45 | |
| Cord Guide | ||||
| *194 | 6698799 | 1.20 | 1.45 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| *91 | 302086 | 1.05 | 1.27 | |
| Tapping Screw (w/flange) D4x16 (black) | ||||
| *91 | 305812 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 1 | 887021 | |||
| Muffler Cover | ||||
| 2 | 6600322 | 6.90 | 8.35 | |
| Hex. Socket Hd. Bolt M6x65 | ||||
| 3 | 6698384 | 1.05 | 1.27 | |
| Bolt Washer M6 (10 Pcs.) | ||||
| 4 | 949432 | 1.05 | 1.27 | |
| Muffler (b) | ||||
| 5 | 6600004 | 25.85 | 31.28 | |
| Heat Protection Panel Since 11.2013 | ||||
| 6 | 6600324 | 1.35 | 1.63 | |
| Hex. Socket Bolt M5x20 | ||||
| 7 | 6696958 | 2.10 | 2.54 | |
| Tanaka Label New | ||||
| 8 | 6696339 | 1.20 | 1.45 | |
| Cylinder Cover | ||||
| 9 | 6697921 | 6.10 | 7.38 | |
| Machine Screw (w/washers) M4x20 (black) | ||||
| 10 | 307606 | 1.05 | 1.27 | |
| Seal Lock Hex. Socket Hd. Bolt M5x30 | ||||
| 12 | 6698950 | 1.20 | 1.45 | |
| Spark Plug Ass'y Bmr7a | ||||
| 13 | 6699316 | 8.91 | 10.78 | |
| Cover Packing | ||||
| 14 | 6697684 | 1.04 | 1.26 | |
| Scavenging Cover (a) | ||||
| 15 | 6698484 | 2.10 | 2.54 | |
| No information available, not orderable | ||||
| 16 | 6698385 | |||
| Muffler Heat Cover Since 11.2013 | ||||
| 17 | 6600422 | 5.70 | 6.90 | |
| No information available, not orderable | ||||
| 18 | 6695245 | |||
| No longer available, no replacement | ||||
| 19 | 6698700 | |||
| Scavenging Cover (b) | ||||
| 20 | 6698485 | 2.10 | 2.54 | |
| Cylinder | ||||
| 21 | 6698480 | 45.65 | 55.24 | |
| Gasket | ||||
| 22 | 6698473 | 1.05 | 1.27 | |
| Carburetor Insulator | ||||
| 23 | 6698387 | 3.15 | 3.81 | |
| Seal Lock Hex. Socket Bolt (w/washers)m5 | ||||
| 24 | 6698844 | 1.20 | 1.45 | |
| Carburetor Packing | ||||
| 25 | 6698405 | 2.10 | 2.54 | |
| Swivel Cap Since C026901 | ||||
| 26 | 6691337 | 1.15 | 1.39 | |
| Carburetor Ass'y Wyc-29 Includ.25-39 | ||||
| 27 | 6698489 | 58.93 | 71.30 | |
| Cable Adjust Stay | ||||
| 28 | 6699287 | 4.13 | 4.99 | |
| Swivel | ||||
| 29 | 6696830 | 4.45 | 5.38 | |
| Flange | ||||
| 30 | 6684969 | 2.15 | 2.60 | |
| Pump Gasket | ||||
| 31 | 6684692 | 29.19 | 35.32 | |
| Pump Diaphragm | ||||
| 32 | 6684693 | 8.58 | 10.38 | |
| Pump Plate | ||||
| 33 | 6691242 | 2.31 | 2.80 | |
| Diaphragm Cover-metering | ||||
| 34 | 6685222 | 4.45 | 5.38 | |
| Set Screw | ||||
| 35 | 6691312 | 1.15 | 1.39 | |
| Set Screw M3x12 | ||||
| 36 | 6696829 | 1.04 | 1.26 | |
| O-RING (old 550-25100-20) | ||||
| 37 | 6684695 | 4.29 | 5.19 | |
| Circuit Plate | ||||
| 39 | 6691234 | 3.30 | 3.99 | |
| Pump Body Comp. | ||||
| 40 | 6696828 | 13.36 | 16.17 | |
| No longer available, no replacement | ||||
| 41 | 6685220 | |||
| No longer available, no replacement | ||||
| 42 | 6684690 | |||
| Machine Screw with Washers M5x60 (Black) | ||||
| 43 | 307224 | 1.05 | 1.27 | |
| Mark Plate (t) Since 11.2013 For Europe | ||||
| 44 | 6600327 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 45B | 6601444 | |||
| No information available, not orderable | ||||
| 46 | 6696832 | |||
| Priming Pump Comp. | ||||
| 47 | 6685139 | 5.94 | 7.18 | |
| No longer available, no replacement | ||||
| 48 | 6600704 | |||
| No information available, not orderable | ||||
| 49 | 6696831 | |||
| Air Cleaner Ass'y Includ.34-37 | ||||
| 50 | 6696549 | 9.13 | 11.04 | |
| Primer Label Since 11.2013 For Europe | ||||
| 51 | 6699000 | 1.04 | 1.26 | |
| Cylinder Packing | ||||
| 52 | 6698366 | 1.05 | 1.27 | |
| Piston Ring | ||||
| 53 | 6686121 | 4.45 | 5.38 | |
| Piston | ||||
| 54 | 6698483 | 8.70 | 10.53 | |
| Cir Clip | ||||
| 55 | 6684590 | 2.15 | 2.60 | |
| Piston Pin | ||||
| 56 | 6684591 | 4.29 | 5.19 | |
| No information available, not orderable | ||||
| 57 | 6698386 | |||
| No information available, not orderable | ||||
| 58 | 6698370 | |||
| Crank Case Packing | ||||
| 59 | 6697688 | 1.04 | 1.26 | |
| Oil Seal | ||||
| 60 | 6684607 | 4.29 | 5.19 | |
| Ball Bearing 6001 C3 | ||||
| 61 | 6684608 | 3.80 | 4.60 | |
| No information available, not orderable | ||||
| 62 | 6698490 | |||
| Crank Shaft | ||||
| 63 | 6698488 | 55.14 | 66.72 | |
| Crank Case (a) Ass'y Includ.52,55,57 | ||||
| 64 | 6698369 | 13.35 | 16.15 | |
| Knock Pin 4x12 | ||||
| 65 | 6696947 | 1.05 | 1.27 | |
| Starter Pulley Ass'y For (s) Type Since 7.2012 Fo | ||||
| 66 | 6684681 | 13.20 | 15.97 | |
| Stop Ring E-5 Since C237092 | ||||
| 67 | 6684683 | 2.15 | 2.60 | |
| Starter Pawl Spring | ||||
| 68 | 6684684 | 4.29 | 5.19 | |
| Starter Pawl | ||||
| 69 | 6684685 | 4.29 | 5.19 | |
| No information available, not orderable | ||||
| 70 | 6699995 | |||
| RECOIL STARTER BODY ASS'Y NEW | ||||
| 70A | 6601570 | 15.81 | 19.13 | |
| Set Screw (old 839-03045-20) | ||||
| 71 | 6684679 | 2.15 | 2.60 | |
| Cam Plate For (s) Type Since 9.2013 For Aus | ||||
| 72 | 6699996 | 2.55 | 3.09 | |
| Damper Spring For (s) Type Since 7.2012 For Aus | ||||
| 73 | 6684677 | 8.58 | 10.38 | |
| Starter Rope Reel For (s) Type Since 9.2013 For A | ||||
| 74 | 6699997 | 8.41 | 10.18 | |
| Recoil Spring Till 7.2014 | ||||
| 75 | 6684675 | 11.55 | 13.98 | |
| No information available, not orderable | ||||
| 76 | 6684673 | |||
| Starter Rope 3.5x860 For (s) Type Since 7.2012 Fo | ||||
| 77 | 6684674 | 4.29 | 5.19 | |
| Starter Handle | ||||
| 78 | 6684680 | 2.15 | 2.60 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 91 | 302086 | 1.05 | 1.27 | |
| Tapping Screw (w/flange) D4x16 (black) | ||||
| 91 | 305812 | 1.04 | 1.26 | |
| Handle (b) | ||||
| 92 | 6696487 | 3.45 | 4.17 | |
| Lock Lever | ||||
| 93 | 6696490 | 1.04 | 1.26 | |
| Lever (1) | ||||
| 94 | 6696488 | 1.04 | 1.26 | |
| Spring (a) | ||||
| 95 | 6696489 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 96A | 6601275 | |||
| Stop Switch Cord For (s) | ||||
| 97 | 6696592 | 2.10 | 2.54 | |
| Stop Switch Cord | ||||
| 97 | 6696491 | 1.80 | 2.18 | |
| Protection Tube For (s) | ||||
| 98 | 6696594 | 2.10 | 2.54 | |
| Protection Tube | ||||
| 98 | 6696967 | 1.05 | 1.27 | |
| Throttle Wire Comp. | ||||
| 99 | 6696593 | 5.10 | 6.17 | |
| Throttle Wire Comp. | ||||
| 99 | 6696560 | 4.18 | 5.05 | |
| No information available, not orderable | ||||
| 100 | 6696486 | |||
| No information available, not orderable | ||||
| 101 | 6699176 | |||
| Hex. Hole Bolt 5x22/s | ||||
| 102 | 6695492 | 1.15 | 1.39 | |
| Anti Vibe Rubber (a) | ||||
| 103 | 6696963 | 3.33 | 4.02 | |
| Pipe Holder (a) | ||||
| 104 | 6698643 | 2.10 | 2.54 | |
| Pipe Holder (b) | ||||
| 105 | 6698644 | 2.10 | 2.54 | |
| Anti Vibe Rubber (b) | ||||
| 106 | 6696964 | 3.33 | 4.02 | |
| Spring Washer D12 (10 pieces) | ||||
| 107 | 939542 | 1.50 | 1.82 | |
| No information available, not orderable | ||||
| 108 | 6697922 | |||
| Clutch Shaft | ||||
| 109 | 6699400 | 8.85 | 10.71 | |
| No information available, not orderable | ||||
| 110 | 6696469 | |||
| Ring | ||||
| 111 | 6684648 | 2.15 | 2.60 | |
| Clutch Plate (a) | ||||
| 112 | 6696546 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 113 | 6696948 | |||
| Washer (b) | ||||
| 114 | 6696547 | 1.05 | 1.27 | |
| Nut | ||||
| 115 | 6685337 | 1.05 | 1.27 | |
| Bolt Washer M8 (black) | ||||
| 116 | 323212 | 1.05 | 1.27 | |
| Hex. Socket Hd. Bolt (w/washers) M4x18 | ||||
| 117 | 6698388 | 1.05 | 1.27 | |
| Ignition Coil Comp. | ||||
| 118 | 6698492 | 22.83 | 27.62 | |
| Cord | ||||
| 119 | 6698495 | 2.10 | 2.54 | |
| No information available, not orderable | ||||
| 120A | 6601421 | |||
| No information available, not orderable | ||||
| 121 | 6699186 | |||
| Earth Cord | ||||
| 122 | 6696545 | 1.05 | 1.27 | |
| Magneto Rotor Comp. | ||||
| 123 | 6698396 | 8.70 | 10.53 | |
| Spacer (1) | ||||
| 124 | 6699558 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 125 | 6600358 | |||
| Fuel Pipe | ||||
| 126 | 6698716 | 3.45 | 4.17 | |
| Fuel Pipe L70 | ||||
| 127A | 6699014 | 1.65 | 2.00 | |
| No longer available, no replacement | ||||
| 129 | 6698402 | |||
| Tank Cap Chain | ||||
| 130 | 6698732 | 1.20 | 1.45 | |
| Tank (c) Since 8.2014 | ||||
| 131 | 6600354 | 3.45 | 4.17 | |
| Pump Filter | ||||
| 132 | 6600351 | 2.70 | 3.27 | |
| No longer available, no replacement | ||||
| 133 | 6696949 | |||
| Stand | ||||
| 134 | 6694787 | 3.30 | 3.99 | |
| Flange Bolt | ||||
| 135 | 6696557 | 1.05 | 1.27 | |
| Bolt (w/flange) L27.8 | ||||
| 136 | 6698991 | 1.20 | 1.45 | |
| Tapping Screw (w/Flange) D4x30 for Europe (s) | ||||
| 151 | 323837 | 1.68 | 2.03 | |
| Machine Screw M5x30 (black) | ||||
| 152 | 323041 | 1.05 | 1.27 | |
| Handle Right For Europe (s) | ||||
| 153 | 6698637 | 19.11 | 23.13 | |
| Handle (b) For Europe (s) | ||||
| 154 | 6696590 | 3.13 | 3.78 | |
| Handle (a) For Europe (s) | ||||
| 158 | 6696588 | 2.10 | 2.54 | |
| Nut M5 (black) | ||||
| 159 | 302012 | 1.05 | 1.27 | |
| Barrier | ||||
| 161 | 6696973 | 3.33 | 4.02 | |
| Hex. Hole Bolt M5x25/s | ||||
| 162 | 6684709 | 2.15 | 2.60 | |
| Handle Holder (a) Since 7.2015 For (s) | ||||
| 163 | 6600500 | 4.20 | 5.08 | |
| Handle (left) For (s) | ||||
| 164 | 6698638 | 22.83 | 27.62 | |
| Handle Holder (b) Since 7.2015 For (s) | ||||
| 165 | 6600501 | 7.20 | 8.71 | |
| Handle Holder (c) For (s) | ||||
| 166 | 6696578 | 2.10 | 2.54 | |
| HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | ||||
| 167 | 6684714 | 2.15 | 2.60 | |
| Gear Cover | ||||
| 168 | 6699402 | 50.33 | 60.89 | |
| Bolt (w/plus) M6x8 | ||||
| 169 | 6684737 | 2.15 | 2.60 | |
| Cutter Holder (a) | ||||
| 170 | 6696977 | 13.33 | 16.12 | |
| Cutter Holder (b) For Europe | ||||
| 171 | 6698659 | 13.04 | 15.78 | |
| NUT COVER | ||||
| 172 | 6699188 | 6.60 | 7.99 | |
| U-nut (left Hand) M10 For Irl | ||||
| 173 | 335759 | 1.04 | 1.26 | |
| Screw 5x12/w.s | ||||
| 174 | 6695414 | 1.15 | 1.39 | |
| Hex. Socket Hd. Bolt M5x30 (10 Pcs.) | ||||
| 175 | 949664 | 3.75 | 4.54 | |
| Cover Bracket For Europe | ||||
| 176 | 6696494 | 1.80 | 2.18 | |
| Caution Label (hedge) For Europe | ||||
| 177 | 6600328 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 178 | 6600449 | |||
| Level Mark | ||||
| 183 | 6684851 | 2.15 | 2.60 | |
| Main Pipe Comp. | ||||
| 184 | 6696558 | 17.69 | 21.40 | |
| Drive Shaft | ||||
| 185 | 6698514 | 15.60 | 18.88 | |
| Hanger For Irl | ||||
| 186A | 6600504 | 1.20 | 1.45 | |
| Cap (a) | ||||
| 187 | 6698515 | 2.10 | 2.54 | |
| Cover | ||||
| 188 | 6698794 | 9.30 | 11.25 | |
| Set Screw | ||||
| 190 | 6698795 | 1.35 | 1.63 | |
| Reel | ||||
| 191 | 6698796 | 2.40 | 2.90 | |
| Return Spring | ||||
| 192 | 6698797 | 1.05 | 1.27 | |
| Button (1) | ||||
| 193 | 6698798 | 1.20 | 1.45 | |
| Cord Guide | ||||
| 194 | 6698799 | 1.20 | 1.45 | |
| Case | ||||
| 195 | 6698800 | 6.60 | 7.99 | |
| No information available, not orderable | ||||
| 196 | 6696454 | |||
| No information available, not orderable | ||||
| 197 | 6696980 | |||
| Guard Holder For Europe | ||||
| 198 | 6696951 | 3.33 | 4.02 | |
| No information available, not orderable | ||||
| 199 | 6696950 | |||
| Tapping Screw 4x14 | ||||
| 200 | 6684751 | 2.15 | 2.60 | |
| Knife For Irl | ||||
| 201 | 6684750 | 4.29 | 5.19 | |
| Handle Holder (a).(b) Set Includ.155a,158a Till 6 | ||||
| 207 | 6600499 | 10.65 | 12.89 | |
| Machine Screw M5x10 (10 Pcs.) For Irl | ||||
| 208 | 949236 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 501 | 6684764 | |||
| No information available, not orderable | ||||
| 502 | 6696596 | |||
| No information available, not orderable | ||||
| 503 | 944458 | |||
| Cutter Cover For (s) | ||||
| 504A | 6684768 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 505 | 6698711 | |||
| No information available, not orderable | ||||
| 506 | 875769 | |||
| No information available, not orderable | ||||
| 507A | 6601420 | |||
| No information available, not orderable | ||||
| 508 | 6696184 | |||
