Here you will find all available parts and drawings of the 'Hikoki TCG24EBS'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

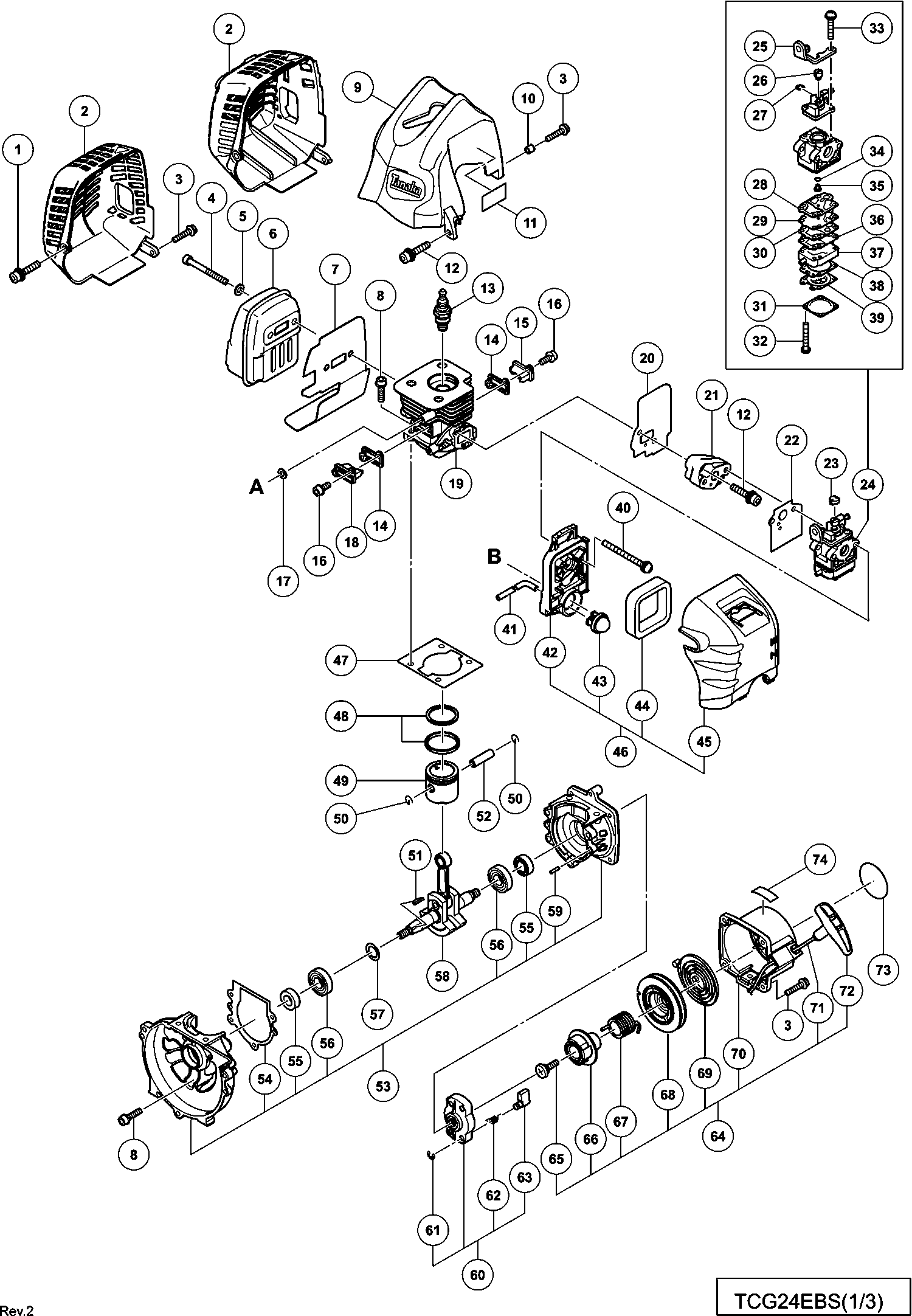

Technical drawing of model Hikoki TCG24EBS
Spare parts list of model Hikoki TCG24EBS
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Spark Plug Ass'y Bmr7a | ||||
| *13 | 6699316 | 8.91 | 10.78 | |
| Spark Plug Ass'y Cj6 Except For Aus,nzl | ||||
| *13 | 6699322 | 2.48 | 2.99 | |
| No information available, not orderable | ||||
| *505 | 6695796 | |||
| Muffler (b) For Europe | ||||
| *6 | 6600461 | 7.50 | 9.08 | |
| Seal Lock Hex. Socket Hd. Bolt M5x30 | ||||
| 1 | 6698950 | 1.20 | 1.45 | |
| Muffler Cover | ||||
| 2 | 6600319 | 6.30 | 7.62 | |
| Muffler Cover | ||||
| 2 | 6698478 | 4.58 | 5.54 | |
| Hex. Socket Hd. Bolt (w/flange) M4x18 | ||||
| 3 | 6696326 | 1.20 | 1.45 | |
| Hex. Socket Hd. Bolt M6x65 | ||||
| 4 | 6698384 | 1.05 | 1.27 | |
| Bolt Washer M6 (10 Pcs.) | ||||
| 5 | 949432 | 1.05 | 1.27 | |
| Muffler | ||||
| 6 | 6698477 | 11.85 | 14.34 | |
| Muffler (b) For Europe | ||||
| 6 | 6600461 | 7.50 | 9.08 | |
| Heat Protection Panel Since 11.2013 | ||||
| 7 | 6600320 | 1.35 | 1.63 | |
| No information available, not orderable | ||||
| 8 | 6698386 | |||
| No information available, not orderable | ||||
| 9 | 6699455 | |||
| Collar (b) | ||||
| 10 | 6600008 | 1.04 | 1.26 | |
| Seal Lock Hex. Socket Bolt (w/washers)m5 | ||||
| 12 | 6698844 | 1.20 | 1.45 | |
| Spark Plug Ass'y Bmr7a | ||||
| 13 | 6699316 | 8.91 | 10.78 | |
| Spark Plug Ass'y Cj6 Except For Aus,nzl | ||||
| 13 | 6699322 | 2.48 | 2.99 | |
| Cover Packing | ||||
| 14 | 6698468 | 1.05 | 1.27 | |
| Scavenging Cover (a) | ||||
| 15 | 6698469 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 16 | 6698385 | |||
| No longer available, no replacement | ||||
| 17 | 6698700 | |||
| Scavenging Cover (b) | ||||
| 18 | 6698470 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 19 | 6698465 | |||
| Gasket | ||||
| 20 | 6699437 | 1.04 | 1.26 | |
| Carburetor Insulator | ||||
| 21 | 6698387 | 3.15 | 3.81 | |
| Carburetor Packing | ||||
| 22 | 6698405 | 2.10 | 2.54 | |
| No longer available, no replacement | ||||
| 23 | 6691337 | |||
| Carburetor Ass'y Wyc-36 Includ.25-39 | ||||
| 24 | 6600321 | 29.98 | 36.27 | |
| Cable Adjust Stay | ||||
| 25 | 6699287 | 4.13 | 4.99 | |
| Swivel | ||||
| 26 | 6696830 | 4.45 | 5.38 | |
| Stop Ring | ||||
| 27 | 6684696 | 2.15 | 2.60 | |
| Pump Gasket | ||||
| 28 | 6684692 | 29.19 | 35.32 | |
| Pump Diaphragm | ||||
| 29 | 6684693 | 8.58 | 10.38 | |
| Pump Plate | ||||
| 30 | 6691242 | 2.31 | 2.80 | |
| Diaphragm Cover-metering | ||||
| 31 | 6685222 | 4.45 | 5.38 | |
| Set Screw | ||||
| 32 | 6691312 | 1.15 | 1.39 | |
| Set Screw M3x12 | ||||
| 33 | 6696829 | 1.04 | 1.26 | |
| O-RING (old 550-25100-20) | ||||
| 34 | 6684695 | 4.29 | 5.19 | |
| Circuit Plate | ||||
| 36 | 6691234 | 3.30 | 3.99 | |
| Pump Body Comp. | ||||
| 37 | 6696828 | 13.36 | 16.17 | |
| No longer available, no replacement | ||||
| 38 | 6685220 | |||
| No longer available, no replacement | ||||
| 39 | 6684690 | |||
| Machine Screw with Washers M5x60 (Black) | ||||
| 40 | 307224 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 41B | 6601443 | |||
| No information available, not orderable | ||||
| 42 | 6696832 | |||
| Priming Pump Comp. | ||||
| 43 | 6685139 | 5.94 | 7.18 | |
| Cleaner Element | ||||
| 44 | 6690347 | 4.45 | 5.38 | |
| Cleaner Cover | ||||
| 45 | 6699185 | 7.20 | 8.71 | |
| AIR CLEANER (A) ASS'Y | ||||
| 46 | 6699132 | 8.16 | 9.87 | |
| Cylinder Gasket | ||||
| 47 | 6684587 | 2.15 | 2.60 | |
| Piston Ring | ||||
| 48 | 6698404 | 4.20 | 5.08 | |
| Piston | ||||
| 49 | 6699456 | 7.80 | 9.44 | |
| Cir Clip | ||||
| 50 | 6684590 | 2.15 | 2.60 | |
| Woodruff Key 3x13x4.5 Till B023800 | ||||
| 51 | 6684899 | 2.15 | 2.60 | |
| Piston Pin | ||||
| 52 | 6684591 | 4.29 | 5.19 | |
| Crank Case Ass'y Includ.54-56,59 | ||||
| 53 | 6684606 | 54.45 | 65.88 | |
| Crank Case Gasket | ||||
| 54 | 6684609 | 2.15 | 2.60 | |
| Oil Seal | ||||
| 55 | 6684607 | 4.29 | 5.19 | |
| Ball Bearing 6001 C3 | ||||
| 56 | 6684608 | 3.80 | 4.60 | |
| Shim T0.3 | ||||
| 57 | 6696945 | 1.68 | 2.03 | |
| Crank Shaft | ||||
| 58 | 6696533 | 32.31 | 39.10 | |
| Knock Pin 4x12 | ||||
| 59 | 6696947 | 1.05 | 1.27 | |
| Starter Pulley Ass'y For (s) Type Since 7.2012 Fo | ||||
| 60 | 6684681 | 13.20 | 15.97 | |
| D4e Retaining Ring (old 993-55040-001) | ||||
| 61 | 6685101 | 1.15 | 1.39 | |
| Starter Pawl Spring | ||||
| 62 | 6684684 | 4.29 | 5.19 | |
| Starter Pawl | ||||
| 63 | 6684685 | 4.29 | 5.19 | |
| No information available, not orderable | ||||
| 64 | 6699995 | |||
| RECOIL STARTER BODY ASS'Y NEW | ||||
| 64A | 6601570 | 15.81 | 19.13 | |
| Set Screw (old 839-03045-20) | ||||
| 65 | 6684679 | 2.15 | 2.60 | |
| Cam Plate For (s) Type Since 9.2013 For Aus | ||||
| 66 | 6699996 | 2.55 | 3.09 | |
| Damper Spring For (s) Type Since 7.2012 For Aus | ||||
| 67 | 6684677 | 8.58 | 10.38 | |
| Starter Rope Reel For (s) Type Since 9.2013 For A | ||||
| 68 | 6699997 | 8.41 | 10.18 | |
| Recoil Spring Till 7.2014 | ||||
| 69 | 6684675 | 11.55 | 13.98 | |
| No information available, not orderable | ||||
| 70 | 6684673 | |||
| Starter Rope 3.5x860 For (s) Type Since 7.2012 Fo | ||||
| 71 | 6684674 | 4.29 | 5.19 | |
| Starter Handle | ||||
| 72 | 6684680 | 2.15 | 2.60 | |
| Tank Mark Label (25:1) For Asia,tpe,kor | ||||
| 74 | 6698922 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 91 | 6699195 | |||
| No information available, not orderable | ||||
| 92 | 6699194 | |||
| Switch Wire Set For (sl) | ||||
| 93 | 6699197 | 10.20 | 12.34 | |
| No information available, not orderable | ||||
| 94 | 6699196 | |||
| Stop Lever For (sl) | ||||
| 95 | 6699192 | 1.65 | 2.00 | |
| Long Lever For (sl) | ||||
| 96 | 6699191 | 2.55 | 3.09 | |
| Return Spring | ||||
| 97 | 6699193 | 1.04 | 1.26 | |
| Stay Set For (sl) | ||||
| 98 | 6699190 | 16.36 | 19.80 | |
| No information available, not orderable | ||||
| 99 | 6699133 | |||
| No information available, not orderable | ||||
| 100 | 6699176 | |||
| Hex. Hole Bolt 5x22/s | ||||
| 101 | 6695492 | 1.15 | 1.39 | |
| Anti Vibe Rubber (a) | ||||
| 102 | 6696963 | 3.33 | 4.02 | |
| Pipe Holder (a) | ||||
| 103 | 6698643 | 2.10 | 2.54 | |
| Pipe Holder (b) | ||||
| 104 | 6698644 | 2.10 | 2.54 | |
| Anti Vibe Rubber (b) | ||||
| 105 | 6696964 | 3.33 | 4.02 | |
| Spring Washer D12 (10 pieces) | ||||
| 106 | 939542 | 1.50 | 1.82 | |
| Fan Housing | ||||
| 107 | 6699457 | 14.99 | 18.13 | |
| BALL BEARING 6301ZZC3 | ||||
| 108 | 6699435 | 2.55 | 3.09 | |
| Spring Washer 37MM | ||||
| 109 | 322813 | 1.65 | 2.00 | |
| CLUTCH SHAFT | ||||
| 110 | 6699434 | 7.20 | 8.71 | |
| No information available, not orderable | ||||
| 111 | 6696469 | |||
| Ring | ||||
| 112 | 6684648 | 2.15 | 2.60 | |
| Clutch Plate (a) | ||||
| 113 | 6696546 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 114 | 6699130 | |||
| Washer (b) | ||||
| 115 | 6699131 | 1.04 | 1.26 | |
| Nut | ||||
| 116 | 6685337 | 1.05 | 1.27 | |
| Bolt Washer M8 (black) | ||||
| 117 | 323212 | 1.05 | 1.27 | |
| Hex. Socket Hd. Bolt (w/washers) M4x18 | ||||
| 118 | 6698388 | 1.05 | 1.27 | |
| Ignition Coil Comp. | ||||
| 119 | 6699458 | 26.40 | 31.94 | |
| No information available, not orderable | ||||
| 120A | 6601421 | |||
| No information available, not orderable | ||||
| 121 | 6699933 | |||
| Cord | ||||
| 122 | 6696544 | 1.05 | 1.27 | |
| Earth Cord | ||||
| 123 | 6696545 | 1.05 | 1.27 | |
| Magneto Rotor Comp. | ||||
| 124 | 6699289 | 25.71 | 31.11 | |
| Fuel Pipe | ||||
| 125 | 6698716 | 3.45 | 4.17 | |
| Fuel Pipe L70 | ||||
| 126A | 6699014 | 1.65 | 2.00 | |
| Return Grommet Till 7.2014 | ||||
| 127 | 6697846 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 128 | 6698402 | |||
| Tank Cap Chain | ||||
| 129 | 6698732 | 1.20 | 1.45 | |
| No longer available, no replacement | ||||
| 130 | 6698931 | |||
| No longer available, no replacement | ||||
| 130A | 6600358 | |||
| Spacer (1) | ||||
| 131 | 6699558 | 1.04 | 1.26 | |
| Spacer (b) | ||||
| 132 | 6699459 | 1.04 | 1.26 | |
| Tank | ||||
| 133 | 6600317 | 7.95 | 9.62 | |
| Tank (c) Since 8.2014 | ||||
| 133A | 6600354 | 3.45 | 4.17 | |
| Pump Filter | ||||
| 134A | 6600351 | 2.70 | 3.27 | |
| No longer available, no replacement | ||||
| 135 | 6696949 | |||
| Stand | ||||
| 136 | 6694787 | 3.30 | 3.99 | |
| Bolt (w/flange) L27.8 | ||||
| 137 | 6698991 | 1.20 | 1.45 | |
| Throttle Lever (b) For (s) | ||||
| 151 | 6699446 | 21.18 | 25.62 | |
| Loop Handle (w/barrier) For Europe (sl) | ||||
| 152 | 6699448 | 10.80 | 13.07 | |
| No information available, not orderable | ||||
| 153 | 6699449 | |||
| Hex. Hole Bolt M5x25/s | ||||
| 154 | 6684709 | 2.15 | 2.60 | |
| Handle Holder (a) Since 7.2015 For (s) | ||||
| 155A | 6600500 | 4.20 | 5.08 | |
| Handle (left) For (s) | ||||
| 156 | 6698638 | 22.83 | 27.62 | |
| Handle (right) For (s) | ||||
| 157 | 6699447 | 5.25 | 6.35 | |
| Handle Holder (b) Since 7.2015 For (s) | ||||
| 158A | 6600501 | 7.20 | 8.71 | |
| Handle Holder (c) For (s) | ||||
| 159 | 6696578 | 2.10 | 2.54 | |
| HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | ||||
| 160 | 6684714 | 2.15 | 2.60 | |
| Gear Cover | ||||
| 161 | 6699439 | 46.61 | 56.40 | |
| Hex. Socket Hd. Bolt M5x30 (10 Pcs.) | ||||
| 162 | 949664 | 3.75 | 4.54 | |
| Screw 5x12/w.s | ||||
| 163 | 6695414 | 1.15 | 1.39 | |
| Cap (1) | ||||
| 164 | 6600005 | 2.70 | 3.27 | |
| Spring | ||||
| 165 | 6600006 | 3.60 | 4.36 | |
| Bolt (w/plus) M6x8 | ||||
| 166 | 6684737 | 2.15 | 2.60 | |
| Lock Pin | ||||
| 167 | 6600007 | 11.25 | 13.61 | |
| Cutter Holder (a) For Europe | ||||
| 168 | 6699441 | 8.25 | 9.98 | |
| Cutter Holder (b) For Europe | ||||
| 169 | 6698659 | 13.04 | 15.78 | |
| NUT COVER | ||||
| 170 | 6699188 | 6.60 | 7.99 | |
| U-nut (left Hand) M10 For Irl | ||||
| 171 | 335759 | 1.04 | 1.26 | |
| Cover | ||||
| 172 | 6698794 | 9.30 | 11.25 | |
| Set Screw | ||||
| 174 | 6698795 | 1.35 | 1.63 | |
| Reel | ||||
| 175 | 6698796 | 2.40 | 2.90 | |
| Return Spring | ||||
| 176 | 6698797 | 1.05 | 1.27 | |
| Button (1) | ||||
| 177 | 6698798 | 1.20 | 1.45 | |
| Cord Guide | ||||
| 178 | 6698799 | 1.20 | 1.45 | |
| Case | ||||
| 179 | 6698800 | 6.60 | 7.99 | |
| No information available, not orderable | ||||
| 180 | 6696454 | |||
| Hex. Socket Hd. Bolt (w/button) M6x20 (old 990-530 | ||||
| 181 | 6685064 | 1.15 | 1.39 | |
| Spring Washer M6 (old 949455z, 10 pcs) | ||||
| 182 | 949455 | 1.05 | 1.27 | |
| Uae (s),(sl),pan (sl) | ||||
| 183 | 6696978 | 2.10 | 2.54 | |
| HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | ||||
| 184 | 6684714 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 185 | 6699444 | |||
| Caution Mark | ||||
| 187 | 6684959 | 2.10 | 2.54 | |
| Level Mark | ||||
| 188 | 6684852 | 2.15 | 2.60 | |
| Level Mark | ||||
| 189 | 6684851 | 2.15 | 2.60 | |
| Main Pipe | ||||
| 190 | 6699445 | 21.86 | 26.45 | |
| Drive Shaft | ||||
| 191 | 6698514 | 15.60 | 18.88 | |
| Hanger For Irl | ||||
| 192A | 6600504 | 1.20 | 1.45 | |
| Cap (a) | ||||
| 193 | 6698515 | 2.10 | 2.54 | |
| WIRE CLAMP | ||||
| 194 | 6699450 | 1.00 | 1.21 | |
| COVER ASS'Y | ||||
| 195 | 6697880 | 17.88 | 21.63 | |
| Guard 24 Dia. For Aus (sl) | ||||
| 196 | 6690272 | 13.20 | 15.97 | |
| Blade (old 797-38150-20) | ||||
| 197 | 6693388 | 6.28 | 7.59 | |
| Tapping Screw 5x20 For Aus (sl) | ||||
| 198 | 6684753 | 2.15 | 2.60 | |
| Cover Holder | ||||
| 199 | 6698813 | 2.10 | 2.54 | |
| Guard (1) | ||||
| 200 | 6696981 | 7.35 | 8.89 | |
| Bolt Washer M4 (black) For 220v-240v | ||||
| 201 | 323210 | 1.05 | 1.27 | |
| Ring | ||||
| 202 | 6685068 | 1.15 | 1.39 | |
| Nut M4 (10 Pieces) | ||||
| 203 | 949554 | 1.05 | 1.27 | |
| Uae (s),(sl),pan (sl) | ||||
| 204 | 6696584 | 2.10 | 2.54 | |
| Machine Screw M5x10 (10 Pcs.) For Irl | ||||
| 205 | 949236 | 1.05 | 1.27 | |
| Handle Holder (a).(b) Set Includ.155a,158a Till 6 | ||||
| 220 | 6600499 | 10.65 | 12.89 | |
| No information available, not orderable | ||||
| 501 | 6684764 | |||
| No information available, not orderable | ||||
| 502 | 6696596 | |||
| No information available, not orderable | ||||
| 503 | 944458 | |||
| No information available, not orderable | ||||
| 504 | 875769 | |||
| No information available, not orderable | ||||
| 505 | 6695796 | |||
| No information available, not orderable | ||||
| 505A | 6601420 | |||
