Here you will find all available parts and drawings of the 'Hikoki TCG23ECP'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

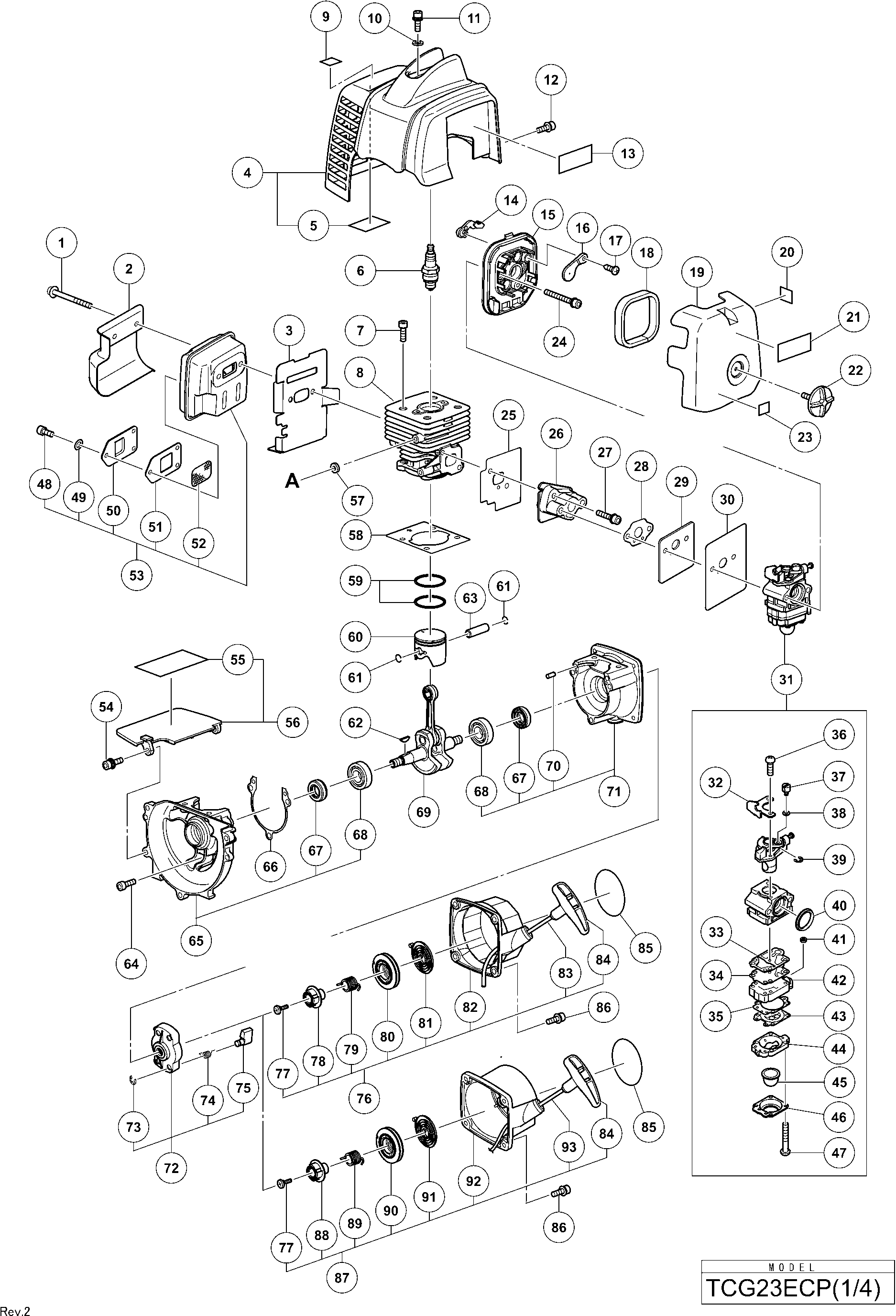

Technical drawing of model Hikoki TCG23ECP
Spare parts list of model Hikoki TCG23ECP
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Fuel Pipe Since 9.2016 | ||||
| *132A | 6601401 | 1.04 | 1.26 | |
| Hex.socket Bolt M5x55 | ||||
| 1 | 6600706 | 1.04 | 1.26 | |
| Heat Shield | ||||
| 2 | 6600707 | 6.44 | 7.79 | |
| Muffler Packing | ||||
| 3 | 6600710 | 5.28 | 6.38 | |
| Top Cover | ||||
| 4 | 6601290 | 9.74 | 11.78 | |
| No information available, not orderable | ||||
| 5 | 6600714 | |||
| No information available, not orderable | ||||
| 6 | 6600713 | |||
| Hex. Socket Hd. Bolt M5x16 | ||||
| 7 | 6600712 | 1.04 | 1.26 | |
| Cylinder | ||||
| 8 | 6600711 | 35.24 | 42.64 | |
| Caution Label (hot) | ||||
| 9 | 6698864 | 1.20 | 1.45 | |
| No information available, not orderable | ||||
| 10 | 6600715 | |||
| Hex. Socket Hd. Bolt (w/washers) M5x18 | ||||
| 11 | 6600716 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 12 | 6600720 | |||
| Choke Lever | ||||
| 14 | 6600721 | 1.04 | 1.26 | |
| Cleaner Base | ||||
| 15 | 6600722 | 2.64 | 3.19 | |
| Choke Plate | ||||
| 16 | 6600723 | 1.04 | 1.26 | |
| Tapping Screw St 4.2x9.5 | ||||
| 17 | 6600724 | 1.04 | 1.26 | |
| Air Filter Element | ||||
| 18 | 6600725 | 1.04 | 1.26 | |
| Cleaner Cover | ||||
| 19 | 6600726 | 1.98 | 2.39 | |
| Primer Label Since 11.2013 For Europe | ||||
| 20 | 6699000 | 1.04 | 1.26 | |
| Cleaner Knob | ||||
| 22 | 6600727 | 1.04 | 1.26 | |
| Mark Plate (t) Since 11.2013 For Europe | ||||
| 23 | 6600327 | 1.04 | 1.26 | |
| Hex. Socket Hd. Bolt (w/washers) M5x60 | ||||
| 24 | 6600728 | 1.04 | 1.26 | |
| Intake Packing | ||||
| 25 | 6600729 | 1.65 | 2.00 | |
| Carburetor Insulator | ||||
| 26 | 6600730 | 5.94 | 7.18 | |
| No information available, not orderable | ||||
| 27 | 6600731 | |||
| Carburetor Packing (a) | ||||
| 28 | 6600732 | 1.04 | 1.26 | |
| Heat Insulation Plate | ||||
| 29 | 6600733 | 2.48 | 2.99 | |
| Carburetor Packing (b) | ||||
| 30 | 6600734 | 1.81 | 2.19 | |
| Carburetor Ass'y (wyk-483) Includ.32-47 | ||||
| 31 | 6600735 | 90.90 | 109.99 | |
| Cable Adjust Stay | ||||
| 32 | 6601292 | 12.05 | 14.58 | |
| Pump Gasket | ||||
| 33 | 6684692 | 29.19 | 35.32 | |
| Pump Diaphragm | ||||
| 34 | 6684693 | 8.58 | 10.38 | |
| Diaphragm Gasket | ||||
| 35 | 6684691 | 8.58 | 10.38 | |
| Throttle Set Screw | ||||
| 36 | 6684870 | 2.15 | 2.60 | |
| Swivel | ||||
| 37 | 6601293 | 10.23 | 12.37 | |
| Thrust Washer | ||||
| 38 | 6684874 | 2.15 | 2.60 | |
| Stop Ring | ||||
| 39 | 6684696 | 2.15 | 2.60 | |
| Cleaner Packing | ||||
| 40 | 6684875 | 4.29 | 5.19 | |
| Inlet Screen | ||||
| 41 | 6684700 | 4.29 | 5.19 | |
| Pump Body | ||||
| 42 | 6601294 | 76.99 | 93.15 | |
| No longer available, no replacement | ||||
| 43 | 6684690 | |||
| Priming Pump Comp. | ||||
| 44 | 6684687 | 16.34 | 19.77 | |
| Priming Body | ||||
| 45 | 6684689 | 6.44 | 7.79 | |
| Diaphragm Cover | ||||
| 46 | 6684688 | 8.58 | 10.38 | |
| Set Screw | ||||
| 47 | 6684699 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 48 | 6600755 | |||
| No information available, not orderable | ||||
| 49 | 6600756 | |||
| No information available, not orderable | ||||
| 50 | 6600757 | |||
| Exhaust Packing | ||||
| 51 | 6600758 | 4.95 | 5.99 | |
| Spark Arrester | ||||
| 52 | 6600759 | 1.04 | 1.26 | |
| Muffler | ||||
| 53 | 6600708 | 45.38 | 54.90 | |
| No information available, not orderable | ||||
| 54 | 6600742 | |||
| No information available, not orderable | ||||
| 55 | 6600744 | |||
| No information available, not orderable | ||||
| 56 | 6601291 | |||
| Ignition Coil Spacer | ||||
| 57 | 6600660 | 1.04 | 1.26 | |
| Cylinder Packing | ||||
| 58 | 6600738 | 10.73 | 12.98 | |
| Piston Ring | ||||
| 59 | 6600739 | 3.96 | 4.79 | |
| Piston | ||||
| 60 | 6600740 | 11.55 | 13.98 | |
| Circlip (1) | ||||
| 61 | 6600736 | 1.04 | 1.26 | |
| Woodruff Key | ||||
| 62 | 6600741 | 1.04 | 1.26 | |
| Piston Pin | ||||
| 63 | 6600737 | 1.33 | 1.60 | |
| Hex. Socket Hd. Bolt M5x16 | ||||
| 64 | 6600712 | 1.04 | 1.26 | |
| Crank Case (a) Ass'y Includ.67,68 | ||||
| 65 | 6600745 | 14.68 | 17.76 | |
| Crank Case Packing | ||||
| 66 | 6600746 | 1.15 | 1.39 | |
| Oil Seal | ||||
| 67 | 6600747 | 1.33 | 1.60 | |
| Ball Bearing (1) | ||||
| 68 | 6600594 | 5.28 | 6.38 | |
| Crank Shaft | ||||
| 69 | 6600748 | 46.89 | 56.73 | |
| No information available, not orderable | ||||
| 70 | 6600749 | |||
| Crank Case (b) Ass'y Includ.67,68,70 | ||||
| 71 | 6600750 | 12.54 | 15.17 | |
| Pulley (1) | ||||
| 72 | 6600752 | 4.45 | 5.38 | |
| Pulley Ass'y | ||||
| 72 | 6600751 | 4.05 | 4.90 | |
| Retaining Ring (1) | ||||
| 73 | 6601321 | 1.04 | 1.26 | |
| Starter Pawl Spring | ||||
| 74 | 6601322 | 1.04 | 1.26 | |
| Starter Pawl | ||||
| 75 | 6601323 | 1.15 | 1.39 | |
| Recoil Starter Ass'y (s) Includ.77-84 | ||||
| 76 | 6600753 | 19.51 | 23.61 | |
| Set Screw | ||||
| 77 | 6601307 | 1.04 | 1.26 | |
| Cam (s) | ||||
| 78 | 6601309 | 2.31 | 2.80 | |
| Damper Spring (s) | ||||
| 79 | 6601311 | 3.46 | 4.19 | |
| Reel (s) | ||||
| 80 | 6601313 | 3.30 | 3.99 | |
| Spiral Spring (s) | ||||
| 81 | 6601315 | 7.26 | 8.79 | |
| Starter Case (s) | ||||
| 82 | 6601317 | 7.59 | 9.18 | |
| Stater Rope (s) | ||||
| 83 | 6601319 | 1.81 | 2.19 | |
| Starter Handle | ||||
| 84 | 6601320 | 1.98 | 2.39 | |
| No information available, not orderable | ||||
| 86 | 6600720 | |||
| Recoil Starter Ass'y Includ.80,81 | ||||
| 87 | 6600754 | 17.33 | 20.96 | |
| Cam (LB) | ||||
| 88 | 6601308 | 1.80 | 2.18 | |
| DAMPER SPRING (LB) | ||||
| 89 | 6601310 | 3.00 | 3.63 | |
| REEL (LB) | ||||
| 90 | 6601312 | 2.70 | 3.27 | |
| Spiral Spring (LB) | ||||
| 91 | 6601314 | 3.30 | 3.99 | |
| Starter Case (LB) | ||||
| 92 | 6601316 | 7.20 | 8.71 | |
| Starter Rope (LB) | ||||
| 93 | 6601318 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 111 | 6600760 | |||
| No information available, not orderable | ||||
| 112 | 6600731 | |||
| Holder (a) | ||||
| 113 | 6600761 | 1.65 | 2.00 | |
| Holder (b) | ||||
| 114 | 6600762 | 1.65 | 2.00 | |
| Anti Vibration Rubber | ||||
| 115 | 6600763 | 2.31 | 2.80 | |
| Fan Case | ||||
| 116 | 6600764 | 10.73 | 12.98 | |
| Hex. Socket Hd. Bolt (w/washers) M5x18 | ||||
| 117 | 6600716 | 1.04 | 1.26 | |
| Ignition Coil Ass'y Includ.119-121 | ||||
| 118 | 6600765 | 21.18 | 25.62 | |
| No information available, not orderable | ||||
| 119 | 6600766 | |||
| Plug Cap | ||||
| 120 | 6600767 | 1.81 | 2.19 | |
| No information available, not orderable | ||||
| 121 | 6600768 | |||
| Cord | ||||
| 122 | 6601296 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 123 | 6600775 | |||
| No information available, not orderable | ||||
| 124 | 6600770 | |||
| Clutch Shaft (s) For (sl) | ||||
| 125 | 6600771 | 11.55 | 13.98 | |
| Clutch Shaft (f) For (lb) | ||||
| 125 | 6600772 | 11.55 | 13.98 | |
| Step Bolt | ||||
| 126 | 6600661 | 1.15 | 1.39 | |
| Bent Washer 8 | ||||
| 127 | 6600662 | 1.04 | 1.26 | |
| Clutch | ||||
| 128 | 6600773 | 7.26 | 8.79 | |
| Clutch Washer (b) | ||||
| 129 | 6600664 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 130 | 6600658 | |||
| Magneto Rotor | ||||
| 131 | 6600774 | 21.18 | 25.62 | |
| Fuel Pipe Since 9.2016 | ||||
| 132A | 6601401 | 1.04 | 1.26 | |
| Fuel Pipe Since 9.2016 | ||||
| 133A | 6601400 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 135 | 6600782 | |||
| Tank Cap Retainer Holder | ||||
| 136 | 6600781 | 1.04 | 1.26 | |
| Tank Cap Packing | ||||
| 137 | 6600780 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 138 | 6600779 | |||
| No information available, not orderable | ||||
| 139 | 6600778 | |||
| No information available, not orderable | ||||
| 140 | 6600777 | |||
| Tank Cap Ass'y Includ.135-140,148 | ||||
| 141A | 6600776 | 2.31 | 2.80 | |
| Tank | ||||
| 142 | 6600788 | 12.05 | 14.58 | |
| Pump Filter Body | ||||
| 143A | 6685199 | 4.45 | 5.38 | |
| Clip | ||||
| 144 | 6601295 | 1.04 | 1.26 | |
| Stand | ||||
| 145 | 6600791 | 2.80 | 3.39 | |
| Hex. Socket Hd. Bolt (w/washers) M5x18 | ||||
| 146 | 6600716 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 147 | 6698921 | |||
| Filter Element | ||||
| 148 | 6601396 | 1.04 | 1.26 | |
| Fuel Pipe Set Includ.132a-134a Till 8.2016 | ||||
| 149 | 6601403 | 1.98 | 2.39 | |
| Hex. Socket Hd. Bolt (w/sp.washer) M5x35 | ||||
| 161 | 6600873 | 1.04 | 1.26 | |
| Loop Handle | ||||
| 162 | 6600800 | 7.59 | 9.18 | |
| Barrier For Europe | ||||
| 163 | 6600802 | 3.30 | 3.99 | |
| Gear Case Ass'y (s) Includ.166-172 | ||||
| 165 | 6600803 | 56.56 | 68.44 | |
| No information available, not orderable | ||||
| 166 | 6600856 | |||
| Hex. Socket Hd. Bolt M5x12 | ||||
| 167 | 6600855 | 1.04 | 1.26 | |
| Holder (a) | ||||
| 168 | 6600857 | 4.13 | 4.99 | |
| Holder (b) For Europe | ||||
| 169 | 6600858 | 1.98 | 2.39 | |
| Nut Cover For Europe | ||||
| 170 | 6600859 | 4.79 | 5.79 | |
| U-nut (left Hand) M10 For Europe | ||||
| 171 | 6600860 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 172 | 6600854 | |||
| No information available, not orderable | ||||
| 173 | 6600570 | |||
| No longer available, no replacement | ||||
| 174 | 6600806 | |||
| No information available, not orderable | ||||
| 175 | 6600809 | |||
| No information available, not orderable | ||||
| 176 | 6600808 | |||
| No information available, not orderable | ||||
| 177 | 6600807 | |||
| No information available, not orderable | ||||
| 178 | 6600810 | |||
| No longer available, no replacement | ||||
| 179 | 6600811 | |||
| Throttle Lever Ass'y Includ.181-197 | ||||
| 180 | 6600822 | 23.45 | 28.37 | |
| Grip | ||||
| 181 | 6600852 | 1.98 | 2.39 | |
| Throttle Collar | ||||
| 182 | 6601306 | 2.31 | 2.80 | |
| Nut M5 | ||||
| 183 | 6600825 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 184 | 6600853 | |||
| Screw (w/washers) M5x25 | ||||
| 185 | 6600839 | 1.04 | 1.26 | |
| Handle (b) | ||||
| 186 | 6600850 | 2.31 | 2.80 | |
| Stop Switch Comp. | ||||
| 187 | 6600851 | 4.95 | 5.99 | |
| Handle Clamp | ||||
| 188 | 6600843 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 189 | 6600841 | |||
| Spring (c) | ||||
| 190 | 6600842 | 1.04 | 1.26 | |
| Connection Lever | ||||
| 191 | 6600849 | 1.04 | 1.26 | |
| Spring (d) | ||||
| 192 | 6600847 | 1.04 | 1.26 | |
| Trigger Lockout | ||||
| 193 | 6600846 | 1.04 | 1.26 | |
| Spring (e) | ||||
| 194 | 6600848 | 1.04 | 1.26 | |
| Throttle Wire Comp. | ||||
| 195 | 6600840 | 2.80 | 3.39 | |
| No information available, not orderable | ||||
| 196 | 6600845 | |||
| Screw (w/washers) M5x30 | ||||
| 197 | 6600844 | 1.04 | 1.26 | |
| Limit Ring For Europe | ||||
| 198 | 6601330 | 1.81 | 2.19 | |
| Loop Handle Rubber | ||||
| 199 | 6600821 | 1.81 | 2.19 | |
| Hanger Ass'y Includ.201,202 For Europe | ||||
| 200 | 6600818 | 4.79 | 5.79 | |
| No information available, not orderable | ||||
| 201 | 6600838 | |||
| Hanger For Europe | ||||
| 202 | 6600837 | 1.98 | 2.39 | |
| Hex. Hole Button Bolt M6x25 For Europe | ||||
| 203 | 6600813 | 1.04 | 1.26 | |
| Cover Bracket For Europe | ||||
| 204 | 6600812 | 5.11 | 6.19 | |
| No information available, not orderable | ||||
| 207 | 6600449 | |||
| Level Mark (a) | ||||
| 209 | 6601305 | 2.48 | 2.99 | |
| Main Pipe | ||||
| 210 | 6600816 | 40.84 | 49.41 | |
| Drive Shaft | ||||
| 211 | 6600817 | 9.90 | 11.98 | |
| Guard (1) | ||||
| 212 | 6601299 | 8.91 | 10.78 | |
| No longer available, no replacement | ||||
| 213 | 6601333 | |||
| No longer available, no replacement | ||||
| 214 | 6601301 | |||
| Tapping Screw 4x14 | ||||
| 214A | 6684751 | 2.15 | 2.60 | |
| Knife For Europe | ||||
| 215 | 6601302 | 1.15 | 1.39 | |
| Flexible Shaft For (lb) | ||||
| 231 | 6698325 | 13.80 | 16.70 | |
| Main Pipe Ass'y Includ.231,233 For (lb) | ||||
| 232 | 6601405 | 187.25 | 226.57 | |
| Cutter Case Includ.234,235,238 For (lb) | ||||
| 233 | 6600494 | 25.44 | 30.78 | |
| No information available, not orderable | ||||
| 234 | 6698331 | |||
| Hex. Socket Hd. Bolt M5x10 (10 Pcs.) | ||||
| 235 | 949819 | 2.55 | 3.09 | |
| Bolt M6 For (lb) | ||||
| 236 | 6698334 | 3.15 | 3.81 | |
| Guard Bracket For (lb) | ||||
| 237 | 6698335 | 3.15 | 3.81 | |
| Hex. Socket Hd. Bolt M5x25 (10 Pcs.) | ||||
| 238 | 949662 | 2.10 | 2.54 | |
| Guard For (lb) | ||||
| 239 | 6698809 | 18.56 | 22.46 | |
| Machine Screw M5X14 (10 pieces) | ||||
| 240 | 949238 | 1.05 | 1.27 | |
| Washer M5 (10 Pcs.) | ||||
| 241 | 949424 | 1.05 | 1.27 | |
| Knife For (lb) | ||||
| 242 | 6698333 | 6.45 | 7.80 | |
| Spring Washer M5 (10 pieces) | ||||
| 243 | 949454 | 1.04 | 1.26 | |
| Nut M5 (10 Pieces) (OLD 949555Z) | ||||
| 244 | 949555 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 245 | 6601376 | |||
| No information available, not orderable | ||||
| 246 | 6601375 | |||
| No information available, not orderable | ||||
| 501 | 6600574 | |||
| No information available, not orderable | ||||
| 502 | 944458 | |||
| No information available, not orderable | ||||
| 503 | 6600863 | |||
| No information available, not orderable | ||||
| 504 | 6600576 | |||
| No information available, not orderable | ||||
| 505 | 6600579 | |||
| No information available, not orderable | ||||
| 506 | 6600874 | |||
