Here you will find all available parts and drawings of the 'Hikoki TCG22EAS'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

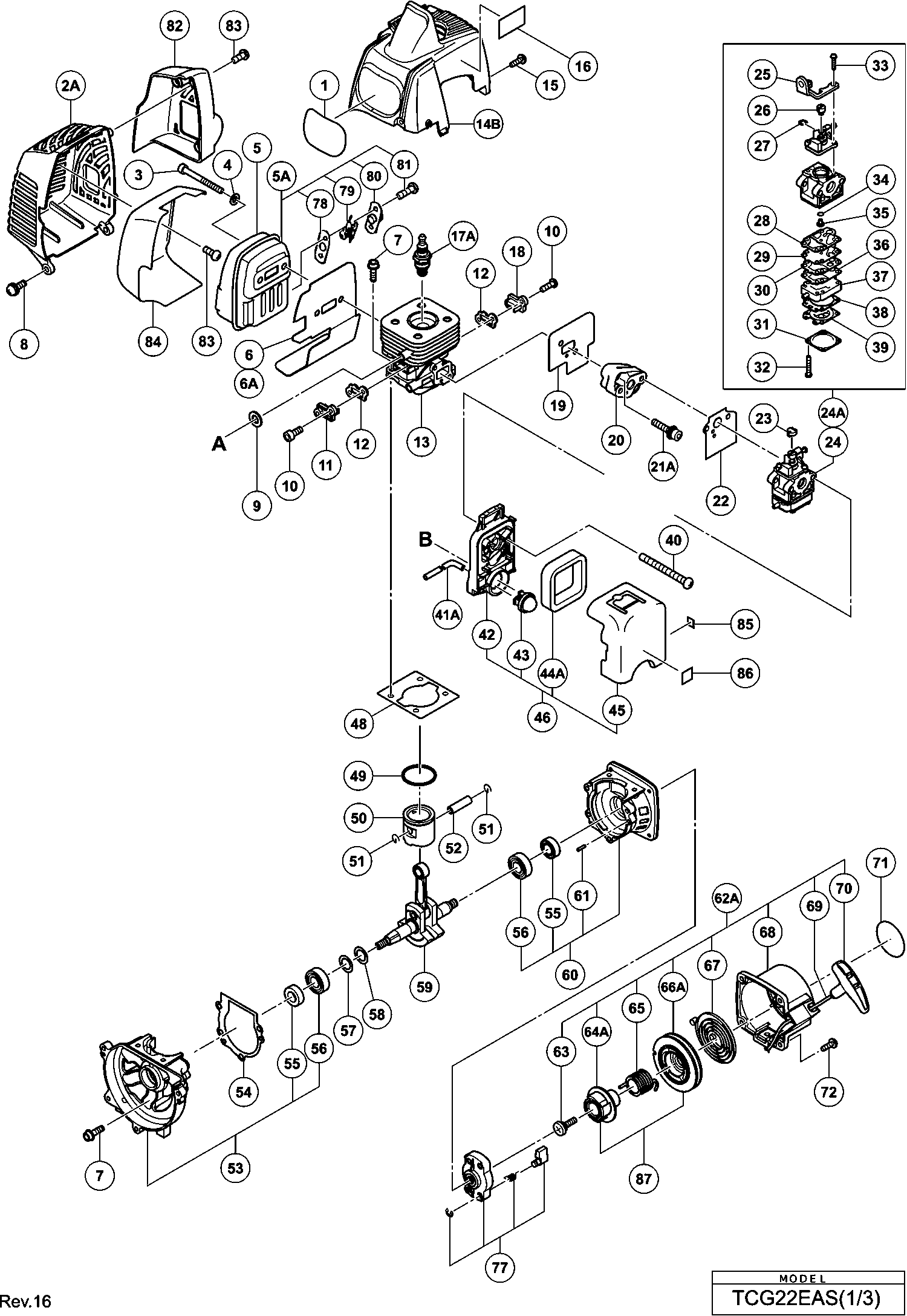

Technical drawing of model Hikoki TCG22EAS
Spare parts list of model Hikoki TCG22EAS
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Muffler Protector | ||||
| 2A | 6600338 | 3.30 | 3.99 | |
| Hex. Hole Bolt M6x55 | ||||
| 3 | 6684638 | 2.15 | 2.60 | |
| Bolt Washer M6 (10 Pcs.) | ||||
| 4 | 949432 | 1.05 | 1.27 | |
| Muffler | ||||
| 5 | 6696570 | 7.29 | 8.82 | |
| Muffler | ||||
| 5A | 6698477 | 11.85 | 14.34 | |
| No information available, not orderable | ||||
| 6 | 6696553 | |||
| Hex.hole Bolt M5x18/s | ||||
| 7 | 6684586 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 8 | 887021 | |||
| Hex. Socket Hd. Bolt (w/sp.washer) M4x12 | ||||
| 10 | 6684595 | 2.15 | 2.60 | |
| Intake Cover (b) | ||||
| 11 | 6696536 | 1.05 | 1.27 | |
| Cover Packing | ||||
| 12 | 6696534 | 1.05 | 1.27 | |
| Cylinder | ||||
| 13 | 6696527 | 24.70 | 29.89 | |
| Cylinder Cover | ||||
| 14B | 6600424 | 3.15 | 3.81 | |
| Machine Screw (w/washers) M4x20 (black) | ||||
| 15 | 307606 | 1.05 | 1.27 | |
| Spark Plug Ass'y Bmr7a | ||||
| 17A | 6699316 | 8.91 | 10.78 | |
| Spark Plug Ass'y Cj6 Except For Aus,nzl | ||||
| 17A | 6699322 | 2.48 | 2.99 | |
| Intake Cover (a) | ||||
| 18 | 6696535 | 1.05 | 1.27 | |
| Gasket | ||||
| 19 | 6696548 | 1.05 | 1.27 | |
| Carburetor Insulator | ||||
| 20A | 6698387 | 3.15 | 3.81 | |
| Seal Lock Hex. Socket Bolt (w/washers)m5 | ||||
| 21A | 6698844 | 1.20 | 1.45 | |
| Carburetor Packing | ||||
| 22 | 6684616 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 23 | 6684628 | |||
| Carburetor Wyc-22 | ||||
| 24 | 6696550 | 45.63 | 55.21 | |
| Carburetor Ass'y Wyc-28 Includ.26-40 | ||||
| 24A | 6698474 | 55.14 | 66.72 | |
| Cable Adjust Stay | ||||
| 25 | 6699287 | 4.13 | 4.99 | |
| Swivel | ||||
| 26 | 6696830 | 4.45 | 5.38 | |
| Stop Ring | ||||
| 27 | 6684696 | 2.15 | 2.60 | |
| Pump Gasket | ||||
| 28 | 6684692 | 29.19 | 35.32 | |
| Pump Diaphragm | ||||
| 29 | 6684693 | 8.58 | 10.38 | |
| Pump Plate | ||||
| 30 | 6691242 | 2.31 | 2.80 | |
| Diaphragm Cover-metering | ||||
| 31 | 6685222 | 4.45 | 5.38 | |
| Set Screw | ||||
| 32 | 6691312 | 1.15 | 1.39 | |
| Set Screw M3x12 | ||||
| 33 | 6696829 | 1.04 | 1.26 | |
| O-RING (old 550-25100-20) | ||||
| 34 | 6684695 | 4.29 | 5.19 | |
| Circuit Plate | ||||
| 36 | 6691234 | 3.30 | 3.99 | |
| Pump Body Comp. | ||||
| 37 | 6696828 | 13.36 | 16.17 | |
| No longer available, no replacement | ||||
| 38 | 6685220 | |||
| Metering Diaphragm | ||||
| 39 | 6684690 | 18.00 | 21.78 | |
| Machine Screw with Washers M5x60 (Black) | ||||
| 40 | 307224 | 1.05 | 1.27 | |
| Fuel Pipe | ||||
| 41A | 6698720 | 3.45 | 4.17 | |
| No information available, not orderable | ||||
| 42 | 6696832 | |||
| Priming Pump Comp. | ||||
| 43 | 6685139 | 5.94 | 7.18 | |
| No longer available, no replacement | ||||
| 44A | 6600704 | |||
| No information available, not orderable | ||||
| 45 | 6696831 | |||
| Air Cleaner Ass'y Includ.34-37 | ||||
| 46 | 6696549 | 9.13 | 11.04 | |
| Cylinder Packing | ||||
| 48 | 6696530 | 1.05 | 1.27 | |
| Piston Ring | ||||
| 49 | 6696532 | 2.10 | 2.54 | |
| Piston | ||||
| 50 | 6696531 | 6.88 | 8.32 | |
| Cir Clip | ||||
| 51 | 6684590 | 2.15 | 2.60 | |
| Piston Pin | ||||
| 52 | 6696944 | 3.33 | 4.02 | |
| Crank Case (b) Comp Includ.55,56 | ||||
| 53 | 6696538 | 13.26 | 16.05 | |
| Crank Case Packing | ||||
| 54 | 6696539 | 1.05 | 1.27 | |
| Oil Seal | ||||
| 55 | 6684607 | 4.29 | 5.19 | |
| Ball Bearing 6001 C3 | ||||
| 56 | 6684608 | 3.80 | 4.60 | |
| Shim T0.2 | ||||
| 57 | 6696946 | 1.68 | 2.03 | |
| Shim T0.3 | ||||
| 58 | 6696945 | 1.68 | 2.03 | |
| Crank Shaft | ||||
| 59 | 6696533 | 32.31 | 39.10 | |
| Crank Case (a) Ass'y Includ.55,56,61 | ||||
| 60 | 6696537 | 13.68 | 16.55 | |
| Knock Pin 4x12 (old 999-05041-203) | ||||
| 61 | 6695521 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 62A | 6699995 | |||
| Set Screw (old 839-03045-20) | ||||
| 63 | 6684679 | 2.15 | 2.60 | |
| Cam Plate For (s) Type Since 9.2013 For Aus | ||||
| 64A | 6699996 | 2.55 | 3.09 | |
| Damper Spring For (s) Type Since 7.2012 For Aus | ||||
| 65 | 6684677 | 8.58 | 10.38 | |
| Starter Rope Reel For (s) Type Since 9.2013 For A | ||||
| 66A | 6699997 | 8.41 | 10.18 | |
| Recoil Spring Till 7.2014 | ||||
| 67 | 6684675 | 11.55 | 13.98 | |
| Recoil Starter Body Comp. For (s) Type Since 7.20 | ||||
| 68 | 6684673 | 19.06 | 23.07 | |
| Starter Rope 3.5x860 For (s) Type Since 7.2012 Fo | ||||
| 69 | 6684674 | 4.29 | 5.19 | |
| Starter Handle | ||||
| 70 | 6684680 | 2.15 | 2.60 | |
| Machine Screw (w/washers) M4x16 | ||||
| 72 | 993539 | 1.04 | 1.26 | |
| Starter Pulley Ass'y For (s) Type Since 7.2012 Fo | ||||
| 77 | 6684681 | 13.20 | 15.97 | |
| Muffler Special Gasket For Aus (sl,s),nzl (sl,s) | ||||
| 78 | 6684650 | 2.15 | 2.60 | |
| Spark Arrestor For Aus (sl,s),nzl (sl,s) | ||||
| 79 | 6684652 | 4.29 | 5.19 | |
| Exhaust Pipe (old 734-52200-20/6684649) | ||||
| 80 | 6685047 | 5.94 | 7.18 | |
| Ring | ||||
| 81 | 6685068 | 1.15 | 1.39 | |
| Muffler Rear Cover Since 11.2013 | ||||
| 82 | 6600339 | 4.65 | 5.63 | |
| Tapping Screw D4x10 Since 11.2013 | ||||
| 83 | 6600325 | 1.04 | 1.26 | |
| Muffer Heat Cover Since 11.2013 | ||||
| 84 | 6600340 | 5.40 | 6.53 | |
| Mark Plate (t) Since 11.2013 For Europe | ||||
| 85 | 6600327 | 1.04 | 1.26 | |
| Primer Label Since 11.2013 For Europe | ||||
| 86 | 6699000 | 1.04 | 1.26 | |
| Till 8.2013 For Aus | ||||
| 87 | 6699691 | 6.10 | 7.38 | |
| Hex.hole Bolt M5x12/s | ||||
| 91 | 6684667 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 92 | 305583 | |||
| Fan Case (vermilion) | ||||
| 93B | 6699159 | 9.15 | 11.07 | |
| Clutch Shaft COMP | ||||
| 94B | 6696541 | 8.41 | 10.18 | |
| Step Bolt | ||||
| 95 | 6696469 | 1.04 | 1.26 | |
| Ring | ||||
| 96 | 6684648 | 2.15 | 2.60 | |
| Clutch Plate (a) | ||||
| 97 | 6696546 | 1.05 | 1.27 | |
| Clutch | ||||
| 98 | 6696948 | 11.64 | 14.08 | |
| Washer (b) | ||||
| 99 | 6696547 | 1.05 | 1.27 | |
| Nut | ||||
| 100 | 6685337 | 1.05 | 1.27 | |
| Bolt Washer M8 (black) | ||||
| 101 | 323212 | 1.05 | 1.27 | |
| Ignition Coil Comp. | ||||
| 102B | 6699464 | 17.60 | 21.30 | |
| Hex. Hole Bolt M4x18/ws Till H124040 | ||||
| 103 | 6684599 | 2.15 | 2.60 | |
| Cord | ||||
| 106 | 6696544 | 1.05 | 1.27 | |
| Earth Cord | ||||
| 107 | 6696545 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 108 | 6696928 | |||
| Magneto Rotor Comp. | ||||
| 108A | 6699289 | 25.71 | 31.11 | |
| Anti Vibe Rubber (a) | ||||
| 109 | 6696963 | 3.33 | 4.02 | |
| Pipe Holder (a) | ||||
| 110 | 6696542 | 1.05 | 1.27 | |
| Pipe Holder (a) | ||||
| 110A | 6698643 | 2.10 | 2.54 | |
| Pipe Holder (b) | ||||
| 112 | 6696543 | 1.05 | 1.27 | |
| Pipe Holder (b) | ||||
| 112A | 6698644 | 2.10 | 2.54 | |
| Anti Vibe Rubber (b) | ||||
| 113 | 6696964 | 3.33 | 4.02 | |
| Spring Washer D12 (10 pieces) | ||||
| 114 | 939542 | 1.50 | 1.82 | |
| Tapping Screw D4.5x16 | ||||
| 115 | 6684636 | 2.15 | 2.60 | |
| Tapping Screw (w/flange) D4x16 (black) | ||||
| 117 | 305812 | 1.04 | 1.26 | |
| Kor (sl) | ||||
| 118 | 6696942 | 5.01 | 6.07 | |
| Handle (b) | ||||
| 118 | 6696487 | 3.45 | 4.17 | |
| Lock Lever | ||||
| 119 | 6696490 | 1.04 | 1.26 | |
| Lever (1) | ||||
| 120 | 6696488 | 1.04 | 1.26 | |
| Spring (a) | ||||
| 121 | 6696489 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 122A | 6601275 | |||
| Stop Switch Cord For (s) | ||||
| 123 | 6696592 | 2.10 | 2.54 | |
| Stop Switch Cord | ||||
| 123 | 6696491 | 1.80 | 2.18 | |
| Protection Tube For (s) | ||||
| 124 | 6696594 | 2.10 | 2.54 | |
| Protection Tube | ||||
| 124 | 6696967 | 1.05 | 1.27 | |
| Throttle Wire Comp. | ||||
| 125 | 6696593 | 5.10 | 6.17 | |
| Throttle Wire Comp. | ||||
| 125 | 6696560 | 4.18 | 5.05 | |
| Kor (sl) | ||||
| 126 | 6696941 | 5.01 | 6.07 | |
| Handle (a) | ||||
| 126 | 6696486 | 3.45 | 4.17 | |
| Tank | ||||
| 127 | 6696569 | 4.59 | 5.55 | |
| Pump Filter | ||||
| 128A | 6600351 | 2.70 | 3.27 | |
| Clip | ||||
| 129 | 6696949 | 1.68 | 2.03 | |
| Bolt (w/flange) L17.8 Since G103931 | ||||
| 131 | 6696574 | 1.05 | 1.27 | |
| Fuel Pipe | ||||
| 132A | 6698716 | 3.45 | 4.17 | |
| Fuel Pipe L70 | ||||
| 133A | 6699014 | 1.65 | 2.00 | |
| Return Grommet Till 7.2014 | ||||
| 134A | 6697846 | 1.04 | 1.26 | |
| Tank Cap Chain | ||||
| 135A | 6698732 | 1.20 | 1.45 | |
| No longer available, no replacement | ||||
| 136A | 6698402 | |||
| Woodruff Key 3x13x4.5 Till B023800 | ||||
| 145 | 6684899 | 2.15 | 2.60 | |
| Magneto Key Set Includ.119b,124a,136 Till 7.2013 | ||||
| 146 | 6699463 | 23.38 | 28.28 | |
| Tapping Screw (w/Flange) D4x30 for Europe (s) | ||||
| 151 | 323837 | 1.68 | 2.03 | |
| Handle (b) For Europe (s) | ||||
| 152 | 6696590 | 3.13 | 3.78 | |
| Kor (s) | ||||
| 152 | 6696591 | 3.13 | 3.78 | |
| Machine Screw M5x30 (black) | ||||
| 153 | 323041 | 1.05 | 1.27 | |
| Kor (s) | ||||
| 154 | 6696585 | 6.45 | 7.80 | |
| Handle Holder (b) Since 7.2015 For (s) | ||||
| 155A | 6600501 | 7.20 | 8.71 | |
| Handle Holder (c) For (s) | ||||
| 156 | 6696578 | 2.10 | 2.54 | |
| HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | ||||
| 157 | 6684714 | 2.15 | 2.60 | |
| Hex. Hole Bolt M5x25/s | ||||
| 158 | 6684709 | 2.15 | 2.60 | |
| Handle Holder (a) Since 7.2015 For (s) | ||||
| 159A | 6600500 | 4.20 | 5.08 | |
| Handle (a) For Europe (s) | ||||
| 160 | 6696588 | 2.10 | 2.54 | |
| Kor (s) | ||||
| 160 | 6696589 | 2.10 | 2.54 | |
| Nut M5 (black) | ||||
| 161 | 302012 | 1.05 | 1.27 | |
| Kor (s) | ||||
| 162 | 6696595 | 13.26 | 16.05 | |
| Barrier | ||||
| 164 | 6696973 | 3.33 | 4.02 | |
| Gear Cover | ||||
| 168A | 6699402 | 50.33 | 60.89 | |
| Bolt (w/plus) M6x8 | ||||
| 169 | 6684737 | 2.15 | 2.60 | |
| Cutter Holder (a) | ||||
| 176 | 6696977 | 13.33 | 16.12 | |
| Screw 5x12/w.s | ||||
| 180 | 6695414 | 1.15 | 1.39 | |
| Hex. Socket Hd. Bolt M5x30 (10 Pcs.) | ||||
| 181 | 949664 | 3.75 | 4.54 | |
| Cover Bracket For Europe | ||||
| 186 | 6696494 | 1.80 | 2.18 | |
| HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | ||||
| 187 | 6684714 | 2.15 | 2.60 | |
| Caution Mark | ||||
| 192 | 6684959 | 2.10 | 2.54 | |
| Level Mark | ||||
| 194 | 6684851 | 2.15 | 2.60 | |
| Main Pipe Comp. | ||||
| 195 | 6696558 | 17.69 | 21.40 | |
| Drive Shaft | ||||
| 196A | 6698514 | 15.60 | 18.88 | |
| Cover | ||||
| 198 | 6698794 | 9.30 | 11.25 | |
| Set Screw | ||||
| 200 | 6698795 | 1.35 | 1.63 | |
| Reel | ||||
| 201 | 6698796 | 2.40 | 2.90 | |
| Return Spring | ||||
| 202 | 6698797 | 1.05 | 1.27 | |
| Button (1) | ||||
| 203 | 6698798 | 1.20 | 1.45 | |
| Cord Guide | ||||
| 204 | 6698799 | 1.20 | 1.45 | |
| Case | ||||
| 205 | 6698800 | 6.60 | 7.99 | |
| No information available, not orderable | ||||
| 206 | 6696454 | |||
| Cover Guard For Europe | ||||
| 207 | 6696950 | 10.98 | 13.28 | |
| Tapping Screw 4x14 | ||||
| 208 | 6684751 | 2.15 | 2.60 | |
| Knife For Irl | ||||
| 209 | 6684750 | 4.29 | 5.19 | |
| Guard Holder For Europe | ||||
| 210 | 6696951 | 3.33 | 4.02 | |
| No information available, not orderable | ||||
| 211 | 6696980 | |||
| Nut M4 (10 Pieces) | ||||
| 212 | 949554 | 1.05 | 1.27 | |
| Uae (s),(sl),pan (sl) | ||||
| 213 | 6696584 | 2.10 | 2.54 | |
| Bolt Washer M4 (black) For 220v-240v | ||||
| 215 | 323210 | 1.05 | 1.27 | |
| Ring | ||||
| 216 | 6685068 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 217A | 6698931 | |||
| HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | ||||
| 218 | 6684714 | 2.15 | 2.60 | |
| Cover Bracket New OCT | ||||
| 219 | 6699011 | 1.65 | 2.00 | |
| COVER ASS'Y | ||||
| 220 | 6697880 | 17.88 | 21.63 | |
| Cover Holder | ||||
| 221 | 6698813 | 2.10 | 2.54 | |
| Guard 24 Dia. For Aus (sl) | ||||
| 222 | 6690272 | 13.20 | 15.97 | |
| Blade (old 797-38150-20) | ||||
| 223 | 6693388 | 6.28 | 7.59 | |
| Tapping Screw 5x20 For Aus (sl) | ||||
| 224 | 6684753 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 225B | 6601421 | |||
| No information available, not orderable | ||||
| 226 | 6699186 | |||
| Handle Holder (a).(b) Set Includ.155a,158a Till 6 | ||||
| 227 | 6600499 | 10.65 | 12.89 | |
| No information available, not orderable | ||||
| 501 | 6684764 | |||
| No information available, not orderable | ||||
| 502 | 6696596 | |||
| No information available, not orderable | ||||
| 503 | 944458 | |||
| Cutter Cover For (s) | ||||
| 504B | 6684768 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 505 | 875769 | |||
| No information available, not orderable | ||||
| 507 | 6684767 | |||
| Cutter Holder (b) For Europe | ||||
| 601 | 6698659 | 13.04 | 15.78 | |
| No information available, not orderable | ||||
| 602 | 6698660 | |||
| No information available, not orderable | ||||
| 603 | 6698658 | |||
| Repair kit | ||||
| 604 | 6600027 | 31.08 | 37.60 | |
