Here you will find all available parts and drawings of the 'Hikoki TCG22EAP2'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

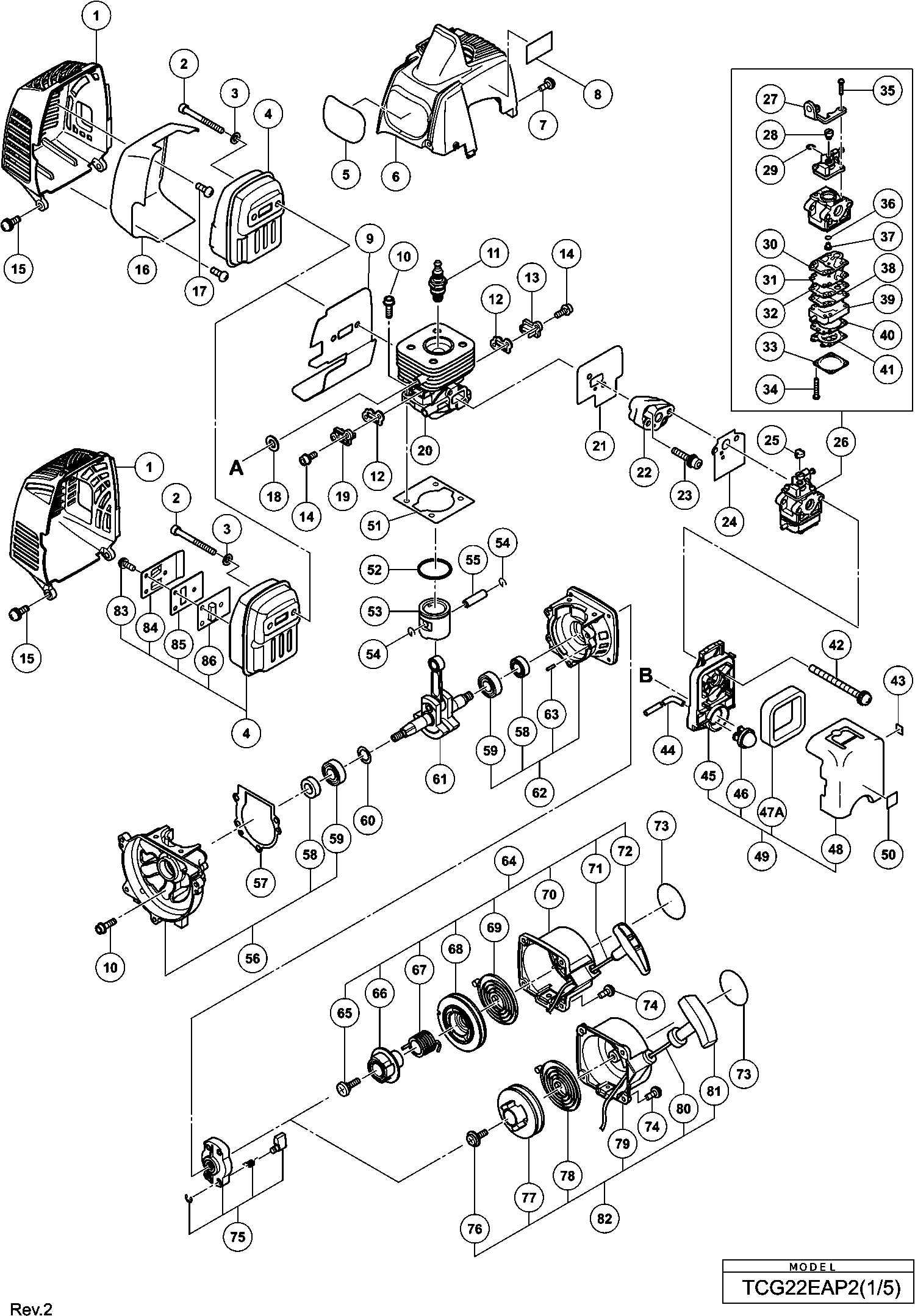

Technical drawing of model Hikoki TCG22EAP2
Spare parts list of model Hikoki TCG22EAP2
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Spark Plug Ass'y Bmr7a | ||||
| *11 | 6699316 | 8.91 | 10.78 | |
| Tank | ||||
| *137 | 6696569 | 4.59 | 5.55 | |
| Fuel Pipe | ||||
| *142 | 6698716 | 3.45 | 4.17 | |
| Gear Cover | ||||
| *190 | 6699402 | 50.33 | 60.89 | |
| Muffler Protector | ||||
| 1 | 6600423 | 9.30 | 11.25 | |
| No information available, not orderable | ||||
| 2 | 6696819 | |||
| Bolt Washer M6 (10 Pcs.) | ||||
| 3 | 949432 | 1.05 | 1.27 | |
| Muffler | ||||
| 4 | 6696554 | 26.59 | 32.17 | |
| Tanaka Label New | ||||
| 5 | 6696339 | 1.20 | 1.45 | |
| Cylinder Cover | ||||
| 6 | 6600424 | 3.15 | 3.81 | |
| Machine Screw (w/washers) M4x20 (black) | ||||
| 7 | 307606 | 1.05 | 1.27 | |
| Heat Protection Panel Since 11.2013 | ||||
| 9 | 6600320 | 1.35 | 1.63 | |
| No information available, not orderable | ||||
| 10 | 6698386 | |||
| Spark Plug Ass'y Bmr7a | ||||
| 11 | 6699316 | 8.91 | 10.78 | |
| Cover Packing | ||||
| 12 | 6696534 | 1.05 | 1.27 | |
| Intake Cover (a) | ||||
| 13 | 6696535 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 14 | 6698385 | |||
| No information available, not orderable | ||||
| 15 | 887021 | |||
| Muffer Heat Cover Since 11.2013 | ||||
| 16 | 6600340 | 5.40 | 6.53 | |
| No information available, not orderable | ||||
| 17 | 6695245 | |||
| No longer available, no replacement | ||||
| 18 | 6698700 | |||
| Intake Cover (b) | ||||
| 19 | 6696536 | 1.05 | 1.27 | |
| Cylinder | ||||
| 20 | 6696527 | 24.70 | 29.89 | |
| Gasket | ||||
| 21 | 6696548 | 1.05 | 1.27 | |
| Carburetor Insulator | ||||
| 22 | 6698387 | 3.15 | 3.81 | |
| Seal Lock Hex. Socket Bolt (w/washers)m5 | ||||
| 23 | 6698844 | 1.20 | 1.45 | |
| Carburetor Packing | ||||
| 24 | 6698405 | 2.10 | 2.54 | |
| No longer available, no replacement | ||||
| 25 | 6691337 | |||
| Carburetor Wyc-22 | ||||
| 26 | 6696550 | 45.63 | 55.21 | |
| Cable Adjust Stay | ||||
| 27 | 6699287 | 4.13 | 4.99 | |
| Swivel | ||||
| 28 | 6696830 | 4.45 | 5.38 | |
| Stop Ring | ||||
| 29 | 6684696 | 2.15 | 2.60 | |
| Pump Gasket | ||||
| 30 | 6684692 | 29.19 | 35.32 | |
| Pump Diaphragm | ||||
| 31 | 6684693 | 8.58 | 10.38 | |
| Pump Plate | ||||
| 32 | 6691242 | 2.31 | 2.80 | |
| Diaphragm Cover-metering | ||||
| 33 | 6685222 | 4.45 | 5.38 | |
| Set Screw | ||||
| 34 | 6691312 | 1.15 | 1.39 | |
| Set Screw M3x12 | ||||
| 35 | 6696829 | 1.04 | 1.26 | |
| O-RING (old 550-25100-20) | ||||
| 36 | 6684695 | 4.29 | 5.19 | |
| Main Jet | ||||
| 37 | 6697947 | 5.11 | 6.19 | |
| Circuit Plate | ||||
| 38 | 6691234 | 3.30 | 3.99 | |
| Pump Body Comp. | ||||
| 39 | 6696828 | 13.36 | 16.17 | |
| No longer available, no replacement | ||||
| 40 | 6685220 | |||
| No longer available, no replacement | ||||
| 41 | 6684690 | |||
| Machine Screw with Washers M5x60 (Black) | ||||
| 42 | 307224 | 1.05 | 1.27 | |
| Mark Plate (t) Since 11.2013 For Europe | ||||
| 43 | 6600327 | 1.04 | 1.26 | |
| Fuel Pipe L70 | ||||
| 44B | 6699014 | 1.65 | 2.00 | |
| No information available, not orderable | ||||
| 45 | 6696832 | |||
| Priming Pump Comp. | ||||
| 46 | 6685139 | 5.94 | 7.18 | |
| No longer available, no replacement | ||||
| 47A | 6600704 | |||
| No information available, not orderable | ||||
| 48 | 6696831 | |||
| Air Cleaner Ass'y Includ.34-37 | ||||
| 49 | 6696549 | 9.13 | 11.04 | |
| Primer Label Since 11.2013 For Europe | ||||
| 50 | 6699000 | 1.04 | 1.26 | |
| Cylinder Packing | ||||
| 51 | 6696530 | 1.05 | 1.27 | |
| Piston Ring | ||||
| 52 | 6696532 | 2.10 | 2.54 | |
| Piston | ||||
| 53 | 6696531 | 6.88 | 8.32 | |
| Cir Clip | ||||
| 54 | 6684590 | 2.15 | 2.60 | |
| Piston Pin | ||||
| 55 | 6696944 | 3.33 | 4.02 | |
| Crank Case (b) Comp Includ.55,56 | ||||
| 56 | 6696538 | 13.26 | 16.05 | |
| Crank Case Packing | ||||
| 57 | 6696539 | 1.05 | 1.27 | |
| Oil Seal | ||||
| 58 | 6684607 | 4.29 | 5.19 | |
| Ball Bearing 6001 C3 | ||||
| 59 | 6684608 | 3.80 | 4.60 | |
| Shim T0.3 | ||||
| 60 | 6696945 | 1.68 | 2.03 | |
| Crank Shaft | ||||
| 61 | 6696533 | 32.31 | 39.10 | |
| Crank Case (a) Ass'y Includ.55,56,61 | ||||
| 62 | 6696537 | 13.68 | 16.55 | |
| Knock Pin 4x12 | ||||
| 63 | 6696947 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 64 | 6699995 | |||
| RECOIL STARTER BODY ASS'Y NEW | ||||
| 64A | 6601570 | 15.81 | 19.13 | |
| Set Screw (old 839-03045-20) | ||||
| 65 | 6684679 | 2.15 | 2.60 | |
| Cam Plate For (s) Type Since 9.2013 For Aus | ||||
| 66 | 6699996 | 2.55 | 3.09 | |
| Damper Spring For (s) Type Since 7.2012 For Aus | ||||
| 67 | 6684677 | 8.58 | 10.38 | |
| Starter Rope Reel For (s) Type Since 9.2013 For A | ||||
| 68 | 6699997 | 8.41 | 10.18 | |
| Recoil Spring Till 7.2014 | ||||
| 69 | 6684675 | 11.55 | 13.98 | |
| No information available, not orderable | ||||
| 70 | 6684673 | |||
| Starter Rope 3.5x860 For (s) Type Since 7.2012 Fo | ||||
| 71 | 6684674 | 4.29 | 5.19 | |
| Starter Handle | ||||
| 72 | 6684680 | 2.15 | 2.60 | |
| Screw (w/washers) M4x16 | ||||
| 74 | 6698398 | 1.05 | 1.27 | |
| Starter Pulley Ass'y For (s) Type Since 7.2012 Fo | ||||
| 75 | 6684681 | 13.20 | 15.97 | |
| Starter Pulley Ass'y Till 7.2014 | ||||
| 75 | 6696471 | 5.10 | 6.17 | |
| Set Screw Till 7.2014 | ||||
| 76 | 6693633 | 1.15 | 1.39 | |
| Recoil Spring Till 7.2014 | ||||
| 78 | 6684675 | 11.55 | 13.98 | |
| Rope Till 7.2014 | ||||
| 80 | 6693168 | 2.31 | 2.80 | |
| Starter Handle | ||||
| 81 | 6693227 | 3.30 | 3.99 | |
| Recoil Starter Body Ass'y Includ.60-63 Till 7.201 | ||||
| 82 | 6696572 | 10.20 | 12.34 | |
| Anti Vibe Rubber (a) | ||||
| 101 | 6696963 | 3.33 | 4.02 | |
| Pipe Holder (a) | ||||
| 102 | 6698643 | 2.10 | 2.54 | |
| Pipe Holder (a) | ||||
| 102 | 6696542 | 1.05 | 1.27 | |
| Nut M5 (black) | ||||
| 103 | 302012 | 1.05 | 1.27 | |
| Pipe Holder (b) | ||||
| 104 | 6698644 | 2.10 | 2.54 | |
| Pipe Holder (b) | ||||
| 104 | 6696543 | 1.05 | 1.27 | |
| Anti Vibe Rubber (b) | ||||
| 105 | 6696964 | 3.33 | 4.02 | |
| No information available, not orderable | ||||
| 106 | 6699176 | |||
| Hex. Hole Bolt 5x22/s | ||||
| 107 | 6695492 | 1.15 | 1.39 | |
| Fan Case (vermilion) | ||||
| 108 | 6699159 | 9.15 | 11.07 | |
| Clutch Shaft COMP | ||||
| 109A | 6696541 | 8.41 | 10.18 | |
| No information available, not orderable | ||||
| 110 | 6696469 | |||
| Ring | ||||
| 111 | 6684648 | 2.15 | 2.60 | |
| Clutch Plate (a) | ||||
| 112 | 6696546 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 113 | 6696948 | |||
| Washer (b) | ||||
| 114 | 6696547 | 1.05 | 1.27 | |
| Nut | ||||
| 115 | 6685337 | 1.05 | 1.27 | |
| Bolt Washer M8 (black) | ||||
| 116 | 323212 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 117 | 6699464 | |||
| Hex. Socket Hd. Bolt (w/washers) M4x18 | ||||
| 118 | 6698388 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 119A | 6601421 | |||
| No information available, not orderable | ||||
| 120 | 6699186 | |||
| Cord | ||||
| 121 | 6696544 | 1.05 | 1.27 | |
| Woodruff Key 3x13x4.5 Till B023800 | ||||
| 122 | 6684899 | 2.15 | 2.60 | |
| Earth Cord | ||||
| 123 | 6696545 | 1.05 | 1.27 | |
| Magneto Rotor Comp. | ||||
| 124 | 6699289 | 25.71 | 31.11 | |
| Spring Washer D12 (10 pieces) | ||||
| 125 | 939542 | 1.50 | 1.82 | |
| Tapping Screw D4.5x16 | ||||
| 126 | 6698878 | 1.20 | 1.45 | |
| Tapping Screw (w/flange) D4x16 (black) | ||||
| 127 | 305812 | 1.04 | 1.26 | |
| Lock Lever | ||||
| 129 | 6696490 | 1.04 | 1.26 | |
| Lever (1) | ||||
| 130 | 6696488 | 1.04 | 1.26 | |
| Spring (a) | ||||
| 131 | 6696489 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 132A | 6601275 | |||
| Stop Switch Cord For (s) | ||||
| 133 | 6696592 | 2.10 | 2.54 | |
| Stop Switch Cord | ||||
| 133 | 6696491 | 1.80 | 2.18 | |
| Protection Tube For (s) | ||||
| 134 | 6696594 | 2.10 | 2.54 | |
| Protection Tube | ||||
| 134 | 6696967 | 1.05 | 1.27 | |
| Throttle Wire Comp. | ||||
| 135 | 6696560 | 4.18 | 5.05 | |
| Tank | ||||
| 137 | 6696569 | 4.59 | 5.55 | |
| Bolt (w/flange) L17.8 Since G103931 | ||||
| 139 | 6696574 | 1.05 | 1.27 | |
| Pump Filter | ||||
| 140 | 6600351 | 2.70 | 3.27 | |
| No longer available, no replacement | ||||
| 141 | 6696949 | |||
| Fuel Pipe | ||||
| 142 | 6698716 | 3.45 | 4.17 | |
| Fuel Pipe L70 | ||||
| 143A | 6699014 | 1.65 | 2.00 | |
| Return Grommet Till 7.2014 | ||||
| 144 | 6697846 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 145 | 6698931 | |||
| No longer available, no replacement | ||||
| 146 | 6698402 | |||
| Tank Cap Chain | ||||
| 147 | 6698732 | 1.20 | 1.45 | |
| Tapping Screw (w/Flange) D4x30 for Europe (s) | ||||
| 171 | 323837 | 1.68 | 2.03 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 172 | 302086 | 1.05 | 1.27 | |
| Handle (b) For Europe (s) | ||||
| 173 | 6696590 | 3.13 | 3.78 | |
| Machine Screw M5x30 (black) | ||||
| 174 | 323041 | 1.05 | 1.27 | |
| Throttle Wire Comp. | ||||
| 175 | 6696593 | 5.10 | 6.17 | |
| Kor (s) | ||||
| 176 | 6696585 | 6.45 | 7.80 | |
| Handle Holder (b) Since 7.2015 For (s) | ||||
| 177A | 6600501 | 7.20 | 8.71 | |
| Handle Holder (c) For (s) | ||||
| 178 | 6696578 | 2.10 | 2.54 | |
| HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | ||||
| 179 | 6684714 | 2.15 | 2.60 | |
| Hex. Hole Bolt M5x25/s | ||||
| 180 | 6684709 | 2.15 | 2.60 | |
| Handle Holder (a) Since 7.2015 For (s) | ||||
| 181A | 6600500 | 4.20 | 5.08 | |
| Handle (a) For Europe (s) | ||||
| 182 | 6696588 | 2.10 | 2.54 | |
| Nut M5 (black) | ||||
| 183 | 302012 | 1.05 | 1.27 | |
| Kor (s) | ||||
| 184 | 6696595 | 13.26 | 16.05 | |
| Barrier | ||||
| 186 | 6696973 | 3.33 | 4.02 | |
| Gear Cover | ||||
| 190 | 6699402 | 50.33 | 60.89 | |
| Cutter Holder (b) For Europe | ||||
| 193 | 6698659 | 13.04 | 15.78 | |
| NUT COVER | ||||
| 194 | 6699188 | 6.60 | 7.99 | |
| U-nut (left Hand) M10 For Irl | ||||
| 195 | 335759 | 1.04 | 1.26 | |
| Set Screw | ||||
| 200 | 6698795 | 1.35 | 1.63 | |
| Button (1) | ||||
| 203 | 6698798 | 1.20 | 1.45 | |
| Cord Guide | ||||
| 204 | 6698799 | 1.20 | 1.45 | |
| Case | ||||
| 205 | 6698800 | 6.60 | 7.99 | |
| No information available, not orderable | ||||
| 206 | 6696454 | |||
| Cover Bracket For Europe | ||||
| 207 | 6696494 | 1.80 | 2.18 | |
| HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | ||||
| 208 | 6684714 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 213 | 6600449 | |||
| No information available, not orderable | ||||
| 214 | 6600446 | |||
| Hanger For Irl | ||||
| 218A | 6600504 | 1.20 | 1.45 | |
| Cap (a) | ||||
| 219 | 6698515 | 2.10 | 2.54 | |
| No information available, not orderable | ||||
| 220 | 6696950 | |||
| Tapping Screw 4x14 | ||||
| 221 | 6684751 | 2.15 | 2.60 | |
| Knife For Irl | ||||
| 222 | 6684750 | 4.29 | 5.19 | |
| Guard Holder For Europe | ||||
| 223 | 6696951 | 3.33 | 4.02 | |
| No information available, not orderable | ||||
| 224 | 6696980 | |||
| Handle Holder (a).(b) Set Includ.155a,158a Till 6 | ||||
| 230 | 6600499 | 10.65 | 12.89 | |
| Machine Screw M5x10 (10 Pcs.) For Irl | ||||
| 231 | 949236 | 1.05 | 1.27 | |
| Flexible Shaft For (lb) | ||||
| 281 | 6698325 | 13.80 | 16.70 | |
| Main Pipe Ass'y Includ.281,283 For Europe (lb) | ||||
| 282 | 6696580 | 51.84 | 62.72 | |
| Cutter Case Includ.234,235,238 For (lb) | ||||
| 283 | 6600494 | 25.44 | 30.78 | |
| No information available, not orderable | ||||
| 284 | 6698331 | |||
| Hex. Socket Hd. Bolt M5x10 (10 Pcs.) | ||||
| 285 | 949819 | 2.55 | 3.09 | |
| Bolt M6 For (lb) | ||||
| 286 | 6698334 | 3.15 | 3.81 | |
| Guard Bracket For (lb) | ||||
| 287 | 6698335 | 3.15 | 3.81 | |
| Hex. Socket Hd. Bolt M5x25 (10 Pcs.) | ||||
| 288 | 949662 | 2.10 | 2.54 | |
| Guard For (lb) | ||||
| 289 | 6698809 | 18.56 | 22.46 | |
| Machine Screw M5X14 (10 pieces) | ||||
| 290 | 949238 | 1.05 | 1.27 | |
| Washer M5 (10 Pcs.) | ||||
| 291 | 949424 | 1.05 | 1.27 | |
| Knife For (lb) | ||||
| 292 | 6698333 | 6.45 | 7.80 | |
| Spring Washer M5 (10 pieces) | ||||
| 293 | 949454 | 1.04 | 1.26 | |
| Nut M5 (10 Pieces) (OLD 949555Z) | ||||
| 294 | 949555 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 311 | 6696597 | |||
| No information available, not orderable | ||||
| 501 | 6684764 | |||
| No information available, not orderable | ||||
| 502 | 6696596 | |||
| No information available, not orderable | ||||
| 503 | 944458 | |||
| Cutter Cover For (s) | ||||
| 504A | 6684768 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 505 | 875769 | |||
| No information available, not orderable | ||||
| 507 | 6684767 | |||
