Here you will find all available parts and drawings of the 'Hikoki TC-3301'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

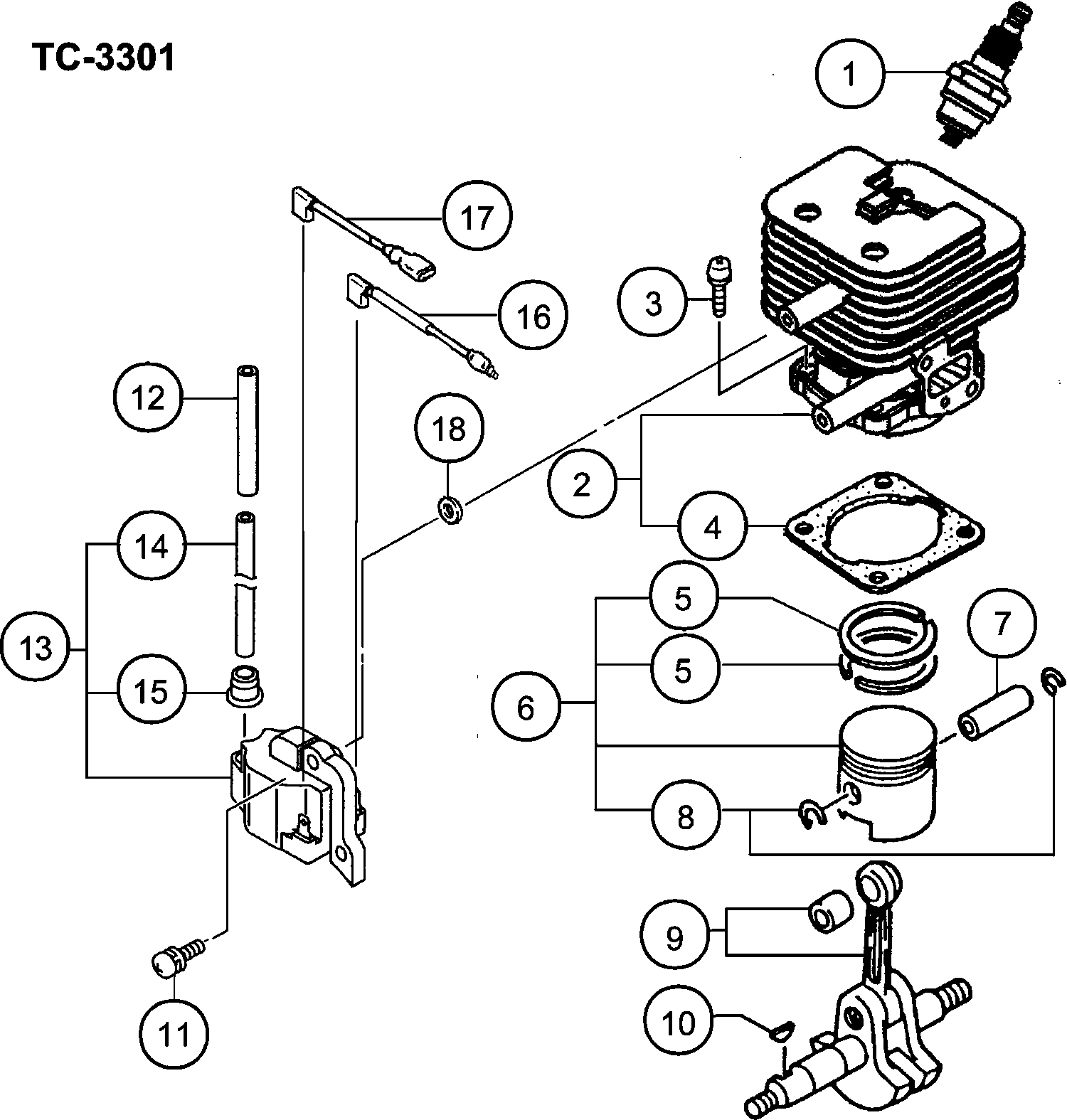

Technical drawing of model Hikoki TC-3301
Spare parts list of model Hikoki TC-3301
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 1 | 6699323 | |||
| No information available, not orderable | ||||
| 2 | 6685487 | |||
| Hex. Hole Bolt M5x16/s | ||||
| 3 | 6684903 | 2.15 | 2.60 | |
| Cylinder Gasket | ||||
| 4 | 6685746 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 5 | 6685331 | |||
| Piston Set | ||||
| 6 | 6685898 | 24.20 | 29.28 | |
| Piston Pin | ||||
| 7 | 6686008 | 2.31 | 2.80 | |
| Circlip | ||||
| 8 | 6685078 | 1.15 | 1.39 | |
| Crank Shaft Comp | ||||
| 9 | 6696499 | 67.00 | 81.07 | |
| Woodruff Key 3x13x4.5 Till B023800 | ||||
| 10 | 6684899 | 2.15 | 2.60 | |
| High Tension Screw 4x18ws Since H124041 | ||||
| 11 | 6695407 | 1.15 | 1.39 | |
| Insulator Tube, 110l | ||||
| 12 | 6688319 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 13 | 6699772 | |||
| High Tension Cord 140l Till G165840 | ||||
| 14 | 6687888 | 2.31 | 2.80 | |
| Rubber Cap | ||||
| 15 | 6684602 | 2.15 | 2.60 | |
| Cord B 200m | ||||
| 16 | 6687934 | 3.00 | 3.63 | |
| Cord B 200m | ||||
| 17 | 6687872 | 3.00 | 3.63 | |
| Washer T1.6 | ||||
| 18 | 6684600 | 2.15 | 2.60 | |
| Crank Case Ass'y | ||||
| 21 | 6686580 | 38.26 | 46.30 | |
| Oil Seal | ||||
| 22 | 6684607 | 4.29 | 5.19 | |
| Ball Bearing 6001 C3 | ||||
| 23 | 6684608 | 3.80 | 4.60 | |
| Crank Case Gasket | ||||
| 24 | 6686721 | 1.15 | 1.39 | |
| Gear Shaft Shim 0.20 | ||||
| 25 | 6684604 | 2.15 | 2.60 | |
| Gear Shaft Shim 0.30 | ||||
| 25 | 6684605 | 2.15 | 2.60 | |
| Magneto Rotor Comp. | ||||
| 26 | 6687375 | 20.11 | 24.34 | |
| Hex. Nut M8 | ||||
| 27 | 6684612 | 2.15 | 2.60 | |
| Ring | ||||
| 28 | 6695184 | 1.15 | 1.39 | |
| Hex. Hole Bolt M5x16/s | ||||
| 29 | 6684903 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 30 | 6695420 | |||
| Fan Housing | ||||
| 31 | 6687022 | 18.75 | 22.69 | |
| Primary Cord Grommet | ||||
| 32 | 6688057 | 1.15 | 1.39 | |
| Inlet Manifold Gasket | ||||
| 41 | 6689858 | 1.15 | 1.39 | |
| Inlet Manifold Gasket | ||||
| 42 | 6689861 | 1.15 | 1.39 | |
| Inlet Manifold Set | ||||
| 43 | 6689916 | 5.61 | 6.79 | |
| Inlet Manifold | ||||
| 44 | 6689794 | 4.45 | 5.38 | |
| Hex. Hole Bolt M5x25/s | ||||
| 45 | 6684709 | 2.15 | 2.60 | |
| Pet-cock Assembly (old 592-00750-90) | ||||
| 46 | 6691651 | 6.93 | 8.38 | |
| Muffler Protector (old 738-0720f-20) New | ||||
| 51 | 6692810 | 7.75 | 9.38 | |
| No information available, not orderable | ||||
| 52 | 6692497 | |||
| Hex. Hole Bolt M6x55 | ||||
| 53 | 6684638 | 2.15 | 2.60 | |
| Ring | ||||
| 54 | 6684639 | 2.15 | 2.60 | |
| Heat Shield | ||||
| 55 | 6687260 | 3.30 | 3.99 | |
| Muffler Gasket | ||||
| 56 | 6692732 | 1.15 | 1.39 | |
| Ring | ||||
| 57 | 6689645 | 1.15 | 1.39 | |
| Clutch Arm Comp. | ||||
| 58 | 6688610 | 7.59 | 9.18 | |
| Washer | ||||
| 59 | 6695203 | 1.15 | 1.39 | |
| Clutch Step Bolt | ||||
| 60 | 6689628 | 2.31 | 2.80 | |
| Clutch Spring | ||||
| 61 | 6689420 | 2.31 | 2.80 | |
| Hex. Hole Bolt 4x20 Ps Since C237092 | ||||
| 62 | 6695503 | 1.15 | 1.39 | |
| Screw 4x15ps | ||||
| 63 | 6695373 | 1.15 | 1.39 | |
| Spark Plug Cap Ass'y Till G165840 | ||||
| 64 | 6687468 | 2.31 | 2.80 | |
| No longer available, no replacement | ||||
| 81 | 6692991 | |||
| No information available, not orderable | ||||
| 82 | 6693040 | |||
| Starter Rope 3.5x860 For (s) Type Since 7.2012 Fo | ||||
| 83 | 6684674 | 4.29 | 5.19 | |
| Recoil Spring Till 7.2014 | ||||
| 84 | 6684675 | 11.55 | 13.98 | |
| No longer available, no replacement | ||||
| 85 | 6693081 | |||
| Damper Spring For (s) Type Since 7.2012 For Aus | ||||
| 86 | 6684677 | 8.58 | 10.38 | |
| No information available, not orderable | ||||
| 87 | 6692938 | |||
| Set Screw (old 839-03045-20) | ||||
| 88 | 6684679 | 2.15 | 2.60 | |
| Starter Handle | ||||
| 89 | 6684680 | 2.15 | 2.60 | |
| Ring | ||||
| 90 | 6689645 | 1.15 | 1.39 | |
| Starter Pulley Ass'y For (s) Type Since 7.2012 Fo | ||||
| 91 | 6684681 | 13.20 | 15.97 | |
| Starter Pawl | ||||
| 92 | 6684685 | 4.29 | 5.19 | |
| Starter Pawl Spring | ||||
| 93 | 6684684 | 4.29 | 5.19 | |
| D4e Retaining Ring (old 993-55040-001) | ||||
| 94 | 6685101 | 1.15 | 1.39 | |
| Cleaner Ass'y | ||||
| 101 | 6690049 | 9.58 | 11.59 | |
| Cleaner Body | ||||
| 102 | 6690125 | 4.50 | 5.44 | |
| Cleaner Element | ||||
| 103 | 6690348 | 1.15 | 1.39 | |
| Cleaner Fixing Base | ||||
| 104 | 6690194 | 2.31 | 2.80 | |
| Screw 4x25/ws | ||||
| 105 | 6695411 | 1.15 | 1.39 | |
| Carburetor Ass'y Pc10t-1f | ||||
| 121 | 6690559 | 70.33 | 85.09 | |
| No information available, not orderable | ||||
| 122 | 6691799 | |||
| Body Cap (old 595-21303-20) New | ||||
| 123 | 6691777 | 3.00 | 3.63 | |
| Throttle Valve Spring | ||||
| 124 | 6691703 | 1.15 | 1.39 | |
| Throttle Spring Receive | ||||
| 125 | 6692025 | 1.15 | 1.39 | |
| Jet Needle Clip | ||||
| 126 | 6691693 | 1.15 | 1.39 | |
| Jet Needle Ass'y (old 592-2062t-92) New | ||||
| 127 | 6691681 | 5.70 | 6.90 | |
| Throttle Valve Ass'y | ||||
| 128 | 6691630 | 15.40 | 18.63 | |
| Adjust Screw (old 622-21655-20) New | ||||
| 129 | 6692037 | 4.05 | 4.90 | |
| No information available, not orderable | ||||
| 130 | 6692044 | |||
| Screw 3x6 | ||||
| 131 | 6694855 | 1.15 | 1.39 | |
| O-ring A | ||||
| 132 | 6691326 | 2.31 | 2.80 | |
| Float Arm (old 628-20112-20) New | ||||
| 133 | 6692071 | 4.35 | 5.26 | |
| Float Arm Pin (old 605-20112-20) New | ||||
| 134 | 6691959 | 1.05 | 1.27 | |
| Needle Jet 2080 | ||||
| 135 | 6691819 | 10.05 | 12.16 | |
| No information available, not orderable | ||||
| 136 | 6691841 | |||
| Float | ||||
| 137 | 6691950 | 4.79 | 5.79 | |
| Float Chamber Gasket | ||||
| 138 | 6691989 | 3.00 | 3.63 | |
| Float Chamber | ||||
| 139 | 6691976 | 15.26 | 18.47 | |
| Screw 4x16/s (old 994-14040-161) | ||||
| 140 | 6695328 | 1.15 | 1.39 | |
| Fuel Inlet Bolt | ||||
| 141 | 6691061 | 5.85 | 7.08 | |
| Fuel Inlet Gasket | ||||
| 142 | 6691026 | 1.15 | 1.39 | |
| Flange Gasket | ||||
| 143 | 6691411 | 1.15 | 1.39 | |
| Body Band Assembly (old 561-21655-90) New | ||||
| 144 | 6691375 | 7.80 | 9.44 | |
| No information available, not orderable | ||||
| 145 | 6691338 | |||
| Drain Screw Gasket (old 629-20445-20) New | ||||
| 146 | 6692091 | 1.15 | 1.39 | |
| Screw 4x6 | ||||
| 147 | 6694860 | 1.15 | 1.39 | |
| Needle Valve Comp. (old 603-21655-80) New | ||||
| 148 | 6691938 | 10.95 | 13.25 | |
| Throttle Wire Comp. | ||||
| 151 | 6693858 | 4.05 | 4.90 | |
| Engine Base B Comp. (old 221-38020-81) New | ||||
| 152 | 6688151 | 11.71 | 14.17 | |
| No information available, not orderable | ||||
| 153 | 6695382 | |||
| Connector Case | ||||
| 154 | 6694031 | 1.49 | 1.80 | |
