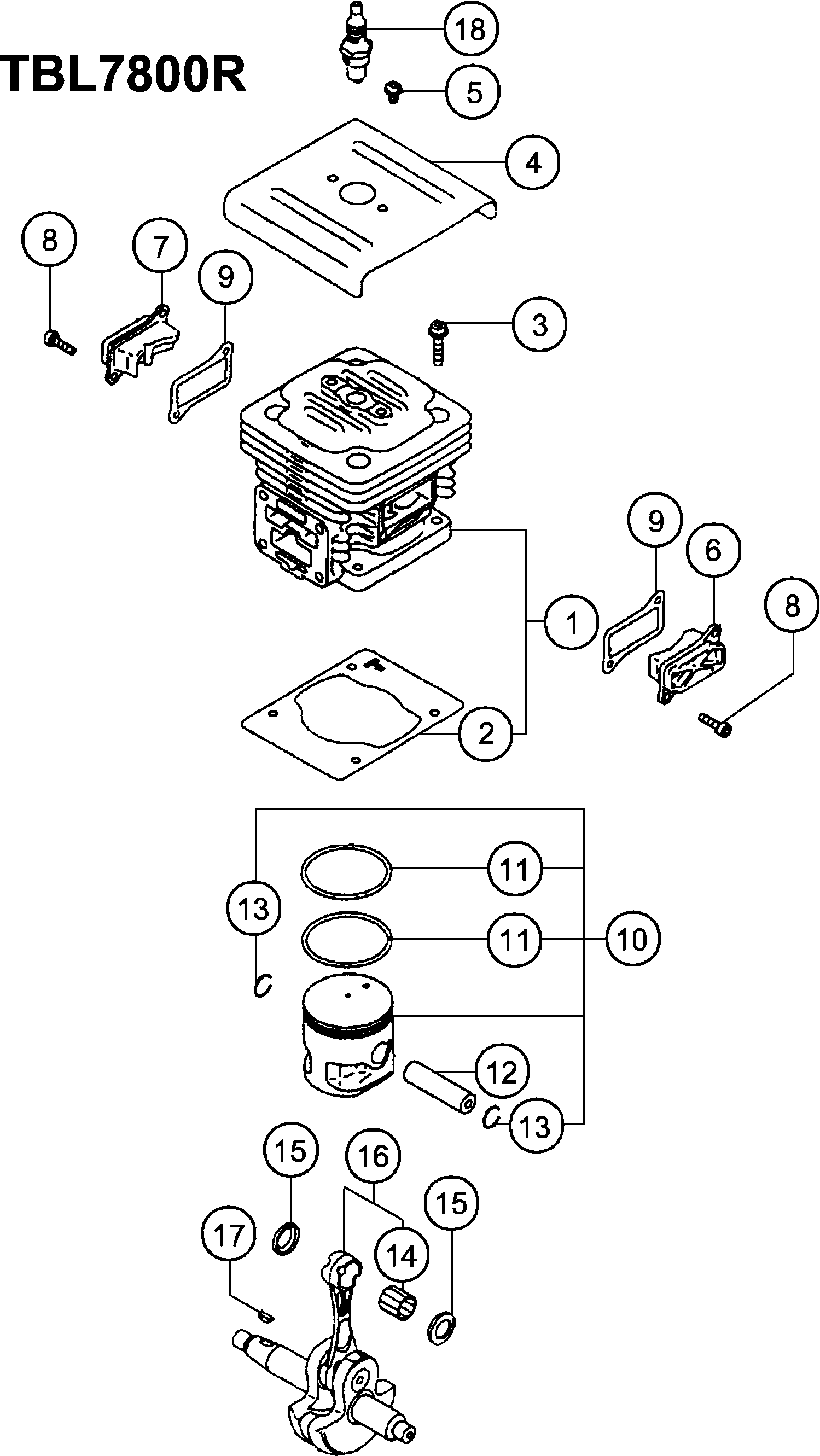

Technical drawing of model Hikoki TBL7800R
Spare parts list of model Hikoki TBL7800R
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Cylinder Set | ||||
| 1 | 6685500 | 240.94 | 291.53 | |
| Cylinder Gasket | ||||
| 2 | 6685757 | 5.11 | 6.19 | |
| Cylinder Bolt 5x22 | ||||
| 3 | 6685846 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 4 | 6685699 | |||
| Screw A 5x8torx | ||||
| 5 | 6693472 | 5.61 | 6.79 | |
| No information available, not orderable | ||||
| 6 | 6686257 | |||
| Port Cover F | ||||
| 7 | 6686282 | 9.58 | 11.59 | |
| Screw C 4x16torx | ||||
| 8 | 6693480 | 1.15 | 1.39 | |
| Port Cover Gasket (old 052-16005-20) | ||||
| 9 | 6686317 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 10 | 6685906 | |||
| Piston Ring | ||||
| 11 | 6686136 | 13.70 | 16.58 | |
| No information available, not orderable | ||||
| 12 | 6686022 | |||
| Circlip | ||||
| 13 | 6686037 | 9.40 | 11.37 | |
| No information available, not orderable | ||||
| 14 | 6693415 | |||
| Piston Pin Collar | ||||
| 15 | 6685996 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 16 | 6686239 | |||
| No longer available, no replacement | ||||
| 17 | 6686458 | |||
| Spark Plug Ass'y Cmr7h | ||||
| 18 | 6699312 | 26.31 | 31.84 | |
| No information available, not orderable | ||||
| 31 | 6686606 | |||
| No information available, not orderable | ||||
| 31A | 6699766 | |||
| Crank Case Gasket | ||||
| 32 | 6686730 | 4.45 | 5.38 | |
| No information available, not orderable | ||||
| 33 | 6693429 | |||
| Oil Seal | ||||
| 34 | 6695643 | 13.20 | 15.97 | |
| Oil Seal | ||||
| 35 | 6695645 | 15.58 | 18.85 | |
| No longer available, no replacement | ||||
| 36 | 6695299 | |||
| Screw E 5x30torx | ||||
| 37 | 6693500 | 1.05 | 1.27 | |
| Coil Cover | ||||
| 38 | 6687984 | 4.65 | 5.63 | |
| Screw C 4x16torx | ||||
| 39 | 6693480 | 1.15 | 1.39 | |
| Screw F 6x45 Torx (old 811-31905-20) New | ||||
| 40 | 6693507 | 4.45 | 5.38 | |
| Flywheel Nut M10 | ||||
| 41 | 6686446 | 5.25 | 6.35 | |
| Magneto Rotor Comp. | ||||
| 42A | 6699764 | 81.98 | 99.19 | |
| No information available, not orderable | ||||
| 43 | 6687635 | |||
| No information available, not orderable | ||||
| 44 | 6699766 | |||
| Grommet | ||||
| 45 | 6688042 | 1.05 | 1.27 | |
| Screw C 4x16torx | ||||
| 46 | 6693480 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 47 | 6687882 | |||
| Starter Pulley Ass'y | ||||
| 48 | 6693412 | 24.20 | 29.28 | |
| Magneto Ass'y Since G001001 | ||||
| 49 | 6699767 | 237.16 | 286.97 | |
| Ignition Coil Ass'y Since G001001 | ||||
| 50 | 6699765 | 155.34 | 187.96 | |
| Insulator Set | ||||
| 61 | 6689985 | 9.08 | 10.98 | |
| Screw B 5x20torx | ||||
| 62 | 6693475 | 3.30 | 3.99 | |
| Insulator Gasket | ||||
| 63 | 6689903 | 10.23 | 12.37 | |
| Carburetor Gasket | ||||
| 64 | 6689850 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 65 | 6692538 | |||
| No information available, not orderable | ||||
| 66 | 6692704 | |||
| No information available, not orderable | ||||
| 67 | 6692882 | |||
| Screw D 6x14torx | ||||
| 68 | 6693488 | 5.61 | 6.79 | |
| Muffler Gasket | ||||
| 69 | 6692752 | 13.20 | 15.97 | |
| No longer available, no replacement | ||||
| 70 | 6690204 | |||
| Carburetor Set Wya64 Till C250700 For Europe | ||||
| 71 | 6690526 | 307.19 | 371.70 | |
| Carburetor Set Wya56 Since C250701 For Europe | ||||
| 71A | 6690527 | 307.19 | 371.70 | |
| No information available, not orderable | ||||
| 72 | 6688465 | |||
| No information available, not orderable | ||||
| 73A | 6690387 | |||
| No longer available, no replacement | ||||
| 74 | 6690676 | |||
| Cleaner Fixing Gasket Since C250701 For Europe | ||||
| 74A | 6690677 | 8.58 | 10.38 | |
| No longer available, no replacement | ||||
| 75 | 6690851 | |||
| No information available, not orderable | ||||
| 75A | 6690852 | |||
| No information available, not orderable | ||||
| 76 | 6690054 | |||
| Cleaner Cap Ass'y Since C250701 For Europe | ||||
| 76A | 6690055 | 13.86 | 16.77 | |
| No longer available, no replacement | ||||
| 77 | 6690059 | |||
| Cleaner Body Ass'y Since C250701 For Europe | ||||
| 77A | 6690060 | 28.14 | 34.05 | |
| No information available, not orderable | ||||
| 78 | 6690385 | |||
| No information available, not orderable | ||||
| 78A | 6693532 | |||
| Cleaner Element | ||||
| 79 | 6690329 | 6.28 | 7.59 | |
| Carb Cover | ||||
| 80 | 6688034 | 3.00 | 3.63 | |
| Ring | ||||
| 81 | 6684661 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 82 | 6690052 | |||
| Screw H 5x62torx (old 813-31905-20) New | ||||
| 83 | 6693525 | 5.61 | 6.79 | |
| No longer available, no replacement | ||||
| 83A | 6693582 | |||
| No information available, not orderable | ||||
| 84 | 6692505 | |||
| No information available, not orderable | ||||
| 111 | 6692999 | |||
| Rope Reel | ||||
| 112 | 6693006 | 13.86 | 16.77 | |
| Recoil Spring | ||||
| 113 | 6693127 | 24.20 | 29.28 | |
| Ring | ||||
| 114 | 6693255 | 5.61 | 6.79 | |
| Friction Spring | ||||
| 115 | 6693619 | 4.45 | 5.38 | |
| Friction Plate | ||||
| 116 | 6693631 | 20.11 | 24.34 | |
| Ring | ||||
| 117 | 6693427 | 3.30 | 3.99 | |
| Set Bolt (old 839-16005-20) New | ||||
| 118 | 6693640 | 4.45 | 5.38 | |
| No information available, not orderable | ||||
| 119 | 6693181 | |||
| Starter Handle | ||||
| 120 | 6693245 | 10.23 | 12.37 | |
| Starter Handle | ||||
| 121 | 6693605 | 4.45 | 5.38 | |
| Screw G 5x16 (old 812-31905-20) New | ||||
| 122 | 6693522 | 2.31 | 2.80 | |
| No information available, not orderable | ||||
| 131 | 6691436 | |||
| Inlet Screen | ||||
| 132 | 6684700 | 4.29 | 5.19 | |
| Priming Pump Comp. | ||||
| 133 | 6684687 | 16.34 | 19.77 | |
| Diaphragm Cover | ||||
| 134 | 6684688 | 8.58 | 10.38 | |
| Priming Body | ||||
| 135 | 6684689 | 6.44 | 7.79 | |
| Thrust Washer | ||||
| 136 | 6684874 | 2.15 | 2.60 | |
| Swivel | ||||
| 137 | 6684697 | 6.44 | 7.79 | |
| Stop Ring | ||||
| 138 | 6684696 | 2.15 | 2.60 | |
| Pump Gasket | ||||
| 139 | 6684692 | 29.19 | 35.32 | |
| Pump Diaphragm | ||||
| 140 | 6684693 | 8.58 | 10.38 | |
| Diaphragm Gasket | ||||
| 141 | 6684691 | 8.58 | 10.38 | |
| Metering Diaphragm Comp. | ||||
| 142 | 6690830 | 11.88 | 14.37 | |
| Throttle Set Screw | ||||
| 143 | 6684870 | 2.15 | 2.60 | |
| Cable Adjuster Stay | ||||
| 144 | 6684873 | 6.44 | 7.79 | |
| Lock Nut M6 | ||||
| 145 | 6684872 | 2.15 | 2.60 | |
| Cable Adjuster | ||||
| 146 | 6684871 | 4.29 | 5.19 | |
| Cleaner Gasket | ||||
| 147 | 6690186 | 3.30 | 3.99 | |
| Set Screw | ||||
| 148 | 6684699 | 2.15 | 2.60 | |
| No longer available, no replacement | ||||
| 149A | 6691858 | |||
| O-RING (old 550-25100-20) | ||||
| 150 | 6684695 | 4.29 | 5.19 | |
| No longer available, no replacement | ||||
| 161 | 6685805 | |||
| No information available, not orderable | ||||
| 162 | 6685814 | |||
| Cushion Pad Clip | ||||
| 163 | 6686243 | 3.30 | 3.99 | |
| Shoulder Belt | ||||
| 164 | 6685821 | 32.21 | 38.98 | |
| Cushion Rubber | ||||
| 165 | 6685910 | 36.15 | 43.74 | |
| Ring | ||||
| 166 | 6692961 | 1.04 | 1.26 | |
| Screw L 5x40torx (old 817-31905-20) New | ||||
| 167 | 6693549 | 3.00 | 3.63 | |
| Screw M 5x16torx | ||||
| 168 | 6693571 | 5.61 | 6.79 | |
| Cushion Rubber (old 031-31905-80) New | ||||
| 169 | 6685960 | 38.26 | 46.30 | |
| No longer available, no replacement | ||||
| 170 | 6685967 | |||
| Tank Ass'y | ||||
| 171 | 6696103 | 132.50 | 160.32 | |
| Tank Cap Ass'y | ||||
| 172 | 6691773 | 14.21 | 17.20 | |
| No information available, not orderable | ||||
| 173 | 6692054 | |||
| Fuel Pipe Ass'y | ||||
| 174 | 6688175 | 17.55 | 21.24 | |
| Pump Filter Body Ass'y | ||||
| 175 | 6692273 | 7.10 | 8.59 | |
| Clip,6.3 Dia. | ||||
| 176 | 6684619 | 2.15 | 2.60 | |
| Bolt | ||||
| 177 | 6691980 | 5.10 | 6.17 | |
| No information available, not orderable | ||||
| 178 | 6692321 | |||
| West Belt Ass'y (old 035-31907-90) | ||||
| 179 | 6685988 | 38.36 | 46.42 | |
| No longer available, no replacement | ||||
| 191 | 6685604 | |||
| No longer available, no replacement | ||||
| 192 | 6685636 | |||
| No information available, not orderable | ||||
| 193 | 6693532 | |||
| No longer available, no replacement | ||||
| 194 | 6688426 | |||
| No information available, not orderable | ||||
| 195 | 6695687 | |||
| No information available, not orderable | ||||
| 196 | 6687291 | |||
| No information available, not orderable | ||||
| 197 | 6696987 | |||
| Intake Cover | ||||
| 198 | 6686342 | 22.00 | 26.62 | |
| No information available, not orderable | ||||
| 199 | 6693532 | |||
| Cord Clamp | ||||
| 200 | 6688014 | 1.05 | 1.27 | |
| Screw J 5x14torx | ||||
| 201 | 6693536 | 5.61 | 6.79 | |
| No information available, not orderable | ||||
| 202 | 6688545 | |||
| No longer available, no replacement | ||||
| 203 | 6687175 | |||
| Screw K 6x35torx (old 816-31905-20) New | ||||
| 204 | 6693543 | 4.50 | 5.44 | |
| Muffler Protector | ||||
| 205 | 6692825 | 84.40 | 102.12 | |
| No information available, not orderable | ||||
| 206 | 6693532 | |||
| No longer available, no replacement | ||||
| 207 | 6686265 | |||
| No longer available, no replacement | ||||
| 208 | 6685843 | |||
| Cleaner Body Since C250701 For Europe | ||||
| 209 | 6690136 | 42.20 | 51.06 | |
| No information available, not orderable | ||||
| 210 | 6690425 | |||
| Cleaner Cover | ||||
| 211 | 6690812 | 8.25 | 9.98 | |
| No longer available, no replacement | ||||
| 212 | 6691471 | |||
| No information available, not orderable | ||||
| 213 | 6693664 | |||
| No information available, not orderable | ||||
| 214 | 6693532 | |||
| Cleaner Element | ||||
| 215 | 6690073 | 48.25 | 58.38 | |
| Cleaner Element | ||||
| 216 | 6690078 | 30.25 | 36.60 | |
| No information available, not orderable | ||||
| 217 | 6690207 | |||
| Clamp B 64 Since C250701 For Europe | ||||
| 218 | 6693016 | 6.60 | 7.99 | |
| Clamp A 51 Since C250701 For Europe | ||||
| 219 | 6693013 | 12.30 | 14.88 | |
| Screw N 5x20torx | ||||
| 220 | 6693576 | 5.10 | 6.17 | |
| Handle Nut M5 | ||||
| 221 | 6688542 | 2.10 | 2.54 | |
| Throttle Lever Set (old 871-31906-90) | ||||
| 241 | 6693782 | 164.71 | 199.30 | |
| Grip (old 248-31906-20) New | ||||
| 242 | 6688302 | 22.24 | 26.91 | |
| Grip Comp. | ||||
| 243 | 6688384 | 22.24 | 26.91 | |
| Screw A 4x14 | ||||
| 244 | 6693473 | 1.15 | 1.39 | |
| Throttle Lever | ||||
| 245 | 6688390 | 4.95 | 5.99 | |
| No information available, not orderable | ||||
| 246 | 6688312 | |||
| No information available, not orderable | ||||
| 247 | 6689297 | |||
| No information available, not orderable | ||||
| 248 | 6688256 | |||
| No longer available, no replacement | ||||
| 249 | 6693646 | |||
| No longer available, no replacement | ||||
| 250 | 6691213 | |||
| Stopper Ring 6 (old 993-54006-002) New | ||||
| 251 | 6695306 | 1.15 | 1.39 | |
| Stop Switch | ||||
| 252 | 6687508 | 4.45 | 5.38 | |
| Stop Switch Spring (old 262-16005-20) | ||||
| 253 | 6688382 | 6.28 | 7.59 | |
| Screw B 4x10 | ||||
| 254 | 6693476 | 1.15 | 1.39 | |
| Cord W1150m | ||||
| 255 | 6687788 | 6.44 | 7.79 | |
| Cord B1100m | ||||
| 256 | 6687790 | 6.44 | 7.79 | |
| Throttle Wire Comp. | ||||
| 257 | 6693938 | 19.51 | 23.61 | |
| Protection Tube 7x940l (old 164-07094-00) | ||||
| 258 | 6687548 | 2.31 | 2.80 | |
| No information available, not orderable | ||||
| 259 | 6695096 | |||
| Cap Nut 6 | ||||
| 260 | 6695146 | 1.15 | 1.39 | |
| Clamp | ||||
| 261 | 6688222 | 14.68 | 17.76 | |
| Flexible Pipe | ||||
| 501 | 6686798 | 16.79 | 20.31 | |
| Swivel Pipe | ||||
| 502 | 6686816 | 32.21 | 38.98 | |
| Straight Pipe | ||||
| 503 | 6686821 | 12.38 | 14.97 | |
| Straight Pipe (old 305-31905-21/6688954) | ||||
| 504 | 6688955 | 22.24 | 26.91 | |
| Pipe Band 96 | ||||
| 505 | 6686786 | 4.45 | 5.38 | |
| Pipe Band 115 | ||||
| 506 | 6688416 | 4.45 | 5.38 | |
| No information available, not orderable | ||||
| 507 | 6684766 | |||
| Combi.box Wrench 19x16 | ||||
| 508 | 6693652 | 13.20 | 15.97 | |
