Here you will find all available parts and drawings of the 'Hikoki TBL-7800'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

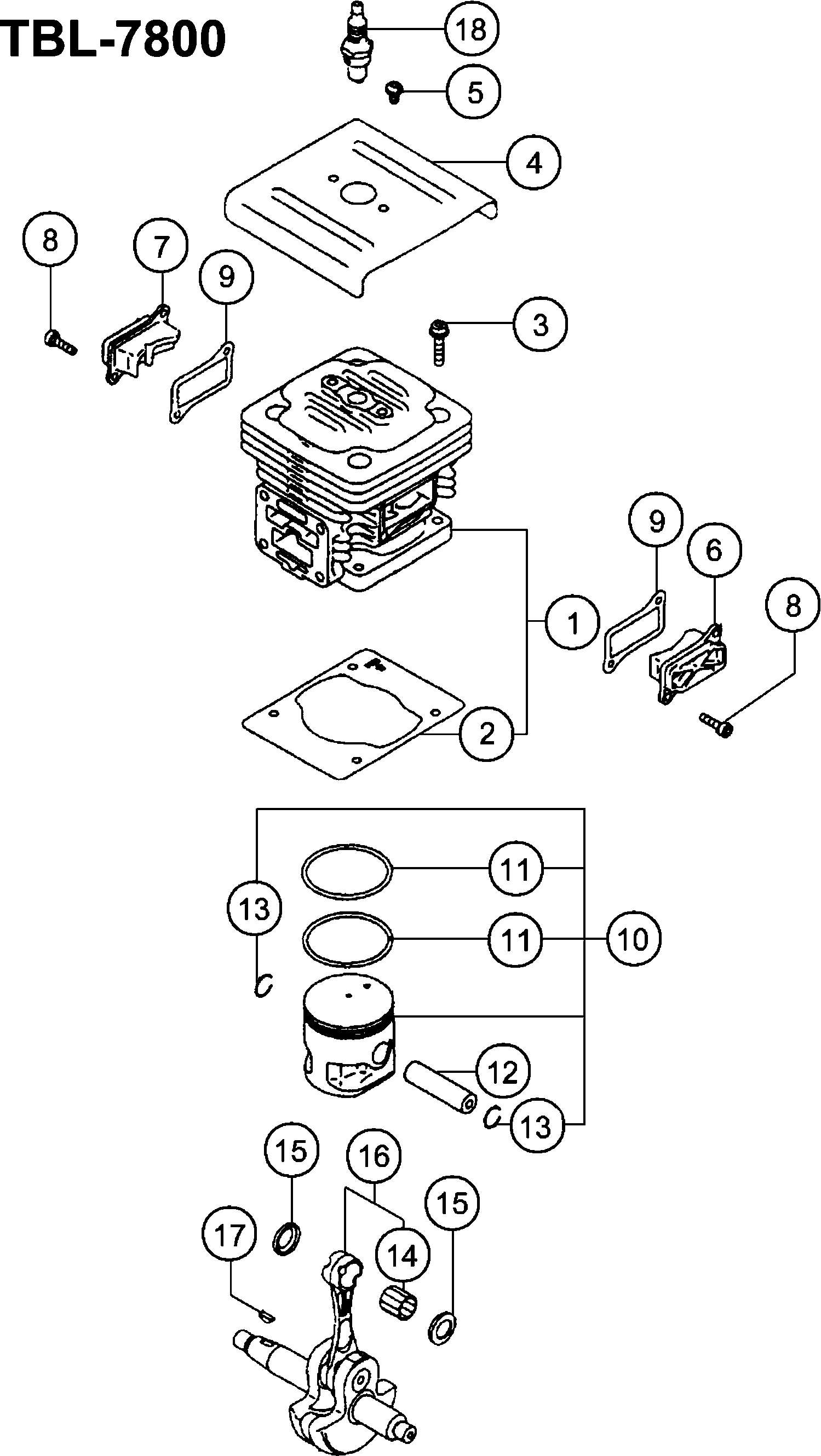

Technical drawing of model Hikoki TBL-7800
Spare parts list of model Hikoki TBL-7800
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Cylinder Set | ||||
| 1 | 6685500 | 240.94 | 291.53 | |
| Cylinder Gasket | ||||
| 2 | 6685757 | 5.11 | 6.19 | |
| Cylinder Bolt 5x22 | ||||
| 3 | 6685846 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 4 | 6685699 | |||
| Screw A 5x8torx | ||||
| 5 | 6693472 | 5.61 | 6.79 | |
| No information available, not orderable | ||||
| 6 | 6686257 | |||
| Port Cover F | ||||
| 7 | 6686282 | 9.58 | 11.59 | |
| Screw C 4x16torx | ||||
| 8 | 6693480 | 1.15 | 1.39 | |
| Port Cover Gasket (old 052-16005-20) | ||||
| 9 | 6686317 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 10 | 6685906 | |||
| Piston Ring | ||||
| 11 | 6686136 | 13.70 | 16.58 | |
| No information available, not orderable | ||||
| 12 | 6686022 | |||
| Circlip | ||||
| 13 | 6686037 | 9.40 | 11.37 | |
| No information available, not orderable | ||||
| 14 | 6693415 | |||
| Piston Pin Collar | ||||
| 15 | 6685996 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 16 | 6686239 | |||
| No longer available, no replacement | ||||
| 17 | 6686458 | |||
| Spark Plug Ass'y Cmr7h | ||||
| 18 | 6699312 | 26.31 | 31.84 | |
| No information available, not orderable | ||||
| 31 | 6686606 | |||
| Crank Case Gasket | ||||
| 32 | 6686730 | 4.45 | 5.38 | |
| No information available, not orderable | ||||
| 33 | 6693429 | |||
| Oil Seal | ||||
| 34 | 6695643 | 13.20 | 15.97 | |
| Oil Seal | ||||
| 35 | 6695645 | 15.58 | 18.85 | |
| No longer available, no replacement | ||||
| 36 | 6695299 | |||
| Screw E 5x30torx | ||||
| 37 | 6693500 | 1.05 | 1.27 | |
| Coil Cover | ||||
| 38 | 6687984 | 4.65 | 5.63 | |
| Screw C 4x16torx | ||||
| 39 | 6693480 | 1.15 | 1.39 | |
| Screw F 6x45 Torx (old 811-31905-20) New | ||||
| 40 | 6693507 | 4.45 | 5.38 | |
| Flywheel Nut M10 | ||||
| 41 | 6686446 | 5.25 | 6.35 | |
| Magneto Rotor Comp. | ||||
| 42A | 6699764 | 81.98 | 99.19 | |
| No information available, not orderable | ||||
| 43 | 6687635 | |||
| No information available, not orderable | ||||
| 44 | 6699766 | |||
| Grommet | ||||
| 45 | 6688042 | 1.05 | 1.27 | |
| Screw C 4x16torx | ||||
| 46 | 6693480 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 47 | 6687882 | |||
| Starter Pulley Ass'y | ||||
| 48 | 6693412 | 24.20 | 29.28 | |
| Magneto Ass'y Since G001001 | ||||
| 49 | 6699767 | 237.16 | 286.97 | |
| Ignition Coil Ass'y Since G001001 | ||||
| 50 | 6699765 | 155.34 | 187.96 | |
| Insulator Set | ||||
| 61 | 6689985 | 9.08 | 10.98 | |
| Screw B 5x20torx | ||||
| 62 | 6693475 | 3.30 | 3.99 | |
| Insulator Gasket | ||||
| 63 | 6689903 | 10.23 | 12.37 | |
| Carburetor Gasket | ||||
| 64 | 6689849 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 65 | 6692538 | |||
| No information available, not orderable | ||||
| 66 | 6692704 | |||
| No information available, not orderable | ||||
| 67 | 6692882 | |||
| Screw D 6x14torx | ||||
| 68 | 6693488 | 5.61 | 6.79 | |
| Muffler Gasket | ||||
| 69 | 6692752 | 13.20 | 15.97 | |
| No longer available, no replacement | ||||
| 70 | 6690204 | |||
| Carburetor Set Wya64 Till C250700 For Europe | ||||
| 71 | 6690526 | 307.19 | 371.70 | |
| No longer available, no replacement | ||||
| 74 | 6690676 | |||
| No longer available, no replacement | ||||
| 75 | 6690851 | |||
| No information available, not orderable | ||||
| 76 | 6690054 | |||
| No longer available, no replacement | ||||
| 77 | 6690059 | |||
| No information available, not orderable | ||||
| 78 | 6690385 | |||
| Cleaner Element | ||||
| 79 | 6690329 | 6.28 | 7.59 | |
| Carb Cover | ||||
| 80 | 6688034 | 3.00 | 3.63 | |
| Ring | ||||
| 81 | 6684661 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 82 | 6690052 | |||
| Screw H 5x62torx (old 813-31905-20) New | ||||
| 83 | 6693525 | 5.61 | 6.79 | |
| No information available, not orderable | ||||
| 84 | 6692505 | |||
| No information available, not orderable | ||||
| 111 | 6692999 | |||
| Rope Reel | ||||
| 112 | 6693006 | 13.86 | 16.77 | |
| Recoil Spring | ||||
| 113 | 6693127 | 24.20 | 29.28 | |
| Ring | ||||
| 114 | 6693255 | 5.61 | 6.79 | |
| Friction Spring | ||||
| 115 | 6693619 | 4.45 | 5.38 | |
| Friction Plate | ||||
| 116 | 6693631 | 20.11 | 24.34 | |
| Ring | ||||
| 117 | 6693427 | 3.30 | 3.99 | |
| Set Bolt (old 839-16005-20) New | ||||
| 118 | 6693640 | 4.45 | 5.38 | |
| No information available, not orderable | ||||
| 119 | 6693181 | |||
| Starter Handle | ||||
| 120 | 6693245 | 10.23 | 12.37 | |
| Starter Handle | ||||
| 121 | 6693605 | 4.45 | 5.38 | |
| Screw G 5x16 (old 812-31905-20) New | ||||
| 122 | 6693522 | 2.31 | 2.80 | |
| No information available, not orderable | ||||
| 131 | 6691436 | |||
| Inlet Screen | ||||
| 132 | 6684700 | 4.29 | 5.19 | |
| Priming Pump Comp. | ||||
| 133 | 6684687 | 16.34 | 19.77 | |
| Diaphragm Cover | ||||
| 134 | 6684688 | 8.58 | 10.38 | |
| Priming Body | ||||
| 135 | 6684689 | 6.44 | 7.79 | |
| Thrust Washer | ||||
| 136 | 6684874 | 2.15 | 2.60 | |
| Swivel | ||||
| 137 | 6684697 | 6.44 | 7.79 | |
| Stop Ring | ||||
| 138 | 6684696 | 2.15 | 2.60 | |
| Pump Gasket | ||||
| 139 | 6684692 | 29.19 | 35.32 | |
| Pump Diaphragm | ||||
| 140 | 6684693 | 8.58 | 10.38 | |
| Diaphragm Gasket | ||||
| 141 | 6684691 | 8.58 | 10.38 | |
| Metering Diaphragm Comp. | ||||
| 142 | 6690830 | 11.88 | 14.37 | |
| Throttle Set Screw | ||||
| 143 | 6684870 | 2.15 | 2.60 | |
| Cable Adjuster Stay | ||||
| 144 | 6684873 | 6.44 | 7.79 | |
| Lock Nut M6 | ||||
| 145 | 6684872 | 2.15 | 2.60 | |
| Cable Adjuster | ||||
| 146 | 6684871 | 4.29 | 5.19 | |
| Cleaner Gasket | ||||
| 147 | 6690186 | 3.30 | 3.99 | |
| Set Screw | ||||
| 148 | 6684699 | 2.15 | 2.60 | |
| O-RING (old 550-25100-20) | ||||
| 150 | 6684695 | 4.29 | 5.19 | |
| No longer available, no replacement | ||||
| 161 | 6685805 | |||
| No information available, not orderable | ||||
| 162 | 6685814 | |||
| Cushion Pad Clip | ||||
| 163 | 6686243 | 3.30 | 3.99 | |
| Shoulder Belt | ||||
| 164 | 6685821 | 32.21 | 38.98 | |
| Cushion Rubber | ||||
| 165 | 6685910 | 36.15 | 43.74 | |
| Ring | ||||
| 166 | 6692961 | 1.04 | 1.26 | |
| Screw L 5x40torx (old 817-31905-20) New | ||||
| 167 | 6693549 | 3.00 | 3.63 | |
| Screw M 5x16torx | ||||
| 168 | 6693571 | 5.61 | 6.79 | |
| Cushion Rubber (old 031-31905-80) New | ||||
| 169 | 6685960 | 38.26 | 46.30 | |
| No longer available, no replacement | ||||
| 170 | 6685967 | |||
| Tank Ass'y | ||||
| 171 | 6696103 | 132.50 | 160.32 | |
| Tank Cap Ass'y | ||||
| 172 | 6691773 | 14.21 | 17.20 | |
| No information available, not orderable | ||||
| 173 | 6692054 | |||
| Fuel Pipe Ass'y | ||||
| 174 | 6688175 | 17.55 | 21.24 | |
| Pump Filter Body Ass'y | ||||
| 175 | 6692273 | 7.10 | 8.59 | |
| Clip,6.3 Dia. | ||||
| 176 | 6684619 | 2.15 | 2.60 | |
| Bolt | ||||
| 177 | 6691980 | 5.10 | 6.17 | |
| No information available, not orderable | ||||
| 178 | 6692321 | |||
| No longer available, no replacement | ||||
| 191 | 6685604 | |||
| No longer available, no replacement | ||||
| 192 | 6685636 | |||
| No information available, not orderable | ||||
| 193 | 6693532 | |||
| No longer available, no replacement | ||||
| 194 | 6688426 | |||
| No information available, not orderable | ||||
| 195 | 6695687 | |||
| No information available, not orderable | ||||
| 196 | 6687291 | |||
| No information available, not orderable | ||||
| 197 | 6696987 | |||
| Intake Cover | ||||
| 198 | 6686342 | 22.00 | 26.62 | |
| No information available, not orderable | ||||
| 199 | 6693532 | |||
| Cord Clamp | ||||
| 200 | 6688014 | 1.05 | 1.27 | |
| Screw J 5x14torx | ||||
| 201 | 6693536 | 5.61 | 6.79 | |
| No information available, not orderable | ||||
| 202 | 6688545 | |||
| No longer available, no replacement | ||||
| 203 | 6687175 | |||
| Screw K 6x35torx (old 816-31905-20) New | ||||
| 204 | 6693543 | 4.50 | 5.44 | |
| Muffler Protector | ||||
| 205 | 6692825 | 84.40 | 102.12 | |
| No information available, not orderable | ||||
| 206 | 6693532 | |||
| No longer available, no replacement | ||||
| 207 | 6686265 | |||
| No longer available, no replacement | ||||
| 208 | 6685843 | |||
| No longer available, no replacement | ||||
| 212 | 6691471 | |||
| Screw N 5x20torx | ||||
| 220 | 6693576 | 5.10 | 6.17 | |
| Handle Nut M5 | ||||
| 221 | 6688542 | 2.10 | 2.54 | |
| Throttle Lever Set (old 871-31905-90) New | ||||
| 241 | 6693781 | 150.65 | 182.29 | |
| Throttle Lever Ass'y | ||||
| 242 | 6688389 | 144.60 | 174.97 | |
| No information available, not orderable | ||||
| 243 | 6696987 | |||
| Ring | ||||
| 244 | 6684661 | 2.15 | 2.60 | |
| Throttle Lever Arm | ||||
| 245 | 6688324 | 40.24 | 48.69 | |
| Throttle Lever Bracket | ||||
| 246 | 6686055 | 18.00 | 21.78 | |
| Set Bolt | ||||
| 247 | 6693367 | 7.59 | 9.18 | |
| Spring | ||||
| 248 | 6694039 | 9.08 | 10.98 | |
| No information available, not orderable | ||||
| 249 | 6684642 | |||
| Flange nut | ||||
| 250 | 6695170 | 1.15 | 1.39 | |
| Bolt Washer M8 | ||||
| 251 | 6684611 | 2.15 | 2.60 | |
| Stop Button Comp. (old 170-16005-80) New | ||||
| 252 | 6687751 | 16.34 | 19.77 | |
| Stop Button Cover | ||||
| 253 | 6688408 | 2.10 | 2.54 | |
| THROTTLE CABLE | ||||
| 254 | 6693937 | 19.58 | 23.69 | |
| Protection Tube 7x300l | ||||
| 255 | 6687533 | 1.15 | 1.39 | |
| Grip Ass'y (old 248-31905-90) New | ||||
| 256 | 6688301 | 56.26 | 68.08 | |
| Wing Bolt 6x65 (old 465-16005-20) New | ||||
| 257 | 6690782 | 5.94 | 7.18 | |
| No information available, not orderable | ||||
| 258 | 6696285 | |||
| No longer available, no replacement | ||||
| 259 | 6691213 | |||
| Cap Nut 6 | ||||
| 260 | 6695146 | 1.15 | 1.39 | |
| Screw M 5x16torx | ||||
| 261 | 6693571 | 5.61 | 6.79 | |
| Flexible Pipe | ||||
| 501 | 6686798 | 16.79 | 20.31 | |
| Swivel Pipe | ||||
| 502 | 6686816 | 32.21 | 38.98 | |
| Straight Pipe | ||||
| 503 | 6686821 | 12.38 | 14.97 | |
| Straight Pipe (old 305-31905-21/6688954) | ||||
| 504 | 6688955 | 22.24 | 26.91 | |
| Pipe Band 96 | ||||
| 505 | 6686786 | 4.45 | 5.38 | |
| Pipe Band 115 | ||||
| 506 | 6688416 | 4.45 | 5.38 | |
| No information available, not orderable | ||||
| 507 | 6684766 | |||
| Combi.box Wrench 19x16 | ||||
| 508 | 6693652 | 13.20 | 15.97 | |
