Here you will find all available parts and drawings of the 'Hikoki TBL-4600'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

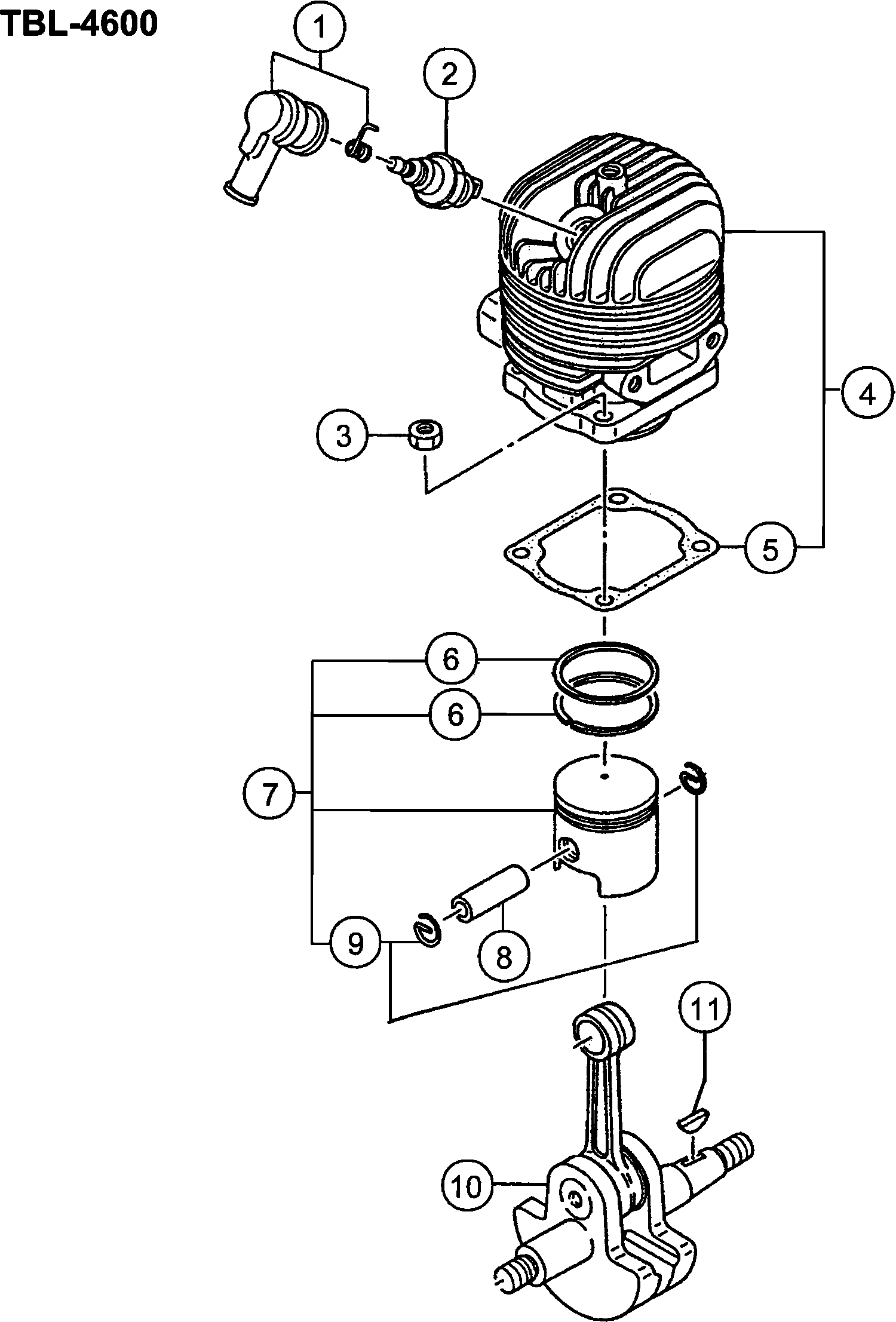

Technical drawing of model Hikoki TBL-4600

Spare parts list of model Hikoki TBL-4600

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Spark Plug Cap Ass'y Till G165840
1 6687468 2.31 2.80
Spark Plug Ass'y Bmr7a
2 6699316 8.91 10.78
Spring Nut 6
3 6695475 1.15 1.39
CYLINDER SET
4 6698001 86.21 104.32
Cylinder Gasket
5 6685727 1.15 1.39
Piston Ring
6 6686128 4.45 5.38
Piston Set
7 6685890 18.60 22.51
Piston Pin 10x30
8 6686007 2.31 2.80
Piston Pin Circlip
9 6686032 1.15 1.39
Crank Shaft Comp.
10 6686194 90.45 109.44
Wood-ruff Key 3x13x5
11 6686457 1.15 1.39
Ring
21 6686464 1.15 1.39
No longer available, no replacement
22 6686563
Ball Bearing #6303zz
23 6695572 10.23 12.37
Oil Seal
24 6695648 3.30 3.99
Crank Case Gasket
25 6686716 1.15 1.39
No information available, not orderable
26 6686778
Case Plate
27 6692263 2.31 2.80
Screw 5x10/s
28 6695333 1.15 1.39
Cord Clamp Comp.
29 6688004 1.15 1.39
Screw 5x10/p
30 6695319 1.15 1.39
Grommet
31 6688050 1.15 1.39
No longer available, no replacement
32 6687863
No longer available, no replacement
33 6688454
Exciter Comp.
34 6687509 44.31 53.62
Screw 5x22/ws
35 6695422 1.15 1.39
Coil Cover
36 6687983 1.15 1.39
Screw 5x10/s
37 6695333 1.15 1.39
No information available, not orderable
38 6687692
Screw 4x15ps
39 6695373 1.15 1.39
Hex.hole Bolt 6x35/s
40 6695500 1.15 1.39
No longer available, no replacement
41 6687390
Ring
42 6695185 1.15 1.39
No information available, not orderable
43 6695138
No longer available, no replacement
44 6694888
S.washer 5
45 6684662 2.15 2.60
Small Washer 5
46 6684864 2.15 2.60
D4e Retaining Ring (old 993-55040-001)
51 6685101 1.15 1.39
D4e Retaining Ring (old 993-55040-001)
51A 6685101 1.15 1.39
Starter Pawl Spring
52 6693345 2.31 2.80
No information available, not orderable
52A 6697642
Starter Pawl
53 6693302 2.31 2.80
No information available, not orderable
53A 6697643
Small Nut 10
54 6695139 1.05 1.27
Starter Pulley
55 6693395 11.05 13.37
Starter Pulley Ass'y
55A 6697644 11.05 13.37
Screw
71 6684967 1.04 1.26
Muffler Gasket For Europe
72 6692742 1.15 1.39
Muffler Special Gasket
73 6692884 1.15 1.39
Bolt Washer M8
74 6684611 2.15 2.60
Muffler Bolt (old 750-05004-20)
75 6692881 2.31 2.80
Screw 6x12/ps
76 6695399 1.15 1.39
Screw 5x18
77 6694891 1.15 1.39
S.washer 5
78 6684662 2.15 2.60
Small Washer 5
79 6684864 2.15 2.60
Screw 6x20
80 6694934 1.15 1.39
Ring
81 6695219 1.15 1.39
Ring
82 6695183 1.15 1.39
Muffler Protecter A
83 6692786 26.16 31.66
Cord Clamp Comp.
84 6688004 1.15 1.39
No information available, not orderable
85 6698165
Inlet Manifold Gasket
101 6689888 1.15 1.39
No information available, not orderable
102 6698112
Small Washer 5
103 6684864 2.15 2.60
No information available, not orderable
104 6695343
Carburetor Gasket (old 402-0602K-21/6689836)
105 6684615 2.15 2.60
Carburetor Assembly Pn (old 455-05029-90)
106 6690478 68.36 82.72
Fuel Pipe Ass'y 3x5x280
107 6688172 3.30 3.99
Clip 5.2
108 6692311 1.15 1.39
Pump Filter Body Ass'y
109 6692273 7.10 8.59
Tank Cap D Ass'y Black
110 6691740 7.59 9.18
Tank Comp For Europe
111 6697182 23.45 28.37
Air Cleaner Body
114 6690105 8.41 10.18
Choke Valve
115 6691252 6.44 7.79
Collar
116 6684858 4.29 5.19
Spacer
117 6684859 2.15 2.60
Blow Over Check Board
118 6684860 4.29 5.19
No longer available, no replacement
119 6684861
Cleaner Cap
120 6690153 5.78 6.99
Aircleaner Assy, Caa-37
121 6690028 14.85 17.97
Small Washer 5
122 6684864 2.15 2.60
Screw 5x57/s
123 6695353 1.15 1.39
No information available, not orderable
124 6684625
Recoil Starter Body Ass'y
141A 6697645 21.78 26.35
Recoil Starter Body Comp.
142 6693025 14.19 17.17
Recoil Starter Body Comp
142A 6697646 11.71 14.17
Starter Rope Reel
143 6693007 4.95 5.99
Starter Rope Reel
143A 6697647 4.13 4.99
Recoil Spring
144 6693114 9.08 10.98
No information available, not orderable
144A 6697648
Starter Rope (old 783-04270-20/6693164)
145 6693165 3.30 3.99
No information available, not orderable
145A 6697649
Starter Handle
146 6693607 2.31 2.80
Starter Handle
147 6693232 3.30 3.99
Starter Handle
147A 6697650 2.80 3.39
Set Screw
148 6693634 1.15 1.39
Carburetor Ass'y Till B001000 For Europe
161 6696061 74.41 90.04
Pump Body Comp. Till U100576
162 6691432 34.19 41.37
Diaphragm Cover-metering
163 6685222 4.45 5.38
Metering Diaphragm Comp. Till B027700
164 6690827 11.71 14.17
No longer available, no replacement
165 6685220
Pump Diaphragm
166 6684693 8.58 10.38
Pump Gasket (old 577-25100-20)
167 6691457 7.10 8.59
Main Jet #48
168 6691853 4.45 5.38
O-RING (old 550-25100-20)
169 6684695 4.29 5.19
Stop Ring
170 6684696 2.15 2.60
Swivel
171 6684697 6.44 7.79
Throttle Valve Comp. Till B001000 For Europe
172 6690939 24.20 29.28
Throttle Set Screw
173 6684870 2.15 2.60
Cable Adjuster Stay
174 6684873 6.44 7.79
Lock Nut M6
175 6684872 2.15 2.60
Cable Adjuster
176 6684871 4.29 5.19
Cleaner Packing
177 6684875 4.29 5.19
Set Screw
178 6691312 1.15 1.39
Thrust Washer
179 6684874 2.15 2.60
Plug (old 537-25120-20)
180 6691288 1.15 1.39
Inlet Screen
181 6684700 4.29 5.19
Frame Comp., Black
201 6685803 82.43 99.73
No information available, not orderable
202 6685864
Truss Screw 6x16
203 6694961 1.15 1.39
Shoulder Belt Comp.
204 6685819 11.71 14.17
Cushion Pad
205 6685812 28.14 34.05
Fastener
206 6686241 1.15 1.39
Holding Ring
207 6686140 2.31 2.80
No information available, not orderable
241 6694901
Small Washer 5
242 6684864 2.15 2.60
No information available, not orderable
243 6685599
Fan
244 6687170 24.20 29.28
No longer available, no replacement
245 6695221
Bolt 6x30 (old 990-21060-301)
246 6694990 1.15 1.39
Fan Housing
247 6685634 52.34 63.33
Nut 5
248 6695120 1.15 1.39
Protection Net
249 6686260 4.95 5.99
Tapping Screw 5x20
250 6695255 1.15 1.39
Blow Pipe
251 6688423 16.94 20.49
Pipe Band
252 6686784 5.78 6.99
Screw 6x30
253 6694940 1.15 1.39
No information available, not orderable
254 6691701
No information available, not orderable
255 6684792
Special Nut 6
256 6685863 1.15 1.39
No information available, not orderable
257 6686319
Ring
258 6695219 1.15 1.39
Ring
259 6685855 1.15 1.39
Screw 6x18
260 6694932 1.15 1.39
Ring
261 6684639 2.15 2.60
No information available, not orderable
262 6685907
No information available, not orderable
263 6685864
O-ring V-70 (old 999-67070-020) New
264 6695686 3.30 3.99
Fuel Tank Mounting Base (old 605-05018-20)
265 6691957 5.28 6.38
Throttle Lever Ass'y For Europe
281 6685669 40.24 48.69
Lever Bracket A For Europe
282 6686054 3.30 3.99
Lever Bracket B For Europe
283 6686137 3.30 3.99
Handle Knob Comp. For Europe
284 6689263 4.45 5.38
Grip For Europe
285 6688297 9.40 11.37
Tapping Screw 5x20
286 6695254 1.15 1.39
Screw 5x25, Black (old 994-31050-253)
287 6695456 1.15 1.39
Self-lock Nut 5, Black For Europe
288 6695174 1.15 1.39
Stop Switch For Europe
289 6687515 2.31 2.80
Stop Switch Base For Europe
290 6688374 2.31 2.80
Stop Switch Spring For Europe
291 6688385 2.31 2.80
Tapping Screw 3x8 For Europe
292 6695275 1.15 1.39
Cord, B960m For Europe
293 6687892 4.95 5.99
Protection Tube 7x870l (old 164-07087-00)
294 6684717 6.44 7.79
Throttle Wire Comp.
295 6693893 10.40 12.58
No information available, not orderable
501 6684764
No information available, not orderable
502 6694822
Flexible Pipe
507 6686796 17.09 20.68
Swivel Pipe
508 6686814 15.28 18.48
Straight Pipe (long)
509 6686819 15.13 18.30
Straight Pipe (short) (old 305-31310-20)(old 66868
510 6688953 14.35 17.36
Bent Pipe, Black
511 6686824 11.05 13.37
Wire Clamp 95 (old 110-31310-21/6686872)
512 6686873 11.05 13.37
Wire Clamp 78
513 6686884 9.74 11.78
Name Plate, Tbl4600
601 6694162 1.05 1.27
