Here you will find all available parts and drawings of the 'Hikoki TBC260PF'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

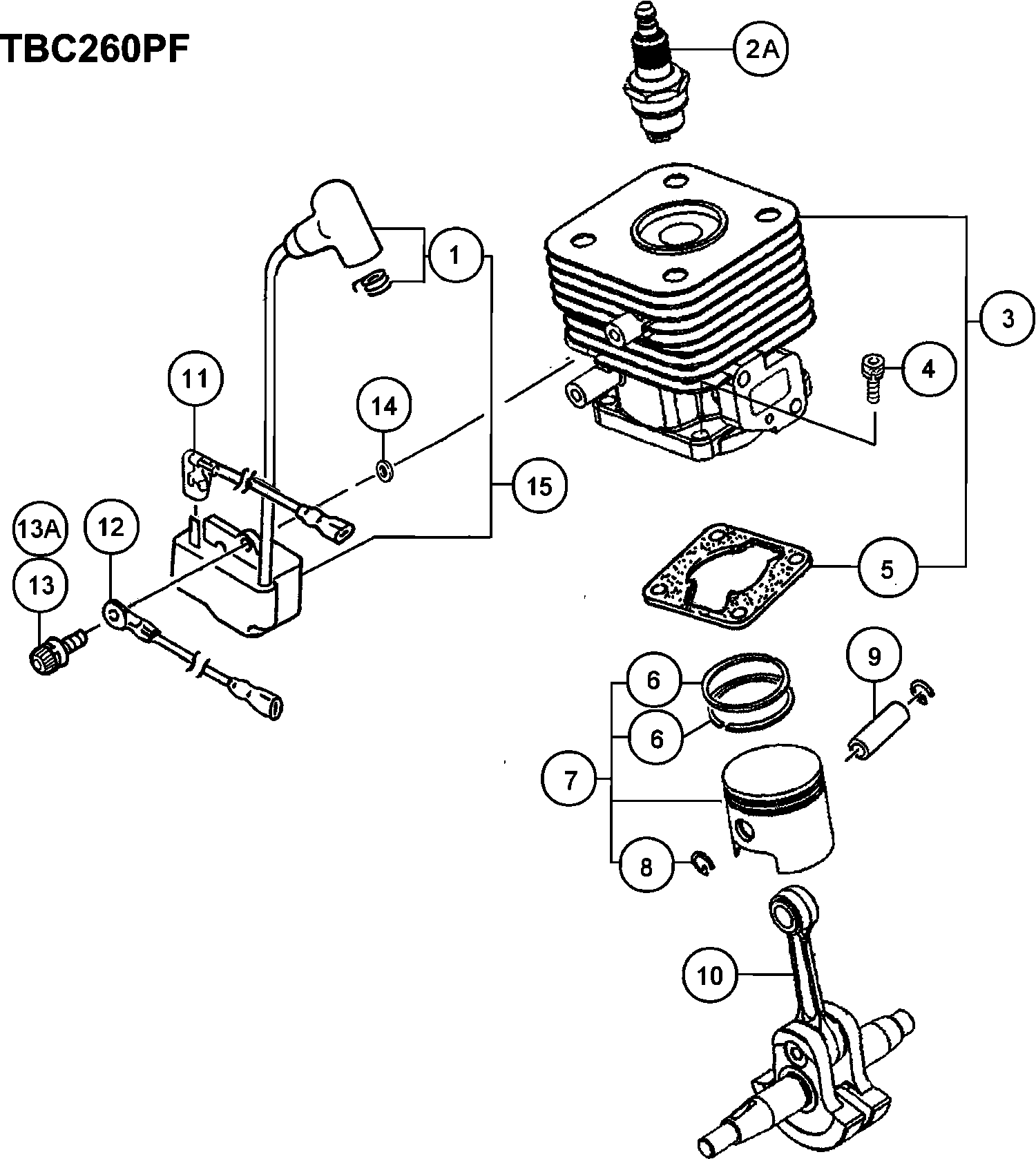

Technical drawing of model Hikoki TBC260PF
Spare parts list of model Hikoki TBC260PF
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Plug Cap | ||||
| 1 | 6684894 | 8.58 | 10.38 | |
| Spark Plug Ass'y Cj6 Except For Aus,nzl | ||||
| 2A | 6699322 | 2.48 | 2.99 | |
| Cylinder Ass'y Includ.65 | ||||
| 3 | 6684897 | 77.74 | 94.06 | |
| Hex.hole Bolt M5x18/s | ||||
| 4 | 6684586 | 2.15 | 2.60 | |
| Cylinder Gasket | ||||
| 5 | 6684896 | 2.15 | 2.60 | |
| Piston Ring | ||||
| 6 | 6684588 | 8.58 | 10.38 | |
| No information available, not orderable | ||||
| 7 | 6684898 | |||
| Cir Clip | ||||
| 8 | 6684590 | 2.15 | 2.60 | |
| Piston Pin | ||||
| 9 | 6684591 | 4.29 | 5.19 | |
| No information available, not orderable | ||||
| 10 | 6686219 | |||
| Stop Cord B 190m | ||||
| 11 | 6687836 | 2.31 | 2.80 | |
| No information available, not orderable | ||||
| 12 | 6688443 | |||
| Hex. Hole Bolt M4x18/ws Till H124040 | ||||
| 13 | 6684599 | 2.15 | 2.60 | |
| High Tension Screw 4x18ws Since H124041 | ||||
| 13A | 6695407 | 1.15 | 1.39 | |
| Washer T1.6 | ||||
| 14 | 6684600 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 15 | 6687684 | |||
| Gear Shaft Shim 0.20 | ||||
| 21 | 6684604 | 2.15 | 2.60 | |
| Gear Shaft Shim 0.30 | ||||
| 21 | 6684605 | 2.15 | 2.60 | |
| Crank Case Ass'y Since D038601 | ||||
| 22 | 6684905 | 54.45 | 65.88 | |
| Oil Seal | ||||
| 23 | 6684607 | 4.29 | 5.19 | |
| Ball Bearing 6001 C3 | ||||
| 24 | 6684608 | 3.80 | 4.60 | |
| Crank Case Gasket | ||||
| 25 | 6684904 | 2.15 | 2.60 | |
| Hex. Hole Bolt M5x16/s | ||||
| 26 | 6684903 | 2.15 | 2.60 | |
| Magneto Rotor Comp. | ||||
| 27 | 6687384 | 16.19 | 19.59 | |
| Bolt Washer M8 | ||||
| 28 | 6684611 | 2.15 | 2.60 | |
| Hex. Nut M8 | ||||
| 29 | 6684612 | 2.15 | 2.60 | |
| Inlet Manifold Gasket | ||||
| 41 | 6689895 | 1.15 | 1.39 | |
| Insulator Set | ||||
| 42 | 6689972 | 6.28 | 7.59 | |
| Hex. Hole Bolt 5x25/ws | ||||
| 43 | 6684617 | 2.15 | 2.60 | |
| Carburetor Packing | ||||
| 44 | 6684616 | 2.15 | 2.60 | |
| Choke Plate 2.0 | ||||
| 45 | 6691276 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 46 | 6690120 | |||
| Cleaner Sponge | ||||
| 47 | 6690365 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 48 | 6690402 | |||
| Cover Fixing Bolt Comp. | ||||
| 49 | 6698730 | 3.15 | 3.81 | |
| Screw M5x55 | ||||
| 50 | 6694914 | 1.15 | 1.39 | |
| S.washer 5 | ||||
| 51 | 6684662 | 2.15 | 2.60 | |
| Small Washer 5 | ||||
| 52 | 6684864 | 2.15 | 2.60 | |
| Carburetor Set Wyj318 | ||||
| 53 | 6690465 | 58.39 | 70.65 | |
| Choke Control Lever | ||||
| 54 | 6691239 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 55A | 6697951 | |||
| Stand | ||||
| 56 | 6694787 | 3.30 | 3.99 | |
| Collar C | ||||
| 57 | 6684623 | 2.15 | 2.60 | |
| Return Grommet Till 7.2014 | ||||
| 58A | 6697846 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 59 | 6684626 | |||
| No information available, not orderable | ||||
| 60 | 6684620 | |||
| Clip D6 | ||||
| 61 | 6685198 | 1.15 | 1.39 | |
| SHIELD TUBE SET | ||||
| 62A | 6698970 | 10.68 | 12.92 | |
| Hex. Hole Bolt 5x25/ws | ||||
| 63 | 6684617 | 2.15 | 2.60 | |
| Hex.hole Bolt 5x20/ps | ||||
| 64 | 6684634 | 2.15 | 2.60 | |
| Tank Cap D Ass'y Since K032881 | ||||
| 65 | 6691748 | 7.59 | 9.18 | |
| Tap Screw 4x14 P | ||||
| 66 | 6695280 | 1.15 | 1.39 | |
| Ring | ||||
| 67 | 6685070 | 1.15 | 1.39 | |
| Cylinder Cover (blk) | ||||
| 81 | 6685693 | 4.79 | 5.79 | |
| Hex. Hole Bolt 5x16/ps | ||||
| 82 | 6695504 | 1.15 | 1.39 | |
| Hex.hole Bolt 6x65 (old 990-51060-653) | ||||
| 83 | 6695067 | 1.15 | 1.39 | |
| Ring | ||||
| 84 | 6684639 | 2.15 | 2.60 | |
| Muffler Comp. | ||||
| 85 | 6692576 | 70.33 | 85.09 | |
| No longer available, no replacement | ||||
| 86 | 6692888 | |||
| Tail Pipe Set | ||||
| 87 | 6692715 | 3.30 | 3.99 | |
| Screw M4x8/ws | ||||
| 88 | 6684651 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 89 | 6692701 | |||
| Heat Shield | ||||
| 90 | 6687265 | 4.45 | 5.38 | |
| Muffler Protector Blk | ||||
| 91 | 6692818 | 13.04 | 15.78 | |
| Hex. Hole Bolt 4x18ws Till H124040 | ||||
| 92 | 6695508 | 1.15 | 1.39 | |
| Screw 4x18/ps Since H124041 | ||||
| 92A | 6695375 | 1.15 | 1.39 | |
| Plug Cover | ||||
| 93 | 6688344 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 94 | 6684642 | |||
| Clutch Shoe Comp. | ||||
| 95 | 6684643 | 11.55 | 13.98 | |
| Clutch Spring | ||||
| 96 | 6684644 | 2.15 | 2.60 | |
| Clutch Plate A 0.5 | ||||
| 97 | 6684645 | 2.15 | 2.60 | |
| Step Bolt | ||||
| 98 | 6684646 | 2.15 | 2.60 | |
| Hex.hole Bolt 5x20/ps | ||||
| 99 | 6684634 | 2.15 | 2.60 | |
| Ring | ||||
| 100 | 6684648 | 2.15 | 2.60 | |
| Tapping Screw D4.5x16 | ||||
| 101 | 6684636 | 2.15 | 2.60 | |
| Recoil Starter Body Ass'y Includ.183-190 Till Eo9 | ||||
| 111 | 6684938 | 23.45 | 28.37 | |
| Recoil Starter Body Comp. Since En90001(till 10.2 | ||||
| 112 | 6684944 | 17.24 | 20.86 | |
| Starter Rope Reel Since En90001(till 10.2012 For | ||||
| 113 | 6684941 | 6.44 | 7.79 | |
| Recoil Spring Till Eo99999 | ||||
| 114 | 6684942 | 9.40 | 11.37 | |
| Swing Arm Till Eo99999 | ||||
| 115 | 6684940 | 2.15 | 2.60 | |
| Set Screw (old 839-03045-20) | ||||
| 116 | 6684679 | 2.15 | 2.60 | |
| Pulley Stay Till Eo99999 | ||||
| 117 | 6684939 | 2.15 | 2.60 | |
| Rope 3.0x800 Till Eo99999 | ||||
| 118 | 6684943 | 4.29 | 5.19 | |
| Starter Handle | ||||
| 119 | 6684680 | 2.15 | 2.60 | |
| Starter Pulley Till Eo99999 | ||||
| 121 | 6684937 | 6.44 | 7.79 | |
| Hex. Hole Bolt 4x18ws Till H124040 | ||||
| 122 | 6695508 | 1.15 | 1.39 | |
| Screw 4x18/ps Since H124041 | ||||
| 122A | 6695375 | 1.15 | 1.39 | |
| Pump Body Comp. | ||||
| 131 | 6684879 | 62.16 | 75.22 | |
| Priming Pump Comp. | ||||
| 132 | 6684687 | 16.34 | 19.77 | |
| Diaphragm Cover | ||||
| 133 | 6684688 | 8.58 | 10.38 | |
| Priming Body | ||||
| 134 | 6684689 | 6.44 | 7.79 | |
| Metering Diaphragm Comp. | ||||
| 135 | 6690830 | 11.88 | 14.37 | |
| Diaphragm Gasket | ||||
| 136 | 6684691 | 8.58 | 10.38 | |
| Pump Diaphragm | ||||
| 137 | 6684693 | 8.58 | 10.38 | |
| Pump Gasket (old 577-25100-20) | ||||
| 138 | 6691457 | 7.10 | 8.59 | |
| Main Jet #38.5 (old 599-200bw-38/6691874) | ||||
| 139 | 6696130 | 5.78 | 6.99 | |
| Starter Pulley Till Eo99999 | ||||
| 140 | 6684937 | 6.44 | 7.79 | |
| Stop Ring | ||||
| 141 | 6684696 | 2.15 | 2.60 | |
| Swivel | ||||
| 142 | 6684697 | 6.44 | 7.79 | |
| Throttle Set Screw | ||||
| 143 | 6684870 | 2.15 | 2.60 | |
| Cable Adjuster Stay | ||||
| 144 | 6684873 | 6.44 | 7.79 | |
| Lock Nut M6 | ||||
| 145 | 6684872 | 2.15 | 2.60 | |
| Cable Adjuster | ||||
| 146 | 6684871 | 4.29 | 5.19 | |
| Cleaner Packing | ||||
| 147 | 6684875 | 4.29 | 5.19 | |
| Set Screw | ||||
| 148 | 6684699 | 2.15 | 2.60 | |
| Thrust Washer | ||||
| 149 | 6684874 | 2.15 | 2.60 | |
| Inlet Screen | ||||
| 150 | 6684700 | 4.29 | 5.19 | |
| Clutch Drum Comp. | ||||
| 161 | 6688580 | 10.89 | 13.17 | |
| Stop Ring C-12 Outer | ||||
| 162 | 6684664 | 2.15 | 2.60 | |
| Cushion Rubber | ||||
| 163 | 6691823 | 3.30 | 3.99 | |
| Hex. Hole Bolt 5x16 | ||||
| 164 | 6695046 | 1.15 | 1.39 | |
| Hex. Hole Bolt M5x25/s | ||||
| 165 | 6684709 | 2.15 | 2.60 | |
| Fan Housing | ||||
| 166 | 6686959 | 15.13 | 18.30 | |
| Pipe Holder, TPE | ||||
| 167 | 6689651 | 5.94 | 7.18 | |
| Washer M5 (black) | ||||
| 168 | 6684918 | 2.15 | 2.60 | |
| Ring | ||||
| 169 | 6689159 | 1.15 | 1.39 | |
| Metal Fitting | ||||
| 170 | 6689664 | 3.30 | 3.99 | |
| Drive Shaft 1487l | ||||
| 181 | 6689477 | 14.21 | 17.20 | |
| Drive Shaft Pipe Comp. | ||||
| 182 | 6689386 | 32.21 | 38.98 | |
| No information available, not orderable | ||||
| 183 | 6684831 | |||
| Hex.nut 6 | ||||
| 184 | 6684835 | 2.15 | 2.60 | |
| Loop Handle, 24 Dia.,black | ||||
| 185 | 6691046 | 5.78 | 6.99 | |
| Handle Bracket A | ||||
| 186 | 6691134 | 2.31 | 2.80 | |
| Handle Grip (old 503-3738e-20) | ||||
| 187 | 6691098 | 6.44 | 7.79 | |
| Bolt 6x43/p (black) | ||||
| 188 | 6684838 | 2.15 | 2.60 | |
| Throttle Wire Comp. | ||||
| 189 | 6693963 | 3.30 | 3.99 | |
| Tapping Screw 5x20 | ||||
| 190 | 6695255 | 1.15 | 1.39 | |
| Ring | ||||
| 191 | 6689681 | 1.15 | 1.39 | |
| Throttle Lever Ass'y | ||||
| 192 | 6693736 | 16.64 | 20.13 | |
| Stop Switch For Europe | ||||
| 193 | 6687515 | 2.31 | 2.80 | |
| Tapping Screw 3x8 (old 993-42030-081) | ||||
| 194 | 6695274 | 1.15 | 1.39 | |
| Stop Switch Base For Europe | ||||
| 195 | 6688374 | 2.31 | 2.80 | |
| Stop Switch Spring For Europe | ||||
| 196 | 6688385 | 2.31 | 2.80 | |
| Earth Terminal B | ||||
| 197 | 6687805 | 2.31 | 2.80 | |
| Earth Terminal A | ||||
| 198 | 6687801 | 2.31 | 2.80 | |
| No longer available, no replacement | ||||
| 199 | 6685000 | |||
| Stop Ring E-6 | ||||
| 200 | 6695311 | 1.15 | 1.39 | |
| Return Spring (old 832-37101-20) | ||||
| 201 | 6693601 | 1.15 | 1.39 | |
| Throttle Arm | ||||
| 202 | 6693804 | 3.30 | 3.99 | |
| Screw 5x20 (old 994-31050-201) New | ||||
| 203 | 6695453 | 1.15 | 1.39 | |
| Lock Button Shaft | ||||
| 204 | 6693653 | 1.15 | 1.39 | |
| Lock Button Spring (old 958-37101-20) | ||||
| 205 | 6694834 | 1.15 | 1.39 | |
| Lock Button | ||||
| 206 | 6694829 | 2.31 | 2.80 | |
| Stop Cord, B430m | ||||
| 207 | 6687915 | 2.31 | 2.80 | |
| Protection Tube 10x190l | ||||
| 208 | 6687563 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 209A | 6697902 | |||
| No information available, not orderable | ||||
| 221 | 6688812 | |||
| Hex. Hole Bolt M5x25/s | ||||
| 222 | 6684709 | 2.15 | 2.60 | |
| STOP RING C-22, INNER (OLD 993-51022-002) | ||||
| 223 | 6695293 | 1.15 | 1.39 | |
| Stop Ring Outer 10 | ||||
| 224 | 6695315 | 1.15 | 1.39 | |
| Ball Bearing | ||||
| 225 | 6695579 | 5.78 | 6.99 | |
| Ball Bearing 6900 | ||||
| 226 | 6695577 | 6.60 | 7.99 | |
| Gear Case 24 | ||||
| 227 | 6688808 | 15.88 | 19.21 | |
| Hex.hole Bolt M5x12/s | ||||
| 228 | 6684667 | 2.15 | 2.60 | |
| Oiling Bolt | ||||
| 229 | 6689109 | 1.15 | 1.39 | |
| Ball Bearing 609 | ||||
| 230 | 6684734 | 8.58 | 10.38 | |
| Gear Shaft | ||||
| 231 | 6688946 | 19.06 | 23.07 | |
| No information available, not orderable | ||||
| 232 | 6695554 | |||
| Stop Ring inside C-32 old part no. 993-51032-00 | ||||
| 233 | 6695295 | 1.15 | 1.39 | |
| Cutter Holder | ||||
| 234 | 6689032 | 11.71 | 14.17 | |
| Ring | ||||
| 235 | 6689159 | 1.15 | 1.39 | |
| HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | ||||
| 236 | 6684714 | 2.15 | 2.60 | |
| SAFETY GUARD BRACKET (OLD 442-37417-20) | ||||
| 237 | 6685065 | 2.31 | 2.80 | |
| Guard 24 Dia. For Aus (sl) | ||||
| 238 | 6690272 | 13.20 | 15.97 | |
| Guard Holder | ||||
| 239 | 6690343 | 3.30 | 3.99 | |
| Blade (old 797-38150-20) | ||||
| 240 | 6693388 | 6.28 | 7.59 | |
| Tapping Screw 5x20 For Aus (sl) | ||||
| 241 | 6684753 | 2.15 | 2.60 | |
| Hex.hole Bolt M5x12/s | ||||
| 242 | 6684667 | 2.15 | 2.60 | |
| Gear Pinion Set Spare | ||||
| 243 | 6688882 | 18.15 | 21.96 | |
| No information available, not orderable | ||||
| 501 | 6684813 | |||
| No information available, not orderable | ||||
| 502 | 6684764 | |||
| No information available, not orderable | ||||
| 510 | 6695784 | |||
| Mounting Nut L-m10x1.25 Till Tl060520 | ||||
| 511 | 6684756 | 9.08 | 10.98 | |
| Cutting Body Till Tl060520 | ||||
| 512 | 6684757 | 22.69 | 27.45 | |
| Special Nut Till Tl060520 | ||||
| 513 | 6684758 | 9.40 | 11.37 | |
| Reel Spring Till Tl060520 | ||||
| 514 | 6684759 | 4.29 | 5.19 | |
| Spool Till Tl060520 | ||||
| 515 | 6684760 | 15.58 | 18.85 | |
| Cutting Body Cap Till Tl060520 | ||||
| 516 | 6684761 | 36.15 | 43.74 | |
| Eyelet Till Tl060520 | ||||
| 517 | 6684762 | 4.29 | 5.19 | |
| Mounting Nut L-m8x1.25 (old 356-3383e-20) | ||||
| 518 | 6689624 | 7.75 | 9.38 | |
| Ring | ||||
| 519 | 6685072 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 520 | 6697805 | |||
| Nylon Cord Cutter Since Tl060521 | ||||
| 521 | 6601148 | 19.21 | 23.25 | |
| Case Since Tl060521 | ||||
| 522 | 6601149 | 10.73 | 12.98 | |
| Nut (1) | ||||
| 523 | 6601150 | 6.93 | 8.38 | |
| Reel Spring Since Tl060521 | ||||
| 524 | 6693380 | 3.30 | 3.99 | |
| Line Holder Since Tl060521 | ||||
| 525 | 6601151 | 7.59 | 9.18 | |
| Cover | ||||
| 526 | 6601152 | 7.75 | 9.38 | |
| Eyelet Since Tl060521 | ||||
| 527 | 6684810 | 2.15 | 2.60 | |
| Name Plate | ||||
| 601 | 6694245 | 2.10 | 2.54 | |
| Symbol Mark Tbc260pf | ||||
| 602 | 6694686 | 1.05 | 1.27 | |
| Symbol Mark | ||||
| 603 | 6694741 | 3.30 | 3.99 | |
