Here you will find all available parts and drawings of the 'Hikoki TBC255PF'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

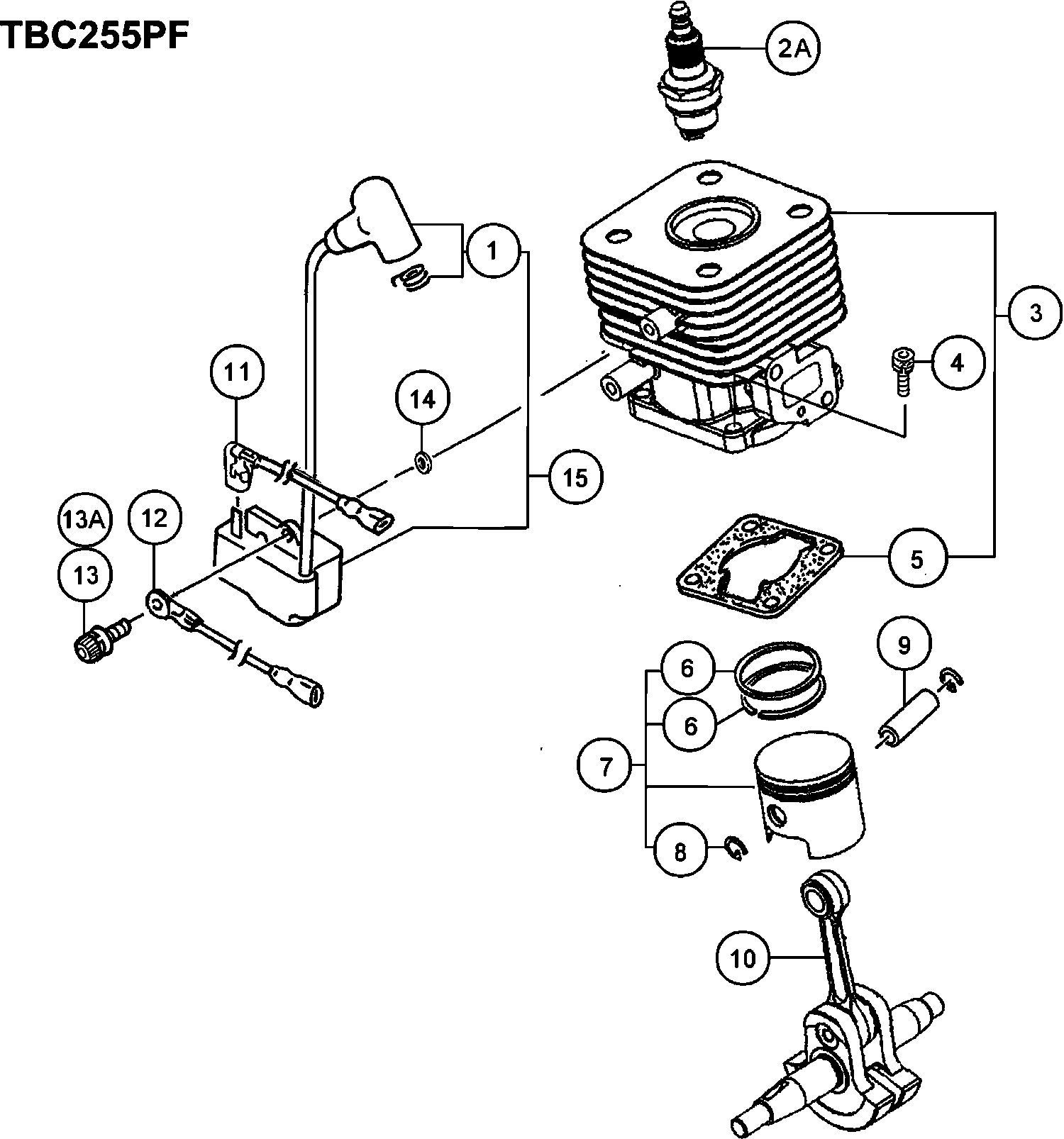

Technical drawing of model Hikoki TBC255PF
Spare parts list of model Hikoki TBC255PF
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Plug Cap | ||||
| 1 | 6684894 | 8.58 | 10.38 | |
| Spark Plug Ass'y Cj6 Except For Aus,nzl | ||||
| 2A | 6699322 | 2.48 | 2.99 | |
| Cylinder Ass'y Includ.65 | ||||
| 3 | 6684897 | 77.74 | 94.06 | |
| Hex.hole Bolt M5x18/s | ||||
| 4 | 6684586 | 2.15 | 2.60 | |
| Cylinder Gasket | ||||
| 5 | 6684896 | 2.15 | 2.60 | |
| Piston Ring | ||||
| 6 | 6684588 | 8.58 | 10.38 | |
| No information available, not orderable | ||||
| 7 | 6684898 | |||
| Cir Clip | ||||
| 8 | 6684590 | 2.15 | 2.60 | |
| Piston Pin | ||||
| 9 | 6684591 | 4.29 | 5.19 | |
| No information available, not orderable | ||||
| 10 | 6686219 | |||
| Stop Cord B 190m | ||||
| 11 | 6687836 | 2.31 | 2.80 | |
| No information available, not orderable | ||||
| 12 | 6688443 | |||
| Hex. Hole Bolt M4x18/ws Till H124040 | ||||
| 13 | 6684599 | 2.15 | 2.60 | |
| High Tension Screw 4x18ws Since H124041 | ||||
| 13A | 6695407 | 1.15 | 1.39 | |
| Washer T1.6 | ||||
| 14 | 6684600 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 15 | 6687684 | |||
| Gear Shaft Shim 0.20 | ||||
| 21 | 6684604 | 2.15 | 2.60 | |
| Gear Shaft Shim 0.30 | ||||
| 21 | 6684605 | 2.15 | 2.60 | |
| Crank Case Ass'y Since D038601 | ||||
| 22 | 6684905 | 54.45 | 65.88 | |
| Oil Seal | ||||
| 23 | 6684607 | 4.29 | 5.19 | |
| Ball Bearing 6001 C3 | ||||
| 24 | 6684608 | 3.80 | 4.60 | |
| Crank Case Gasket | ||||
| 25 | 6684904 | 2.15 | 2.60 | |
| Hex. Hole Bolt M5x16/s | ||||
| 26 | 6684903 | 2.15 | 2.60 | |
| Magneto Rotor Comp. | ||||
| 27 | 6687384 | 16.19 | 19.59 | |
| Bolt Washer M8 | ||||
| 28 | 6684611 | 2.15 | 2.60 | |
| Hex. Nut M8 | ||||
| 29 | 6684612 | 2.15 | 2.60 | |
| Inlet Manifold Gasket | ||||
| 41 | 6689895 | 1.15 | 1.39 | |
| Insulator Set | ||||
| 42 | 6689972 | 6.28 | 7.59 | |
| Hex. Hole Bolt 5x25/ws | ||||
| 43 | 6684617 | 2.15 | 2.60 | |
| No longer available, no replacement | ||||
| 44 | 6691337 | |||
| Carburetor Packing | ||||
| 45 | 6684616 | 2.15 | 2.60 | |
| Throttle Wire Fixing Plate | ||||
| 46 | 6684629 | 4.29 | 5.19 | |
| Cable Adjuster | ||||
| 47 | 6684871 | 4.29 | 5.19 | |
| Lock Nut M6 | ||||
| 48 | 6684872 | 2.15 | 2.60 | |
| Carburetor Gasket (old 402-0602K-21/6689836) | ||||
| 49 | 6684615 | 2.15 | 2.60 | |
| O-ring P-15 | ||||
| 50 | 6698966 | 1.04 | 1.26 | |
| Screw M5x60 | ||||
| 51 | 6684660 | 2.15 | 2.60 | |
| S.washer 5 | ||||
| 52 | 6684662 | 2.15 | 2.60 | |
| Ring | ||||
| 53 | 6684661 | 2.15 | 2.60 | |
| Carburetor Set Wyl222 | ||||
| 54 | 6690466 | 56.65 | 68.55 | |
| No information available, not orderable | ||||
| 55A | 6697951 | |||
| Stand | ||||
| 56 | 6694787 | 3.30 | 3.99 | |
| Collar C | ||||
| 57 | 6684623 | 2.15 | 2.60 | |
| Return Grommet Till 7.2014 | ||||
| 58A | 6697846 | 1.04 | 1.26 | |
| No longer available, no replacement | ||||
| 59 | 6684626 | |||
| No information available, not orderable | ||||
| 60 | 6684620 | |||
| Clip D6 | ||||
| 61 | 6685198 | 1.15 | 1.39 | |
| SHIELD TUBE SET | ||||
| 62A | 6698970 | 10.68 | 12.92 | |
| Hex. Hole Bolt 5x25/ws | ||||
| 63 | 6684617 | 2.15 | 2.60 | |
| Hex.hole Bolt 5x20/ps | ||||
| 64 | 6684634 | 2.15 | 2.60 | |
| Tank Cap D Ass'y Since K032881 | ||||
| 65 | 6691748 | 7.59 | 9.18 | |
| Cylinder Cover (blk) | ||||
| 81 | 6685693 | 4.79 | 5.79 | |
| Hex. Hole Bolt 5x16/ps | ||||
| 82 | 6695504 | 1.15 | 1.39 | |
| Hex.hole Bolt 6x65 (old 990-51060-653) | ||||
| 83 | 6695067 | 1.15 | 1.39 | |
| Ring | ||||
| 84 | 6684639 | 2.15 | 2.60 | |
| Muffler Comp. | ||||
| 85 | 6692576 | 70.33 | 85.09 | |
| No longer available, no replacement | ||||
| 86 | 6692888 | |||
| Tail Pipe Set | ||||
| 87 | 6692715 | 3.30 | 3.99 | |
| Screw M4x8/ws | ||||
| 88 | 6684651 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 89 | 6692701 | |||
| Heat Shield | ||||
| 90 | 6687265 | 4.45 | 5.38 | |
| No longer available, no replacement | ||||
| 91 | 6692818 | |||
| Hex. Hole Bolt 4x18ws Till H124040 | ||||
| 92 | 6695508 | 1.15 | 1.39 | |
| Screw 4x18/ps Since H124041 | ||||
| 92A | 6695375 | 1.15 | 1.39 | |
| Plug Cover | ||||
| 93 | 6688344 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 94 | 6684642 | |||
| Clutch Shoe Comp. | ||||
| 95 | 6684643 | 11.55 | 13.98 | |
| Clutch Spring | ||||
| 96 | 6684644 | 2.15 | 2.60 | |
| Clutch Plate A 0.5 | ||||
| 97 | 6684645 | 2.15 | 2.60 | |
| Step Bolt | ||||
| 98 | 6684646 | 2.15 | 2.60 | |
| Hex.hole Bolt 5x20/ps | ||||
| 99 | 6684634 | 2.15 | 2.60 | |
| Ring | ||||
| 100 | 6684648 | 2.15 | 2.60 | |
| Tapping Screw D4.5x16 | ||||
| 101 | 6684636 | 2.15 | 2.60 | |
| Cord Clamp Comp. | ||||
| 102 | 6688011 | 1.15 | 1.39 | |
| Recoil Starter Body Ass'y Includ.183-190 Till Eo9 | ||||
| 111 | 6684938 | 23.45 | 28.37 | |
| Recoil Starter Body Comp. Since En90001(till 10.2 | ||||
| 112 | 6684944 | 17.24 | 20.86 | |
| Starter Rope Reel Since En90001(till 10.2012 For | ||||
| 113 | 6684941 | 6.44 | 7.79 | |
| Recoil Spring Till Eo99999 | ||||
| 114 | 6684942 | 9.40 | 11.37 | |
| Swing Arm Till Eo99999 | ||||
| 115 | 6684940 | 2.15 | 2.60 | |
| Set Screw (old 839-03045-20) | ||||
| 116 | 6684679 | 2.15 | 2.60 | |
| Pulley Stay Till Eo99999 | ||||
| 117 | 6684939 | 2.15 | 2.60 | |
| Rope 3.0x800 Till Eo99999 | ||||
| 118 | 6684943 | 4.29 | 5.19 | |
| Starter Handle | ||||
| 119 | 6684680 | 2.15 | 2.60 | |
| Starter Pulley Till Eo99999 | ||||
| 121 | 6684937 | 6.44 | 7.79 | |
| Hex. Hole Bolt 4x18ws Till H124040 | ||||
| 122 | 6695508 | 1.15 | 1.39 | |
| Screw 4x18/ps Since H124041 | ||||
| 122A | 6695375 | 1.15 | 1.39 | |
| Air Cleaner Ass'y (old 410-00025-90) | ||||
| 131 | 6690005 | 9.58 | 11.59 | |
| Air Cleaner Cap | ||||
| 132 | 6690139 | 4.45 | 5.38 | |
| Cleaner Element | ||||
| 133 | 6690347 | 4.45 | 5.38 | |
| Collar | ||||
| 134 | 6690801 | 2.31 | 2.80 | |
| No information available, not orderable | ||||
| 135 | 6690085 | |||
| Pump Body Comp. | ||||
| 141 | 6684879 | 62.16 | 75.22 | |
| Priming Pump Comp. | ||||
| 142 | 6684687 | 16.34 | 19.77 | |
| Diaphragm Cover | ||||
| 143 | 6684688 | 8.58 | 10.38 | |
| Priming Body | ||||
| 144 | 6684689 | 6.44 | 7.79 | |
| Metering Diaphragm Comp. | ||||
| 145 | 6690830 | 11.88 | 14.37 | |
| Diaphragm Gasket | ||||
| 146 | 6684691 | 8.58 | 10.38 | |
| Pump Diaphragm | ||||
| 147 | 6684693 | 8.58 | 10.38 | |
| Pump Gasket (old 577-25100-20) | ||||
| 148 | 6691457 | 7.10 | 8.59 | |
| No information available, not orderable | ||||
| 149 | 6691887 | |||
| O-RING (old 550-25100-20) | ||||
| 150 | 6684695 | 4.29 | 5.19 | |
| Stop Ring | ||||
| 151 | 6684696 | 2.15 | 2.60 | |
| Swivel | ||||
| 152 | 6684697 | 6.44 | 7.79 | |
| Throttle Set Screw | ||||
| 153 | 6684698 | 4.29 | 5.19 | |
| Set Screw | ||||
| 154 | 6684699 | 2.15 | 2.60 | |
| Inlet Screen | ||||
| 155 | 6684700 | 4.29 | 5.19 | |
| Clutch Drum Comp. | ||||
| 161 | 6688580 | 10.89 | 13.17 | |
| Stop Ring C-12 Outer | ||||
| 162 | 6684664 | 2.15 | 2.60 | |
| Cushion Rubber | ||||
| 163 | 6691823 | 3.30 | 3.99 | |
| Hex. Hole Bolt 5x16 | ||||
| 164 | 6695046 | 1.15 | 1.39 | |
| Hex. Hole Bolt M5x25/s | ||||
| 165 | 6684709 | 2.15 | 2.60 | |
| Fan Housing | ||||
| 166 | 6686959 | 15.13 | 18.30 | |
| Pipe Holder, TPE | ||||
| 167 | 6689651 | 5.94 | 7.18 | |
| Washer M5 (black) | ||||
| 168 | 6684918 | 2.15 | 2.60 | |
| Ring | ||||
| 169 | 6689159 | 1.15 | 1.39 | |
| Metal Fitting | ||||
| 170 | 6689664 | 3.30 | 3.99 | |
| Drive Shaft 1480l | ||||
| 191 | 6696009 | 13.53 | 16.37 | |
| Drive Shaft Pipe Comp.1450l | ||||
| 192 | 6689410 | 24.20 | 29.28 | |
| No information available, not orderable | ||||
| 193 | 6684831 | |||
| No information available, not orderable | ||||
| 194 | 6685075 | |||
| Front Handle 24 | ||||
| 195 | 6691057 | 8.41 | 10.18 | |
| Hex.hole Bolt 5x30s | ||||
| 196 | 6695426 | 1.15 | 1.39 | |
| Throttle Wire 335+70 (old 885-38230-80) New | ||||
| 197 | 6693977 | 6.60 | 7.99 | |
| Throttle Lever Ass'y 24 | ||||
| 198 | 6693770 | 18.60 | 22.51 | |
| Throttle Lever | ||||
| 199 | 6685006 | 1.15 | 1.39 | |
| Return Spring | ||||
| 200 | 6684998 | 1.15 | 1.39 | |
| Stop Switch | ||||
| 201 | 6685009 | 2.31 | 2.80 | |
| Switch Mark | ||||
| 202 | 6685003 | 1.15 | 1.39 | |
| Stop Switch Comp. | ||||
| 203 | 6687462 | 9.40 | 11.37 | |
| Machine Screw M5x30 | ||||
| 204 | 6685076 | 1.15 | 1.39 | |
| Nut M5 | ||||
| 205 | 6684965 | 1.04 | 1.26 | |
| Protection Tube D7x170 | ||||
| 206 | 6685007 | 2.31 | 2.80 | |
| Shaft Grip (old 509-38453-21) New | ||||
| 207 | 6691183 | 4.45 | 5.38 | |
| Gear Cover | ||||
| 221 | 6688819 | 68.36 | 82.72 | |
| Hex. Hole Bolt M5x25/s | ||||
| 222 | 6684709 | 2.15 | 2.60 | |
| Stop Ring C-24,inner | ||||
| 223 | 6684732 | 2.15 | 2.60 | |
| Stop Ring C-9, Outer | ||||
| 224 | 6695281 | 1.15 | 1.39 | |
| Ball Bearing 609z St | ||||
| 225 | 6684735 | 8.58 | 10.38 | |
| Gear Case 24 | ||||
| 226 | 6688815 | 12.38 | 14.97 | |
| Hex.hole Bolt M5x12/s | ||||
| 227 | 6684667 | 2.15 | 2.60 | |
| Oiling Bolt | ||||
| 228 | 6689109 | 1.15 | 1.39 | |
| Ball Bearing 626 | ||||
| 229 | 6695567 | 4.45 | 5.38 | |
| Gear Shaft | ||||
| 230 | 6688949 | 14.19 | 17.17 | |
| Ball Bearing 6000d | ||||
| 231 | 6695527 | 6.60 | 7.99 | |
| STOP RING C-26, INNER (OLD 993-51026-002) | ||||
| 232 | 6695294 | 1.15 | 1.39 | |
| Cutter Holder | ||||
| 233 | 6689033 | 6.44 | 7.79 | |
| Gear Case Cover (old 303-38360-20) | ||||
| 234 | 6688917 | 2.31 | 2.80 | |
| Gear/pinion Set | ||||
| 235 | 6688883 | 13.91 | 16.83 | |
| Hex. Socket Hd. Bolt (w/button) M6x20 (old 990-530 | ||||
| 236 | 6685064 | 1.15 | 1.39 | |
| Ring | ||||
| 237 | 6684826 | 2.15 | 2.60 | |
| SAFETY GUARD BRACKET (OLD 442-37417-20) | ||||
| 238 | 6685065 | 2.31 | 2.80 | |
| Safety Cover Comp. (old 441-37820-80) | ||||
| 239 | 6685066 | 14.53 | 17.58 | |
| Knife | ||||
| 240 | 6685067 | 5.28 | 6.38 | |
| Ring | ||||
| 241 | 6685068 | 1.15 | 1.39 | |
| Nut M4 | ||||
| 242 | 6685069 | 1.15 | 1.39 | |
| Ring | ||||
| 243 | 6685070 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 501 | 6684813 | |||
| Combi Box Spanner 13x19 | ||||
| 502 | 6693588 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 503 | 6693221 | |||
| Mounting Nut L-m8x1.25 (old 356-3383e-20) | ||||
| 504 | 6689624 | 7.75 | 9.38 | |
| Cutting Body Till Tl060520 | ||||
| 505 | 6684757 | 22.69 | 27.45 | |
| Special Nut Till Tl060520 | ||||
| 506 | 6684758 | 9.40 | 11.37 | |
| Reel Spring Till Tl060520 | ||||
| 507 | 6684759 | 4.29 | 5.19 | |
| Spool Till Tl060520 | ||||
| 508 | 6684760 | 15.58 | 18.85 | |
| Cutting Body Cap Till Tl060520 | ||||
| 509 | 6684761 | 36.15 | 43.74 | |
| Eyelet Till Tl060520 | ||||
| 510 | 6684762 | 4.29 | 5.19 | |
| Name Plate | ||||
| 601 | 6694245 | 2.10 | 2.54 | |
| Symbol Mark Tbc255pf | ||||
| 602 | 6694691 | 1.15 | 1.39 | |
| Symbol Mark | ||||
| 603 | 6694741 | 3.30 | 3.99 | |
