Here you will find all available parts and drawings of the 'Hikoki TBC-4200DX'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

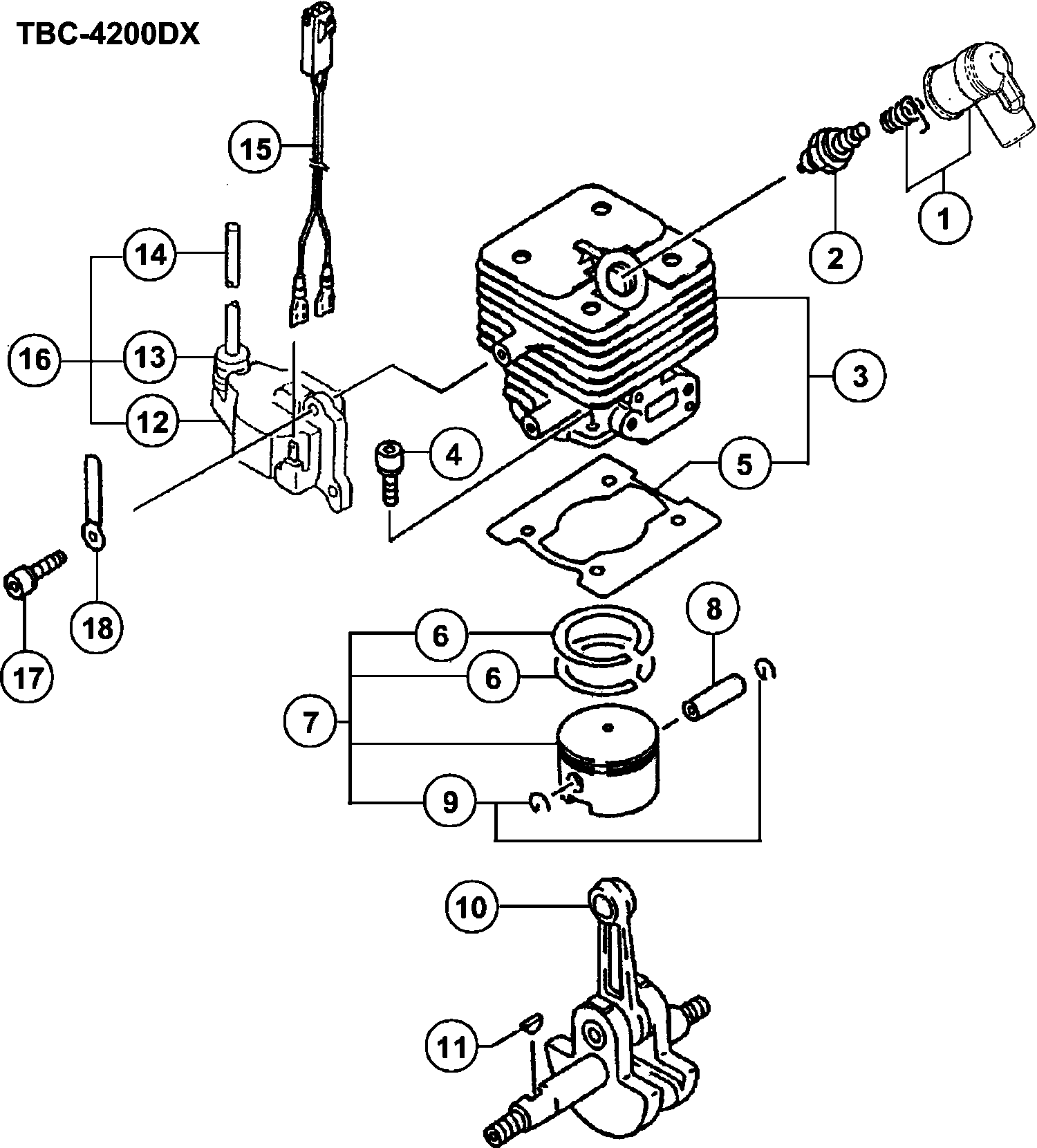

Technical drawing of model Hikoki TBC-4200DX
Spare parts list of model Hikoki TBC-4200DX
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Spark Plug Cap Ass'y Till G165840 | ||||
| 1 | 6687468 | 2.31 | 2.80 | |
| Spark Plug Ass'y Bpmr6a | ||||
| 2 | 6699319 | 8.91 | 10.78 | |
| Spark Plug Ass'y Bpm6a | ||||
| 2 | 6699317 | 6.76 | 8.18 | |
| No information available, not orderable | ||||
| 3 | 6685474 | |||
| No information available, not orderable | ||||
| 4 | 6684668 | |||
| Cylinder Gasket | ||||
| 5 | 6685740 | 2.31 | 2.80 | |
| Piston Ring | ||||
| 6 | 6686123 | 4.45 | 5.38 | |
| Piston Set | ||||
| 7 | 6685888 | 26.16 | 31.66 | |
| Piston Pin 10x30 | ||||
| 8 | 6686007 | 2.31 | 2.80 | |
| Piston Pin Circlip | ||||
| 9 | 6686032 | 1.15 | 1.39 | |
| Crank Shaft Comp. (old 046-04300-80/790113) | ||||
| 10 | 6686191 | 84.40 | 102.12 | |
| Wood-ruff Key 3x13x5 | ||||
| 11 | 6686457 | 1.15 | 1.39 | |
| Ignition Coil Comp. | ||||
| 12 | 6687655 | 36.15 | 43.74 | |
| Rubber Cap | ||||
| 13 | 6684602 | 2.15 | 2.60 | |
| High Tension Cord | ||||
| 14 | 6687885 | 1.15 | 1.39 | |
| Lead Wire Ass'y | ||||
| 15 | 6687970 | 4.45 | 5.38 | |
| Ignition Coil Ass'y | ||||
| 16 | 6687657 | 30.25 | 36.60 | |
| Hex. Hole Bolt M4x18/ws Till H124040 | ||||
| 17 | 6684599 | 2.15 | 2.60 | |
| Cord Clamp Comp. | ||||
| 18 | 6688011 | 1.15 | 1.39 | |
| Small Nut 10 | ||||
| 31 | 6695139 | 1.05 | 1.27 | |
| Crank Case Ass'y | ||||
| 32 | 6686556 | 58.39 | 70.65 | |
| No longer available, no replacement | ||||
| 33 | 6686714 | |||
| Oil Seal | ||||
| 34 | 6695637 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 35 | 6695557 | |||
| Crank Shaft Shim 0.20 | ||||
| 36 | 6686472 | 1.15 | 1.39 | |
| Crank Shaft Shim 0.30 | ||||
| 36 | 6686473 | 1.15 | 1.39 | |
| Hex. Socket Hd. Bolt M5x30 S | ||||
| 37 | 6684786 | 2.15 | 2.60 | |
| Magneto Rotor Comp. | ||||
| 38 | 6687372 | 19.96 | 24.15 | |
| Ring | ||||
| 39 | 6695198 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 40 | 6695138 | |||
| Spark Plug Cover | ||||
| 41 | 6688346 | 3.30 | 3.99 | |
| Hex.hole Bolt 5x20/ps | ||||
| 42 | 6684634 | 2.15 | 2.60 | |
| Fan Housing | ||||
| 43 | 6686982 | 22.24 | 26.91 | |
| No information available, not orderable | ||||
| 44 | 6684668 | |||
| Primary Cord Grommet | ||||
| 45 | 6688057 | 1.15 | 1.39 | |
| Ring | ||||
| 46 | 6685226 | 1.15 | 1.39 | |
| Inlet Manifold Gasket | ||||
| 61 | 6689885 | 2.31 | 2.80 | |
| CARB.INSULATOR SET, SPARE (OLD 404-04300-90) | ||||
| 62 | 6689955 | 8.91 | 10.78 | |
| Carburetor Gasket | ||||
| 63 | 6689833 | 1.15 | 1.39 | |
| Collar | ||||
| 65 | 6690802 | 2.31 | 2.80 | |
| Cleaner Body Comp. | ||||
| 66 | 6690099 | 5.28 | 6.38 | |
| Choke Valve | ||||
| 67 | 6691258 | 1.15 | 1.39 | |
| Blow Over Check Board | ||||
| 68 | 6690843 | 1.15 | 1.39 | |
| Cleaner Element | ||||
| 69A | 6690352 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 70 | 6684658 | |||
| Cleaner Cover | ||||
| 71 | 6690397 | 3.30 | 3.99 | |
| Special Screw | ||||
| 72 | 6689737 | 1.15 | 1.39 | |
| Screw 5x57/s | ||||
| 73 | 6695353 | 1.15 | 1.39 | |
| Carburetor Set Wyj168 | ||||
| 74 | 6690470 | 84.40 | 102.12 | |
| Carburetor Set Wyj389 For Europe,aus | ||||
| 74 | 6690474 | 72.30 | 87.48 | |
| Hex. Hole Bolt M5x25ws | ||||
| 75 | 6695515 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 76 | 6688166 | |||
| Clip D6 | ||||
| 77A | 6685198 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 78A | 6684620 | |||
| Tank | ||||
| 79 | 6691533 | 11.55 | 13.98 | |
| Collar C | ||||
| 80 | 6684623 | 2.15 | 2.60 | |
| Tank Cap D Ass'y, Black (old 595-06516-90 & 669171 | ||||
| 81 | 6691763 | 7.59 | 9.18 | |
| Hex.hole Bolt 5x20/ps | ||||
| 82 | 6684634 | 2.15 | 2.60 | |
| No longer available, no replacement | ||||
| 83 | 6684880 | |||
| No longer available, no replacement | ||||
| 84 | 6688156 | |||
| No information available, not orderable | ||||
| 85 | 6684625 | |||
| Engine Bed (old 940-04300-20) | ||||
| 86 | 6694785 | 4.95 | 5.99 | |
| Washer M5 (black) | ||||
| 87 | 6684918 | 2.15 | 2.60 | |
| Hex. Hole Bolt 5x22/s | ||||
| 88 | 6695492 | 1.15 | 1.39 | |
| Pump Filter Ass'y Till Tl044140 | ||||
| 90 | 6601175 | 3.14 | 3.80 | |
| Muffler Protector | ||||
| 101 | 6692780 | 11.55 | 13.98 | |
| Washer M5 (black) | ||||
| 102 | 6684918 | 2.15 | 2.60 | |
| Hex.hole Bolt M5x12/s | ||||
| 103 | 6684667 | 2.15 | 2.60 | |
| Hex. Hole Bolt 5x15 Ws | ||||
| 104 | 6695512 | 1.15 | 1.39 | |
| Hex.hole Bolt 6x65 (old 990-51060-653) | ||||
| 105 | 6695067 | 1.15 | 1.39 | |
| Ring | ||||
| 106 | 6684639 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 107 | 6698164 | |||
| Muffler Gasket | ||||
| 108 | 6692741 | 1.15 | 1.39 | |
| Heat Shield | ||||
| 109 | 6687243 | 3.30 | 3.99 | |
| Ring | ||||
| 113 | 6689645 | 1.15 | 1.39 | |
| Clutch Arm Comp. | ||||
| 114 | 6688614 | 7.93 | 9.59 | |
| Clutch Spring | ||||
| 115 | 6689428 | 1.15 | 1.39 | |
| Washer | ||||
| 116 | 6695203 | 1.15 | 1.39 | |
| Clutch Step Bolt | ||||
| 117 | 6689632 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 118 | 6699556 | |||
| Muffler Special Gasket (old 751-04200-20) | ||||
| 119 | 6692883 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 120 | 6692649 | |||
| Ring | ||||
| 121 | 6685109 | 1.15 | 1.39 | |
| Recoil Starter Body Ass'y | ||||
| 131A | 6697645 | 21.78 | 26.35 | |
| No information available, not orderable | ||||
| 132 | 6693025 | |||
| Recoil Starter Body Comp | ||||
| 132A | 6697646 | 11.71 | 14.17 | |
| Starter Rope Reel | ||||
| 133 | 6693007 | 4.95 | 5.99 | |
| Starter Rope Reel | ||||
| 133A | 6697647 | 4.13 | 4.99 | |
| Recoil Spring | ||||
| 134 | 6693114 | 9.08 | 10.98 | |
| STARTER SPRING | ||||
| 134A | 6697648 | 7.08 | 8.57 | |
| Starter Rope (old 783-04270-20/6693164) | ||||
| 135 | 6693165 | 3.30 | 3.99 | |
| STARTER ROPE | ||||
| 135A | 6697649 | 2.64 | 3.19 | |
| No information available, not orderable | ||||
| 136 | 6693607 | |||
| Starter Handle | ||||
| 137 | 6693232 | 3.30 | 3.99 | |
| Starter Handle | ||||
| 137A | 6697650 | 2.80 | 3.39 | |
| Set Screw | ||||
| 138 | 6693634 | 1.15 | 1.39 | |
| Starter Pawl | ||||
| 139 | 6693302 | 2.31 | 2.80 | |
| No information available, not orderable | ||||
| 139A | 6697643 | |||
| D4e Retaining Ring (old 993-55040-001) | ||||
| 140 | 6685101 | 1.15 | 1.39 | |
| Hex.hole Bolt 5x20/ps | ||||
| 141 | 6684634 | 2.15 | 2.60 | |
| Starter Pawl Spring | ||||
| 142 | 6693345 | 2.31 | 2.80 | |
| No information available, not orderable | ||||
| 142A | 6697642 | |||
| Starter Pulley | ||||
| 143 | 6693395 | 11.05 | 13.37 | |
| Starter Pulley Ass'y | ||||
| 143A | 6697644 | 11.05 | 13.37 | |
| Pump Body Comp. | ||||
| 161 | 6684879 | 62.16 | 75.22 | |
| Priming Pump Comp. | ||||
| 162 | 6684687 | 16.34 | 19.77 | |
| Diaphragm Cover | ||||
| 163 | 6684688 | 8.58 | 10.38 | |
| Priming Body | ||||
| 164 | 6684689 | 6.44 | 7.79 | |
| No longer available, no replacement | ||||
| 165 | 6690827 | |||
| Diaphragm Gasket | ||||
| 166 | 6684691 | 8.58 | 10.38 | |
| Pump Diaphragm | ||||
| 167 | 6684693 | 8.58 | 10.38 | |
| Pump Gasket (old 577-25100-20) | ||||
| 168 | 6691457 | 7.10 | 8.59 | |
| Main Jet #51 | ||||
| 169 | 6696382 | 9.58 | 11.59 | |
| O-RING (old 550-25100-20) | ||||
| 170 | 6684695 | 4.29 | 5.19 | |
| Stop Ring | ||||
| 171 | 6684696 | 2.15 | 2.60 | |
| Swivel | ||||
| 172 | 6684697 | 6.44 | 7.79 | |
| Throttle Set Screw | ||||
| 174 | 6684870 | 2.15 | 2.60 | |
| Cable Adjuster Stay | ||||
| 175 | 6684873 | 6.44 | 7.79 | |
| Lock Nut M6 | ||||
| 176 | 6684872 | 2.15 | 2.60 | |
| Cable Adjuster | ||||
| 177 | 6684871 | 4.29 | 5.19 | |
| Cleaner Packing | ||||
| 178 | 6684875 | 4.29 | 5.19 | |
| Set Screw | ||||
| 179 | 6684699 | 2.15 | 2.60 | |
| Thrust Washer | ||||
| 180 | 6684874 | 2.15 | 2.60 | |
| Inlet Screen | ||||
| 181 | 6684700 | 4.29 | 5.19 | |
| Clutch Shaft Comp. | ||||
| 201 | 6688607 | 15.28 | 18.48 | |
| Stop Ring inside C-32 old part no. 993-51032-00 | ||||
| 202 | 6695295 | 1.15 | 1.39 | |
| Ball Bearing #6002zz | ||||
| 203 | 6695537 | 7.10 | 8.59 | |
| Ring | ||||
| 204 | 6689185 | 1.15 | 1.39 | |
| Stop Ring C-15, Outer | ||||
| 205 | 6695285 | 1.15 | 1.39 | |
| Stop Ring C-45,outer (old 993-53045-002) | ||||
| 206 | 6695305 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 207 | 6689229 | |||
| Cushion Rubber | ||||
| 208 | 6691905 | 5.28 | 6.38 | |
| Pipe Holder | ||||
| 209 | 6689663 | 9.08 | 10.98 | |
| Hex. Hole Bolt 5x10 | ||||
| 210 | 6695042 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 213 | 6695499 | |||
| Drive Shaft 1542l | ||||
| 231 | 6689474 | 22.24 | 26.91 | |
| Drive Shaft Pipe Comp.1500l | ||||
| 232 | 6689404 | 40.24 | 48.69 | |
| Bush Ass'y | ||||
| 233 | 6689524 | 2.31 | 2.80 | |
| Hanger | ||||
| 234 | 6689278 | 12.88 | 15.58 | |
| Lifting Metal Ass'y | ||||
| 235 | 6689279 | 5.11 | 6.19 | |
| Hanger Fixing Bracket (old 337-37857-80) | ||||
| 236 | 6689293 | 2.31 | 2.80 | |
| Hex. Hole Bolt M5x25ws | ||||
| 237 | 6695515 | 1.15 | 1.39 | |
| Handle Grip | ||||
| 238 | 6684708 | 6.44 | 7.79 | |
| Handle Knob Comp. Till K023120 For Crc | ||||
| 239 | 6691208 | 2.31 | 2.80 | |
| No information available, not orderable | ||||
| 240 | 6692955 | |||
| Handle Bracket A (old 506-37867-20) | ||||
| 241 | 6691144 | 11.55 | 13.98 | |
| Handle Bracket B Till K023120 For Crc | ||||
| 242 | 6691150 | 4.95 | 5.99 | |
| Cushion Rubber Till K023120 For Crc | ||||
| 243 | 6691190 | 2.31 | 2.80 | |
| Handle Bracket C Till K023120 For Crc | ||||
| 244 | 6691175 | 3.30 | 3.99 | |
| Handle Bracket B (old 507-37867-20) For Europe | ||||
| 245 | 6691160 | 4.45 | 5.38 | |
| Hex. Hole Bolt M5x25ws | ||||
| 246 | 6695515 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 247 | 6689291 | |||
| No longer available, no replacement | ||||
| 248 | 6688024 | |||
| LEFT HANDLE ASSEMBLY (OLD 502-37867-90/6696093) | ||||
| 249 | 6691089 | 14.68 | 17.76 | |
| Right Handle For Europe,aus,south America | ||||
| 250 | 6691080 | 13.53 | 16.37 | |
| No information available, not orderable | ||||
| 251 | 6693766 | |||
| No longer available, no replacement | ||||
| 252 | 6684721 | |||
| Return Spring | ||||
| 253 | 6684722 | 2.15 | 2.60 | |
| Throttle Lever | ||||
| 254 | 6684723 | 10.23 | 12.37 | |
| Blind Plug | ||||
| 255 | 6684724 | 2.15 | 2.60 | |
| Screw M4x20 (black) | ||||
| 256 | 6684725 | 2.15 | 2.60 | |
| Screw 5x30 (black) | ||||
| 257 | 6684726 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 258 | 6684727 | |||
| Stop Switch Till C294400 | ||||
| 259 | 6687460 | 13.86 | 16.77 | |
| Stop Switch Since C294401 | ||||
| 259A | 6687461 | 13.86 | 16.77 | |
| Throttle Wire | ||||
| 260 | 6694023 | 12.54 | 15.17 | |
| Throttle Wire Comp. | ||||
| 261 | 6693979 | 28.14 | 34.05 | |
| No information available, not orderable | ||||
| 261A | 6693980 | |||
| Handle Knob Comp. Till K023120 For Crc | ||||
| 262 | 6691208 | 2.31 | 2.80 | |
| Hex. Hole Bolt M5x25/s | ||||
| 262A | 6684709 | 2.15 | 2.60 | |
| Handle Bracket A (old 506-37867-20) | ||||
| 263 | 6691144 | 11.55 | 13.98 | |
| Handle Bracket A Since K023121 For Crc | ||||
| 263A | 6691145 | 3.30 | 3.99 | |
| Handle Bracket B Till K023120 For Crc | ||||
| 264 | 6691150 | 4.95 | 5.99 | |
| Handle Bracket B (old 507-38447-20) New | ||||
| 264A | 6691163 | 5.28 | 6.38 | |
| Cushion Rubber Till K023120 For Crc | ||||
| 265 | 6691190 | 2.31 | 2.80 | |
| No information available, not orderable | ||||
| 265A | 6691189 | |||
| Handle Bracket C Till K023120 For Crc | ||||
| 266 | 6691175 | 3.30 | 3.99 | |
| Handle Bracket C Since K023121 For Crc | ||||
| 266A | 6691177 | 2.31 | 2.80 | |
| Hex. Hole Bolt M5x25ws | ||||
| 267 | 6695515 | 1.15 | 1.39 | |
| Hex.hole Bolt M5x30/ws | ||||
| 267A | 6684973 | 2.15 | 2.60 | |
| Protection Tube (old 164-07086-50) | ||||
| 268 | 6687546 | 2.31 | 2.80 | |
| Gear Cover | ||||
| 301A | 6601268 | 199.20 | 241.03 | |
| Hex.hole Bolt 6x25s | ||||
| 302 | 6695497 | 1.15 | 1.39 | |
| Stop Ring C-28,inner | ||||
| 303 | 6684741 | 2.15 | 2.60 | |
| Stop Ring C-12 Outer | ||||
| 304 | 6684664 | 2.15 | 2.60 | |
| Ball Bearing #6001z | ||||
| 305 | 6695532 | 6.60 | 7.99 | |
| Ball Bearing 6001 C3 | ||||
| 306 | 6684608 | 3.80 | 4.60 | |
| Gear Case | ||||
| 307 | 6688798 | 26.16 | 31.66 | |
| Hex Hole Bolt 5x12 | ||||
| 308 | 6695510 | 1.15 | 1.39 | |
| Bolt 6x8 (old 990-21060-080) | ||||
| 309 | 6694979 | 1.15 | 1.39 | |
| Ball Bearing 6001 C3 | ||||
| 310 | 6684608 | 3.80 | 4.60 | |
| Gear Shaft L-m10x1.25 Till 9.2015 | ||||
| 311 | 6688943 | 12.38 | 14.97 | |
| No information available, not orderable | ||||
| 311A | 6601269 | |||
| Ball Bearing #6202dd | ||||
| 312 | 6696297 | 6.28 | 7.59 | |
| Stop Ring C-35, Inner | ||||
| 313 | 6695296 | 1.15 | 1.39 | |
| Cutter Holder | ||||
| 314 | 6689029 | 10.56 | 12.78 | |
| Cutter Holder Cap | ||||
| 315 | 6689051 | 3.30 | 3.99 | |
| Protection Cover B (old 308-38150-20 & 6688993) | ||||
| 316 | 6688995 | 3.30 | 3.99 | |
| Nut Cover Since 10.2015 | ||||
| 316A | 6601271 | 16.64 | 20.13 | |
| Screw 5x16/ws | ||||
| 317 | 6695418 | 1.15 | 1.39 | |
| Fixing Nut M10x1.25 Till 9.2015 | ||||
| 318 | 6689073 | 4.63 | 5.60 | |
| U-nut L-m12x1.75 Since 10.2015 | ||||
| 318A | 6601270 | 15.28 | 18.48 | |
| Gear Case Cover Comp | ||||
| 319 | 6697604 | 6.44 | 7.79 | |
| Hex Hole Screw 6x30 For Europe,aus,crc | ||||
| 320 | 6695082 | 1.15 | 1.39 | |
| Cover Bracket For Europe,aus,crc | ||||
| 321 | 6690313 | 2.31 | 2.80 | |
| Guard For Europe,aus,crc | ||||
| 322 | 6690265 | 13.86 | 16.77 | |
| No information available, not orderable | ||||
| 323 | 6690342 | |||
| No information available, not orderable | ||||
| 324 | 6690374 | |||
| Blade (old 797-37380-21/6693385) | ||||
| 325 | 6693386 | 4.45 | 5.38 | |
| Tapping Screw 5x20 For Aus (sl) | ||||
| 326 | 6684753 | 2.15 | 2.60 | |
| Hex. Hole Bolt 5x10 | ||||
| 327 | 6695042 | 1.15 | 1.39 | |
| Gear Pinion Set,spare | ||||
| 328 | 6688879 | 16.94 | 20.49 | |
| Hex Hole Screw 6x30 For Europe,aus,crc | ||||
| 329 | 6695082 | 1.15 | 1.39 | |
| Ring | ||||
| 330 | 6684826 | 2.15 | 2.60 | |
| Cover Bracket For South America | ||||
| 331 | 6690311 | 3.30 | 3.99 | |
| Cover Bracket For Europe,aus,crc | ||||
| 331A | 6690313 | 2.31 | 2.80 | |
| No information available, not orderable | ||||
| 332 | 6690266 | |||
| Guard For Europe,aus,crc | ||||
| 332A | 6690265 | 13.86 | 16.77 | |
| Guard Holder For South America | ||||
| 333 | 6690345 | 2.31 | 2.80 | |
| No information available, not orderable | ||||
| 333A | 6690342 | |||
| No information available, not orderable | ||||
| 501 | 6684813 | |||
| No information available, not orderable | ||||
| 502 | 6693575 | |||
| No information available, not orderable | ||||
| 504 | 6684766 | |||
| No information available, not orderable | ||||
| 505A | 875769 | |||
| No information available, not orderable | ||||
| 506 | 6695790 | |||
| No information available, not orderable | ||||
| 507 | 6695796 | |||
| No information available, not orderable | ||||
| 508 | 6695792 | |||
| Cutter Cover Since Y254261 For Europe,aus,nzl | ||||
| 509 | 6692016 | 8.41 | 10.18 | |
| Name Plate Tbc-4200dx | ||||
| 601 | 6696384 | 2.10 | 2.54 | |
| Symbol Mark Tbc-4200dx | ||||
| 602 | 6696385 | 1.05 | 1.27 | |
