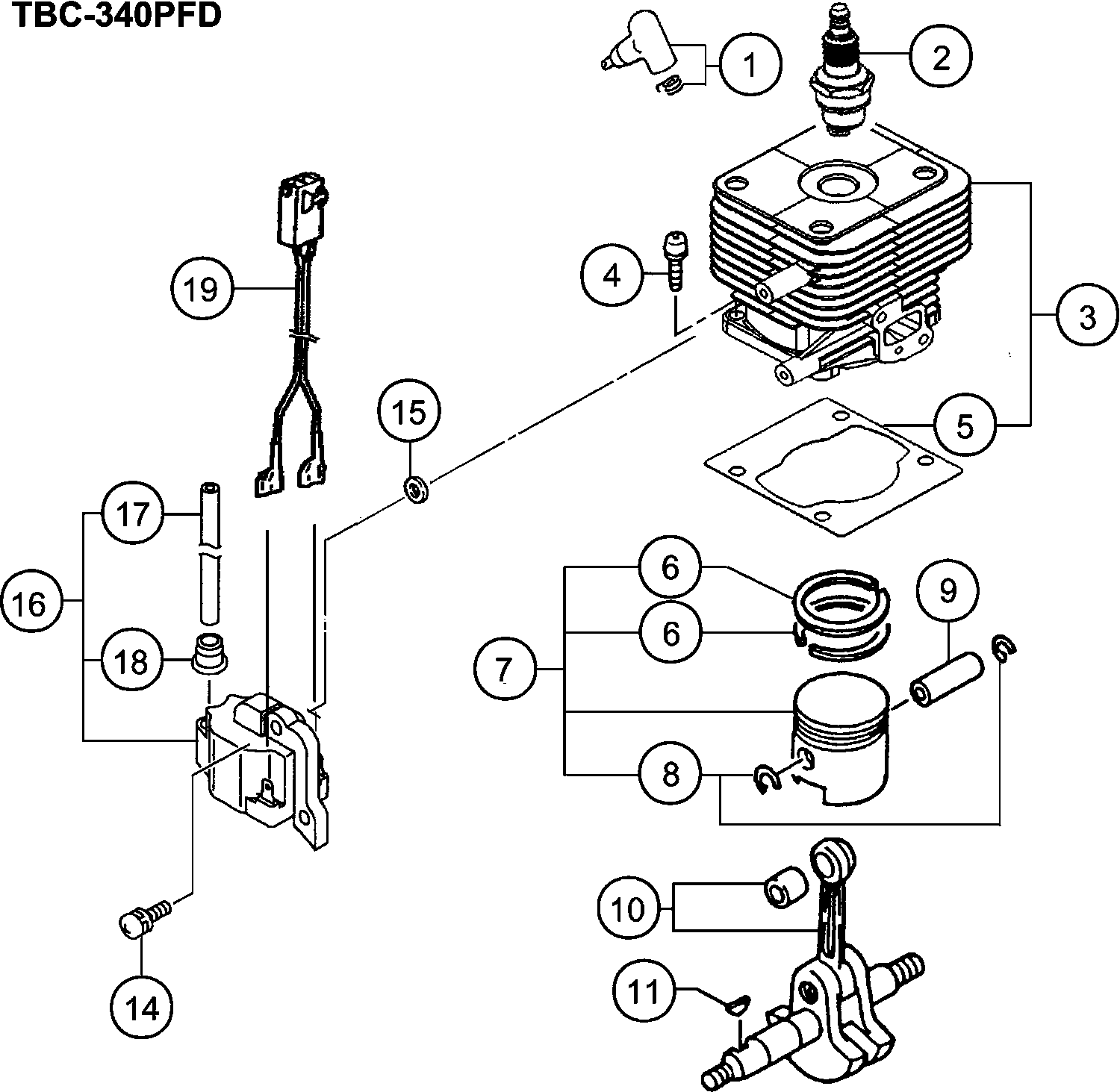

Technical drawing of model Hikoki TBC-340PFD

Spare parts list of model Hikoki TBC-340PFD

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Spark Plug Cap Ass'y Till G165840
1 6687468 2.31 2.80
Spark Plug Ass'y Cj6y
2 6699323 2.48 2.99
Cylinder Set (old 001-07250-90)
3 6685491 60.35 73.02
Hex. Hole Bolt M5x16/s
4 6684903 2.15 2.60
Cylinder Gasket
5 6685749 1.15 1.39
Piston Ring (xr1-1856)
6 6685331 4.05 4.90
Piston Set
7 6685898 24.20 29.28
Circlip
8 6685078 1.15 1.39
Piston Pin
9 6686008 2.31 2.80
Crank Shaft Comp
10 6696499 67.00 81.07
Woodruff Key 3x13x4.5 Till B023800
11 6684899 2.15 2.60
Hex. Hole Bolt M4x18/ws Till H124040
14 6684599 2.15 2.60
Washer T1.6
15 6684600 2.15 2.60
Ignition Coil Ass'y For (p),(lp),(sp),(slp)
16 6699773 18.00 21.78
No information available, not orderable
17 6687889
Rubber Cap
18 6684602 2.15 2.60
Lead Wire Ass'y
19 6697836 5.45 6.59
Gear Shaft Shim 0.20
31 6684604 2.15 2.60
Gear Shaft Shim 0.30
31 6684605 2.15 2.60
Gear shaft shim 0.10 (old 330-00200-21)
31 6689177 1.15 1.39
Gear shaft shim 0.15 (old 330-00200-22)
31 6689178 1.15 1.39
Magneto Rotor Comp.
32 6687375 20.11 24.34
Hex. Nut M8
33 6684612 2.15 2.60
Ring
34 6695184 1.15 1.39
No information available, not orderable
35 6686586
Crank Case Ass'y Since J014621
35A 6699279 29.80 36.06
Oil Seal
36 6684607 4.29 5.19
Ball Bearing 6001 C3
37 6684608 3.80 4.60
No information available, not orderable
38 6686723
Crank Case Gasket Since J014621
38A 6699280 1.04 1.26
Hex. Hole Bolt M5x16/s
39 6684903 2.15 2.60
Hex. Hole Bolt M5x16/s
39A 6684903 2.15 2.60
Bolt Washer M8
40 6684611 2.15 2.60
Inlet Manifold Gasket
61 6689895 1.15 1.39
Insulator Set
62 6689972 6.28 7.59
Hex. Hole Bolt M5x25ws
63 6695515 1.15 1.39
Carburetor Packing
65 6684616 2.15 2.60
Choke Plate 2.0
66 6691276 1.15 1.39
Cleaner Body Comp.
67 6690120 4.45 5.38
Cleaner Sponge
68 6690365 1.15 1.39
Cleaner Cover
69 6690402 10.23 12.37
Cover Fixing Bolt Comp.
70 6698730 3.15 3.81
Screw 5x57/s
71 6695353 1.15 1.39
Small Washer 5
72 6684864 2.15 2.60
Carburetor Set Wyj318
73 6690465 58.39 70.65
Choke Control Lever
74 6691239 1.15 1.39
Tank F T
75 6699336 24.20 29.28
Collar C
76 6684623 2.15 2.60
Return Grommet Till 7.2014
77 6697846 1.04 1.26
Fuel Pipe 3x5x85
78 6684880 2.15 2.60
No information available, not orderable
79 6684620
Clip D6
80 6685198 1.15 1.39
Shield Tube 3x5x180
81 6684618 4.29 5.19
Hex Hole Bolt 5x30s Since G033501
82 6695494 1.15 1.39
Hex.hole Bolt 5x20/ps
83 6684634 2.15 2.60
No information available, not orderable
84 6685049
Tap Screw 4x14 P
85 6695280 1.15 1.39
Ring
86 6685070 1.15 1.39
Washer M5 (black)
87 6684918 2.15 2.60
Tank Fixing Collar
88 6692183 1.15 1.39
S.washer 5
89 6684662 2.15 2.60
No information available, not orderable
90 6684625
Tank Cap D Ass'y Since K032881
91 6691748 7.59 9.18
Engine Bed (old 940-07250-20) New
92 6694786 2.31 2.80
Cylinder Cover Blk
101 6685689 5.78 6.99
Hex. Hole Bolt 5x16/ps
102 6695504 1.15 1.39
Hex.hole Bolt 6x65 (old 990-51060-653)
103 6695067 1.15 1.39
Ring
104 6684639 2.15 2.60
Muffler Comp.
105 6692576 70.33 85.09
Muffler Comp
105 6699282 47.04 56.92
Tail Pipe Set
106 6692715 3.30 3.99
Screw M4x8/ws
107 6684651 2.15 2.60
Spark Arrester
108 6692701 2.31 2.80
No longer available, no replacement
109 6692888
Muffler Protector Black (old 738-07250-20)
110 6692811 10.40 12.58
Screw 4x18/ps Since H124041
111 6695375 1.15 1.39
Plug Cover For (p),(lp),(sp)
112 6688351 2.31 2.80
Ring
113 6689645 1.15 1.39
Clutch Arm Comp.
114 6688610 7.59 9.18
Clutch Spring
115 6689420 2.31 2.80
Clutch Step Bolt
116 6689628 2.31 2.80
Washer
117 6695203 1.15 1.39
Clutch Set Ass'y
118 6688482 12.88 15.58
Tapping Screw D4.5x14 Till C026900
119 6685153 1.15 1.39
Stop Ring C-12 Outer
120 6684664 2.15 2.60
Fan Housing
121 6687019 11.05 13.37
Hex. Hole Bolt M5x18/ws
123 6684647 2.15 2.60
Anti-vibe Rubber
124 6691838 3.30 3.99
Tapping Screw D5x14 Since C026901 Till F024130
125 6685275 1.15 1.39
Pipe Holder
126 6689656 8.91 10.78
Hex. Hole Bolt M5x25/s
127 6684709 2.15 2.60
Hex. Hole Bolt 4x12ws Till C026900
128 6695507 1.15 1.39
Clutch Shaft Comp. 78
129 6688598 15.73 19.03
Stop Ring R-32 Inner (old 993-53032-002)
130 6695304 1.15 1.39
Bearing Case (old 088-07020-20)
131 6686667 7.75 9.38
Ball Bearing #6201zz
132 6695553 6.28 7.59
Primary Cord Grommet
133 6688057 1.15 1.39
Heat Shield
134 6687263 4.45 5.38
Recoil Starter Ass'y
141 6692969 22.24 26.91
Starter Handle
142 6693227 3.30 3.99
Rope Guide
143 6693135 3.30 3.99
Recoil Starter Body (old 772-06150-21/6693035)
144 6693036 10.23 12.37
Recoil Spring
145 6693111 7.93 9.59
Rope 3.5x890
146 6693157 2.31 2.80
Starter Rope Reel (old 774-0162v-20)
147 6693057 4.45 5.38
Ring
148 6693419 1.15 1.39
Set Screw
149 6693632 1.15 1.39
Screw 4x18/ps Since H124041
150 6695375 1.15 1.39
Starter Pulley Ass'y
151 6693394 7.59 9.18
Starter Pawl
152 6693299 2.31 2.80
Starter Pawl Spring
153 6693345 2.31 2.80
Pump Body Comp.
171 6684879 62.16 75.22
Priming Pump Comp.
172 6684687 16.34 19.77
Diaphragm Cover
173 6684688 8.58 10.38
Priming Body
174 6684689 6.44 7.79
Metering Diaphragm Comp.
175 6690830 11.88 14.37
Diaphragm Gasket
176 6684691 8.58 10.38
Pump Diaphragm
177 6684693 8.58 10.38
Pump Gasket (old 577-25100-20)
178 6691457 7.10 8.59
Main Jet #38.5 (old 599-200bw-38/6691874)
179 6696130 5.78 6.99
O-RING (old 550-25100-20)
180 6684695 4.29 5.19
Stop Ring
181 6684696 2.15 2.60
Swivel
182 6684697 6.44 7.79
Throttle Set Screw
183 6684870 2.15 2.60
Cable Adjuster Stay
184 6684873 6.44 7.79
Lock Nut M6
185 6684872 2.15 2.60
Cable Adjuster
186 6684871 4.29 5.19
Cleaner Packing
187 6684875 4.29 5.19
Set Screw
188 6684699 2.15 2.60
Thrust Washer
189 6684874 2.15 2.60
Inlet Screen
190 6684700 4.29 5.19
Drive Shaft 1533l
201 6689478 14.98 18.12
No information available, not orderable
202 6689407
Bushing Ass'y
203 6697866 1.98 2.39
Handle Grip
204 6684708 6.44 7.79
Hex. Hole Bolt M5x25/s
205 6684709 2.15 2.60
Handle Bracket A
206 6684710 13.20 15.97
Handle Bracket B
207 6684711 18.00 21.78
Handle Bracket (old 507-37850-20) New
207 6691158 6.28 7.59
Cushion Rubber (old 510-37352-20)
208 6691187 2.31 2.80
Handle Bracket C
209 6684713 12.38 14.97
Handle Bracket C, 26 Dia. (old 508-37589-20) New
209 6691174 3.30 3.99
HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254)
210 6684714 2.15 2.60
No information available, not orderable
211 6689291
Clamp B. (old 460-33111-20)
212 6684715 2.15 2.60
Left Handle
213 6696093 13.76 16.65
Right Handle For Europe,aus,south America
214 6691080 13.53 16.37
Throttle Lever Ass'y 19
215 6693766 42.20 51.06
Protection Tube (old 164-07086-50)
216 6687546 2.31 2.80
Safety Lever (old 253-38400-20)
217 6684721 6.44 7.79
Return Spring
218 6684722 2.15 2.60
Throttle Lever
219 6684723 10.23 12.37
Blind Plug
220 6684724 2.15 2.60
Screw M4x20 (black)
221 6684725 2.15 2.60
Screw 5x30 (black)
222 6684726 2.15 2.60
No information available, not orderable
223 6684727
Stop Switch Till C294400
224 6687460 13.86 16.77
Stop Switch Since C294401
224A 6687461 13.86 16.77
Throttle Wire
225 6694023 12.54 15.17
Throttle Wire Comp.
226 6693979 28.14 34.05
Throttle Wire Comp.
226A 6693980 28.14 34.05
No information available, not orderable
227A 6689275
Gear Cover
241 6688771 92.41 111.82
Gear Case Set Pn For Aus
241 6696497 60.35 73.02
Hex. Hole Bolt M5x25/s
242 6684709 2.15 2.60
STOP RING C-26, INNER (OLD 993-51026-002)
245 6695294 1.15 1.39
Stop Ring Outer 10
246 6695315 1.15 1.39
No information available, not orderable
247 6695526
No information available, not orderable
248 6695524
Gear Case 26 Dia For Aus
249 6688770 15.88 19.21
Hex.hole Bolt M5x12/s
250 6684667 2.15 2.60
Oiling Bolt
251 6689109 1.15 1.39
Ball Bearing 609
252 6684734 8.58 10.38
Gear Shaft
253 6688946 19.06 23.07
Gear Shaft For Aus
253 6688924 18.15 21.96
Ball Bearing 6201d
254 6695554 5.94 7.18
Stop Ring inside C-32 old part no. 993-51032-00
255 6695295 1.15 1.39
Cutter Holder
256 6689032 11.71 14.17
Cutter Holder Cap For Aus
257 6689055 5.11 6.19
Fixing Nut M10x1.25 Till 9.2015
258 6689073 4.63 5.60
Ring
259 6689159 1.15 1.39
HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254)
260 6684714 2.15 2.60
Cover Bracket 26 Since D085851 For Europe
261 6690315 4.45 5.38
Blade Guard 26 Ce Till D168500 For Europe
262 6690242 16.64 20.13
Blade Guard 26ce Since D168501 For Europe
262A 6690276 17.55 21.24
Guard Holder
263 6684748 4.29 5.19
No longer available, no replacement
264 6690372
Blade Guard Since E047001
264A 6690376 9.40 11.37
Blade (old 797-37380-21/6693385)
265 6693386 4.45 5.38
Knife For Irl
265A 6684750 4.29 5.19
Screw 5x12/s Till E047000
266 6695334 1.15 1.39
Tapping Screw 4x14
266A 6684751 2.15 2.60
Nut M5
267 6684965 1.04 1.26
Gear/pinion Set, Spare For Aus
268 6688875 22.24 26.91
Split Pin Set(10 Pcs/pack) Till W254355
269 6689168 1.15 1.39
No information available, not orderable
501 6684813
No information available, not orderable
502 6684764
Cutter Cover For (s)
503 6684768 2.15 2.60
Cutter Cover Except For (l)
503A 6699756 1.15 1.39
No information available, not orderable
504 6684765
No information available, not orderable
505 6693520
Protection Cover B (old 308-38150-20 & 6688993)
506 6688995 3.30 3.99
No information available, not orderable
507 6695796
No information available, not orderable
508 6695791
No information available, not orderable
509 6693493
No information available, not orderable
510 6695784
Mounting Nut L-m10x1.25 Till Tl060520
511 6684756 9.08 10.98
Mounting Nut L-m8x1.25 (old 356-3383e-20)
512 6689624 7.75 9.38
Cutting Body Till Tl060520
513 6684757 22.69 27.45
Special Nut Till Tl060520
514 6684758 9.40 11.37
Reel Spring Till Tl060520
515 6684759 4.29 5.19
Spool Till Tl060520
516 6684760 15.58 18.85
Cutting Body Cap Till Tl060520
517 6684761 36.15 43.74
Eyelet Till Tl060520
518 6684762 4.29 5.19
Sure Tap Manual P/l 9 Till Tl060520
519 6697805 1.98 2.39
Nylon Cord Cutter Since Tl060521
521 6601148 19.21 23.25
Case Since Tl060521
522 6601149 10.73 12.98
Nut (1)
523 6601150 6.93 8.38
Reel Spring Since Tl060521
524 6693380 3.30 3.99
Line Holder Since Tl060521
525 6601151 7.59 9.18
Cover
526 6601152 7.75 9.38
Eyelet Since Tl060521
527 6684810 2.15 2.60
Ring
528 6685072 1.15 1.39
Name Plate Pure Fire (old 906-01680-20) New
601 6694117 2.31 2.80
Name Plate Tbc-340pfd (old 906-48251-20) New
602 6694362 1.05 1.27
Symbol Mark
603 6694741 3.30 3.99

There are 0 items in your shopping basket.
