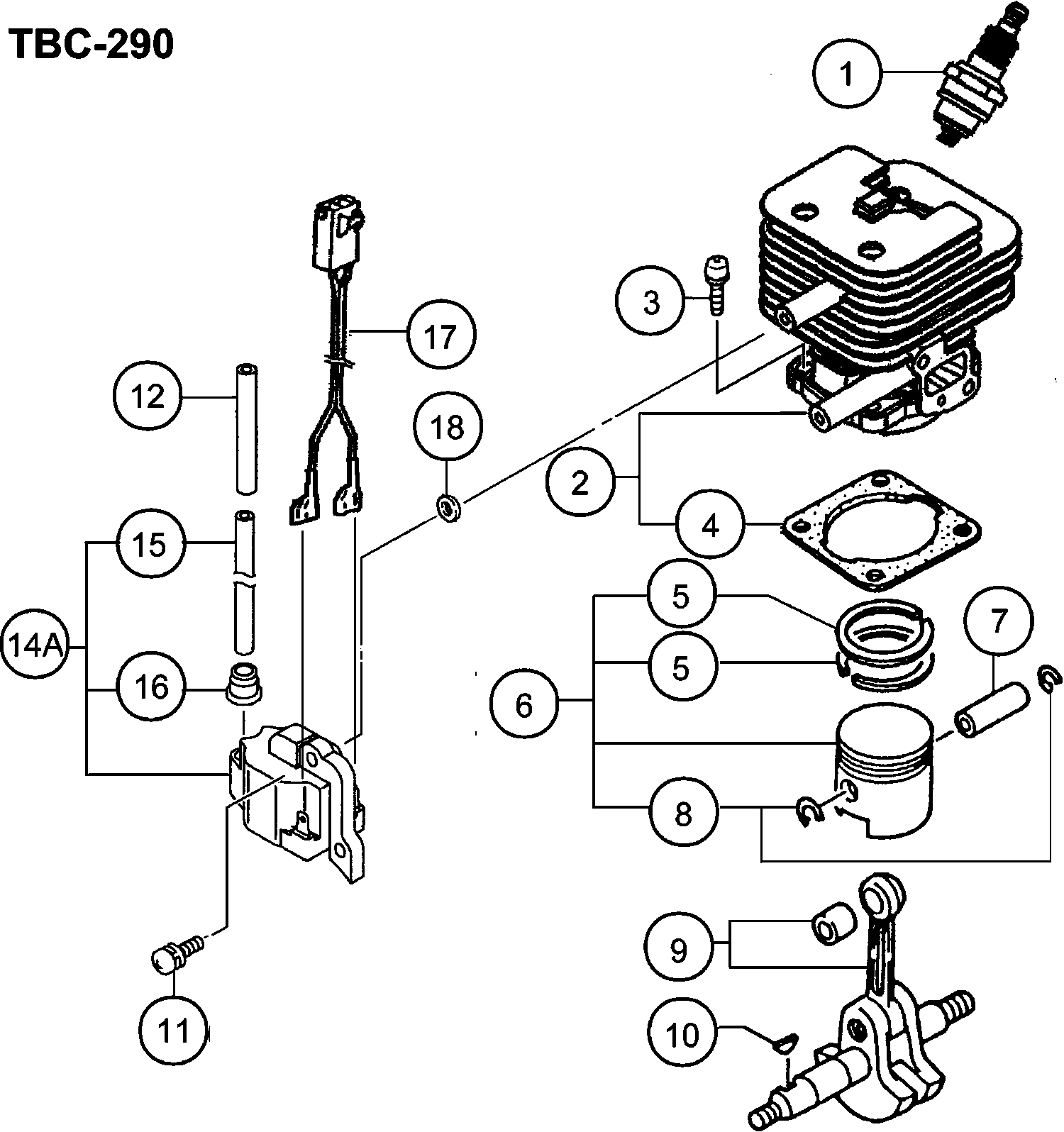

Technical drawing of model Hikoki TBC-290

Spare parts list of model Hikoki TBC-290

Pos. Description Price excl. VAT Price incl. VAT
Prices shown include VAT
Spark Plug Ass'y Rcj6y For Europe,aus
1 6699326 3.30 3.99
Cylinder Set (old 001-07020-90)
2 6685484 56.26 68.08
Hex. Hole Bolt M5x16/s
3 6684903 2.15 2.60
Cylinder Gasket
4 6685746 1.15 1.39
Piston Ring 34.5
5 6686130 4.45 5.38
Piston Set
6 6685896 26.16 31.66
Piston Pin
7 6686016 2.31 2.80
Circlip
8 6685078 1.15 1.39
Crank Shaft Comp
9 6696499 67.00 81.07
Woodruff Key 3x13x4.5 Till B023800
10 6684899 2.15 2.60
High Tension Screw 4x18ws Since H124041
11 6695407 1.15 1.39
Insulator Tube, 110l
12 6688319 1.15 1.39
Ignition Coil Ass'y Till G165840
14A 6699772 17.85 21.60
High Tension Cord 140l Till G165840
15 6687888 2.31 2.80
Rubber Cap
16 6684602 2.15 2.60
Lead Wire Ass'y
17 6697836 5.45 6.59
Washer T1.6
18 6684600 2.15 2.60
Crank Case Ass'y
31 6686580 38.26 46.30
Oil Seal
32 6684607 4.29 5.19
Ball Bearing 6001 C3
33 6684608 3.80 4.60
Crank Case Gasket
34 6686721 1.15 1.39
Gear Shaft Shim 0.20
35 6684604 2.15 2.60
Gear Shaft Shim 0.30
35 6684605 2.15 2.60
Gear shaft shim 0.10 (old 330-00200-21)
35 6689177 1.15 1.39
Gear shaft shim 0.15 (old 330-00200-22)
35 6689178 1.15 1.39
Magneto Rotor Comp.
36 6687374 24.20 29.28
Hex. Nut M8
37 6684612 2.15 2.60
Ring
38 6695184 1.15 1.39
Hex. Hole Bolt M5x16/s
39 6684903 2.15 2.60
Ring
40 6689645 1.15 1.39
Inlet Manifold Gasket
51 6689895 1.15 1.39
Insulator Set
52 6689972 6.28 7.59
Hex. Hole Bolt M5x25ws
53 6695515 1.15 1.39
Carburetor Packing
54 6684616 2.15 2.60
Carburetor Set Wyj392
55 6690500 82.43 99.73
Choke Plate 1.0
56 6691278 1.15 1.39
Cleaner Body Comp.
57 6690120 4.45 5.38
Cleaner Sponge
58 6690365 1.15 1.39
Cleaner Cover
59 6690421 13.86 16.77
Cover Fixing Bolt Comp.
60 6698730 3.15 3.81
Screw M5x55
61 6694914 1.15 1.39
Small Washer 5
62 6684864 2.15 2.60
Choke Control Lever
63 6691239 1.15 1.39
Tank Comp. Wht
64 6691588 11.71 14.17
Collar C
65 6684623 2.15 2.60
No longer available, no replacement
66 6688156
Fuel Pipe 3x5x85
67 6684880 2.15 2.60
No information available, not orderable
68 6684620
Clip D6
69 6685198 1.15 1.39
Fuel Pipe Ass'y
70 6688169 2.31 2.80
Hex. Hole Bolt 5x20ps Till J019590
71 6695506 1.15 1.39
No information available, not orderable
72 6685049
No information available, not orderable
73 6684625
Stand
74 6694793 3.30 3.99
Tap Screw 4x14 P
75 6695280 1.15 1.39
Ring
76 6685070 1.15 1.39
S.washer 5
77 6684662 2.15 2.60
Carburetor Set Wyk131 For Aus
78 6690499 52.34 63.33
Clutch Shoe Comp.,t-16 Till F113050
91 6688616 7.59 9.18
Clutch Spring Till F113050
92 6689430 2.31 2.80
Ring
93 6684642 2.15 2.60
Clutch Plate A 0.5
94 6684645 2.15 2.60
Step Bolt Till F113050
95 6689627 1.15 1.39
Clutch Set Assy
96 6688484 14.53 17.58
Fan Housing
97 6687019 11.05 13.37
Hex. Hole Bolt 5x15 Ws
98 6695512 1.15 1.39
Anti-vibe Rubber
99 6691838 3.30 3.99
Tapping Screw D5x14 Since C026901 Till F024130
100 6685275 1.15 1.39
Pipe Holder
101 6689656 8.91 10.78
Stop Ring C-12 Outer
102 6684664 2.15 2.60
Hex. Hole Bolt M5x25/s
103 6684709 2.15 2.60
Hex. Hole Bolt 4x12ws Till C026900
104A 6695507 1.15 1.39
Clutch Shaft Comp
105 6688597 13.20 15.97
Stop Ring R-32 Inner (old 993-53032-002)
106 6695304 1.15 1.39
Bearing Case (old 088-07020-20)
107 6686667 7.75 9.38
Ball Bearing #6201zz
108 6695553 6.28 7.59
Primary Cord Grommet
109 6688057 1.15 1.39
Muffler Protector
110 6692803 7.75 9.38
Spark Plug Cap Ass'y Till G165840
111 6687468 2.31 2.80
Tapping Screw D4.5x12
112 6684637 2.15 2.60
Muffler Gasket
113 6692732 1.15 1.39
Heat Shield
114 6687260 3.30 3.99
Muffler Set
115 6692489 22.24 26.91
Hex. Hole Bolt M6x55
116 6684638 2.15 2.60
Ring
117 6684639 2.15 2.60
Muffler Special Gasket For Aus
118 6692887 1.15 1.39
Tail Pipe Set For Europe
119 6692669 4.45 5.38
Screw 4x8/s
120 6695325 1.15 1.39
Ring
120A 6685109 1.15 1.39
Tail Pipe Set For Europe
121 6692669 4.45 5.38
Tail Pipe Set Since Tl035481
121A 6692712 2.31 2.80
Spark Arrestor For Aus
122 6692699 1.15 1.39
Ring
123 6684648 2.15 2.60
Recoil Starter Ass'y
151 6692969 22.24 26.91
Starter Handle
152 6693227 3.30 3.99
Rope Guide
153 6693135 3.30 3.99
Recoil Starter Body (old 772-06150-21/6693035)
154 6693036 10.23 12.37
Recoil Spring
155 6693111 7.93 9.59
Rope 3.5x890
156 6693157 2.31 2.80
Starter Rope Reel (old 774-0162v-20)
157 6693057 4.45 5.38
Ring
158 6693419 1.15 1.39
Set Screw
159 6693632 1.15 1.39
Hex.hole Bolt 4x18ps
160 6695502 1.15 1.39
Starter Pulley Ass'y
161 6693394 7.59 9.18
Starter Pawl
162 6693299 2.31 2.80
Starter Pawl Spring
163 6693345 2.31 2.80
Pump Body Comp.
191 6684879 62.16 75.22
Priming Pump Comp.
192 6684687 16.34 19.77
Diaphragm Cover
193 6684688 8.58 10.38
Priming Body
194 6684689 6.44 7.79
Metering Diaphragm Comp. Till B027700
195 6690827 11.71 14.17
Diaphragm Gasket
196 6684691 8.58 10.38
Pump Diaphragm
197 6684693 8.58 10.38
Pump Gasket (old 577-25100-20)
198 6691457 7.10 8.59
Stop Ring
201 6684696 2.15 2.60
Swivel
202 6684697 6.44 7.79
Throttle Set Screw
203 6684870 2.15 2.60
Cable Adjuster Stay
204 6684873 6.44 7.79
Lock Nut M6
205 6684872 2.15 2.60
Cable Adjuster
206 6684871 4.29 5.19
Cleaner Packing
207 6684875 4.29 5.19
Set Screw
208 6684699 2.15 2.60
Thrust Washer
209 6684874 2.15 2.60
Inlet Screen
210 6684700 4.29 5.19
No information available, not orderable
211 6690700
High/low Adjust Spring (old 623-25032-20)
212 6692048 2.31 2.80
Ring
213 6691317 1.05 1.27
O-ring Till B027700
214 6691322 2.10 2.54
No information available, not orderable
215 6697616
O-RING (old 550-25100-20)
216 6684695 4.29 5.19
Main Jet #43
217 6691848 4.45 5.38
Drive Shaft 1533l
231 6689478 14.98 18.12
No information available, not orderable
232 6689407
Bushing Ass'y
233 6697866 1.98 2.39
Hex.nut 6
234 6684835 2.15 2.60
No information available, not orderable
235 6691049
Barrier, 26 Dia, Black
236 6691231 5.61 6.79
Bolt 6x43/p (black)
237 6684838 2.15 2.60
Tapping Screw 5x20
238 6695255 1.15 1.39
Ring
239 6689681 1.15 1.39
Handle Grip (old 503-3738e-20)
240 6691098 6.44 7.79
No information available, not orderable
241 6689275
Throttle Lever Ass'y, 26 Dia.
242 6693748 40.24 48.69
Throttle Wire Comp.
243 6693978 19.51 23.61
Throttle Wire
244 6694022 8.25 9.98
Stop Switch Comp.
245 6687459 13.91 16.83
Protection Tube 7x175
246 6687526 1.15 1.39
Safety Lever (old 253-38400-20)
247 6684721 6.44 7.79
Return Spring
248 6684722 2.15 2.60
Blind Plug
249 6684724 2.15 2.60
Screw M5x20
250 6684803 2.15 2.60
No information available, not orderable
251 6684727
Screw M4x20 (black)
252 6684725 2.15 2.60
Throttle Lever
253 6684804 8.58 10.38
Gear Case Set Pn For Aus
281 6696497 60.35 73.02
No information available, not orderable
281B 6601215
Hex. Hole Bolt M5x25/s
282 6684709 2.15 2.60
Hex. Socket Hd. Bolt M5x12
282A 6684829 2.15 2.60
Spring Washer 5
283 6684834 2.15 2.60
STOP RING C-26, INNER (OLD 993-51026-002)
284 6695294 1.15 1.39
Stop Ring Outer 10
285 6695315 1.15 1.39
Stop Ring C-10,outer
285A 6684821 2.15 2.60
No information available, not orderable
286 6695526
No information available, not orderable
287 6695524
Gear Case 26 Dia For Aus
288 6688770 15.88 19.21
Gear Case (1)
288A 6697738 12.88 15.58
Hex.hole Bolt M5x12/s
289 6684667 2.15 2.60
Hex. Socket Hd. Bolt M5x30 S
289A 6684786 2.15 2.60
Oiling Bolt
290 6689109 1.15 1.39
Bolt (w/plus) M6x8
290A 6684737 2.15 2.60
Ball Bearing 609
291 6684734 8.58 10.38
Gear Shaft For Aus
292 6688924 18.15 21.96
Gear Shaft Since J032081 For Europe
292A 6697739 14.53 17.58
Ball Bearing 6201d
293 6695554 5.94 7.18
Ball Bearing #6201dd
293A 6695555 7.10 8.59
Stop Ring inside C-32 old part no. 993-51032-00
294 6695295 1.15 1.39
Cutter Holder
295 6689032 11.71 14.17
Cutter Holder Cap For Aus
296 6689055 5.11 6.19
Cutter Holder Cap Since J032081 For Europe
296A 6699009 3.80 4.60
Nut Cover Since J032081 For Europe
297 6697792 2.80 3.39
Fixing Nut M10x1.25 Till 9.2015
298 6689073 4.63 5.60
No information available, not orderable
298A 6698658
Ring
299 6689159 1.15 1.39
HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254)
300 6684714 2.15 2.60
Cover Bracket, 26 Dia. Till D085850 For Europe
301 6690294 1.15 1.39
Cover Bracket 26 Since D085851 For Europe
301A 6690315 4.45 5.38
Cover Bracket D26 Since J032081 For Europe
301B 6697867 4.29 5.19
Blade Guard 26 Ce Till D168500 For Europe
302 6690242 16.64 20.13
Blade Guard 26ce Since D168501 For Europe
302A 6690276 17.55 21.24
Guard Holder
303 6684748 4.29 5.19
No longer available, no replacement
304 6690372
Blade Guard Since E047001
304A 6690376 9.40 11.37
Blade (old 797-37380-21/6693385)
305 6693386 4.45 5.38
Knife For Irl
305A 6684750 4.29 5.19
Screw 5x12/s Till E047000
306 6695334 1.15 1.39
Tapping Screw 4x14
306A 6684751 2.15 2.60
Gear/pinion Set, Spare For Aus
307 6688875 22.24 26.91
Gear Pinion Set,spare Since J032081 For Europe
307A 6697741 20.11 24.34
Nut M5
308 6684965 1.04 1.26
Tapping Screw 5x20 For Aus (sl)
309 6684753 2.15 2.60
Knife Since E047001
310 6684754 8.58 10.38
Gear Case Set Pn For Aus
321 6696497 60.35 73.02
Hex. Hole Bolt M5x25/s
322 6684709 2.15 2.60
STOP RING C-26, INNER (OLD 993-51026-002)
323 6695294 1.15 1.39
Stop Ring Outer 10
324 6695315 1.15 1.39
No information available, not orderable
325 6695526
No information available, not orderable
326 6695524
Gear Case 26 Dia For Aus
327 6688770 15.88 19.21
Hex.hole Bolt M5x12/s
328 6684667 2.15 2.60
Oiling Bolt
329 6689109 1.15 1.39
Ball Bearing 609
330 6684734 8.58 10.38
Gear Shaft For Aus
331 6688924 18.15 21.96
Ball Bearing 6201d
332 6695554 5.94 7.18
Stop Ring inside C-32 old part no. 993-51032-00
333 6695295 1.15 1.39
Cutter Holder
334 6689032 11.71 14.17
Cutter Holder Cap For Aus
335 6689055 5.11 6.19
Fixing Nut M10x1.25 Till 9.2015
336 6689073 4.63 5.60
Ring
337 6689159 1.15 1.39
HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254)
338 6684714 2.15 2.60
Cover Bracket, 26 Dia. Till D085850 For Europe
340 6690294 1.15 1.39
Cover Bracket, 26 Dia.
340A 6690303 1.15 1.39
Blade Guard 26 Ce Till D168500 For Europe
341 6690242 16.64 20.13
No longer available, no replacement
341A 6690255
Guard Holder
342 6684748 4.29 5.19
Guard Holder
342A 6690343 3.30 3.99
No longer available, no replacement
343 6690372
Blade (old 797-37380-21/6693385)
344 6693386 4.45 5.38
Screw 5x12/s Till E047000
345 6695334 1.15 1.39
Gear/pinion Set, Spare For Aus
346 6688875 22.24 26.91
Nut M5
347 6684965 1.04 1.26
Tapping Screw 5x20 For Aus (sl)
348 6684753 2.15 2.60
Hex.hole Bolt M5x12/s
349 6684667 2.15 2.60
Blade (old 797-38150-20)
350 6693388 6.28 7.59
Cutter Holder Ass'y Since J032081 For Europe
395B 6601216 25.56 30.93
No information available, not orderable
501 6684813
No information available, not orderable
502 6684764
Cutter Cover For (s)
503 6684768 2.15 2.60
No information available, not orderable
504A 875769
No information available, not orderable
505 6693520
No information available, not orderable
506 6695789
No information available, not orderable
507 6695795
Protection Cover B (old 308-38150-20 & 6688993)
508 6688995 3.30 3.99
No information available, not orderable
509 6695786
No information available, not orderable
510 6695784
Mounting Nut L-m10x1.25 Till Tl060520
511 6684756 9.08 10.98
Mounting Nut L-m8x1.25 (old 356-3383e-20)
512 6689624 7.75 9.38
Cutting Body Till Tl060520
513 6684757 22.69 27.45
Special Nut Till Tl060520
514 6684758 9.40 11.37
Reel Spring Till Tl060520
515 6684759 4.29 5.19
Spool Till Tl060520
516 6684760 15.58 18.85
Cutting Body Cap Till Tl060520
517 6684761 36.15 43.74
Eyelet Till Tl060520
518 6684762 4.29 5.19
Sure Tap Manual P/l 9 Till Tl060520
519 6697805 1.98 2.39
Winding Protector Till Tl043660
520 6684763 4.29 5.19
Nylon Cord Cutter Since Tl060521
521 6601148 19.21 23.25
Case Since Tl060521
522 6601149 10.73 12.98
Nut (1)
523 6601150 6.93 8.38
Reel Spring Since Tl060521
524 6693380 3.30 3.99
Line Holder Since Tl060521
525 6601151 7.59 9.18
Cover
526 6601152 7.75 9.38
Eyelet Since Tl060521
527 6684810 2.15 2.60

There are 0 items in your shopping basket.
