Here you will find all available parts and drawings of the 'Hikoki TBC-230DS'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

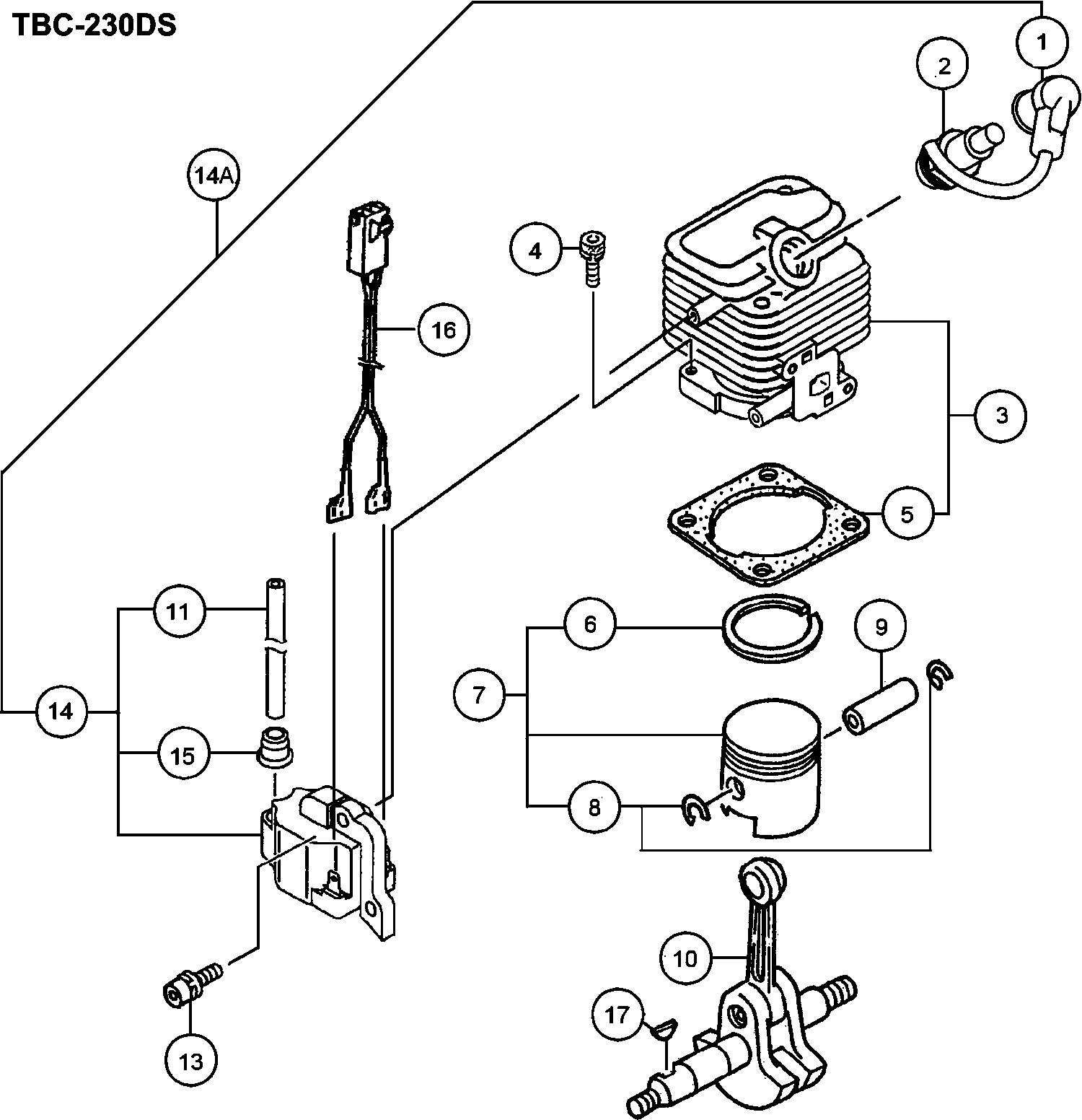

Technical drawing of model Hikoki TBC-230DS
Spare parts list of model Hikoki TBC-230DS
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Spark Plug Cap Ass'y Till G165840 | ||||
| 1 | 6687468 | 2.31 | 2.80 | |
| Spark Plug Ass'y Rcj8y | ||||
| 2 | 6699328 | 3.30 | 3.99 | |
| Cylinder Set (old 001-07130-91) | ||||
| 3 | 6685489 | 34.19 | 41.37 | |
| Hex.hole Bolt M5x18/s | ||||
| 4 | 6684586 | 2.15 | 2.60 | |
| Cylinder Gasket | ||||
| 5 | 6685709 | 1.15 | 1.39 | |
| Piston Ring | ||||
| 6 | 6686118 | 4.45 | 5.38 | |
| Piston Ass'y | ||||
| 7 | 6685869 | 15.58 | 18.85 | |
| Cir Clip | ||||
| 8 | 6684590 | 2.15 | 2.60 | |
| Piston Pin | ||||
| 9 | 6696944 | 3.33 | 4.02 | |
| Crank Shaft Comp. | ||||
| 10 | 6686217 | 42.20 | 51.06 | |
| High Tension Cord 140l Till G165840 | ||||
| 11 | 6687888 | 2.31 | 2.80 | |
| Hex. Hole Bolt 4x15/ps | ||||
| 13 | 6684682 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 14 | 6699772 | |||
| No information available, not orderable | ||||
| 14A | 6697638 | |||
| Rubber Cap | ||||
| 15 | 6684602 | 2.15 | 2.60 | |
| Lead Wire Ass'y | ||||
| 16 | 6697836 | 5.45 | 6.59 | |
| Woodruff Key 3x13x4.5 Till B023800 | ||||
| 17 | 6684899 | 2.15 | 2.60 | |
| Gear Shaft Shim 0.20 | ||||
| 31 | 6684604 | 2.15 | 2.60 | |
| Gear Shaft Shim 0.30 | ||||
| 31 | 6684605 | 2.15 | 2.60 | |
| Gear shaft shim 0.10 (old 330-00200-21) | ||||
| 31 | 6689177 | 1.15 | 1.39 | |
| Gear shaft shim 0.15 (old 330-00200-22) | ||||
| 31 | 6689178 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 32 | 6695806 | |||
| No information available, not orderable | ||||
| 32A | 6686585 | |||
| Oil Seal | ||||
| 33 | 6684607 | 4.29 | 5.19 | |
| Ball Bearing 6001 C3 | ||||
| 34 | 6684608 | 3.80 | 4.60 | |
| Crank Case Gasket | ||||
| 35 | 6686719 | 1.15 | 1.39 | |
| Hex.hole Bolt M5x18/s | ||||
| 36 | 6684586 | 2.15 | 2.60 | |
| Magneto Rotor Comp. | ||||
| 37 | 6687376 | 15.88 | 19.21 | |
| Magneto Rotor Comp. | ||||
| 37A | 6601171 | 22.99 | 27.81 | |
| No information available, not orderable | ||||
| 37B | 6696928 | |||
| Bolt Washer M8 | ||||
| 38 | 6684611 | 2.15 | 2.60 | |
| Hex. Nut M8 | ||||
| 39 | 6684612 | 2.15 | 2.60 | |
| Inlet Manifold Gasket | ||||
| 51 | 6689890 | 1.15 | 1.39 | |
| Carb Insulator Set | ||||
| 52 | 6689914 | 5.94 | 7.18 | |
| Carburetor Gasket (old 402-0602K-21/6689836) | ||||
| 53 | 6684615 | 2.15 | 2.60 | |
| Hex.hole Bolt 5x22/ws | ||||
| 54 | 6695514 | 1.15 | 1.39 | |
| Screw 5x60/s | ||||
| 55 | 6695354 | 1.15 | 1.39 | |
| Ring | ||||
| 56 | 6684661 | 2.15 | 2.60 | |
| No longer available, no replacement | ||||
| 57 | 6688174 | |||
| Clip D6 | ||||
| 58 | 6685198 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 59 | 6684620 | |||
| No longer available, no replacement | ||||
| 60 | 6691592 | |||
| No information available, not orderable | ||||
| 61 | 6685049 | |||
| Collar 5.8 Till G103930 | ||||
| 62 | 6692244 | 1.15 | 1.39 | |
| Carburetor Set Wyl189 Till B023800 | ||||
| 63 | 6690513 | 50.21 | 60.76 | |
| Carburetor Set Wyl182 Since B023801 | ||||
| 63A | 6690512 | 66.40 | 80.34 | |
| No longer available, no replacement | ||||
| 64 | 6691337 | |||
| Hex. Hole Bolt 5x16/ps | ||||
| 65 | 6695504 | 1.15 | 1.39 | |
| Bolt (w/flange) L17.8 Since G103931 | ||||
| 65A | 6696574 | 1.05 | 1.27 | |
| Screw 5x20ws Till G103930 | ||||
| 66 | 6695516 | 1.15 | 1.39 | |
| Bolt (w/flange) L17.8 Since G103931 | ||||
| 66A | 6696574 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 67 | 6684625 | |||
| No longer available, no replacement | ||||
| 68 | 6684880 | |||
| Return Grommet Till 7.2014 | ||||
| 69 | 6697846 | 1.04 | 1.26 | |
| Muffler Protector Till C026900 | ||||
| 91 | 6692798 | 5.94 | 7.18 | |
| Muffler Protector Black (old 738-07162-20) | ||||
| 91A | 6692809 | 5.11 | 6.19 | |
| Screw 4x15ps | ||||
| 92 | 6695373 | 1.15 | 1.39 | |
| Tapping Screw D4.5x12 | ||||
| 94 | 6684637 | 2.15 | 2.60 | |
| Hex. Socket Hd. Bolt M5x50 | ||||
| 95 | 6685114 | 1.15 | 1.39 | |
| Washer M5 (black) | ||||
| 96 | 6684918 | 2.15 | 2.60 | |
| Muffler Set | ||||
| 98 | 6692487 | 11.88 | 14.37 | |
| Muffler Gasket | ||||
| 100 | 6692745 | 1.15 | 1.39 | |
| Heat Shield | ||||
| 101 | 6687253 | 2.31 | 2.80 | |
| No information available, not orderable | ||||
| 102 | 6688350 | |||
| No information available, not orderable | ||||
| 103 | 6697619 | |||
| Clutch Shoe Comp.,t-16 Till F113050 | ||||
| 104 | 6688616 | 7.59 | 9.18 | |
| CLUTCH ARM COMP 54 NEW | ||||
| 104A | 6697161 | 6.90 | 8.35 | |
| Clutch Spring Till F113050 | ||||
| 105 | 6689430 | 2.31 | 2.80 | |
| No information available, not orderable | ||||
| 105A | 6697618 | |||
| Clutch Plate (a) | ||||
| 106 | 6689528 | 1.15 | 1.39 | |
| Step Bolt Till F113050 | ||||
| 107 | 6689627 | 1.15 | 1.39 | |
| Step Bolt | ||||
| 107A | 6684646 | 2.15 | 2.60 | |
| Ring | ||||
| 108 | 6684648 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 109 | 6696932 | |||
| Hex. Hole Bolt M5x18/ws | ||||
| 110 | 6684647 | 2.15 | 2.60 | |
| Tapping Screw D4.5x20 Till C026900 | ||||
| 111 | 6685191 | 1.15 | 1.39 | |
| Hex.hole Bolt M5x30/ws | ||||
| 112 | 6684973 | 2.15 | 2.60 | |
| Cord Clamp Comp. | ||||
| 113 | 6688011 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 114 | 6688040 | |||
| Recoil Starter Body Ass'y (old 762-07085-90) | ||||
| 131 | 6692986 | 48.25 | 58.38 | |
| Starter Handle | ||||
| 132 | 6693240 | 14.35 | 17.36 | |
| Recoil Starter Body Comp Till C026900 | ||||
| 133 | 6693038 | 30.25 | 36.60 | |
| Rope Till 7.2014 | ||||
| 134 | 6693168 | 2.31 | 2.80 | |
| Recoil Spring Till C026900 | ||||
| 135 | 6693138 | 9.90 | 11.98 | |
| Spring Case Ass'y Till C026900 | ||||
| 137 | 6693101 | 32.21 | 38.98 | |
| Starter Pulley Till C026900 | ||||
| 139 | 6693079 | 7.10 | 8.59 | |
| Ring | ||||
| 140 | 6687947 | 2.31 | 2.80 | |
| Tapping Screw D5x14 Since C026901 Till F024130 | ||||
| 141 | 6685275 | 1.15 | 1.39 | |
| Starter Base Till C026900 | ||||
| 142 | 6693470 | 3.30 | 3.99 | |
| Hex. Hole Bolt 4x12ws Till C026900 | ||||
| 143 | 6695507 | 1.15 | 1.39 | |
| Square Nut 5 Till C026900 | ||||
| 144 | 6695176 | 1.15 | 1.39 | |
| Tapping Screw D4.5x14 Till C026900 | ||||
| 145 | 6685153 | 1.15 | 1.39 | |
| Starter Pulley Assembly (old 798-07085-90) | ||||
| 146 | 6693408 | 32.21 | 38.98 | |
| No information available, not orderable | ||||
| 151 | 6692988 | |||
| Starter Handle | ||||
| 152 | 6693240 | 14.35 | 17.36 | |
| Recoil Starter Body Comp. Since C026901 Till F024 | ||||
| 153 | 6693039 | 24.20 | 29.28 | |
| Rope 2.6x830 Since C026901 Till F024130 | ||||
| 154 | 6693175 | 6.44 | 7.79 | |
| Recoil Spring Since C026901 Till F024130 | ||||
| 155 | 6693139 | 9.74 | 11.78 | |
| Spring Case Ass'y Since C026901 Till F024130 | ||||
| 156 | 6693102 | 30.25 | 36.60 | |
| Starter Rope Reel Since C026901 Till F024130 | ||||
| 157 | 6693080 | 6.44 | 7.79 | |
| Ring | ||||
| 158 | 6687947 | 2.31 | 2.80 | |
| Tapping Screw D5x14 Since C026901 Till F024130 | ||||
| 159 | 6685275 | 1.15 | 1.39 | |
| Hex. Hole Bolt 4x18ws Till H124040 | ||||
| 160 | 6695508 | 1.15 | 1.39 | |
| Flunge Nut 5 Since C026901 Till F024130 | ||||
| 161 | 6695169 | 1.15 | 1.39 | |
| Starter Pulley Assembly (old 798-07085-90) | ||||
| 162 | 6693408 | 32.21 | 38.98 | |
| No information available, not orderable | ||||
| 171A | 6699995 | |||
| No information available, not orderable | ||||
| 172 | 6684673 | |||
| Starter Rope 3.5x860 For (s) Type Since 7.2012 Fo | ||||
| 173 | 6684674 | 4.29 | 5.19 | |
| Recoil Spring Till 7.2014 | ||||
| 174 | 6684675 | 11.55 | 13.98 | |
| Starter Rope Reel For (s) Type Since 9.2013 For A | ||||
| 175A | 6699997 | 8.41 | 10.18 | |
| Damper Spring For (s) Type Since 7.2012 For Aus | ||||
| 176 | 6684677 | 8.58 | 10.38 | |
| Cam Plate For (s) Type Since 9.2013 For Aus | ||||
| 177A | 6699996 | 2.55 | 3.09 | |
| Set Screw (old 839-03045-20) | ||||
| 178 | 6684679 | 2.15 | 2.60 | |
| Starter Handle | ||||
| 179 | 6684680 | 2.15 | 2.60 | |
| Starter Pulley Ass'y For (s) Type Since 7.2012 Fo | ||||
| 180 | 6684681 | 13.20 | 15.97 | |
| Hex. Hole Bolt 4x18ws Till H124040 | ||||
| 181 | 6695508 | 1.15 | 1.39 | |
| D4e Retaining Ring (old 993-55040-001) | ||||
| 182 | 6685101 | 1.15 | 1.39 | |
| Starter Pawl Spring | ||||
| 183 | 6684684 | 4.29 | 5.19 | |
| Starter Pawl | ||||
| 184 | 6684685 | 4.29 | 5.19 | |
| Till 8.2013 For Aus | ||||
| 185 | 6699691 | 6.10 | 7.38 | |
| Cleaner Assy | ||||
| 201 | 6690048 | 9.58 | 11.59 | |
| Cleaner Cover | ||||
| 202 | 6690391 | 4.45 | 5.38 | |
| Cleaner Element | ||||
| 203 | 6684654 | 2.15 | 2.60 | |
| Special Screw | ||||
| 204 | 6689737 | 1.15 | 1.39 | |
| Cleaner Body Comp. | ||||
| 205 | 6684656 | 8.58 | 10.38 | |
| Choke Valve | ||||
| 206 | 6684657 | 4.29 | 5.19 | |
| No information available, not orderable | ||||
| 207 | 6684658 | |||
| Collar 8 | ||||
| 208 | 6684659 | 2.15 | 2.60 | |
| Pump Body Comp. | ||||
| 221 | 6684879 | 62.16 | 75.22 | |
| Priming Pump Comp. | ||||
| 222 | 6684687 | 16.34 | 19.77 | |
| Diaphragm Cover | ||||
| 223 | 6684688 | 8.58 | 10.38 | |
| Priming Body | ||||
| 224 | 6684689 | 6.44 | 7.79 | |
| Metering Diaphragm Comp. | ||||
| 225 | 6690830 | 11.88 | 14.37 | |
| Diaphragm Gasket | ||||
| 226 | 6684691 | 8.58 | 10.38 | |
| Pump Diaphragm | ||||
| 227 | 6684693 | 8.58 | 10.38 | |
| Pump Gasket (old 577-25100-20) | ||||
| 228 | 6691457 | 7.10 | 8.59 | |
| Main Jet #40 Till B023800 | ||||
| 229 | 6691845 | 4.45 | 5.38 | |
| Main Jet #38 Since B023801 | ||||
| 229A | 6691844 | 4.45 | 5.38 | |
| O-RING (old 550-25100-20) | ||||
| 230 | 6684695 | 4.29 | 5.19 | |
| Stop Ring | ||||
| 231 | 6684696 | 2.15 | 2.60 | |
| Swivel | ||||
| 232 | 6684697 | 6.44 | 7.79 | |
| Throttle Set Screw | ||||
| 233 | 6684698 | 4.29 | 5.19 | |
| Set Screw | ||||
| 234 | 6684699 | 2.15 | 2.60 | |
| Inlet Screen | ||||
| 235 | 6684700 | 4.29 | 5.19 | |
| Throttle Valve Till B023800 | ||||
| 236 | 6684883 | 18.75 | 22.69 | |
| Clutch Shaft Comp. | ||||
| 251 | 6695969 | 15.73 | 19.03 | |
| Stop Ring C-12 Outer | ||||
| 252 | 6684664 | 2.15 | 2.60 | |
| Anti-vibe Rubber | ||||
| 253 | 6691839 | 3.30 | 3.99 | |
| Hex. Hole Bolt 5x16 | ||||
| 254 | 6695046 | 1.15 | 1.39 | |
| Hex. Hole Bolt M5x25/s | ||||
| 255 | 6684709 | 2.15 | 2.60 | |
| Fan Housing | ||||
| 256 | 6687029 | 15.13 | 18.30 | |
| Pipe Holder, TPE | ||||
| 257 | 6689651 | 5.94 | 7.18 | |
| Washer M5 (black) | ||||
| 258 | 6684918 | 2.15 | 2.60 | |
| Ring | ||||
| 259 | 6689159 | 1.15 | 1.39 | |
| Metal Fitting | ||||
| 260 | 6689664 | 3.30 | 3.99 | |
| Drive Shaft 1480l | ||||
| 281 | 6696009 | 13.53 | 16.37 | |
| Drive Shaft Pipe Comp. | ||||
| 282 | 6689386 | 32.21 | 38.98 | |
| No information available, not orderable | ||||
| 283 | 6684831 | |||
| Hanger Collar For Europe,aus,irl | ||||
| 284 | 6689260 | 1.15 | 1.39 | |
| Hanger For Europe,aus,irl | ||||
| 285 | 6689281 | 12.88 | 15.58 | |
| Hanger Fixing Bracket (old 337-38360-80) For Usa | ||||
| 286 | 6689294 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 287 | 6696988 | |||
| Handle Grip | ||||
| 288 | 6684708 | 6.44 | 7.79 | |
| Hex. Hole Bolt M5x25/s | ||||
| 289 | 6684709 | 2.15 | 2.60 | |
| Handle Bracket A | ||||
| 290 | 6684710 | 13.20 | 15.97 | |
| Handle Bracket B | ||||
| 291 | 6684711 | 18.00 | 21.78 | |
| Handle Bracket Rubber | ||||
| 292 | 6684712 | 4.29 | 5.19 | |
| Handle Bracket C | ||||
| 293 | 6684713 | 12.38 | 14.97 | |
| HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | ||||
| 294 | 6684714 | 2.15 | 2.60 | |
| Clamp B. (old 460-33111-20) | ||||
| 295 | 6684715 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 296 | 6696093 | |||
| Right Handle For Europe,aus,south America | ||||
| 297 | 6691080 | 13.53 | 16.37 | |
| Throttle Lever Ass'y (old 870-38445-90) | ||||
| 298 | 6693768 | 38.26 | 46.30 | |
| No longer available, no replacement | ||||
| 299 | 6684721 | |||
| Return Spring | ||||
| 300 | 6684722 | 2.15 | 2.60 | |
| Throttle Lever | ||||
| 301 | 6684723 | 10.23 | 12.37 | |
| Blind Plug | ||||
| 302 | 6684724 | 2.15 | 2.60 | |
| Screw M4x20 (black) | ||||
| 303 | 6684725 | 2.15 | 2.60 | |
| Screw 5x30 (black) | ||||
| 304 | 6684726 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 305 | 6684727 | |||
| Stop Button Comp. | ||||
| 306 | 6687453 | 14.38 | 17.39 | |
| Throttle Wire | ||||
| 307 | 6694024 | 10.40 | 12.58 | |
| No longer available, no replacement | ||||
| 308 | 6687543 | |||
| Throttle Wire Comp. | ||||
| 309 | 6693981 | 24.20 | 29.28 | |
| Gear Cover | ||||
| 321 | 6688817 | 66.40 | 80.34 | |
| Hex. Hole Bolt M5x25/s | ||||
| 322 | 6684709 | 2.15 | 2.60 | |
| Stop Ring C-24,inner | ||||
| 323 | 6684732 | 2.15 | 2.60 | |
| Stop Ring C-9, Outer | ||||
| 324 | 6695281 | 1.15 | 1.39 | |
| Ball Bearing 609z St | ||||
| 325 | 6684735 | 8.58 | 10.38 | |
| Gear Case 24 | ||||
| 326 | 6688815 | 12.38 | 14.97 | |
| Screw 5x12/w.s | ||||
| 327 | 6695414 | 1.15 | 1.39 | |
| Oiling Bolt | ||||
| 328 | 6689109 | 1.15 | 1.39 | |
| Ball Bearing 626 | ||||
| 329 | 6695567 | 4.45 | 5.38 | |
| Gear Shaft For Europe,aus,irl | ||||
| 330 | 6688948 | 9.74 | 11.78 | |
| Ball Bearing 6000d | ||||
| 331 | 6695527 | 6.60 | 7.99 | |
| STOP RING C-26, INNER (OLD 993-51026-002) | ||||
| 332 | 6695294 | 1.15 | 1.39 | |
| Cutter Holder | ||||
| 333 | 6689033 | 6.44 | 7.79 | |
| Cutter Holder Cap For Europe,aus,irl | ||||
| 334 | 6689056 | 3.30 | 3.99 | |
| Protection Cover (old 308-38360-20) | ||||
| 335 | 6688996 | 3.30 | 3.99 | |
| Fixing Nut L/h For Europe,aus,irl | ||||
| 336 | 6689075 | 1.15 | 1.39 | |
| Gear Case Cover (old 303-38360-20) | ||||
| 337 | 6688917 | 2.31 | 2.80 | |
| Screw 5x12/w.s | ||||
| 338 | 6695414 | 1.15 | 1.39 | |
| Gear/pinion Set | ||||
| 339 | 6688883 | 13.91 | 16.83 | |
| HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | ||||
| 340 | 6684714 | 2.15 | 2.60 | |
| Cover Bracket 24 Till D240050 For Europe,aus,irl | ||||
| 341 | 6690317 | 3.30 | 3.99 | |
| Cover Bracket Since D240051 For Europe,aus,irl | ||||
| 341A | 6690318 | 5.11 | 6.19 | |
| Blade Guard 26 Ce Till D168500 For Europe | ||||
| 342 | 6690242 | 16.64 | 20.13 | |
| Blade Guard 24 Ce Since D240051 For Europe,aus,ir | ||||
| 342A | 6684747 | 30.70 | 37.15 | |
| Guard Holder | ||||
| 343 | 6684748 | 4.29 | 5.19 | |
| No longer available, no replacement | ||||
| 344 | 6690372 | |||
| Cover Guard Since D240051 For Europe,aus,irl | ||||
| 344A | 6684749 | 14.98 | 18.12 | |
| Blade (old 797-37380-21/6693385) | ||||
| 345 | 6693386 | 4.45 | 5.38 | |
| Knife For Irl | ||||
| 345A | 6684750 | 4.29 | 5.19 | |
| Screw 5x12/s Till E047000 | ||||
| 346 | 6695334 | 1.15 | 1.39 | |
| Tapping Screw 4x14 | ||||
| 346A | 6684751 | 2.15 | 2.60 | |
| Nut M5 | ||||
| 347 | 6684965 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 348 | 6690332 | |||
| Tapping Screw 5x20 For Aus (sl) | ||||
| 349 | 6684753 | 2.15 | 2.60 | |
| Knife Since E047001 | ||||
| 350 | 6684754 | 8.58 | 10.38 | |
| No information available, not orderable | ||||
| 501 | 6684813 | |||
| Combi Box Spanner 13x19 | ||||
| 502 | 6693588 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 503 | 6699555 | |||
| Cutter Cover For (s) | ||||
| 503B | 6684768 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 504A | 875769 | |||
| No information available, not orderable | ||||
| 506 | 6695789 | |||
| No information available, not orderable | ||||
| 507 | 6695796 | |||
| No information available, not orderable | ||||
| 521 | 6695783 | |||
| Cutting Body For Europe (till C133700 For Aus) | ||||
| 522 | 6693273 | 17.55 | 21.24 | |
| Special Nut For Europe (till C133700 For Aus) | ||||
| 523 | 6689103 | 9.74 | 11.78 | |
| Reel Spring Since Tl060521 | ||||
| 524 | 6693380 | 3.30 | 3.99 | |
| Eyelet Since Tl060521 | ||||
| 525 | 6684810 | 2.15 | 2.60 | |
| Spool For Europe (till C133700 For Aus) | ||||
| 526 | 6693294 | 11.05 | 13.37 | |
| No longer available, no replacement | ||||
| 527 | 6693340 | |||
| No information available, not orderable | ||||
| 528 | 6697932 | |||
| No information available, not orderable | ||||
| 601 | 6694643 | |||
| S?start Mark | ||||
| 602 | 6694472 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 603 | 6697851 | |||
