Here you will find all available parts and drawings of the 'Hikoki TBC-225CS'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

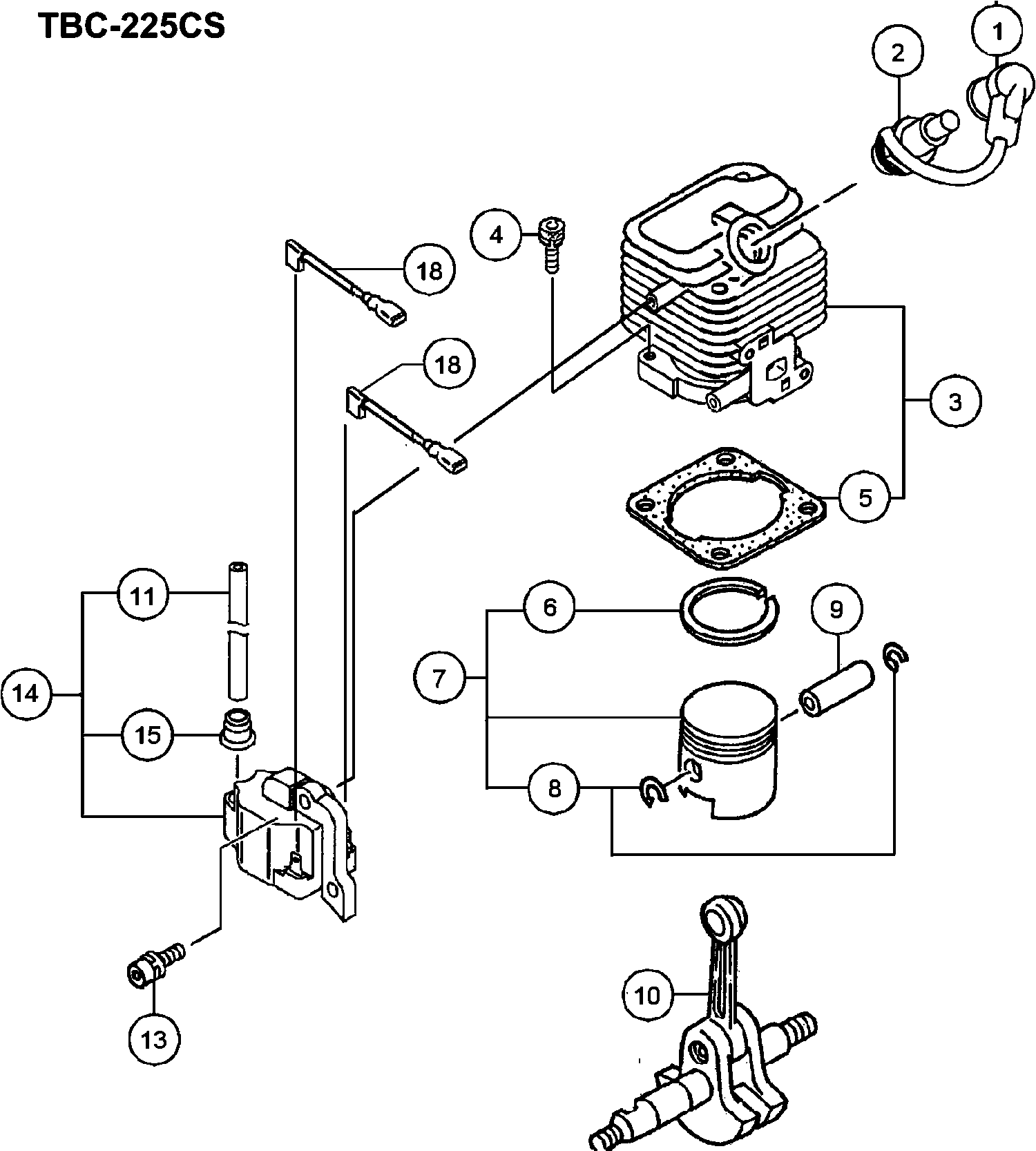

Technical drawing of model Hikoki TBC-225CS
Spare parts list of model Hikoki TBC-225CS
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Spark Plug Cap Ass'y Till G165840 | ||||
| 1 | 6687468 | 2.31 | 2.80 | |
| Spark Plug Ass'y Bpm6a | ||||
| 2 | 6699317 | 6.76 | 8.18 | |
| Cylinder Set (old 001-07130-91) | ||||
| 3 | 6685489 | 34.19 | 41.37 | |
| Hex.hole Bolt M5x18/s | ||||
| 4 | 6684586 | 2.15 | 2.60 | |
| Cylinder Gasket | ||||
| 5 | 6685709 | 1.15 | 1.39 | |
| Piston Ring | ||||
| 6 | 6686118 | 4.45 | 5.38 | |
| Piston Ass'y | ||||
| 7 | 6685869 | 15.58 | 18.85 | |
| Cir Clip | ||||
| 8 | 6684590 | 2.15 | 2.60 | |
| Piston Pin | ||||
| 9 | 6696944 | 3.33 | 4.02 | |
| Crank Shaft Comp. | ||||
| 10 | 6686217 | 42.20 | 51.06 | |
| High Tension Cord 140l Till G165840 | ||||
| 11 | 6687888 | 2.31 | 2.80 | |
| Hex. Hole Bolt 4x15/ps | ||||
| 13 | 6684682 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 14 | 6699772 | |||
| Rubber Cap | ||||
| 15 | 6684602 | 2.15 | 2.60 | |
| Stop Cord Comp. (old 178-0136m-80) | ||||
| 18 | 6687826 | 2.31 | 2.80 | |
| Gear Shaft Shim 0.20 | ||||
| 31 | 6684604 | 2.15 | 2.60 | |
| Gear Shaft Shim 0.30 | ||||
| 31 | 6684605 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 32 | 6686585 | |||
| Oil Seal | ||||
| 33 | 6684607 | 4.29 | 5.19 | |
| Ball Bearing 6001 C3 | ||||
| 34 | 6684608 | 3.80 | 4.60 | |
| Crank Case Gasket | ||||
| 35 | 6686719 | 1.15 | 1.39 | |
| Hex.hole Bolt M5x18/s | ||||
| 36 | 6684586 | 2.15 | 2.60 | |
| Magneto Rotor Comp. | ||||
| 37 | 6601171 | 22.99 | 27.81 | |
| Bolt Washer M8 | ||||
| 38 | 6684611 | 2.15 | 2.60 | |
| Hex. Nut M8 | ||||
| 39 | 6684612 | 2.15 | 2.60 | |
| Inlet Manifold Gasket | ||||
| 51 | 6689890 | 1.15 | 1.39 | |
| Carb Insulator Set | ||||
| 52 | 6689914 | 5.94 | 7.18 | |
| Carburetor Gasket (old 402-0602K-21/6689836) | ||||
| 53 | 6684615 | 2.15 | 2.60 | |
| Hex.hole Bolt 5x22/ws | ||||
| 54 | 6695514 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 57 | 6688174 | |||
| Clip,6.3 Dia. | ||||
| 58 | 6684619 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 59 | 6684620 | |||
| Tank(evapo) Since D001001 | ||||
| 60 | 6691595 | 30.25 | 36.60 | |
| Tank Cap D Ass'y Since K032881 | ||||
| 61 | 6691748 | 7.59 | 9.18 | |
| Collar 5.8 Till G103930 | ||||
| 62 | 6692244 | 1.15 | 1.39 | |
| Carburetor Set Wyl182 Since B023801 | ||||
| 63 | 6690512 | 66.40 | 80.34 | |
| No longer available, no replacement | ||||
| 64 | 6691337 | |||
| Hex. Hole Bolt 5x16/ps | ||||
| 65 | 6695504 | 1.15 | 1.39 | |
| Screw 5x20ws Till G103930 | ||||
| 66 | 6695516 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 68 | 6684880 | |||
| Return Grommet Till 7.2014 | ||||
| 69 | 6697846 | 1.04 | 1.26 | |
| Plus Screw 5x60ws Till Z315900 | ||||
| 71 | 6695431 | 1.15 | 1.39 | |
| O-ring P-15 | ||||
| 72 | 6698966 | 1.04 | 1.26 | |
| Muffler Protector Black (old 738-07162-20) | ||||
| 91 | 6692809 | 5.11 | 6.19 | |
| Screw 4x15ps | ||||
| 92 | 6695373 | 1.15 | 1.39 | |
| Tapping Screw D4.5x12 | ||||
| 94 | 6684637 | 2.15 | 2.60 | |
| Hex. Socket Hd. Bolt M5x50 | ||||
| 95 | 6685114 | 1.15 | 1.39 | |
| Washer M5 (black) | ||||
| 96 | 6684918 | 2.15 | 2.60 | |
| Muffler Set For Aus | ||||
| 98 | 6692496 | 12.54 | 15.17 | |
| Muffler Gasket | ||||
| 100 | 6692745 | 1.15 | 1.39 | |
| Heat Shield | ||||
| 101 | 6687253 | 2.31 | 2.80 | |
| No information available, not orderable | ||||
| 103 | 6684642 | |||
| Clutch Shoe Comp.,t-16 Till F113050 | ||||
| 104 | 6688616 | 7.59 | 9.18 | |
| Clutch Spring Till F113050 | ||||
| 105 | 6689430 | 2.31 | 2.80 | |
| Clutch Plate A 0.5 | ||||
| 106 | 6684645 | 2.15 | 2.60 | |
| Step Bolt Till F113050 | ||||
| 107 | 6689627 | 1.15 | 1.39 | |
| Ring | ||||
| 108 | 6684648 | 2.15 | 2.60 | |
| Hex. Hole Bolt M5x18/ws | ||||
| 110 | 6684647 | 2.15 | 2.60 | |
| Hex.hole Bolt M5x30/ws | ||||
| 112 | 6684973 | 2.15 | 2.60 | |
| Cord Clamp Comp. | ||||
| 113 | 6688011 | 1.15 | 1.39 | |
| Muffler Special Gasket (old 751-04200-20) | ||||
| 114 | 6692883 | 1.15 | 1.39 | |
| Exhaust Pipe Set, Spare For Aus | ||||
| 115 | 6692709 | 2.31 | 2.80 | |
| Ring | ||||
| 116 | 6685109 | 1.15 | 1.39 | |
| Muffler Wire Net Set For Aus | ||||
| 117 | 6692688 | 2.31 | 2.80 | |
| No information available, not orderable | ||||
| 131A | 6699995 | |||
| No information available, not orderable | ||||
| 132 | 6684673 | |||
| Starter Rope 3.5x860 For (s) Type Since 7.2012 Fo | ||||
| 133 | 6684674 | 4.29 | 5.19 | |
| Recoil Spring Till 7.2014 | ||||
| 134 | 6684675 | 11.55 | 13.98 | |
| Starter Rope Reel For (s) Type Since 9.2013 For A | ||||
| 135A | 6699997 | 8.41 | 10.18 | |
| Damper Spring For (s) Type Since 7.2012 For Aus | ||||
| 136 | 6684677 | 8.58 | 10.38 | |
| Cam Plate For (s) Type Since 9.2013 For Aus | ||||
| 137A | 6699996 | 2.55 | 3.09 | |
| Set Screw (old 839-03045-20) | ||||
| 138 | 6684679 | 2.15 | 2.60 | |
| Starter Handle | ||||
| 139 | 6684680 | 2.15 | 2.60 | |
| Starter Pulley Ass'y For (s) Type Since 7.2012 Fo | ||||
| 140 | 6684681 | 13.20 | 15.97 | |
| Hex. Hole Bolt 4x18ws Till H124040 | ||||
| 141 | 6695508 | 1.15 | 1.39 | |
| Stop Ring E-5 Since C237092 | ||||
| 142 | 6684683 | 2.15 | 2.60 | |
| Starter Pawl Spring | ||||
| 143 | 6684684 | 4.29 | 5.19 | |
| Starter Pawl | ||||
| 144 | 6684685 | 4.29 | 5.19 | |
| Till 8.2013 For Aus | ||||
| 145 | 6699691 | 6.10 | 7.38 | |
| Air Cleaner Ass'y (old 410-00025-90) | ||||
| 171 | 6690005 | 9.58 | 11.59 | |
| Air Cleaner Cap | ||||
| 172 | 6690139 | 4.45 | 5.38 | |
| Cleaner Element | ||||
| 173 | 6690347 | 4.45 | 5.38 | |
| Collar | ||||
| 175 | 6690801 | 2.31 | 2.80 | |
| No information available, not orderable | ||||
| 176 | 6690085 | |||
| Pump Body Comp. | ||||
| 191 | 6684879 | 62.16 | 75.22 | |
| Priming Pump Comp. | ||||
| 192 | 6684687 | 16.34 | 19.77 | |
| Diaphragm Cover | ||||
| 193 | 6684688 | 8.58 | 10.38 | |
| Priming Body | ||||
| 194 | 6684689 | 6.44 | 7.79 | |
| Metering Diaphragm Comp. | ||||
| 195 | 6690830 | 11.88 | 14.37 | |
| Diaphragm Gasket | ||||
| 196 | 6684691 | 8.58 | 10.38 | |
| Pump Diaphragm | ||||
| 197 | 6684693 | 8.58 | 10.38 | |
| Pump Gasket (old 577-25100-20) | ||||
| 198 | 6691457 | 7.10 | 8.59 | |
| Main Jet #38 Since B023801 | ||||
| 199 | 6691844 | 4.45 | 5.38 | |
| O-RING (old 550-25100-20) | ||||
| 200 | 6684695 | 4.29 | 5.19 | |
| Stop Ring | ||||
| 201 | 6684696 | 2.15 | 2.60 | |
| Swivel | ||||
| 202 | 6684697 | 6.44 | 7.79 | |
| Throttle Set Screw | ||||
| 203 | 6684698 | 4.29 | 5.19 | |
| Set Screw | ||||
| 204 | 6684699 | 2.15 | 2.60 | |
| Inlet Screen | ||||
| 205 | 6684700 | 4.29 | 5.19 | |
| Clutch Drum Comp (old 6688603) | ||||
| 221 | 6697713 | 11.05 | 13.37 | |
| Tapping Screw D4.5x14 | ||||
| 222 | 6685152 | 1.15 | 1.39 | |
| Hex.hole Bolt M5x30/ws | ||||
| 223 | 6684973 | 2.15 | 2.60 | |
| Fan Housing | ||||
| 224 | 6687031 | 14.53 | 17.58 | |
| Square Nut 5 Till C026900 | ||||
| 225 | 6695176 | 1.15 | 1.39 | |
| Spacer | ||||
| 226 | 6688311 | 1.05 | 1.27 | |
| Main Pipe Set For Irl | ||||
| 261 | 6689610 | 88.33 | 106.87 | |
| Cutter Case Ass'y For Irl | ||||
| 262 | 6685044 | 58.39 | 70.65 | |
| No information available, not orderable | ||||
| 263 | 6689413 | |||
| No information available, not orderable | ||||
| 264 | 6685037 | |||
| Flexible Shaft (a) | ||||
| 265 | 6685038 | 17.70 | 21.42 | |
| No information available, not orderable | ||||
| 266 | 6698339 | |||
| Ball Bearing 608 Zz C3 | ||||
| 267 | 6695547 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 268 | 6685014 | |||
| Bolt M5x10 For Irl | ||||
| 269 | 6684994 | 1.15 | 1.39 | |
| Cutter Case For Irl | ||||
| 270 | 6685042 | 24.20 | 29.28 | |
| Hex. Bolt M5x30 For Irl | ||||
| 271 | 6684996 | 1.15 | 1.39 | |
| Ring | ||||
| 272 | 6684971 | 1.04 | 1.26 | |
| Ring | ||||
| 273 | 6685001 | 1.15 | 1.39 | |
| Cutter Holder (a) | ||||
| 274 | 6685073 | 4.45 | 5.38 | |
| No information available, not orderable | ||||
| 275 | 6685016 | |||
| No information available, not orderable | ||||
| 276 | 6685030 | |||
| Ring | ||||
| 277 | 6684639 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 278 | 6684792 | |||
| Plus Bolt M6x45 | ||||
| 279 | 6684995 | 1.15 | 1.39 | |
| Knife | ||||
| 280 | 6685015 | 2.31 | 2.80 | |
| Tapping Screw D5x16 | ||||
| 281 | 6685074 | 1.15 | 1.39 | |
| Holder, Pipe Blk | ||||
| 282 | 6689501 | 2.31 | 2.80 | |
| No information available, not orderable | ||||
| 283 | 6685032 | |||
| Front Handle 22 For Irl | ||||
| 321 | 6685041 | 20.11 | 24.34 | |
| No information available, not orderable | ||||
| 322 | 6685075 | |||
| Hex.hole Bolt 5x30s | ||||
| 323 | 6695426 | 1.15 | 1.39 | |
| Throttle Lever Assy 22 For Irl | ||||
| 324 | 6693772 | 30.25 | 36.60 | |
| Throttle Wire (old 885-38451-81) | ||||
| 325 | 6693983 | 3.30 | 3.99 | |
| Throttle Lever | ||||
| 326 | 6685006 | 1.15 | 1.39 | |
| Return Spring | ||||
| 327 | 6684998 | 1.15 | 1.39 | |
| Stop Switch | ||||
| 328 | 6685009 | 2.31 | 2.80 | |
| Switch Mark | ||||
| 329 | 6685003 | 1.15 | 1.39 | |
| Stop Switch Comp. | ||||
| 330 | 6687462 | 9.40 | 11.37 | |
| Machine Screw M5x30 | ||||
| 331 | 6685076 | 1.15 | 1.39 | |
| Nut M5 | ||||
| 332 | 6684965 | 1.04 | 1.26 | |
| Tapping Screw D5x14 Since C026901 Till F024130 | ||||
| 333 | 6685275 | 1.15 | 1.39 | |
| Protection Tube D7x170 | ||||
| 334 | 6685007 | 2.31 | 2.80 | |
| No information available, not orderable | ||||
| 501 | 6684813 | |||
| No information available, not orderable | ||||
| 502 | 6684764 | |||
| No information available, not orderable | ||||
| 601 | 6694648 | |||
