Here you will find all available parts and drawings of the 'Hikoki TBC-225C'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

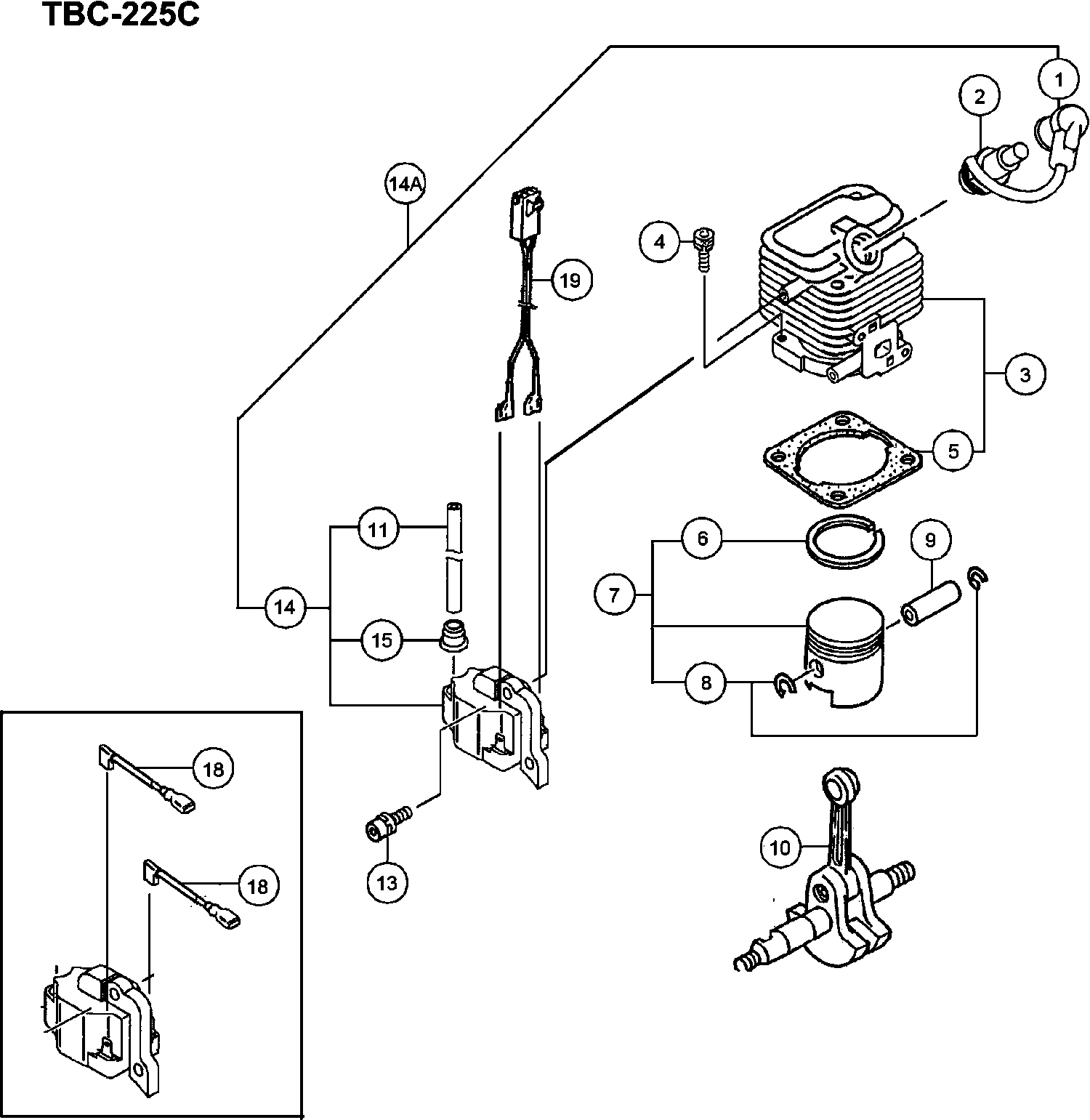

Technical drawing of model Hikoki TBC-225C
Spare parts list of model Hikoki TBC-225C
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Spark Plug Cap Ass'y Till G165840 | ||||
| 1 | 6687468 | 2.31 | 2.80 | |
| Spark Plug Ass'y Bpm6a | ||||
| 2 | 6699317 | 6.76 | 8.18 | |
| Spark Plug Ass'y Rcj8y | ||||
| 2 | 6699328 | 3.30 | 3.99 | |
| Cylinder Set (old 001-07130-91) | ||||
| 3 | 6685489 | 34.19 | 41.37 | |
| Hex.hole Bolt M5x18/s | ||||
| 4 | 6684586 | 2.15 | 2.60 | |
| Cylinder Gasket | ||||
| 5 | 6685709 | 1.15 | 1.39 | |
| Piston Ring | ||||
| 6 | 6686118 | 4.45 | 5.38 | |
| Piston Ass'y | ||||
| 7 | 6685869 | 15.58 | 18.85 | |
| Cir Clip | ||||
| 8 | 6684590 | 2.15 | 2.60 | |
| Piston Pin | ||||
| 9 | 6696944 | 3.33 | 4.02 | |
| Crank Shaft Comp. | ||||
| 10 | 6686217 | 42.20 | 51.06 | |
| High Tension Cord 140l Till G165840 | ||||
| 11 | 6687888 | 2.31 | 2.80 | |
| Hex. Hole Bolt 4x15/ps | ||||
| 13 | 6684682 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 14 | 6699772 | |||
| No information available, not orderable | ||||
| 14A | 6697638 | |||
| Rubber Cap | ||||
| 15 | 6684602 | 2.15 | 2.60 | |
| Stop Cord Comp. (old 178-0136m-80) | ||||
| 18 | 6687826 | 2.31 | 2.80 | |
| Lead Wire Ass'y | ||||
| 19 | 6697836 | 5.45 | 6.59 | |
| Gear Shaft Shim 0.20 | ||||
| 31 | 6684604 | 2.15 | 2.60 | |
| Gear Shaft Shim 0.30 | ||||
| 31 | 6684605 | 2.15 | 2.60 | |
| Gear shaft shim 0.10 (old 330-00200-21) | ||||
| 31 | 6689177 | 1.15 | 1.39 | |
| Gear shaft shim 0.15 (old 330-00200-22) | ||||
| 31 | 6689178 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 32 | 6686585 | |||
| Oil Seal | ||||
| 33 | 6684607 | 4.29 | 5.19 | |
| Ball Bearing 6001 C3 | ||||
| 34 | 6684608 | 3.80 | 4.60 | |
| Crank Case Gasket | ||||
| 35 | 6686719 | 1.15 | 1.39 | |
| Hex.hole Bolt M5x18/s | ||||
| 36 | 6684586 | 2.15 | 2.60 | |
| Magneto Rotor Comp. | ||||
| 37 | 6601171 | 22.99 | 27.81 | |
| No information available, not orderable | ||||
| 37A | 6696928 | |||
| Bolt Washer M8 | ||||
| 38 | 6684611 | 2.15 | 2.60 | |
| Hex. Nut M8 | ||||
| 39 | 6684612 | 2.15 | 2.60 | |
| Inlet Manifold Gasket | ||||
| 51 | 6689890 | 1.15 | 1.39 | |
| Carb Insulator Set | ||||
| 52 | 6689914 | 5.94 | 7.18 | |
| Carburetor Gasket (old 402-0602K-21/6689836) | ||||
| 53 | 6684615 | 2.15 | 2.60 | |
| Hex.hole Bolt 5x22/ws | ||||
| 54 | 6695514 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 57 | 6688174 | |||
| Clip D6 | ||||
| 58 | 6685198 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 59 | 6684620 | |||
| No longer available, no replacement | ||||
| 60 | 6691592 | |||
| No information available, not orderable | ||||
| 61 | 6685049 | |||
| Tank Cap D Ass'y Since K032881 | ||||
| 61A | 6691748 | 7.59 | 9.18 | |
| Collar 5.8 Till G103930 | ||||
| 62 | 6692244 | 1.15 | 1.39 | |
| Carburetor Set Wyl182 Since B023801 | ||||
| 63 | 6690512 | 66.40 | 80.34 | |
| Carburetor Set Wyl189 Till B023800 | ||||
| 63 | 6690513 | 50.21 | 60.76 | |
| No longer available, no replacement | ||||
| 64 | 6691337 | |||
| Hex. Hole Bolt 5x16/ps | ||||
| 65 | 6695504 | 1.15 | 1.39 | |
| Bolt (w/flange) L17.8 Since G103931 | ||||
| 65A | 6696574 | 1.05 | 1.27 | |
| Screw 5x20ws Till G103930 | ||||
| 66 | 6695516 | 1.15 | 1.39 | |
| Bolt (w/flange) L 17.8 | ||||
| 66A | 6698511 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 67 | 6684625 | |||
| No longer available, no replacement | ||||
| 68 | 6684880 | |||
| Return Grommet Till 7.2014 | ||||
| 69 | 6697846 | 1.04 | 1.26 | |
| Plus Screw 5x60ws Till Z315900 | ||||
| 71 | 6695431 | 1.15 | 1.39 | |
| O-ring P-15 | ||||
| 72 | 6698966 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 73A | 6601155 | |||
| Tank Cap D Ass'y Since K032881 | ||||
| 74 | 6691748 | 7.59 | 9.18 | |
| Muffler Protector Black (old 738-07162-20) | ||||
| 91 | 6692809 | 5.11 | 6.19 | |
| Screw 4x15ps | ||||
| 92 | 6695373 | 1.15 | 1.39 | |
| Tapping Screw D4.5x12 | ||||
| 94 | 6684637 | 2.15 | 2.60 | |
| Hex. Socket Hd. Bolt M5x50 | ||||
| 95 | 6685114 | 1.15 | 1.39 | |
| Washer M5 (black) | ||||
| 96 | 6684918 | 2.15 | 2.60 | |
| Muffler Set | ||||
| 98 | 6692487 | 11.88 | 14.37 | |
| Muffler Set For Aus | ||||
| 98A | 6692496 | 12.54 | 15.17 | |
| Muffler Set For Aus | ||||
| 99 | 6692496 | 12.54 | 15.17 | |
| Muffler Gasket | ||||
| 100 | 6692745 | 1.15 | 1.39 | |
| Heat Shield | ||||
| 101 | 6687253 | 2.31 | 2.80 | |
| No information available, not orderable | ||||
| 103 | 6697619 | |||
| Clutch Shoe Comp.,t-16 Till F113050 | ||||
| 104 | 6688616 | 7.59 | 9.18 | |
| CLUTCH ARM COMP 54 NEW | ||||
| 104A | 6697161 | 6.90 | 8.35 | |
| Clutch Spring Till F113050 | ||||
| 105 | 6689430 | 2.31 | 2.80 | |
| No information available, not orderable | ||||
| 105A | 6697618 | |||
| Clutch Plate (a) | ||||
| 106 | 6689528 | 1.15 | 1.39 | |
| Step Bolt Till F113050 | ||||
| 107 | 6689627 | 1.15 | 1.39 | |
| Step Bolt | ||||
| 107A | 6684646 | 2.15 | 2.60 | |
| Ring | ||||
| 108 | 6684648 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 109 | 6696932 | |||
| Hex. Hole Bolt M5x18/ws | ||||
| 110 | 6684647 | 2.15 | 2.60 | |
| Hex.hole Bolt M5x30/ws | ||||
| 112 | 6684973 | 2.15 | 2.60 | |
| Cord Clamp Comp. | ||||
| 113 | 6688011 | 1.15 | 1.39 | |
| Muffler Special Gasket (old 751-04200-20) | ||||
| 114 | 6692883 | 1.15 | 1.39 | |
| Exhaust Pipe Set, Spare For Aus | ||||
| 115 | 6692709 | 2.31 | 2.80 | |
| Ring | ||||
| 116 | 6685109 | 1.15 | 1.39 | |
| Muffler Wire Net Set For Aus | ||||
| 117 | 6692688 | 2.31 | 2.80 | |
| Recoil Starter Body Ass'y Includ.183-190 Till Eo9 | ||||
| 131 | 6684938 | 23.45 | 28.37 | |
| Recoil Starter Body Comp. Since En90001(till 10.2 | ||||
| 132 | 6684944 | 17.24 | 20.86 | |
| Starter Rope Reel Since En90001(till 10.2012 For | ||||
| 133 | 6684941 | 6.44 | 7.79 | |
| Recoil Spring Till Eo99999 | ||||
| 134 | 6684942 | 9.40 | 11.37 | |
| Swing Arm Till Eo99999 | ||||
| 135 | 6684940 | 2.15 | 2.60 | |
| Set Screw (old 839-03045-20) | ||||
| 136 | 6684679 | 2.15 | 2.60 | |
| Pulley Stay Till Eo99999 | ||||
| 137 | 6684939 | 2.15 | 2.60 | |
| Rope 3.0x800 Till Eo99999 | ||||
| 138 | 6684943 | 4.29 | 5.19 | |
| Starter Handle | ||||
| 139 | 6684680 | 2.15 | 2.60 | |
| No longer available, no replacement | ||||
| 140 | 6685000 | |||
| Starter Pulley Till Eo99999 | ||||
| 141 | 6684937 | 6.44 | 7.79 | |
| Hex. Hole Bolt 4x15/ps | ||||
| 142 | 6684682 | 2.15 | 2.60 | |
| Air Cleaner Ass'y (old 410-00025-90) | ||||
| 171 | 6690005 | 9.58 | 11.59 | |
| Air Cleaner Cap | ||||
| 172 | 6690139 | 4.45 | 5.38 | |
| Cleaner Element | ||||
| 173 | 6690347 | 4.45 | 5.38 | |
| Collar | ||||
| 175 | 6690801 | 2.31 | 2.80 | |
| No information available, not orderable | ||||
| 176 | 6690085 | |||
| Pump Body Comp. | ||||
| 191 | 6684879 | 62.16 | 75.22 | |
| Priming Pump Comp. | ||||
| 192 | 6684687 | 16.34 | 19.77 | |
| Diaphragm Cover | ||||
| 193 | 6684688 | 8.58 | 10.38 | |
| Priming Body | ||||
| 194 | 6684689 | 6.44 | 7.79 | |
| Metering Diaphragm Comp. | ||||
| 195 | 6690830 | 11.88 | 14.37 | |
| Diaphragm Gasket | ||||
| 196 | 6684691 | 8.58 | 10.38 | |
| Pump Diaphragm | ||||
| 197 | 6684693 | 8.58 | 10.38 | |
| Pump Gasket (old 577-25100-20) | ||||
| 198 | 6691457 | 7.10 | 8.59 | |
| Main Jet #38 Since B023801 | ||||
| 199 | 6691844 | 4.45 | 5.38 | |
| Main Jet #40 Till B023800 | ||||
| 199 | 6691845 | 4.45 | 5.38 | |
| O-RING (old 550-25100-20) | ||||
| 200 | 6684695 | 4.29 | 5.19 | |
| Stop Ring | ||||
| 201 | 6684696 | 2.15 | 2.60 | |
| Swivel | ||||
| 202 | 6684697 | 6.44 | 7.79 | |
| Throttle Set Screw | ||||
| 203 | 6684698 | 4.29 | 5.19 | |
| Set Screw | ||||
| 204 | 6684699 | 2.15 | 2.60 | |
| Inlet Screen | ||||
| 205 | 6684700 | 4.29 | 5.19 | |
| Throttle Valve Till B023800 | ||||
| 206 | 6684883 | 18.75 | 22.69 | |
| Clutch Drum Comp (old 6688603) | ||||
| 221 | 6697713 | 11.05 | 13.37 | |
| Tapping Screw D4.5x14 | ||||
| 222 | 6685152 | 1.15 | 1.39 | |
| Hex.hole Bolt M5x30/ws | ||||
| 223 | 6684973 | 2.15 | 2.60 | |
| Fan Housing | ||||
| 224 | 6687031 | 14.53 | 17.58 | |
| Square Nut 5 Till C026900 | ||||
| 225 | 6695176 | 1.15 | 1.39 | |
| Spacer | ||||
| 226 | 6688311 | 1.05 | 1.27 | |
| Main Pipe Set For Irl | ||||
| 261 | 6689610 | 88.33 | 106.87 | |
| Cutter Case Ass'y For Irl | ||||
| 262 | 6685044 | 58.39 | 70.65 | |
| No information available, not orderable | ||||
| 263 | 6689413 | |||
| No information available, not orderable | ||||
| 264 | 6685037 | |||
| Flexible Shaft (a) | ||||
| 265 | 6685038 | 17.70 | 21.42 | |
| No information available, not orderable | ||||
| 266 | 6698339 | |||
| Ball Bearing 608 Zz C3 | ||||
| 267 | 6695547 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 268 | 6685014 | |||
| Bolt M5x10 For Irl | ||||
| 269 | 6684994 | 1.15 | 1.39 | |
| Cutter Case For Irl | ||||
| 270 | 6685042 | 24.20 | 29.28 | |
| Hex. Bolt M5x30 For Irl | ||||
| 271 | 6684996 | 1.15 | 1.39 | |
| Ring | ||||
| 272 | 6684971 | 1.04 | 1.26 | |
| Ring | ||||
| 273 | 6685001 | 1.15 | 1.39 | |
| Cutter Holder (a) | ||||
| 274 | 6685073 | 4.45 | 5.38 | |
| No information available, not orderable | ||||
| 275 | 6685016 | |||
| No information available, not orderable | ||||
| 276 | 6685030 | |||
| Ring | ||||
| 277 | 6684639 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 278 | 6684792 | |||
| Plus Bolt M6x45 | ||||
| 279 | 6684995 | 1.15 | 1.39 | |
| Knife | ||||
| 280 | 6685015 | 2.31 | 2.80 | |
| Tapping Screw D5x16 | ||||
| 281 | 6685074 | 1.15 | 1.39 | |
| Holder, Pipe Blk | ||||
| 282 | 6689501 | 2.31 | 2.80 | |
| No information available, not orderable | ||||
| 283 | 6685032 | |||
| Front Handle 22 For Irl | ||||
| 321 | 6685041 | 20.11 | 24.34 | |
| No information available, not orderable | ||||
| 322 | 6685075 | |||
| Hex.hole Bolt 5x30s | ||||
| 323 | 6695426 | 1.15 | 1.39 | |
| Throttle Lever Assy 22 For Irl | ||||
| 324 | 6693772 | 30.25 | 36.60 | |
| Throttle Wire (old 885-38451-81) | ||||
| 325 | 6693983 | 3.30 | 3.99 | |
| Throttle Lever | ||||
| 326 | 6685006 | 1.15 | 1.39 | |
| Return Spring | ||||
| 327 | 6684998 | 1.15 | 1.39 | |
| Stop Switch | ||||
| 328 | 6685009 | 2.31 | 2.80 | |
| Switch Mark | ||||
| 329 | 6685003 | 1.15 | 1.39 | |
| Stop Switch Comp. | ||||
| 330 | 6687462 | 9.40 | 11.37 | |
| Machine Screw M5x30 | ||||
| 331 | 6685076 | 1.15 | 1.39 | |
| Nut M5 | ||||
| 332 | 6684965 | 1.04 | 1.26 | |
| Tapping Screw D5x14 Since C026901 Till F024130 | ||||
| 333 | 6685275 | 1.15 | 1.39 | |
| Protection Tube D7x170 | ||||
| 334 | 6685007 | 2.31 | 2.80 | |
| Throttle Lever Ass'y (old 870-38449-90) | ||||
| 335 | 6693769 | 36.15 | 43.74 | |
| Throttle Wire Comp. | ||||
| 336 | 6693982 | 19.96 | 24.15 | |
| Throttle Wire 4t | ||||
| 337 | 6694025 | 8.41 | 10.18 | |
| No information available, not orderable | ||||
| 338 | 6687452 | |||
| Protection Tube 7x145l | ||||
| 339 | 6687523 | 1.05 | 1.27 | |
| No longer available, no replacement | ||||
| 340 | 6684721 | |||
| Return Spring | ||||
| 341 | 6684722 | 2.15 | 2.60 | |
| Blind Plug | ||||
| 342 | 6684724 | 2.15 | 2.60 | |
| Screw M5x20 | ||||
| 343 | 6684803 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 344 | 6684727 | |||
| Screw M4x20 (black) | ||||
| 345 | 6684725 | 2.15 | 2.60 | |
| Throttle Lever | ||||
| 346 | 6684804 | 8.58 | 10.38 | |
| No information available, not orderable | ||||
| 347 | 6684794 | |||
| Throttle Lever | ||||
| 348 | 6685006 | 1.15 | 1.39 | |
| Return Spring | ||||
| 349 | 6684998 | 1.15 | 1.39 | |
| Stop Switch | ||||
| 350 | 6685009 | 2.31 | 2.80 | |
| Switch Mark | ||||
| 351 | 6685003 | 1.15 | 1.39 | |
| Stop Switch Comp. | ||||
| 352 | 6687462 | 9.40 | 11.37 | |
| Machine Screw M5x30 | ||||
| 353 | 6685076 | 1.15 | 1.39 | |
| Nut M5 | ||||
| 354 | 6684965 | 1.04 | 1.26 | |
| Tapping Screw D5x14 Since C026901 Till F024130 | ||||
| 355 | 6685275 | 1.15 | 1.39 | |
| Protection Tube D7x170 | ||||
| 356 | 6685007 | 2.31 | 2.80 | |
| Throttle Lever Assy 22 For Irl | ||||
| 357 | 6693772 | 30.25 | 36.60 | |
| Throttle Wire (old 885-38451-81) | ||||
| 358 | 6693983 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 501 | 6684813 | |||
| No information available, not orderable | ||||
| 502 | 6684764 | |||
| N/h Nb4 Rm8x1.25 (old 783-38474-90) | ||||
| 503 | 6695726 | 28.14 | 34.05 | |
| No information available, not orderable | ||||
| 504 | 6693274 | |||
| Mounting Nut R/h For Irl | ||||
| 505 | 6689626 | 2.31 | 2.80 | |
| No information available, not orderable | ||||
| 506 | 6693293 | |||
| Reel Spring For Irl | ||||
| 507 | 6693379 | 1.15 | 1.39 | |
| Reel Slider For Irl | ||||
| 508 | 6689852 | 2.31 | 2.80 | |
| Eyelet For Irl | ||||
| 509 | 6693329 | 1.15 | 1.39 | |
| Body Cap For Irl | ||||
| 510 | 6693339 | 4.45 | 5.38 | |
| Disk For Irl | ||||
| 511 | 6689906 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 512 | 6695336 | |||
