Here you will find all available parts and drawings of the 'Hikoki SV13YB'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

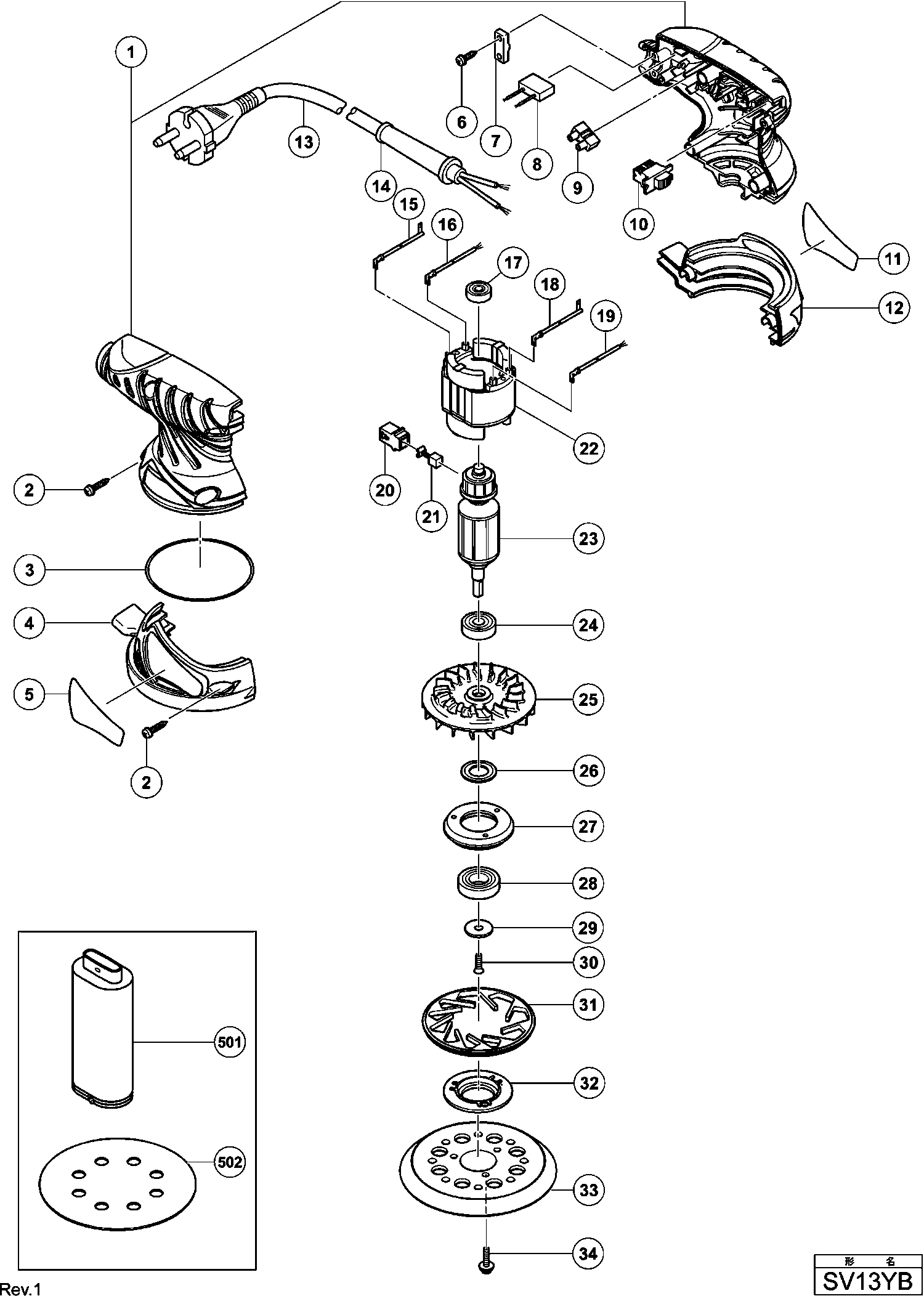

Technical drawing of model Hikoki SV13YB
Spare parts list of model Hikoki SV13YB
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Housing (a).(b) Set | ||||
| *1 | 324214 | 36.16 | 43.76 | |
| No longer available, no replacement | ||||
| *13 | 500423Z | |||
| Stator 220v-230v | ||||
| *22 | 340618E | 24.75 | 29.95 | |
| FIELD 110 VOLT | ||||
| *22 | 340618C | 23.10 | 27.95 | |
| Armature 230v | ||||
| *23 | 360698E | 41.80 | 50.58 | |
| ARMATURE 110 V | ||||
| *23 | 360698C | 39.05 | 47.25 | |
| No information available, not orderable | ||||
| *501 | 323004M | |||
| Housing (a).(b) Set | ||||
| 1 | 324214 | 36.16 | 43.76 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 2 | 301653 | 1.04 | 1.26 | |
| O-ring | ||||
| 3 | 993195 | 2.40 | 2.90 | |
| Lower Cover (b) | ||||
| 4 | 324207 | 7.05 | 8.53 | |
| No information available, not orderable | ||||
| 6 | 984750 | |||
| Cord Clip | ||||
| 7 | 937631 | 1.04 | 1.26 | |
| Noise Suppressor | ||||
| 8 | 930039 | 1.95 | 2.36 | |
| Pillar Terminal Till 10.1999 For Aus | ||||
| 9 | 938307 | 2.13 | 2.57 | |
| Switch | ||||
| 10 | 311948 | 12.15 | 14.70 | |
| Lower Cover (a) | ||||
| 12 | 324206 | 7.05 | 8.53 | |
| Cord (cord Armor D8.8) For Uae (240v) | ||||
| 13 | 500461Z | 17.88 | 21.63 | |
| Cord (cord Armor D8.8) For Mex | ||||
| 13 | 500240Z | 13.18 | 15.94 | |
| No information available, not orderable | ||||
| 14 | 953327 | |||
| Internal Wire (brown) | ||||
| 15 | 322764 | 2.10 | 2.54 | |
| Tab Terminal (blue) | ||||
| 16 | 322761 | 1.05 | 1.27 | |
| Ball Bearing 626vvc2ps2l | ||||
| 17 | 626VVM | 5.70 | 6.90 | |
| Internal Wire (blue) | ||||
| 18 | 322763 | 2.10 | 2.54 | |
| No information available, not orderable | ||||
| 19 | 322762 | |||
| Carbon Brush Holder | ||||
| 20 | 930483 | 1.65 | 2.00 | |
| Carbon Brush (1 Pair) | ||||
| 21 | 999041 | 4.50 | 5.44 | |
| Stator 220v-230v | ||||
| 22 | 340618E | 24.75 | 29.95 | |
| FIELD 110 VOLT | ||||
| 22 | 340618C | 23.10 | 27.95 | |
| Armature 230v | ||||
| 23 | 360698E | 41.80 | 50.58 | |
| ARMATURE 110 V | ||||
| 23 | 360698C | 39.05 | 47.25 | |
| Ball Bearing 629vv | ||||
| 24 | 629VVM | 5.85 | 7.08 | |
| Balance Fan | ||||
| 25 | 324521 | 5.10 | 6.17 | |
| Dust Washer | ||||
| 26 | 324208 | 1.05 | 1.27 | |
| Bearing Holder | ||||
| 27 | 324212 | 7.35 | 8.89 | |
| Ball bearing 6002ddwcmps2l | ||||
| 28 | 6002DW | 10.80 | 13.07 | |
| Ball Bearing 6002ddcmps2l | ||||
| 28A | 6002DD | 7.05 | 8.53 | |
| Ring | ||||
| 29 | 309422 | 1.04 | 1.26 | |
| SEAL LOCK PLATE SCREW M4X12 | ||||
| 30 | 993244 | 1.05 | 1.27 | |
| No longer available, no replacement | ||||
| 31 | 324210 | |||
| BRAKE DISC (OLD 324210) | ||||
| 31A | 373433 | 2.70 | 3.27 | |
| Bearing Cover | ||||
| 32 | 324211 | 5.10 | 6.17 | |
| No information available, not orderable | ||||
| 33 | 753811 | |||
| No information available, not orderable | ||||
| 33A | 376692 | |||
| Seal Lock Screw (w/washers) M4x16 (black) | ||||
| 34 | 307109 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 501 | 323004 | |||
| No information available, not orderable | ||||
| 502 | 308519 | |||
| No information available, not orderable | ||||
| 601 | 308516 | |||
| No information available, not orderable | ||||
| 602 | 308517 | |||
| No information available, not orderable | ||||
| 603 | 308518 | |||
| No information available, not orderable | ||||
| 604 | 308520 | |||
| No information available, not orderable | ||||
| 605 | 308521 | |||
| No information available, not orderable | ||||
| 606 | 308522 | |||
| No information available, not orderable | ||||
| 607 | 308523 | |||
| No information available, not orderable | ||||
| 608 | 308515 | |||
| No information available, not orderable | ||||
| 609 | 312518 | |||
| No longer available, no replacement | ||||
| 610 | 339236 | |||
