Here you will find all available parts and drawings of the 'Hikoki SV12SH'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

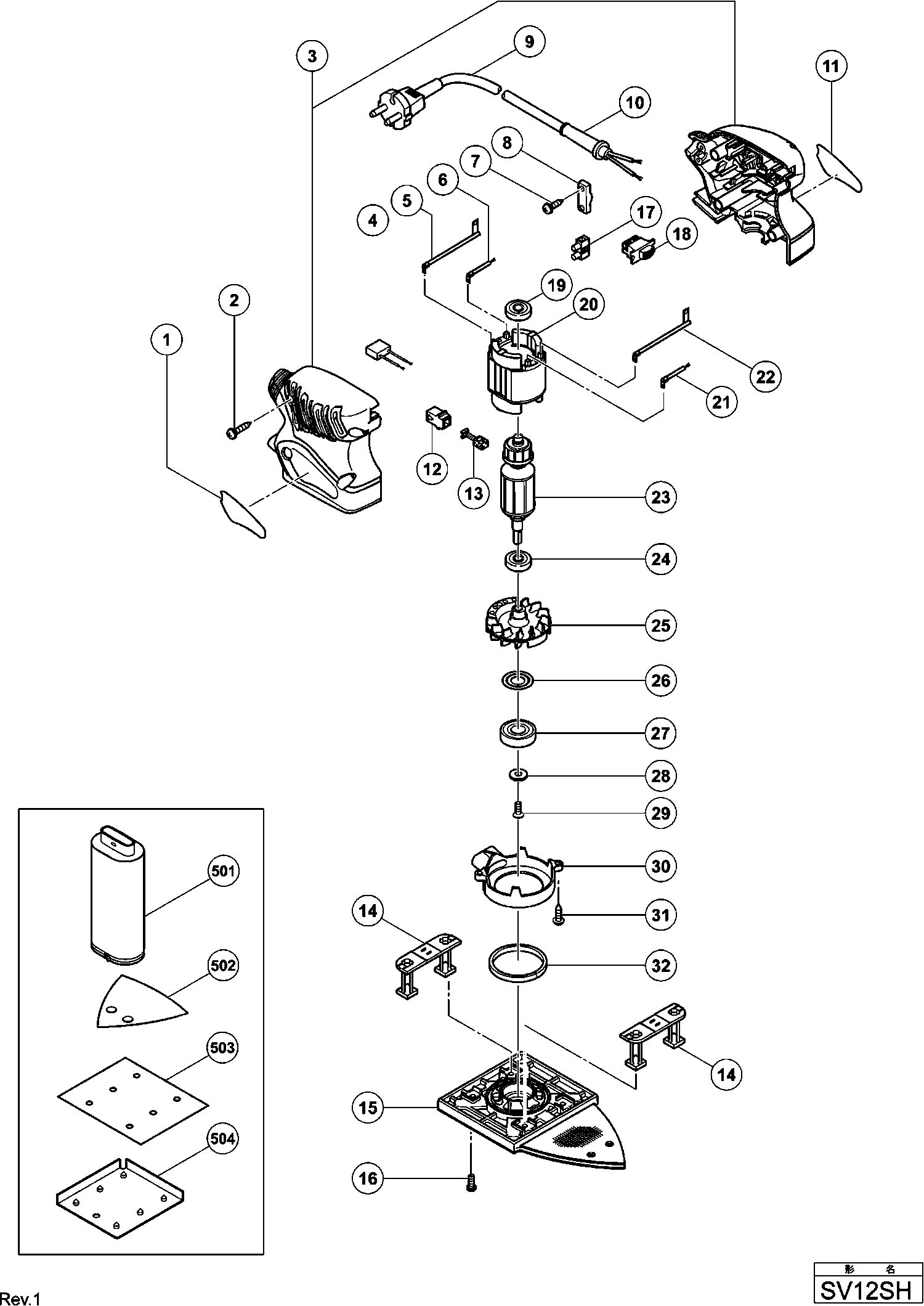

Technical drawing of model Hikoki SV12SH
Spare parts list of model Hikoki SV12SH
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Stator 220v-230v | ||||
| *20 | 340578E | 22.83 | 27.62 | |
| Armature 230v | ||||
| *23 | 360637E | 45.65 | 55.24 | |
| No information available, not orderable | ||||
| *501 | 310339 | |||
| No longer available, no replacement | ||||
| *606 | 339236 | |||
| No information available, not orderable | ||||
| *9 | 500439Z | |||
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 2 | 301653 | 1.04 | 1.26 | |
| Housing (a).(b) Set | ||||
| 3 | 322766 | 36.03 | 43.59 | |
| Noise Suppressor | ||||
| 4 | 930039 | 1.95 | 2.36 | |
| Internal Wire (brown) | ||||
| 5 | 322764 | 2.10 | 2.54 | |
| Tab Terminal (blue) | ||||
| 6 | 322761 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 7 | 984750 | |||
| Cord Clip | ||||
| 8 | 937631 | 1.04 | 1.26 | |
| Cord (cord Armor D8.8) For Uae (240v) | ||||
| 9 | 500461Z | 17.88 | 21.63 | |
| Cord (cord Armor D8.8) For Mex | ||||
| 9 | 500240Z | 13.18 | 15.94 | |
| No information available, not orderable | ||||
| 10 | 953327 | |||
| Carbon Brush Holder | ||||
| 12 | 930483 | 1.65 | 2.00 | |
| Carbon Brush (1 Pair) | ||||
| 13 | 999041 | 4.50 | 5.44 | |
| Leg | ||||
| 14 | 322756 | 4.80 | 5.81 | |
| No information available, not orderable | ||||
| 15 | 324141 | |||
| Seal Lock Screw M4x10 | ||||
| 16 | 324082 | 1.65 | 2.00 | |
| Pillar Terminal Till 10.1999 For Aus | ||||
| 17 | 938307 | 2.13 | 2.57 | |
| Switch | ||||
| 18 | 311948 | 12.15 | 14.70 | |
| Ball Bearing 626vvc2ps2l | ||||
| 19 | 626VVM | 5.70 | 6.90 | |
| Stator 220v-230v | ||||
| 20 | 340578E | 22.83 | 27.62 | |
| No information available, not orderable | ||||
| 21 | 322762 | |||
| Internal Wire (blue) | ||||
| 22 | 322763 | 2.10 | 2.54 | |
| Armature 230v | ||||
| 23 | 360637E | 45.65 | 55.24 | |
| Ball Bearing 629vv | ||||
| 24 | 629VVM | 5.85 | 7.08 | |
| Balance Fan | ||||
| 25 | 324140 | 6.60 | 7.99 | |
| Dust Ring | ||||
| 26 | 993052 | 1.05 | 1.27 | |
| Ball Bearing 6001dducmps2s (old 980925) | ||||
| 27 | 6001DD | 6.45 | 7.80 | |
| Washer | ||||
| 28 | 987169 | 1.04 | 1.26 | |
| SEAL LOCK PLATE SCREW M4X12 | ||||
| 29 | 993244 | 1.05 | 1.27 | |
| Fan Guide | ||||
| 30 | 322758 | 2.10 | 2.54 | |
| No information available, not orderable | ||||
| 31 | 984750 | |||
| Felt Washer | ||||
| 32 | 311946 | 1.35 | 1.63 | |
| No information available, not orderable | ||||
| 501 | 323004 | |||
| No information available, not orderable | ||||
| 501A | 323004M | |||
| No information available, not orderable | ||||
| 502 | 323969 | |||
| No information available, not orderable | ||||
| 503 | 310345 | |||
| No information available, not orderable | ||||
| 601 | 310340 | |||
| No information available, not orderable | ||||
| 602 | 323968 | |||
| No information available, not orderable | ||||
| 603 | 323970 | |||
| No information available, not orderable | ||||
| 604 | 310344 | |||
| No information available, not orderable | ||||
| 605 | 310346 | |||
| No longer available, no replacement | ||||
| 606 | 339236 | |||
