Here you will find all available parts and drawings of the 'Hikoki SV12SE'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

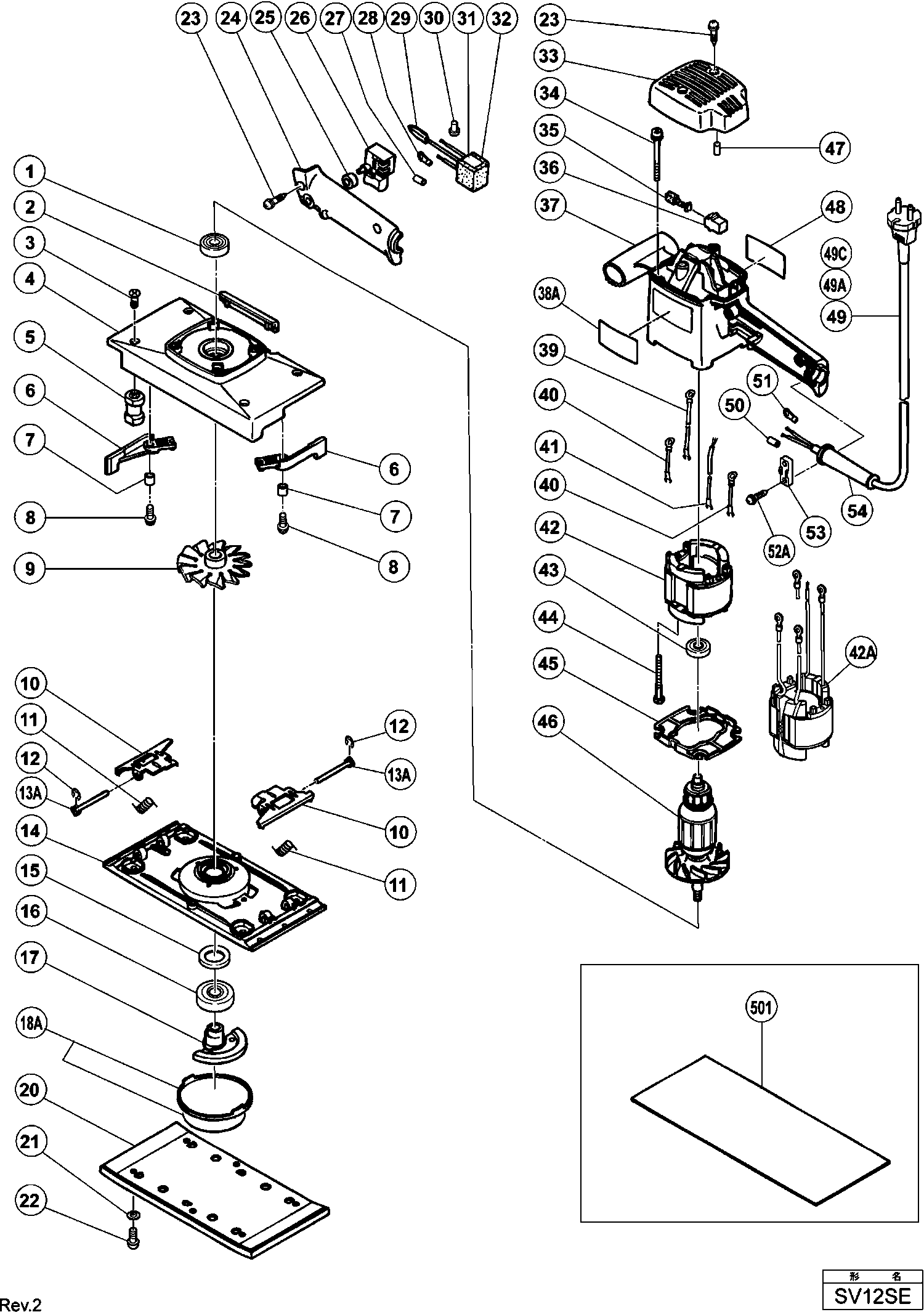

Technical drawing of model Hikoki SV12SE
Spare parts list of model Hikoki SV12SE
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Switch | ||||
| *26 | 957747 | 14.03 | 16.97 | |
| Switch (c) (1p Screw Type) | ||||
| *26 | 302477 | 10.95 | 13.25 | |
| connecting terminal | ||||
| *28 | 980063 | 1.04 | 1.26 | |
| Holder | ||||
| *32 | 963243 | 1.05 | 1.27 | |
| Rubber | ||||
| *32 | 930153 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| *39 | 313675 | |||
| Internal wire | ||||
| *41 | 300175 | 1.50 | 1.82 | |
| No information available, not orderable | ||||
| *42A | 340719N | |||
| Armature 220v-230v | ||||
| *46 | 360124E | 102.16 | 123.62 | |
| No information available, not orderable | ||||
| *49 | 500439Z | |||
| Cord (cord Armor D8.8) For Pan | ||||
| *49A | 500447Z | 6.60 | 7.99 | |
| Cord Armor D10.1 | ||||
| *54 | 938051 | 1.04 | 1.26 | |
| Ball Bearing 6001dducmps2s (old 980925) | ||||
| 1 | 6001DD | 6.45 | 7.80 | |
| Cover Piece | ||||
| 2 | 300191 | 1.65 | 2.00 | |
| Seal Lock Flat Hd. Screw M5x14 | ||||
| 3 | 992013 | 1.05 | 1.27 | |
| Frame | ||||
| 4 | 300172 | 28.60 | 34.61 | |
| Bump Rubber | ||||
| 5 | 300317 | 4.50 | 5.44 | |
| Paper Holder Lever | ||||
| 6 | 300161 | 2.55 | 3.09 | |
| Spacer bushing | ||||
| 7 | 953066 | 1.05 | 1.27 | |
| Machine Screw (w/washers) M4x16 | ||||
| 8 | 993539 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 9 | 300192 | |||
| Paper Holder | ||||
| 10 | 300162 | 2.40 | 2.90 | |
| Spring | ||||
| 11 | 953320 | 1.05 | 1.27 | |
| Retaining Ring (e-type) For D3 Shaft Till 6.1998 | ||||
| 12 | 872971 | 1.05 | 1.27 | |
| Holder Bar | ||||
| 13A | 316549 | 3.30 | 3.99 | |
| Base | ||||
| 14 | 300173 | 29.29 | 35.44 | |
| Ring | ||||
| 15 | 300166 | 1.05 | 1.27 | |
| Ball Bearing 6203ddcmps2l | ||||
| 16 | 6203DD | 7.65 | 9.26 | |
| Balance Weight | ||||
| 17 | 300321 | 13.15 | 15.91 | |
| COVER | ||||
| 18A | 300318 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 20 | 300091 | |||
| Spring Washer M5 (10 pieces) | ||||
| 21 | 949454 | 1.04 | 1.26 | |
| Machine Screw M5X14 (10 pieces) | ||||
| 22 | 949238 | 1.05 | 1.27 | |
| Tapping Screw (w/washer) D4x20 | ||||
| 23 | 982095 | 1.04 | 1.26 | |
| Handle Cover | ||||
| 24 | 300157 | 3.15 | 3.81 | |
| Socket | ||||
| 25 | 940811 | 1.20 | 1.45 | |
| Switch | ||||
| 26 | 957747 | 14.03 | 16.97 | |
| Switch (c) (1p Screw Type) | ||||
| 26 | 302477 | 10.95 | 13.25 | |
| Threaded cable sleeve | ||||
| 27 | 981373 | 1.05 | 1.27 | |
| connecting terminal | ||||
| 28 | 980063 | 1.04 | 1.26 | |
| Earth Terminal | ||||
| 29 | 992635 | 1.05 | 1.27 | |
| Connector 50091 (10 Pcs.) | ||||
| 30 | 959140 | 3.30 | 3.99 | |
| Noise Suppressor | ||||
| 31 | 994273 | 4.29 | 5.19 | |
| Holder | ||||
| 32 | 963243 | 1.05 | 1.27 | |
| Rubber | ||||
| 32 | 930153 | 1.04 | 1.26 | |
| Top Cover | ||||
| 33 | 300156 | 4.65 | 5.63 | |
| No information available, not orderable | ||||
| 34 | 300319 | |||
| MACHINE SCREW (+-HD.) M5X60 (OLD 300319) | ||||
| 34A | 375370 | 1.04 | 1.26 | |
| Carbon Brush (1 Pair) | ||||
| 35 | 999041 | 4.50 | 5.44 | |
| Carbon Brush Holder | ||||
| 36 | 930483 | 1.65 | 2.00 | |
| Housing | ||||
| 37 | 300154 | 13.80 | 16.70 | |
| No information available, not orderable | ||||
| 38A | 300184 | |||
| No information available, not orderable | ||||
| 39 | 313675 | |||
| No information available, not orderable | ||||
| 40 | 305775 | |||
| Internal wire | ||||
| 41 | 300175 | 1.50 | 1.82 | |
| Field 230-240v (old 340156g) | ||||
| 42 | 340156H | 32.18 | 38.93 | |
| No information available, not orderable | ||||
| 42A | 340719M | |||
| Ball Bearing 608vvc2ps2l | ||||
| 43 | 608VVM | 5.70 | 6.90 | |
| Hex. Hd. Tapping Screw D5x55 | ||||
| 44 | 953174 | 1.04 | 1.26 | |
| Fan Guide | ||||
| 45 | 300155 | 2.40 | 2.90 | |
| ARMATURE ASS'Y 110-115 VOLT (OLD 360124J) | ||||
| 46 | 360124U | 104.00 | 125.84 | |
| Armature 220v-230v | ||||
| 46 | 360124E | 102.16 | 123.62 | |
| RUBBER PIN (OLD 976441) | ||||
| 47 | 946362 | 1.05 | 1.27 | |
| Cord (cord Armor D8.8) For Mex | ||||
| 49 | 500240Z | 13.18 | 15.94 | |
| Cord (cord Armor D8.8) For Saf | ||||
| 49 | 500237Z | 11.40 | 13.79 | |
| Cord (cord Armor D8.8) For Pan | ||||
| 49A | 500447Z | 6.60 | 7.99 | |
| No information available, not orderable | ||||
| 49C | 500455Z | |||
| Threaded cable sleeve | ||||
| 50 | 981373 | 1.05 | 1.27 | |
| connecting terminal | ||||
| 51 | 980063 | 1.04 | 1.26 | |
| Tapping Screw (w/flange) D4x16 (black) | ||||
| 52A | 305812 | 1.04 | 1.26 | |
| Cord Clip | ||||
| 53 | 937631 | 1.04 | 1.26 | |
| Cord Armor D10.1 | ||||
| 54 | 938051 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 501 | 300056 | |||
| No information available, not orderable | ||||
| 501A | 300047 | |||
| No information available, not orderable | ||||
| 601 | 300054 | |||
| No information available, not orderable | ||||
| 601A | 300045 | |||
| No information available, not orderable | ||||
| 602 | 300055 | |||
| No information available, not orderable | ||||
| 602A | 300046 | |||
| No information available, not orderable | ||||
| 603 | 300057 | |||
| No information available, not orderable | ||||
| 603A | 300048 | |||
| No information available, not orderable | ||||
| 604 | 300058 | |||
| No information available, not orderable | ||||
| 604A | 300049 | |||
| No information available, not orderable | ||||
| 605 | 300059 | |||
| No information available, not orderable | ||||
| 605A | 300050 | |||
| No information available, not orderable | ||||
| 606 | 300060 | |||
| No information available, not orderable | ||||
| 606A | 300051 | |||
| No information available, not orderable | ||||
| 607 | 300061 | |||
| No information available, not orderable | ||||
| 607A | 300052 | |||
| No information available, not orderable | ||||
| 608 | 300062 | |||
| No information available, not orderable | ||||
| 608A | 300053 | |||
| No information available, not orderable | ||||
| 609 | 300072 | |||
| No information available, not orderable | ||||
| 609A | 300063 | |||
| No information available, not orderable | ||||
| 610 | 300073 | |||
| No information available, not orderable | ||||
| 610A | 300064 | |||
| No information available, not orderable | ||||
| 611 | 300074 | |||
| No information available, not orderable | ||||
| 611A | 300065 | |||
| No information available, not orderable | ||||
| 612 | 300075 | |||
| No information available, not orderable | ||||
| 612A | 300066 | |||
| No information available, not orderable | ||||
| 613 | 300076 | |||
| No information available, not orderable | ||||
| 613A | 300067 | |||
| No information available, not orderable | ||||
| 614 | 300077 | |||
| No information available, not orderable | ||||
| 614A | 300068 | |||
| No information available, not orderable | ||||
| 615 | 300078 | |||
| No information available, not orderable | ||||
| 615A | 300069 | |||
| No information available, not orderable | ||||
| 616 | 300079 | |||
| No information available, not orderable | ||||
| 616A | 300070 | |||
| No information available, not orderable | ||||
| 617 | 300080 | |||
| No information available, not orderable | ||||
| 617A | 300071 | |||
| No information available, not orderable | ||||
| 618 | 300083 | |||
| No information available, not orderable | ||||
| 619 | 302314 | |||
