Here you will find all available parts and drawings of the 'Hikoki SP18VB'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

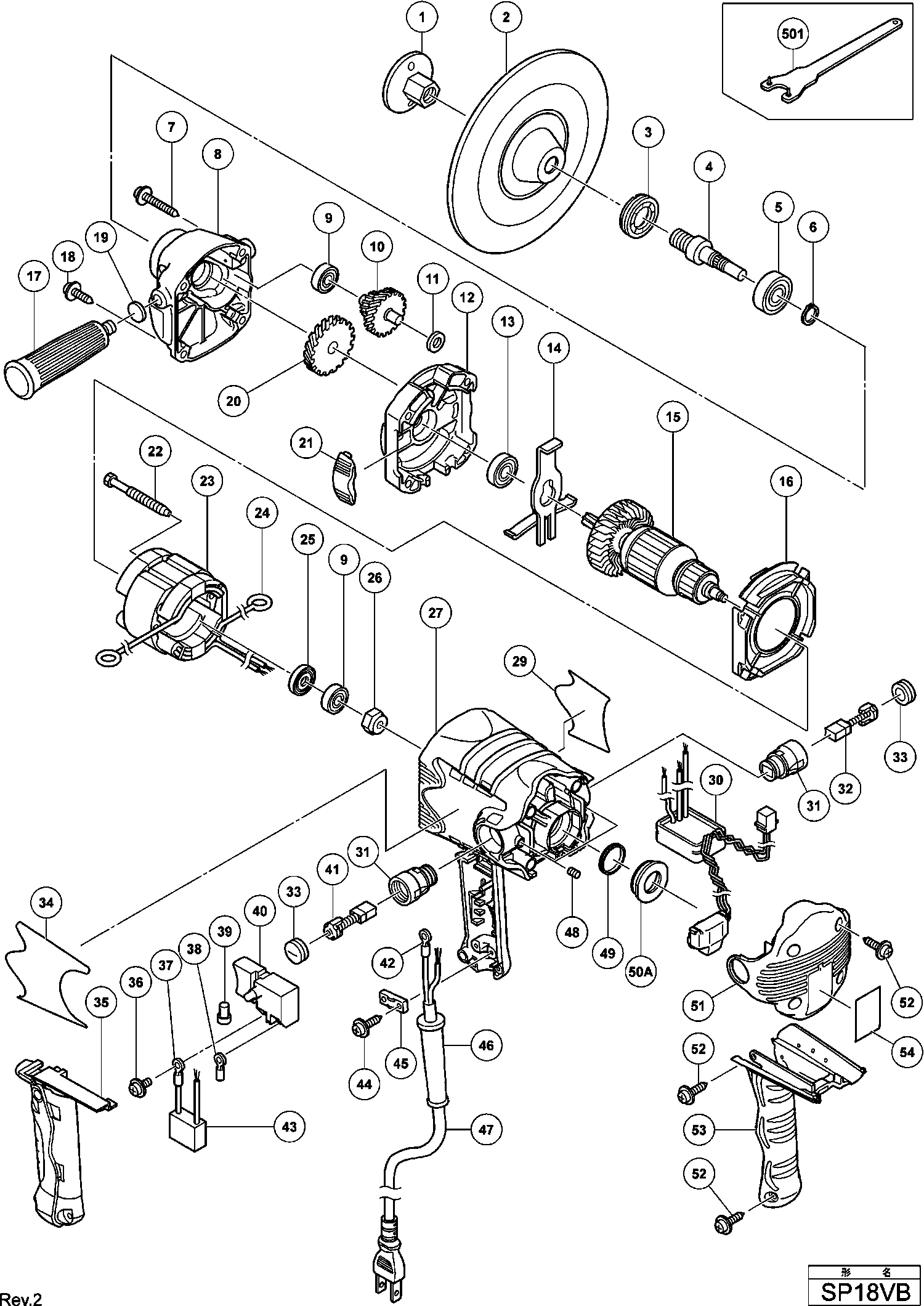

Technical drawing of model Hikoki SP18VB
Spare parts list of model Hikoki SP18VB
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 1 | 953381 | |||
| No information available, not orderable | ||||
| 2 | 953255 | |||
| Bearing Cap | ||||
| 3 | 325857 | 3.00 | 3.63 | |
| Spindle Ass'y | ||||
| 4 | 325485 | 5.10 | 6.17 | |
| Ball Bearing 6201ddcmps2l | ||||
| 5 | 6201DD | 6.30 | 7.62 | |
| Spring Washer D12 (10 pieces) | ||||
| 6 | 939542 | 1.50 | 1.82 | |
| No information available, not orderable | ||||
| 7 | 309778 | |||
| TANDWIELHUIS | ||||
| 8 | 325478 | 9.60 | 11.62 | |
| Ball Bearing 608vvc2ps2l | ||||
| 9 | 608VVM | 5.70 | 6.90 | |
| No information available, not orderable | ||||
| 10 | 325479 | |||
| No information available, not orderable | ||||
| 11 | 317906 | |||
| No information available, not orderable | ||||
| 12 | 325476 | |||
| Ball Bearing 6000ddcmps2l | ||||
| 13 | 6000DD | 6.00 | 7.26 | |
| Lock Lever | ||||
| 14 | 325477 | 1.95 | 2.36 | |
| No information available, not orderable | ||||
| 15 | 360755C | |||
| Fan Guide | ||||
| 16 | 325474 | 3.00 | 3.63 | |
| No longer available, no replacement | ||||
| 17 | 937089 | |||
| Tapping Screw (w/flange) D5x35 (black) | ||||
| 18 | 323209 | 1.35 | 1.63 | |
| Felt Washer | ||||
| 19 | 937033 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 20 | 325480 | |||
| Fan Guide | ||||
| 21 | 328483 | 4.35 | 5.26 | |
| No longer available, no replacement | ||||
| 22 | 992509 | |||
| No information available, not orderable | ||||
| 23 | 340653C | |||
| Brush Terminal | ||||
| 24 | 930703 | 2.40 | 2.90 | |
| Dust Seal | ||||
| 25 | 315877 | 1.05 | 1.27 | |
| Magnet | ||||
| 26 | 325475 | 4.65 | 5.63 | |
| Housing Handle Cover Set Includ.31,48-50a | ||||
| 27A | 370920 | 36.99 | 44.75 | |
| No information available, not orderable | ||||
| 30 | 325484 | |||
| Brush Holder | ||||
| 31 | 958900 | 6.45 | 7.80 | |
| Carbon Brush (auto Stop Type) (1 Pair) | ||||
| 32 | 999073 | 14.40 | 17.42 | |
| Brush Cap | ||||
| 33 | 945161 | 1.20 | 1.45 | |
| Machine Screw (w/washer) M3.5x6 | ||||
| 36 | 305499 | 1.05 | 1.27 | |
| connecting terminal | ||||
| 37 | 980063 | 1.04 | 1.26 | |
| Terminal | ||||
| 38 | 311741 | 1.04 | 1.26 | |
| Connector 50092 (10 Pcs.) | ||||
| 39 | 959141 | 3.75 | 4.54 | |
| Switch (a) (1p Plug In Type) W/o Lock Includ.36 | ||||
| 40 | 305409 | 5.70 | 6.90 | |
| Carbon Brush (1 Pair) | ||||
| 41 | 999043 | 4.50 | 5.44 | |
| connecting terminal | ||||
| 42 | 980063 | 1.04 | 1.26 | |
| Capacitor | ||||
| 43 | 311935 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 44 | 984750 | |||
| Cord Clip | ||||
| 45 | 937631 | 1.04 | 1.26 | |
| Cord Armor D10.1 | ||||
| 46 | 938051 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 47 | 323974 | |||
| Hex Adjustment Screw M5x8 | ||||
| 48 | 938477 | 1.05 | 1.27 | |
| Rubber Ring | ||||
| 49 | 995662 | 1.04 | 1.26 | |
| Bushing | ||||
| 50A | 330078 | 4.95 | 5.99 | |
| No information available, not orderable | ||||
| 51 | 325489 | |||
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 52 | 301653 | 1.04 | 1.26 | |
| Grip | ||||
| 53 | 325490 | 4.35 | 5.26 | |
| No information available, not orderable | ||||
| 54 | 325855 | |||
| No information available, not orderable | ||||
| 501 | 325491 | |||
| No information available, not orderable | ||||
| 501A | 376127 | |||
