Here you will find all available parts and drawings of the 'Hikoki SP18SB'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

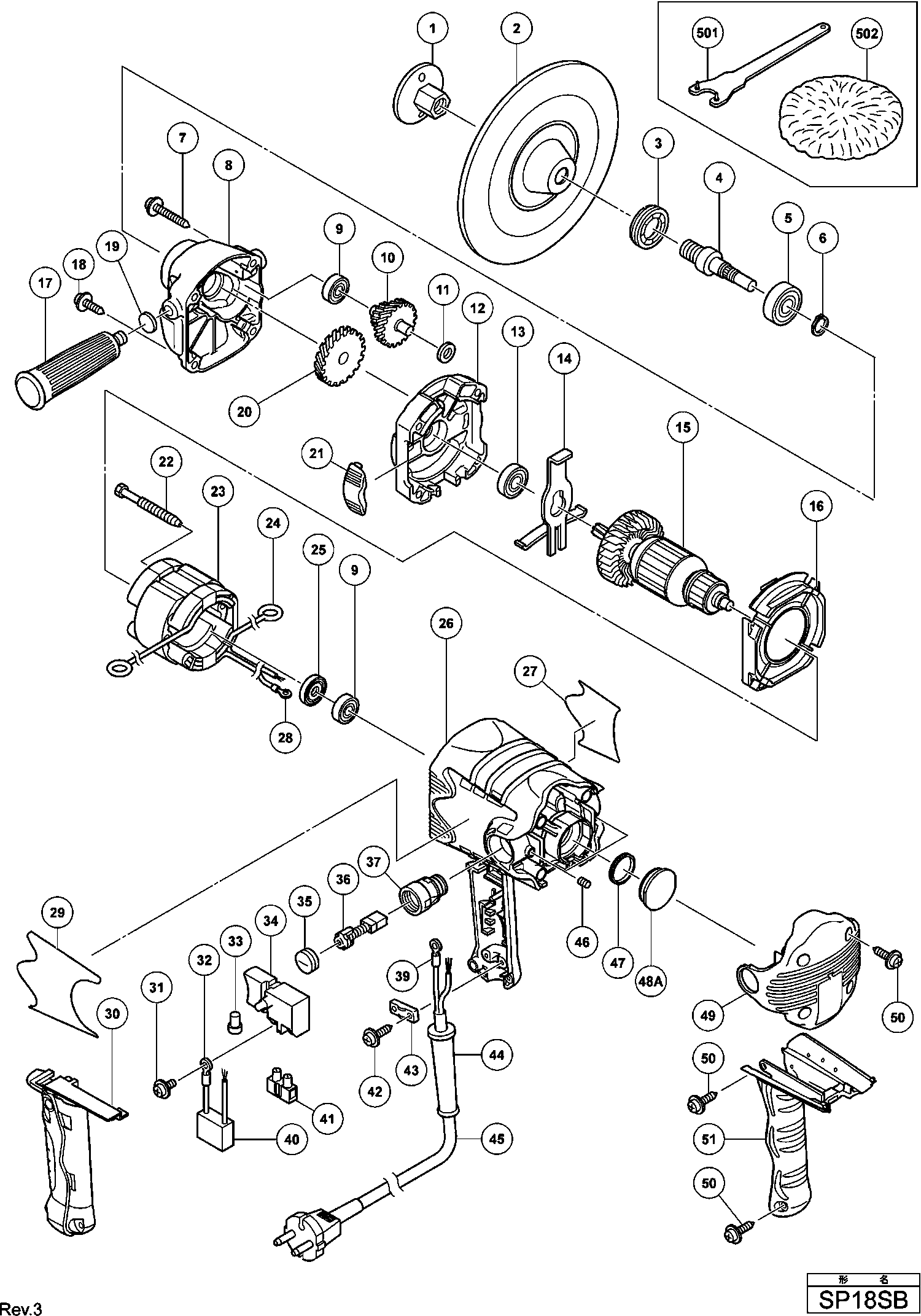

Technical drawing of model Hikoki SP18SB
Spare parts list of model Hikoki SP18SB
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| *1 | 953381 | |||
| Armature 230v | ||||
| *15 | 360757E | 55.00 | 66.55 | |
| No information available, not orderable | ||||
| *2 | 953255 | |||
| Stator 220v-230v | ||||
| *23 | 340655G | 38.64 | 46.75 | |
| Spindle Ass'y | ||||
| *4 | 325485 | 5.10 | 6.17 | |
| No longer available, no replacement | ||||
| *45 | 500423Z | |||
| No information available, not orderable | ||||
| 1 | 953381 | |||
| No information available, not orderable | ||||
| 2 | 953255 | |||
| Bearing Cap | ||||
| 3 | 325857 | 3.00 | 3.63 | |
| Spindle Ass'y | ||||
| 4 | 325485 | 5.10 | 6.17 | |
| Ball Bearing 6201ddcmps2l | ||||
| 5 | 6201DD | 6.30 | 7.62 | |
| Spring Washer D12 (10 pieces) | ||||
| 6 | 939542 | 1.50 | 1.82 | |
| No information available, not orderable | ||||
| 7 | 309778 | |||
| TANDWIELHUIS | ||||
| 8 | 325478 | 9.60 | 11.62 | |
| Ball Bearing 608vvc2ps2l | ||||
| 9 | 608VVM | 5.70 | 6.90 | |
| No information available, not orderable | ||||
| 10 | 325479 | |||
| No information available, not orderable | ||||
| 11 | 317906 | |||
| No information available, not orderable | ||||
| 12 | 325476 | |||
| Ball Bearing 6000ddcmps2l | ||||
| 13 | 6000DD | 6.00 | 7.26 | |
| Lock Lever | ||||
| 14 | 325477 | 1.95 | 2.36 | |
| Armature 230v | ||||
| 15 | 360757E | 55.00 | 66.55 | |
| Fan Guide | ||||
| 16 | 325474 | 3.00 | 3.63 | |
| No longer available, no replacement | ||||
| 17 | 937089 | |||
| Tapping Screw (w/flange) D5x35 (black) | ||||
| 18 | 323209 | 1.35 | 1.63 | |
| Felt Washer | ||||
| 19 | 937033 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 20 | 325480 | |||
| Fan Guide | ||||
| 21 | 328483 | 4.35 | 5.26 | |
| No longer available, no replacement | ||||
| 22 | 992509 | |||
| No information available, not orderable | ||||
| 23 | 340655F | |||
| Brush Terminal | ||||
| 24 | 930703 | 2.40 | 2.90 | |
| Dust Seal | ||||
| 25 | 315877 | 1.05 | 1.27 | |
| Housing Handle Cover Set Includ.37a,46-48a | ||||
| 26A | 370922 | 36.58 | 44.26 | |
| connecting terminal | ||||
| 28 | 980063 | 1.04 | 1.26 | |
| Machine Screw (w/washer) M3.5x6 | ||||
| 31 | 305499 | 1.05 | 1.27 | |
| connecting terminal | ||||
| 32 | 980063 | 1.04 | 1.26 | |
| Connector 50091 (10 Pcs.) | ||||
| 33 | 959140 | 3.30 | 3.99 | |
| Switch (a) (1p Plug In Type) W/o Lock Includ.36 | ||||
| 34 | 305409 | 5.70 | 6.90 | |
| Brush Cap | ||||
| 35 | 945161 | 1.20 | 1.45 | |
| Carbon Brush (1 Pair) | ||||
| 36 | 999043 | 4.50 | 5.44 | |
| No information available, not orderable | ||||
| 37A | 370926 | |||
| connecting terminal | ||||
| 39 | 980063 | 1.04 | 1.26 | |
| Noise Suppressor | ||||
| 40 | 930039 | 1.95 | 2.36 | |
| Pillar Terminal Till 10.1999 For Aus | ||||
| 41 | 938307 | 2.13 | 2.57 | |
| No information available, not orderable | ||||
| 42 | 984750 | |||
| Cord Clip | ||||
| 43 | 937631 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 44 | 953327 | |||
| No longer available, no replacement | ||||
| 45 | 500423Z | |||
| Hex Adjustment Screw M5x8 | ||||
| 46 | 938477 | 1.05 | 1.27 | |
| Rubber Ring | ||||
| 47 | 995662 | 1.04 | 1.26 | |
| Bushing | ||||
| 48A | 330079 | 4.95 | 5.99 | |
| Tail Cover | ||||
| 49 | 325494 | 4.35 | 5.26 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 50 | 301653 | 1.04 | 1.26 | |
| Grip | ||||
| 51 | 325490 | 4.35 | 5.26 | |
| No information available, not orderable | ||||
| 501 | 325491 | |||
| No information available, not orderable | ||||
| 501A | 376127 | |||
