Here you will find all available parts and drawings of the 'Hikoki SP18SA'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

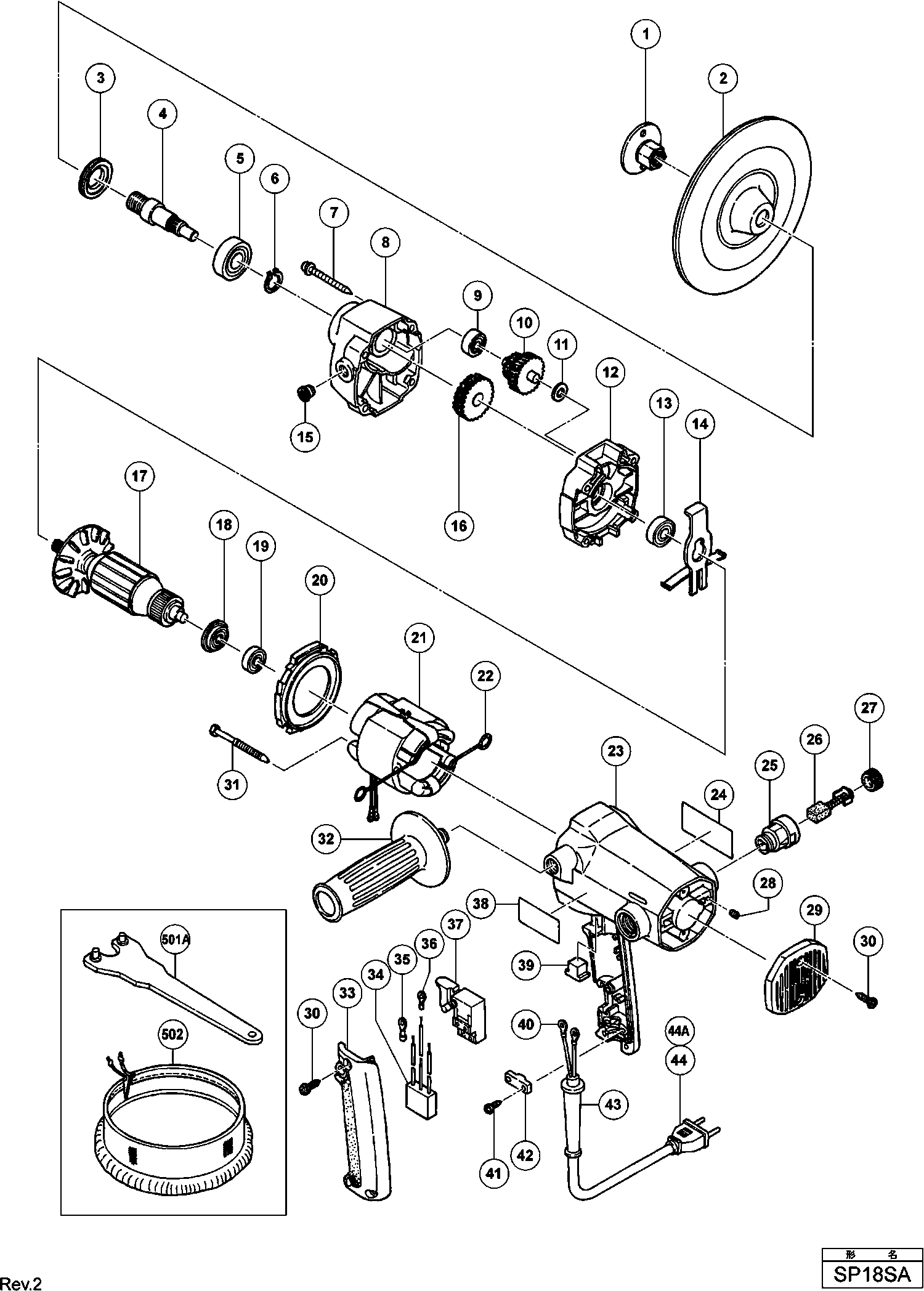

Technical drawing of model Hikoki SP18SA
Spare parts list of model Hikoki SP18SA
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| No information available, not orderable | ||||
| 1 | 953381 | |||
| No information available, not orderable | ||||
| 2 | 953255 | |||
| Bearing Cap | ||||
| 3 | 944005 | 3.30 | 3.99 | |
| No information available, not orderable | ||||
| 4 | 317910 | |||
| Ball Bearing 6201ddcmps2l | ||||
| 5 | 6201DD | 6.30 | 7.62 | |
| Spring Washer D12 (10 pieces) | ||||
| 6 | 939542 | 1.50 | 1.82 | |
| Tapping Screw (w/flange) D5x55 (black) | ||||
| 7 | 309778 | 1.05 | 1.27 | |
| No information available, not orderable | ||||
| 8 | 318016 | |||
| Ball Bearing 608vvc2ps2l | ||||
| 9 | 608VVM | 5.70 | 6.90 | |
| No information available, not orderable | ||||
| 10 | 317905 | |||
| No information available, not orderable | ||||
| 11 | 317906 | |||
| No information available, not orderable | ||||
| 12 | 317904 | |||
| Ball Bearing 6000ddcmps2l | ||||
| 13 | 6000DD | 6.00 | 7.26 | |
| Lock Lever | ||||
| 14 | 317890 | 7.05 | 8.53 | |
| No information available, not orderable | ||||
| 16 | 317907 | |||
| Armature 230v | ||||
| 17 | 360502E | 87.73 | 106.15 | |
| Dust Seal (1) | ||||
| 18 | 317889 | 1.05 | 1.27 | |
| Ball Bearing 608vvc2ps2l | ||||
| 19 | 608VVM | 5.70 | 6.90 | |
| No information available, not orderable | ||||
| 20 | 317888 | |||
| No information available, not orderable | ||||
| 21 | 340449H | |||
| Brush Terminal | ||||
| 22 | 930703 | 2.40 | 2.90 | |
| No information available, not orderable | ||||
| 23 | 317896 | |||
| Brush Holder | ||||
| 25 | 958900 | 6.45 | 7.80 | |
| Carbon Brush (1 Pair) | ||||
| 26 | 999043 | 4.50 | 5.44 | |
| Brush Cap | ||||
| 27 | 945161 | 1.20 | 1.45 | |
| Hex Adjustment Screw M5x8 | ||||
| 28 | 938477 | 1.05 | 1.27 | |
| Tail Cover | ||||
| 29 | 317894 | 1.05 | 1.27 | |
| Tapping Screw (w/flange) D4x20 (black) | ||||
| 30 | 302086 | 1.05 | 1.27 | |
| Hex. Hd. Tapping Screw D5x55 | ||||
| 31 | 953174 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 32 | 937981 | |||
| No information available, not orderable | ||||
| 33 | 317892 | |||
| Noise Suppressor | ||||
| 34 | 994273 | 4.29 | 5.19 | |
| Terminal | ||||
| 35 | 311741 | 1.04 | 1.26 | |
| Terminal 50051 (10 Pcs.) For Noise Suppressor Ass | ||||
| 36 | 959144 | 3.00 | 3.63 | |
| Switch (c) (1p Screw Type) | ||||
| 37 | 302477 | 10.95 | 13.25 | |
| No information available, not orderable | ||||
| 39 | 317893 | |||
| connecting terminal | ||||
| 40 | 980063 | 1.04 | 1.26 | |
| No information available, not orderable | ||||
| 41 | 984750 | |||
| Cord Clip | ||||
| 42 | 960266 | 1.04 | 1.26 | |
| Cord Armor D8.8 | ||||
| 43 | 380090 | 1.04 | 1.26 | |
| Cord Armor D10.1 | ||||
| 43 | 938051 | 1.04 | 1.26 | |
| Cord (cord Armor D8.8) For Mex | ||||
| 44 | 500240Z | 13.18 | 15.94 | |
| Cord (cord Armor D8.8) For Saf | ||||
| 44 | 500237Z | 11.40 | 13.79 | |
| No information available, not orderable | ||||
| 44A | 500470Z | |||
| No information available, not orderable | ||||
| 501A | 325491 | |||
| No information available, not orderable | ||||
| 502 | 949103 | |||
| No information available, not orderable | ||||
| 601 | 949103 | |||
