Here you will find all available parts and drawings of the 'Hikoki SF-HT'. From here you can order all desired parts directly.Many parts must be ordered from the manufacturer, depending on the brand, this takes 5 to 10 working days. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

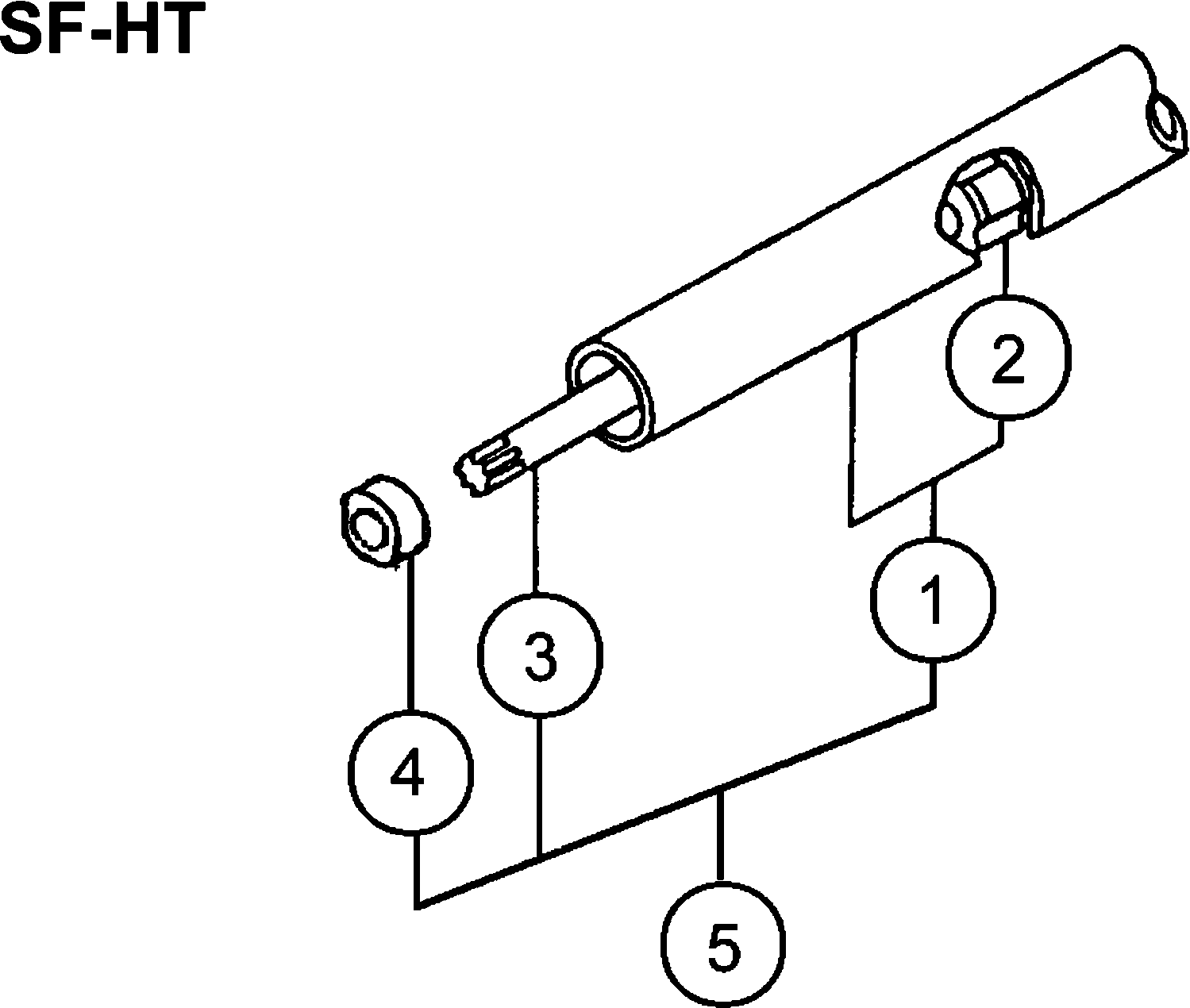

Technical drawing of model Hikoki SF-HT
Spare parts list of model Hikoki SF-HT
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Drive Shaft Pipe Comp 742l | ||||
| 1 | 6689302 | 28.14 | 34.05 | |
| No information available, not orderable | ||||
| 2 | 6684831 | |||
| Drive Shaft B 783l For (sl) | ||||
| 3 | 6684832 | 20.73 | 25.08 | |
| Bushing For (sl) | ||||
| 4 | 6684833 | 2.15 | 2.60 | |
| Main Pipe Ass'y | ||||
| 5 | 6699692 | 30.10 | 36.42 | |
| No information available, not orderable | ||||
| 21 | 6688653 | |||
| Ball bearing 6901ZZ/OD (old 999-61690-101/6695581) | ||||
| 22 | 6695582 | 9.74 | 11.78 | |
| Stop Ring S-12, Outer (old 993-52012-002) | ||||
| 23 | 6695302 | 1.15 | 1.39 | |
| Stop Ring C-24,inner | ||||
| 24 | 6684732 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 25 | 6698772 | |||
| STOP RING C-22, INNER (OLD 993-51022-002) | ||||
| 26 | 6695293 | 1.15 | 1.39 | |
| COMPLETE GREASE NIPPLE (OLD 300-32250-80) | ||||
| 27 | 6688643 | 1.15 | 1.39 | |
| Hex. Hole Bolt 5x10 | ||||
| 28 | 6695042 | 1.15 | 1.39 | |
| Hex. Hole Bolt M5x25/s | ||||
| 29 | 6684709 | 2.15 | 2.60 | |
| Hex. Hole Bolt 6x12 | ||||
| 30 | 6695078 | 1.15 | 1.39 | |
| Ring | ||||
| 31 | 6684822 | 2.15 | 2.60 | |
| Gear Case B | ||||
| 32 | 6695981 | 40.24 | 48.69 | |
| No information available, not orderable | ||||
| 33 | 6695528 | |||
| STOP RING C-26, INNER (OLD 993-51026-002) | ||||
| 34 | 6695294 | 1.15 | 1.39 | |
| Retaining Ring E-type D6 | ||||
| 35 | 6695310 | 1.15 | 1.39 | |
| Gear Case Cover (a) | ||||
| 36 | 6689167 | 1.15 | 1.39 | |
| Hex Hole Bolt 4x8 | ||||
| 37 | 6695035 | 1.15 | 1.39 | |
| No information available, not orderable | ||||
| 38 | 6698772 | |||
| STOP RING C-22, INNER (OLD 993-51022-002) | ||||
| 39 | 6695293 | 1.15 | 1.39 | |
| Handle | ||||
| 40 | 6688089 | 4.45 | 5.38 | |
| Hex Hole Button Screw 6x15 | ||||
| 41 | 6695079 | 1.15 | 1.39 | |
| Grease Stop | ||||
| 42 | 6686669 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 43 | 6696411 | |||
| Handle Knob A Comp. (old 512-32286-80) | ||||
| 44 | 6691200 | 3.30 | 3.99 | |
| Plus Bolt 6x14 | ||||
| 45 | 6695016 | 1.15 | 1.39 | |
| Hex.nut 6 | ||||
| 46 | 6684835 | 2.15 | 2.60 | |
| Lock Nut 6 Ups-p | ||||
| 46A | 6695175 | 1.15 | 1.39 | |
| Support Plate | ||||
| 47 | 6690744 | 11.23 | 13.58 | |
| Grease Stop | ||||
| 48 | 6686659 | 1.15 | 1.39 | |
| Ring | ||||
| 49 | 6684639 | 2.15 | 2.60 | |
| No longer available, no replacement | ||||
| 61 | 6686790 | |||
| Cam rod (old 101-33160-22/6686808) | ||||
| 62 | 6686809 | 5.94 | 7.18 | |
| Cam-rod Guide Plate (old 075-32280-20) | ||||
| 63 | 6686611 | 1.15 | 1.39 | |
| Cutter Guide 625.5mm (old 122-32286-21) | ||||
| 64 | 6687125 | 24.20 | 29.28 | |
| Cutter (a) | ||||
| 65 | 6687079 | 46.29 | 56.01 | |
| Bolt | ||||
| 66 | 6687158 | 1.15 | 1.39 | |
| No longer available, no replacement | ||||
| 67 | 6687187 | |||
| Flange nut | ||||
| 68 | 6695170 | 1.15 | 1.39 | |
| Flange nut | ||||
| 68A | 6695170 | 1.15 | 1.39 | |
| Hex Hole Flush Screw 6x16 | ||||
| 69 | 6695073 | 1.15 | 1.39 | |
| Grease Stop | ||||
| 70 | 6686647 | 1.15 | 1.39 | |
| Cam-rod Holding Plate (old 105-32280-20) | ||||
| 71 | 6686826 | 1.15 | 1.39 | |
| Gear Case Cover B | ||||
| 72 | 6689172 | 16.34 | 19.77 | |
| Ball Bearing 608 Zz C3 | ||||
| 73 | 6695547 | 3.30 | 3.99 | |
| Hex. Hole Bolt 4x10s | ||||
| 74 | 6695484 | 1.15 | 1.39 | |
| Hex. Socket Hd. Bolt (w/sp.washer) M4x12 | ||||
| 75 | 6684595 | 2.15 | 2.60 | |
| Cutter Cover | ||||
| 76 | 6687301 | 8.41 | 10.18 | |
| No longer available, no replacement | ||||
| 77 | 6687162 | |||
| Hex. Hole Flush Bolt 6x25 | ||||
| 78 | 6695075 | 1.15 | 1.39 | |
| Grease Stop | ||||
| 79 | 6686666 | 1.15 | 1.39 | |
| Spacer | ||||
| 80 | 6688633 | 1.15 | 1.39 | |
| Lock Nut 6 Ups-p | ||||
| 81 | 6695175 | 1.15 | 1.39 | |
| Ring | ||||
| 82 | 6684639 | 2.15 | 2.60 | |
| Symbol Mark Sf?ht | ||||
| 601 | 6694706 | 2.10 | 2.54 | |
