Here you will find all available parts and drawings of the 'Hikoki SF-GT'. From here you can order all desired parts directly. Many parts must be ordered from the manufacturer, depending on the brand, this takes one to four weeks. All the information we have is on our website, we cannot advise you on what you need, for that you will need to return the machine for repair. Please note the following when ordering:

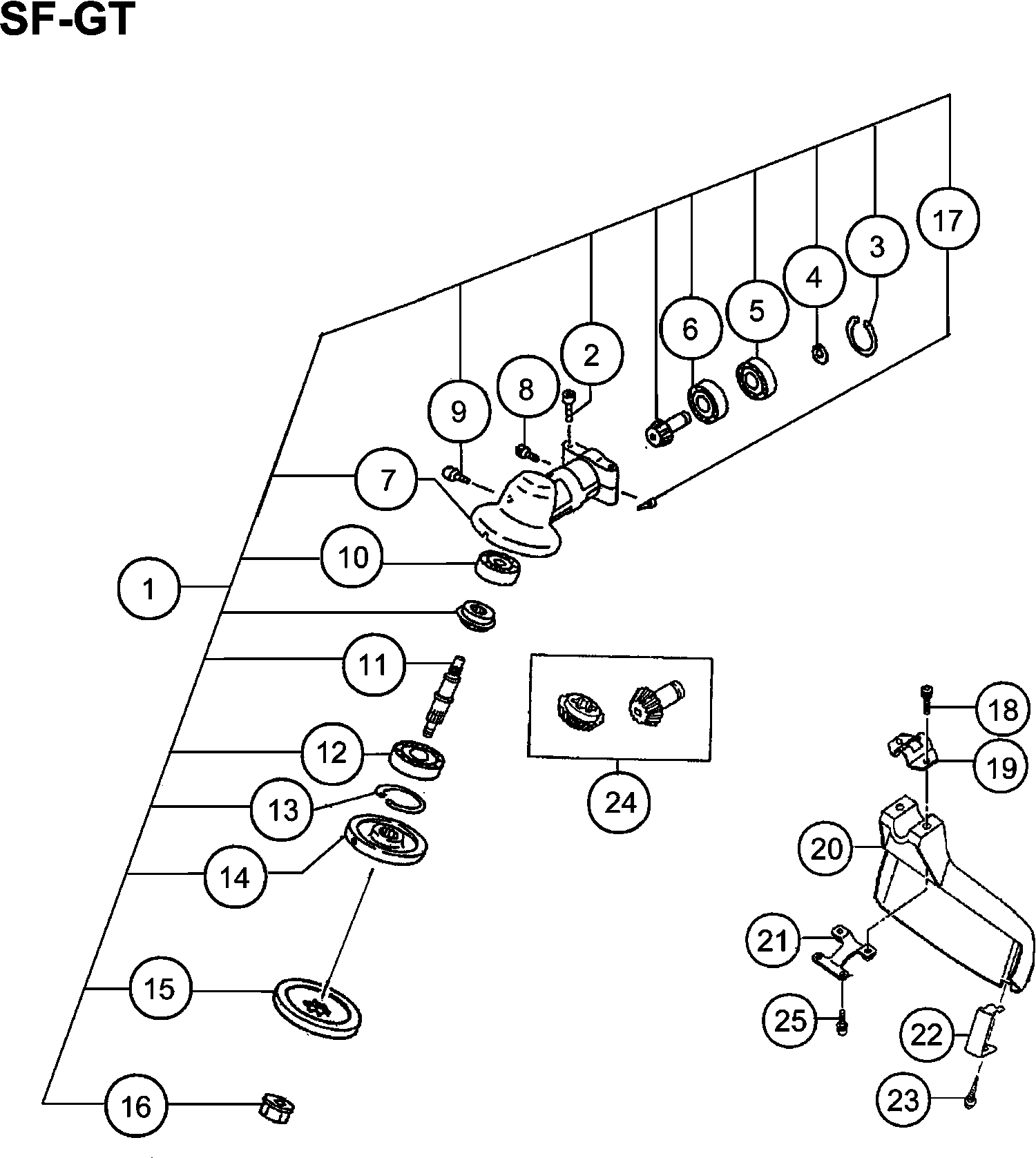

Technical drawing of model Hikoki SF-GT
Spare parts list of model Hikoki SF-GT
| Pos. | Description | Price excl. VAT | Price incl. VAT | |
| Prices shown include VAT | ||||
| Gear Cover | ||||
| 1 | 6688797 | 90.45 | 109.44 | |
| Hex. Hole Bolt M5x25/s | ||||
| 2 | 6684709 | 2.15 | 2.60 | |
| STOP RING C-22, INNER (OLD 993-51022-002) | ||||
| 3 | 6695293 | 1.15 | 1.39 | |
| Stop Ring Outer 10 | ||||
| 4 | 6695315 | 1.15 | 1.39 | |
| Ball Bearing | ||||
| 5 | 6695579 | 5.78 | 6.99 | |
| Ball Bearing 6900 | ||||
| 6 | 6695577 | 6.60 | 7.99 | |
| Gear Case 24 | ||||
| 7 | 6688808 | 15.88 | 19.21 | |
| Hex.hole Bolt M5x12/s | ||||
| 8 | 6684667 | 2.15 | 2.60 | |
| Oiling Bolt | ||||
| 9 | 6689109 | 1.15 | 1.39 | |
| Ball Bearing 609 | ||||
| 10 | 6684734 | 8.58 | 10.38 | |
| Gear Shaft For Aus | ||||
| 11 | 6688924 | 18.15 | 21.96 | |
| Ball Bearing 6201d | ||||
| 12 | 6695554 | 5.94 | 7.18 | |
| Stop Ring inside C-32 old part no. 993-51032-00 | ||||
| 13 | 6695295 | 1.15 | 1.39 | |
| Cutter Holder | ||||
| 14 | 6689032 | 11.71 | 14.17 | |
| Cutter Holder Cap For Aus | ||||
| 15 | 6689055 | 5.11 | 6.19 | |
| Fixing Nut M10x1.25 Till 9.2015 | ||||
| 16 | 6689073 | 4.63 | 5.60 | |
| Ring | ||||
| 17 | 6689159 | 1.15 | 1.39 | |
| HEX. HOLE BUTTON SCREW 6X25S (OLD 994-81060-254) | ||||
| 18 | 6684714 | 2.15 | 2.60 | |
| SAFETY GUARD BRACKET (OLD 442-37417-20) | ||||
| 19 | 6685065 | 2.31 | 2.80 | |
| Guard 24 Dia. For Aus (sl) | ||||
| 20 | 6690272 | 13.20 | 15.97 | |
| Guard Holder | ||||
| 21 | 6690343 | 3.30 | 3.99 | |
| Blade (old 797-38150-20) | ||||
| 22 | 6693388 | 6.28 | 7.59 | |
| Tapping Screw 5x20 For Aus (sl) | ||||
| 23 | 6684753 | 2.15 | 2.60 | |
| Gear Pinion Set Spare | ||||
| 24 | 6688882 | 18.15 | 21.96 | |
| Hex.hole Bolt M5x12/s | ||||
| 25 | 6684667 | 2.15 | 2.60 | |
| Drive Shaft Comp | ||||
| 31 | 6697838 | 20.11 | 24.34 | |
| Bush Ass'y | ||||
| 32 | 6697839 | 4.29 | 5.19 | |
| Drive Shaft B 783l For (sl) | ||||
| 33 | 6684832 | 20.73 | 25.08 | |
| Bushing For (sl) | ||||
| 34 | 6684833 | 2.15 | 2.60 | |
| Main Pipe Ass'y | ||||
| 35 | 6699353 | 28.89 | 34.95 | |
| No information available, not orderable | ||||
| 501 | 6695784 | |||
| Mounting Nut L-m8x1.25 (old 356-3383e-20) | ||||
| 502 | 6689624 | 7.75 | 9.38 | |
| Mounting Nut L-m10x1.25 Till Tl060520 | ||||
| 503 | 6684756 | 9.08 | 10.98 | |
| Cutting Body Till Tl060520 | ||||
| 504 | 6684757 | 22.69 | 27.45 | |
| Special Nut Till Tl060520 | ||||
| 505 | 6684758 | 9.40 | 11.37 | |
| Reel Spring Till Tl060520 | ||||
| 506 | 6684759 | 4.29 | 5.19 | |
| Spool Till Tl060520 | ||||
| 507 | 6684760 | 15.58 | 18.85 | |
| Cutting Body Cap Till Tl060520 | ||||
| 508 | 6684761 | 36.15 | 43.74 | |
| Eyelet Till Tl060520 | ||||
| 509 | 6684762 | 4.29 | 5.19 | |
| Winding Protector Till Tl043660 | ||||
| 510 | 6684763 | 4.29 | 5.19 | |
| Sure Tap Manual P/l 9 Till Tl060520 | ||||
| 511 | 6697805 | 1.98 | 2.39 | |
| Nylon Cord Cutter Since Tl060521 | ||||
| 521 | 6601148 | 19.21 | 23.25 | |
| Case Since Tl060521 | ||||
| 522 | 6601149 | 10.73 | 12.98 | |
| Nut (1) | ||||
| 523 | 6601150 | 6.93 | 8.38 | |
| Reel Spring Since Tl060521 | ||||
| 524 | 6693380 | 3.30 | 3.99 | |
| Line Holder Since Tl060521 | ||||
| 525 | 6601151 | 7.59 | 9.18 | |
| Cover | ||||
| 526 | 6601152 | 7.75 | 9.38 | |
| Eyelet Since Tl060521 | ||||
| 527 | 6684810 | 2.15 | 2.60 | |
| No information available, not orderable | ||||
| 601 | 6699695 | |||
